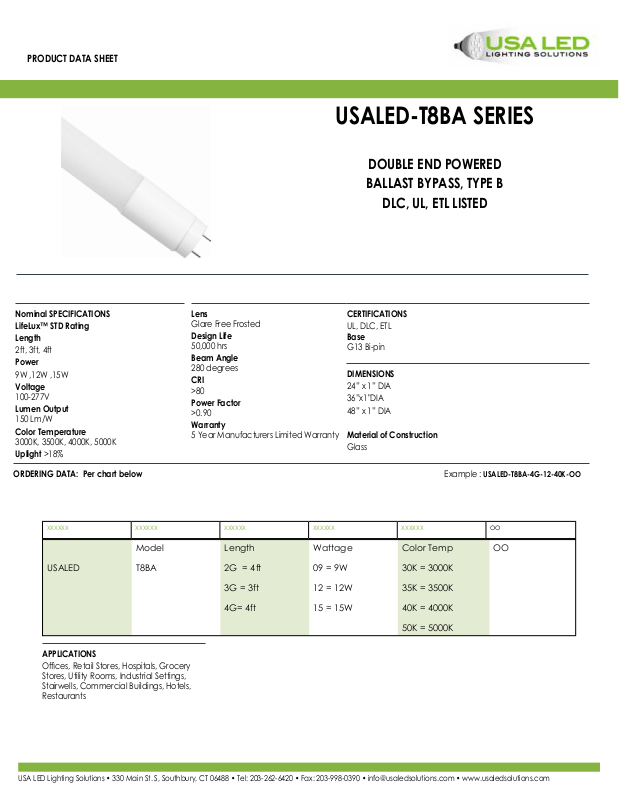

PRODUCT DATA SHEET

USALED-T8BA SERIES

DOUBLE END POWERED

BALLAST BYPASS, TYPE B

DLC, UL, ETL LISTED

Nominal SPECIFICATIONS
LifeLux™ STD Rating
Length

2ft, 3ft, 4ft

Power

9W ,12W ,15W

Voltage

100-277V

Lumen Output
150 Lm/W

Color Temperature

3000K, 3500K, 4000K, 5000K

Uplight >18%

ORDERING DATA: Per chart below

XXXXXX XXXXXX XXXXXX XXXXXX XXXXXX OO

Model Length Wattage Color Temp OO

USALED T8BA 2G = 4ft

Lens

Glare Free Frosted

Design Life

50,000 hrs

Beam Angle

280 degrees

CRI

>80

Power Factor

>0.90

Warranty

5 Year Manufacturers Limited Warranty

09 = 9W

3G = 3ft

12 = 12W

CERTIFICATIONS

UL, DLC, ETL

Base

G13 Bi-pin

DIMENSIONS

24” x 1” DIA
36”x1"DIA
48” x 1” DIA

Material of Construction

Glass

Example : USALED-T8BA-4G-12-40K-OO

30K = 3000K

35K = 3500K

4G= 4ft

APPLICATIONS

Ofces, Retail Stores, Hospitals, Grocery
Stores, Utility Rooms, Industrial Settings,
Stairwells, Commercial Buildings, Hotels,
Restaurants

USA LED Lighting Solutions • 330 Main St. S, Southbury, CT 06488 • Tel: [phone] • Fax: [phone] • [email protected] • www.usaledsolutions.com

15 = 15W

40K = 4000K

50K = 5000K
