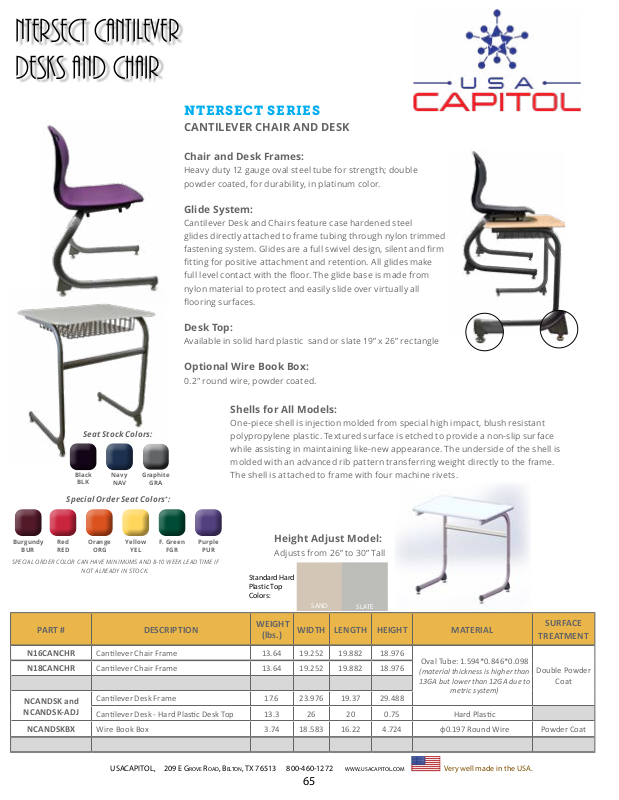

Page 1

ntersect cantilever Desks and chair

NTERSECT SERIES

CANTILEVER CHAIR AND DESK

Chair and Desk Frames:

Heavy duty 12 gauge oval steel tube for strength; double powder coated, for durability, in platinum color.

Glide System:

Cantilever Desk and Chairs feature case hardened steel glides directly attached to frame tubing through nylon trimmed

fastening system. Glides are a full swivel design, silent and rm tting for positive attachment and retention. All glides make full level contact with the oor. The glide base is made from

nylon material to protect and easily slide over virtually all

ooring surfaces.

Desk Top:

Available in solid hard plastic sand or slate 19” x 26” rectangle

Optional Wire Book Box:

0.2" round wire, powder coated.

Seat Stock Colors:

Black

BLK

Special Order Seat Colors*:

Burgundy

BUR

SPECIA L ORDER CO LOR CA N HAVE MI NIMUM S AND 8-10 WEEK L EAD T IME IF

Red RED

Navy

Orange

ORG

TEXTURED

BLACK

NOT ALR EADY IN S TOCK .

NAV

Yell ow

YEL

Graphite

GRA

F. Gr een

FGR

Purple

PUR

PART # DESCRIPTION

N16CANCHR

N18CANCHR

NCANDSK and NCANDSK-ADJ

NCANDSKBX

Canlever Chair Frame 13.64 19.252 19.882 18.976

Canlever Desk Frame 17. 6 23.976 19.37 29.48 8

Canlever Desk - Hard Plasc Desk Top 13.3 26 20 0.75 Hard Plasc

Wire Book Box 3.74 18.583 16.22 4.724 φ0.197 Round Wire Powder Coat

Shells for All Models:

One-piece shell is injection molded from special high impact, blush resistant polypropylene plastic. Textured surface is etched to provide a non-slip surface while assisting in maintaining like-new appearance. The underside of the shell is molded with an advanced rib pattern transferring weight directly to the frame. The shell is attached to frame with four machine rivets.

Height Adjust Model:

Adjusts from 26” to 30” Tall

Standard Hard Plastic Top Colors:

WEIGHT

(lbs.)

SAND

SLATE

WIDTH LENGTH HEIGHT MATERIAL

Oval Tube: 1.594*0.846*0.098

(material thickness is higher than 13GA but lower than 12GA due to

metric system)

SURFACE

TREATMENT

Double Powder

Coat

USACAPITOL, 209 E GrOvE rOAd, BELTOn, TX 76513 800-460-1272 www.USACAPITOL.COm Very well made in the USA.
