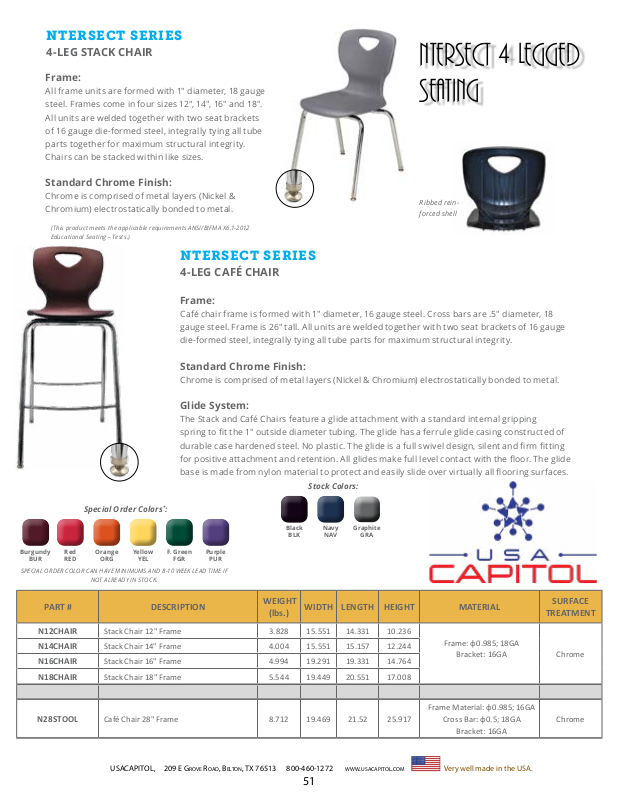

Page 1
NTERSECT SERIES
4-LEG STACK CHAIR
Frame:
All frame units are formed with 1" diameter, 18 gauge
steel. Frames come in four sizes 12", 14", 16" and 18".
All units are welded together with two seat brackets
of 16 gauge die-formed steel, integrally tying all tube
parts together for maximum structural integrity.
Chairs can be stacked within like sizes.
Standard Chrome Finish:
Chrome is comprised of metal layers (Nickel &
Chromium) electrostatically bonded to metal.
(This product meets the applicable requirements ANSI/BIFMA X6.1-2012
Educational Se ating – Tes ts.)
NTERSECT SERIES
4-LEG CAFÉ CHAIR
Frame:
Café chair frame is formed with 1" diameter, 16 gauge steel. Cross bars are .5" diameter, 18
gauge steel. Frame is 26" tall. All units are welded together with two seat brackets of 16 gauge
die-formed steel, integrally tying all tube parts for maximum structural integrity.
ntersect 4 legged Seating
Ribbed rein-
forced shell
Standard Chrome Finish:
Chrome is comprised of metal layers (Nickel & Chromium) electrostatically bonded to metal.
Glide System:
The Stack and Café Chairs feature a glide at tachment with a standard internal gripping
spring to t the 1" outside diameter tubing. The glide has a ferrule glide casing constructed of
durable case hardened steel. No plastic. The glide is a full swivel design, silent and rm tting
for positive attachment and retention. All glides make full level contact with the oor. The glide
base is made from nylon material to protect and easily slide over virtually all ooring sur faces.
Special Order Colors*:
Burgundy
BUR
SPECIA L ORDER COLOR CAN HAV E MINIMU MS AND 8-10 WEEK LEAD TI ME IF
Red
RED
Orange
NOT ALREADY IN STOCK.
ORG
Yell ow
YEL
F. Gr een
FGR
Purple
PUR
PART # DESCRIPTION
N12CHAIR
N14CHAIR
N16CHAIR
N18CHAIR
Stack Chair 12" Frame 3.828 15. 551 14.3 31 10.236
Stack Chair 14" Frame 4.004 15. 551 15.157 12.24 4
Stack Chair 16" Frame 4.994 19.291 19.331 14.76 4
Stack Chair 18 " Frame 5.544 19.449 20.551 1 7.008
Black
BLK
WEIGHT
(lbs.)
Stock Colors:
NAV
Graphite
GRA
Navy
WIDTH LENGTH HEIGHT MATERIAL
Frame: φ0.985; 18GA
Bracket: 16GA Chrome
SURFACE
TREATMENT
N28STOOL
Frame Material: φ0.985; 16GA
Café Chair 28" Frame 8.712 19.469 21.52 25.917
USACAPITOL, 209 E GrOvE rOAd, BELTOn, TX 76513 800-460-1272 www.USACAPITOL.COm Very well made in the USA.
Cross Bar: φ0.5; 18GA
Bracket: 16GA
51
Chrome
