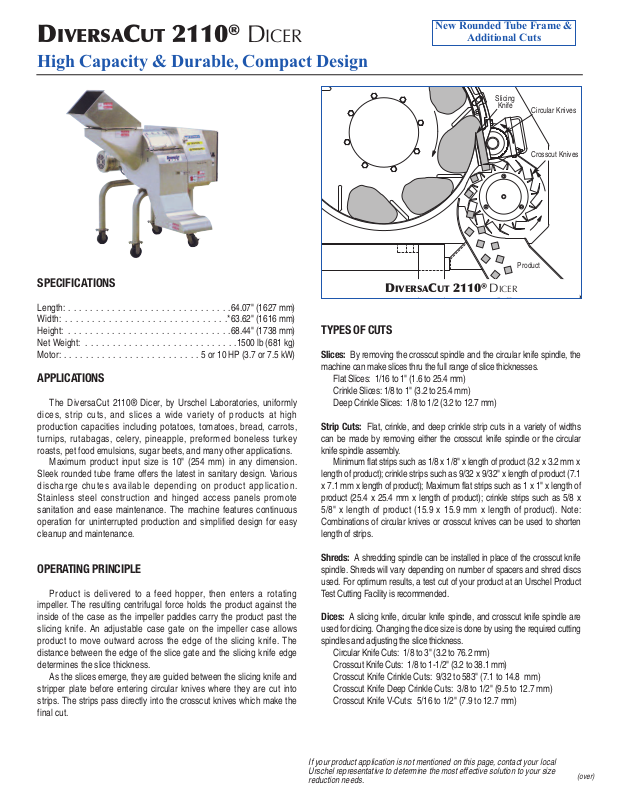

DIVERSACUT 2110® DICER

High Capacity & Durable, Compact Design

New Rounded Tube Frame &

dditional Cuts

A

Slicing

Knife

Circular Knives

Crosscut Knives

Product

SPECIFICATIONS

Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64.07" (1627 mm)

Width: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .*63.62" (1616 mm)

Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68.44" (1738 mm)

Net Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . .1500 lb (681 kg)

Motor: . . . . . . . . . . . . . . . . . . . . . . . . . 5 or 10 HP (3.7 or 7.5 kW)

APPLICATIONS

The DiversaCut 2110® Dicer, by Urschel Laboratories, uniformly
dices , s trip cu ts, and slices a wide va riet y o f produ cts at hig h
production capacities including potatoes, tomatoes, bread, carrots,
turnips, rutabagas, celery, pineapple, preformed boneless turkey
roasts, pet food emulsions, sugar beets, and many other applications.

Maximum product input size is 10" (254 mm) in any dimension.
Sleek rounded tube frame offers the latest in sanitary design. Various
di scha r ge c hute s ava ilab l e de pend i ng o n pr oduct app licat ion.
Stainles s ste el co nstructio n and hing ed ac cess panels promote
sanitation and ease maintenance. The machine features continuous
operation for uninterrupted production and simplified design for easy
cleanup and maintenance.

OPERATING PRINCIPLE

Product is delivere d to a feed hopper, then ente rs a rotating
impeller. The resulting centrifugal force holds the product against the
inside of the case as the impeller paddles carry the product past the
slicing knife. An adjustable case gate on the impeller case allows
product to move outward across the edge of the slicing knife. The
distance between the edge of the slice gate and the slicing knife edge
determines the slice thickness.

As the slices emerge, they are guided between the slicing knife and
stripper plate before entering circular knives where they are cut into
strips. The strips pass directly into the crosscut knives which make the
final cut.

DIVERSACUT 2110® DICER

TYPES OF CUTS

Slices: By removing the crosscut spindle and the circular knife spindle, the

machine can make slices thru the full range of slice thicknesses.

Flat Slices: 1/16 to 1" (1.6 to 25.4 mm)
Crinkle Slices: 1/8 to 1" (3.2 to 25.4 mm)
Deep Crinkle Slices: 1/8 to 1/2 (3.2 to 12.7 mm)

Strip Cuts: Flat, crinkle, and deep crinkle strip cuts in a variety of widths
can be made by removing either the crosscut knife spindle or the circular
knife spindle assembly.

Minimum flat strips such as 1/8 x 1/8" x length of product (3.2 x 3.2 mm x
length of product); crinkle strips such as 9/32 x 9/32" x length of product (7.1
x 7.1 mm x length of product); Maximum flat strips such as 1 x 1" x length of
product (25.4 x 25.4 mm x length of product); crinkle strips such as 5/8 x
5/8" x length of product (15.9 x 15.9 mm x length of product). Note:
Combinations of circular knives or crosscut knives can be used to shorten
length of strips.

Shreds: A shredding spindle can be installed in place of the crosscut knife
spindle. Shreds will vary depending on number of spacers and shred discs
used. For optimum results, a test cut of your product at an Urschel Product
Test Cutting Facility is recommended.

Dices: A slicing knife, circular knife spindle, and crosscut knife spindle are
used for dicing. Changing the dice size is done by using the required cutting
spindles and adjusting the slice thickness.

Circular Knife Cuts: 1/8 to 3" (3.2 to 76.2 mm)

Crosscut Knife Cuts: 1/8 to 1-1/2" (3.2 to 38.1 mm)

Crosscut Knife Crinkle Cuts: 9/32 to 583" (7.1 to 14.8 mm)

Crosscut Knife Deep Crinkle Cuts: 3/8 to 1/2" (9.5 to 12.7 mm)

Crosscut Knife V-Cuts: 5/16 to 1/2" (7.9 to 12.7 mm)

If your product application is not mentioned on this page, contact your local
Urschel representative to determine the most effective solution to your size
reduction needs.

(over)

DIVERSACUT 2110® DICER

Dimensional Drawing

*Various discharge chutes are available. Machine width varies depending on style of
discharge chute. Discharge chute in this drawing displays the maximum machine
width.

Your Product Can Be Test Cut

Urschel Laboratories has a complete network of test facilities and
experienced service and sales representatives around the world
ready to work for you on any size reduction application. Contact
your local Urschel Laboratories’ representative to schedule a com­prehensive, no-obligation test today at www.urschel.com.

®DiversaCut, DiversaCut 2110, andUrschel are registered trademarks of Urschel Laboratories, Inc.

L2220 MAR 2009 (s.s. L2133)
