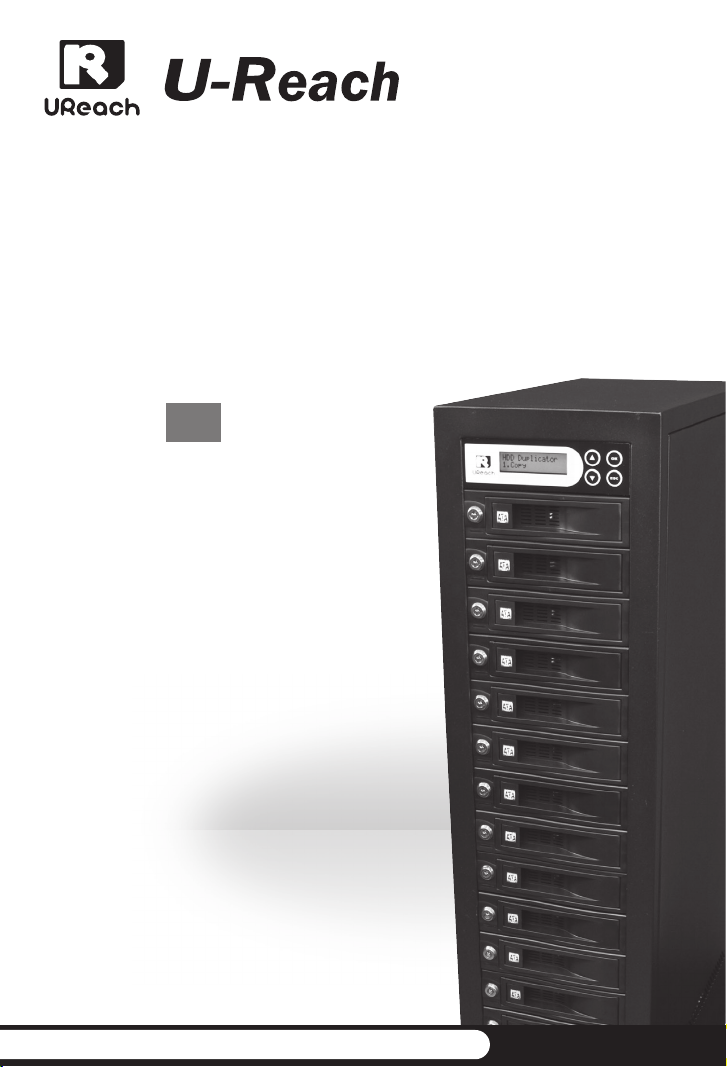

SUPER 1
Hard Drive Duplicator
User Guide
V1.0
EN
The Duplication Expert
www.ureach-inc.com
Disclaimer of Warranties
Disclaimer of Warranties
All U-Reach duplicators are made specifically for data backup with legal authorities
from copyright owners. Any unauthorized action of copyright is strictly prohibited, and
U-Reach-Inc. disclaims all warranties or representations of illegal actions by users.
U-Reach-Inc. also disclaims any liability for any of losses or damages due to not being
able to perform its undertakings or provide any of the services attributed to any events or
circumstances beyond our control. Users agree and accept all statements above as soon
as purchasing our products.
This manual contains materials that should be intended for personal use. All rights
reserved. No part of this manual may be reproduced, transmitted, or transcribed without
the expressed written permission of the manufacturer. The information present in this
manual is subject to change without prior notice.
2
Before you start
Important Notice
• Read the complete operation instructions carefully. This contributes to better
operation.
• Make sure the source device is correct and workable.
• To guarantee data consistency, it is strongly suggested that the capacity of the source
and targets are the same.
• It is strongly suggest to use “Copy + Compare” to achieve a perfect duplication.
Safety Precautions
• The warranty will expire if damage is incurred resulting from non-compliance with
theses operating instructions.
• Please turn off the power before replacing the socket.
• Never turn off the power while processing the firmware update.
• Use only approved power sources.
• The product is only suitable for operation in a dry, dust free, clean environment.
• Do not allow liquids or foreign objects to enter. Failure to do so may severely damage
your duplicator.
3
Index Content
Disclaimer of Warranties 2
Important Notice 3
Safety Precautions 3
Index Content 4
Chapter 1 - Product Introduction
1. Features 5
2. Product Overview 5
A. System Overview 5
B. LCD Configuration 6
C. LED Light Display 6
3. Package Contents 6
4. Function Table 7
Chapter 2 - Function Introduction
1. Copy 8
2. Compare 8
3. Copy & Compare 8
4. Erase 8
4.1 Quick Erase 9
4.2 Full Erase 9
4.3 DoD Erase 9
4.4 DoD Erase Comp 11
5. Utility 11
5.1 Show HDD Info. 11
5.2 Update System 12
5.3 System Info. 13
6. Setup 13
6.1 Copy Area 13
6.1.1 System and Files 13
6.1.2 All Partitions 14
6.1.3 Whole HDD 14
6.2 Skip Error 15
6.3 Erase Master 15
6.4 Unknown Format 15
6.4.1 Copy unknown 15
6.4.2 Skip unknown 16
6.5 Transfer Rate 16
6.6 Erase Pattern 16
6.6.1 ONE Byte 16
6.6.2 4MB Byte 16
6.7 Language 16
6.8 Advanced Setup 17
6.8.1 Wait HDD Time 17
6.8.2 Lock Key 17
6.9 Restore Default 17
Chapter 3 - Specification
Specification 18
4
Product Introduction
Chapter 1 - Product Introduction
1. Features
• New generation of HDD tower duplicators with Free-Chain technology.
• With the specially designed HDD rack plus Free-Chain technology, the Super 1 Series
can connect 100 HDDs at maximum.
• Each rack has its own independent controller which means the Super 1 Series can
duplicate lots of targets at one time without slowing down the speed.
• Supports high copying speeds up to 6GB/minute.
• Has clear & independent LED light indication. No more confusion about the working
status.
• The auto power control system helps to protect the HDD from any damage during the
insertion and removal from the duplicator which is better than the method called “Hot
Swap”.
2. Product Overview

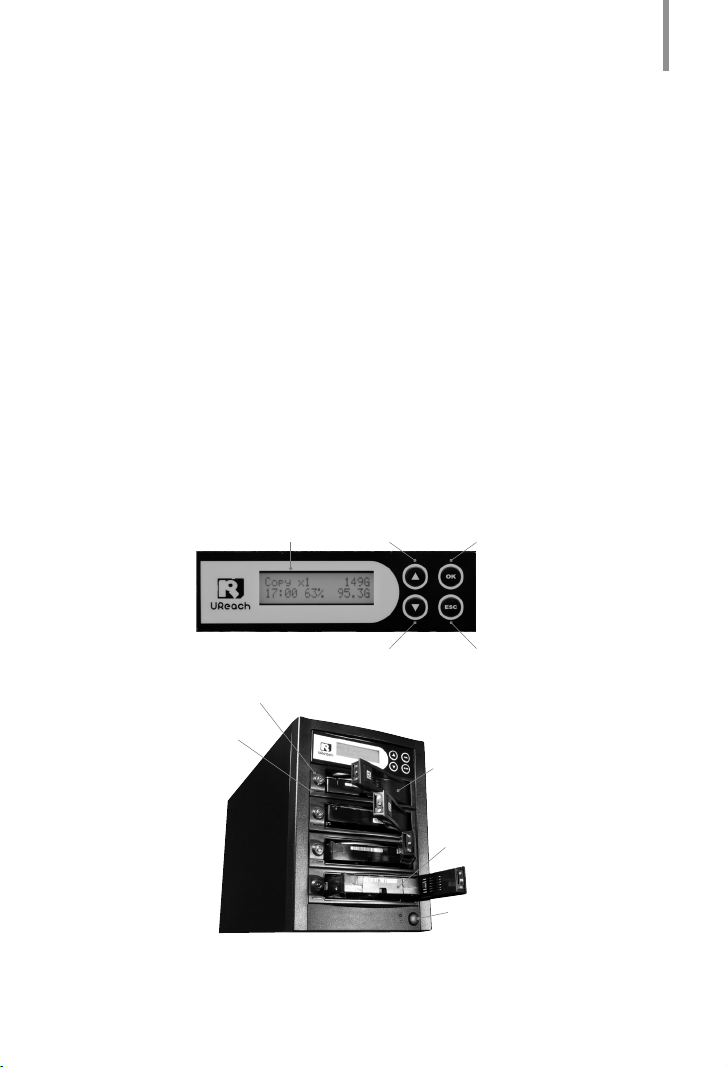

A. System Overview
BackwardLCD panel Confirm / OK
Copy x1 149G
17:00 63% 95.3G
Locker
LED light
Forward Cancel / Back
HDD mobile rack
HDD
Power botton
5
Product Introduction

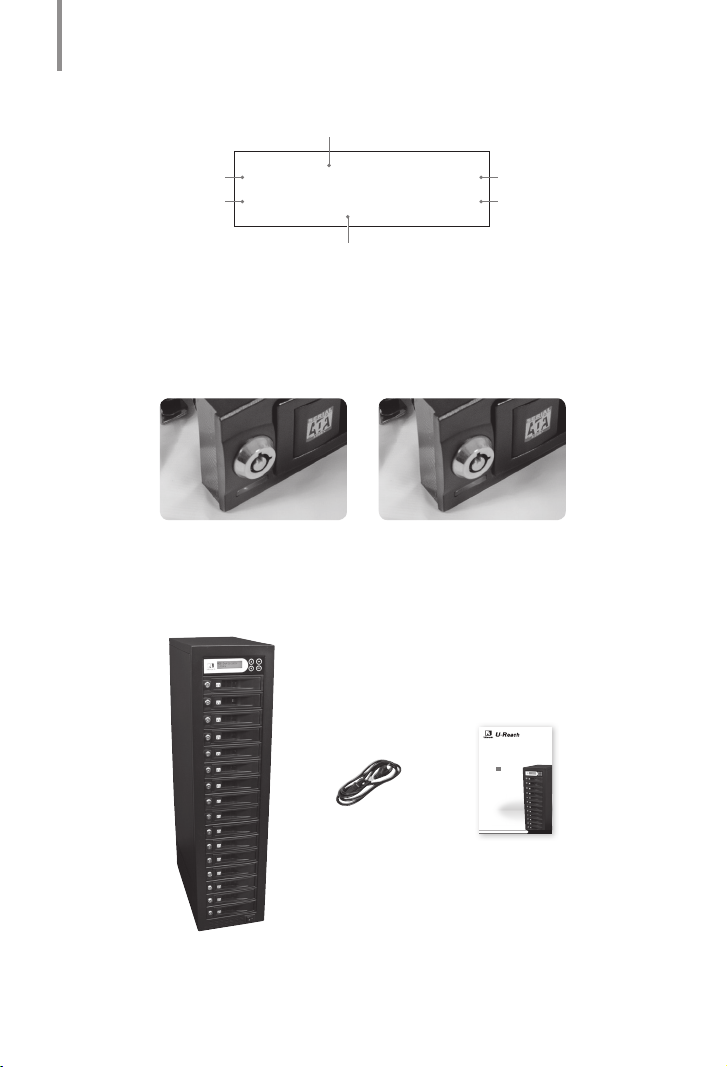

B. LCD Configuration
Number of target HDD
Function
Time(mm:ss)
Copy x1 149G
17:00 63% 95.3G
Copy progress %
Total size
Copied processes size
C. LED Light Display
The LED clearly indicates the duplication status. With this, users will not be confused
anymore.
Blue Light
Remains: Pass
Flashing: Working
Red Light
Remains: Fail
3. Package Contents
SUPER 1
Hard Drive Duplicator
User Guide
EN
V1.0
HDD Duplicator
www.ureach-inc.com
The Duplication Expert
Power Cable User Guide
6
4. Function Table
Function Description
1. Copy
2. Compare
3. Copy+Compare
4. Erase
Note: Function 6.3 can be
selected to erase
the source HDD or
not.
5. Utility
6. Seuup
Copies the source HDD to multiple HDDs. See Function 6.1 “Copy area” to choose the copy mode
you want.
Compares source and target data bit for bit.
Performs copying and then comparing when this function is selected.
4.1 Quick Erase
Erases the HDD's index table only.
4.2 Full Erase
Erases all of the HDD’s contents.
4.3 DoD erase
Erases HDDs three times. This complies with USA’s Department of Defense (DoD) standard.
4.4 DoD EraseComp
Erases HDDs three times (in compliance with USA’s Department of Defense standard), and also
performs a bit-for-bit check to see if the data is completely erased.
5.1 Show HDD info
Shows the HDD’s basic information such as the HDD’s model name and capacity.
5.2 Update System
5.3 System Info
This function will show information of the duplicator system, including the controller model number
and software version.
6.1 Copy Area
Setup copy mode.
6.2 Skip Error
Set to ignore errors of source HDD while copying. (0-65535)
6.3 Erase Master
Setup to erase the
source HDD or not.
6.4 Unknown Format
6.5 Transfer Rate
Select the proper transfer rate UDMA2-7. 7 is the fastest.
6.6 Erase Pattern
6.7 Language
English / Japanese
6.8 Advanced Setup
6.9 Restore Default
Back to the original manufacturer setting.
Product Introduction
5.2.1 Update BIOS
To update firmware on the system via the HDD.
5.2.2 Create Update HDD
To format the HDD with a 2GB FAT partition in order to quickly save
firmware in the HDD
6.1.1 System and files
Set to copy the source HDD's data area only.
6.1.2 A11 partitions
Set to copy all partitions of the source HDD.
6.1.3 Whole HDD
Set to copy the whole source HDD.
6.3.1 Disable
Disables to erase the source HDD.
6.3.2 Enable
Enables to erase the source HDD.
6.4.1 Copy unknown
Copies unknown areas with formats that are unidentifiable to the device.
6.4.2 Skip unknown
Skips copying unknown areas when the duplicator can not identify the
format.
6.6.1 ONE Byte
A random character to be written into every byte.
6.6.2 4MB Byte
A set of random characters to be written into a set of areas.
6.8.1 Wait HDD Time
Auto start time after plugging in the HDD.
6.8.2 Lock Key
After this function is selected, only OK and ESC keys are working.
7
Function Introduction
Chapter 2 - Function Introduction
1. Copy
It copies data from the source HDD to the target HDD. Please ensure you have selected
the copy mode you want before executing the copying process. Refer to function 6.1
Copy Area for details.
Copy Process
Total data capacity
Copied data capacity
Copied time
Copy x1 149G
17:00 63% 95.3G
Copy progress %
Copy Result
Pass:2 Fail:0
Copy Result
Time 30:48
Note:
• Select the copy mode that you want to use in Function 6.1 Copy Area.
• The Default setting is the quick copy mode "System and Files".
2. Compare
It is used to check if the data on the source HDD is identical to the target HDD after the
duplication is finished.
3. Copy & Compare
It does the copying first, and then it compares the target copied with the source to check
the correctness of the duplication.
4. Erase
There are Quick Erase, Full Erase, and DoD Erase, totally three kinds of erasing modes.
Select one of them to execute erase function according to your need.
8
Function Introduction
Note:
• Users can go to Function “6.3 Erase Master” to select if erasing the source HDD. The default
setting is “Disable” to erase the source HDD.
• This function can be stopped while processing by pressing [ESC] for about 3~4 seconds.
4.1 Quick Erase
This function only erases the HDD index. It is the quickest way to erase the HDD.
Please make sure you backup all important data before using this function because this
function will delete the data in the HDD.
4.2 Full Erase
This function will erase all HDD sectors. It will take longer time than Quick Erase.
Please make sure you backup all important data before using this function because this
function will delete the data in the HDD.
4.3 DoD Erase
This is to comply with the U.S.A. Department of Defense (DoD 5220) standard to fully
erase the HDD. It uses the bit-for-bit method to rewrite the HDD and guarantee all data
is erased by three-time erasing process. Please make sure you backup all important data
before using this function because this function will delete the data in the HDD.
Steps of Erase:
• This function will start automatically when detecting the HDD.
DoD Erase
Prepare Pattern
• Erasing.
Erasing HDD
DoD Erase 0:10
9
Function Introduction
(Checks each port.)
Port No.
[02] 149G
Erase[00] 14.2G
Erase it with writing zeros(0×00)
• Shows the result when finish.
DoD Erase
Pass:5 Fail:1
(Checks each port.)
[02] 149G
1:12:50 PASS
[03] 1963M
3:43 Fail
10
Function Introduction

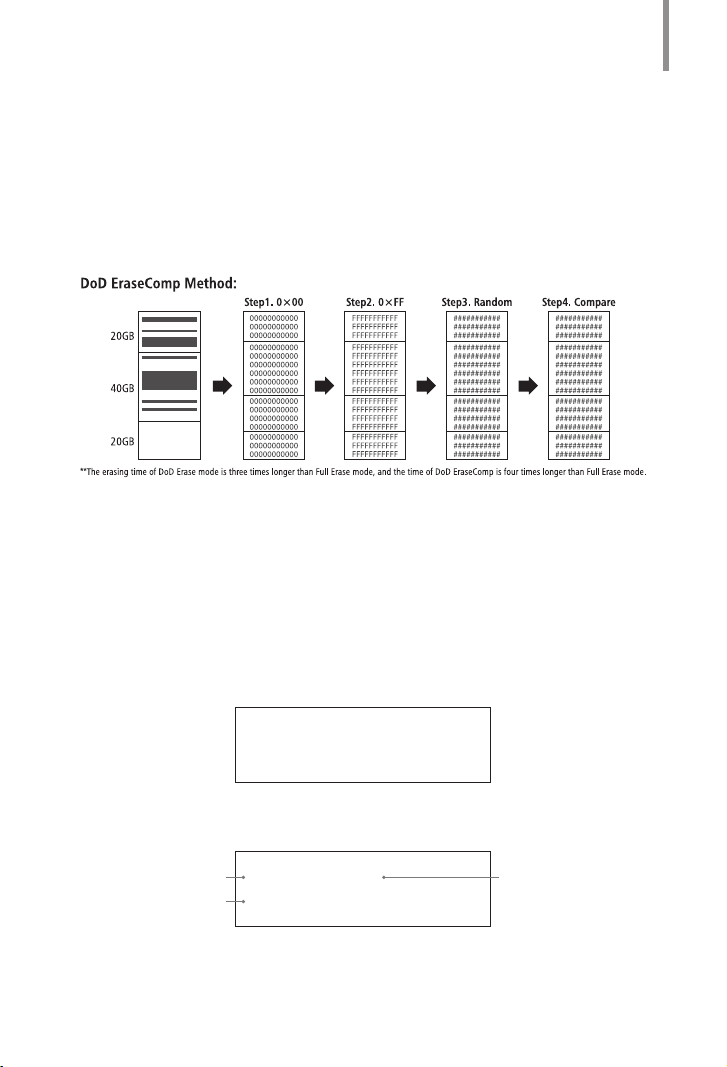

4.4 DoD Erase Comp
As well as DoD Erase, this function will also execute the compare function to make sure
the random bit was correctly written. This function erases each sector of the HDD three
times: the first time with zeros (0x00), second time with 0xFF, and the third time with
random characters. It performs a bit-for-bit check to see if the data is completely erased.
It will damage the data in the HDD, so please make sure you backup all important data
before using this function.
5. Utility
5.1 Show HDD Info.
This function will show the HDD's basic information such as the HDD’s capacity and
model number.
Steps of showing HDD Info::
Select function.
❶
[5.Utility]
1.Show HDD Info.
Shows HDD information.
❷
Port No. HDD Capacity
HDD Model No.
[01] 149G
ST3160318AS
11
Function Introduction

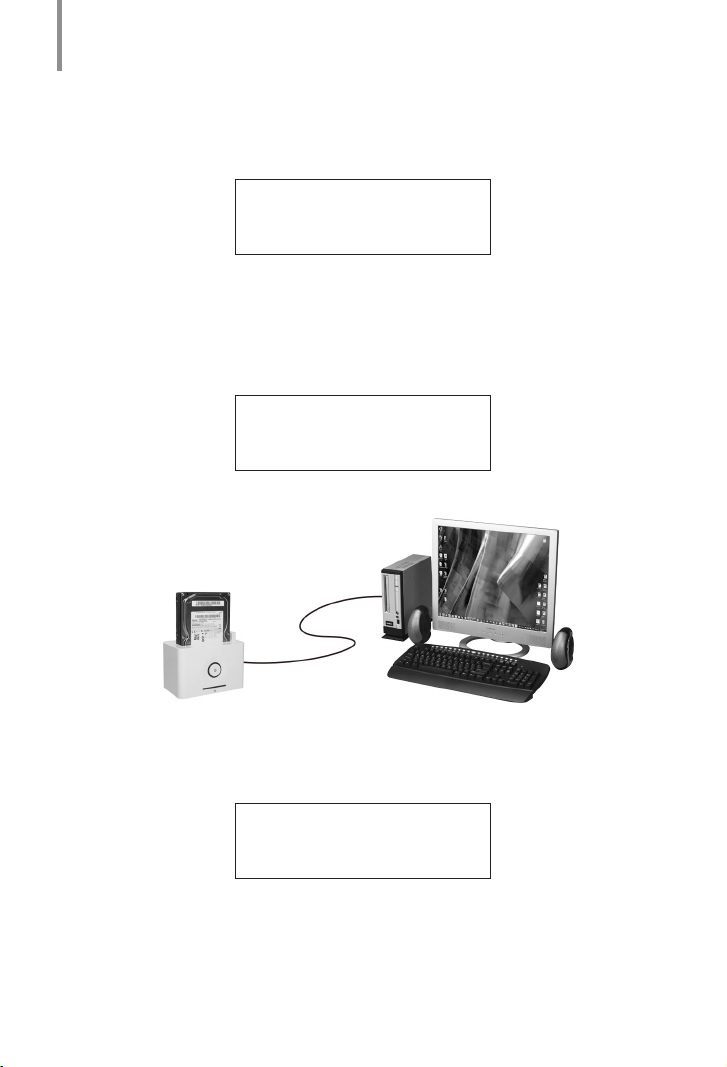

5.2 Update System
You can follow the steps to update the system firmware:
• Select Function 5.2.2
[Update System]
2.Create Update
• Create Update HDD (create a 2GB FAT partition)
(The purpose of this is because 2GB FAT HDD Partition can speed up the update
process.)
Do FORMAT HDD#1
Confirm ?
• Download the BIOS from the PC to your HDD.
HDD
HDD Enclosure
• Plug the HDD into Port 1 of the duplicator, select Function 5.2.1 to update BIOS, and
wait for about 1 minute to finish the update process.
USB
PC
[Update System]
1.Update BIOS
12
Function Introduction
5.3 System Info.
This function shows the duplicator information such as the model name and firmware
version.
HDD Dupe 1-13
Ver:2.29.9
6. Setup
6.1 Copy Area

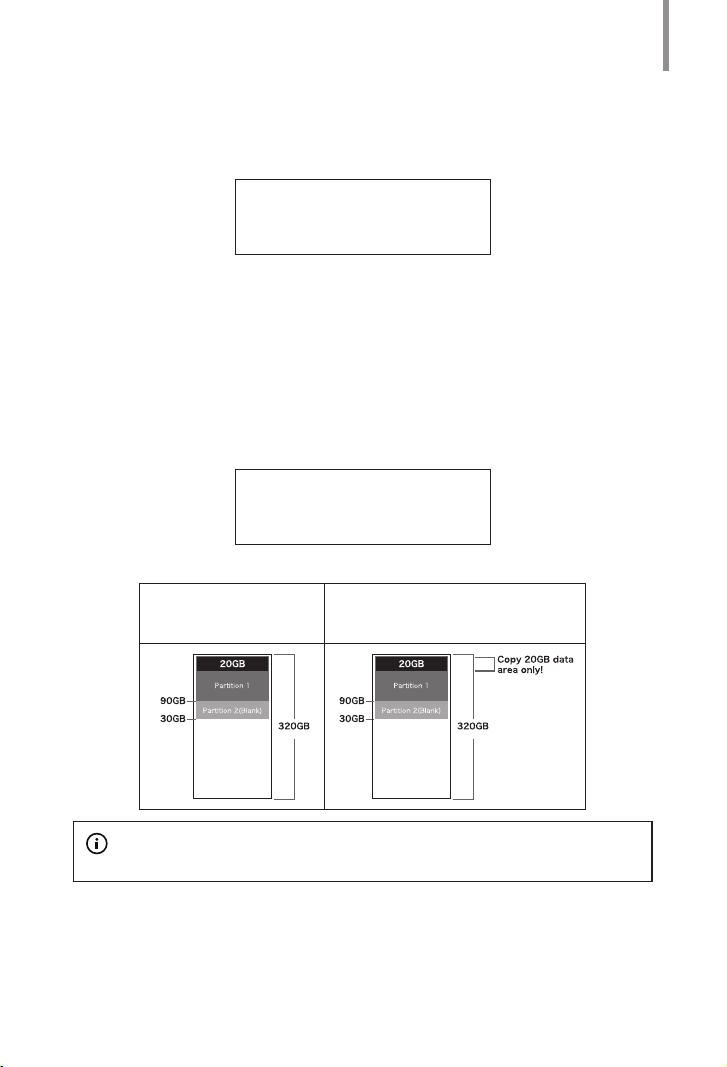

6.1.1 System and Files
It copies the source HDD’s System and Files instead of the whole HDD. The system will
analyze the source HDD and identify the data area to copy. As long as the source HDD’s
data is within the target HDD’s free space, the copy will be processed.
[Copy Area]
System and Files
Source HDD 320GB
Data : 20GB
Partition : 90GB
Note:
System and Files only supports FAT, NTFS, and LINUX (ext2/ ext3/ ext4).
Tatget HDD 320GB
When choosing “System and Files Copy”, only 20G data will be
copied, and it just takes 6.2% time compared to “Whole HDD
Copy”. The target HDD will be exactly the same as source HDD
after copy.
13
Function Introduction

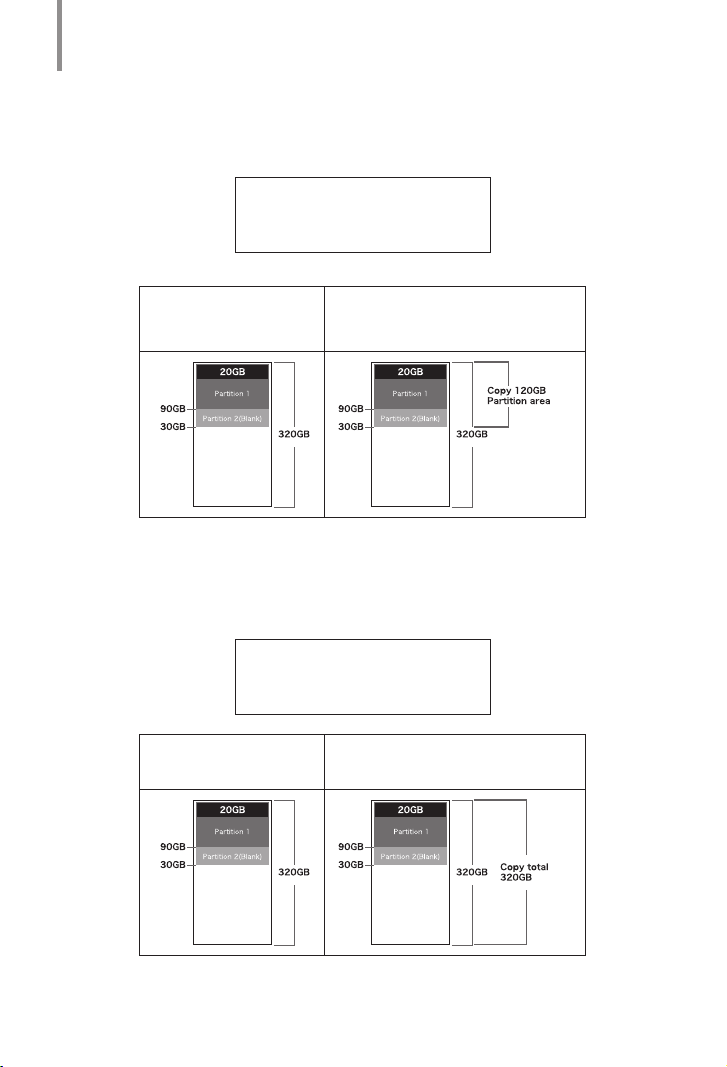

6.1.2 All Partitions
This mode will copy all of the partitions bit for bit including the free space. The capacity of
the target HDD has to be larger than all the partitions.
[Copy Area]
ALL Partitions
Source HDD 320GB
Data : 20GB
Partition : 90GB
Tatget HDD 320GB
When choosing “All Partitions Copy”, only 120G data will be
copied, and it just takes 37.5% time compared to “Whole HDD
Copy”. The Target HDD will be exactly the same as source HDD
after copy.
6.1.3 Whole HDD
It copies the entire HDD, regardless of content, format, partition, or free space.
Using this mode to duplicate the source HDD completely will take much more time.
[Copy Area]
Whole HDD
Source HDD 320GB
Data : 20GB
Partition : 90GB
Tatget HDD 320GB
When choosing “Whole HDD Copy”, completed 320GB HDD will
be copied, and it takes the longest time. The target HDD will be
exactly the same as the source HDD after copy.
14
Function Introduction
Note:
After copy, the remaining space in the copied HDD can be used by PC for further partitioning.
6.2 Skip Error
This function sets the number of errors you are prepared to accept during the copy
process.
[6.Setup]
2.Skip Error
Note:
If it's critical that there are no errors on the HDD, then the error counter should be set to 0.
6.3 Erase Master
This function allows you to disable or enable the source to be executed the erase
function.
[Erase Master]
Disable
[Erase Master]
Enable
6.4 Unknown Format
This function allows you to copy or skip any partitions with an unknown format.
6.4.1 Copy unknown
Copies all of the unknown partitions, even if the format is not identified.
[Unknown Format]
Copy Unknown
15
Function Introduction
6.4.2 Skip unknown
Skips the unknown format partitions during the copying process.
[Unknown Format]
Skip Unknown
6.5 Transfer Rate
You can select the best transfer rate from UDMA 2 to UDMA7 for your HDD duplication
progress. If you are not confident on the HDD quality or you find a high failure rate on on
"Copy" and "Compare". it is recommended to slow down the UDMA mode.
[Transfer Rate]
UDMA 5
6.6 Erase Pattern
Select different erase methods.
6.6.1 ONE Byte
A random character will be written into every byte.
[Erase Pattern]
ONE Byte
6.6.2 4MB Byte
A set of random characters will be written into a set of areas.
[Erase Pattern]
4MB Byte
6.7 Language
English and Japanese are available for selection.
16
Function Introduction
6.8 Advanced Setup
6.8.1 Wait HDD Time
Auto start time after plugging in HDDs.
6.8.2 Lock Key
After this function is selected, only the OK and ESC keys are working on each booting.
6.9 Restore Default
Select and go back to the manufacturer’s default setting.
17
Specification
Chapter 3 - Specification
Model S101 S103 S107 S1XX
Target 1:1 1:3 1:7 1:XXX
Interface SATA
Drive Capability 3.5” / 2.5”(adapter optional)
Transfer Rate 6GB/Min.
Display 2x16 Backlight Monochrome LCD
Input 4 push buttons (Forward/ Backward/ OK/ Cancel)
Language Support Chinese/English/Japanese
Copy Mode System and files, All Partition, Whole HDD
Erase Mode Quick Erase, Full Erase, DoD Erase, DoD EraseComp
System require (max) 80W 180W 300W --
Power
Voltage 5, 12V
Weight (kg) 6.0 6.5 10.0 --
Dimension (L*W*H cm) 28*19*16 41*17*28 40*22*45 --
Safety FCC, CE, RoHS
Note:
The above information is for marketing reference only. The actual specification may be subject to change
without notice.
18
D Warnung! Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im
Wohnbereich Funkstörungen verursachen; in diesem Fall kann vom Betreiber
verlangt werden, angemessene Maßnahmen durchzuführen
.
GB Warning! This is category A equipment. This equipment can cause radio
interference in the living area; the operator can be asked to take appropriate
measures in this case.
F Attention ! Ceci est un dispositif de classe A. Ce dispositif peut causer des
perturbations radioélectriques dans l'espace habitable ; dans ce cas, il peut
être exigé de l'utilisateur de prendre des mesures adéquates.
NL Waarschuwing! Dit is een klasse-A-inrichting. Deze inrichting kan in
woonomgevingen storingen veroorzaken. In dat geval dient de gebruiker
passende maatregelen te nemen
.
Loading...
