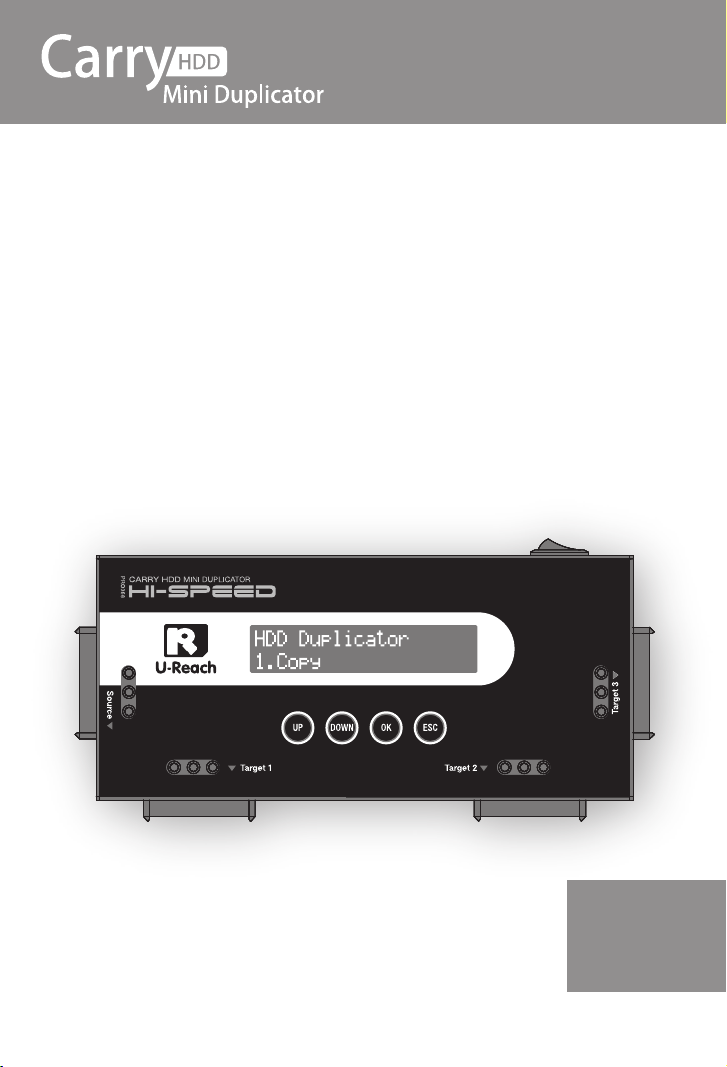

Page 1
V1.0
PRO368
High Speed Portable
HDD Duplicator
User Guide
(1-3)
EN
2014/6/24
Page 2
Disclaimer of Warranties
All UREACH flash duplicators are made specifically for data backup
with legal authorities from copyright owners. Any unauthorized action of
copyright is strictly prohibited, and UREACH-INC disclaims all warranties
or representations of illegal actions by users.
UREACH-INC also disclaims any liability for any of losses or damages
due to not be able to perform its undertakings or provide any of the
services attributable to any events or circumstances beyond our control.
Users agree and accept all statements above as soon as purchasing our
products.
This manual contains materials should be intended for personal use. All
right reserved. No part of this manual may be reproduced, transmitted or
transcribed without the expressed written permission of the manufacturer.
The information present in this manual is subject to change without prior
notice.
2
Page 3
Before you start
Important Notice
▸Read the complete operation instruction carefully contributes to better
operation.
▸Make sure the source device is correct and workable.
▸To guarantee data consistency, strongly suggest the capacity of source
and targets should be the same.
▸It is strongly suggest to use “Copy+Compare” to achieve a perfect
duplication.
Safety Precautions
▸The warranty will expire if damage is incurred resulting from non-
compliance with theses operating instructions.
▸Store the equipment out of the reach of children and infants.
▸Please turn off the power before replace the socket.
▸Never turn off the power while processing the firmware update.
▸Use only approved power sources.
▸The product is only suitable for operation in dry, dust free, clean
environment.
▸ Do not allow liquids or foreign objects to enter. Failure to do so may
severely damage your duplicator.
3
Page 4
Content Index
Disclaimer of Warranties
Disclaimer of Warranties 2
Before you start
Important Notice 3
Safety Precautions 3
Content Index
Content Index 4
Chapter ① - Product Introduction
Features 5
1
Product Overview 6
2
2.1 System Overview 6
2.2 LCD Configuration 6
Function Table 7
3
Chapter ➁- Function Introduction
Copy 10
1
Compare 10
2
Copy+Compare 10
3
Erase 11
4
4.1 Quick Erase 11
4.2 Full Erase 11
4.3 DoD Erase 11
4.4 DoD Erase Comp 12
4.5 Secure Erase 13
Utility 13
5
5.1 Show Disc Info. 13
5.1.1 Model Number 13
5.1.2 Version of Firmware 13
5.1.3 Serial Number 13
5.1.4 Device Power Cycle 14
5.1.5 Power-on Hours 14
5.1.6 Reallocation Event Count 14
5.1.7 Off-Line Scan Uncorrectable
Sector Count 14
5.1.8 Seek Error Rate 15
5.1.9 Temperature 15
5.2 Update System 15
5.3 System Info. 16
5.4 Read Speed 16
5.5 Write Speed 17
Setup 17
6
6.1 Copy Area 17
6.1.1 System and Files 17
6.1.2 All Partitions 18
6.1.3 Whole HDD 19
6.1.4 Percentage(%) 19
6.2 Skip Error 20
6.3 Language 20
6.4 Advanced Setup 20
6.4.1 Unknown Format 20
6.4.1.1 Copy Unknown 20
6.4.1.2 Skip Unknown 21
6.4.2 Erase Master 21
6.4.3 Erase Pattern 21
6.4.3.1 ONE Byte 21
6.4.3.2 Big Random Data 22
6.4.4 Wait HDD Time 21
6.4.5 Transfer Rate 22
6.4.6 Stop Motor Time 22
6.5 Restore Default 23
Chapter ➂- Specification
Specification 24
4
Page 5
Chapter
Features
1
▸High copy speed supports up to 250MB/second.
▸Support reading/writing speed measuring function.
▸Show the detailed information of HDD and its quality.
▸Auto power control system helps to protect the HDD from any damage
during the insertion and removal from the duplicator.
▸Support compatibility of multiple interfaces via external adapters:2.5”/3.5”
IDE HDD, mSATA SSD , eSATA , iVDR , microSATA , CF, cFAST, SSD.
Support HDD interfaces: 1.8" / 2.5"/ 3.5" SATA HDD and SSD.
▸Support 4 different duplication mode: Quick Copy (System and Files), All
Partitions, Whole HDD, and Percentage.
▸Quick Copy mode supports formats: FAT16/32/64, NTFS, Linux
(Ext2Ext3/ Ext4), HFS/HFS+/HFSX, GPT, and Dynamic HDD. All Partitions
and Whole HDD support all kinds of formats.
▸Support 4 ways of sanitization: Quick Erase, Full Erase, DoD Erase and
Secure Erase.
▸Automatically detect and show the bad sector quantities of HDDs.
▸Light weight for easy carrying.
- Product Introduction
➀
5
Page 6
Chapter
Product Overview
2
- Product Introduction
➀

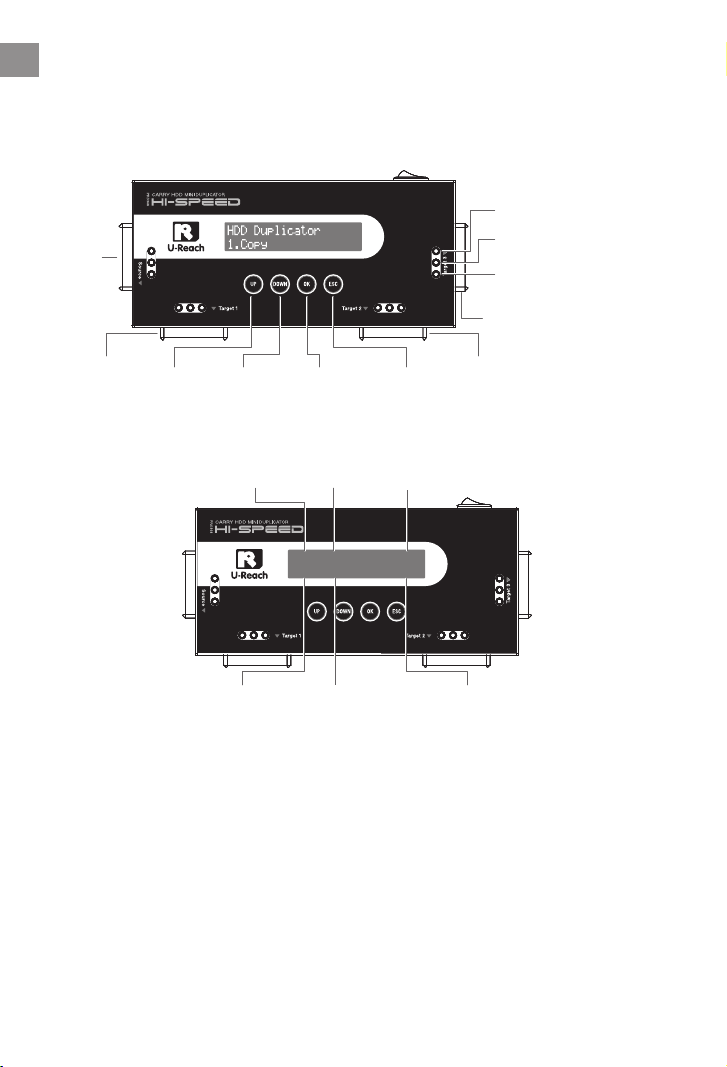

2.1 System Overview
Port 1
(Source)
Red : Fill
Flashing Green : Operating
Remain Green : Pass
Yellow : Power Supplying
Port 4
(Target 3)
Port 2
(Target 1)
Backward Cancel/BackForward Comfirm/OK
2.2 LCD Configuration
Copy x3 2047M
0:11 41% 860M
Copy Progress %Time
(mm:SS)
Port 3
(Target 2)
Target HDDFunction
Total Size
(Source)
Copied Processed Size
(Target)
6
Page 7
Chapter
Function Table
3
Function Description
1. Copy
2. Compare
3.Copy +Compare
4. Erase
5. Utility 5.1 Show Disk Info.
To copy source HDD to multiple target HDDs. Refer to function [6.1 Copy Area] for 4 different
copy modes selection.
To compare data bit for bit between source and target HDDs.
It makes copy first and then compare target HDD with source HDD to ensure data
correctness.
4.1 Quick Erase
To erase HDD’s index table only, it takes short time to execute this function.
4.2 Full Erase
To erase the whole HDD content.
4.3 DoD Erase
To erase HDDs three times complying with USA Department of Defense (DoD) standard.
It takes 3 times longer than full erase.
4.4 DoD EraseComp
To erase HDDs three times complying with USA Department of Defense (DoD) standard and
bit by bit to check if data is completely erased.
It takes 4 times longer than full erase.
4.5 Secure Erase
The international authorized high standard Secure Erase function. It is able to erase the area
which is not loadable.
- Product Introduction
➀
5.1.1 Model Number
To s how HDD's model number.
5.1.2 Version of Firmware
To s how HDD's firmware version.
5.1.3 Serial Number
To show the serial number of HDD.
5.1.4 Device Power Cycle
To show the count of HDD's tur ning on and off.
5.1.5 Power-on Hours
To show the total hours of HDD power-on.
5.1.6 Reallocation Event Count
It represents the count of failing to save data.
5.1.7 Off-Line Scan Uncorrectable Sector Count
To show the sector volume that is uncorrectable when scanned
off-line. The more the uncorrectable sector volume is, the more
serious the HDD's damage is.
5.1.8 Seek Error Rate
To show the error rate of searching for data. It can represent the
damage rate of data stored in the HDD.
5.1.9 Temperature
To show the temperature of HDD.
7
Page 8
Chapter
5. Utility
6. Setup
- Product Introduction
➀
5.2.1 Update BIOS
To update the system firmware via the HDD.
5.2 Update System
5.3 System Info.
This function will show information of the duplicator system, including controller model,
number and software version.
5.4 Read Speed
To show the speed of reading.
5.5 Write Speed
To show the speed of writing.
6.1 Copy Area
6.2 Skip Error
Set to ignore error of source HDD while copying.
6.3 Language
English / Japanese / Chinese
6.4 Advanced Setup
5.2.2 Create Update HDD
To format the HDD with a 2GB FAT partition in order to quickly
save the new firmware in the HDD.

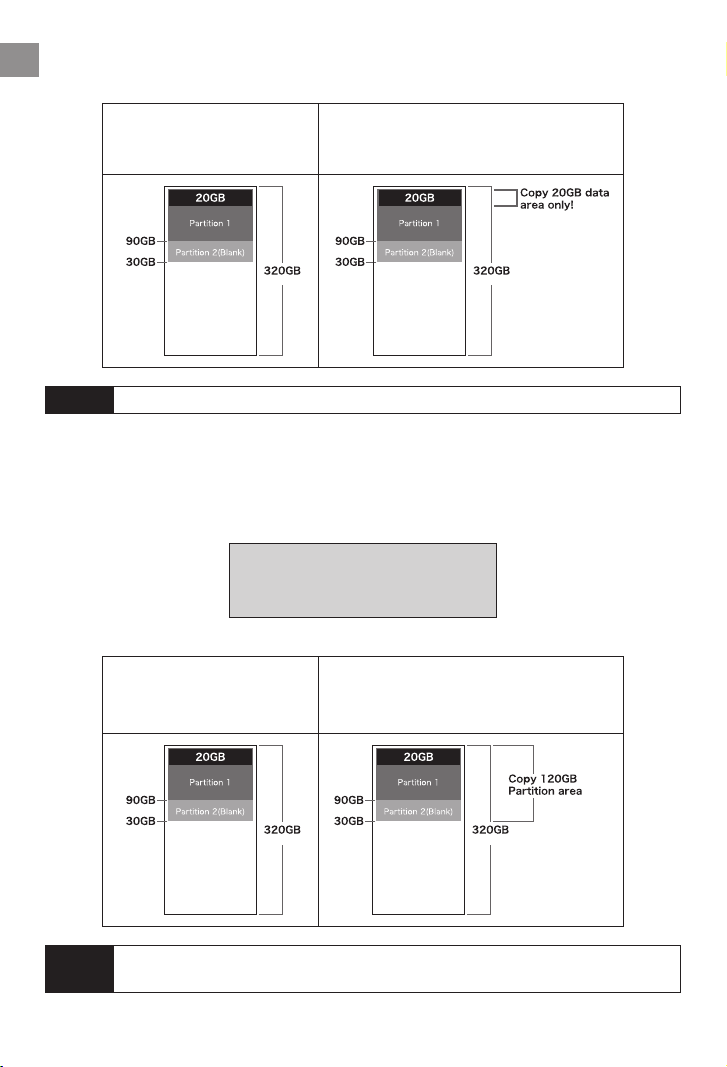

6.1.1 System and Files
To copy source HDD's data area only.
6.1.2 ALL Partitions
To copy source HDD's all partitions.

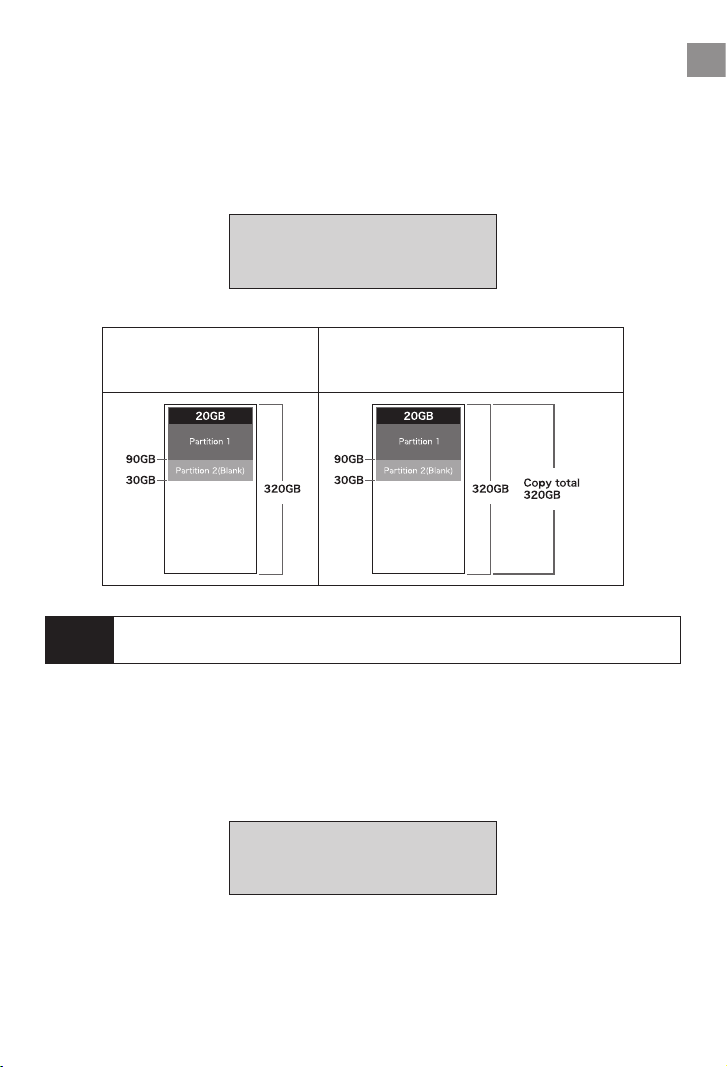

6.1.3 Whole HDD
To copy the whole source HDD.
6.1.4 Percentage(%)
To copy percentage range of source HDD.
6.4.1.1 Copy Unknown
Copy unknown area when the
6.4.1 Unknown Format
6.4.2 Erase Master
Setup to erase source
HDD or not.
6.4.3 Erase Pattern
6.4.4 Wait HDD Tim
Auto start time after plugging HDD.
device cannot identify the format.
6.4.1.2 Skip Unknown
Skip copy unknown area when the
device cannot identify the format.
6.4.2.1 Disable
Disable erase source HDD.
6.4.2.2 Enable
Enable erase source HDD.
6.4.3.1 ONE Byte
A random character to be written
into every byte.
6.4.3.2 Big Random Data
A set of random character to be
written into a set of area.
8
Page 9
6. Setup
Chapter
6.4 Advanced Setup
6.5 Restore Default
Back to original manufacturer setting.
➀
6.4.5 Transfer Rate
Select the proper transfer rate from UDMA2~UDMA7.
6.4.6 Stop Motor Time
Auto running time after stopping motor.
- Product Introduction
9
Page 10
Chapter
Copy
1
It copies data from the source HDD to the target HDD. Please ensure
you have selected the copy mode require before executing the copying
process. Refer to function [6.1 Copy Area] for details.
- Function Introduction
➁
Copy Process
Total data capacity
Copied data capacity
Copie Time
Copy 2047M
0:26 50% 1037M
Copy Process %
Copy Result
Pass 0:58
No Bad Sector!
Note The default setting is the quick copy mode “System and Files”.
Compare
2
It is used to check if the data on the target HDD is identical to the source
HDD after the duplication is finished.
Copy+Compare
3
It executes the copying first, and then it compares the target copied with
the source to check the correctness of the duplication.
10
Page 11
Chapter
Erase
4
There are Quick Erase, Full Erase, DoD Erase, DoD EraseComp , and
Secure Erase, totally 5 kinds of erasing modes. Select the appropriate
erase method when you would like to dispose or reuse the HDDs.
Note
• Users can go to Function [6.4.2 Erase Master] to select if erasing
the source HDD. The default setting is “Disable” to erase the source
HDD.
• This function can be stopped while processing by pressing [ESC] for
about 3~4 seconds.
- Function Introduction
➁
4.1 Quick Erase
This function only erases the HDD index. It is the quickest way to erase
HDD. It will damage the data in the HDD. Please make sure you backup
all important data before using this function.
4.2 Full Erase
This function will erase all HDD sectors. It will take longer time than quick
erase. It will damage the data in HDD, please make sure you backup all
important data before using this function.
4.3 DoD Erase
This is to comply with the U.S.A. Department of Defense (DoD 5220)
standard to fully erase the HDD three times bit by bit to rewrite HDD and
guarantee all data is erased. It will damage the data in HDD, please make
sure you backup all important data before using this function.
Steps of DoD Erase:
The system will start executing DoD Erase after pressing .
DoD Erase
Prepare Pattem
11
Page 12
Chapter
Erasing.
- Function Introduction
➁
Erasing 1 HDD
DoD Erase 2:05
The system will show the result after finishing.
[02] 465G
Erase[00] 4818M
DoD Erase
Pass: 5 Fail: 0

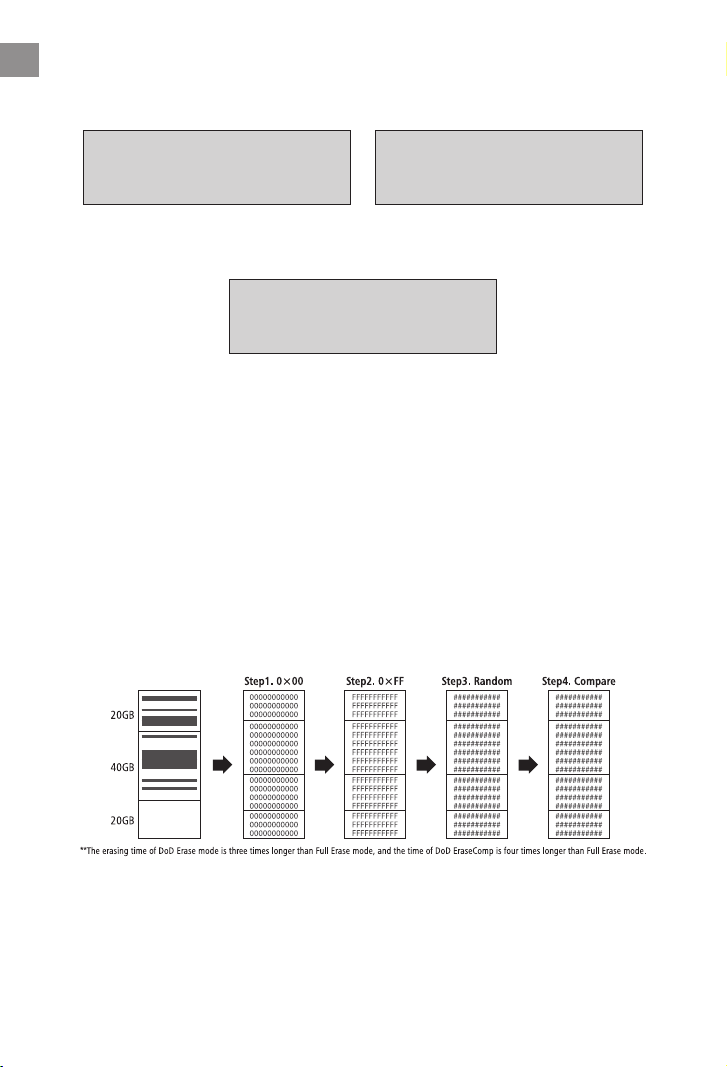

4.4 DoD Erase Comp
As well as DoD erase, this function will also execute compare function to
make sure the random bit was correctly written. This function erases each
sector of the HDD three times: the first time with zeros (0x00), second
time with 0xFF and the third time with random characters, performs a bit
by bit check to see if data is completely erased. It will damage the data in
HDD, please make sure you backup all important data before using this
function.
DoD EraseComp Method
❖The erasing time of DoD Erase mode is three times longer than Full
Erase mode, and the time of DoD EraseComp is four times longer than
Full Erase mode.
12
Page 13
Chapter
- Function Introduction
➁
4.5 Secure Erase
The international authorized high standard Secure Erase function. It
overwrites every single track on the hard drive with "00". Even PA/DCO or
other data area which are not able to load, can be erased all together.
Note Please do not disrupt during Secure Erase, otherwise it would cause irretrievable
error on HDD, which turns the HDD unusable.
Utility
5
5.1 Show Disc Info.
The function will show basic information of both source and target HDDs.
5.1.1 Model Number
This function is to show HDD’s model number.
[Disc Info.]
1.Model Number
5.1.2 Version of Firmware
This function is to show HDD’s firmware version.
[Disc Info.]
2.Version of Fir
5.1.3 Serial Number
This function is to show the serial number of HDD.
[Disc Info.]
3.Serial Number
Model: WDC WD
5000BPVT-00HXZT3
Version
01.01A01
Serial NO:
WD-WXB1A91M3998
13
Page 14
Chapter
5.1.4 Device Power Cycle
This function is to show the count of HDD's turning on and off.
- Function Introduction
➁
[Disc Info.]
4.Device Power C
5.1.5 Power-on Hours
This function is to show the total hours of HDD powering-on.
[Disc Info.]
5.Power-on Hours
5.1.6 Reallocation Event Count
This function is to show the count of reallocating event.
When the HDD fails to save data, it will need to redefine the location to
store data. Therefore, more count of reallocation event represents more
error times.
[Disc Info.]
6.Reallocation E
5.1.7 Off-Line Scan Uncorrectable Sector Count
This function is to show the sector volume that is uncorrectable when
scanned off-line. The more the uncorrectable sector volume is, the more
serious the HDD's damage is.
[Device Power C]
99
[Power-on Hours]
18
[Reallocation E]
0
[Disc Info.]
7.Off-Line Scan
[Off-Line Scan]
0
14
Page 15
Chapter
5.1.8 Seek Error Rate
This function is to show the error rate of searching for data. It can
represent the damage rate of data stored in the HDD.
- Function Introduction
➁
[Disc Info.]
8.Seek Error Rat
5.1.9 Temperature
This function is to show the temperature of HDD.
[Disc Info.]
9.Temperature
[Seek Error Rat]
0
[Temperature]
22 C
o
5.2 Update System
This function is to execute firmware updating of system.
You can follow the following steps to update the system firmware.
Select Function [5.2.2 Create Update HDD]
⊳
[Update System]
2.Create Update
Create Update HDD (create a 2GB FAT partition)
⊳
(The purpose is because 2GB FAT HDD Partition can speed up the
update process.)
Do FORMAT HDD#1
Confirm ?
15
Page 16
Chapter

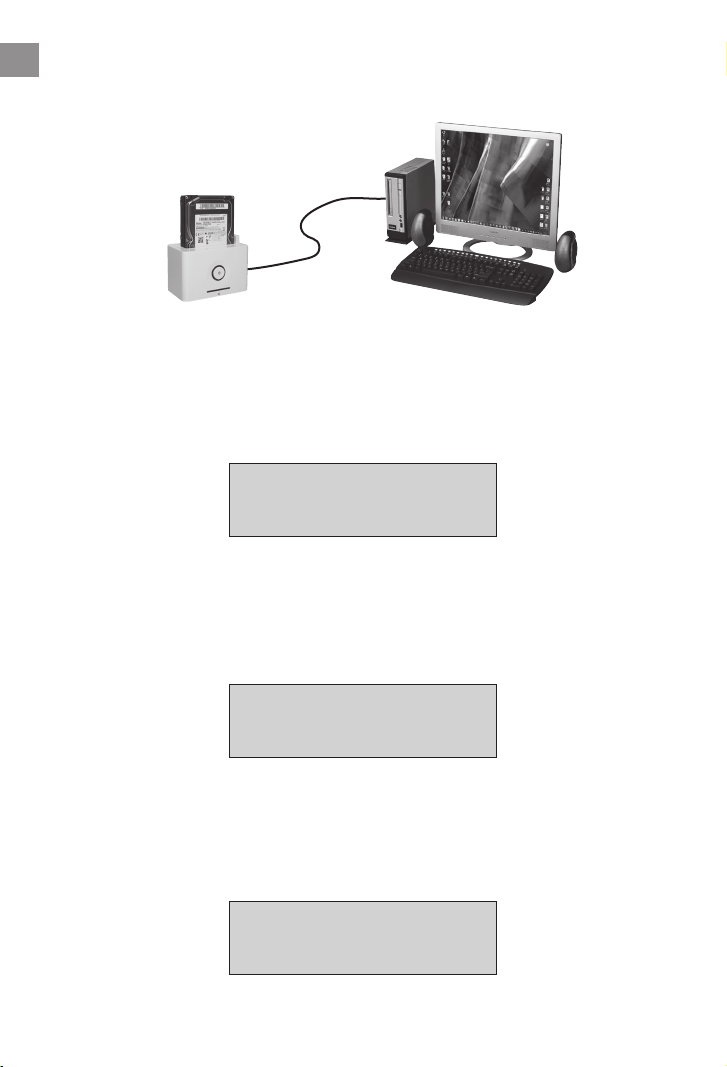

Download the BIOS from the PC to your HDD.
⊳
Plug the HDD into Port 1of the duplicator, select Function 5.2.1
⊳
to update BIOS, and wait for about 1 minute to finish the update
process.
- Function Introduction
➁
HDD
USB
HDD Enclosure PC
[Update System]
1.Update BIOS
5.3 System Info.
This function shows the duplicator information such as model name and
firmware version.
HDD Dupe 1-1
Ver: 2.31.0
5.4 Read Speed
This function is to measure the reading speed of the HDD by reading the
whole HDD.
R 2:30 465G
89.0M/S 12.8G
16
Page 17
Chapter
- Function Introduction
➁
5.5 Write Speed
This function is to measure the writing speed of the HDD by writing the
whole HDD.
[5.Utility]
5.Write Speed
Content will be
erased. Confirm?
W 1:08 465G
89.6M/S 4423M
Note This function will delete the content in HDD, so please make sure you have
backup data before executing this function.
Setup
6
6.1 Copy Area
This setting is to select the copy mode you would like to use.
6.1.1 System and Files
It copies the source HDD's System and Files instead of the whole HDD.
The system will analyze the source HDD and identify the data area to
copy. As long as the source HDD's data within the target HDD's free
space, the copy will be processed.
[Copy Area]
System and Files
17
Page 18
Chapter
- Function Introduction
➁
Source HDD 320GB
Data : 20GB
Partition1 : 90GB
Note System and Files only supports FAT, NTFS, and LINUX (ext2/ ext3/ ext4).
Tatget HDD 320GB
When choosing “System and Files Copy”, only 20G data will be
copied, and it just takes 6.2% time compared to “Whole HDD
Copy”. The target HDD will be exactly the same as source HDD
after copy.
6.1.2 All Partitions
This mode will copy all of the partitions areas bit by bit including the free
space.
[Copy Area]
All Partitions
Source HDD 320GB
Data : 20GB
Partition1 : 90GB
Tatget HDD 320GB
When choosing “All Partitions Copy”, only 120G data will be
copied, and it just takes 37.5% time compared to “Whole HDD
Copy”. The Target HDD will be exactly the same as source HDD
after copy.
Note The capacity of target HDD has to be larger than the capacity of all partitions of
the source HDD.
18
Page 19
Chapter
- Function Introduction
➁
6.1.3 Whole HDD
This mode will copy the entire HDD, regardless of content, format,
partition or free space. This mode will take much more time to duplicate
the source HDD completely.
[Copy Area]
Whole HDD
Source HDD 320GB
Data : 20GB
Partition1 : 90GB
Note After copy, the remaining space in the copied HDD can be used by PC for further
partitioning.
Tatget HDD 320GB
When choosing “Whole HDD Copy”, completed 320GB HDD will
be copied, and it takes the longest time. The target HDD will be
exactly the same as the source HDD after copy.
6.1.4 Percentage(%)
This mode will copy the percentage selected of source HDD. Only copy
the selected area, other area or data will not be copied. Duplication time
is affected by "transfer rate of HDD".
[Copy Area]
Percentage(%)
19
Page 20
Chapter
- Function Introduction
➁

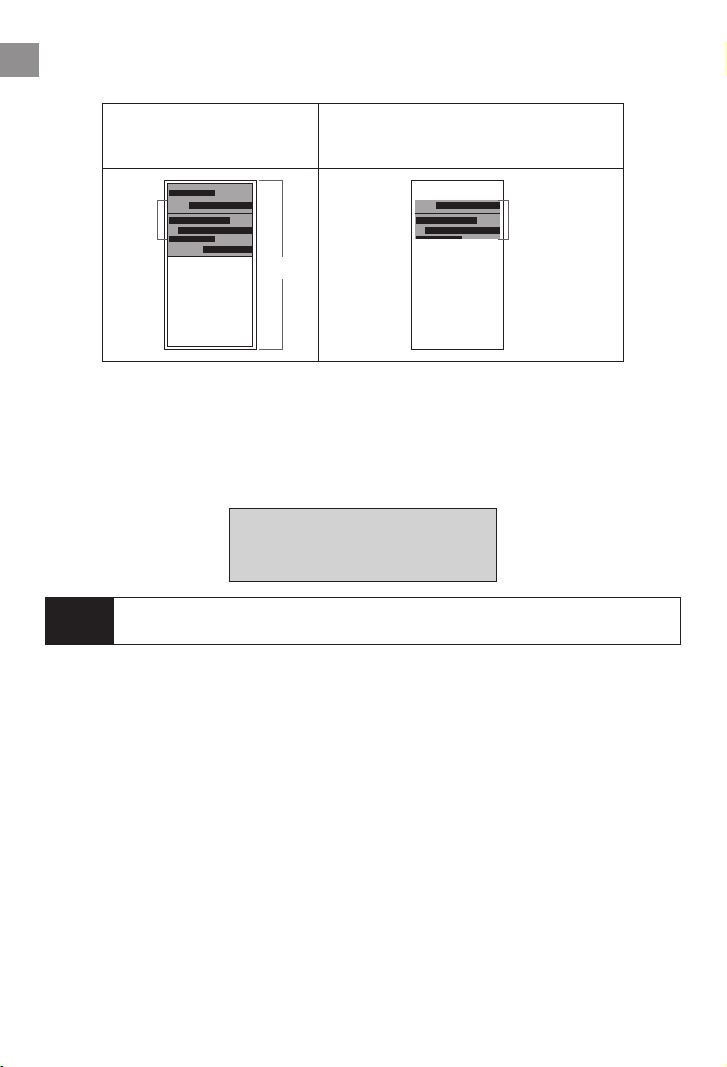

Source HDD 500GB
Data:250GB
Partition:250GB
25%
32%
500GB
Tatget HDD 500GB
Only percentage range from25% to 32% will be copied.
25%
32%
6.2 Skip Error
This function sets the volume of errors that is acceptable for you to skip
during the copy process.
[Skip Error]
0
Note If it’s critical that there are no errors on the HDD, then the error counter should
be set to 0.
6.3 Language
Select preferred language.
6.4 Advanced Setup
6.4.1 Unknown Format
This function is used to select if copying the areas with unknown format.
20
Page 21
Chapter
6.4.1.1 Copy Unknown
The setting copies all the unknown area even if the format is not identified.
- Function Introduction
➁
[Unknown Format]
Copy Unknown
6.4.1.2 Skip Unknown
The setting skips the unknown format area during copy process.
[Unknown Format]
Skip Unknown
6.4.2 Erase Master
This function is to set if erasing the source or not when executing erasing
function.
[Erase Master]
Disable
[Erase Master]
Enable
6.4.3 Erase Pattern
Select different erase method during the third time writing data for
functions [4.3 DoD Erase] and [4.4 DoD EraseComp].
6.4.3.1 ONE Byte
A random character to be written into every byte.
3737373737
3737373737
3737373737
[Erase Pattern]
ONE Byte
21
3737373737
3737373737
3737373737
3737373737
3737373737
Page 22
Chapter
6.4.3.2 Big Random Data
A set of different random character to be written into a set of area.
This erase pattern method is safer for preventing from data recovered.
- Function Introduction
➁
[Erase Pattern]
Big Random Data
26A5C8781
BF51337E81
AA9641D3B
5CDA756B1
3BAFF21FF4
1FBAC4C99
7EDAF1237
7F51C59C3
6.4.4 Wait HDD Time
You can select auto-start time after plugging in HDD, able to set the
waiting time from 0 to 30 seconds.
[Wait HDD Time]
15 seconds
6.4.5 Transfer Rate
You can select the best transfer rate from UDMA 2 to UDMA7 for your
HDD duplication process. If you are not confident on the HDD quality or
you find a high failure rate on copy or compare. It is recommended to
slow down the UDMA mode.
[Transfer Rate]
UDMA 5
6.4.6 Stop Motor Time
When the system finishes executing functions, the motor won’t stop
running immediately. This function is used to set the time of motor
stopping after finishing function executing from 1 to 20 seconds.
22
Page 23
Chapter
[Stop Motor Time]
8 Seconds
6.5 Restore Default
This function is to go back to the manufacturer's default setting.
- Function Introduction
➁
23
Page 24
Chapter
Product Name Carry Mini Super High Speed HDD Dupe.
Product Number PRO368
Targets 1:3 (4-port)
Transfer Speed 250MB/sec
Support HDD Interface 1.8”/2.5”/3.5” SATA HDD and SSD
Display 2x16 Monochrome LCD
Control Button 4 push buttons(▲,▼, OK, ESC )
Compatible HDD/SSD
Duplication Mode
Support OS All (Windows, Linux, RAID, etc)
Support Format
Capacity Up to 15TB
Power Supply/ Consumption 100V-240V, 50/60Hz, 60W
Temperature
Humidity
❖The actual specification may subject to change without notice.
- Specification
➂
All major brand of 2.5"/3.5" IDE HDD, mSATA SDD,
eSATA, microSATA, iVDR, CF, cFAST, USB3.0
1.System and Files
2.All Partitions
3.Whole HDD 4.Percentage
Quick copy (System and Files): FAT16/24/32/64, NTFS,
Linux (Ext2/ Ext3/ Ext4), HFS/HFS+/HFSX, GPT, Dynamic
HDD
All Partitions/ Whole HDD: Supports all format
Working 5 ºC ~45ºC
Storage -20 ºC ~85 ºC
Working 20%~80%
Storage 5%~95%
24
Page 25
Page 26
Page 27
Page 28
U-Reach
The Data Equipment Expert
www.ureach-inc.com
Loading...
