ureach MTS-SAS Series User Manual

MTS-SAS Series

IDE/SATA/SAS

Duplicator and Sanitizer

User Manual V3.2

2

Index

Product Disclaimer ................................................................................................................. 3

Warranty ................................................................................................................................ 3

Piracy Statement .................................................................................................................... 3

Before You Start ..................................................................................................................... 4

Notice Symbols ...................................................................................................................... 4

Product Overview .................................................................................................................. 5

Product Features .................................................................................................................... 5

Hardware Overview ............................................................................................................... 6

Functions Table ...................................................................................................................... 8

Functions ............................................................................................................................. 12

1. Copy .......................................................................................................................... 12

2. Compare ................................................................................................................... 13

3. Copy+Compare ......................................................................................................... 13

4. Erase ......................................................................................................................... 13

5. Utility ........................................................................................................................ 15

6. Setup ......................................................................................................................... 17

7. Log Manager ............................................................................................................. 28

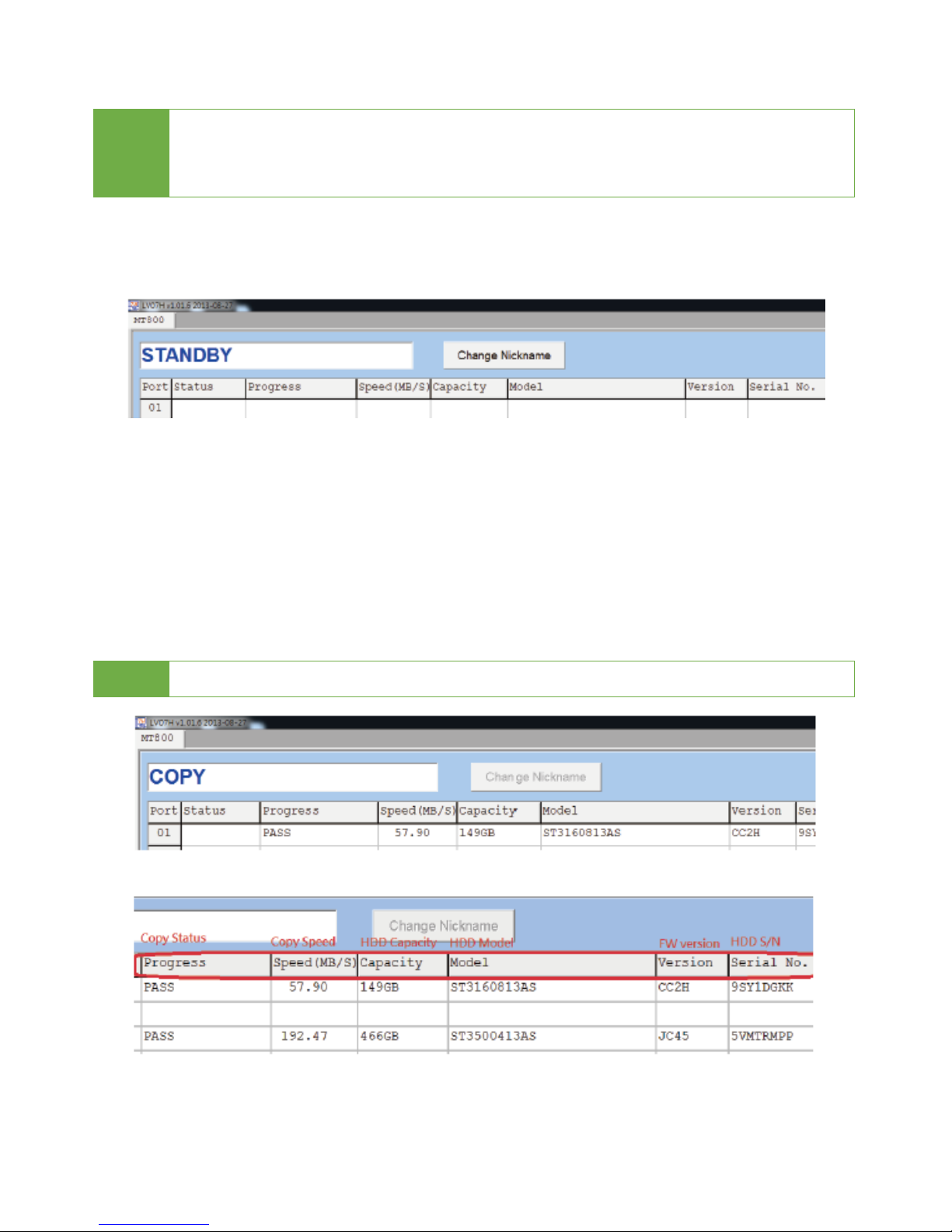

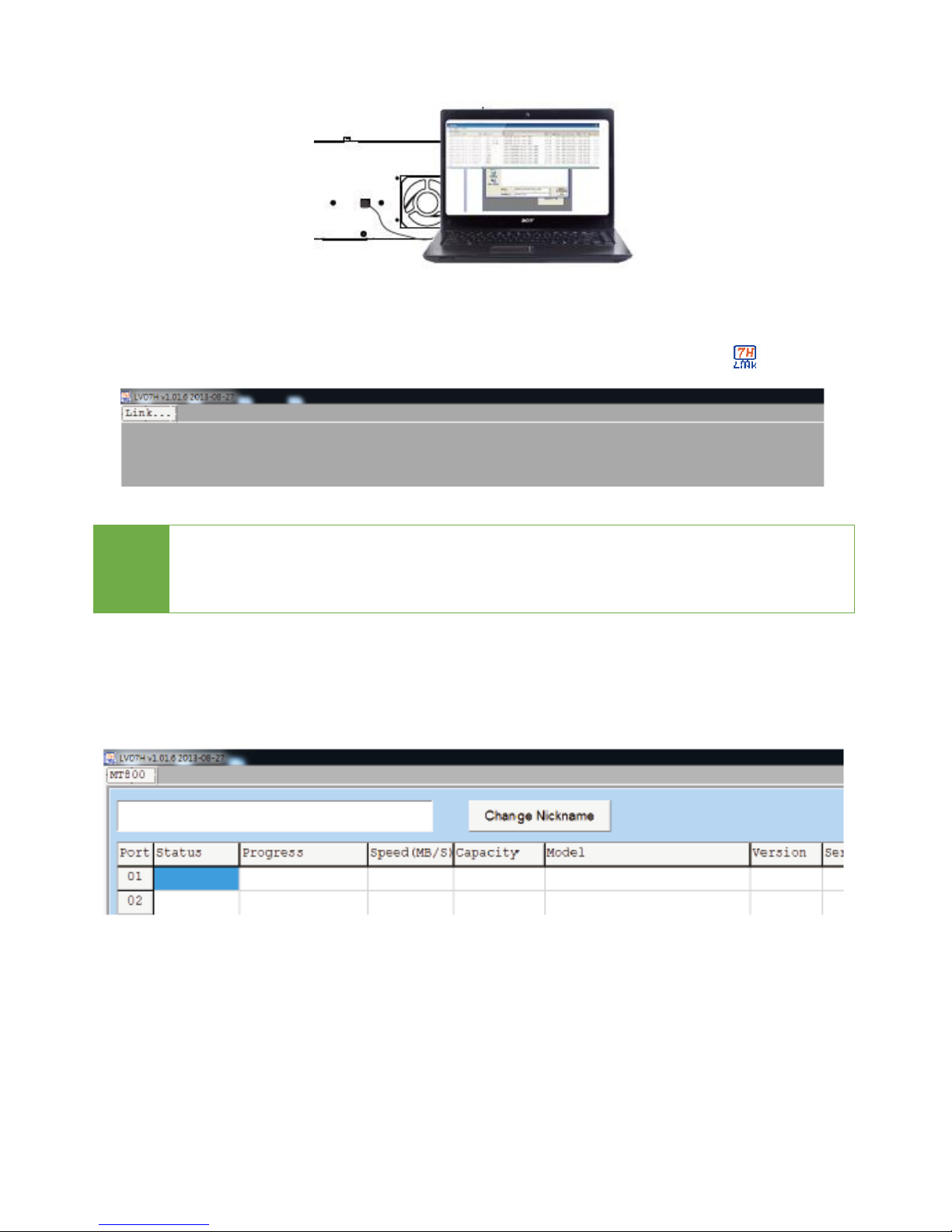

Real time PC-Monitoring .............................................................................................. 32

Using the PC-Monitoring Feature ................................................................................. 34

Datasheet ............................................................................................................................ 37

3

Product Disclaimer

U-Reach is not accountable for any incidental or consequential damages, including, but not
limited to property harm, loss of time or data from use of any U-Reach product, or any
other damages attributable to product malfunction or failure of including without
limitation, those attributed to reliance of the materials provided, costs of product
replacement, loss of use, data or profits, delays or business interruptions, any principle of
legal responsibility arising from or in reference to the use, overall performance, delays in
servicing, or lack of ability to render service of any U-Reach product. U-Reach makes every
effort to ensure proper function of all products. However, the customer is responsible to
verify that the output of U-Reach product meets the customer’s quality requirement. The
customer further acknowledges that improper use of U-Reach products, software program,
and/or hardware issues can cause loss of data, defective formatting, or unreliable data
loading. U-Reach will make efforts to resolve or repair any issues recognized by customer
either within the warranty period or on a time and materials basis.
Specifications and features are subject to change without notice or obligation.

Warranty

U-Reach provides a basic one year parts and labor warranty for all its products, excluding
cables, adapters, and other consumable items. An extended warranty may be purchased.
Telephone and email support is available for the life of the product as defined by U-Reach.

All warranties are specific to market region and will be defined per market region in which
the product was purchased.

Piracy Statement

U-Reach accepts no responsibility for copyright infringement or misuse of any U-Reach
equipment. Copying any form of data (audio, video, or software) without the permission of
the copyright holder is illegal. It is the sole responsibility of the user to ensure that the legal
copyrights of the copyright owners are respected.

4

Before You Start

Important Notice

 Carefully read the entire manual before operating.
 Make sure the source device is correct and functioning.
 Equal capacity of source and target is recommended for guaranteed data consistency.
 Using the Copy+Compare function provides the most flawless duplication.
 Damage incurred due to non-compliance with U-Reach operating instructions will void

the warranty.

 Store the equipment safely when not in use and keep out of the reach of children.
 Please turn off duplicator before replacing the socket.
 Never turn off the power while the firmware updating.
 Use only approved, stable power sources.
 Use product only in a clean, dry, dust free, and ventilated area. Liquids or foreign debris

can severely damage your duplicator.

 It is typical for the machine to heat up during operation.
 While in use, do not move the duplicator or remove devices.
 Static electricity may cause duplication error. Please pay attention to the duplicator’s

environment and while operating equipment. Purchasing electricity elimination
equipment helps avoid shock.

Notice Symbols

Special items, procedures, or notes to be observed prior to use.

Note

Refers to related duplicator operations, special details, tips, or
suggestions for operational effectiveness.

Caution

Refers to procedures that need to be adhered to or precautions.

5

Product Overview

The MTS series is an ultra-high speed duplicator and each SATA port is independent. That's
why no matter how many targets are running it’ll provide the same performance speed, far
beyond PC-based duplicator capabilities.

The MTS series device duplicator is specially designed for professional use. The smart Quick
Copy mode supports FAT16/32/64, Windows NTFS, Linux ext2/3/4, and Mac HFS/HFS+/HFSX
formats which can copy only data contained area that provides increased production
efficiency. Furthermore, the innovative interface design allows for effortless device
swapping during operation, which reduces time and effort throughout repairing.

Complies with the U.S. Department of Defense's erasing standard (DoD 5220.22 M) and
Secure Erase (NIST 800-88). It is important to ensure that data contained on discarded
devices cannot be retrieved and can be securely transferred.

Product Features

Operation Type

Standalone, FPGA based operation (Non-PC based system design).

Controller Design

Embedded controller is designed to support capacities over 18TB+. Constant improvement
supports latest market-available devices.

Bandwidth Performance

MTS-SAS transfers speeds of up to 18.0GB/min (300MB/sec.). It has a dedicated bandwidth
that enables high volume replications without speed degradation.

Read Only Source Port

There is no option to disable this built-in feature and it is integrated with all U-Reach
duplicators.

Module Design

Modular ports effectively reduce downtime and is cost-effective for long term ownership.

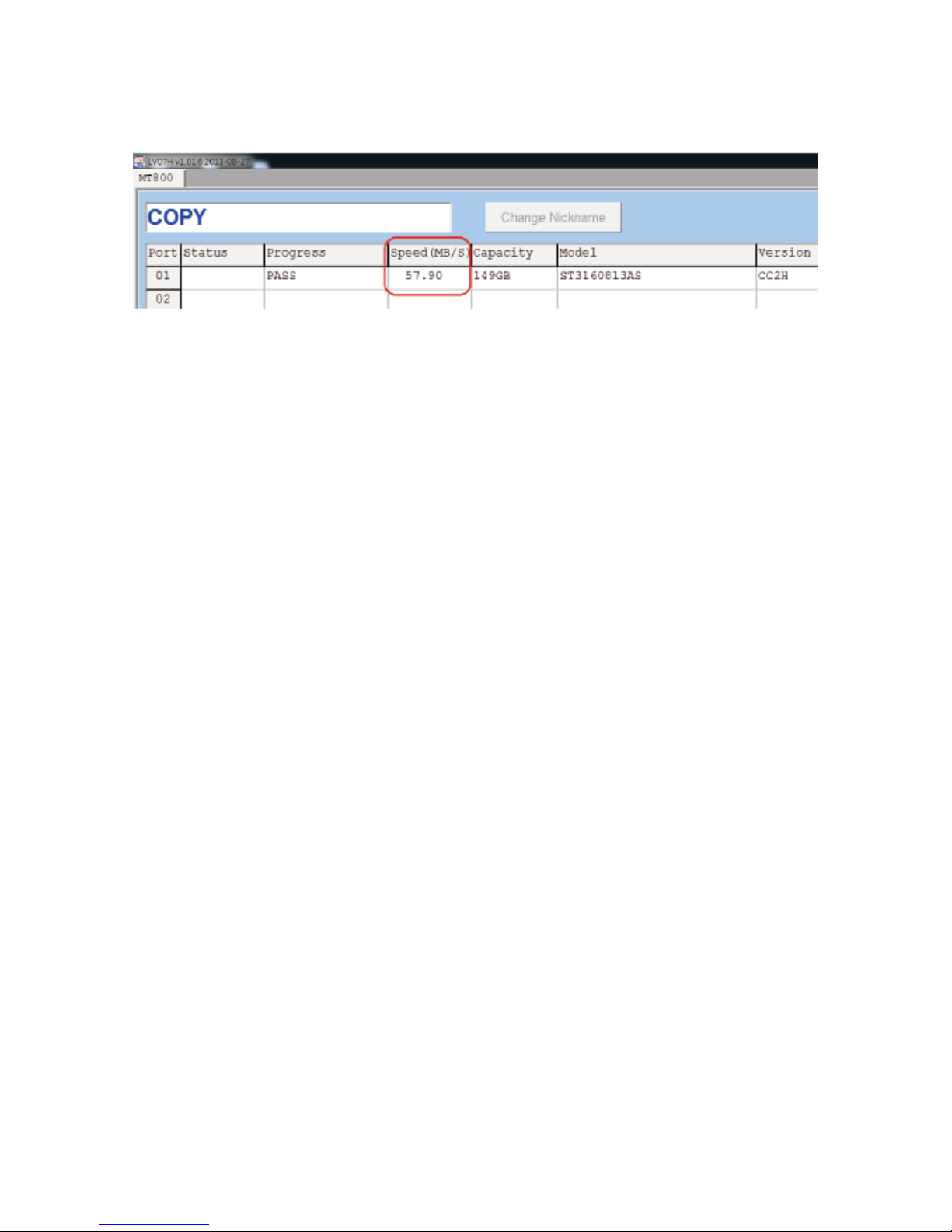

Real-Time PC Monitoring

View live status for: writing/reading speeds, total capacity, current function progress per
port.

Event Log Management

Exclusive Log management records details on each port such as serial number and source
devices flow for improved production control.

6

Hardware Overview

 Front View

 Back View

Grounding Port

PC Link

Power Switch and

Power Supply

7

 LED Indicator

 LCD Configuration

8

Functions Table

Function

Descriptions

1. Copy

Copies data from source device to targets. (There are four copy
modes in function "6.2 Copy Area")

2. Compare

Compares the source and targets to ensure copy accuracy.

3. Copy
+Compare

Automatically launches compare function after copy is completed.

4. Erase

4.1 Quick Erase

Erases device(s)’ index table.

4.2 Full Erase

Erases entire device(s), complying with NIST 800-88 Standards.

4.3 DoD Erase

Erases device(s), complying with DoD 5220.22-M Standards.

4.4 DoD EraseComp

Erases device(s), complying with DoD 5220.22-M Standards and
verifies complete erasure.

4.5 7-Pass Erase

Erases device(s) 7 times complying with DoD 5220.22-M(ECE)
Standards.

4.6 Secure Erase

Erases the non-loadable areas complying with NIST 800-88
Standards.

4.7 Enhanced Secure Erase

Erases devices that supports this feature.

4.8 NSA Erase

Erases device(s) complying with NSA Standards.

9

5. Utility

5.1 Show Disk Info.

Displays basic information such as device model, name, capacity,
etc.

5.2 Update
System

5.2.1 Update BIOS

Updates system firmware by any device at the
source port or through the USB port.

5.2.2 Create Update HDD

Prepares by formatting the device to a 2GB FAT
partition to accept firmware file.

5.3 System Info.

Displays system information such as controller, model number,
software version, etc.

6. Setup

6.1 Start-up Menu

Sets default function to display during equipment initialization.

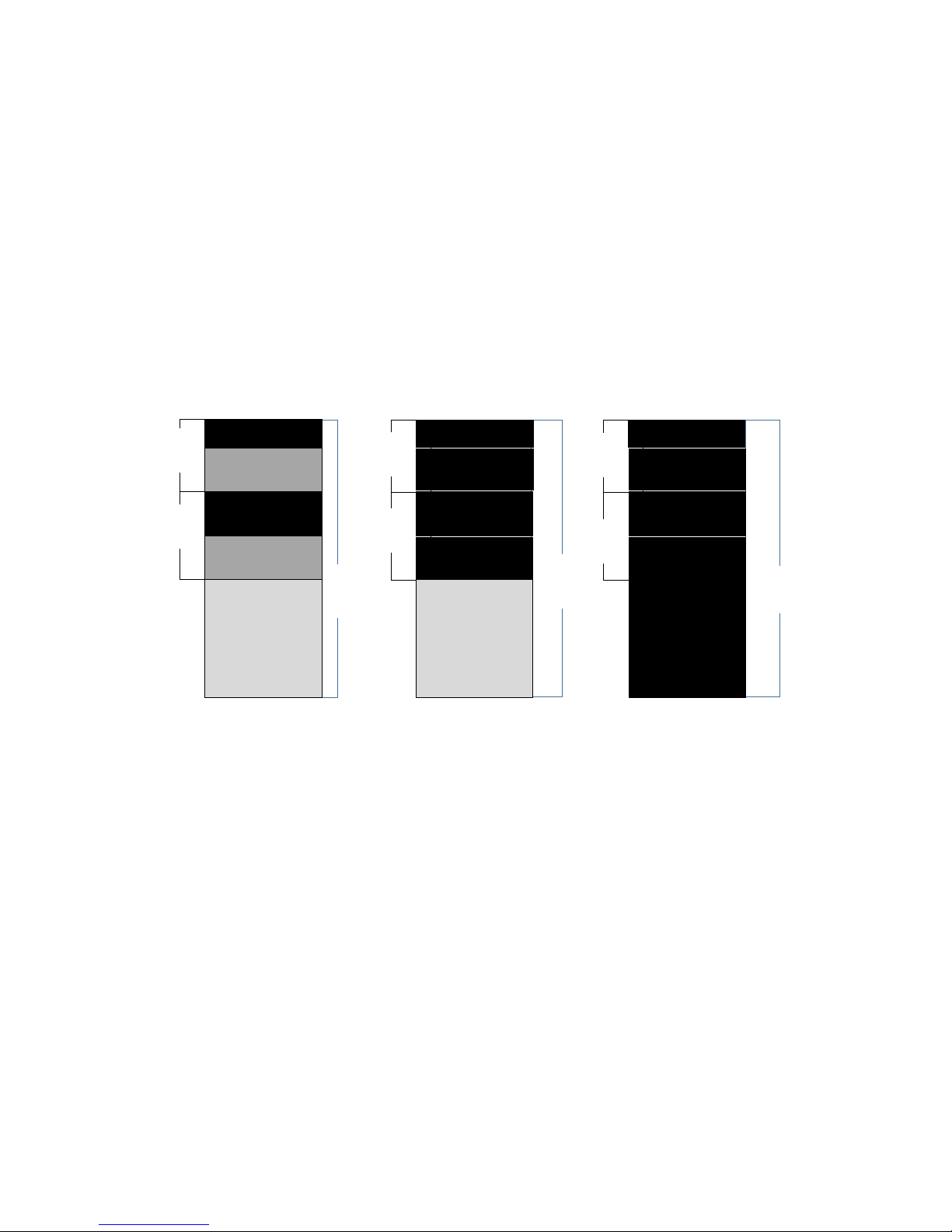

6.2 Copy Area

System and Files

Copies data and skips empty space. Only supports
standard formats.

ALL Partitions

Copies all partitions and data, unallocated partitions
not included.

Whole HDD
Copies all source data, bit-by-bit.

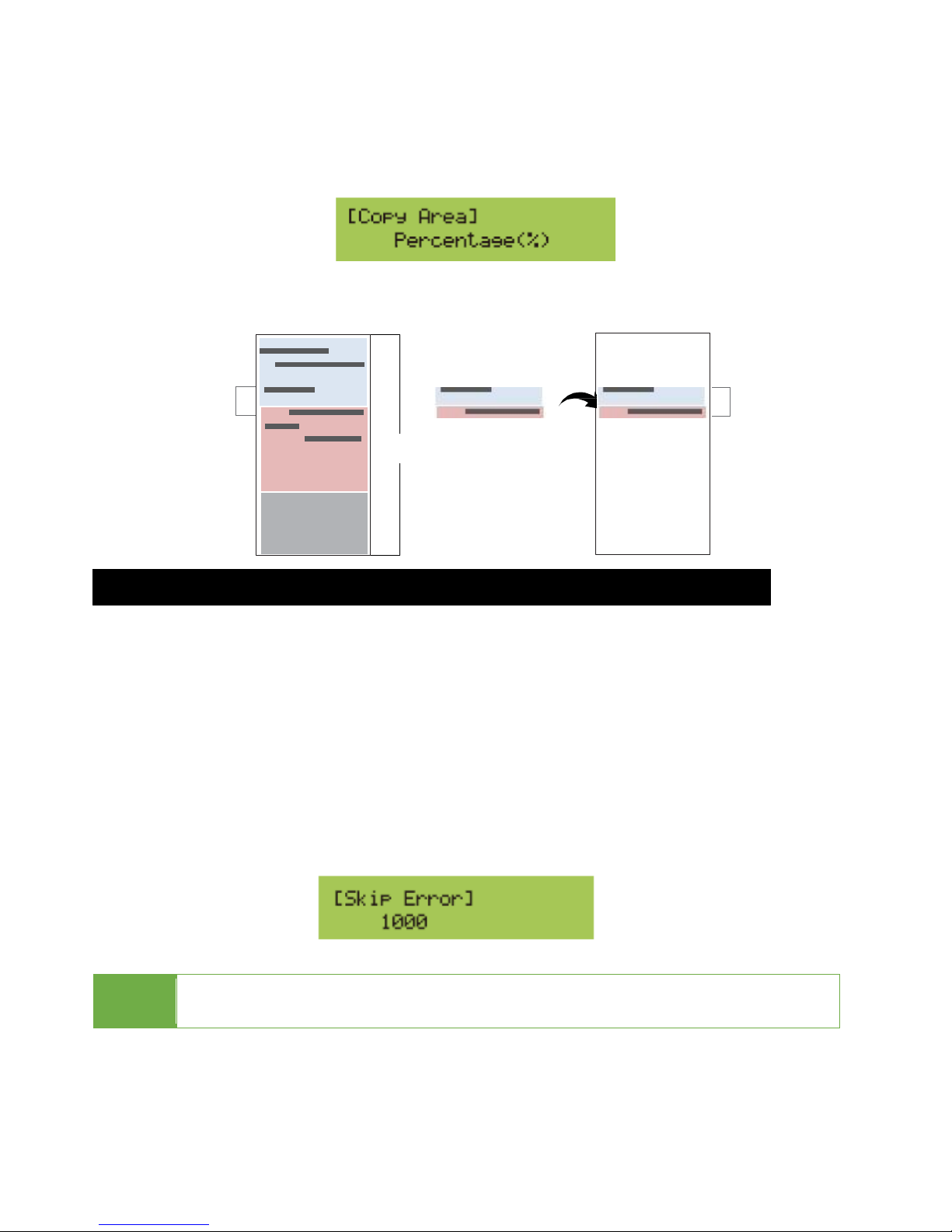

Percentage (%)
Sets percentage of source capacity to copy.

6.3 Skip Error

Skips bad sectors during Copy/Compare/Erase.

6.4 Minimum Speed

Allows user to disable or set minimum threshold speed during
Copy/Compare/Erase.

6.5 Check Source Minimum Speed

Allows user to enable or disable the 1st port speed check during
Copy/Compare/Erase.

6.6 Language
Sets preferred language: English or Japanese.

10

6.7 Advanced
Setup

6.7.1 Unknown Format
Allows user to copy or skip unknown format(s).

6.7.2 Erase Master

Allows user to erase the source port or not.

6.7.3 Erase Pattern

Sets whether to overwrite data in one-byte or Big
random data.

6.7.4 Wait HDD Time

Sets device power-up buffer time when tasks are
initiated. Able to set from 3 to 30 seconds.

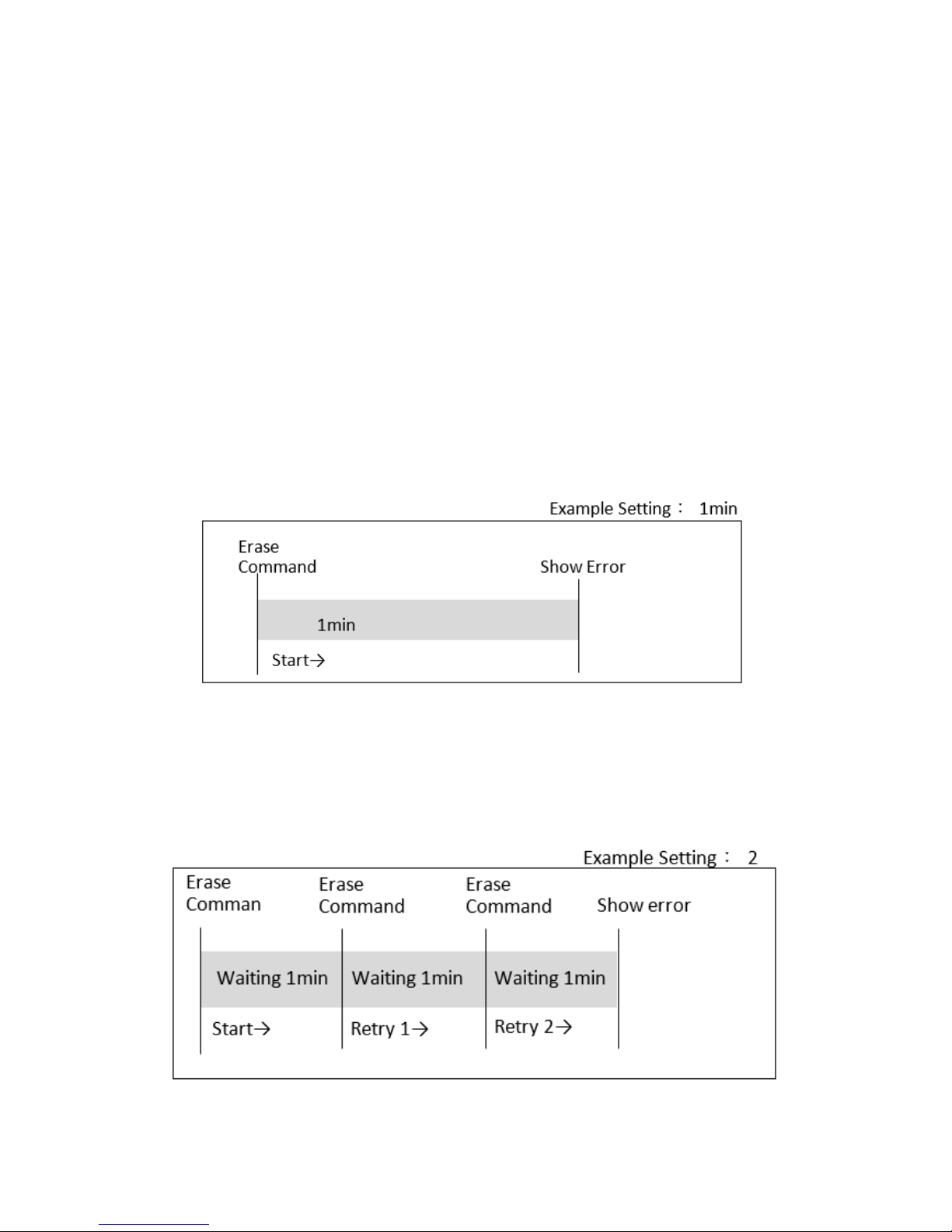

6.7.5 Timeout Time

Sets the amount of time the duplicator should wait for
the device(s) to respond.

6.7.6 Timeout Retry

Sets how many tries the duplicator should try again if
there are no response from the device(s).

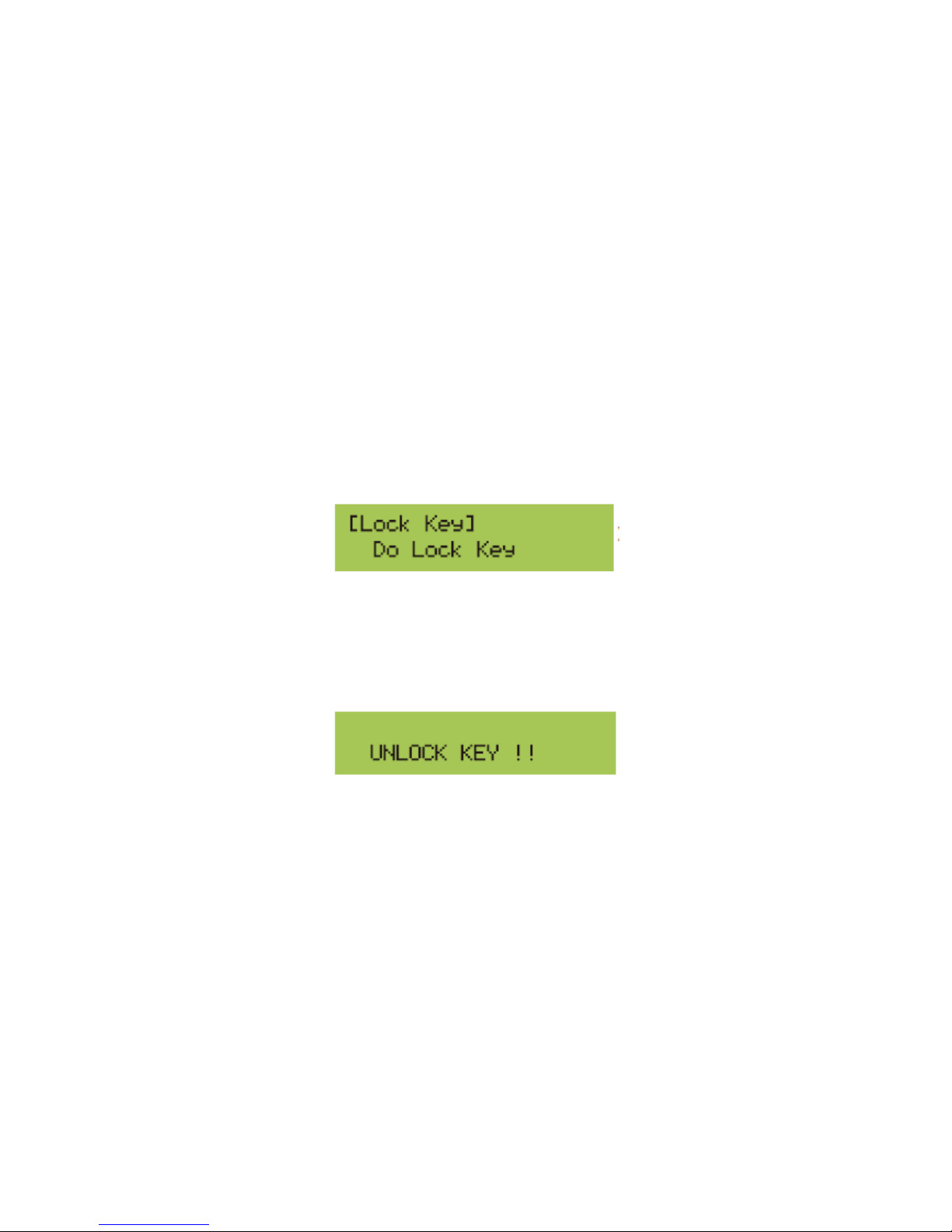

6.7.7 Lock Key

After keys are locked, only “OK/ESC” buttons will
function. (System reboot is required)

6.7.8 Copy
HPA Area

Do Not Copy
HPA

Keep Target HPA

Does not copy HPA data,

but keeps target device’s

original HPA setting.

Clear Target HPA

Does not copy HPA data

and clears target device’s

HPA setting.

Setting Target HPA

Copies HPA setting from source device to
target.

Copy and Setting

Copies HPA setting and data from source
device to target.

11

6.7.9 Clear
HPA at
ERASE

Clear HPA Setting

Clears HPA setting during erase.

Keep HPA Setting

Keeps original HPA setting during erase.

6.7.10 Transfer Rate

Allows user to select from UDMA2 to UDMA7. The
UDMA7 is the fastest.

6.7.11 Stop Motor Time

Sets device power down buffer time when tasks are
completed.

6.8 Restore Default

Reinstates manufacturer settings.

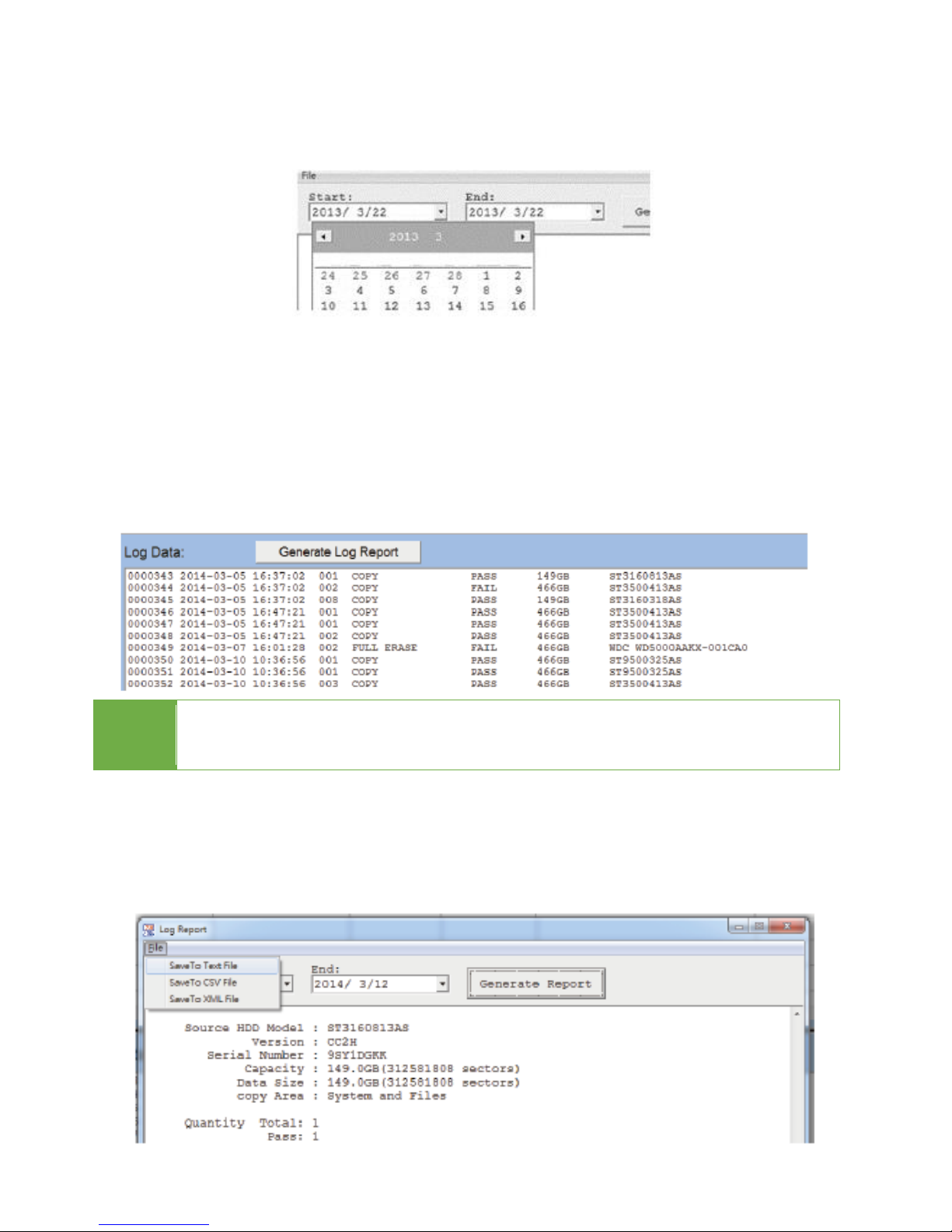

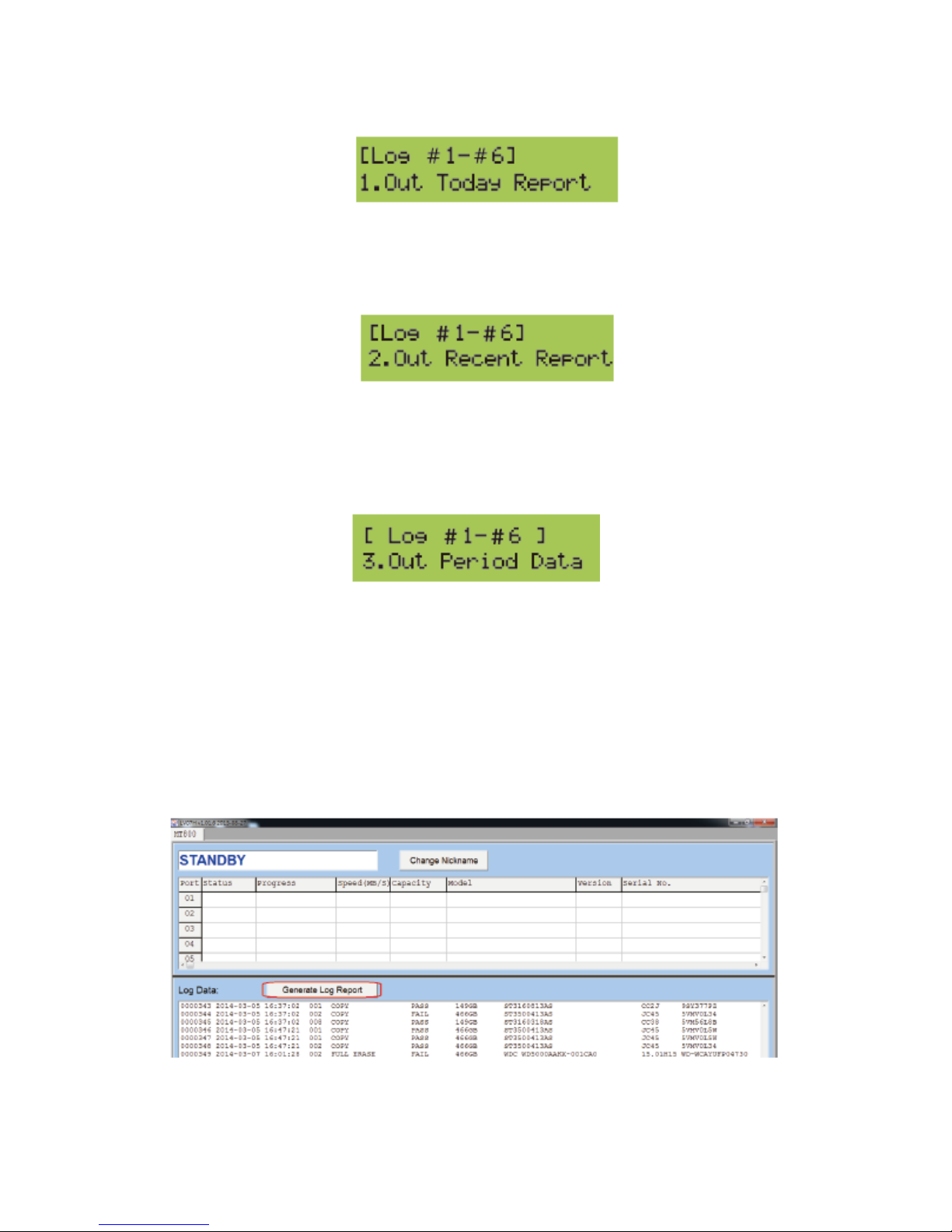

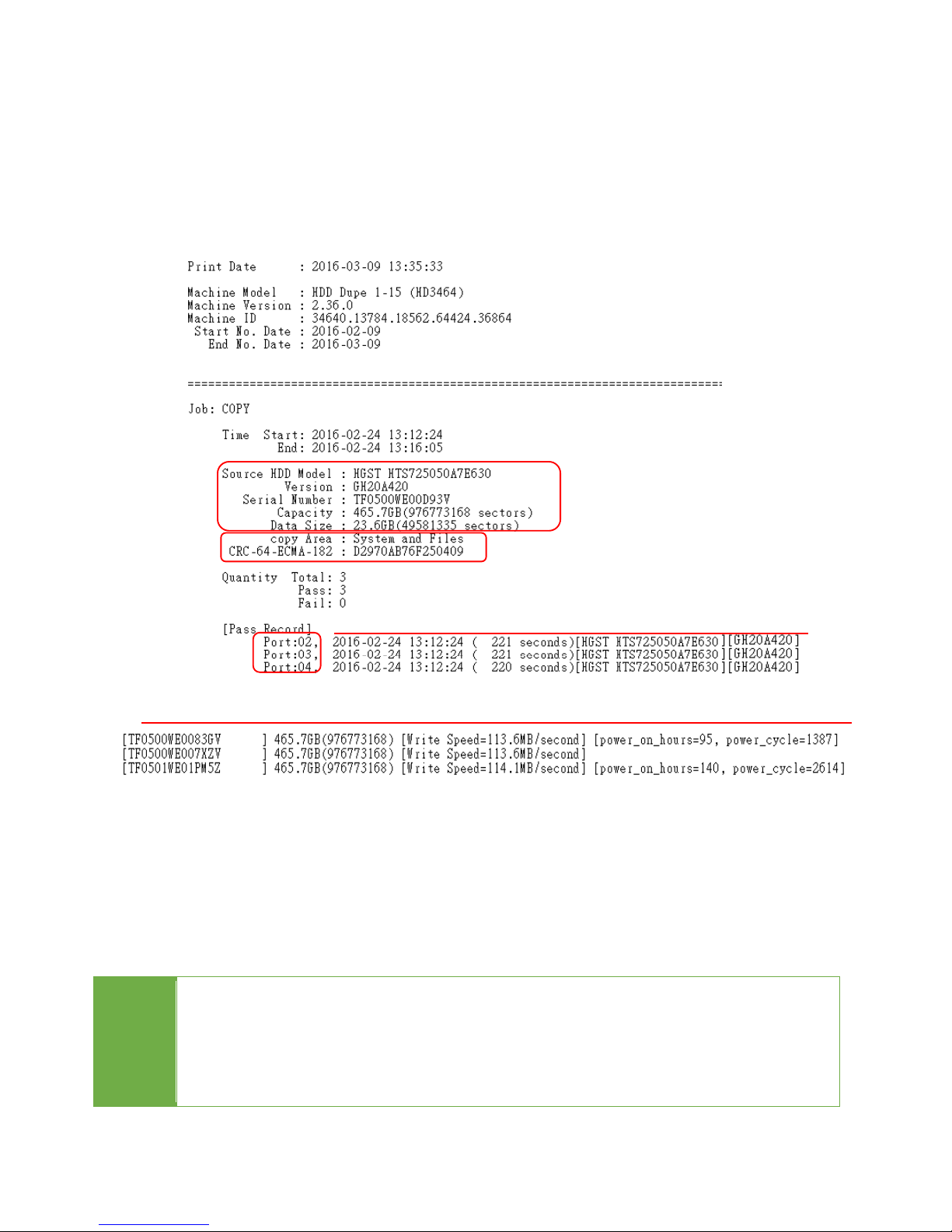

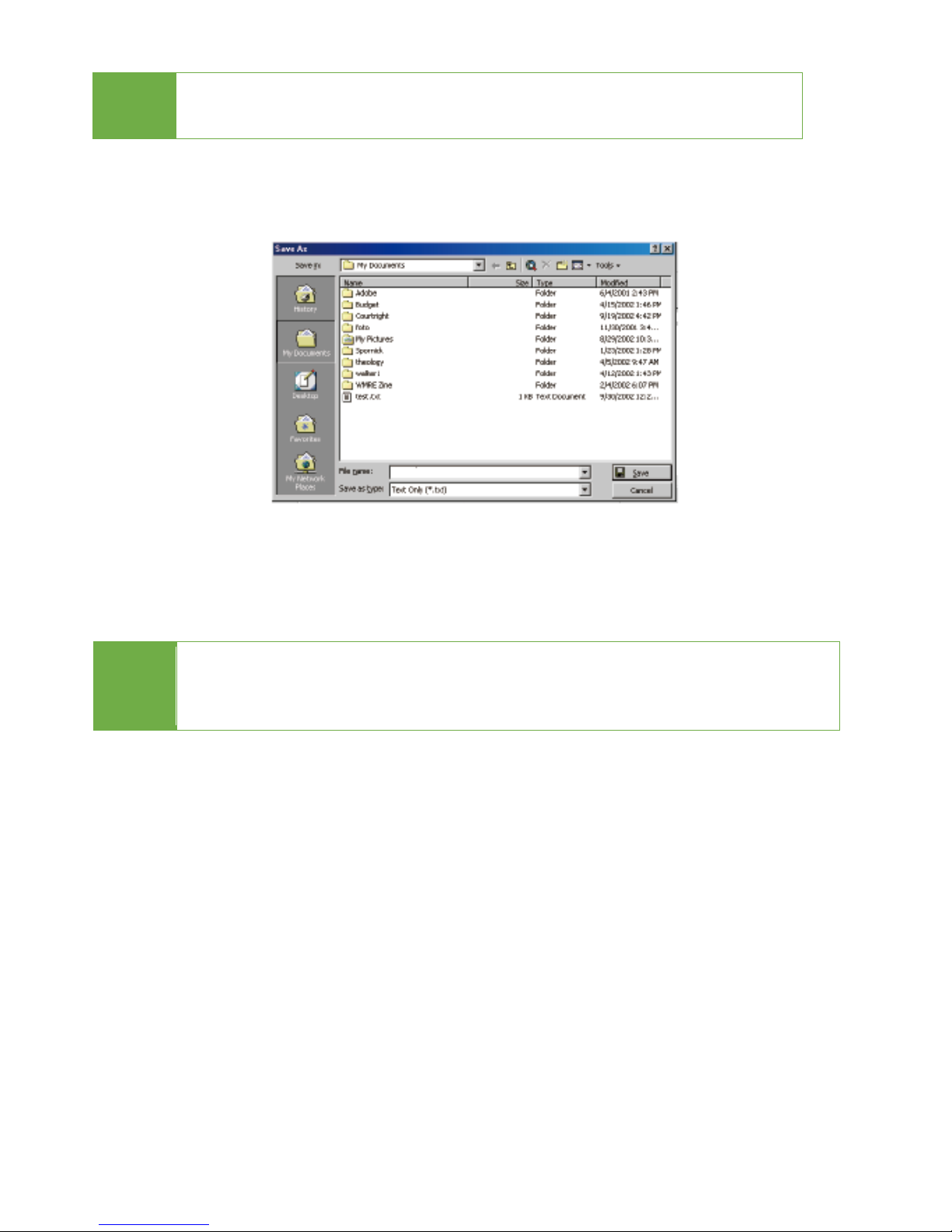

7. Log Manager

7.1 Out Today Report

Outputs today’s log data.

7.2 Out Recent Report

Outputs recent log data.

7.3 Out Period Date

Outputs a set period of log data.

7.4 Advanced
Function

Default password:
123456

7.4.1 Clear ALL Log

Clears all log records.

7.4.2 Setup Password

Allows password change.

7.4.3 Adjust Clock
Sets time and date.

12

Functions

1. Copy

Step 1: Prepare source and target devices.

Step 2: Connect source and target devices.

Step 3: Proceed to copy.

Scroll to select "1. Copy", then press "OK" to start the duplication process.

The information below states what is displayed on the LCD during duplication.

Step 4: Copy Completed!

The quantity of passed or failed target device(s), the copied duration, and CRC64
will be displayed on the LCD after duplication completes.

Note

Recommendation: Target device(s)’ capacity must be equal to or larger than

the source device capacity.

Note

The number of working/connected targets will be displayed on LCD. Press

"OK" to start.

Note

 Press “▲▼” together for 5 seconds to stop operation on the slowest

device.

 Press “ESC” for 5 seconds to stop all the copy jobs.

13

Note

CRC64: During duplication, each port will simultaneously record written
message and compare CRC64 between source and targets. The result will
confirm a pass (green light) or fail (red light).

2. Compare

Proceed to verify device(s).
Scroll to select "2. Compare", then press "OK" to start the verification process.

3. Copy+Compare

Sequentially automates from Function 1, Copy to Function 2, then Compare.
Scroll to select "3. Copy+Compare", then press "OK" to start the automated
duplication and verification process.

Caution

User is responsible for verification of targets’ quality. Testing a few completed
targets in a mass production environment for quality control is
recommended.

4. Erase

There are 9 submenu modes. Before performing the Erase, please prepare
related settings in 4.9 Setup.

Step 1: Connect device(s) for sanitizing.

Note

The number of working/connected targets will be displayed on the LCD. Press
"OK" to start.

Caution

Please backup all important data before using this function.

Note

Source Port is disabled for erasing. Go to 4.9.4 to enable source port erasing.

14

Step 2: Enter function "4. Erase"

Scroll to select "4. Erase”, then press "OK" to view the 8 erase modes.

Step 3: Select an Erase Function.

There are a few tips to see port details during erase.

Step 4: Erase Completed!

There are a few tips to perform or stop an Erase job.

Caution

User is responsible for verification of targets’ quality. Testing a few completed
targets in a mass production environment for quality control is
recommended.

4.1 Quick Erase

This function will erase the index table from the connected device(s).
Scroll to select "4.1. Quick Erase”, then press "OK" to start the erasing process.

4.2 Full Erase

This function will erase all data per NIST 800-88 Standards on the connected
device(s).
Scroll to select "4.2 Full Erase”, then press "OK" to start the erasing process.

4.3 DoD Erase

This function will erase all data per DoD 5220.22-M Standards on the connected
device(s).
Scroll to select "4.3 DoD Erase", then press "OK" to start the erasing process.

 Press “▲” or “▼” to view real-time status of each port.
 Press “OK” to view the details of each port.

 Press “Asynchronous Erase Button” to start a new Erase job.
 Press “Asynchronous Erase Button” for 5 seconds to stop a single port.
 Press “ESC” for 5 seconds to stop all the erase jobs.

15

4.4 DoD EraseComp

This function will erase all data per DoD 5220.22-M Standards, then verifies
erasure of the connected device(s).
Scroll to select "4.4 DoD EraseComp", then press "OK" to start the erasing and
verification process.

4.5 7-Pass Erase

This function will erase device(s) 7 times complying with DoD 5220.22-M(ECE)
Standards.
Scroll to select "4.5 7-Pass Erase", then press "OK" to start the erasing process.

4.6 Secure Erase

This function erases the non-loadable areas complying with NIST 800-88
Standards.
Scroll to select "4.6 Secure Erase ", then press "OK" to start the erasing process.

4.7 Enhanced Secure Erase

This function erases devices that supports this feature.
Scroll to select "4.7 Enhanced Secure Erase", then press "OK" to start the erasing
process.

4.8 NSA Erase

This function will erase device(s) complying with NSA Standards.
Scroll to select "4.8 NSA Erase", then press "OK" to start the erasing process.

5. Utility

This menu contains submenus related to device information, system information
and updates.
Scroll to select "5. Utility”, then press "OK" to view the submenus.

16

5.1 Show Disk Info

This function will display basic information such as device model, name,
capacity, etc…
Scroll to select "5.1 Disk Info”, then press "OK" to view the connected device(s).
Then scroll through to view connected device(s) by port number order.

5.2 Update System

There are 2 system update methods.

❶ Through USB Port

Step 1: Prepare a USB drive for update.

Connect a USB drive to PC. Download the latest firmware provided by U-Reach
technical support, unzip the BIOS firmware, then save it to the root directory in
the USB drive.

Step 2: Proceed to update firmware.

Connect USB drive to the USB port in front of the duplicator. Scroll to select
"5.2.1 Update BIOS”, then press "OK" to start the firmware update process.

Caution

The firmware update process may take longer than 5 minutes. Please do not
disrupt power or process during BIOS update. If interrupted, the system will
become useless. U-Reach will not be held responsible for any damages.

❷ Through Source Port

Step 1: Prepare a device for update.

Connect a device to the source port. Scroll to select "5.2.2 Create BIOS Format”,
then press "OK" to start the format process. This will format the device to a 2GB
FAT32 Partition.

Note

The USB’s format must be: FAT16 or FAT32.

17

Step2: Download Firmware

Connect this device to PC. Download the latest firmware provided by U-Reach
technical support, unzip the BIOS firmware, then save it to the root directory in
the device.

Step3: Proceed to update firmware.

Connect this device to the source port. Scroll to select "5.2.1 Update BIOS”, then
press "OK" to start the firmware update process.

Caution

The firmware update process may take longer than 5 minutes. Please do not
disrupt power or process during BIOS update. If interrupted, the system will
become useless. U-Reach will not be held responsible for any damages.

5.3 System Info

This function will display basic information such as controller, model number,
software version, etc.
Scroll to select "5.3 System Info”, then press "OK" to view all information.

6. Setup

This menu contains submenus related to device information, system information
and updates.
Scroll to select "6. Utility”, then press "OK" to view the submenus.

6.1 Start-up Menu

This function allows user to select the default function to display during
equipment initialization.
Scroll to select "6.1 Start-up Menu”, then press "OK.” Then scroll through the
available menus for startup.

Note

Ensure that the device does not have any bad sectors.

18

6.2 Copy Area

There are 4 submenu modes.
Scroll to select "6.2 Copy Area”, then press "OK.” Then scroll through to select
one of the four copy methods.

 Selecting the Proper Copy Modes

Example: There are two defined partitions in a 500GB device. The charts below
illustrate what portion would be duplicated.

 Copy and Compare Preparations

Please consider the following settings before proceeding with copy or compare:

- 6.2 Copy Area

- 6.3 Skip Error

- 6.4 Minimum Speed

- 6.5 Check Source Minimum Speed

- 6.7.1 Unknown Format

- 6.7.8 Copy HPA Area

100GB

250GB

500GB

60GB Data

150GB

Unallocated

Partition

30GB Data

System and files

100GB

250GB

500GB

60GB Data

150GB

Unallocated

Partition

All Partitions

70GB

190GB

30GB Data

100GB

250GB

500GB

60GB Data

150GB

Unallocated

Partition

Whole Device

70GB

190GB

30GB Data

This function will analyze
and copy only data and
skip empty spaces.

This function will copy
the entire device.

This function will copy all
data within the defined
partitions.

19

Using appropriate copy modes can greatly reduce operation time and increase
efficiency. There are four copy modes with different copy methods.

❶System and Files

Copies data and skips empty space. Only supports standardized formats.
Scroll to select "System and Files”, then press "OK" to save the copy method.
Allows user to copy source device’s System and Files, instead of the entire
device. The system will analyze the source device and identify the data area to
copy. If the source device’s data is within the target device’s capacity, the copy
will be processed. FAT16/32/64, NTFS, EXT2/EXT3/EXT4, and HFS/HFS+/HFSX are
supported in this copy mode.

❷All Partitions

Copies all partitions and data, unallocated partitions not included.
Scroll to select "All Partitions”, then press "OK" to save the copy method.
The target device’s capacity must be equal to or larger than the source device’s
capacity.

Only 120G data area will be copied.

Source

Duplication

Target

500GB

150GB
Unallocated
Partition

Partition1 (150GB)
Data 30 GB

Partition2 (200GB)

Data 90GB

20

❸Whole Device

Copies all source data bit-by-bit.
Scroll to select "Whole Device”, then press "OK" to save the copy method.
Copies the whole source device, irrespective of content, format, partition or
empty space. This mode does not analyze the data.

350GB of all Partitions along with its contents will be copied.

Source

Duplication

Target

500GB

150GB
Unallocated
Partition

Partition1 (150GB)
Data 30 GB

Partition2 (200GB)
Data 90GB

350GB

All 500GB of data will be copied.

Source

Duplication

Target

500GB

150GB

Unallocated

Partition

150GB

Unallocated

Partition

150GB

Unallocated

Partition

500GB

Partition1 (150GB)
Data 30 GB

Partition2 (200GB)
Data 90GB

21

➍Percentage (%)

Select percentage of source capacity to copy.
Scroll to select "Percentage”, sets the upper and lower %, then press "OK" to
save the copy method.

6.3 Skip Error

Skips bad sectors during Copy/ Compare/ Erase.
Scroll to select "6.3 Skip Error”, then press "OK" to scroll through the available
values for skipping bad sectors. If the device data is critical and needs to be a full
clone, it is recommended to set “Skip Error” at "0.” Bad sectors can be set as
unlimited or at a value from 0 to 65,535.

Caution

The “Copy+Compare” function is advised for enhanced copy accuracy.

Only copies the selected area.

Source

Duplication

Target

500GB

150GB
Unallocated
Partition

25%

35%

25%

35%

22

6.4 Minimum Speed

Allows user to disable or set minimum threshold speed during Copy/ Compare/
Erase.
Scroll to select "6.4 Minimum Speed”, then press "OK” to set desired minimum
threshold speed. The system will fail any device that does not achieve minimum
speed. Users can choose “Don’t Care” or set the speed value amongst
10/20/40/60~300MB/second.

6.5 Check Source Minimum Speed

Allows user to enable or disable the 1st port speed check during Copy/ Compare/
Erase.
Scroll to select "6.5 Check Source Minimum Speed”, then press "OK to enable or
disable speed analysis of the source port. This setting will follow the threshold
speed defined in function "6.4 Minimum Speed."

6.6 Language

Select English or Japanese.
Scroll to select "6.6 Language”, then press "OK.” Then scroll through select the
desired language.

6.7 Advanced Setup

6.7.1 Unknown Format

This function only works with “6.2 Copy Area >> System and Files.”
Scroll to select "6.7.1 Unknown Format”, then press "OK”.
Unknown format includes all forms of modified and proprietary data and
partitions.

❶ Copy Unknown

Copy unknown format(s).
Scroll to select "6.7.1 Unknown Format >> Copy Unknown”, then press "OK" to
save this setting.

23

❷ Skip Unknown

Skip unknown format(s).
Scroll to select "6.7.1 Unknown Format >> Skip Unknown”, then press "OK" to
save this setting.

6.7.2 Erase Master

This function allows user to enable or disable the source port for sanitization.
Scroll to select "6.7.2 Erase Master”, then press "OK.” Then scroll through to
select one of two settings.

❶ Disabled

Source port will be unable to erase.
Scroll to select "6.7.2 Erase Master >> Disabled”, then press "OK" to save this
setting.

❷ Enabled

Source port will be able to erase.
Scroll to select "6.7.2 Erase Master >> Enabled”, then press "OK" to save this
setting.

6.7.3 Erase Pattern

Scroll to select "4.9.5 Erase Pattern”, then press "OK”. Then scroll through to
select one of two settings.

❶ One Byte

Random character written per byte.
Scroll to select "6.7.3 Erase Pattern >> One Byte”, then press "OK” to save this
setting.

24

❷ Big Random Data

Random character written in a set of area.
Scroll to select "6.7.3 Erase Pattern >> Big Random Data”, then press "OK" to
save this setting.

6.7.4 Wait HDD Time

Sets device power up buffer time prior to copy, erase, etc...
Scroll to select "6.7.4 Wait HDD Time”, then press "OK" to set buffer time from 3
to 30 seconds. The default is 15 seconds.

6.7.5 Timeout Time

Sets the amount of time the duplicator should wait for the HDD device(s) to
respond.

6.7.6 Timeout Retry

Sets how many tries the duplicator should try again if there are no response
from the device(s).

25

6.7.7 Lock Key

This function allows user to enable or disable the 4 control panel buttons.
Scroll to select "6.7.5 Lock Key”, then press "OK" to access available settings.

❶ Disabled

Scroll to select "6.7.5 Lock Key >> Do NOT Lock Key”, then press "OK" to save this
setting.

❷ Enabled

Scroll to select "6.7.5 Lock Key >> Do Lock Key”, press "OK," then reboot the
system to activate the setting.

**Only ▲▼ buttons are disabled.

**To unlock keys, press “▲▼ OK ESC” simultaneously for 5 seconds. The screen

will show "UNLOCK KEY" and return to the main menu.

6.7.8 Copy HPA Area

This menu contains submenus related to HPA Copy Modes
Scroll to select "6.7.8 Copy HPA Area”, then press "OK" to view the submenus.
The default setting is: “Copy and Setting”.

❶ Do Not Copy HPA

This menu contains submenu settings for users to default to.
Scroll to select "6.7.8 Copy HPA Area >> Do Not Copy HPA”, then press "OK" view
submenu settings.

26

 Keep Target HPA

Does not copy HPA data, but keeps target device ‘s original HPA setting.
Scroll to select "Keep Target HPA”, then press "OK" to save this setting.

 Clear Target HPA

Does not copy HPA data and clears target device’s HPA setting.
Scroll to select "Clear Target HPA”, then press "OK" to save this setting.

❷ Setting Target HPA

Copies HPA setting from source device to target.
Scroll to select "6.7.8 HPA Copy Modes >> Setting Target HPA”, then press "OK"
save this setting.

❸ Copy and Setting

Copies HPA setting and data from source device to target.
Scroll to select "6.7.8 HPA Copy Modes >> Copy and Setting”, then press "OK" to
save this setting.

6.7.9 Clear HPA at Erase

Sets to clear HPA setting during erase.
Scroll to select "6.7.9 Clear HPA at Erase”, then press "OK" to save this setting.

❶ Clear HPA Setting

Clears HPA setting and data during erase.
Scroll to select "6.7.9 Clear HPA at Erase >> Clear HPA Setting”, then press "OK"
to save this setting.

Caution

HPA function “Copy and Setting” may change the original parameter of target
devices. To reset it, have to set “6.7.9 Clear HPA at Erase >> Clear HPA Setting”
and then execute “4. Erase.”

27

❷ Keep HPA Setting

Keeps original HPA setting and data during erase.
Scroll to select "6.7.9 Clear HPA at Erase >> Keep HPA Setting”, then press "OK"
to save this setting.

6.7.10 Transfer Rate

Allows user to select the transfer rate.
Scroll to select "6.7.10 Transfer Rate”, then press "OK". Select the desired
transfer mode from UDMA2 to 7. The default is UDMA7.

6.7.11 Stop Motor Time

Sets device power down buffer time when tasks are completed.
Scroll to select "6.7.11 Stop Motor Time”, then press "OK" to set buffer time
from 1 to 20 seconds. The default is 5 seconds.

6.8 Restore Defaults

Restores all settings back to manufacturer defaults.
Scroll to select "6.8 Restore Defaults”, then press "OK" to restore settings back to
manufacture defaults.

28

7. Log Manager

This menu allows user to access several submenus.
Scroll to select "7. Log Manager”, then press "OK" access submenus.

I. Log Report Diagram

II. How to Export Log Reports

The Log Report Management Tool assists users with monitoring, recording and
managing the entire duplication process. By displaying detailed information for
each port, this tool helps to identify the slowest writing device that in turn,
keeps the operation running efficiently.

Note

1. The USB must be FAT16/FAT32 format.

2. The LCD will display the number of recorded logs.

(E.g. #1-#6 means there are 6 logs.)

3. Outputs both .txt and .csv files.

Port No.

Source device

Copy Area and Check Sum

Result

Date Time Lapsed Time Model No. Revision

S/N Capacity (Sectors) Write Speed Power-on Hours _Power Cycle

29

➊ Export Today’s Log Report

Export today’s log report via USB port to a USB drive.

➋ Export Recent Log Report

Exports a recent log report (1-28 days) via USB port to a USB drive.

➌ Export Custom Log Report

Exports a specific time period’s log report via USB port to a USB drive.

III. Output Log Reports through LV07H Program.

After finishing all tasks, press <ESC> key, the LV07H status will return to
STANDBY.

Step 1: Click <Generate Log Report> in the field of LV07H screen <Log Data>.

30

Step 2: Select Date Range

After entering <Open Report>, select the date range for log report.

Step 3: Generate Report

After selecting the date range, click <Generate Report> to generate log report.
The duplicator can record up to 30,000 records of operational information off
the device. Each device operation is saved as one record. For example, 26
records will be recorded if data is copied from 1 device to 25 devices.

Step 4: Save Log as Text File

At the top-left of Log Data screen, select <File> then <Save to Text File>.

Note

If there is no record saved on the selected date, or record has been wiped out,

the program would show "No match records!"

31

Step 5: Save Log to the Specific Location

Specify a name and location to save the log.

Step 6: To Complete Output Log Reports

After successfully creating and saving the log, the report will be in the folder in
which it was saved.

Note

There are 4 files types to choose from when saving a Log Report:
.txt, .csv, .xml, or .pdf.

Caution

30,000 logs can be saved at one time. One device record is equal to one
recorded log.
(E.g. duplication from 1 device to 21 devices will be recorded to 21 logs.)

32

Real time PC-Monitoring

Real time PC-Monitoring is a convenient tool to monitor real time status of each
working port.

 Software Installation

The related driver and software icons for MTS series are displayed as follows:

Step 1: “LV07H” and “PL-2303” to your PC.

Step 2: Click on the icon “PL-2303” to start installation.

Step 3: Make sure the installation has completed.

 Start to Launch PC-Monitoring

Step 1: Please confirm that driver “PL-2303” has been installed properly.

LV07H: PC-Monitoring driver for device duplicators.

PL-2303: USB-to-Serial program connects the computer’s

USB-port to the duplicator’s.

33

Step 2: Connect USB cable from computer to the duplicator.

Step 3: Power on the duplicator.

Step 4: Launch LV07H by double clicking on software icon "LV07H ".

Step 5: When the following screen is shown, the duplicator has linked to the

computer successfully and is ready to use real-time monitoring function.

Step 6: If the screen above does not appear, please repeat steps 1 thru 4.

Caution

 Before Step 4, make sure the duplicator has booted up completely.
 Since there will be some configuration files when launching LV07H, make

sure to do so on a PC and not through the optical drive.

34

Using the PC-Monitoring Feature

Step 1: When duplicator status indicates it’s online, open the monitoring screen.

The program is ready to work when the status displays “STANDBY”.

Step 2: Execute a “Copy/Compare” on the duplicator.
After placing source & target devices into duplicator and executing a task, the
program will display all related device information. It captures detailed
information from each device via PC-Monitoring, e.g. device model, S/N, copy
speed, etc. It also records all operational progress.

Note

Please select only one computer to do all PC-Monitoring. This will prevent PC
from operating other tasks simultaneously as PC-Monitoring information can
rapidly synchronize.

Note

Copy speed varies during operation.

35

Step 3: After duplication, the program will display the average speed of each
device.

7.1 Out Today Report

Outputs current day log report
Scroll to select "7.1 Out Today Report”, then press "OK" to output log report to a
USB drive.

7.2 Out Recent Report

Outputs recent log report
Scroll to select "7.2 Out Recent Report”, then press "OK" to output log report to
a USB drive.

7.3 Out Period Report

Outputs recent log report
Scroll to select "7.3 Out Period Report”, then press "OK" to output log report to
a USB drive.

7.4 Advanced Function

This menu allows user to access several submenus.
Scroll to select "7.4 Advanced Function”, then press "OK" access submenus.
Default password: 123456

7.4.1 Clear All Log

Clear all log records.
Scroll to select "7.4.1 Clear All logs”, then press "OK" to clear all log records.

36

7.4.2 Password Setup

Allows password change.
Scroll to select "7.4.2 Password Setup”, then press "OK" to change to desired
password.

7.4.3 Adjust Clock

Change time and date.
Scroll to select "7.4.3 Adjust Time/Date”, then press "OK" to adjust the time and
date.

Caution

Before using function “Clear ALL Log” during PC connection, please observe the
following steps:

1. Close the PC-Link software (LV07) or 2. Disconnect the duplicator from PC

*The PC-Link software (LV07) is designed to continuously record log reports. If
user executes “clear log records” on the duplicator while LV07 is still running, the
conflict between LV07 and duplicator might lead a serious system error.

37

Datasheet

 Product Features

Features

Descriptions

Operation Type

Standalone, FPGA based operation (Non-PC based system

design).

Controller Design

● Embedded controller is designed to support capacities over

18TB+.

● Constant improvement supports latest market available

devices.

Patented Daisy-Chain
Design

A scalable and modular system enables expansive ownership

flexibilities.

Bandwidth
Performance

● Speed transfers of up to 18.0GB/min. (300MB/sec.)

● Dedicated bandwidth enables high volume replications

without speed degradation.

Read-Only Source
Port

There is no option to disable this built-in feature and it is

integrated with all U-Reach duplicators.

Modular Cabling
Design

Modular designed ports effectively reduce downtime and is

cost effective for long term ownership.

Real Time PC­Monitoring

View live status for: writing/reading speeds, total capacity,

current function progress per port.

Event Log
Management

● Records operating durations, individual port copy

progressions, connected device models, capacities, serial

numbers, and PASS or FAIL results.

● Device writing/reading speeds are recorded.

● Log report files are generated through the front USB port and

are saved to USB devices.

38

 Product Functions

Functions

Descriptions

4 Copy Modes

● Quick Copy (Data & System): Supports Windows, Mac, and

Linux.

● All Partitions: Users can skip HPA or unknown partitions.

● Whole Device: Copies bit-by-bit from the master device.

● Percentage Copy: Users can set percentages of capacity to be

copied.

Compare
(Verification)

Bit-by-bit data comparison from the source device to target
device(s).

8 Sanitization Modes

● Quick Erase

● Full Erase (NIST 800-88)

● DoD3 Pass (DoD 5220.22-M)

● DoD3 Pass+Compare (DoD 5220.22-M)

● DoD7 Pass

● Secure Erase (NIST 800-88)

● Enhanced Secure Erase

● NSA Erase

Bad Sector Scan

Scans device for any bad sectors by reading and writing.

Thorough Sector Scan

Scans device for any bad sectors by reading and writing two
times.

Skip Bad Sectors

Choose the number of bad sectors to skip.

Minimum Speed

Disable or set minimum threshold speed to drop the slowest
device.

Check Source
Minimum Speed

Allows user to enable or disable the source speed check.

Unknown Format

Choose to copy or skip unknown formats.

Erase Source Port

Enable or disable source port from being erased.

Device Power-up

Choose time to wait for the device to power up prior to copy,
erase, etc.

Device Power-down

Choose time to wait for the device to power down prior to
disconnection.

Scroll Lock

Disable or enable ▲ and ▼ buttons on the control panel.

HPA Copy Modes

Allows user to choose various HPA replication methods.

Clear HPA at Erase

Keep or clear HPA settings during sanitization process.

Language

English or Japanese.

Transfer Modes

Allows user to select the transfer rate.

Log Manager

Manage and export log reports.

39

 Product Compatibilities

Compatibilities

Descriptions

Compatible Devices

1.8"/2.5"/3.5” eSATA/SATA HDDs and SSDs

Compatible Devices
(Requires Optional
Adapters)

2.5"/3.5” IDE, iVDR, mSATA SSD, MicroSATA, M.2 (NGFF), CFast,

and Panasonic CF-29 through CF-74.

Supported Formats

● Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux

(Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).

● Whole Device Copy Function: All Formats, including

proprietary formats.

● GPT, MBR, and Advanced Formats.

Compatibilities

Descriptions

Supported O/S

All (Windows, Mac, Linux, and other proprietary systems).

 Product Specifications

Specifications

Descriptions

LCD Display

Backlit Monochrome LCD Display

LEDs

3 LED Indicators per Port:

Yellow (Power), Green (Pass), and Red (Fail)

Control Panel

4 Push Buttons (▲, ▼, OK, ESC)

Power Requirements

Universal Power: 115VAC or 230VAC, 50/60Hz

Operational Temperature

5°C ~ 45°C (41°F ~ 113°F)

Non-operational Temperature

-20°C ~85°C (-4°F ~ 185°F)

Humidity

Operating: 20% ~ 80%, non-condensing

Non-operating: 5% to 95%, non-condensing

Physical Dimensions (L×W×H)

Please refer to model-specific datasheets

Product Weight

Please refer to model-specific datasheets

Certifications

FCC, CE, RoHS

Specifications are subject to change without notice.
