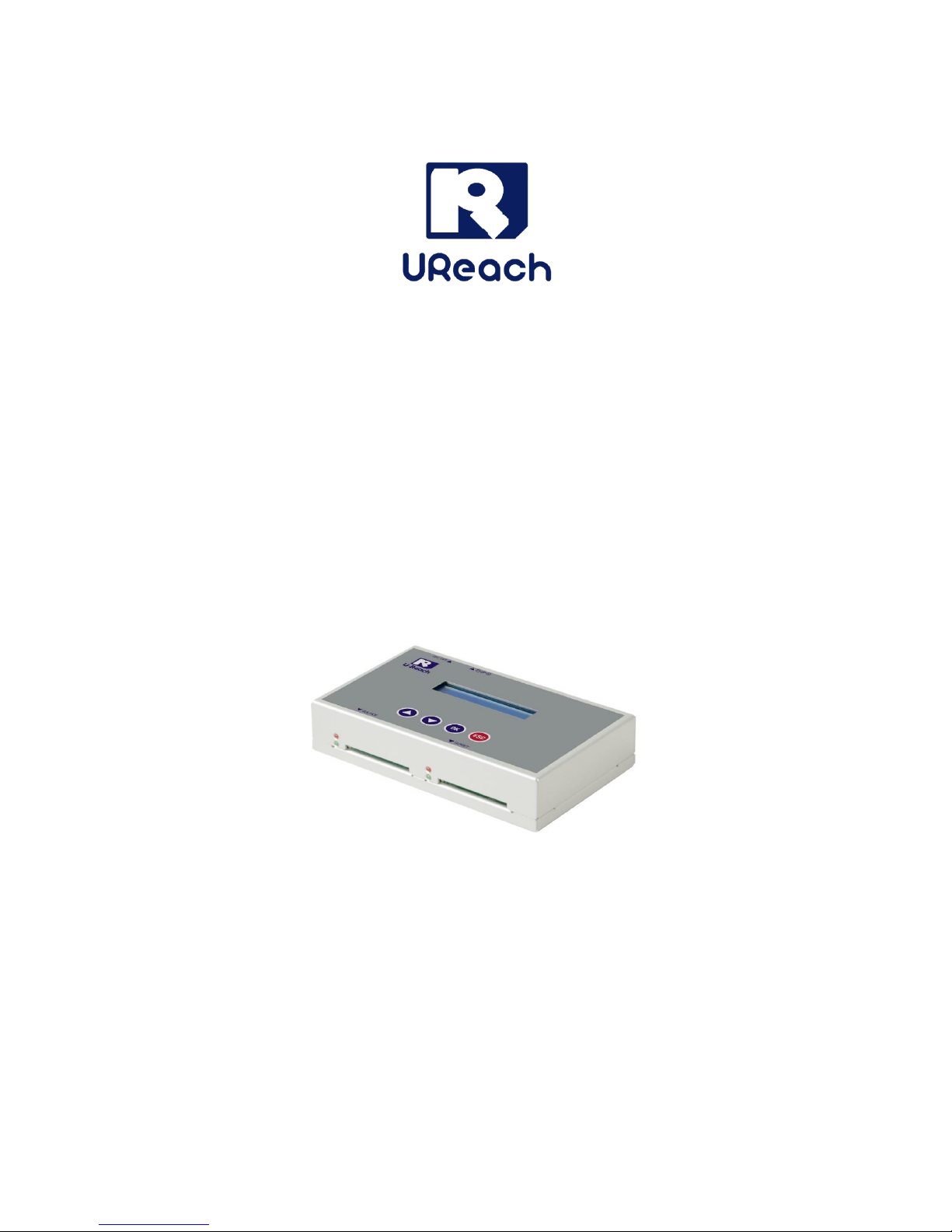

U-Reach CF121 User Manual

CF 1-1 Portable Copier

CF121

User Manual V1.0

2

Index

Product Disclaimer ............................................................................................................ 3

Warranty ........................................................................................................................... 3

Piracy Statement ............................................................................................................... 3

Important Notice ............................................................................................................... 4

Notice Symbols .................................................................................................................. 4

Product Overview .............................................................................................................. 5

Hardware Overview ........................................................................................................... 6

Function Table ................................................................................................................... 7

Function ............................................................................................................................ 9

1. Copy ............................................................................................................... 9

2. Compare ....................................................................................................... 10

3. Copy+Compare ............................................................................................. 10

4. Show CF info ................................................................................................. 11

5. System Info ................................................................................................... 11

6. Utility ........................................................................................................... 12

7. Setup ............................................................................................................ 15

Specification .................................................................................................................... 17

3

Product Disclaimer

U-Reach is not accountable for any incidental or consequential damages, including, but not
limited to property harm, loss of time or data from use of any our product, or any other
damages attributable to product malfunction or failure of including without limitation, those
attributed to reliance of the materials provided, costs of product replacement, loss of use,
data or profits, delays or business interruptions, any principle of legal responsibility arising
from or in reference to the use, overall performance, delays in servicing, or lack of ability to
render service any our product. The performance, delays in servicing, or lack of ability to
render service any our product. U-Reach makes every effort to ensure proper function of all
products. However, the customer is responsible to verify that the output of our product

meets the customer’s quality requirement. The customer further acknowledges that

improper use of our products, software program, and/or hardware issues can cause loss of
data, defective formatting, or unreliable data loading. U-Reach will make efforts to resolve
or repair any issues recognized by customer either within the warranty period or on a time
and materials basis. Specifications and features are subject to change without notice or
obligation.

Warranty

U-Reach provides a basic one year parts and labor warranty for all its products, excluding
cables, adapters, and other consumable items. An extended warranty may be purchased.
Telephone and email support is available for the life of the product as defined by U-Reach.

All warranties are region specific and will be defined per the market region in which the
product was purchased.

Piracy Statement

U-Reach accepts no responsibility for copyright infringement or misuse of any our
equipment. Copying any form of data (audio, video, or software) without the permission of
the copyright holder is illegal. It is the sole responsibility of the user to ensure that the legal
copyrights of the copyright owners are respected.

4

Important Notice

 Carefully read the entire manual before operating.
 Make sure the source device is correct and functioning.
 Equal capacity of source and target is recommended for guaranteed data consistency.
 Using the Copy+Compare function provides the most flawless duplication.
 Damage incurred due to noncompliance with U-Reach operating instructions will void

the warranty.

 Store the equipment safely when not in use and keep out of the reach of children.
 Please turn off duplicator before replacing the socket.
 Never turn off the power while the firmware updating.
 Use only approved, stable power sources.
 Use product only in a clean, dry, dust free, and ventilated area. Liquids or foreign debris

can severely damage your duplicator.

 It is typical for the machine to heat up during operation.
 While in use, do not move the duplicator or remove CF cards.
 Static electricity may cause duplication error. Please pay attention to the duplicator’s

environment and operator’s equipment. Purchasing static electricity elimination

equipment to avoid static electricity shock while in high static electricity areas.

Notice Symbols

Special items, procedures, or notes to be observed prior to use.

Note

Refers to related duplicator operations, special details, tips, or
suggestions for operational effectiveness.

Caution

Refers to procedures that need to be adhered to or precautions.

5

Product Overview

The new CF1-1 duplicator was designed with diversified media compatibility and high-speed
performance in mind to not only flawlessly duplicate large capacity targets, but it is also
portable so that you can copy CF cards anywhere. The user-friendly interface offers stress
free operation with no steep learning curve to climb. Its ergonomic design facilitates
efficient operation through simpler insertion and removal of flash cards and the new design
allows for better space utilization.

 Ultrahigh transmission speed.
 Real multitask processing capability. Whether copy, compare or format, each feature is

independently executed. Each flash slot has an independent processing unit.

 Non-PC based, with no risk of virus infection.
 One touch copy. Real time information will be displayed on the LCD screen.
 Ultrahigh speed bit-for-bit hardware comparison.
 Reads CF card serial numbers.
 Small footprint design allows for portability.

6

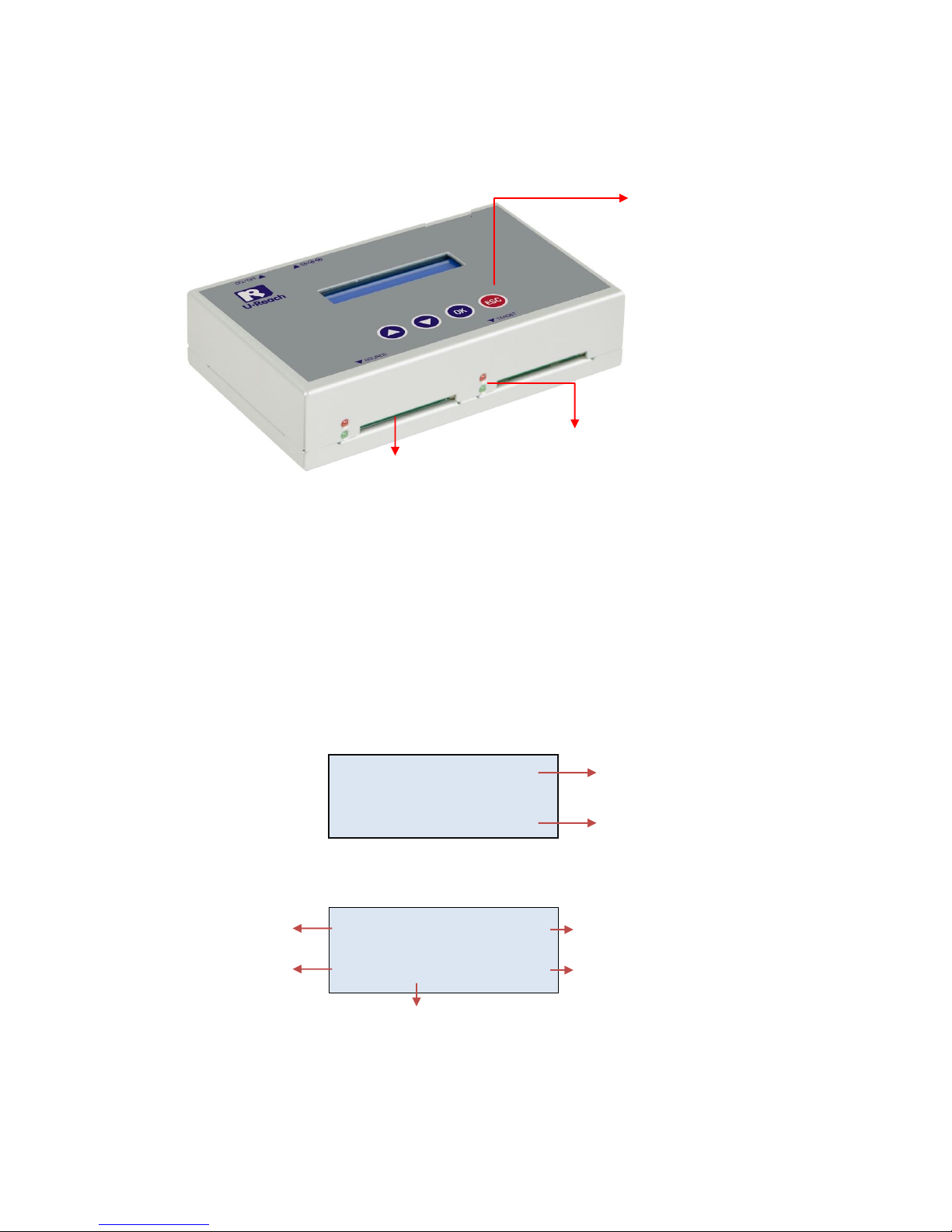

Hardware Overview

Front View

LCD Display

CF Duplicator

2. Compare

Copy 7695M

3% 0:27 (2)270M
Product Name

Function

Function

Total Data Capacity

Copied %

Copied Data Capacity

Copied Time

Source Port

LED

Red: Fail
Green: Pass

Control Button

▲

: Backward

▼

: Forward

OK: Confirm
Esc: Cancel

7

Function Table

Function

Description

1. Copy

Data and whole media duplication only.

2. Compare

Bit-for-bit comparison between the source and target flash medias.

3. Copy+Compare

First copies, then compares the target to the source once duplication
is completed.

4. Show CF Info.

This feature will show CF card’s brand, FW Version, S/N, capacity, file
format, and content size.

5. System Info.

This feature will show system information, such as, model number
and firmware version.

6. Utility

6.1 Do Format

6.1.1 Auto Format

Auto formats media to FAT16 or 32.

6.1.2 FAT16 Format

Formats media to FAT16.

6.1.3 FAT32 Format

Formats media to FAT32.

6.1.4 Set FAT 16 Cluster Size

Sets FAT16 Cluster size.

6.1.5 Set FAT 32 Cluster Size

Sets FAT 32 Cluster size.

6.2 Quick Erase

Erases flash media content, while keeping the FAT format.

6.3 Full Erase

Fully erases flash data bit-for-bit, including format and content.

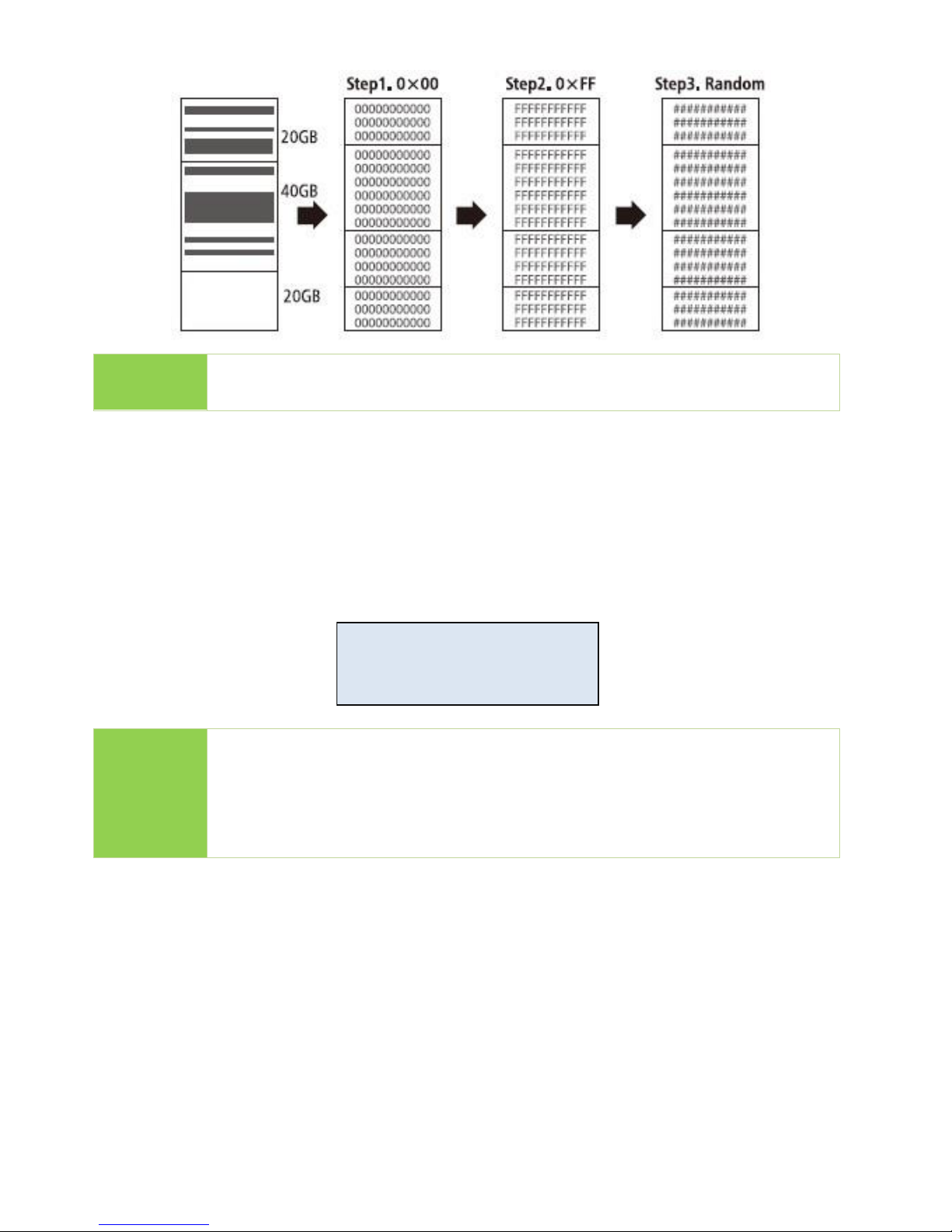

6.4 DoD Erase

Erases flash three times, complying with USA Department of Defense
(DoD) standards.

6.5 System Update
System firmware update via the flash media.

7. Setup

7.1 Copy Area
System and Files

Automatically analyzes the source data’s format
and copies only the data area.

Whole Media

Copies the flash’s entire content, including the

empty space.

7.2 Button Sound

Enables or disables the audible beep.

8

7.3 Power Off Time Between Copy&Compare
Sets the power off time between Copy and Compare.

7.4 CF Transfer Mode

Sets data transmission speed.

7.5 Set to Default
Reverts everything back to the original manufacturer settings.

9

Function

1. Copy

Before executing this function, please read “Setup Before Copy” to better understand the
copy process and results.

Copy Area

Copy area setting ➡ [7. Setup >> 7.1 Copy Area]
Before duplication, select the data area with "Copy area".

Select "System and Files"

Select "Whole Media"

Note

 If flash card is removed during copy process, the system will stop

immediately and the red light will illuminate to notify user that the
copy has failed. Removing the flash card during copy is strongly
discouraged as it will damage the flash card.

 Backup the data on target flash cards before starting the copying

process as any preexisting data will be lost once copy is complete.

★ Setup Before Copy

There are several sub-functions related to copy results, which can be adjusted in function
[7. Setup] before copying.

1. Copy Area [ Function 7.1 ]

2. Power Off Time Between Copy+Compare [ Function 7.3 ]

CF Duplicator

1. Copy (Data)

Copy 7695M

3% 0:27 (2)270M

1. Copy (Data)

1. Copy (Whole)

10

2. Compare

The compare function checks the accuracy of copy result. After the copy finishes, go to
function 2 and press "OK" to start the compare process.

3. Copy+Compare

This is the most convenient function. Rather than going to function [2.Compare], then
pressing "OK" after copy finishes, function [3.Copy+Compare] automatically runs the
compare function after copy completion to ensure an accurate copy result.

★ How to Ensure Duplication is Correct?

CF121 provides the most precise "compare function" to provide our clients with the most
reliable duplications. Using function [2. Compare] or [3. Copy+Compare] is strongly
recommended for guaranteed copy accuracy.

 Execute Function [2. Compare] for data checking between source and targets after

copy has concluded.

 Select Function [3. Copy+Compare] to automatically execute data comparison after

copy has finished.

Note

1. These two functions will examine the contained data, post copy, via a
strict bit-for-bit comparison. This highly increases data accuracy.

2. User is responsible for verification of targets’ quality. Testing a few
completed targets in a mass production environment for quality control is
recommended.

CF Duplicator

2. Compare

CF Duplicator

3.Copy+Compare

11

4. Show CF Info

Check CF card Information

Go to function 4 and press "OK" to start to a read of CF card’s Information. It will show 4
Information. CF card’s brand, FW Version, S/N and capacity. Use ▲▼ to view the

Information.

5. System Info

Check duplicator Information

Go to function 5 and press "OK" to start to a read of duplicator’s firmware version and
press▼ to view more information, such as machine ID.

CF Duplicator

4. Show CF Info.

[#1] CF P/N

SanDisk SDCFH-004G-A11

[#1] F/W Version

HDX 6.02

[#1] CF S/N

ANZ101511005900

[#1] Cap. 3870M

FAT32 230M

CF Duplicator

5. System Info.

CF 1-1

Ver: 2.36.8

Machine ID:

68A4VE294A1B54

12

6. Utility

6.1 Do Format

Caution

User is responsible for verification of targets’ quality. Testing a few
completed targets in a mass production environment for quality control is
recommended.

6.1.1 Auto Format

This function formats flash into FAT. Plug in the flash media and press "OK". The system
will automatically detect its capacity, then format the media per its capacity.

 If the flash media format is already FAT16 or FAT32, the format function won’t alter its

original format.

 If the original flash media is not FAT format, i.e. NTFS, Linux or FAT multipartition.

The system will format per flash’s capacity. If capacity is above 2GB, the system will format

the flash to FAT32 and below 2GB, the system will format the flash to FAT16.

Capacity < 2GB

Format FAT16

Capacity > 2GB

Format FAT32

Note

The source port will not perform any formatting because this function will

delete the flash media’s data.

6.1.2 FAT16 Format

Sets the FAT16 format.

6.1.3 FAT32 Format

Sets the FAT32 format.

6.1.4 Set FAT16 Cluster Size

Sets the FAT16 cluster size.

6.1.5 Set FAT32 Cluster Size

Sets the FAT32 cluster size.

13

★ Erase the Flash Card

Caution

Flash data will be wiped out. Please make sure to backup all important
data before using this function.

6.2 Quick Erase

This function erases flash data while keeping the format if the original flash format is
FAT16/32. Use the ▲▼buttons to view status, progress, and information.

Note

Quick erase function will erase only FAT 16/32 formatted flashes.

6.3 Full Erase

Completely erases the entire flash media, including format and content. This task takes
longer. Pressing <ESC> during this process will abandon the task, but the original format
and content will no longer be readable.

6.4 DoD Erase

DoD Erase complies with the U.S.A. Department of Defense (DoD 5220) standards by
erasing the flash three times, which guarantees that data is completely scrubbed.

[Utility]

2. Quick Erase

Do ERASE ALL

Confirm?

[Utility]

3. Full Erase

Do ERASE ALL

Confirm?

[Utility]

4. DoD Erase

Do ERASE ALL

Confirm?

14

Note

Use the▲▼buttons to view the status of each port during erase.

6.5 System Update

Save the firmware in a CF card and insert the card to source port. Go to function [6.5]
system Update, and press OK to update duplicator’s firmware.

Caution

The firmware update process may take longer than 5 minutes. Please do
not disrupt power or process during BIOS update. If interrupted, the
system will become useless. The manufacturer will not be held
responsible for any damages.

[Utility]

5. System Update

15

7. Setup

7.1 Copy Area

➊ Copy Area: System and Files

Also known as "Quick Copy”. The source’s format is automatically analyzed and if it’s

recognizable, such as, FAT 16/32/64, NTFS, or Linux ext. 2/3/4, the system will copy the
data only, rather than the entire flash.

Note

If the file format is not recognized, the whole flash card, including empty

space, will be copied even if you specify copy area in “System and Files”.

➋ Copy Area: Whole Media

The system will copy the whole flash card, including empty space and format. This
function is useful when users want to copy the whole flash or have a flash source with
an unknown format. "Whole media" copies take a bit longer to complete.

7.2 Button Sound

Controls whether to hear a sound when a button is pressed.

[Button Sound]

ON

[Copy Area]

System and Files

Copies 2GB data only

[Copy Area]

Whole Media

8GB

Copy total 8GB

16

7.3 Power Off Time Between Copy+Compare

The use of this setting is highly advised as it prevents data loss due to unstable flash.
Users can set the time gap of power supply between copy and compare. The time gap
can be set from 0 to 15 seconds. The default is "0".

7.4 CF Transfer Mode

There are 7 CF transfer mode options to choose from. The default setting is UDMA4, which

automatically adjusts the speed per your CF card. If unsure of the CF card’s quality, you can

manually reduce the transfer speed.
There are 7 transmission speed options:

 PIO Mode 4
 MDMA Mode 2
 UDMA Mode 0
 UDMA Mode 1
 UDMA Mode 2
 UDMA Mode 3
 UDMA Mode 4 (Default)

7.5 Set to Default

Restores original default settings.

[Select Speed]

UDMA Mode 4

[Power Off Time Between]

0

Complete

All Parameter was cleared!

Warning:

Clear Parameter to Default?

17

Specification

Model Name

CF121

Targets

1:1

Specification

Maximum
Transfer Speed

3.9GB/min(66MB/sec.)
*Actual performance is dependent on CF transfer speeds*

Capacity

Supports the latest market available capacity Designed
support capability up-to 2TB

Operating Type

Standalone, FPGA based operation (Non-PC based)

Supported Languages

English

LCD Display

Backlit Monochrome LCD Display

LEDs

2 LED (Red/Green) Indicators per Port

Control Panel

4 Push Buttons (▲, ▼, OK, ESC)

Features

Copy Modes
Quick Copy (Systems & Files Copy)

Whole Media Copy

Compare Function

Bit-by-bit data comparison

Sanitization Modes

Quick Erase, Full Erase, DoD Erase

Format Functions

Formats device to FAT16 or FAT32

Compatibilities

Compatible Devices

CF Type I/II

Compatible Device

CFast (with required adapter)

Supported Formats
Quick Copy: FAT16/32/64, Windows (NTFS), and Linux

(Ext2/Ext3/Ext4)

Whole Media Copy: All Formats, including proprietary
formats

Supported O/S

All (Windows, Linux, and other standalone systems)

Hardware
Specifications

Power Supply

5V 2A DC Adapter

Working Temperature

5°C ~ 45°C (41°F ~ 113°F)

Storage Temperature

-20°C ~85°C (-4°F ~ 185°F)

Working Humidity

20% ~ 80%

Storage Humidity

5% ~ 95%

Dimensions

15*9.3*3.5 cm

Weight

550g

*Specifications subject to change without notice.
