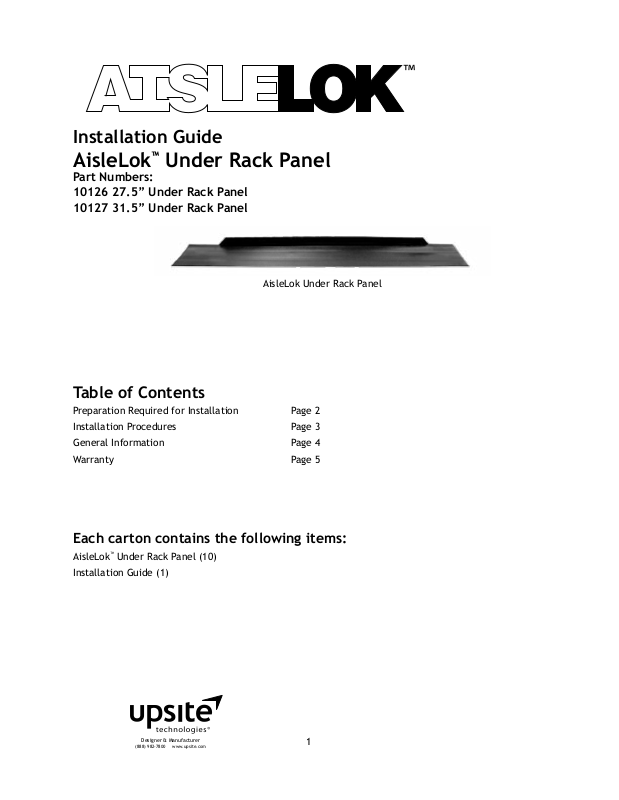

Upsite 10126 User Manual

Installation Guide

AisleLok™ Under Rack Panel

Part Numbers:
10126 27.5” Under Rack Panel

10127 31.5” Under Rack Panel

AisleLok Under Rack Panel

™

Table of Contents

Preparation Required for Installation Page 2

Installation Procedures Page 3

General Information Page 4

Warranty Page 5

Each carton contains the following items:

AisleLok™ Under Rack Panel (10)

Installation Guide (1)

Designer & Manufacturer

[phone] www.upsite.com

1

Installation Guide

AisleLok™ Under Rack Panel

Preparation Required for Installation

Dimensions and Cutting Requirements Inches Millimeters

Part No. 10126 - Overall size (length x height x max depth) 27.5” x 4.53” x 1.0” 699 mm x 116 mm x 25 mm

Maximum Under Rack Sealing Length 27.5” 699 mm

Part No. 10127 - Overall size (length x height x max depth) 31.5” x 4.53” x 1.0” 801 mm x 116 mm x 25 mm

Maximum Under Rack Sealing Length 31.5” 801mm

Contact Upsite Technologies, Inc. at [phone] for more information on customized products and

installation services.

Clean the bottom surface of the rack where the Under Rack Panel will be installed. Use an alcohol wipe

or a clean cotton cloth, damp with a solution of at least 50 percent isopropyl alcohol. Helpful tip: When

choosing your cleaning cloth, do not use fabric or paper that will disintegrate or leave particles that

could interfere with the adhesive.

Product Component

AisleLok Under Rack Panel (with attached adhesive strip).

AisleLok Under Rack

P/N 10103

www.AisleLok.com - Patent Pending

C

AisleLok

www.AisleLok.com - Patent Pending

E

Dimensions in Inches

Item A B C D E

10126 27.5” 16” 4.53” 4.52” .06”

10127 31.5” 20” 4.53” 4.52” .06”

Under Rack

P/N 10103

A

B

D

Designer & Manufacturer

[phone] www.upsite.com

2

Installation Guide

AisleLok™ Under Rack Panel

Installation Procedures

The AisleLok Under Rack Panel ts standard racks, up to 31.5” and is designed to minimize airow

underneath the rack. Before removing the adhesive backing from the Under Rack Panel, align the

Panel with the rack to ensure proper t location before installation.

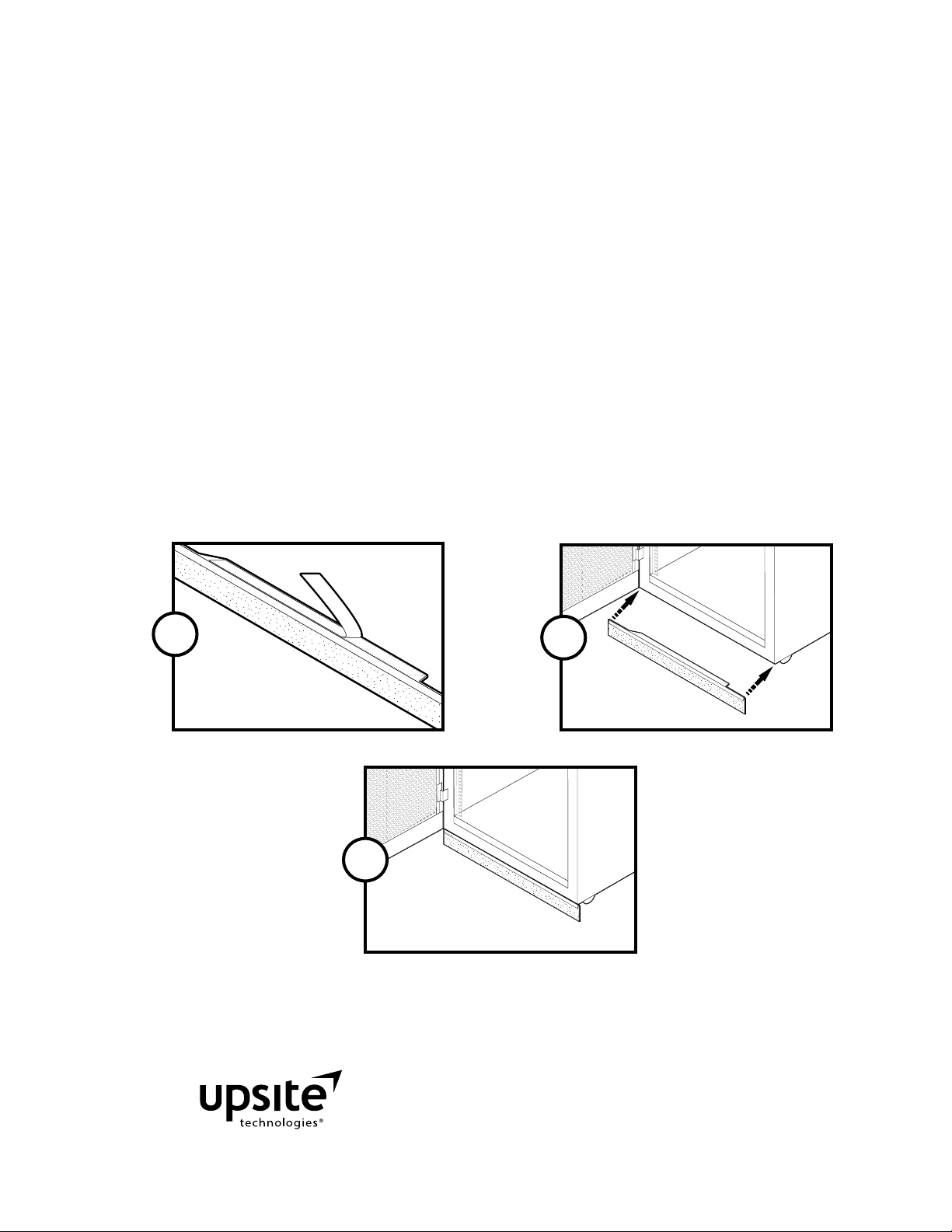

1. Remove the adhesive backing material from the Under Rack Panel.

2. Attach the Panel to the bottom of the rack.

3. Press rmly along the length of the adhesive backing to ensure AisleLok Under Rack Panel

remains in place.

The Panel should rest ush on the tile, with no gaps, to minimize airow underneath the rack.

When installed, the Panel may create an overlap on adjacent server cabinets. The overlap is an in-

tentional design, specically blocking the bypass airow between the adjacent server cabinets. The

Panel at the end of the aisle will need to be trimmed back so the overlap is not protruding.

1

3

AisleLok

www.AisleLok.com - Patent Pending

Under Rack

P/N 10103

2

AisleLok

www.AisleLok.com - Patent Pending

Under Rack

P/N 10103

Designer & Manufacturer

[phone] www.upsite.com

3

Installation Guide

AisleLok™ Under Rack Panel

General Information

Maintaining Proper Cooling of Equipment

Failure to follow computer manufacturer’s guidelines for maintaining proper cooling may result in the

overheating of equipment. Before minimizing under rack airow, ensure that proper airow to the

intake side of computer equipment or cabinets is feasible through the use of devices such as perforated

oor tiles. Achieving proper airow to the intake side of computer equipment and/or cabinets is the

responsibility of the customer.

Safety Requirements

Installers must be familiar with standard safety and risk management practices when working in raised

oor environments and when modifying racks and cabinets.

If you have any questions, please contact us at: [phone], M–F, 7AM–4PM MST or email us
at: [e-mail]

Upsite Technologies, Inc.

Fax [phone] Tel [phone]
www.upsite.com

Customer Support

Upsite Technologies, Inc.
4900 Lang Avenue, N.E., Suite 204
Albuquerque, NM 87109
P: [phone] | F: [phone]
www.upsite.com
Toll Free: 888-982-7800

Printed on

Recyclable Paper

Designer & Manufacturer

[phone] www.upsite.com

4

Installation Guide

AisleLok™ Under Rack Panel

Limited Warranty

Upsite Technologies, Inc. (the Company) warrants to the original purchaser that products delivered hereunder
will be free of defects in materials and workmanship for a period of twelve (12) months from the date of pur­chase (the “Warranty Period”).

The Company shall, at its option, within the Warranty Period, either repair or replace free of charge, any prod­uct or part thereof found, upon the Company’s inspection, to be defective in materials and workmanship, and
will return the repaired or replaced product to the purchaser at Company’s expense.
For warranty service and shipping instructions, contact the Company at the telephone number shown below.
If the product is under warranty and the defect appears to be covered by this Limited Warranty, the Company
will issue to the purchaser a Notice of Authorization

For Warranty Return. Products returned to the Company for warranty service must be accompanied by a
statement of defect, the Notice of Authorization for Warranty Return provided by the Company, and proof of

purchase.

This Limited Warranty is conditioned on the following:

1. The Company must be notied within 12 months of purchase and have been given the opportunity of
inspection by return of any alleged defective product free and clear of all liens and encumbrances to the
Company or its manufacturer; and

2. The product must not have been abused, misused, or improperly maintained, and/or repaired during
such period; and

3. Such defect has not been caused by corrosion or exposure to other than ordinary wear and tear.

4. The installation and use of the product has been in accordance with the manufacturer’s instructions
and not been modied or customized to include but not limited to cut, resized, burned, glued, bent, re­shaped, disassembled, attachments added to, improperly installed or used in a manner other than intend-

ed.

The company makes no other express or implied warranty or representation of any kind whatsoever including
any warranty of merchantability or tness for a particular purpose and all such other warranties are hereby

included.

The Company’s maximum liability hereunder is limited to the purchase price of the product. In no event shall
the Company be liable for any consequential, indirect, incidental, or special damages of any nature arising
from the sale or use of the product, whether based in contract, tort, strict liability, or otherwise.
Note: Some jurisdictions do not allow limitations on incidental or consequential damages or how long an im­plied warranty lasts, so that the above limitations may not fully apply. This warranty gives specic legal rights
and you may also have other rights which may vary from jurisdiction to jurisdiction.

For complete warranty and repair information, call [phone] or [phone].

U.S. Patent no.6,632,999 and International

Patents Pending | P/N 60214 Rev. B © 2012

Designer & Manufacturer

[phone] www.upsite.com

5
