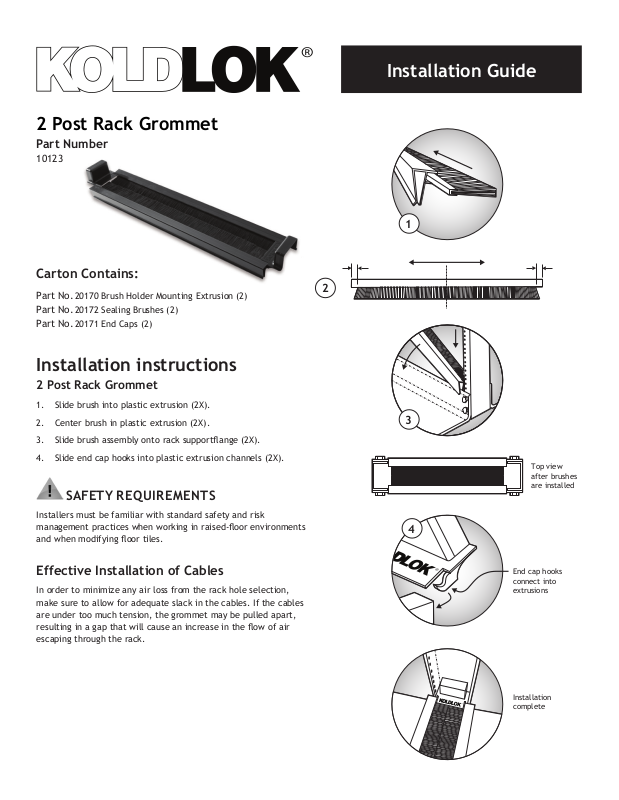

Upsite 10123 User Manual

2 Post Rack Grommet

Part Number

10123

Carton Contains:

Part No. 20170 Brush Holder Mounting Extrusion (2)
Part No. 20172 Sealing Brushes (2)
Part No. 20171 End Caps (2)

Installation Guide

1

2

Installation instructions

2 Post Rack Grommet

1. Slide brush into plastic extrusion (2X).

2. Center brush in plastic extrusion (2X).

3. Slide brush assembly onto rack supportflange (2X).

4. Slide end cap hooks into plastic extrusion channels (2X).

SAFETY REQUIREMENTS

Installers must be familiar with standard safety and risk

management practices when working in raised-floor environments
and when modifying floor tiles.

Effective Installation of Cables

In order to minimize any air loss from the rack hole selection,
make sure to allow for adequate slack in the cables. If the cables
are under too much tension, the grommet may be pulled apart,

resulting in a gap that will cause an increase in the flow of air

escaping through the rack.

3

Top view
after brushes
are installed

4

End cap hooks
connect into
extrusions

Installation
complete

Installation Guide

Limited Warranty

Upsite Technologies, Inc. (the Company) warrants to the original purchaser that products delivered hereunder will be free of defects
in materials and workmanship for a period of twelve (12) months from the date of purchase (the “Warranty Period”).

The Company shall, at its option, within the Warranty Period, either repair or replace free of charge, any product or part thereof
found, upon the Company’s inspection, to be defective in materials and workmanship, and will return the repaired or replaced
product to the purchaser at Company’s expense.

For warranty service and shipping instructions, contact the Company at the telephone number shown below. If the product is under
warranty and the defect appears to be covered by this Limited Warranty, the Company will issue to the purchaser a Notice of
Authorization For Warranty Return. Products returned to the Company for warranty service must be accompanied by a statement of
defect, the Notice of Authorization for Warranty Return provided by the Company, and proof of purchase.

This Limited Warranty is conditioned on the following:

1. The Company must be notied within 12 months of purchase and have been given the opportunity of inspection by return of any
alleged defective product free and clear of all liens and encumbrances to the Company or its manufacturer; and

2. The product must not have been abused, misused, or improperly maintained, and/or repaired during such period; and

3. Such defect has not been caused by corrosion or exposure to other than ordinary wear and tear; and

4. The installation and use of the product has been in accordance with the manufacturer’s instructions and not been modied or
customized to include but not limited to cut, resized, burned, glued, bent, re-shaped, disassembled, attachments added to,
improperly installed or used in a manner other than intended.

The company makes no other express or implied warranty or representation of any kind whatsoever including any warranty of
merchantability or tness for a particular purpose and all such other warranties are hereby included.

The Company’s maximum liability hereunder is limited to the purchase price of the product. In no event shall the Company be liable

for any consequential, indirect, incidental, or special damages of any nature arising from the sale or use of the product, whether
based in contract, tort, strict liability, or otherwise.

Note: Some jurisdictions do not allow limitations on incidental or consequential damages or how long an implied warranty lasts, so
that the above limitations may not fully apply. This warranty gives specic legal rights and you may also have other rights which may
vary from jurisdiction to jurisdiction.

For complete warranty and repair information Call [phone] or visit upsite.com

U.S. Patent No. 6,632,999 and International Patents Pending

Designer and Manufacturer

888.982.7800

www.upsite.com

84013 ©2013
