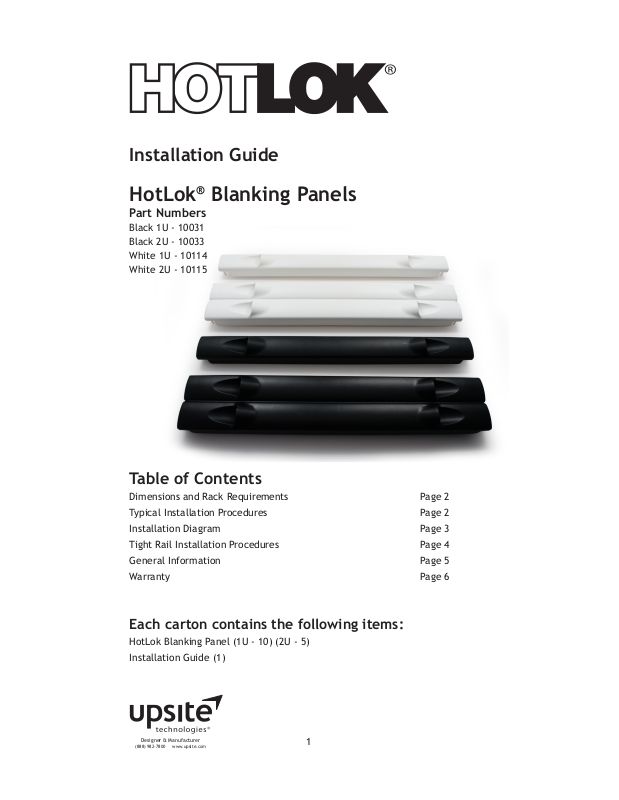

Upsite 10033 User Manual

Installation Guide

HotLok® Blanking Panels

Part Numbers

Black 1U - 10031
Black 2U - 10033
White 1U - 10114
White 2U - 10115

Table of Contents

Dimensions and Rack Requirements Page 2

Typical Installation Procedures Page 2

Installation Diagram Page 3

Tight Rail Installation Procedures Page 4

General Information Page 5

Warranty Page 6

Each carton contains the following items:

HotLok Blanking Panel (1U - 10) (2U - 5)

Installation Guide (1)

Designer & Manufacturer

[phone] www.upsite.com

1

Installation Guide

HotLok Blanking Panel

Product Specications

Dimensions Inches Millimeters

Part No. 10031 & 10114 - 1U - Overall size (length x height) 19” x 1.75” 482.5 x 44.45mm

Part No. 10033 & 10115 - 2U - Overall size (length x height) 19” x 3.5” 482.5 x 89mm

Installation Procedures

Typical Installation Procedures

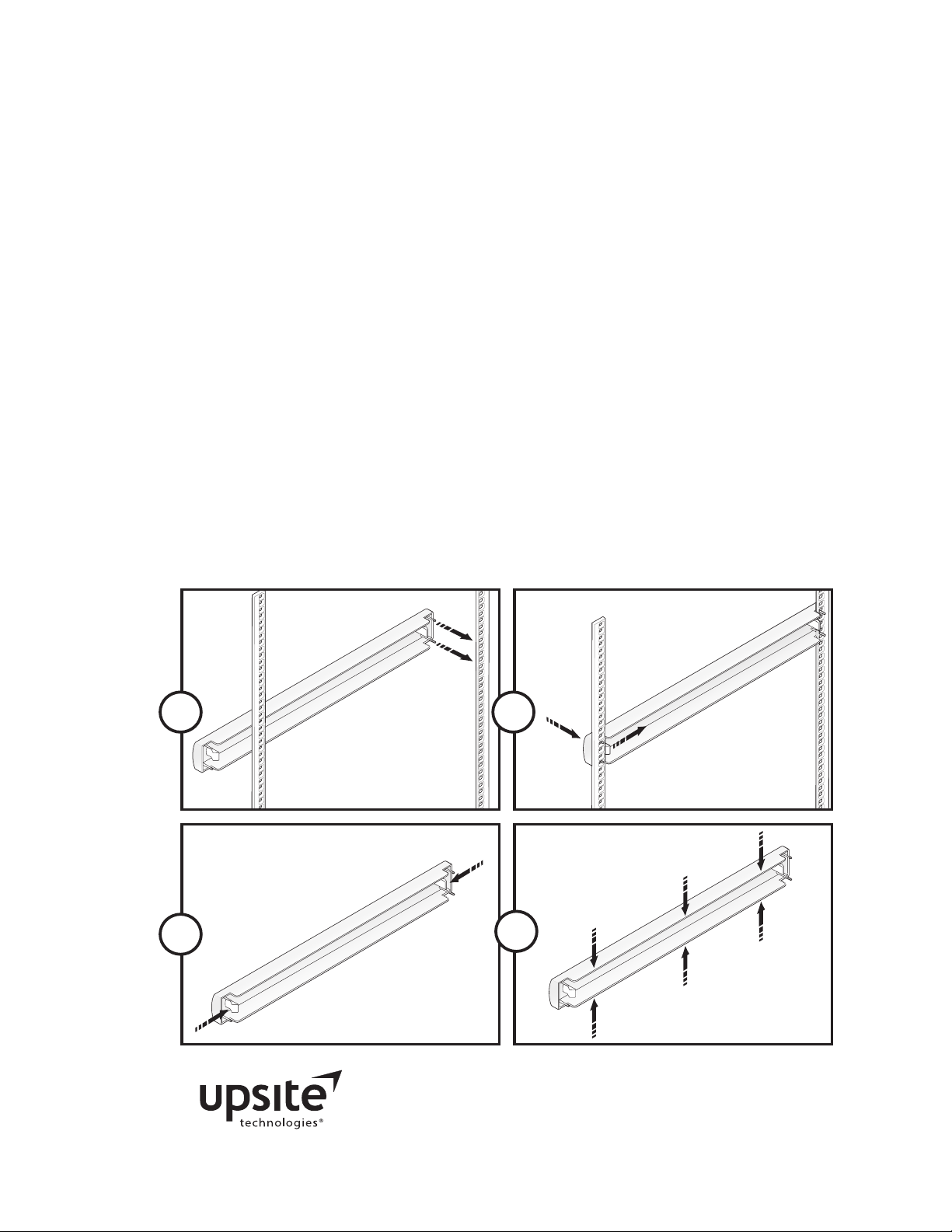

1. Using the nger grips to hold the HotLok Blanking Panel, align the four

pins with the holes in the side rail. Ensure the product is level and pins are

even on each side.

2. Guide one side of the blanking panel into the side rail. Once seated, push

the opposite side of panel into place until clips click rmly into place.

If panels are difcult to insert, see the Installation Procedures for Tight

Rails on page 4 of this guide.

3. The clips should be fully inserted and seated with the plastic edge ush

against the side rail. Depending on the size of the rack holes, the panel

may be able to slide up or down. This is a built in feature to add room for

the ared sealing vanes to create a tight seal. When you place multiple

panels they will move and self-seal.

4. To maintain the best seal possible, ll all open spaces so that blanking

panels push up against equipment.

5. Please note that the last blanking panel to be installed in a space might

require some additional force to squeeze into place due to the tight t

produced by the ared vanes.

6. When uninstalling HotLok Blanking Panels, place one hand on the panels

above or below it and slowly pull out the rst unit. The tight t can some-

times pull out other panels unintentionally.

Designer & Manufacturer

[phone] www.upsite.com

2

1

2

3

Designer & Manufacturer

[phone] www.upsite.com

3

Installation Procedures for Tight Rails

1. Install one side of the blanking panel rst and make sure it is seated against

the rail.

2. Grab the nger grip opposite the side that has been installed and apply slight

horizontal pressure. Push and snap in the blanking panel.

3. If the blanking panel is not seated properly in the rail, reach over the blank-

ing panel, grab the clip and push towards the middle of the cabinet. Apply

slight pressure and snap in the blanking panel.

4. In the event the anges on the blanking panel get caught while trying to

insert the panel, squeeze the anges and slightly press them in until you can

snap in the blanking panel.

5. In the event there is only a 1U opening without access to the top of the

blanking panel, using your thumbs, place slight pressure on the two clips

bending them in slightly (relieving the pressure ) and snap in the blanking

panel.

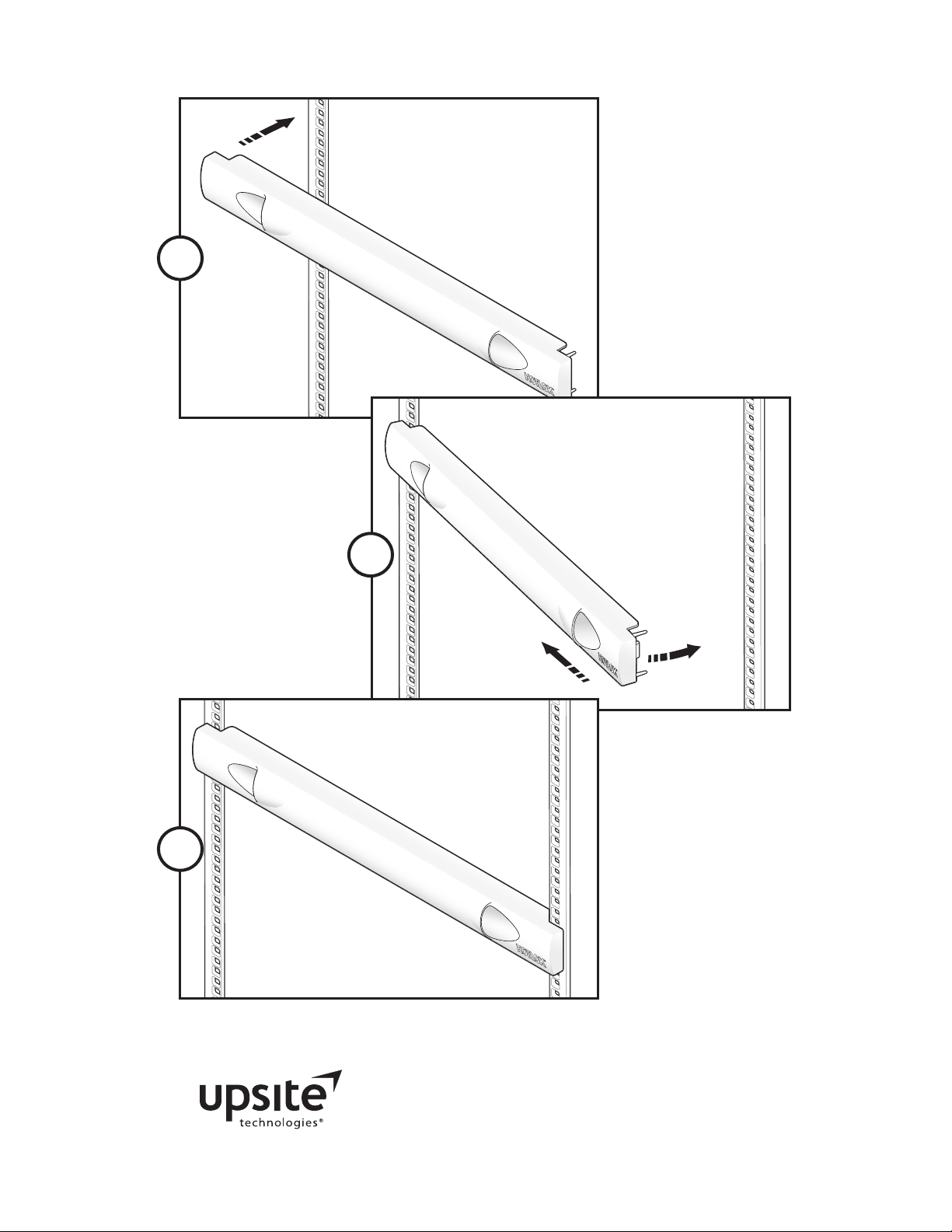

Install Images

1 2

3

Designer & Manufacturer

[phone] www.upsite.com

4

4

Installation Guide

HotLok Blanking Panel

General Information

Patent Information

U.S. design patent number D577,360.
Utility and international patents are pending.

Conformance

RoHS Compliant: HotLok Blanking Panels do not contain bromic compounds that

have been found to be environmentally harmful.

Recyclable

Black HotLok Blanking Panels are made with recyclable ABS and the resulting

product is recyclable. White HotLok Blanking Panels are made with recyclable

HIPS and the resulting product is recyclable. In addition, all packaging is made

with some post-consumer recycled content and is 100 percent recyclable.

Maintaining Proper Cooling of Equipment

Failure to follow computer manufacturer’s guidelines for maintaining proper

cooling may result in the overheating of equipment. Before sealing rack spaces

with blanking panels, ensure that there is adequate airow to the intake sides of

computer equipment or cabinets through devices such as perforated oor tiles

or grates. Achieving proper airow to the intake side of the computer equipment

and/or cabinets is the responsibility of the customer.

Safety Requirements

Installers must be familiar with standard safety and risk management practices

when working on or in environments for rack equipment.

Customer Support

If you have any questions, please

contact us direct at [phone],

Toll Free at [phone], or

Email us at [e-mail].

P/N 60226 Rev. A © 2012

Printed on

Recyclable Paper

Limited Warranty

Designer & Manufacturer

[phone] www.upsite.com

5

HotLok Blanking Panel

Upsite Technologies, Inc. (the Company) warrants to the original purchaser that products
delivered hereunder will be free of defects in materials and workmanship for a period of
twelve (12) months from the date of purchase (the “Warranty Period”).

The Company shall, at its option, within the Warranty Period, either repair or replace

free of charge, any product or part thereof found, upon the Company’s inspection, to be
defective in materials and workmanship, and will return the repaired or replaced product

to the purchaser at Company’s expense.

For warranty service and shipping instructions, contact the Company at the telephone
number shown below. If the product is under warranty and the defect appears to be cov­ered by this Limited Warranty, the Company will issue to the purchaser a Notice of Autho­rization For Warranty Return. Products returned to the Company for warranty service must

be accompanied by a statement of defect, the Notice of Authorization for Warranty Return

provided by the Company, and proof of purchase.

This Limited Warranty is conditioned on the following:

6. The Company must be notied within 12 months of purchase and have been given the
opportunity of inspection by return of any alleged defective product free and clear of
all liens and encumbrances to the Company or its manufacturer; and

7. The product must not have been abused, misused, or improperly maintained, and/or
repaired during such period; and

8. Such defect has not been caused by corrosion or exposure to other than ordinary wear
and tear.

The company makes no other express or implied warranty or representation of any

kind whatsoever including any warranty of merchantability or tness for a particular

purpose and all such other warranties are hereby included.

The Company’s maximum liability hereunder is limited to the purchase price of the prod-

uct. In no event shall the Company be liable for any consequential, indirect, incidental, or
special damages of any nature arising from the sale or use of the product, whether based
in contract, tort, strict liability, or otherwise.

Note: Some jurisdictions do not allow limitations on incidental or consequential damages

or how long an implied warranty lasts, so that the above limitations may not fully apply.
This warranty gives specic legal rights and you may also have other rights which may vary

from jurisdiction to jurisdiction.

For complete warranty and repair information Call [phone] or visit upsite.com

Register your product online at www.upsite.com/warranty to initiate your warranty.
