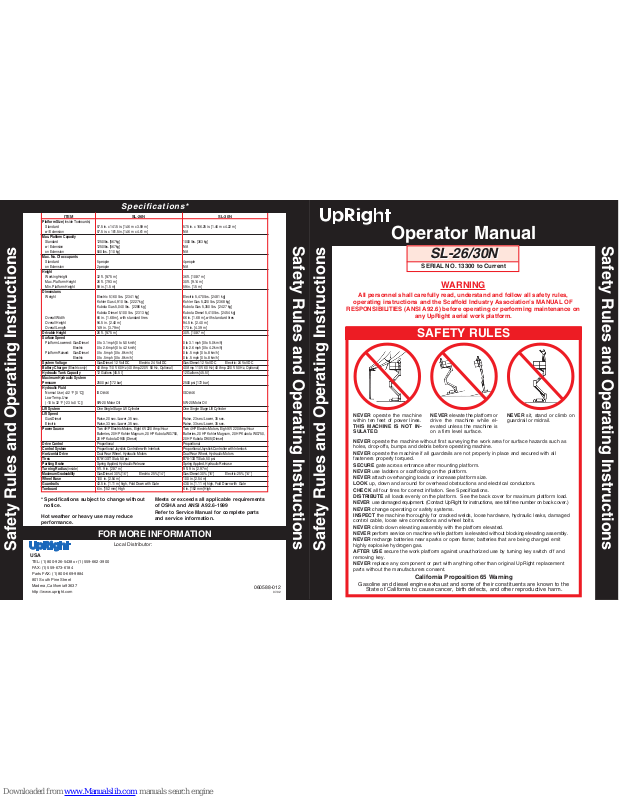

Upright SL-26N, SL-30N Operator's Manual

12

SL-30N

57.5 in. x 166.25 in. [1.46 m x 4.22 m]
N/A

1000 lbs. [363 kg]
N/A
N/A

4 people
N/A

36 ft. [10.97 m]
30 ft. [9.14 m]
59 in. [1.5 m]

Electric 5,470 lbs. [2481 kg]
Kohler Gas 5,220 lbs. [2368 kg]
Kubota Gas 5,350 lbs. [2427 kg]
Kubota Diesel 5,410 lbs. [2454 kg]
66 in. [1.68 m], with standard tires

94.5 in. [2.40 m]
173 in. [4.39 m]
30 ft. [10.97 m]

0 to 3.1 mph [0 to 5.0 km/h]
0 to 2.6 mph [0 to 4.2 km/h]
0 to .5 mph [0 to .8 km/h]
0 to .5 mph [0 to .8 km/h]
Gas/Diesel: 12 Volt DC Electric: 24 Volt DC
40 Amp 110 V 60 Hz (40 Amp 220 V 50 Hz, Optional)
12 Gallons [45.5 l]

2500 psi [172 bar]

ISO #46

5W-20 Motor Oil
One Single Stage Lift Cylinder

Raise, 23 sec./Lower, 35 sec.
Raise, 33 sec./Lower, 35 sec.
Two 4HP Electric Motors, Eight 6V 220 Amp/Hour
Batteries, 20 HP Kohler Magnum, 20 HP Kubota WG750,
20 HP Kubota D905 (Diesel)
Proportional
Proportional Joystick Controller with Interlock
Dual RearWheel, Hydraulic Motors
B78-13ST Slab, 50 psi
Spring Applied, Hydraulic Release
9 ft. 9 in. [2.97 m]
Gas/Diesel: 30% [16°] Electric: 25% [14°]
100 in. [2.54 m]

43.5 in. [1.11 m] high, Fold Down with Gate
6 in. [152 mm] High

SL-26N

57.5 in. x 141.5 in. [1.46 m x 3.59 m]

57.5 in. x 181.5 in. [1.46m x 4.61 m]

1250 lbs. [567 kg]
1250 lbs. [567 kg]
500 lbs. [110 kg]

5 people
2 people

32 ft. [9.75 m]
26 ft. [7.93 m]
59 in. [1.5 m]

Electric 5,160 lbs. [2341 kg]
Kohler Gas 4,910 lbs. [2227 kg]
Kubota Gas 5,040 lbs. [2286 kg]
Kubota Diesel 5,100 lbs. [2313 kg]
66 in. [1.68 m], with standard tires

94.5 in. [2.40 m]
149 in. [3.79 m]
26 ft. [9.75 m]

0 to 3.1 mph [0 to 5.0 km/h]
0 to 2.6 mph [0 to 4.2 km/h]
0 to .5 mph [0 to .8 km/h]
0 to .5 mph [0 to .8 km/h]
Gas/Diesel: 12 Volt DC Electric: 24 Volt DC
40 Amp 110 V 60 Hz (40 Amp 220 V 50 Hz, Optional)
12 Gallons [45.5 l]

2500 psi [172 bar]

ISO #46

5W-20 Motor Oil
One Single Stage Lift Cylinder

Raise, 20 sec./Lower, 35 sec.
Raise, 33 sec./Lower, 35 sec.
Two 4HP Electric Motors, Eight 6V 220 Amp/Hour
Batteries, 20 HP Kohler Magnum, 20 HP Kubota WG750,
20 HP Kubota D905 (Diesel)
Proportional
Proportional Joystick Controller with Interlock
Dual RearWheel, Hydraulic Motors
B78-13ST Slab, 50 psi
Spring Applied, Hydraulic Release
9 ft. 9 in. [2.97 m]
Gas/Diesel: 30% [16°] Electric: 25% [14°]
100 in. [2.54 m]

43.5 in. [1.11 m] high, Fold Down with Gate
6 in. [152 mm] High

ITEM

Platform Size (Inside Toeboards)

Standard
w/ Extension

Max. Platform Capacity

Standard
w/ Extension
on Extension

Max. No. Of occupants

Standard
on Extension

Height

Working Height
Max. Platform Height
Min. Platform Height

Dimensions

Weight

Overall Width
Overall Height
Overall Length

Drivable Height
Surface Speed

Platform Lowered: Gas/Diesel

Electric

Platform Raised: Gas/Diesel

Electric

System Voltage
Battery Charger (Electric only)
Hydraulic Tank Capacity
Maximum Hydraulic System
Pressure
Hydraulic Fluid

Normal Use (>32 °F [0 °C])
Low Temp. Use
(-10 to 32 °F [-23 to 0 °C])

Lift System
Lift Speed

Gas/Diesel
Electric

Power Source

Drive Control
Control System
Horizontal Drive
Tires
Parking Brake
Turning Radius (inside)
Maximum Gradeability
Wheel Base
Guardrails
Toeboard

FOR MORE INFORMATION

Local Distributor:

USA

TEL: [phone] or (1) 559-662-3900

FAX: [phone]

Parts FAX: [phone]

801 South Pine Street

Madera, California 93637

http://www.upright.com

060588-012

07-02

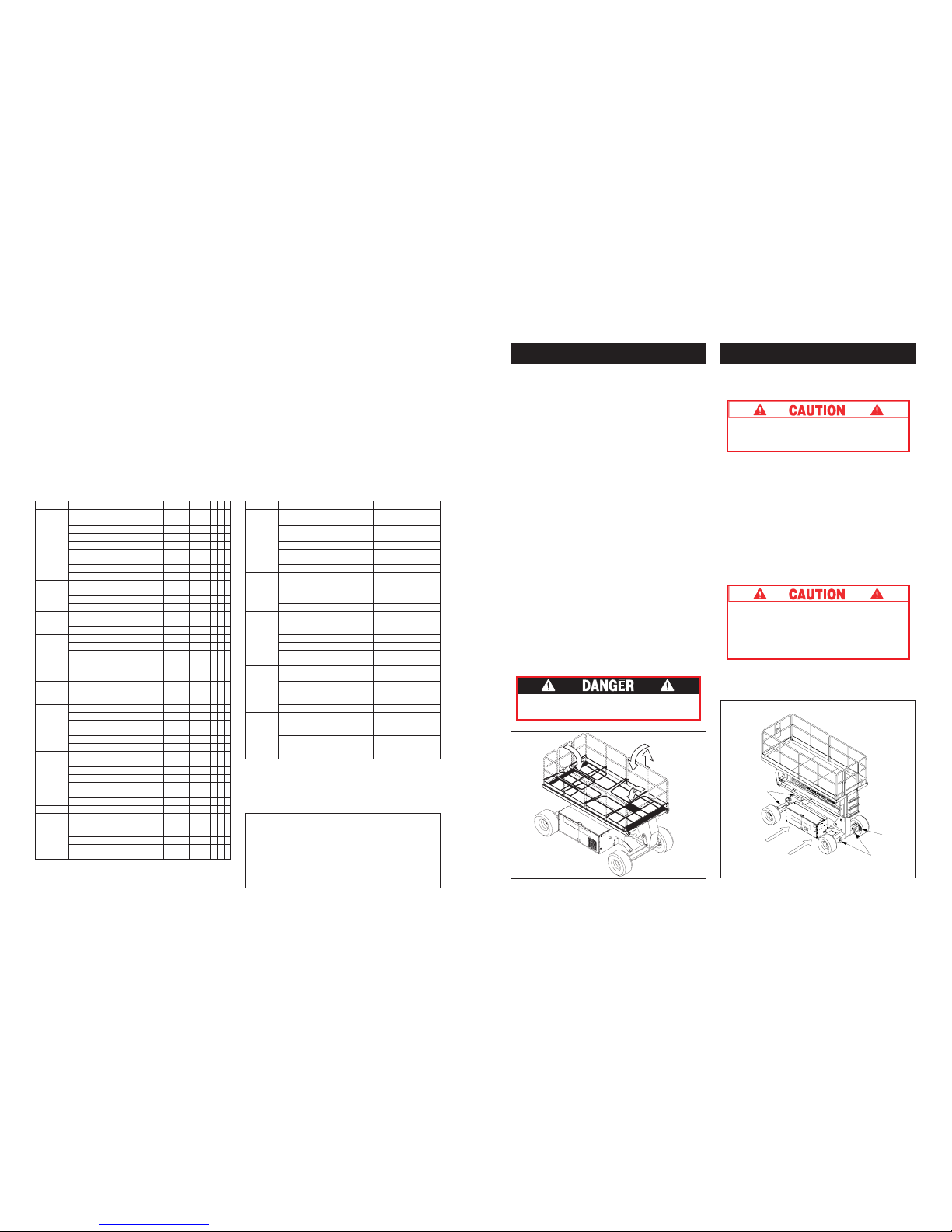

Safety Rules and Operating Instructions

Safety Rules and Operating Instructions

Specifications*

* Specifications subject to change without

notice.

Hot weather or heavy use may reduce
performance.

Meets or exceeds all applicable requirements
of OSHA and ANSI A92.6-1999

Refer to Service Manual for complete parts
and service information.

1

SL-26/30N

SAFETY RULES

Operator Manual

SL-26/30N

SERIAL NO. 13300 to Current

NEVER operate the machine

within ten feet of power lines.

THIS MACHINE IS NOT IN­SULATED.

NEVER elevate the platform or

drive the machine while el­evated unless the machine is
on a firm level surface.

NEVER sit, stand or climb on
guardrail or midrail.

WARNING

All personnel shall carefully read, understand and follow all safety rules,

operating instructions and the Scaffold Industry Associations MANUAL OF

RESPONSIBILITIES (ANSI A92.6) before operating or performing maintenance on

any UpRight aerial work platform.

Safety Rules and Operating Instructions

Safety Rules and Operating Instructions

NEVER operate the machine without first surveying the work area for surface hazards such as

holes, drop-offs, bumps and debris before operating machine.
NEVER operate the machine if all guardrails are not properly in place and secured with all
fasteners properly torqued.

SECURE gate across entrance after mounting platform.
NEVER use ladders or scaffolding on the platform.
NEVER attach overhanging loads or increase platform size.
LOOK up, down and around for overhead obstructions and electrical conductors.
CHECK all four tires for correct inflation. See Specifications.
DISTRIBUTE all loads evenly on the platform. See the back cover for maximum platform load.
NEVER use damaged equipment. (Contact UpRight for instructions, see toll free number on back cover.)
NEVER change operating or safety systems.
INSPECT the machine thoroughly for cracked welds, loose hardware, hydraulic leaks, damaged

control cable, loose wire connections and wheel bolts.

NEVER climb down elevating assembly with the platform elevated.
NEVER perform service on machine while platform is elevated without blocking elevating assembly.
NEVER recharge batteries near sparks or open flame; batteries that are being charged emit

highly explosive hydrogen gas.
AFTER USE secure the work platform against unauthorized use by turning key switch off and
removing key.
NEVER replace any component or part with anything other than original UpRight replacement
parts without the manufacturers consent.

California Proposition 65 Warning

Gasoline and diesel engine exhaust and some of their constituents are known to the

State of California to cause cancer, birth defects, and other reproductive harm.

2

Electric Model inspection

1. Verify batteries are charged (see Battery
Maintenance, page 6).

2. Check that A.C. extension cord has been
disconnected from charger.

System Function Inspection

STAND CLEAR of the work platform while
performing the following checks.

Before operating the work platform survey
the work area for surface hazards such as
holes, drop-offs, bumps and debris.

Check in ALL directions, including above
the work platform, for obstructions and
electrical conductors.

Protect control console cable from possible
damage while performing checks.

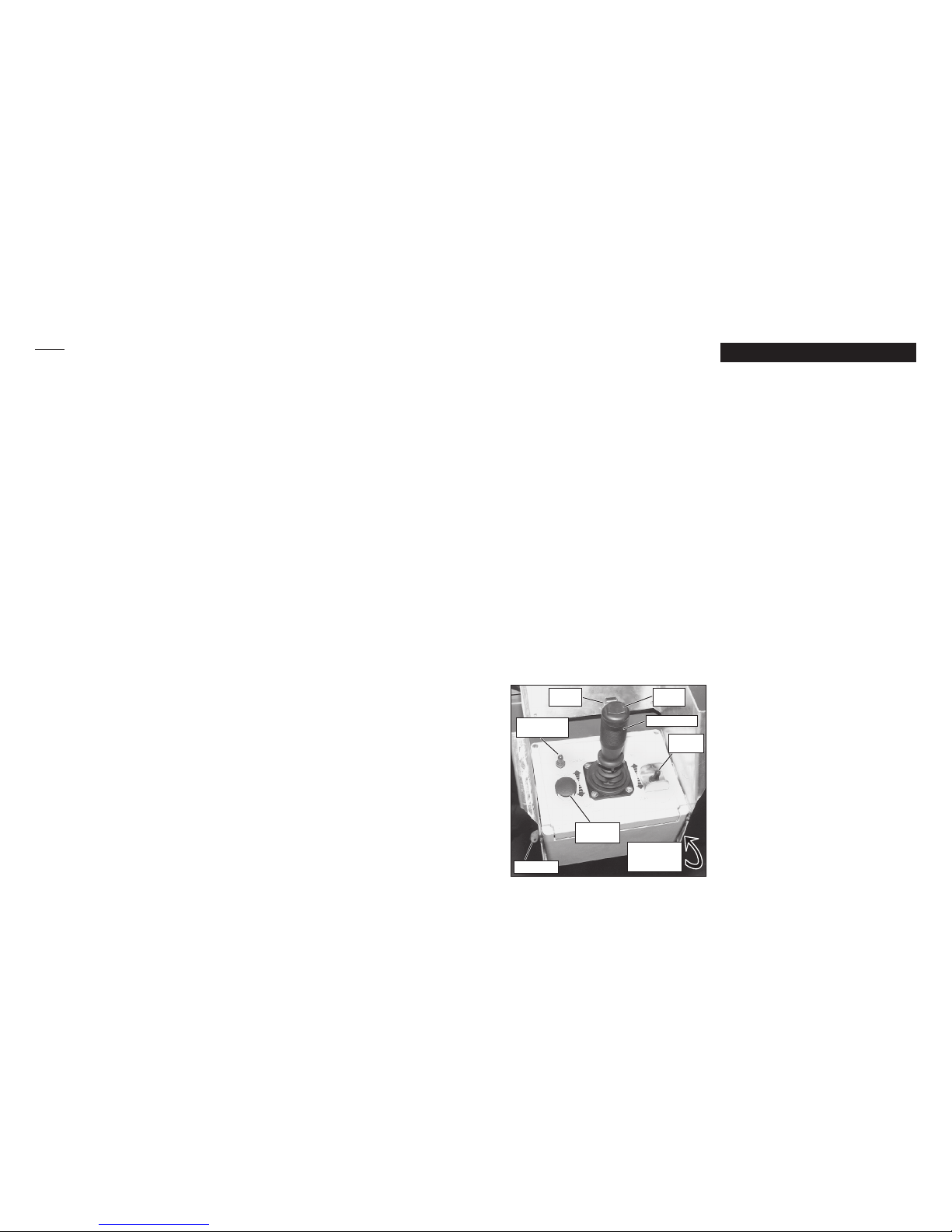

1. Unhook Controller from front guardrail. Firmly
grasp Controller hanger in such a manner that
the Interlock Lever can be depressed, while
performing the following checks from the
ground.

2. Pull Controller Emergency Stop Button out to
ON position.

3. Turn Controller Key Switch clockwise to ON .
Turn fully clockwise to start engine (Gasoline /
Propane engine only).

Note: If the engine is cold, depress the choke
button and hold while starting. Diesel mod­els: depress and hold the glow plug button
for 6 seconds prior to starting to engage the
glow plugs.

4. Turn Drive/Lift Switch to DRIVE position.

Introduction

This manual covers SL-26/30 Narrow Work Plat­forms. This manual must be stored on the

machine at all times.

Pre-Operation and Safety

Inspection

Read, understand and follow all safety rules
and operating instructions and then perform
the following steps each day before use.

1. Remove module covers and inspect for dam­age, oil leaks or missing parts.

2. Check the level of the hydraulic oil with the
platform fully lowered. Oil should be visible in
the sight gauge. Add hydraulic oil, if necessary
(see Specifications, back cover).

3. Check that the fluid level in the batteries is
correct (see Battery Maintenance, page 6).

4. Carefully inspect the entire work platform for
damage such as cracked welds or structural
members, loose or missing parts, oil leaks,
damaged cables or hoses, loose connections
and tire damage.

5. Check that all guardrails are securely in place
with all fasteners properly torqued.

6. Check tire pressure (50 psi).

7. Place the Chassis Emergency Stop Switch to
the ON position.

Gas / Propane Model Inspection

1. Check fuel supply.

2. Check engine oil level with dipstick.

3. If equipped, check coolant level in radiator.
DO NOT check coolant when radiator or
engine is hot.

4. Set gasoline / propane selector to desired
position. Set to the center position to purge the
system when switching fuels. If the machine is
to be operated on propane, open the supply
valve on the tank.

NOTE: When using LP gas, use clean, water free
liquid petroleum gas, preferably from a bulk
storage tank. Follow the instructions located on
the Power Module tray for filling the tank.

If you smell propane, close the supply
valve on the tank immediately until you
have located and corrected the leak.

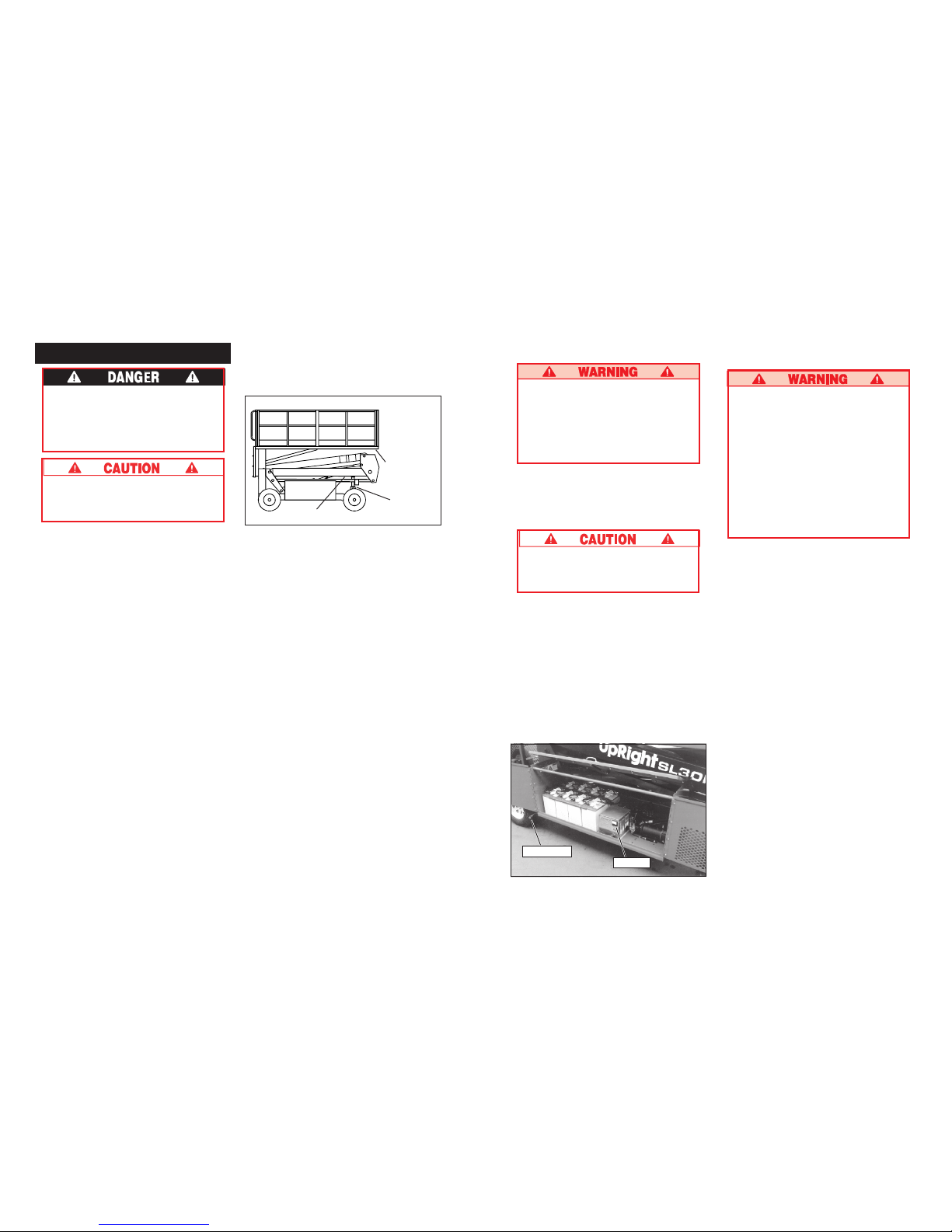

Figure 1: Control Module, Chassis Left Side

Hydraulic Tank

Sight Gauge

Chassis
Emergency
Stop Switch

Emergency

Lowering Valve

Fuel Selector Switch

(Propane Option Only)

Chassis Lift

Switch

11
