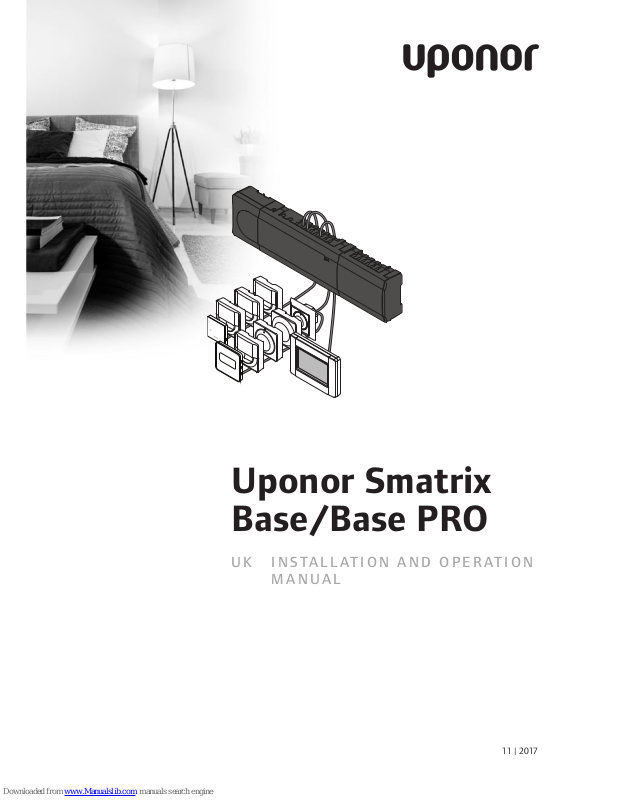

Uponor Smatrix Base, Smatrix Base Pro Installation And Operation Manual

11 | 2017
Uponor Smatrix Base/Base PRO
UK INSTALLATION AND OPERATION
MANUAL
Table of contents
2.1 Safety instructions ....................................................5
2.2 Correct disposal of this product (Waste Electrical
and Electronic Equipment) .......................................5
3 Uponor Smatrix Base/Base PRO ..........................6
3.1 System overview .......................................................6
3.2 Example of a system .................................................7
3.3 Uponor Smatrix Base/Base PRO components...........8
3.4 Accessories .............................................................19
3.5 Functions................................................................19
4 Install Uponor Smatrix Base/Base PRO .............22
4.1 Installation procedure .............................................22
4.2 Prepare for installation ...........................................22
4.3 Installation example ................................................23
5 Install Uponor Smatrix Base/Base PRO
controller ............................................................26
5.1 Placement of controller ..........................................26
5.2 Attach controller to the wall ...................................27
5.3 Connect the slave module (optional) ......................27
5.4 Connect the star module (optional) ........................28
5.5 Connect components to controller ..........................30
5.6 Connect the controller to AC power ........................38
5.7 Test actuators ......................................................... 39
6 Install Uponor Smatrix Base/Base PRO
thermostats and sensors ....................................40
6.1 Placement of thermostats .......................................40
6.2 Label thermostats ...................................................40
6.3 Connect thermostats to controller .......................... 40
6.4 Connect external sensor to thermostat (optional) ..44
6.5 Attach thermostat T-149 to the wall .......................47
6.6 Attach thermostat T-148, T-146, T-145, and
T-143 to the wall .................................................... 48
6.7 Attach thermostat T-141 to the wall .......................48
6.8 Attach thermostat T-144 to the wall .......................49
6.9 First startup of digital thermostats ......................... 50
6.10 First setup of digital thermostats ............................51
6.11 Register thermostats in controller ...........................52
6.12 Register system devices ..........................................54
7 Install Uponor Smatrix Base timer .....................56
7.1 Placement of timer .................................................56
7.2 Label timer .............................................................56
7.3 Connect timer to controller .....................................56
7.4 Attach a timer to the wall .......................................57
7.5 First startup of the timer ........................................58
7.6 Register timer in controller .....................................59
8 Install Uponor Smatrix Base PRO interface.......60
8.1 Placement of interface ...........................................60
8.2 Connect interface to the controller .........................60
8.3 Attach the interface to the wall ..............................62
8.4 Charger cable ..........................................................62
8.5 Startup guide..........................................................62
9 Finishing installation .........................................66
10 Operate Uponor Smatrix Base/Base PRO
controller ............................................................67
10.1 Principle of operation .............................................67
10.2 Normal operation without optional scheduling
programs ................................................................67
10.3 Operation with scheduling programs ...................... 67
10.4 Run mode ...............................................................67
10.5 Reset the controller ................................................... 68
10.6 Unregister channels in the controller ......................68
10.7 Update controller software (Base PRO only) ..........69
11 Operate Uponor Smatrix Base/Base PRO
analogue thermostats ........................................70
11.1 Thermostat layout ..................................................70
11.2 Adjust temperature .................................................72
11.3 Disable timer function ............................................73
11.4 Factory reset ...........................................................74
12 Operate Uponor Smatrix Base/Base PRO
digital thermostats .............................................75
12.1 Thermostat layout ..................................................75
12.2 Display layout .........................................................76
12.3 Operating buttons ..................................................79
12.4 Start up .................................................................. 80
12.5 Adjust temperature .................................................81
12.6 Run mode ...............................................................82
12.7 Control mode ..........................................................82
12.8 Change control mode .............................................83
12.9 Settings ..................................................................83
12.10 Factory reset ...........................................................88
13 Operate Uponor Smatrix Base timer ..................89
13.1 Timer layout ...........................................................89
13.2 Screen layout ..........................................................89
13.3 Operating buttons ..................................................90
13.4 Start up .................................................................. 91
13.5 Run mode ...............................................................92
13.6 Forced Comfort/ECO mode ....................................92
13.7 Settings ..................................................................92
13.8 Factory reset ...........................................................96
14 Operate Uponor Smatrix Base PRO interface ....97
14.1 Touch screen ........................................................... 97
14.2 Home screen ...........................................................97
14.3 Navigating the menu system ..................................98
14.4 Adjust temperature .................................................99
14.5 Room information .................................................100
14.6 Main menu ...........................................................102
14.7 System settings ....................................................103
14.8 Holiday .................................................................104
14.9 Heating/Cooling...................................................105
14.10 Integration ............................................................105
14.11 Trends ...................................................................106
14.12 System info ...........................................................107
14.13 Preferences ...........................................................107
14.14 Alarms ..................................................................108
14.15 ECO profiles (scheduling) .....................................108
14.16 MicroSD card ........................................................110
14.17 Factory reset of the interface ................................111
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
2
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
15 Maintenance .....................................................112
15.1 Manual preventive maintenance ...........................112
15.2 Automatic preventive maintenance ......................112
15.3 Corrective maintenance ........................................112
15.4 Controller LEDs.....................................................113
15.5 Restore from backup (Base PRO only) ..................114
16 Troubleshooting ...............................................115
16.1 Troubleshooting after installation .........................117
16.2 Digital thermostats T-146, T-148 and T-149
alarms/problems ...................................................117
16.3 Analogue thermostat T-143 alarms/problems .......118
16.4 Contact the installer .............................................118
16.5 Installer instructions .............................................118
17 Technical data ...................................................119
17.1 Technical data ....................................................... 119
17.2 Technical specifications ........................................ 120
17.3 Controller layout ...................................................121
17.4 Wiring diagrams ....................................................121
17.5 Dimensions ...........................................................123
18 Installation report ............................................125
18.1 Controller 1 ..........................................................126
18.2 Controller 2 ..........................................................127
18.3 Controller 3 ..........................................................128
18.4 Controller 4 ..........................................................129
18.5 Controller 5 – 16 ..................................................130
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
3
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
1 Copyright and disclaimer
Uponor has prepared this installation and operation manual and all the content included solely for information purposes. The contents of the manual (including graphics, logos, icons, text, and images) are copyrighted and protected by worldwide copyright laws and treaty provisions. You agree to comply with all copyright laws worldwide in your use of the manual. Modification or use of any of the contents of the manual for any other purpose is a violation of Uponor’s copyright, trademark and other proprietary rights.
The presumption for the manual is that the safety measures have been fully complied with and, further, that Uponor Smatrix Base, including any components that are part of such system, covered by the manual:
• is selected, planned and installed and put into operation by a licensed and competent planner and installer in compliance with current (at the time of installation) installation instructions provided by Uponor as well as in compliance with all applicable building and plumbing codes and other requirements and guidelines;
• has not been (temporarily or continuously) exposed to temperatures, pressure and/or voltages that exceed the limits printed on the products or stated in any instructions supplied by Uponor;
• remain in its originally installed location and is not repaired, replaced or interfered with, without prior written consent of Uponor;
• is connected to potable water supplies or compatible plumbing, heating and/or cooling products approved or specified by Uponor;
• is not connected to or used with non-Uponor products, parts or components except for those approved or specified by Uponor; and
• does not show evidence of tampering, mishandling, insufficient maintenance, improper storage, neglect or accidental damage before installation and being put into operation.
While Uponor has made efforts to ensure that the manual is accurate, Uponor does not guarantee or warrant the accuracy of the information contained herein. Uponor reserves the right to modify the specifications and features described herein, or discontinue manufacture of Uponor Smatrix Base described at any time without prior notice or obligation. The manual is provided “as is” without warranties of any kind, either expressed or implied. The information should be independently verified before using it in any manner.
To the fullest extent permissible, Uponor disclaims all warranties, expressed or implied, including, but not limited to, the implied warranties of merchantability, fitness for particular purpose and non-infringement.
This disclaimer applies to, but is not limited to, the accuracy, reliability or correctness of the manual.
Under no circumstances shall Uponor be liable for any indirect, special, incidental or consequential damages or loss that result from the use of or the inability to use the materials or information in the manual, or any claim attributable to errors, omission or other inaccuracies in the manual, even if Uponor has been advised of the possibility of such damages.
This disclaimer and any provisions in the manual do not limit any statutory rights of consumers.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
4
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
This installation and operation manual describes how to install and operate the components of the system.
2.1 Safety instructions
Warnings used in this manual
The following symbols are used in the manual to indicate special precautions when installing and operating any Uponor equipment:
Wa rn ing !
Risk of injury. Ignoring warnings can cause injury or damage components.
Ca ut i on !
Ignoring cautions can cause malfunctions.
Safety measures
Conform to the following measures when installing and operating any Uponor equipment:
• Read and follow the instructions in the installation and operation manual.
• Installation must be performed by a competent person in accordance with local regulations.
• It is prohibited to make changes or modifications not specified in this manual.
• All power supplies must be switched off before starting any wiring work.
• Do not use water to clean Uponor components.
• Do not expose the Uponor components to flammable vapours or gases.
Uponor cannot accept any responsibility for damage or breakdown that can result from ignoring these instructions.
Power
Wa rn ing !
The Uponor system uses 50 Hz, 230 V AC power. In case of emergency, immediately disconnect the power.
Technical constraints
Ca ut i on !
To avoid interference, keep installation/data cables away from power cables of more than 50 V.
2.2 Correct disposal of this product (Waste Electrical and Electronic Equipment)
NOTE!
Applicable in the European Union and other European countries with separate collection systems
This marking shown on the product or its literature indicates that it should not be
disposed with other household wasted at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes of disposal.
2 Preface
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
5
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
3 Uponor Smatrix Base/Base PRO
Uponor Smatrix Base/Base PRO is a management system for underfloor heating and cooling installations. Comfort, user friendliness and temperature control for each individual room of a home can be combined through the various components.
3.1 System overview
Uponor Smatrix Base/Base PRO consists of a controller, thermostats, actuators and an optional timer. The controller manages the operation of the actuators when the thermostats detect a demand for heating or cooling.
Uponor Smatrix Base/Base PRO is controlled by different types of thermostats. Designed for maximum comfort, the thermostats communicate with the controller by a wired communication protocol. It is possible to mix the different types of Uponor Smatrix Base thermostats in the same installation.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
6
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
3.2 Example of a system
The illustration below shows Uponor Smatrix Base PRO with several installation options and thermostats.
H
G
B
C
D
E
F
A
Item Description
A Uponor Smatrix Base PRO Interface I-147 (interface
I-147)
B Uponor Smatrix Base Thermostat Prog.+RH T-148
(digital thermostat T-148)
C Uponor Smatrix Base Thermostat D+RH Style T-149
(digital thermostat T-149) with floor sensor
D Uponor Smatrix Base Thermostat Standard T-145
(standard thermostat T-145)
E Uponor Smatrix Base Thermostat Public T-143
(public thermostat T-143)
F Uponor Smatrix Base PRO Room Sensor+RH Style
T-141 (room sensor thermostat)
G Uponor Smatrix Base Controller X-145 (controller
X-145)
H External connection box for pumps (third-party
product, just schematic example in illustration)
NOTE!
The floor sensor can be connected to thermostats T-143, T-146, T-148, and T-149. Floor temperature limitation together with thermostats T-141 or T-143 can only be done in a Base PRO system using an interface.
For example, the maximum limitation can protect a sensitive floor covering from exposure of too high temperature when there is a high heating demand. The minimum limitation can keep a tiled floor warm even when there is a no general demand for heat supply to the room.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
7
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Pos. Uponor designation Description
A
Uponor Smatrix Transformer A-1XX (transformer A-1XX)
Transformer module
B
Uponor Smatrix Base PRO Controller X-147
Uponor Smatrix Base Controller X-145
Controller
C
Uponor Smatrix Base Slave Module M-140 (slave module M-140)
Slave module
D
Uponor Smatrix Base Star Module M-141 (star module M-141)
Star module
E
Uponor Smatrix Base End cover
End cover
F
Uponor Smatrix Base PRO Interface I-147 (interface I-147)
Interface
G
Uponor Smatrix Base Timer I-143 (timer I-143)
Timer
H
Uponor Smatrix Base Thermostat D+RH Style T-149 (digital thermostat T-149)
Digital thermostat with relative humidity sensor and operative sensor
Pos. Uponor designation Description
I
Uponor Smatrix Base Thermostat Prog.+RH T-148
Programmable digital thermostat with relative humidity sensor
J
Uponor Smatrix Base Thermostat Dig T-146
Digital thermostat
K
Uponor Smatrix Base Thermostat Standard T-145
Standard thermostat with print on dial
L
Uponor Smatrix Base Thermostat Flush T-144 (flush thermostat T-144)
Flush thermostat
M
Uponor Smatrix Base Thermostat Public T-143
Public thermostat
N
Uponor Smatrix Base PRO Room Sensor+RH Style T-141 (room sensor thermostat)
Room sensor thermostat with relative humidity sensor and operative sensor
O
Uponor Smatrix Base PRO Gateway Module R-147 KNX (KNX module)
KNX module
3.3 Uponor Smatrix Base/Base PRO components
D
B
C
E
F
IG H J K
N
OM
L
A
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
8
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nt rol le r
The controller operates the actuators, which in turn affect the flow of the supply water, to change the indoor temperature using information transmitted from registered thermostats and system parameters.
Up to six channels and eight actuators can be operated by the controller which is typically located near the hydraulic system manifolds.
The illustration below shows the controller with the transformer module and actuators.
24 V
24 V
24 V
Ca ut i on !
Only 24 V Uponor actuators are compatible with the controller.
Uponor Smatrix Base PRO Controller X-147
Main characteristics:
• Integrated Dynamic Energy Management functions such as autobalancing (on by default). Other functions such as comfort setting, room bypass, and supply temperature monitoring requires an interface.
• Electronic control of actuators.
• Connection of maximum eight actuators (24 V).
• 2-way communication with up to six room thermostats.
• Heating/cooling function (advanced) switched by dry contact, public thermostat (heating/cooling sensor only) or touch panel interface.
• Comfort/ECO mode switched by dry contact, public thermostat or touch panel interface.
• Separate relays for control of pump and boiler.
• Integrated heat pump module (only available in systems with four controllers or less, and in selected countries, contact a local Uponor office for more information).
• KNX connectivity via KNX module.
See separate documentation.
• Valve and pump exercise.
• Logging, back up and updates via microSD card.
• Relative humidity control (requires an interface).
• Control of combined underfloor heating/cooling and ceiling cooling (requires an interface).
• Lower indoor temperature with ECO mode. Use a timer I-143, interface I-147, or public thermostat T-143 (with Comfort/ECO switch) to activate ECO mode in all rooms at once. Use a digital thermostat T-148 to activate ECO mode in a single room.
Options:
• The controller can be expanded with a slave module which adds an extra six channels and six actuator outputs.
• The controller can be expanded with a star module which adds eight extra bus connectors to the system. It can be connected to the controller or slave module and is mostly used for a star topology.
• Connect up to 16 controllers into one system (requires an interface).
• Modular placement (detachable transformer).
• Cabinet or wall mounted (DIN rail or supplied screws).
• Free placement and orientation when installing the controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
9
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Uponor Smatrix Base Controller X-145
Main characteristics:
• Integrated Dynamic Energy Management functions such as autobalancing (on by default).
• Electronic control of actuators.
• Connection of maximum eight actuators (24 V).
• 2-way communication with up to six room thermostats.
• Heating/cooling function (basic) switched by dry contact.
• Separate relays for control of pump and boiler.
• Valve and pump exercise.
• Basic relative humidity control.
• Lower indoor temperature with ECO mode. Use a timer I-143, interface I-147, or public thermostat T-143 (with Comfort/ECO switch) to activate ECO mode in all rooms at once. Use a digital thermostat T-148 to activate ECO mode in a single room.
Options:
• The controller can be expanded with a slave module which adds an extra six channels and six actuator outputs.
• The controller can be expanded with a star module which adds eight extra bus connectors to the system. It can be connected to the controller or slave module and is mostly used for a star topology.
• Modular placement (detachable transformer).
• Cabinet or wall mounted (DIN rail or supplied screws).
• Free placement and orientation when installing the controller.
Components of the controller
The illustration below shows the controller and its components.
A
C
B
E
D
Item Description
A Uponor Smatrix Base Controller X-145
B End cap
C Transformer
D DIN rail
E Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
10
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
in te rfaCe (B a se P ro on ly)
Uponor Smatrix Base PRO Interface I-147 is a touch screen interface which communicate with the X-147 controller by a wired communication protocol.
The interface acts as a link between the user and the controller(s) running in the system, displaying information and enabling simplified programming of all relevant system settings.
The Uponor Smatrix Base PRO system can be operated without the interface, but with reduced functionality (in example: many of the main characteristics listed below cannot be used).
NOTE!
Uponor Smatrix Base PRO systems without an interface can only operate with reduced functionality.
Uponor Smatrix Base PRO Interface I-147
Main characteristics:
• Touch screen interface.
• Display information and change settings of up to 16 controllers running within one system.
• Adjust temperature setpoints of registered thermostats within the system.
• Installation setup wizard when installed for the first time or after a factory reset.
• User friendly menu system available in several different languages.
• Backlit display.
• Temperature setback programs for each connected thermostat.
• Limitations of maximum/minimum temperature.
• Schedule temporary lowering of setpoint during holiday.
• Automatic change between summer- and winter time.
• Diagnostic function detecting if a room thermostat is installed in the right room (room check). The function is only available in systems with four controllers or less.
• Possibility to automatically open up to two rooms per controller when other rooms are closed to maintain a minimum flow (room bypass).
• System diagnostic (alarms etc).
• Visualize trends by e.g. comparing setpoint with room temperature etc.
• Advanced cooling settings.
• Change language and/or update the software with microSD card.
• KNX connectivity (requires an external module).
• Control of accessories (outputs etc).
Components of the interface
The illustration below shows the interface and its components.
A
B
C
D
Item Description
A Uponor Smatrix Base PRO Interface I-147
B Wall bracket with power supply
C Mounting material
D MicroSD card
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
11
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
th er mostat s
The thermostats communicate with the controller by a wired communication protocol and are used either individually or in combination with each other.
The following Uponor Smatrix thermostats can be used in the system:
Thermostat Base PRO Base
D+RH T-149 X* X*
Prog.+RH T-148 X* X*
Digital T-146 X* X*
Standard T-145 X X
Flush T-144 X X
Public T-143 X X
Sensor T-141 X
* With reduced functionality
NOTE!
The thermostat is affected by the temperature of the surrounding surfaces as well as the ambient air temperature.
Uponor Smatrix Base Thermostat D+RH Style T-149
The thermostat shows the ambient, set temperature or relative humidity on the display. Temperature settings are adjusted using the +/- buttons on the front.
Main characteristics:
• Power saving e-paper display (updates every 10 minutes).
• Displays Celsius or Fahrenheit.
• Operative sensor for increased comfort.
• Calibration of displayed room temperature.
• Heating/cooling demand indication on display.
• Displays Uponor logo and software version during power up sequence.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may be limited by other system settings).
• Room temperature regulation with use of optional external temperature sensors.
• Displays optional temperature sensor values if sensors are connected and relevant room temperature regulation is activated.
• Switch between Comfort and ECO mode with optional timer.
• Adjust ECO setback value.
• Relative humidity limit indicated in display.
• Invert display color.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A
C
B
Item Description
A Uponor Smatrix Base Thermostat D+RH Style T-149
B Metal wall bracket
C Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
12
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Uponor Smatrix Base Thermostat Prog.+RH T-148
The thermostat shows the ambient, set temperature or relative humidity, and time on the display. Settings are adjusted using the +/- buttons on the front. Other programmable settings are scheduling and individual ECO mode (on a room by room basis) etc.
Uponor recommends only using this thermostat in systems without a timer. Because scheduling and priority issues might occur.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Calibration of displayed room temperature.
• Heating/cooling demand indication on display.
• Displays software version during power up sequence.
• Setup wizard to set time and date when installed for the first time or after a factory reset.
• 12/24h clock for scheduling.
• Internal memory to save time and date settings during short power outages.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may be limited by other system settings).
• Room temperature regulation with use of optional external temperature sensors.
• Displays optional temperature sensor values if sensors are connected and relevant room temperature regulation is activated.
• Programmable to switch between Comfort and ECO modes with adjustable ECO setback value in the room.
• Cannot be overridden by other thermostats or timers, when it is set to a program.
• Relative humidity limit indicated in display.
• Scheduling, pre-programmed and customizable schedules.
• Lower indoor temperature on a room by room basis with ECO mode.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A
D
B
C
Item Description
A Uponor Smatrix Base Thermostat Prog.+RH T-148
B Wall bracket
C Connection terminals
D Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
13
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Uponor Smatrix Base Thermostat Dig T-146
The thermostat shows the ambient or set temperature on the display. Temperature settings are adjusted using the +/- buttons on the front.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Calibration of displayed room temperature.
• Heating/cooling demand indication on display.
• Displays software version during power up sequence.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may be limited by other system settings).
• Room temperature regulation with use of optional external temperature sensors.
• Displays optional temperature sensor values if sensors are connected and relevant room temperature regulation is activated.
• Switch between Comfort and ECO mode with optional timer.
• Adjust ECO setback value.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A
D
B
C
Item Description
A Uponor Smatrix Base Thermostat Dig T-146
B Wall bracket
C Connection terminals
D Mounting material
Uponor Smatrix Base Thermostat Standard T-145
The thermostat temperature settings are adjusted using the dial. The 21 °C position is marked on the dial.
Main characteristics:
• Adjust temperature setpoint with large dial.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may be limited by other system settings).
• Printed scale on the dial.
• LED in lower right corner indicating, for about 60 seconds, whether a heating or cooling demand exists.
• Enable or disable Comfort/ECO scheduling for the room with a dip switch on the back.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A
D
B
C
Item Description
A Uponor Smatrix Base Thermostat Standard T-145
B Wall bracket
C Connection terminals
D Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
14
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Uponor Smatrix Base Thermostat Flush T-144
The thermostat temperature settings are adjusted using the dial. The 21°C position is marked on the dial.
Main characteristics:
• Flush installation, specially designed for in-wall box installation.
• Adjust temperature setpoint with large dial.
• Printed scale on the dial.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may be limited by other system settings).
• LED indicating, for about 60 seconds, whether a heating or cooling demand exists.
• Enable or disable Comfort/ECO scheduling for the room with a dip switch beneath the dial, which have to be removed for access.
• Different frames can be used for installation in a switch rail frame.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A
B
Item Description
A Uponor Smatrix Base Thermostat Flush T-144
B Mounting material
Uponor Smatrix Base Thermostat Public T-143
The thermostat is designed for public locations which means that the dial is hidden. It must be removed from the wall to set the temperature. When it is removed, an alarm is triggered (if activated).
The thermostat can be registered as a system device, enabling extra functions. When functioning as a system device, the internal room sensor is disabled.
Main characteristics:
• Adjust setpoint temperature with a potentiometer on the back of the thermostat.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may be limited by other system settings).
• Alarm is indicated on the controller if removed from wall for tamper detection (activated at registration).
• Dry contact input for forced ECO mode of operation, if registered as a system device.
• Optional external temperature sensor can be connected to the thermostat.
• Optional outdoor temperature sensor can be registered as either standard thermostat or system device.
• Dip switch for selecting between function or sensor mode of operation.
• Enable or disable Comfort/ECO scheduling for the room with a dip switch on the back.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A
D
B
C
Item Description
A Uponor Smatrix Base Thermostat Public T-143
B Wall bracket
C Connection terminals
D Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
15
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Uponor Smatrix Base PRO Room Sensor+RH Style T-141
The thermostat is designed to be as small as possible, and still able to control the room temperature.
Main characteristics:
• Operative sensor for increased comfort.
• Adjust setpoint temperature via the Base PRO interface I-147.
• Setpoint range is 5 – 35 °C (maximum and minimum setting may be limited by other system settings).
• Relative humidity limit indicated in display via the Base PRO interface I-147.
Components of the thermostat:
The illustration below shows the thermostat and its components.
A CB
Item Description
A Uponor Smatrix Base PRO Room Sensor+RH Style
T-141
B Metal wall bracket
C Mounting material
ti me r
Uponor Smatrix Base Timer I-143 (Base only)
The timer enables control of the system with scheduling, Comfort/ECO settings, and Holiday mode etc. Settings are adjusted using the +/- buttons on the front.
The timer only shows time, date and current scheduling program.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Timer symbol on the front to differentiate it from thermostats.
• Displays Celsius or Fahrenheit in the settings.
• Comfort/ECO and heating/cooling mode indication on display.
• Displays software version during power up sequence.
• Setup wizard to set time and date when installed for the first time or after a factory reset.
• 12/24h clock for scheduling.
• Internal supercapacitor to save time and date settings during short power outages.
• ECO mode setback for analogue thermostats. Digital thermostats use their own setback temperatures. Thermostat T-148 required to set its program to Off.
• Scheduling, pre-programmed and customizable schedules.
• Disable/enable holiday mode.
• Enable autobalancing in the system.
Components of the timer:
The illustration below shows the timer and its components.
A
D
B
C
Item Description
A Uponor Smatrix Base Timer I-143
B Wall bracket
C Connection terminals
D Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
16
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
sl av e mo dul e
Uponor Smatrix Base Slave Module M-140
The slave module adds six channels and actuator outputs to an existing Uponor Smatrix Base controller.
Main characteristics:
• Easy plug in installation on existing controller, no additional wiring needed.
• Register up to six extra thermostats to the system.
• Connect up to six extra actuators (24 V).
• Electronic control of actuators.
• Valve exercise.
NOTE!
Only one slave module extension is supported per controller.
Components of the slave module:
The illustration below shows the slave module and its components.
A
B
C
Item Description
A Uponor Smatrix Base Slave Module M-140
B DIN rail
C Mounting material
sta r m od ul e
Uponor Smatrix Base Star Module M-141
The star module enables thermostats to be installed in a centralized star topology instead of the standard bus topology.
Main characteristics:
• Install the wiring from the thermostats in a centralized star topology (instead of a bus topology) which opens up for flexible wiring approaches.
• Requires an Uponor Smatrix Base controller.
• Adds 8 extra bus connectors to the system.
• Only thermostat input signals is allowed.
• Can be attached directly to the controller or slave module or by using a communication cable utilising one connector in each unit.
NOTE!
Only one star module extension is supported per controller.
Components of the star module:
The illustration below shows the star module and its components.
A
B
C
Item Description
A Uponor Smatrix Base Star Module M-141
B DIN rail
C Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
17
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
KnX m od ule
Uponor Smatrix Base PRO Gateway Module R-147 KNX
The KNX module enables communication between an Uponor Smatrix Base PRO system and a standard KNX bus.
Main characteristics:
• Enables useage of either Uponor or KNX thermostats in the system.
• Access to setpoints for every room.
• Access to readout of room and floor temperatures.
• Access to alarm monitoring.
• Access to heat curve in Uponor Smatrix Move PRO controller (if connected to a Base PRO system bus).
• Enables usage of standard KNX system for Comfort/ ECO and heating/cooling switch.
Components of the KNX module:
The illustration below shows the KNX module and its components.
A
Item Description
A Uponor Smatrix Base PRO Gateway Module R-147
KNX
uP on or aC tu ator s
Uponor actuators are mounted on top of the manifold valves and is operated using either on/off signals or pulse width modulation (PWM) signals.
On/off control
When installing a system with on/off control, manual balancing of the system is required.
As soon as the temperature measured at a thermostat is lower (heating mode) or higher (cooling mode) than the setpoint temperature, a demand to change the room temperature is created and sent to the controller. The controller will open the actuators according to current operating mode and other settings. Once the set temperature is reached, this information is sent and the actuators are closed. The indicator window on the actuator shows, with a white bar, how much it is opened. If the window is completely filled with white it is fully opened, no white bar shown means that the actuator is closed.
Time to open and close an actuator is 1 minute.
PWM control
PWM control is used when the Autobalancing function is active.
When installing a system with PWM control, all balancing valves can be fully opened, the system is balanced automatically.
NOTE!
Autobalancing can be used in combination with hydronic balancing.
See section 3.5 Functions > Autobalancing for more
information.
A B
A Actuator has closed the valve – empty indicator
B Actuator has opened the valve – white indicator
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
18
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
3.4 Accessories
Uponor offers a wide variety of accessories for use with the standard portfolio.
G
A
F
E
C
B
H
D
NOTE!
Some of these accessories may be included in the system.
Item Component Description
A Screws Mounting material for
thermostats T-141, T-143, T-145, T-146, T-148, T-149 and timer I-143
B Uponor Smatrix
Sensor Outdoor S-113
(outdoor sensor S-113)
Outdoor sensor for use with thermostats T-143, T-146, T-148, and T-149
C Uponor Smatrix
Wallframe T-X A-1XX
(wallframe T-X A-1XX)
Wall frame for covering larger area of the wall than original back plate. Used at installation of thermostats T-143, T-145, T-146, T-148 and timer I-143
D Uponor Smatrix
Base Surface Adaptor Style T-149 A-14X
Surface distance adaptor, if needed for mounting thermostat T-149 on the wall.
E Uponor Smatrix
Sensor Floor/ Remote S-114
(floor/remote sensor S-114)
Floor/remote sensor for use with thermostats T-143, T-146, T-148 and T-149
F Uponor Heating/
Cooling relay
Relay for connecting external voltage signal from a heating/ cooling source, such as a heat pump, to a controller input.
G DIN rail DIN rail for use with Uponor
Smatrix Base/Base PRO controller
H Uponor Smatrix
Bus cable A-145
Bus cable for use with thermostats
3.5 Functions
Uponor Smatrix Base/Base PRO is used to control an underfloor heating and/or cooling system in a house or building.
The thermostats registered to the controller is used to control the actuators mounted on top of the manifold valves.
As soon as the temperature measured at a thermostat is lower (heating mode) or higher (cooling mode) than the setpoint temperature, a demand to change the room temperature is created and sent to the controller. The controller will operate the actuators according to current control mode and settings. This will manage the flow to the floor loops in the room and adjust the room temperature. Once the set temperature is reached, this information is sent to the controller and the demand is met.
Co mf ort a nd e Co mo de s
If a timer is connected to the controller, it is possible to regulate the temperature setpoint modes between three different temperatures. Available modes is Comfort,
ECO (economy), and Holiday. See example of Comfort and ECO mode below.
0 h 00 24 h 0018 h 0012 h 006 h 00
Comfort
ECO
Heating timer 1
night morning afternoon night
The diagram shows that the system delivers heating in comfort mode in the morning and afternoon, but the system enters ECO mode during night and in the middle of the day, when the house normally is empty.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
19
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
au to Ba la nCi ng
NOTE!
Autobalancing can be used in combination with hydronic balancing.
The Uponor Smatrix Base/Base PRO controller can operate the actuator outputs by either on/off signals or by Autobalancing (on by default), using pulse width modulation (PWM) signals.
Autobalancing is a function where the system calculates the actual energy need of single rooms and adapts the output power of each loop to its length. This means a short loop short might get 20% on time while a long loop might get about 60% on time.
The automatic balancing continues through the seasons and throughout the household’s changing lifestyle and usage patterns, removing the need of manual balancing.
This gives more even floor temperatures and faster system reaction times with lower energy consumption than any standard on/off system.
lo W h ys te re sis t em Per atu re
Uponor uses a low hysteresis temperature for best performance of the system. It is used for high control accuracy by deciding when to start and stop heating and cooling, based on information from sensors and setpoint values.
he ati n g/Co ol ing o ff set
Uponor uses an offset temperature to adjust the setpoints when switching between heating and cooling. This improves the performance of the system and reduces the need of manual setpoint adjustments when switching between heating and cooling.
The offset is 2 °C and is used to increase the setpoints when switching to cooling. When switching back to heating, the value is used to reduce the setpoint. The offset can be changed using an interface I-147 (Base PRO only).
re lat i ve h umi di ty fu nC ti on
To avoid condensation when having a cooling system, it is recommended measuring the relative humidity (RH) in the rooms. The relative humidity is measured with one or more thermostats (with RH sensor).
Uponor Smatrix Base
Cooling is shut off for the whole system if the RH reaches a “worst case level” of 80% in one of the thermostats (if more than one).
Cooling will start again when the relative humidity falls below 76%.
Uponor Smatrix Base PRO
Cooling is shut off on a per room basis when the relative humidity limit is reached (set in the interface, default 75%). If a dehumidifier is installed (requires an Uponor Smatrix Move PRO controller) it will be activated when the dehumidifier start limit is reached.
Cooling will start again and the dehumidifier is deactivated when the relative humidity falls below a hysteresis set in the interface (“Deadzone”, default 5%).
Pu mP ma na ge me nt
The controller in a system has a pump relay, to which one pump can be connected. If there is some sort of demand in a room, the pump is started. In a Base PRO system, with an interface connected), the pump management parameter is automatically set to common mode. Use the interface to change the setting if needed. Available settings are Common, Individual and H/C switch.
Common mode (Base PRO with interface only):
Relay status is set on a system wide basis. One pump per system is connected (to the master controller only). If there is a demand in one room of the controllers, the main pump is started.
Individual mode (Base PRO with interface only):
Relay status is set on a controller basis. One pump per controller is connected. If there a demand in a room, only the pump connected to that controller is started.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
20
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
H/C-switch (Base PRO with interface only):
Use the relay as a heating/cooling output. A circulation pump cannot be connected to the controller using the PUMP connector.
If more than one controller (Base PRO only) is available in the system, and the circulation pump settings in the interface is set to Common. The PUMP connector on the other controllers can be used for heating/cooling output signal.
aC tu ato r ma nage men t
Actuator management prevents too many actuators to be open at the same time in order to reduce the peak power need. Peak current can be reduced by delaying the opening of some actuators, as they use most current while being opened.
Up to eight actuators in up to six rooms can be opened at the same time. Additional actuators are queued and opened in order.
he ati n g fa ll B aC K
If the connection to a thermostat is lost, the corresponding loop cannot be regulated using the room temperature. The controller then activates a fall back function for the affected loop and the actuators are operated with a set interval.
The function is activated until the thermostat is reconnected.
sy st em Clo C K
To facilitate scheduling and different timer settings, the controller receives the correct time and date from one of the input devices (interface, timer, programmable thermostat etc). The clock can be set to automatically switch between summer and winter time (Base PRO with an interface only).
mi Cr o sd C ard (Ba se Pro o nly)
Uponor Smatrix Base PRO uses a microSD card for cloning (interface settings), automatic backup (settings and thermostat registration data), manual restoration of backup, data logging (room data, controller data, system data and events) and upgrading software.
he at P um P i nt egr ati on (B a se P ro on ly)
The controller can connect to selected heat pumps and adjust the supply temperature to the system.
This function is only available in selected countries, contact a local Uponor office for more information.
NOTE!
This function is only available to Base PRO systems with four controller or less.
See heat pump documentation for more information.
ro om Ch eC K (Ba s e Pro W it h i nt e rfa Ce on ly)
Room check is a diagnostic function detecting whether a room thermostat is installed in the right room.
NOTE!
This function is only available to Base PRO systems with four controller or less.
See section 14.7 Settings > Room check for more information.
ro om ByPa ss (Bas e Pro W i th i n te rf aC e on ly)
Up to a maximum of two rooms, for each controller, can be selected to act as a bypass in the system.
See section 14.7 Settings > Room bypass for more information.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
21
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
4 Install Uponor Smatrix Base/Base PRO
4.1 Installation procedure
uP on or sm atr i X Ba se/Ba s e Pro
Uponor recommends following the process described below to guarantee the best possible installation results.
Stage Procedure Page
1 Prepare for installation 22
2 Install Uponor Smatrix Base/Base PRO
controller
26
3 Connect a slave module (optional) 27
4 Connect a star module (optional) 28
5 Install Uponor Smatrix Base/Base PRO
thermostats and sensors
40
6 Install optional Uponor Smatrix Base
timer (Base only)
56
7 Install Uponor Smatrix Base PRO
interface (Base PRO only)
60
8 Finish installation 66
uP on or sm atr i X Ba se Pro int er faCe i-1 47
Follow the process described below to install the Uponor Smatrix Base PRO Interface I-147.
Stage Procedure Page
1 Placement of interface 60
2 Startup guide 62
4.2 Prepare for installation
Before starting the installation:
• Verify the contents of the package with the packing list.
See also section 3.3 Uponor Smatrix Base/Base PRO components for identification of components.
• Check whether an external temperature sensor is to be installed with a compatible thermostat.
• Study the wiring diagram in the end of this manual or inside the controller cover.
To determine where to best place the Uponor Smatrix Base components, follow these guidelines:
• Ensure that the controller can be installed close to the manifold pair. Note that each manifold pair must have its own controller.
• Ensure that the controller can be mounted close to a 230 V AC wall socket, or if required by local regulations, to a junction box, connected to the mains power.
• Ensure that installed Uponor Smatrix Base/Base PRO components are protected from running or dripping water.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
22
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
4.3 Installation example
24 V24 V
24 V
24 V
24 V
24 V24 V24 V
24 V24 V 24 V 24 V 24 V 24 V
03
#01
#01
#01
#08 #12#03
02a 02b01b01a 09 10 11 12080704 05
030201 04 05
06
M-140*
M-141*
8 x
3 x3 x
T-143
Option
A+B
Option
A+B
Option A
Option COption B
T
S
TTT
TS T
T
#06
T-145
T
S
S
Option A+B+C
#03 - #05
T-143
S
Option
B+C
T-146 T-148
X-145 X-147
T-149
T-141
A
B
+
-
AB+ -
AB - A B - AB+ -
I-143
I-147 X-147
Base PRO
Base PRO
Base
Option A+B
Option A Option B Option C
Option A+B
Option A+B
Option B+C
*) This example contains optional accessories which adds six actuator
outputs (slave module M-140) and extra bus connectors (slave module M-140 and star module M-141) to the Uponor Smatrix Base controller
See also the wiring diagram in the end of the manual.
Ca ut i on !
Only 24 V Uponor actuators are compatible with the controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
23
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
uP on or sm atr i X Ba se/Ba s e Pro s yst em
A connection example of Uponor Smatrix Base/Base PRO Controller (six channels) with an optional Uponor Smatrix Base Slave Module (six extra channels) using system devices (S) and thermostats (T) as shown in figure.
The installation will work in a standard way with the thermostats regulating each room according to their set temperatures.
Connections
The system is based on a bus communications protocol (requires the thermostats unique ID to be registered to the controller), utilising daisy chain, direct or star topology connections. This allows serial and parallel connections, making wiring and connection of thermostats and system devices much easier than connecting one thermostat per connection terminal.
The wide array of connection possibilities presented with this communications protocol can be combined in any way best suited for the current system.
Thermostats and actuators
• Thermostat #01 controls the actuators on channels 01a, 01b, 02a and 02b with the help of an option.
• Thermostat #03 controls the actuators on channels 03 to 05 with the help of an option.
• Thermostat #06 controls the actuators on channels 06 and 07.
• Thermostat #08 controls the actuators on channels 08 to 11 with the help of an option.
• Thermostat #12 controls the actuator on channel
12.
System devices
• Interface I-147 (Base PRO only) controls the whole system and individual settings for each thermostat can be set. Schedules can be programmed for one or several thermostats instructing them when to switch between Comfort and ECO modes.
• The timer (Base only) controls the switching between Comfort and ECO modes for all available thermostats activated for scheduling (except the digital thermostat T-148).
• Public thermostat T-143 with various functions (options B and C).
NOTE!
If registering a public thermostat T-143 with various functions as a system device, the thermostat only acts as a remote unit. It does not control the room temperature in the room where it is placed.
Option A
• External temperature sensor.
• Floor temperature sensor.
Option B
• Outdoor temperature sensor.
Option C
• External temperature sensor for heating/cooling switch (Base PRO with interface only).
• Comfort/ECO mode switch.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
24
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Schedules
Programmable schedules can, during heating and/or cooling, switch between Comfort and ECO mode. See example below.
0 h 00 24 h 0018 h 0012 h 006 h 00
Comfort
ECO
Schedule 1
night morning afternoon night
Other rooms can, depending on system setup, simultaneously switch between Comfort and ECO mode according to their own programmed schedules.
This requires one or more of the following:
• Uponor Smatrix Base PRO Interface I-147 (Base PRO only) The interface allows individual programmed schedules for the rooms in the system. Any other devices with its own programmed schedules are overridden and its menus hidden.
• Uponor Smatrix Base Timer I-143 (Base only) The timer applies the schedule program to the whole system. For the timer to control the digital thermostat T-148, it is required that the thermostat program is set to Off.
• Uponor Smatrix Base Thermostat Prog.+RH T-148 The thermostat is in control of its own room, with restrictions stated above, regarding the interface and timer.
0 h 00 24 h 0018 h 0012 h 006 h 00
Comfort
ECO
Schedule 2
night morning afternoon night
Even if programmed schedules exist in the system, some rooms may still operate without any scheduling. These rooms will operate in constant Comfort mode and is not affected by the programming of other rooms.
Room sensor T-141:
• Set the value in the Base PRO interface I-147.
Public thermostat T-143:
• Set the switch on its back to comfort mode only.
Standard thermostat T-145:
• Set the switch on its back to comfort mode only.
Digital thermostats T-146, and T-149:
• Set the ECO setback value in menu 03 to 0.
Digital thermostat T-148:
• Set the ECO setback value in menu 03 to 0 and menu 00 to Off.
Heating/cooling switch
The heating/cooling switch is manually controlled through an external signal to the controller. It is used to switch the operation of the controller between heating and cooling modes.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
25
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
5 Install Uponor Smatrix Base/Base PRO controller
5.1 Placement of controller
Refer to the installation preparation guidelines (see section 4.2 Prepare for installation), and use the
following guidelines when positioning the controller:
• Position the controller just above the manifold. Check the position of the 230 V AC power outlet.
• Check that the cover of the controller can be easily removed.
• Check that connectors and switches are easily accessible.
mo du lar P la Ce men t
The controller is designed with the option of modular placement in mind. This means that all major parts are detachable and can be placed separately (some extra wiring may be required depending on placement).
Attaching/detaching components
The components can either snap on or off without the need of removing the covers (A, recommended to do on a flat surface or on a DIN-rail), or by sliding them into place when the covers are removed (B).
B
A
Wa rn ing !
The transformer module is heavy and might detach if the controller is held upside down without the cover on.
Ca ut i on !
The slave module must be attached by snapping it into place due to connection pins sticking out of the module.
NOTE!
Wires between transformer and controller card needs to be disconnected prior to detaching.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
26
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
5.2 Attach controller to the wall
The controller is delivered in kits including screws, wall plugs and a DIN rail.
din r ai l (re Co m me nd e d)
Attach the DIN rail to the wall using the screws and wall plugs. The controller is then attached to the DIN rail.
The figure below shows how to attach the controller using a DIN rail.
A B
1
1
2
A
B
Ca ut i on !
Make sure the controller cannot slide off the DIN rail if mounting it in any other position than horizontal.
sC re Ws an d W al l P lu gs
The figure below shows controller mounting hole positions and how to attach it to the wall using screws and wall plugs.
110 mm
80 mm
5.3 Connect the slave module (optional)
at taC h t he s lave m o du le
The illustration below shows how to connect the slave module to the controller.
NOTE!
Only one slave module extension is supported per controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
27
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
re mo ve th e s la ve m o du le
The illustration below shows how to remove the slave module from the controller.
1
1.2 mm
8 mm
2
1. Place a wide flat head screwdriver in the slot between the slave module and the other unit and twist until one side has popped of. Repeat for the other side.
2. Remove the slave module. Use caution not to bend the connection pins.
5.4 Connect the star module (optional)
The star module can be connected to the controller by either snapping it into place or connecting it using a cable.
NOTE!
Only one star module extension is supported per Uponor Smatrix Base controller.
NOTE!
Only one star module extension per bus type (thermostat and/or system bus) is supported per Uponor Smatrix Base PRO controller.
A star module can only be used for one bus type at a time. That is, a thermostat cannot be connected to a star module connected to the system bus and vice versa.
at taC h t he s tar mo du le
The illustration below shows how to snap the star module into place direct to the controller or an optional slave module.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
28
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Ca Bl e Co nne Ct io n
The illustration below shows how to connect the star module to the controller using cable connection.
AB+-
- +BA
NOTE!
This connection method uses two extra connection points in the system.
re mo ve th e s tar m odu le
The illustration below shows how to remove the star module from the controller.
1
1.2 mm
8 mm
2
1. Place a wide flat head screwdriver in the slot between the star module and the other unit and twist until one side has popped of. Repeat for the other side.
2. Remove the star module. Use caution not to bend the connection pins.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
29
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
5.5 Connect components to controller
Refer to the wiring diagram found in the end of this document. The illustration below shows the inside of the controller.
E I
FD
C G HB MA
N
J
F K
G
L G
Item Description
A Transformer, 230 V AC 50 Hz power module
B Fuse (T5 F3.15AL 250V)
C Optional inputs and outputs for pump, boiler
management, and heat pump connection (Base PRO only)
D Channel registration buttons
E LEDs for channels 01 – 06
F Quick connectors for actuators
G Bus connection terminals
H System bus connection terminals (Base PRO only)
I Power LED
J Uponor Smatrix Base Slave Module M-140
(optional)
K LEDs for channels 07 – 12
L Uponor Smatrix Base Star Module M-141
(optional)
M End cap
N MicroSD card (Base PRO only)
Co nn eCt a Ct uato r s to C on t ro ll er
Each thermostat can control one or more channels. To simplify installation and maintenance, Uponor recommends that actuators controlled by the same thermostat shall be wired in sequence to the channels.
Connect the actuators to the controller as follows. Use the figure below for guidance to the instructions.
1. Lead the cables from the actuators through cable entries in the bottom of the controller frame. See
figure below.
1
3
2. Press, without turning, with a thin screwdriver, on the white button of the quick connector.
3. Insert a wire in the quick connector.
4. Remove the screwdriver.
NOTE!
Identify the room supplied by each loop on the manifold and determine which channel it must be connected to.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
30
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nn eCt a no th e r Co nt rol le r (Ba se Pro Wit h
in te rfaCe on ly)
Up to another 16 Base PRO controllers can be connected in the same system.
The controllers are connected to each other using daisy chain, direct connection, or using star topology (the star module can be used). A star module can only be used for one bus type at a time. That is, a thermostat cannot be connected to a star module connected to the system bus and vice versa.
See section 6.3 for more information about daisy chain.
Ca ut i on !
Make sure the controller is connected to a system bus connector (one of the rightmost connectors) on the controller. Otherwise the controllers will be unable to communicate with each other.
2
3
3
A-AB B-
1
1
To connect a communication cable to the controller:
1. Lead the cables through cable entries on the top of the controller frame.
2. Insert two wires (A,B), the - wire is optional and only used in some cases, into a free system connector (one of the rightmost connectors) on the controller.
3. Tighten the screws fixing the wires in the connector.
4. Cut and stow away unused wires.
Co nn eCt t he rmo stat s to C on tro ll er
Thermostats are connected to the controller through a wired bus communication protocol.
See section 6 Uponor Smatrix Base/Base PRO thermostats and sensors for installation of thermostats.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
31
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nn eCt h eat i ng /C oo lin g in Put to Co nt ro lle r (o Pt ion al )
If the system is contain a product producing cooling, the controller can switch between heating and cooling by using the heating/cooling input.
The heating/cooling input is connected to a dry contact that functions as either an auxiliary control system or two-position relay.
• When the relay is open, the system is in heating mode.
• When the relay is closed, the system is in cooling mode.
The heating/cooling switch can be connected and controlled in several different ways, depending on the system. Use only one of the following:
Uponor Smatrix Base system:
• Use an input: Connect the input to the controller. Switch mode using a switch on the wall or a heat pump.
Uponor Smatrix Base PRO system:
• Use an input: Connect the input to either the controller. Switch mode using a switch on the wall or a heat pump.
• Use an output on a sub controller and the interface to switch mode: Connect the heating/cooling relay to an output on a sub controller. Use the interface to set heating or cooling mode.
• Use a supply temperature sensor Connect a supply temperature sensor to a public thermostat. Use the interface to switch between heating and cooling using the supply temperature.
Ca ut i on !
To avoid damaging the equipment, do not apply a voltage across the controller heating/ cooling input.
For further information, see the heating/cooling relay documentation.
To connect a heating/cooling input to the controller:
The illustration below shows components of the heating/cooling system connected to a controller.
GPI
IN OUT
GPI
OUT
IN
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
32
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Wa rn ing !
Electrical installation and service behind secured 230 V AC covers must be carried out under the supervision of a qualified electrician.
1. Study the wiring diagram, in the end of the manual or inside the cover of the controller, to locate the connector positions.
2. Ensure that the power is disconnected from both the controller and the heating/cooling relay.
3. Remove the screw and open the cover for the optional connections compartment.
4. Route the cable to/from the heating/cooling input via a cable entry.
5. Connect the cable to/from the heating/cooling input to the connection labelled GPI or IN (if a heat pump is connected, Base PRO only) on the controller.
Base PRO with interface only:
6. Go to menu Heating/cooling in the interface and select Cooling available.
7. Enter the submenu Operating mode to the settings menu to Heating/cooling and select H/C Slave.
Heating/cooling switch is now installed and activated.
To connect a supply temperature sensor for heating/cooling switch to a public thermostat (Base PRO with interface only):
The illustration below shows components of the heating/cooling system connected to a public thermostat T-143.
20
5
35
1 2 3 4
ON DIP
Ca ut i on !
If more than one controller is available in the system, register the thermostat as a system device to the master controller.
1. Ensure that the power is disconnected from the thermostat.
2. Connect the sensor attached to the supply pipe to the input terminal on the thermostat.
3. Set the DIP switch to 1 = Off, 2 = Off, 3 = On, 4 = Off. See section 6.4 Connect external sensor
to thermostat > Uponor Smatrix Base Thermostat Public T-143 for more information.
4. Register the thermostat to the controller as a Heating cooling switch from sensor input, system device channel 4. See section 6.12 Register
system devices for more information.
5. Go to menu Heating/cooling in the interface and select Cooling available.
6. Enter the submenu Operating mode to the settings menu to Heating/cooling and select H/C Master.
7. Enter the settings menu to H/C Master in
Heating/cooling > Operating mode and select H/C sensor.
8. Set a temperature and hysteresis to switch between heating and cooling.
Heating/cooling switch is now installed and activated.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
33
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
To connect a heating/cooling output to a sub controller (Base PRO with interface only):
The illustration below shows components of the heating/cooling system connected to a sub controller.
PUMP
PUMP
Wa rn ing !
Electrical installation and service behind secured 230 V AC covers must be carried out under the supervision of a qualified electrician.
NOTE!
This connection requires a dry contact sensing input in the component producing heating/cooling.
1. Ensure that the power is disconnected from both the sub controller and the heating/cooling relay.
2. Connect the cable to/from the component producing heating/cooling to the connector labelled PUMP on the sub controller.
4. Go to menu Integration in the interface and select Controller relay.
5. Select Common and enter the Settings menu that appears.
6. Select the sub controller to which the cable is connected to and set the output to H/C switch.
7. Go to menu Heating/cooling in the interface and select Cooling available.
8. Enter the submenu Operating mode to the settings menu to Heating/cooling and select H/C Master.
9. Enter the settings menu to H/C Master in
Heating/cooling > Operating mode and select Force cooling or Force heating to select either
cooling or heating.
10. Verify that the relay closes, when in cooling mode, and opens, when in heating mode.
Heating/cooling output is now installed and activated.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
34
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nn eCt P um P m an ag em ent (oPt io n al )
The controller can operate a circulation pump, which stops when there is no demand for heating or cooling.
NOTE!
See the documentation from the circulation pump supplier as well as relevant Uponor wiring diagrams before connecting the pump.
• The controller cannot supply power for the pump.
• The controller uses a dry contact connection on the terminal block to control the circulation pump.
• The electrical circuits of the pump must be protected by a circuit breaker with a maximum rating of 8 A.
The circulation pump is connected to the controller.
The illustration below shows how to connect a circulation pump to the controller.
PUMP
PUMP
To connect a circulation pump to the controller:
Wa rn ing !
Electrical installation and service behind secured 230 V AC covers must be carried out under the supervision of a qualified electrician.
1. Study the wiring diagram, in the end of the manual or inside the cover of the controller, to locate the connector positions.
2. Ensure that the power is disconnected from both the controller and the circulation pump.
3. Remove the screw and open the cover for the optional connections compartment.
4. Route the cable to/from the pump via a cable entry.
5. Connect the L wire to/from the pump via the connection labelled PUMP.
NOTE!
There is no power in the controller to supply the pump. The pump connector in the controller provides only a dry contact to switch off and on the power connection to the pump.
6. Secure the pump cable with a cable clamp in the enclosure.
7. Close and secure the lid to the optional connections compartment.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
35
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Shared or individual pumps (Base PRO with interface only)
A pump for all manifolds and controllers can be connected to the closest controller.
If separate pumps are used for each manifold, each pump can be connected to be run by its own controller, as shown in the illustration below.
AB
A Shared pump B Individual pumps
Co nn eCt B oi ler (oP tio na l)
The controller includes a boiler relay, it can be used to send a signal to either fire the heat source or to power open a 2-port motorised zone valve positioned on the flow to the underfloor heating manifold. If the relay is used to power open a zone valve then, the volt free auxiliary contacts on the zone valve should be used to fire the heat source.
Alternatively, the boiler relay can be used to send a demand signal to an electrically operated water temperature controller. The additional contacts on the water temperature controller should then be used to fire the heat source.
The boiler can be connected to the controller.
The illustration below shows how to connect a boiler to the controller.
BOILER
BOILER
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
36
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Wa rn ing !
Electrical installation and service behind secured 230 V AC covers must be carried out under the supervision of a qualified electrician.
NOTE!
This connection requires a dry contact sensing input in the boiler.
To connect a boiler to the controller:
1. Study the wiring diagram, in the end of the manual or inside the cover of the controller, to locate the connector positions.
2. Ensure that the power is disconnected from both the controller and the boiler.
3. Remove the screw and open the cover for the optional connections compartment.
4. Route the cable from/to the boiler via a cable entry.
5. Connect the boiler to the connection labelled
BOILER.
NOTE!
There is no power in the controller to supply the boiler. The boiler connector in the controller provides only a dry contact to switch on and off the power connection to the boiler.
6. Secure the cable to/from the boiler with a cable clamp in the enclosure.
7. Close and secure the lid to the optional connections compartment.
Co nne C t h e at P um P i nt egr ati on (oP tio n al , Ba se Pr o o n ly)
The controller can connect to selected heat pumps and adjust the supply temperature to the system.
NOTE!
This function is only available to Base PRO systems with four controller or less.
The illustration below shows how to connect a compatible heat pump to the controller.
IN OUT
OUT
IN
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
37
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Wa rn ing !
Electrical installation and service behind secured 230 V AC covers must be carried out under the supervision of a qualified electrician.
Ca ut i on !
If Heat pump integration is deactivated in the interface (if installed, Base PRO only) make sure that it also is deactivated in the heat pump. Otherwise it may affect the operation of the heat pump.
NOTE!
See the heat pump supplier documentation and the relevant Uponor wiring diagram before performing the connection.
Contact a local Uponor office for complete list of compatible heat pumps.
To connect a compatible heat pump to the controller:
1. Study the wiring diagram in the end of the manual, or inside the cover of the controller, to locate the connector positions.
2. Ensure that the power is disconnected from both the controller and the heat pump.
3. Remove the screw and open the cover for the optional connections compartment.
4. Route the cables from/to the heat pump via a cable entry.
5. Connect the signal cable receiving from the heat pump to the connection labelled IN.
6. Connect the signal cable sending to the heat pump to the connection labelled OUT.
7. Secure the cables to/from the heat pump with cable clamps in the enclosure.
8. Close and secure the lid to the optional connections compartment.
5.6 Connect the controller to AC power
To conclude the installation of the controller:
1. Check that all wiring is complete and correct:
• Actuators
• Heating/cooling switch
• Circulation pump
2. Ensure that the 230 V AC compartment of the controller is closed and the fixing screw is tightened.
3. Connect the power cable to a 230 V AC wall socket, or if required by local regulations, to a junction box.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
38
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
5.7 Test actuators
It is possible to manually open or close an actuator connected to a channel when testing the system. Testing an actuator takes about 10 minutes and the controller automatically returns to run mode when finished.
21
10 min
3 4
10 min
NOTE!
Activated forced mode for a channel is indicated with a lit LED, when in forced mode.
To test the actuators:
1. Enter forced mode by pressing the > button while in run mode. For information about how to exit to run mode, see section 10.4 Run mode > Exit to run mode.
2. Use the < or > buttons to select a channel. Selected channel is indicated with a LED flashing red.
3. Press the OK button to activate forced mode for the selected channel. The LED of the channel turns fixed red, which means that the controller opens the actuator on the selected channel, and the system exits to run mode. If the LED keeps flashing, the channel cannot be chosen for forced operation.
If the LED does not turn fixed red it might be the
actuator management delaying the actuator if more than eight channels is opened at the same time. Otherwise refer to the troubleshooting section.
4. Wait for 10 minutes, or enter forced mode again, choose the activated channel and press the OK button for the system to end the test.
A forced operation can always be cancelled by entering forced mode, selecting the active channel, and pressing the OK button.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
39
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
6 Install Uponor Smatrix Base/Base PRO
thermostats and sensors
The following thermostats can be connected to the system:
• Uponor Smatrix Base Thermostat D+RH Style T-149
• Uponor Smatrix Base Thermostat Prog.+RH T-148
• Uponor Smatrix Base Thermostat Dig T-146
• Uponor Smatrix Base Thermostat Standard T-145
• Uponor Smatrix Base Thermostat Flush T-144
• Uponor Smatrix Base Thermostat Public T-143
• Uponor Smatrix Base PRO Room Sensor+RH Style T-141
6.1 Placement of thermostats
Refer to the installation preparation guidelines (see section 4.2 Prepare for installation), and use the
following guidelines when positioning the thermostats:
1. Select an indoor wall and a position 1.3 m to 1.5 m above the floor.
2. Ensure that the thermostat is away from direct solar radiation.
3. Ensure that the thermostat will not be heated through the wall by sunshine.
4. Ensure that the thermostat is away from any source of heat, for example television set, electronic equipment, fireplace, spotlights, and so on.
5. Ensure that the thermostat is away from any source of humidity and water splashes (IP20).
1.3–1.5 m
6.2 Label thermostats
Label the thermostats, where suitable, with the channel numbers they are to control, for example, #02, #03. For a system with interface and several controllers, add the ID of each controller, for example, 1.02, 1.03, 2.02,
2.03.
If the thermostat can connect to an external sensor, add information about sensor type when applicable.
Available thermostat and sensor combinations:
• Room temperature
• Room and floor temperature
• Room and outdoor temperature
• Remote sensor temperature
6.3 Connect thermostats to controller
The system is based on a bus communications protocol, utilising daisy chain, direct or star topology connections. This makes wiring and connection of thermostats and system devices much easier than connecting one thermostat per connection terminal.
The wide array of connection possibilities presented with this communications protocol can be combined in any way best suited for the current system.
da is y C ha i n Co nn eCt io n
The thermostats in the example are connected in series and only one cable needs to be routed from the controller and slave module (if available).
This method reduces the total length of cable needed in the system.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
40
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
di re Ct Co nn eC tio n to C on t ro ll e r an d s la ve
mo du le
Every thermostat in the example is connected to the controller and slave module (if available) with its own cable.
Co nn eCt io n to attaC hed s tar m odu le
The star module is attached to the controller and slave module (if available) adding extra connection terminals to the system. Each thermostat in the example is connected direct to the controller, slave module (if available) and star module.
Co nn eCt io n to Ca Bl e Co n ne Ct ed sta r mo dul e
The star module is connected to the controller and/ or slave module (if available) with a cable, using two of the extra connection points. Each thermostat in the example is connected direct to the star module, except one that is connected with daisy chain.
Co nn eCt C om mu niC ati on Ca Bl e to Co nt ro l le r
an d/ o r slav e m od u le
3
1
1
2
3
+- +- +-BAB
AB
A
To connect a communication cable to the controller:
1. Lead the cables through cable entries on the top of the controller frame.
2. Insert the four wires (A,B, + and -) into the connector on the controller.
3. Tighten the screws fixing the wires in the connector.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
41
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nn eCt C aBl e to s tar mo du le
1
2
3
1
+-
+-
B
AB
A
To connect a communication cable to a star module:
1. Lead the cables through cable entries in the star module frame.
2. Insert the four wires (A,B, + and -) into the connector on the electrical card.
3. Tighten the screws fixing the wires in the connector.
Co nn eCt C om mu niC ati on Ca Bl e to th er mostat t-149
1
2
+-AB
To connect a communication cable to thermostat T-149:
1. Press the push button on the connection terminal on the back of the thermostat.
2. While pressing the push button, insert each of the four wires into the connection terminal on the thermostat (marked A,B, + or -).
3. Repeat steps 1 and 2 until all wires are connected.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
42
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nn eCt C om mu niC ati on Ca Bl e to th er mostat t-143, t-145, t-146, a nd t-148
2
1
3
AB +-
To connect a communication cable to thermostat T-148, T-146, T-145 and T-143:
1. Insert the four wires into the removable connectors marked (A,B, + and -) on the thermostat.
2. Tighten the screws fixing the wires in the connector.
3. Insert the connectors on the input pegs on the thermostat.
Co nn eCt C om mu niC ati on Ca Bl e to th er mostat t-144
2
1
AB +-
To connect a communication cable to thermostat T-144:
1. Insert the four wires into the connectors marked (A,B, + and -) on the thermostat.
2. Tighten the screws fixing the wires in the connector.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
43
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nn eCt C om mu niC ati on Ca Bl e to th er mostat t-141
1
2
+-AB
To connect a communication cable to thermostat T-149:
1. Press the push button on the connection terminal on the back of the thermostat.
2. While pressing the push button, insert each of the four wires into the connection terminal on the thermostat (marked A,B, + or -).
3. Repeat steps 1 and 2 until all wires are connected.
6.4 Connect external sensor to thermostat (optional)
An optional external sensor can be connected to the thermostats (except the standard thermostat T-145, flush thermostat T-144, and room sensor T-141) for extra functionality.
NOTE!
For accurate temperature: attach the outdoor sensor to the north side of the building where it is unlikely to be exposed to direct sunlight. Do not place it close to doors, windows, or air outlets.
th er mostat t-14 9
Connect the sensor to the terminal located at the back of the thermostat, as shown in the illustration below.
1
2
1. Press the push buttons on the connection terminals
on the back of the thermostat.
2. While pressing the push buttons, insert the two
wires from the sensor cable (non polarized) into the connection terminal.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
44
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
th er mostat s t-143 , t-146, an d t-148
Connect the sensor to the single terminal located at the back of the thermostat, as shown in the illustration below.
1
2
3
1. Insert the two wires from the sensor cable (non polarized) into the terminal.
2. Tighten the screws fixing the wires in the connector.
3. Insert the terminal on the input pegs on the thermostat.
uP ono r sm at ri X Ba se the r mo s tat d +rh st yle t-14 9
The external temperature sensor input can be used for either a floor, outdoor or remote temperature sensor. Use the software on the thermostat to select a control mode which corresponds to the use of the sensor and thermostat.
See section 12 Operate Uponor Smatrix Base/Base PRO
digital thermostats for more information.
uP on or sm atr i X Ba se the rm ostat Pro g. +rh t-148
The external temperature sensor input can be used for either a floor, outdoor or remote temperature sensor. Use the software on the thermostat to select a control mode which corresponds to the use of the sensor and thermostat.
See section 12 Operate Uponor Smatrix Base/Base PRO
digital thermostats for more information.
uP on or sm atr i X Ba se the rm ostat dig t-146
The external temperature sensor input can be used for either a floor, outdoor or remote temperature sensor. Use the software on the thermostat to select a control mode which corresponds to the use of the sensor and thermostat.
See section 12 Operate Uponor Smatrix Base/Base PRO
digital thermostats for more information.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
45
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
uP on or sm atr i X Ba se the rm ostat PuB li C t-143
The external temperature sensor input can be used for either a floor temperature sensor, an outdoor temperature sensor, or a Comfort/ECO switch. Use the DIP switches on the thermostat to select a control mode which corresponds to the use of the sensor and thermostat.
Ca ut i on !
If more than one controller is available in the system, register the thermostat as a system device to the master controller.
1 2 3 4
ON DIP
Function*
Switch
Standard room thermostat
1234
ON DIP
Standard room thermostat together with a floor temperature sensor
1234
ON DIP
Standard room thermostat, or system device, together with an outdoor temperature sensor
1234
ON DIP
System device together with a supply temperature sensor for heating/cooling switch over function
1234
ON DIP
System device where the sensor input is used for Comfort/ECO switch over function **
1234
ON DIP
Remote sensor
1234
ON DIP
* If registering the thermostat as a system device, it will no
longer work as a standard room thermostat any more.
** Closed = ECO
Ca ut i on !
The switches must be set before the thermostat is registered.
Ca ut i on !
The switches must be set to one of the available functions, otherwise the thermostat cannot be registered.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
46
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
6.5 Attach thermostat T-149 to the
wall
The thermostats are delivered in kits including screws, wall plugs, and a wall bracket, presenting several options of attaching the thermostat to the wall.
us in g Wal l B ra CK et (r eC om me nde d)
The illustration below shows thermostat mounting hole positions and how to attach it to the wall using a wall bracket.
Ca ut i on !
Do not overtighten the screws for the wall bracket. It may cause the metal to distort.
60 mm
V1.0
2
3
1
2
us in g Wal l B ra CK et an d su rfaCe ad aP to r (o Pt ion )
The illustration below shows thermostat mounting hole positions and how to attach it to the wall using a wall bracket and surface adaptor (option).
Ca ut i on !
Do not overtighten the screws for the wall bracket. It may cause the metal to distort.
V1.0
64 mm
64 mm
2
3
1
2
5
4
4
sC re W a nd W a ll P lu g
The illustration below shows how to attach the thermostat to the wall using one screw and wall plug.
V1.0
38 mm
2
3
1
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
47
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
6.6 Attach thermostat T-148, T-146,
T-145, and T-143 to the wall
The thermostats are delivered in kits including screws, wall plugs, and a wall bracket, presenting several options of attaching the thermostat to the wall.
us in g Wal l B ra CK et (r eC om me nde d)
The illustration below shows thermostat mounting hole positions and how to attach it to the wall using a wall bracket.
2
3
1
60 mm
sC re W a nd W a ll P lu g
The illustration below shows how to attach the thermostat to the wall using one screw and wall plug.
2
3
4
5
1
6.7 Attach thermostat T-141 to the wall
The thermostats are delivered in kits including screws, wall plugs, and a wall bracket, presenting several options of attaching the thermostat to the wall.
us in g Wal l B ra CK et (r eC om me nde d)
The illustration below shows thermostat mounting hole positions and how to attach it to the wall using a wall bracket.
Ca ut i on !
Do not overtighten the screws for the wall bracket. It may cause the metal to distort.
60 mm
2
3
1
2
4
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
48
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
us in g Wal l B ra CK et an d su rfaCe ad aP to r (o Pt ion )
The illustration below shows thermostat mounting hole positions and how to attach it to the wall using a wall bracket and surface adaptor (option).
Ca ut i on !
Do not overtighten the screws for the wall bracket. It may cause the metal to distort.
64 mm
64 mm
2
3
1
2
5
4
4
6
sC re W a nd W a ll P lu g
The illustration below shows how to attach the thermostat to the wall using one screw and wall plug.
38 mm
2
3
1
6.8 Attach thermostat T-144 to the wall
The illustration below shows mounting hole positions on the wall bracket, and how to attach the thermostat.
60 mm
2
1
1
3
4
5
To attach thermostat T-144 to the wall:
1. Insert the wall bracket into a wall box and fasten it
with screws. Make sure the communication wires is connected.
2. Attach and hold the wall frame into place.
3. Fasten the wall frame with the two screws and
plastic insert.
4. Attach the transparent LED-ring.
5. Attach the dial.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
49
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
6.9 First startup of digital thermostats
At first startup, before registering, the thermostat requires some basic settings.
See section 12 Operate Uponor Smatrix Base/Base PRO
digital thermostats for more information.
so ft Ware ve r si on
Current software version is displayed during power up.
T-149
V1.0
T-146
T-148
se t t im e (t-148 o nly)
When starting the thermostat for the first time, or after a factory reset, the software requires the time and date to be set. This setting is required to utilise scheduling programs for this thermostat.
Use buttons - or + to change the value, press the OK button to set the value and move to the next editable value.
NOTE!
If no button is pressed for about 8 seconds, the current values will be saved and the software exits to control mode.
1. Set hours.
2. Set minutes.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
50
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
3. Set 12 h or 24 h display of time.
4. Set day of the week (1 = Monday, 7 = Sunday).
5. Set day of the month.
6. Set month.
7. Set year.
8. Press OK to return to run mode.
Date and time can also be set in the settings menu.
6.10 First setup of digital thermostats
se le Ct th er mostat Co nt ro l m od e
If an external sensor is connected to the thermostat, a control mode must be selected to accommodate the extra functionality of the sensor.
NOTE!
If no button is pressed for about 8 seconds, while in a submenu, the current values will be saved and the software exits to the settings menu. About about 60 seconds later, it exits to run mode.
1. Press and hold the OK button until the settings
icon and menu numbers is displayed in the top right corner of the display (about 3 seconds).
2. Use buttons - or + (T-149 = or ) to change the
numbers to 04 and press OK.
3. Current control mode is displayed (RT, RFT, RS or
RO).
4. Use buttons - or + (T-149 = or ) to change
control mode (see list below) and press OK.
T-149
T-146/
T-148 Description
RT Room temperature
RFT Room temperature with external
floor sensor
RS Remote sensor
RO Room temperature with remote
outdoor sensor
5. Press and hold the OK button for about 3 seconds
to exit the settings menu.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
51
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
te mP erat ur e s et Po int
The thermostats are delivered with a default setpoint of 21 °C.
The illustration below shows how to adjust the thermostat temperature setpoint.
T-149
T-148
T-146
To adjust the thermostat temperature setpoint of the current control mode:
1. Press the - or + (T-149 = or ) button once.
The screen shows the current setpoint flashing.
T-149
21.0
T-146
T-148
2. Press the - or + (T-149 = or ) button repeatedly to adjust the setpoint temperature. It will change with increments of 0.5.
When the new setpoint is set, the screen returns to
run mode after a few seconds, showing the room temperature.
6.11 Register thermostats in controller
re gi strat ion at f i rs t sta rt uP
When starting the controller for the first time, it automatically enters run mode, which is the standard mode of operation. Go to step 1.
re gi strat ion i f i n ru n m od e
Run mode is the standard mode of the controller when the system is running according to set parameters. Go to step 1.
re gi strat ion i f i n fo rCe d mo d e
Exit to run mode, see section 10.4 Run mode > Exit to run mode, then go to step 1.
re gi strat ion
The illustration below shows how to register the various room thermostats associated with the controller.
1
3 s
2
3 4
2
5
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
52
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
5
5 s
5 s
5 s
T-146 T-148
T-143
T-149
T-141
T-145
T-144
5 s
5 s
5 s
6
7
2
7
3 s
To register room thermostats in the controller:
1. Press and hold the OK button on the controller until the LED for channel 1 (or the first unregistered channel) flashes red.
2. Use buttons < or > to move the pointer (LED flashes red) to a preferred channel.
3. Press the OK button to select the channel for registration. The LED for the selected channel starts flashing green.
4. Repeat steps 2 and 3 until all channels to be registered with the thermostat are selected (LEDs flashing green).
Note! It is recommended to register all channels to
the thermostat at the same time.
5. Select a thermostat
THERMOSTAT T-143
5.1 Optional: To activate tamper alarm during
registration, set the Disable timer switch to Comfort mode ( ).
5.2 Gently press and hold the registration button
on the thermostat, release when the LED starts flashing green (located in the hole above the registration button). The selected channel LED in the controller turns fixed green and the registration is complete.
5.3 Optional: If tamper alarm was activated during
registration, set the Disable timer switch to preferred mode.
THERMOSTAT T-144
5.1 Using a pointed instrument, gently press and
hold the registration button on the thermostat, release when the LED above the dial starts flashing The selected channel LED in the controller turns fixed green and the registration is complete.
THERMOSTATS T-141 AND T-145
5.1 Gently press and hold the registration button
on the thermostat, release when the LED on the front of the thermostat starts flashing. The selected channel LED in the controller turns fixed green and the registration is complete.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
53
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
THERMOSTATS T-146 AND T-148
5.1 Press and hold both - and + buttons on the thermostat until the text CnF (configure) and a communication icon is displayed. The selected channel LED in the controller turns fixed green and the registration is complete.
THERMOSTAT T-149
5.1 Press and hold both and buttons on the thermostat until the communication icon is displayed. The selected channel LED in the controller turns fixed green and the registration is complete.
6. Repeat steps 2 through 5 until all used room
thermostats are registered.
7. Press and hold the OK button on the controller
until the green LEDs turn off to end registration and return to run mode.
To unregister already registered thermostats, see section
10.6 Unregister channels in controller.
6.12 Register system devices
In addition to room thermostats, the controller can also be connected to system devices.
Available system devices:
• Touch screen interface (Base PRO only), see section
8 Install Uponor Smatrix Base PRO interface for installation procedure
• Timer, see section 7 Install Uponor Smatrix Base timer for installation procedure
• Public thermostat with various functions
The illustration below shows how to register system devices to the controller.
1
3 s
2
3
4
03 04 05
5
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
54
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
6
T-143
5 s
7
8
4
8
3 s
NOTE!
Registration of at least one thermostat must be done before registering a system device.
NOTE!
If registering a public thermostat T-143 as a system device with various functions, the thermostat only acts as a remote unit. It does not control the room temperature in the room where it is placed.
Ca ut i on !
The DIP switches in public thermostat T-143 must be set before the thermostat is registered.
Ca ut i on !
Make sure the controller is in run mode. For information about how to exit to run mode, see section 10.4 Run mode > Exit to run mode.
To register system devices in the controller:
1. Press and hold the OK button on the controller until one of the channel LEDs starts flashing.
2. Use buttons < or > to move the pointer to the power LED (LED flashes red).
3. Press the OK button to select system device registration (power LED). The power LED starts flashing according to the pattern long blink, short pause, long blink. Channel 1 starts flashing red.
4. Use buttons < or > to move the pointer to the preferred system channel, see list below.
1 = Touch screen interface (Base PRO only)
See section 8 Install Uponor Smatrix Base PRO interface for more information.
1 = Timer
See section 7 Install Uponor Smatrix Base timer for more information.
2 = Not used
3 = Public thermostat with outdoor sensor
4 = Public thermostat with heating/cooling switch
from sensor input (Base PRO with interface only).
5 = Public thermostat with Comfort/ECO switch
from contact
5. Press the OK button to select system device channel. The channel LED starts flashing green.
6. Public thermostat T-143 as a system device
6.1 Gently press and hold the registration button
on the thermostat, release when the LED starts flashing green (located in the hole above the registration button). The selected channel LED in the controller turns fixed green and the registration is complete.
7. Repeat steps 4 through 6 until all system devices are registered.
8. Press and hold the OK button on the controller until the green LEDs turn off to end registration and return to run mode.
To unregister already registered sensors and switches, see section 10.6 Unregister channels in controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
55
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
7 Install Uponor Smatrix Base timer
The following timer can be connected to the system:
• Uponor Smatrix Base Timer I-143
NOTE!
Only one timer per controller can be registered.
NOTE!
A timer can only be registered to a Uponor
Smatrix Base controller.
7.1 Placement of timer
Refer to the installation preparation guidelines, see section 4.2 Prepare for installation.
7.2 Label timer
Label the timer, where suitable, with the system channel number they are registered to, #01. For installations with several systems, add the ID of the controller, for example, 1.01 or 2.01.
7.3 Connect timer to controller
The system is based on a bus communications protocol, utilising daisy chain, direct or star topology connections. This makes wiring and connection of thermostats and system devices (eg. a timer) much easier than connecting one device per connection terminal.
The wide array of connection possibilities presented with this communications protocol can be combined in any way best suited for the current system.
See section 6.3 Connect thermostat to controller for more information about different connection methods.
Co nne C t C om m un i C at io n C aBl e t o
Co n tr o ll er a nd/or s lav e m od ule
3
1
1
2
3
+- +- +-BAB
AB
A
To connect a communication cable to the controller:
1. Lead the cables through cable entries on the top of the controller frame.
2. Insert the four wires (A,B, + and -) into the connector on the controller.
3. Tighten the screws fixing the wires in the connector.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
56
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nne C t C om m un i C at io n C aBl e t o
th erm o st at
2
1
3
AB +-
To connect a communication cable to a timer:
1. Insert the four wires into the removable connectors marked (A,B, + and -) on the timer.
2. Tighten the screws fixing the wires in the connector.
3. Insert the connectors on the input pegs on the timer.
Co nn eCt C aBl e to s tar mo du le
To connect a communication cable to a star module:
1. Lead the cables through cable entries in the star module frame.
2. Insert the four wires (A,B, + and -) into the connector on the electrical card.
3. Tighten the screws fixing the wires in the connector.
7.4 Attach a timer to the wall
The timer is delivered in kits including screws, wall plugs, and a wall bracket, presenting several options of attaching the timer to the wall.
us in g Wal l B ra CK et (r eC om me nde d)
The illustration below shows timer mounting hole positions and how to attach it to the wall using a wall bracket.
2
3
1
60 mm
sC re W a nd W a ll P lu g
The illustration below shows how to attach it to the wall using one screw and wall plug.
2
3
4
5
1
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
57
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
7.5 First startup of the timer
When starting the timer for the first time, before registering, the timer requires some basic settings.
See section 13 Operate Uponor Smatrix Base timer for
more information.
so ft Ware ve r si on
Current software version is displayed during power up.
I-143
se t t im e
The first time the timer is started, or after a factory reset, the software requires the time and date to be set.
Use buttons - or + to change the value, press the OK button to set the value and move to the next editable value.
NOTE!
If no button is pressed for about 8 seconds, the current values will be saved and the software exits to control mode.
1. Set hours.
2. Set minutes.
3. Set 12 h or 24 h display of time.
4. Set day of the week (1 = Monday, 7 = Sunday).
5. Set day of the month.
6. Set month.
7. Set year.
8. Press OK to return to run mode.
Date and time can also be set in the settings menu.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
58
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
7.6 Register timer in controller
The illustration below shows how to register a timer associated with the controller.
1
3 s
2
3
4
5
5 s
I-143
6
3 s
NOTE!
Registration of at least one thermostat must be done before registering a timer.
Ca ut i on !
Make sure the controller is in run mode. For information about how to exit to run mode, see section 10.4 Run mode > Exit to run mode.
To register a timer in the controller:
1. Press and hold the OK button on the controller until one of the channel LEDs starts flashing.
2. Use buttons < or > to move the pointer to the power LED (LED flashes red).
3. Press the OK button to enter system device registration mode (power LED). The power LED starts flashing according to the pattern long blink, short pause, long blink. Channel 1 starts flashing red.
4. Press the OK button to select system device channel 1 (timer interface). Channel 1 LED starts flashing green.
5. Press and hold both - and + buttons on the timer until the text CNF (configure) and a communication icon is displayed. The selected channel LED in the controller turns fixed green and the registration is complete.
6. Press and hold the OK button on the controller until the green LEDs turn off to end registration and return to run mode.
To unregister an already registered timer, see section
10.6 Unregister channels in controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
59
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
8 Install Uponor Smatrix Base PRO interface
The following interfaces can be connected to the system:
• Uponor Smatrix Base PRO Interface I-147
Up to 16 controllers can be registered and controlled by the interface.
8.1 Placement of interface
Refer to the installation preparation guidelines (see section 4.2 Prepare for installation), and use the
following guidelines when positioning the interface:
1. Select an indoor wall and a position 1.3 m to 1.5 m above the floor.
2. Ensure that the interface is away from direct solar radiation.
3. Ensure that the interface will not be heated through the wall from sunshine.
4. Ensure that the interface is away from any source of heat, for example television set, electronic equipment, fireplace, spotlights, and so on.
5. Ensure that the interface is away from any source of humidity and water splashes (IP20).
1.3–1.5 m
8.2 Connect interface to the controller
The interface is connected to the (or one of the) controllers using daisy chain, direct connection, or using star topology (the star module can be used). A star module can only be used for one bus type at a time. That is, a thermostat cannot be connected to a star module connected to the system bus and vice versa.
NOTE!
The wires must be connected to the supplied wall bracket to ensure operation of the interface.
See section 6.3 for more information about daisy chain.
Ca ut i on !
Make sure the interface is connected to a system bus connector (one of the rightmost connectors) on the controller. Otherwise the interface will be unable to communicate with the controller.
Wa rn ing !
Electrical installation and service behind secured 230 V AC covers must be carried out under the supervision of a qualified electrician.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
60
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Co nn eCt C o mm u ni C at i on CaB l e t o Co nt rol le r
2
3
3
A-AB B-
1
1
To connect a communication cable to the controller:
1. Lead the cables through cable entries on the top of the controller frame.
2. Insert two wires (A,B), the - wire is optional and only used in some cases, into a free system connector (one of the rightmost connectors) on the controller.
3. Tighten the screws fixing the wires in the connector.
4. Cut and stow away unused wires.
Co nn eCt C om mu niC ati on Ca Bl e to in te rfaCe
Wa ll Br aC Ke t
A B
-
To connect a communication cable to the wall bracket:
1. Lead the cables through the wall socket.
2. Insert two wires (A,B), the - wire is optional and only used in some cases, into the connectors on the wall bracket.
3. Tighten the screws fixing the wires in the connector.
4. Cut and stow away unused wires.
Co nn eCt P oW er to t he in te r faC e Wa ll Br aC Ke t
N
L
To connect power to the wall bracket:
1. Lead the cables through the wall socket.
2. Insert the two wires (L and N) into the corresponding connectors on the wall bracket.
3. Tighten the screws fixing the wires in the connector.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
61
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
8.3 Attach the interface to the wall
us in g Wal l B ra CK et (r eC om me nde d)
The illustration below shows mounting hole positions on the wall bracket, and how to attach the interface.
60 mm
8.4 Charger cable
The interface should always be charged attached to the wall bracket, but if needed a standard mini-USB cable can be used.
NOTE!
Communication with the controller can only occur when connected to the wall bracket.
The illustration below shows where to attach the cable.
8.5 Startup guide
When starting the interface for the first time, or after a factory reset, a startup guide is shown in the touch screen display.
NOTE!
Set the controller is in system device registration mode before powering up the interface.
Po We r u P th e i nt er faCe
The power switch is located on the lower left corner on the back of the interface. The interface will power up when connected to a power source.
The startup guide uses the following order:
No Description
1 Set language
2 Set regional settings
3 Set date and time
4 Set system to heating and/or cooling
5 Register the interface to a controller
All these settings are accessible in the interface menu system.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
62
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Navigating the interface:
Icon Description
Go to home menu
Go back/cancel changes (if not saved)
Scroll up and down in lists
Scroll sideways or change sub menu (if available)
Cancel settings and return to previous menu
Move to the previous field
Decrease value
Increase value
Move to the next field
Confirm settings and return to previous menu or continue to next step in startup guide
Settings
Appears in some menus where more specific settings are available for a parameter
See section 14 Operate Uponor Smatrix Base PRO
interface for more information.
se t l an guag e
Interaction with the interface can be done in several languages. The most commonly used languages are already loaded in the interface, but more are available with the supplied microSD card inserted.
English
Español
Português
Deutsch
Italiano
Français
Suomi
Svenska
Language
Insert SD card for more
1. Select preferred language from the list by pressing a flag symbol.
2. Confirm and continue to the next step in the startup guide.
se t r eg ion al se tt i ng s
Set regional settings for date and time.
Regional set.
DD Mmm YYYY
DD/MM/YYYY
YYYY Mmm DD
YYYY/MM/DD
Date format: DD/MM/YYYY
1. Select preferred date format.
2. Confirm and continue to the next step in the startup guide.
Regional set.
24h AM/PM
Time format: 24h
3. Select preferred time format.
4. Confirm and continue to the next step in the startup guide.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
63
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
se t dat e a nd t ime
Set the date and time of the system.
Date & Time
01/01/2014
Date: 01/01/2014
1. Set the current date.
2. Confirm and continue to the next step in the startup guide.
Date & Time
00:00
Time: 00:00
3. Set the current time.
4. Confirm and continue to the next step in the startup guide.
se le Ct if C oo lin g is avai l aB le in t he sy st em
Set whether cooling is available in the system or not.
Heating and Cooling
NO YES
Cooling available in the system?: NO
1. Select if cooling is available in the system.
2. Confirm and continue to the next step in the startup guide.
re gi ster th e in ter faC e to a Con troll er
The interface must be registered to a controller to be able to control the connected system.
Up to 16 controllers can be registered and controlled by the interface.
1
3 s
2
3
4
5
Link Touch Screen to controller
Link KNX module
6
Link OK
7
3 s
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
64
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
NOTE!
Registration of at least one thermostat must be done before registering an interface.
NOTE!
Registration of at least one thermostat must be done before registering an interface.
Ca ut i on !
Make sure the controller is in run mode. For information about how to exit to run mode, see section 10.4 Run mode > Exit to run mode.
To register the interface to a controller:
1. Press and hold the OK button on the controller until one of the channel LEDs starts flashing.
2. Use buttons < or > to move the pointer to the power LED (LED flashes red).
3. Press the OK button to enter system device registration mode (power LED). The power LED starts flashing according to the pattern long blink, short pause, long blink. Channel 1 starts flashing red.
4. Press the OK button to select Channel 1. The channel LED starts flashing green.
5. USING THE INTERFACE START GUIDE:
5.1 Follow the instructions in section 8.5 Startup
guide until the button Link Touch Screen to controller appears.
5.2 Press Link Touch Screen to controller to
initialize registration.
USING THE INTERFACE MENU SYSTEM:
5.1 Go to the Link menu (Main menu >
Preferences).
5.2 Press Link Touch Screen to controller to
initialize registration.
6. The interface gets registered to the controller. The selected channel LED in the controller turns fixed green and the registration is complete.
7. Press and hold the OK button on the controller until the green LEDs turn off to end registration and return to run mode.
To unregister an already registered interface, see section
10.6 Unregister channels in controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
65
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
9 Finishing installation
Make a complete check up of the installation:
1. Check that the thermostats are working correctly.
Turn thermostat setpoints to maximum to obtain a
heating demand and make sure that the actuators are running.
2. Set thermostats and interface (if installed, Base PRO only) to the defined operating settings.
3. Close the covers of the controller.
4. Attach thermostats, timer (if installed, Base only) and interface (if installed, Base PRO only) to the wall.
5. Print and fill in the “Installation report” located at the end of the manual.
6. Give the manual and all information about the system to the user.
2
1
1
4
5
6
3
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
66
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Uponor Smatrix Base/Base PRO controls the underfloor heating/cooling installation according to customer needs. Temperatures are adjusted with thermostats located in each room.
10.1 Principle of operation
As soon as the temperature measured at a thermostat is lower (heating mode) or higher (cooling mode) than the setpoint temperature, a demand to change the room temperature is created and sent to the controller. The controller will open the actuators according to current operating mode and other settings. Once the set temperature is reached, this information is sent and the actuators are closed.
10.2 Normal operation without optional
scheduling programs
When the system is running in normal mode:
• In Heating mode, the actuators are open when room temperatures are lower than the temperatures set on the thermostats.
• In Cooling mode, the actuators are open when room temperatures are higher than the temperatures set on the thermostats.
For information about operating the interface, see section 14 Operating Uponor Smatrix Base PRO interface.
For information about operating the analogue thermostats, see section 11 Operating Uponor Smatrix Base/Base PRO analogue thermostat.
For information about operating the digital thermostats, see section 12 Operating Uponor Smatrix Base/Base PRO digital thermostat.
10.3 Operation with scheduling programs
Scheduling programs provide an option to switch selected rooms between Comfort and ECO mode using a 7-day program. This optimises the installation and conserves energy.
The use of scheduling programs requires at least one of:
• Uponor Smatrix Base Thermostat Prog.+RH T-148
• Uponor Smatrix Base Timer I-143
• Uponor Smatrix Base PRO Interface I-147 (Base
PRO only)
For information about operating the thermostat, see section 12 Operating Uponor Smatrix Base/Base PRO digital thermostats.
For information about operating the timer, see section 13 Operating Uponor Smatrix Base timer.
For information about operating the interface, see section 14 Operating Uponor Smatrix Base PRO interface.
10.4 Run mode
During normal operation the controller is in run mode.
eX it to ru n m od e
If the controller is in registration or forced mode, exit to run mode by pressing the OK button until the LEDs turn off (about 5 seconds).
3 s
10 Operate Uponor Smatrix Base/Base PRO controller
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
67
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
10.5 Reset the controller
If problems, such as inaccurate channel registration exist, reset the controller. The following illustration shows the location of the reset button in the controller.
To reset the controller:
1. Make sure the controller is in run mode. If it is in registration or forced mode, press and hold the OK button for about 5 seconds or until the LEDs turn off.
2. Press the <, OK, and > buttons simultaneously (for about 10 seconds) until the power LED flashes, and all channel LEDs turn off. All parameters are erased and run mode has been activated.
10 s
3. Installation and registration are required after resetting the controller.
10.6 Unregister channels in the
controller
un re gist er on e C ha n ne l
When a channel is inaccurately registered or if a thermostat registration needs to be redone, it is possible to remove the current registration from the controller.
3 s
5 s
21
3
Ca ut i on !
Make sure the controller is in run mode. For information about how to exit to run mode, see section 10.4 Run mode > Exit to run mode.
To unregister a channel:
1. Press and hold the OK button on the controller until the LED for channel 1 flashes red/green, or the first unregistered channel flashes red.
2. Use buttons < or > to move the pointer (LED flashes red) to the selected channel (flashes green if registered) to unregister.
3. Press the < and > buttons simultaneously until the LED for the selected channel starts flashing red (about 3 seconds).
un re gist er al l C ha n ne l
When one or more channels are inaccurately registered, it is possible to remove all registrations at the same time.
3 s
10 s
1
2
Ca ut i on !
Make sure the controller is in run mode. For information about how to exit to run mode, see section 10.4 Run mode > Exit to run mode.
To cancel all channel registrations:
1. Press and hold the OK button on the controller until the LED for channel 1 flashes red/green, or the first unregistered channel flashes red.
2. Press the < and > buttons simultaneously until the LEDs for all channels except one turn off (about 10 seconds). The one remaining flashes red.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
68
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
un re gist er a sy st em de vi Ce
When a channel is inaccurately registered to a system device, it is possible to remove the registration, as shown in the illustration below.
1
3 s
2
3
5
5 s
Ca ut i on !
Make sure the controller is in run mode. For information about how to exit to run mode, see section 10.4 Run mode > Exit to run mode.
To unregister a system device:
1. Press and hold the OK button on the controller until one of the channel LEDs starts flashing.
2. Use buttons < or > to move the pointer (LED flashes red) to the power LED.
3. Press the OK button to select system device registration. The power LED starts flashing according to the pattern long blink, short pause, long blink. Channel 1 starts flashing red, or red/ green if a device is registered to that channel.
4. Use buttons < or > to move the pointer (LED flashes red) to the selected channel (flashes green if registered), see the following list.
1 = Touch screen interface (Base PRO only)
1 = Timer (Base only)
2 = Not used
3 = Public thermostat with outdoor sensor
4 = Public thermostat with heating/cooling switch
from sensor input (Base PRO with interface only).
5 = Public thermostat with Comfort/ECO switch
5. Press the < and > buttons simultaneously for about 5 seconds until the LED for the selected channel start flashing red.
10.7 Update controller software (Base
PRO only)
Software and update instructions can be found on the Uponor website.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
69
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Two types of thermostats, both analogue and digital, can be used in an Uponor Smatrix Base/Base PRO system.
Analogue thermostats:
• Uponor Smatrix Base PRO Room Sensor+RH Style T-141
• Uponor Smatrix Base Thermostat Public T-143
• Uponor Smatrix Base Thermostat Flush T-144
• Uponor Smatrix Base Thermostat Standard T-145
The analogue thermostats are controlled by either turning a dial (T-144, and T-145), adjusting a potentiometer on its back (T-143), or via the Base PRO interface I-147 (T-141, T-143, T-144, and T-145).
11.1 Thermostat layout
ro om se ns or th er mo stat t-141
During normal operation the thermostat is monitored and controlled via the Base PRO interface I-147.
The illustration below shows the parts of the thermostat.
A B
C
Item Description
A Heating/cooling demand LED
B Registration button
C Terminal for communication cable
11 Operate Uponor Smatrix Base/Base PRO analogue
thermostats
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
70
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Pu Bl iC th er mostat t-14 3
During normal operation a discreet LED on back of the thermostat is lit for about 60 seconds if there is a demand for heating or cooling.
The thermostat contains a switch that, if activated during registration, sends an alarm when the thermostat is removed from the wall. The alarm is transmitted through the connected cables, causing the related channel LED on the controller to flash.
The illustration below shows the parts of the thermostat.
B C E
F D A
G
Item Description
A Setpoint temperature potentiometer
B Registration button
C Disable timer switch
D Terminal for external sensor (non-polarised)
E Configuration DIP switches
F Terminal for communication cable
G Heating/cooling demand LED
fl us h t he rm ostat t-144
The illustration below shows the parts of the thermostat.
A B
E
C D
A
1
2
Item Description
A Room temperature setpoint dial control
B Heating/cooling demand LED
C Registration button
D Disable timer switch
E Terminal for communication cable
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
71
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
sta nd ar d t he rm ostat t-145
During normal operation a discreet LED on the thermostat is lit for about 60 seconds if there is a demand for heating or cooling.
The illustration below shows the parts of the thermostat.
A C D E
FB
Item Description
A Room temperature setpoint dial control
B Heating/cooling demand LED
C Clear dial guide
D Registration button
E Disable timer switch
F Terminal for communication cable
11.2 Adjust temperature
The temperature is changed by adjusting the setpoint on the thermostat to a value between 5 and 35 ˚C.
ro om se ns or th er mo stat t-141
The setpoint for thermostat T-141 can only be changed via the Base PRO interface I-147. If an interface I-147 is not connected, the setpoint will be fixed to 21 ˚C.
Pu Bl iC th er mostat t-14 3
The illustration below shows how to adjust the thermostat temperature setpoint.
2
1
3
20
5
35
To change the thermostat temperature setpoint:
1. Angle the thermostat from the bracket.
2. Remove it from the wall.
3. Set the desired temperature using the potentiometer.
4. Put the thermostat back on the wall.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
72
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
th er mostat fl us h t-144
Use the dial on the thermostat to adjust the temperature. A LED will light up when twisting the dial. It shuts off after about 10 seconds of inactivity.
The illustration below shows how to adjust the thermostat temperature setpoint.
To adjust the thermostat temperature setpoint:
• Twist the dial clockwise for a higher temperature.
• Twist the dial counter-clockwise for a lower temperature.
sta nd ar d t he rm ostat t-145
Use the dial on the thermostat to adjust the temperature.
The illustration below shows how to adjust the thermostat temperature setpoint.
To adjust the thermostat temperature setpoint:
• Twist the dial clockwise for a higher temperature.
• Twist the dial counter-clockwise for a lower temperature.
11.3 Disable timer function
Thermostats T-143, T-144, and T-145 have switches allowing the user to disable the timer function (Comfort mode) for the channels controlled by the thermostat. The switch is set to Comfort/ECO from the factory.
th er mostat s t-143 an d t-145
The illustration below shows how to disable the timer function on the thermostat.
2
1
3
To change the switch to Disable timer:
1. Angle the thermostat from the bracket.
2. Remove it from the wall.
3. Switch to Comfort mode, .
4. Put the thermostat back on the wall.
fl us h t he rm ostat t-144
The illustration below shows how to disable the timer function on the thermostat.
2
1
3
To change the switch to Disable timer:
1. Remove the dial using a small screwdriver.
2. Switch to Comfort mode, .
3. Put the dial back on the thermostat.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
73
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
11.4 Factory reset
Factory reset sets all parameter values to default settings.
NOTE!
Do not factory reset the thermostat if not absolutely needed.
NOTE!
A factory reset removes the registration data from the thermostat.
th er mostat t-14 1
1
2
3
4
4.2
3.2
4.1
3.1
NOTE!
This operation might need two persons to complete.
To factory reset the thermostat:
1. Remove the thermostat from the wall.
2. Disconnect the controller from the power supply.
3. Press and hold the registration button on the thermostat while reconnecting the controller to power again.
4. Relese the button after about 10 seconds when the LED start flashing.
5. The thermostat is now reset to factory default.
th er mostat s t-143 an d t-145
2
1
3
4
T-145T-143
To factory reset the thermostat:
1. Angle the thermostat from the bracket.
2. Remove it from the wall.
3. Gently press and hold the registration button on the thermostat, release when the demand LED starts flashing.
4. Change the Disable timer switch twice, regardless of starting position.
5. The thermostat is now reset to factory default.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
74
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Two types of thermostats, both analogue and digital, can be used in an Uponor Smatrix Base/Base PRO system.
The digital thermostats have a display relaying information to the user and buttons for control.
Digital thermostats:
• Uponor Smatrix Base Thermostat D+RH Style T-149
• Uponor Smatrix Base Thermostat Prog.+RH T-148
• Uponor Smatrix Base Thermostat Dig T-146
12.1 Thermostat layout
The illustration below shows the parts of the thermostat.
th er mostat t-14 9
A
D CB
T-149
Item Description
A Display
B Buttons
C Terminal for external sensor (non-polarised)
D Terminal for communication cable
th er mostat s t-146 an d t-148
D CB
A
T-146
T-148
Item Description
A Display
B Buttons
C Terminal for external sensor (non-polarised)
D Terminal for communication cable
12 Operate Uponor Smatrix Base/Base PRO digital
thermostats
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
75
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
12.2 Display layout
th er mostat t-14 9
The figures shows different display screens and the different symbols that can be shown.
Run mode (default screen)
21.0
A B
C
Pos. Icon Description
A
Temperature reading using a - or + sign, two digital characters, a decimal point and a character showing either 0 or 5
B
Alarm symbol
C
Temperature unit
Change setpoint
21.5
A CB D
E
Pos. Icon Description
A
Change setpoint mode
B
Temperature setpoint, using a - or + sign, two digital characters, a decimal point and a character showing either 0 or 5
C
Temperature unit
D
Heating demand
Cooling demand
E
Comfort mode
ECO mode
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
76
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Alarms
A CB D
Pos. Icon Description
A
Alarm mode
B
Faulty indoor temperature sensor
Faulty floor temperature sensor
Faulty remote temperature sensor
Faulty outdoor temperature sensor
C
Relative humidity limit reached
D
Communication fault indicator
Control mode
21
.0
A CB D
E
Pos. Icon Description
A
Current control mode
Indoor temperature indicator
Current control mode
Indoor temperature with floor temperature limitation indicator
Current control mode
Remote sensor temperature indicator
Current control mode
Outdoor temperature indicator
B
Temperature unit, shown when the character group A shows a temperature
C
Temperature unit
D
Heating demand
Cooling demand
E
Comfort mode
ECO mode
Holiday mode
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
77
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
re lat i ve h umi di ty
45.0
A B
Pos. Icon Description
A
Relative humidity level
B
Relative humidity reading using two digital characters. Indicated with a “%” character
th er mostat s t-146 an d t-149
The figure below shows all possible symbols and characters that can be shown on the display:
A
D
B
C
EG H
F
T-146
K
B
C
E
DF
J
I HA
T-148
GL
Pos. Icon Description
A
T-146 only
Message field using three alphanumerical characters
T-146
T-148
Temperature reading using a - or + sign, two digital characters, a decimal point and a character showing either 0 or 5
T-148
Relative humidity reading using two digital characters. Indicated with a “%” character
B
Temperature unit, shown when the character group A shows a temperature
C
Communication indicator
D
Indoor temperature indicator
Remote sensor temperature indicator (RS mode)
The text Err and a flashing sensor icon indicates a faulty sensor
Indoor temperature with floor temperature limitation indicator
The text Err and a flashing floor sensor icon indicates a faulty sensor
Floor temperature indicator
The text Err and a flashing floor sensor icon indicates a faulty sensor
Outdoor temperature indicator
The text Err and a flashing outdoor sensor icon indicates a faulty sensor
T-148 only
Relative humidity limit reached
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
78
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Pos. Icon Description
E
Settings menu
Settings menu number
F
Heating demand
Cooling demand
G
Comfort mode
H
ECO mode
Flashing icon in thermostat T-146 indicates activated holiday mode in the system.
I
T-148 only
Digital clock
T-148 only
Parameter name in settings menu
T-148 only
Indicator showing AM or PM when the thermostat is set to 12 h mode
No indication when the thermostat is set to 24 h mode
J
T-148 only
Weekday selected/activated 1 = Monday 7 = Sunday
K
T-148 only
Time selected or scheduled hour indicators, for Comfort mode, between 0:00 and 24:00
Half = 30 minutes
Full = 1 hour
L
Holiday mode
12.3 Operating buttons
The figure below shows buttons used to operate the digital thermostats.
A
C
B
T-149
B
C
A
T-146
T-148
Pos. Description
A
The - and + buttons are used to:
Adjust setpoint temperature
Modify parameters in the settings menus
B
C
The OK button is used to:
Toggle between current status data, and values of available sensors connected to the thermostat
Enter and exit the settings menu
Confirm a setting
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
79
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
12.4 Start up
When starting up, the software version is shown in the display for about three seconds. Then the thermostat enters run mode.
The first time the thermostat is started, or after a factory reset, the software requires the time and date to be set (T-148 only).
so ft Ware ve r si on
Current software version is displayed when the thermostat is powered on.
Examples:
T-149
V1.0
T-146
T-148
se t t im e a nd date (t-148 on ly)
When starting the thermostat for the first time, or after a factory reset, the software requires the time and date to be set.
Use buttons - or + to change the value, press the OK button to set the value and move to the next editable value.
NOTE!
If no button is pressed for about 8 seconds, the current values will be saved and the software exits to run mode.
1. Set hours.
2. Set minutes.
3. Set 12 h or 24 h display of time.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
80
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
4. Set day of the week (1 = Monday, 7 = Sunday).
5. Set day of the month.
6. Set month.
7. Set year.
8. Press OK to return to run mode.
Date and time can also be set in the settings menu.
See section 12.9 Settings for more information.
12.5 Adjust temperature
The temperature is changed by adjusting the setpoint on the thermostat.
Use the buttons on the thermostat to adjust the temperature. The display will light up when pushing a button. It shuts off after about 10 seconds of inactivity.
The illustration below shows how to adjust the thermostat temperature setpoint.
T-149
T-148
T-146
To adjust the thermostat temperature setpoint of the current control mode:
1. Press the - or + (T-149 = or ) button once.
The screen shows the current setpoint flashing.
T-149
21.0
T-146
T-148
2. Press the - or + (T-149 = or ) button repeatedly to adjust the setpoint temperature. It will change with increments of 0.5.
When the new setpoint is set, the screen returns to
run mode after a few seconds, showing the room temperature.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
81
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
12.6 Run mode
During normal operation the thermostat is in run mode.
While in run mode the display shows specific control mode information.
12.7 Control mode
The thermostat has four different control modes, set in the settings menu.
Control modes:
T-149
T-146/
T-148 Description
RT Room temperature
RFT Room temperature with external floor
sensor
RS Remote sensor
RO Room temperature with remote
outdoor sensor
Different types of information can be shown in the display when in a control mode. The digital thermostat T-148 also shows the clock and scheduled program information.
Use the OK button to toggle between the information available.
rt, r o om t emP er atu r e mo de
1. Room temperature (default)
2. Alarm list (only shown if an alarm is present in a T-149 thermostat)
3. Room temperature, current ECO/Comfort mode, and current heating/cooling demand (T-169 only)
4. Relative humidity (T-148 only)
rft, r o om f loor t emP er atu r e mo de
1. Room temperature (default)
2. Alarm list (only shown if an alarm is present in a T-149 thermostat)
3. Floor temperature, current ECO/Comfort mode, and current heating/cooling demand (T-149 only)
4. Relative humidity (T-148 and T-149 only)
5. Floor temperature (T-146 and T-148 only)
rs, rem ot e s en so r m od e
1. Room temperature (default)
2. Alarm list (only shown if an alarm is present in a T-149 thermostat)
3. Remote sensor, current ECO/Comfort mode, and current heating/cooling demand (T-149 only)
4. Relative humidity (T-148 and T-149 only)
ro, re mo te o utd oo r s en sor m o de
1. Room temperature (default)
2. Alarm list (only shown if an alarm is present in a T-149 thermostat)
3. Outdoor temperature, current ECO/Comfort mode, and current heating/cooling demand (T-149 only)
4. Relative humidity (T-148 and T-149 only)
5. Outdoor temperature (T-146 and T-148 only)
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
82
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
12.8 Change control mode
If an external sensor is connected to the thermostat, a control mode must be chosen to accommodate the extra functionality of the sensor.
NOTE!
If no button is pressed for about 8 seconds, while in a submenu, the current values will be saved and the software exits to the settings menu. About about 60 seconds later, it exits to run mode.
1. Press and hold the OK button until the settings icon and menu numbers is displayed in the top right corner of the display (about 3 seconds).
2. Use buttons - or + (T-149 = or ) to change the numbers to 04 and press OK.
3. Current control mode is displayed (RT, RFT, RS or RO).
4. Use buttons - or + (T-149 = or ) to change control mode (see list below) and press OK.
T-149
T-146/
T-148 Description
RT Room temperature
RFT Room temperature with external
floor sensor
RS Remote sensor
RO Room temperature with remote
outdoor sensor
5. Press and hold the OK button for about 3 seconds to exit the settings menu.
12.9 Settings
In this menu all settings regarding the operation of the thermostat is set.
NOTE!
As long as scheduling (program 00) is activated (not set to Off) in a digital thermostat T-148, no other unit (timer) is allowed to change (override) the Comfort/ ECO mode in that room.
NOTE!
If no button is pressed for about 8 seconds, while in a submenu, the current values will be saved and the software exits to the settings menu. About about 60 seconds later, it exits to run mode.
To enter the settings menu:
1. Press and hold the OK button for about 3 seconds.
2. The settings icon and menu numbers is displayed in the top right corner of the display.
3. Use buttons - or + (T-149 = or ) to change the numbers to locate a submenu (see list below).
00 = Program (T-148 only)
02 = Heating/cooling changeover* 03 = ECO mode setback temperature 04 = Control mode 05 = High floor temperature limitation 06 = Low floor temperature limitation 07 = Cooling allowed 08 = Display unit 10 = Time and date (T-148 only) 11 = Room temperature calibration 12 = Invert screen (T-149 only)
* This menu is not visible if the thermostat is
registered to a controller.
4. Press OK to enter parameter edit mode. T-146 and T-148: the parameter starts flashing. T-149: the menu number is underlined.
5. Change parameters in the submenus.
6. Press and hold the OK button for about 3 seconds to exit the settings menu.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
83
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
00 P r og ra m (t-148 o nly)
In this menu, one of seven different scheduling programs for Comfort/ECO mode can be set. Program 1 to 6 is pre-programmed and the 7th is user defined. The scheduled programs show the day split into 30 minute intervals which is set to either Comfort (black marker) or ECO mode (blank marker).
This menu is not visible if an interface is connected to the system. Settings are referred to an interface (Base PRO only).
Program Off (default):
Room is set in Comfort mode. If a timer is available in the system, the room will use those set schedules but the thermostats own ECO mode setback temperature.
Program P1:
Program P2:
Program P3:
Program P4:
Program P5:
Program P6:
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
84
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Select scheduling program
To select a scheduling program:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to select program.
Select between: P1P6, U (user defined program)
and Off.
3. Press OK to confirm program selection and return to the settings menu.
Customise user defined program for a single day
To customise the user defined program:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to select program U.
3. Press OK to confirm program selection.
The current day starts flashing.
4. Use buttons - or + to select a day.
5. Press and hold OK until 00:00 appears on the display (takes about 2 seconds).
6. Press OK to switch the marked interval between Comfort ( ) and ECO mode ( ).
7. Use buttons - or + to move the marker (at the bottom of the display). When moving the marker from one interval to another save the selected mode to that interval.
8. Repeat steps 6 and 7 until the display shows 23:30.
9. Press + to finalize the current day and the software exits to the settings menu.
10. Repeat from step 1 to customise another day.
Customise user defined program for a full week
NOTE! This method resets the current user defined program to factory defaults.
To customise the user defined program:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to select program U.
3. Press and hold OK until day 1 and 00:00 appears on the display.
6. Press OK to switch the marked interval between Comfort ( ) and ECO mode ( ).
7. Use buttons - or + to move the marker (at the bottom of the display). When moving the marker from one interval to another save the selected mode to that interval.
8. Repeat steps 6 and 7 until the display shows 23:30.
9. Press + to finalize programming the current day.
The text Copy Yes appears (Yes is flashing).
10. Use buttons - or + to select Ye s or No and press OK to confirm.
Select Yes to copy the setting of the current day
to the next. Repeat for every day that should be identical.
Select No and press OK to create a new scheduling
interval for the following day. Then repeat steps 6 through 10 until the whole week is programmed.
11. The display returns to the settings menu when the final day is done.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
85
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
02 h e ati ng /Coo lin g Ch ang eo ve r
This menu is not visible if the thermostat is registered to a controller. Heating/cooling changeover will be controlled by a physical heating/cooling switch (Base or Base PRO) or the interface (Base PRO only), if connected.
03 e Co mo de se tB aC K t em Pe ratu re
In this menu the setback temperature for whenever the channel is in ECO mode is set. The setting adjusts the current setpoint with the set value. In heating mode the setpoint is reduced, and in cooling mode it is increased.
If the setback temperature is set to 0, the thermostat will remain unaffected if a program sets the system in ECO mode.
This menu is not visible if an interface is connected to the system. The setting is then available in an interface (Base PRO only).
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + (T-149 = or ) to change the parameter.
Default: 4 ˚C
Setting range: 0 – 11 ˚C, 0.5 ˚C increments
3. Press OK to confirm change and to return to the settings menu.
04 C o nt ro l m od e
In this menu control mode for the thermostat is set.
If an external sensor is connected to the thermostat, a control mode must be chosen to accommodate the extra functionality of the sensor.
Current control mode is displayed (RT, RFT, RS or RO).
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + (T-149 = or ) to change control mode (see list below).
T-149
T-146/
T-148 Description
RT Room temperature
RFT Room temperature with external
floor sensor
RS Remote sensor
RO Room temperature with remote
outdoor sensor
3. Press OK to confirm the change and return to the settings menu.
05 h i gh flo or te mP erat ur e l im i tati on
In this menu a limit on the maximum allowable floor temperature is set.
This menu is only visible if control mode RFT is activated in settings menu 04. For systems with an interface this menu only shows the set value, changes are done in the interface (Base PRO only).
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + (T-149 = or ) to change the parameter.
Default: 26 ˚C
Setting range: 20 – 35 ˚C, 0.5 ˚C increments
NOTE!
This parameter cannot be set lower than the set value in settings menu 06 Low floor temperature limitation.
3. Press OK to confirm the change and return to the settings menu.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
86
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
06 l o W floo r t em P er atu r e li m itat io n
In this menu a limit on the minimum allowable floor temperature is set.
This menu is only visible if control mode RFT is activated in settings menu 04. For systems with an interface this menu only shows the set value, changes are done in the interface (Base PRO only).
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + (T-149 = or ) to change the parameter.
Default: 20 ˚C
Setting range: 10 – 30 ˚C, 0.5 ˚C increments
NOTE!
If this parameter is set lower than 16 ˚C the cooling icon will start flashing, warning for risk of condensation in the system.
NOTE!
This parameter cannot be set higher than the set value in settings menu 05 High floor temperature limitation.
3. Press OK to confirm the change and return to the settings menu.
07 C o ol ing a l loW e d
In this menu it is set whether cooling is allowed in the room or not.
This menu is not visible if an interface is connected to the system. The settings are then available in the interface (Base PRO only).
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + (T-149 = or ) to toggle between Yes and No.
T-149
T-146/
T-148 Description
Yes Shows the cooling demand icon
No Hides the cooling demand icon
3. Press OK to confirm the change and return to the settings menu.
08 d i sP lay un it
In this menu temperature display unit is set.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + (T-149 = or ) to toggle between Celsius and Fahrenheit.
T-149
T-146/
T-148 Description
DEg ˚C Degrees Celsius
DEg ˚F Degrees Fahrenheit
3. Press OK to confirm the change and return to the settings menu.
10 ti m e an d dat e (t-148 o nly)
In this menu time and date is set. This setting is required to utilise scheduling programs for this thermostat.
If an interface, a timer, or another digital thermostat T-148 (with a lower channel number) is registered to the controller, they will push the set time and date to the thermostat. Then only the 12/24 h setting is available.
Use buttons - or + to change the value. Press the OK button to set the value and move to the next editable value.
NOTE!
In case of short power outages, an internal memory is used to save the time and date settings.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Set hours.
3. Set minutes.
4. Set 12 h or 24 h display of time.
5. Set day of the week (1 = Monday, 7 = Sunday).
6. Set day of the month.
7. Set month.
8. Set year.
9. Press OK to confirm change and return to the settings menu.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
87
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
11 r o om te mP e rat ur e C al iBr ati on
In this menu the room temperature shown in the thermostat display can be calibrated.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + (T-149 = or ) to change the parameter.
Default: 0.0 ˚C
Setting range: -6.0 – 6.0 ˚C, 0.1 ˚C increments
3. Press OK to confirm the change and return to the settings menu.
12 i n ve rt s Cre en ( t-14 9 o n ly)
In this menu the colour in the display can be inverted.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons or to change the screen setting.
3. Press OK to confirm the change and return to the settings menu.
12.10 Factory reset
Factory reset sets all parameter values to default settings.
NOTE!
Do not factory reset the thermostat if not absolutely needed.
NOTE!
A factory reset removes the registration data from the thermostat.
th er mostat s t-146 an d t-148
5 s
To factory reset the thermostat:
1. Press and hold the -, + and OK buttons for about 5 seconds until the screen goes blank.
2. The thermostat is now reset to factory default.
th er mostat t-14 9
5 s
To factory reset the thermostat:
1. Press and hold the , and OK buttons for about 5 seconds until the screen goes blank.
2. The thermostat is now reset to factory default.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
88
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
The timer (Base only) provide an option to switch selected rooms between Comfort and ECO mode using a 7-day program. It has a display relaying information to the user and buttons for control.
Timers:
• Uponor Smatrix Base Timer I-143
13.1 Timer layout
The illustration below shows the parts of the timer.
CB
A
Item Description
A Display
B Buttons
C Terminal for communication cable
13.2 Screen layout
The figure below shows all possible symbols and characters that can be shown on the display:
K
B
C
E
F
J
I L AH
G
I-143
D
Pos. Icon Description
A
Message field using three alphanumerical characters
Parameter in settings menu
B
Temperature unit, shown when the character group A shows a temperature
C
Communication indicator
D
Holiday mode
E
Settings menu
Settings menu number
F
Heating mode
Cooling mode
G
Comfort mode
H
ECO mode
13 Operate Uponor Smatrix Base timer
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
89
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Pos. Icon Description
I
Digital clock
Parameter name in settings menu
Indicator showing AM or PM when the thermostat is set to 12 h mode
No indication when the thermostat is set to 24 h mode
J
Weekday selected/activated 1 = Monday 7 = Sunday
K
Time selected or sheduled hour indicators, for Comfort mode, between 0:00 and 24:00
Half = 30 minutes
Full = 1 hour
L
Manual override. For example forced Comfort or ECO mode.
13.3 Operating buttons
The figure below shows buttons used to operate the timer.
B
C
A
Pos. Description
A
The - and + buttons are used to:
Comfort and ECO mode override*
Modify parameters in the settings menus
B
C
The OK button is used to:
Toggle clock and program status*
Enter and exit the settings menu**
Confirm a setting
Cancel holiday mode**
* Not in holiday mode
** Press and hold while in run mode
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
90
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
13.4 Start up
When starting up, the software version is shown in the display for about 3 seconds. Then the timer enters run mode.
The first time the timer is started, or after a factory reset, the software requires the time and date to be set.
so ft Ware ve r si on
Current software version is displayed when the timer is powered on.
Example:
I-143
se t t im e a nd date
When starting the timer for the first time, or after a factory reset, the software requires the time and date to be set.
Use buttons - or + to change the value, press the OK button to set the value and move to the next editable value.
NOTE!
If no button is pressed for about 8 seconds, the current values will be saved and the software exits to run mode.
1. Set hours.
2. Set minutes.
3. Set 12 h or 24 h display of time.
4. Set day of the week (1 = Monday, 7 = Sunday).
5. Set day of the month.
6. Set month.
7. Set year.
8. Press OK to return to run mode.
Date and time can also be set in the settings menu.
See section 13.7 Settings for more information.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
91
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
13.5 Run mode
The timer can show the following information in the display.
• Clock
• Comfort/ECO mode activated
• Holiday mode
• Manual override
Use the OK button to toggle between the information available and showing current program setting.
13.6 Forced Comfort/ECO mode
Comfort or ECO mode can temporarily force the system to switch mode, depending on current mode. Forced mode will be activated until either switched back manually or if a scheduled program switches mode.
To activate forced mode:
1. Press any button to activate the display on the timer.
2. Use the - or + buttons until the icon for Comfort or ECO mode appears together with the icon for manual override.
= Manual override
= Comfort mode
= ECO mode
3. Press OK to confirm the change. The overridden program and remaining time is shown.
4. Press OK again, or wait a couple of seconds to return to run mode.
13.7 Settings
In this menu all settings regarding the operation of the timer is set.
NOTE!
If no button is pressed for about 8 seconds, while in a submenu, the current values will be saved and the software exits to the settings menu. About about 60 seconds later, it exits to run mode.
To enter the settings menu:
1. Press and hold the OK button for about 3 seconds.
2. The settings icon and the numbers 00 is displayed in the top right corner of the display.
3. Use buttons - or + to change the numbers to locate a submenu (see list below) and press OK.
00 = Program
01 = Holiday mode 02 = Autobalancing activation 03 = ECO mode setback temperature 08 = Display unit 10 = Time and date
4. Press OK to enter parameter edit mode, the parameter starts flashing.
5. Change parameters in the submenus.
6. Press and hold the OK button for about 3 seconds to exit the settings menu.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
92
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
00 P r og ra m
In this menu, one of seven different scheduling programs for Comfort/ECO mode can be set. Program 1 to 6 is pre-programmed and the 7th is user defined. The scheduled programs show the day split into 30 minute intervals which is set to either Comfort (black marker) or ECO mode (blank marker).
Program Off (default):
Controlled rooms are always set to Comfort mode.
Program P1:
Program P2:
Program P3:
Program P4:
Program P5:
Program P6:
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
93
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Select scheduling program
To select a scheduling program:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to select program.
Select between: P1P6, U (user defined program)
and Off.
3. Press OK to confirm program selection and return to the settings menu.
Customise user defined program for a single day
To customise the user defined program:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to select program U.
3. Press OK to confirm program selection.
The current day starts flashing.
4. Use buttons - or + to select a day.
5. Press and hold OK until 00:00 appears on the display (takes about 2 seconds).
6. Press OK to switch the marked interval between Comfort ( ) and ECO mode ( ).
7. Use buttons - or + to move the marker (at the bottom of the display). When moving the marker from one interval to another save the selected mode to that interval.
8. Repeat steps 6 and 7 until the display shows 23:30.
9. Press + to finalize the current day and the software exits to the settings menu.
10. Repeat from step 1 to customise another day.
Customise user defined program for a full week
NOTE! This method resets the current user defined program to factory defaults.
To customise the user defined program:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to select program U.
3. Press and hold OK until day 1 and 00:00 appears on the display.
6. Press OK to switch the marked interval between Comfort ( ) and ECO mode ( ).
7. Use buttons - or + to move the marker (at the bottom of the display). When moving the marker from one interval to another save the selected mode to that interval.
8. Repeat steps 6 and 7 until the display shows 23:30.
9. Press + to finalize programming the current day.
The text Copy Yes appears (Yes is flashing).
10. Use buttons - or + to select Ye s or No and press OK to confirm.
Select Yes to copy the setting of the current day
to the next. Repeat for every day that should be identical.
Select No and press OK to create a new scheduling
interval for the following day. Then repeat steps 6 through 10 until the whole week is programmed.
11. The display returns to the settings menu when the final day is done.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
94
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
01 h o li day m o de
In this menu a time period can be set well in advance for when away on holiday. When activated, the timer attempts to reduce the system energy need by setting a different setpoint temperature for the system.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to set the number of days away.
Default: 0d (day)
Setting range: 1 – 44d (days)
3. Press OK to confirm number of days. The temperature setting starts flashing.
4. Use buttons - or + to adjust the setpoint temperature during the previously set time period (holiday).
Default: 17 ˚C
Setting range: 5 – 35 ˚C, 0.5 ˚C increments
5. Press OK to confirm change and to return to the settings menu.
02 aut oB al anC in g aCt ivat ion
In this menu autobalacing can be activated for the system.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to activate/deactivate.
on = Activated (default)
OFF = Deactivated
3. Press OK to confirm the change and return to the settings menu.
03 e Co mo de se tB aC K t em Pe ratu re
In this menu the ECO mode setback temperature for the analogue thermostats is set.
The setting changes the current setpoints (lowers in heating, and raises in cooling, with the set value) on the thermostats, when the system is set to ECO mode.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to change the parameter.
Default: 4 ˚C
Setting range: 0 – 11 ˚C, 0.5 ˚C increments
3. Press OK to confirm change and to return to the settings menu.
08 d i sP lay un it
In this menu temperature display unit is set.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Use buttons - or + to toggle between Celsius and Fahrenheit.
DEg ˚C – degrees Celsius
DEg ˚F – degrees Fahrenheit
3. Press OK to confirm change and to return to the settings menu.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
95
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
10 ti m e an d dat e
In this menu time and date is set. This setting is required to utilise scheduling programs in this timer.
Use buttons - or + to change the value. Press the OK button to set the value and move to the next editable value.
NOTE!
In case of short power outages, an internal supercapacitor is used to save the time and date settings.
To change this setting:
1. Press OK to enter parameter edit mode.
2. Set hours.
3. Set minutes.
4. Set 12 h or 24 h display of time.
5. Set day of the week (1 = Monday, 7 = Sunday).
6. Set day of the month.
7. Set month.
8. Set year.
9. Press OK to confirm change and return to the settings menu.
13.8 Factory reset
Factory reset sets all parameter values to default settings.
NOTE!
Do not factory reset the timer if not absolutely needed.
NOTE!
A factory reset removes the registration data from the timer.
5 s
To factory reset the timer:
1. Press and hold the -, + and OK buttons for about 5 seconds until the screen goes blank.
2. The timer is now reset to factory default.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
96
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
The interface provides a centralised management of the Uponor Smatrix Base PRO system with continuous information updates and access to system settings.
Interface:
• Uponor Smatrix Base PRO Interface I-147
The illustration below shows the exterior of the interface.
A D C
B
Pos. Description
A
Screen
B
Power switch
C
MicroSD card slot
D
Mini USB connection
14.1 Touch screen
The interface has a touch screen as the main form of communication with the system.
The graphical user interface consists of large icons and buttons which adds to the user friendliness of the system.
14.2 Home screen
The home screen is the base of the menu system in the interface. Here basic information of the system is displayed and buttons to venture further into the menu system is available.
C EDA B
MLKJIF G H
Home Away
Thursday 2016.03.31 12:34
Pos. Description
A
Outdoor temperature (requires outdoor temperature sensor)
B
Indoor temperature
C
Current controller (Base PRO with more than 4 controllers only), select a controller to get access to its room control
D
Date and time
E
Uponor Smatrix Move PRO status (if connected)
F
Main menu
G
Left button, go to the last room menu
H
Heating/cooling mode indication
I
Home button, activates Comfort mode
J
Away button, activates ECO mode
K
Notifications
L
Right button, go to the first room menu
M
Screen lock (requires a PIN-code if activated)
14 Operate Uponor Smatrix Base PRO interface
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
97
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
14.3 Navigating the menu system
The menu system is navigated by the touch screen and is put together with a basic set of menu types.
General navigation buttons
Icon Description
Go to home menu
Go back/cancel changes (if not saved)
Scroll up and down in lists
Scroll sideways or change sub menu (if available)
The icon is grey if the option is not available
Cancel settings and return to previous menu
Move to the previous field
Decrease value
Increase value
Move to the next field
Confirm settings and return to previous menu or continue to next step in startup guide
Settings
Appears in some menus where more specific settings are available for a parameter
iC on g rid
The top most menu use icons for navigation. Press an icon to enter a submenu to change specific settings.
se tt ing s li st
Most submenus have a list of available settings. Press the blue button for a setting to activate, select or set a parameter.
Menu
Parameter: Value
.....
Submenu
se le Ct Par ame te r
Change the setting by pressing one of the parameter buttons. Blue button illustrates the chosen and/or previously saved parameter. White buttons illustrate available choices.
Save the parameter with the green check mark or cancel and revert to previous setting with the red X.
Menu
Value 1 Value 2
Value 3
Parameter: Value
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
98
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
se t Pa ra m et er
Use the arrow buttons, < and >, to move the marker between characters and use buttons - or + to change the previously set value.
Save the parameter with the green check mark or cancel and revert to previous setting with the red X.
Menu
Value : Value
Parameter: Value
aC ti vatio n l is t
Activate or deactivate settings from a list by pressing on the blue button next to the parameter name. Activated parameter is illustrated with a green check mark, deactivated with a red X.
Menu
ActivationList
Number 1
Number 2
Number 3
Number 4
14.4 Adjust temperature
With the interface the room temperature of every room in the system can be monitored and adjusted.
BEA
Home Away
Thursday 2015.03.31 12:34
BA DC
Room 1.01
To adjust the temperature in a room:
1. Start from the home screen (if more than 4 controllers are connected to each other).
2. Select the controller (E) in control of the room.
3. Press the left or right arrow (A or B) until the right room menu is displayed.
4. Use buttons - or + (C and D) to adjust the setpoint temperature of the room. If Thermostat override (available in Room settings) is not allowed, a grey area is showed instead, and setpoint cannot be changed from the interface (for analogue thermostats only).
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
99
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
14.5 Room information
In this menu the setpoint for every room can be adjusted without the need to be at the affected thermostat.
Advanced information and settings are available in submenus.
M OI J NL
HD E GFA B
K
C
Room 1.01
P
Room 1.01
Pos. Description
A
ECO mode activated
B
Scheduling activated, number indicates which program
C
Setpoint temperature The background colour changes if the system is in heating (orange) or cooling mode (blue)
D
Current room temperature
E
Current room name (editable in room settings)
F
Relative humidity limit reached
G
Active alarms in alarm menu
H
Advanced room information menu button, room status, room settings, and room name
I
Left button, go to the preceding room menu
J
Remote thermostat indication
- Blue if receiving setpoint from dial or public thermostat
- Grey if dial or public thermostat is overriden by interface
- Hidden if there is no dial or public thermostat in use in the current room
K
Decrease setpoint temperature
L
Current room menu indication
M
Increase setpoint temperature
N
Heating/cooling mode indication
O
Right button, go to the next room menu
P
The greay area indicates if the room is using an analog thermostat, with Thermostat override in the Room settings menu not allowed
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
100
UPONOR SMATRIX BASE/BASE PRO · INSTALLATION AND OPERATION MANUAL
Loading...
