Climate Co˘ntrol™ Zoning System
Installation Guide
Page 2
Uponor Climate Co˘ntrol
Zoning System Installation Guide
Published by Uponor, Inc.
5925 148th Street West
Apple Valley, MN 55124 USA
Phone: (800) 321-4739
Fax: (952) 891-2008
www.uponor-usa.com
© 2010 Uponor
All Rights Reserved.
First Edition
First Printing May 2008
Printed in the United States of America
2
www.uponor-usa.com • www.uponor.ca
Page 3
Note: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment
and receiver
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV
technician for help
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
i
Page 4
ii
www.uponor-usa.com • www.uponor.ca
Page 5
Table of Contents
The Uponor Climate Co˘ntrol Zoning
System Installation Guide
Section 1: General Recommendations . . . . . . . . . . . . . . 1
Safety Measures . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . . . .1
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Limitations for Radio Waves . . . . . . . . . . . . . . . . . . . . . . 1
Technical Constraints . . . . . . . . . . . . . . . . . . . . . . . . .1
Section 2: The Uponor Climate Co˘ntrol Zoning
System Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Thermostat Display T-75 . . . . . . . . . . . . . . . . . . . . . . . . 3
Base Unit With Antenna and Actuators . . . . . . . . . . . . . . . . . . 3
Interface I-75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Uponor Climate Co˘ntrol Zoning System Components . . . . . . . . . . . . .4
Section 3: Base Unit Installation . . . . . . . . . . . . . . . . . . 5
Base Unit Diagram . . . . . . . . . . . . . . . . . . . . . . . . . .5
Preparation Before Installation . . . . . . . . . . . . . . . . . . . . .5
Components Installation . . . . . . . . . . . . . . . . . . . . . . . .6
Section 4: Thermostat Installation ................11
Label the Room Thermostats . . . . . . . . . . . . . . . . . . . . . 11
Register Room Thermostats . . . . . . . . . . . . . . . . . . . . . 12
Determining the Thermostat Location. . . . . . . . . . . . . . . . . . 13
Mounting the Thermostat . . . . . . . . . . . . . . . . . . . . . . 13
Section 5: Thermostat and Base Unit Testing . . . . . . . 15
Testing the Communication Between Thermostats and Base Unit . . . . . . . 15
Testing the Base Unit Actuator . . . . . . . . . . . . . . . . . . . . 16
Final Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Section 6: Interface with Base Unit Installation .....17
Example of an Installation . . . . . . . . . . . . . . . . . . . . . . 17
Interface Bracket Installation . . . . . . . . . . . . . . . . . . . . . 18
Wiring and Programming the Interface . . . . . . . . . . . . . . . . . 19
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Time and Date Setup . . . . . . . . . . . . . . . . . . . . . . . . 22
Attaching the Interface to Bracket . . . . . . . . . . . . . . . . . . . 23
Interface Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation Inspection. . . . . . . . . . . . . . . . . . . . . . . . 24
Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Resetting the Interface . . . . . . . . . . . . . . . . . . . . . . . 24
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
iii
Page 6
Table of Contents (continued)
Section 7: Thermostat Operation .................25
Thermostat T-75 Display . . . . . . . . . . . . . . . . . . . . . . . 25
Changing the Temperature Format . . . . . . . . . . . . . . . . . . . 25
Changing the Temperature Setpoint . . . . . . . . . . . . . . . . . . 25
Setting the Minimum and Maximum Temperatures . . . . . . . . . . . . . 26
Thermostat Battery Replacement . . . . . . . . . . . . . . . . . . . 26
Section 8: Interface Operation ...................27
Interface Screens. . . . . . . . . . . . . . . . . . . . . . . . . . 28
Access Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Information Menu . . . . . . . . . . . . . . . . . . . . . . . . . 29
Room Temperature . . . . . . . . . . . . . . . . . . . . . . . . . 29
ECO (Economy) . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Battery and Communication Status. . . . . . . . . . . . . . . . . . . 29
Thermostat and Actuator Status . . . . . . . . . . . . . . . . . . . . 29
Actuator Status . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Settings menu. . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Information Menu: System Information . . . . . . . . . . . . . . . . . 30
ECO Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Steps to Follow . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Editing the ECO Proles . . . . . . . . . . . . . . . . . . . . . . . 31
Apply ECO Prole . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting Time and Date . . . . . . . . . . . . . . . . . . . . . . . 31
Exercise Actuators and Pumps . . . . . . . . . . . . . . . . . . . . 32
Temperature Unit . . . . . . . . . . . . . . . . . . . . . . . . . 32
Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installer Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Vacation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Section 9: Technical Data . . . . . . . . . . . . . . . . . . . . . . . 33
Base Unit Connection Diagrams . . . . . . . . . . . . . . . . . . . . 34
Section 10: T-54 Installation and Operation . . . . . . . . 37
Section 11: System Maintenance .................41
Section 12: Troubleshooting .....................43
Normal System Operating Conditions . . . . . . . . . . . . . . . . . . 43
Identifying and Resolving Alarms and Errors . . . . . . . . . . . . . . . 43
Contacting an Installer . . . . . . . . . . . . . . . . . . . . . . . 44
Contacting Uponor . . . . . . . . . . . . . . . . . . . . . . . . . 44
Troubleshooting Solutions . . . . . . . . . . . . . . . . . . . . . . 45
Section 13: Installation Report . . . . . . . . . . . . . . . . . . 51
iiii
www.uponor-usa.com • www.uponor.ca
Page 7
Section 1
99
�
>
General
Recommendations
Safety Measures
• Read and follow the instructions in this guide.
• Installation must be performed by a qualied person
according to local code.
• It is prohibited to make changes or modications not
specied in this guide.
• Power must be switched off when wiring.
• Uponor is not responsible for damages and
breakdowns that may result from not following the
instructions in this guide.
Symbols Used in This Manual
Warning: Risk of bodily injuries.
Nonobservance may harm health or cause
damage to product components.
Caution: Important note on functionality
Information: Important operating advice
and information
Power Supply
• The Uponor Climate Co˘ntrol™ Zoning System
uses a 110VAC/60Hz power supply.
• In case of emergency, immediately disconnect
the plug from the power.
• Do not use water to clean the Zoning System.
• Switch off power when wiring.
• Do not expose the Zoning System to ammable
vapors or gases.
Limitations for Radio Waves
The Zoning System uses radio waves. The frequency
used is reserved for similar applications, and the
chances of interference from other radio sources is
very low. However, in some rare special cases, it may
not be possible to establish a perfect communication.
The transmission range is sufcient for most
applications, but each building has different
obstacles affecting communication and maximum
transmission distance. If communication trouble exists,
Uponor can support the system with accessories, such
as repeaters, for solving the exceptional issues.
Technical Constraints
• Keep installation and data cables away from power
cables greater than 50VAC to avoid interference.
• The electrical circuits of the boiler and the pump
must be protected by a maximum 10A circuit breaker.
See another document.
See another page in the manual.
Extended function with the interface
Result of an action
Press button
LED off
LED on
LED blinks
LED ickers
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
1
Page 8
2
www.uponor-usa.com • www.uponor.ca
Page 9
Section 2
The Uponor Climate
Co˘ntrol Zoning System
Overview
Thermostat Display T-75
The thermostat displays the temperature
on its screen. The thermostat is affected
by the temperature of surrounding
surfaces as well as the ambient air
temperature. A thermostat calls for heat
by sending a signal to the base unit. The
base unit then activates the channels
linked to that thermostat, powering the actuators
mounted on the manifold.
Base Unit With Antenna
and Actuators
The base unit controls the actuators based
on the requirements from each zone
thermostat. Each base unit is capable of
controlling up to 12 thermostats and
14 actuators. The base unit is typically
located near the manifolds.
The Uponor Climate Co˘ntrol Zoning System is a
wireless zoning control for radiant oor systems.
Comfort, user-friendliness and temperature control
for each room can be combined through the different
components.
The control system consists of:
• Thermostat T-75
• Base Unit C-55 with antenna and actuators
• Interface I-75 (optional)
The Uponor Zoning System is controlled by wireless
thermostats. The thermostats communicate with base
units via radio waves.
Interface I-75
The interface allows viewing of important
zone information and setting of vacation/
setback schedules from a remote location.
The interface also can display alarms such
as low battery, no connection, etc.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
3
Page 10
Uponor Climate Co˘ntrol Zoning System
Thermostat
DisplayT-75
Base Unit C-55
Antenna for
Base Unit C-55
Base Unit C-55
Base Unit C-55
Antenna
Installation guide
Fastening screws
Adhesive strip
Connection cable
for antenna (1 ft.)
Connection cable
for antenna (10 ft.)
Connection cable
for interface
Interface
Language data stick
Interface bracket
Thermostat display T- 75
Batteries
Ta ble stand
Wall bracket
Adhesive strip
Fastening screws
Thermostat
Display T-75
Thermostat
Mounting Kit
forT-75
Components
4
www.uponor-usa.com • www.uponor.ca
Page 11
Section 3
Te rminal block for connection
of antenna and extensions
for additional I-75 interface
Interface RJ 9
connector for I-75
Push button and LED from
01 to 12 for channel registration
Te st button with LED
Quick connectors for
the actuators
Socket for the connection
of the data stick
Power LED
110v/60Hz Compartment – Heat-demand Relay
110V
0201
110V
A3601012 C-55
IP30
T55
Made in France
Base Unit Installation
Base Unit Diagram
Preparation Before Installation
Review the wiring diagram located inside the base
unit cover.
Verify Contents
• Cordless electric drill
• 6mm (1¼") drill bit
• Small athead screwdriver
• Phillips screwdriver
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
Review Drawings
Review the drawings of the radiant oor heating system.
If the locations of the base units and thermostats are not
specied, determine the best positions.
• Install base unit with antenna close to each manifold.
• A 110VAC standard power receptacle is required for
• Protect the mounting locations for the Zoning System
• Use one thermostat for every zone with radiant
the connection of the base unit.
from moisture.
oor heating.
5
Page 12
Components Installation
�
#09
#10
Mounting the Base Unit Antenna
Decide if the antenna should be mounted on the back of
the base unit or on the wall.
Caution: If the base unit is installed inside a
metal manifold cabinet, place the end or the
entire antenna outside the cabinet.
Clip the Antenna Into the Back of the Base Unit
1. Use a one-foot antenna cable.
2. Connect the RJ 9 connector into the antenna.
3. Clip the antenna into the base unit.
4. Insert the cable of the antenna into the hole of the
base unit.
Connect to terminals 9 and 10.
6
www.uponor-usa.com • www.uponor.ca
Page 13
Fastening the Antenna to the Wall with Screws
10 feet
10 feet
1. Connect the RJ 9 connector into the antenna.
2. Using a drill bit, drill the wall.
3. Fix anchor and screw to the wall. Let the screw
protrude from the wall.
4. Fasten the antenna on the screw.
Fastening the Antenna to the Wall with Adhesive
1. Connect the RJ 9 connector into the antenna.
2. Use the double-sided adhesive strip to attach the
antenna to a smooth wall, such as glazed ceramic tiles.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
7
Page 14
Mounting the Base Unit
• Position the base unit just above the manifold.
Ensure the power receptacle is within reach of
the base unit's power supply cord.
• Check that the base units cover can be
removed easily.
• Check that the connectors and switches are
easily accessible.
Caution: Mount the base unit horizontally.
There is a risk for overheating if the base unit is
mounted vertically or on a at surface.
1. Hold base unit to wall; mark mounting hole locations
on the wall with a pencil.
2. Drill the wall.
3. Press the anchor into the hole.
4. Attach the base unit to the wall with screws.
Information: Each thermostat can control any
number of channels. Installation and
maintenance are simplied if actuators
controlled by the same thermostat are wired to
channels in sequence.
8
www.uponor-usa.com • www.uponor.ca
Page 15
Resetting the Base Unit
Resetting the base unit will cancel all channel
registrations, allowing the user to change all
the registrations.
1. Press the Test button for 10 seconds.
2. The Test LED ashes for at least two seconds,
then all LEDs will turn off (except the power LED).
All parameters are erased.
3. New installation and registration after reset
is necessary.
Installation Example
Zones
Channels
• Thermostat/Zone #01 controls two actuators
connected to channels 1a and 1b.
• Channel 2a and 2b are not used in this diagram.
• Thermostat/Zone #02 controls two actuators
connected to channels 3 and 4.
• Thermostat/Zone #03 controls one actuator
connected to channel 5.
• Thermostat/Zone #04 controls one actuator
connected to channel 6.
• Thermostat/Zone #10 controls three actuators
connected to channels 10, 11 and 12.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
Warning: Disconnect the power before
installing or changing the device wiring.
Powering the Base Unit
• Check the actuators and antenna to
ensure that the wiring is complete.
• Check that the power compartment
lid is closed.
• Connect the power
supply plug into the
electrical outlet.
9
Page 16
10
www.uponor-usa.com • www.uponor.ca
Page 17
Section 4
T-75
Thermostat Installation
The Zoning System is controlled by the
Thermostat Display T-75.
Thermostat
Display T-75
Label the Room Thermostats
• Install two alkaline AAA 1.5V batteries in each
thermostat (see page 26).
• Label the thermostats with the channel numbers they
are to control, e.g., 02, 03, etc. For a system with an
interface and several base units, an identication for
the base unit should be added, e.g., 1.02, 1.03, 2.02,
2.03, etc.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
11
Page 18
Register Room Thermostats
�
�
�
�
�
�
5 seconds
5
5 seconds
5
An example of registering a thermostat: one thermostat
controls two actuators that connect channels 02 and 03.
1. Push the Test button.
The Test button LED lights up .
2. Push channel button 02.
3. Push channel button 03.
The LEDs of channels 02 and 03 will ash .
4. Using a small pointed tip, press the thermostat’s
registration button, located on the bottom of the
thermostat, for at least ve seconds.
For Thermostat Display T-75:
• The thermostat displays two lines.
• Release the button when the temperature reappears.
5. LED will ash and turn solid, indicating a
successful link.
Repeat the same sequence for all thermostats.
LED LED Status
LED on
The Test LED switches off
.
Cancelling the Registration of a Channel
1. Press the Test button.
The Test and channel LEDs with registered
thermostats light up
2. To cancel, press the channel button for 10 seconds.
The LED of the cancelled channel ashes for two
seconds, then switches off
LED ash
LED off
.
.
12
3. Press the Test button to exit registration mode.
The Test LED switches off .
Caution: To register a different thermostat
to a channel, cancel the registration of the
existing thermostat prior to linking to new
thermostats. Then repeat the steps as outlined
in the Register Room Thermostats section
on this page.
www.uponor-usa.com • www.uponor.ca
Page 19
Determining the Thermostat Location
5 feet
Mounting Directly to the Wall Mounting to the Bracket
• On an indoor wall
• 5' from the oor
• Away from any source of moisture
• Away from any source of heat
• Away from direct sunlight
Mounting the Thermostat
There are two ways to mount a thermostat:
• Direct mounting (using screws or adhesive strips)
• Thermostat mounting kit (includes table stand,
wall bracket, adhesive strips, screws and batteries)
Mounting Using Screws or Brackets
1. Screws should protrude from the wall.
2. Hang the thermostat on the screws.
3. When using the mounting kit bracket, mount
bracket to the wall, then hang thermostat
on bracket.
Mounting Using Adhesive Strips
1. Use the double-sided adhesive strip to x the
thermostat on a smooth wall, such as glazed
ceramic tiles.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
13
Page 20
Mounting Using Table Stand
1. Attach stand to the back of the thermostat.
Removing the Thermostat Display T-75 from
the Bracket
To remove the thermostat from the bracket:
1. Insert athead screwdriver as shown.
2. Thermostat will then release from bracket.
14
www.uponor-usa.com • www.uponor.ca
Page 21
Section 5
�
�
Thermostat and Base Unit
Testing
Testing the Communication Between
Thermostats and Base Unit
1. Press the Test button.
The Test and channel LEDs and registered channels
light up
2. Using a sharp point, briey press the thermostat
registration button.
• If communication is OK, the LEDs for the channels
registered to the thermostat switch off.
• If there is no communication, the LEDs for the
channels registered to the thermostat stay on.
Note: See Section 11: Troubleshooting for guidance.
3. To exit the Test mode, press the Test button.
.
To verify functionality, increase setpoint of the
thermostat to generate a call for heat.
The LEDs will switch off for channels linked to
this thermostat. The LEDs will not switch off if
channels are not linked to this thermostat.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
Note: If LED remains lit,
there is no communication.
15
Page 22
Testing the Base Unit Actuator
�
1. Press the button of the selected channel.
• The LED lights up: the actuator is powered up
(time for actuator opening is roughly 5 minutes).
• The LED does not light up.
Note: See Section 11: Troubleshooting for guidance.
2. Press the Test button twice to end the actuator test
(or wait 10 minutes).
Final Inspection
1. Verify that the antenna is correctly mounted.
Check if the thermostats are powered.
2. Close the cover of the base unit. Close the
thermostat covers where necessary.
3. Complete the installation report (Section 12).
4. Leave installation guide at jobsite for future reference.
16
www.uponor-usa.com • www.uponor.ca
Page 23
Section 6
Interface
Base unit (possible installation
with three base units
connected to one interface)
Interface with
Base Unit Installation
This section describes the installation of the
Climate Co˘ntrol Zoning System Interface in
control systems with up to three base units.
Example of an Installation
A system may consist of up to three base
units managed by a single interface.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
17
Page 24
Interface Bracket Installation
5 feet
Before beginning the installation:
1. Select the mounting location of the interface.
The interface on a wall or on the cover of the
base unit.
2. Obtain installation report.
3. See wiring diagram in Section 12.
4. Disconnect the power to the base unit.
5. Open the base unit cover.
Interface Bracket Wall Mounting
Mount the bracket at approximately
eye level.
1. Hold bracket to wall; mark
mounting-hole locations on the
wall with a pencil.
2. Drill the wall.
3. Press the anchor into the hole.
4. Attach the interface brackets to the
wall with screws.
Interface Bracket Mounting
on the Base Unit
1. Fix screws on the bracket cover.
(Use cover marking as a guide.)
2. Let the screws protrude slightly
from the base unit.
2. Hang the bracket on the screws.
18
www.uponor-usa.com • www.uponor.ca
Page 25
Wiring and Programming the Interface
Do not remove the yellow data stick from the interface
before powering up and setting the language.
Wiring the Interface
If the interface is located less than 6 feet from the
controller, use the cable (interface to base unit) tted
with RJ 9 connectors at each end.
1. Connect the RJ 9 connector into the base unit #1.
2. Secure the cable in the clamp.
3. Connect the RJ 9 connector in the back of
the interface.
4. Secure the cable in the cable guide.
If the interface is located more than 6 feet away from the
controller, use the installation cable.
Wiring is polarized. Connect terminal 1 on the
base unit to terminal 1 on the interface, etc.
Base Unit
1. Without turning, press with a small screwdriver on the
button of the terminal to insert or remove a wire.
2. Insert a wire in the quick connector.
3. Remove the screwdriver.
4. Secure the cable in the clamp.
Interface I-75
5. Without turning, press with a small screwdriver on the
button of the terminal to insert or remove a wire.
6. Insert in the quick connector on terminal.
7. Remove the screwdriver.
Release quick connector button.
8. Secure the cable in the cable guide.
Maximum cable length: 60 feet
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
19
Page 26
Connections
STOP
Warning: Disconnect the power before
installing or changing the device wiring.
Additional Base Units
• For an installation with more than one manifold or
more than 12 channels, install additional base units
(up to three).
• A single interface drives all three base units.
• Each base unit must be tted with an antenna.
Connections Between Base Units
The connections between the base units
are polarized.
• Base unit #1 is the controller connected to
the interface.
• Connect terminal 5 and 6 of base unit #2 to terminal
5 and 6 of base unit #1.
• Connect terminal 7 and 8 of base unit #3 to terminal
7 and 8 of base unit #1 or base unit #2.
20
www.uponor-usa.com • www.uponor.ca
Page 27
Circulation Pump Relay
Pump Relay
Pump
Pump Relay
Pump
Pump Relay
Pump
Power Supply
Power Supply
Power Supply
If separate pumps are used for each manifold, each pump
relay can be connected to its own base unit.
See: Section 3: Base Unit Installation.
For a System with Several Base Units
Common Pump Individual Pumps
Attention: If a common pump supports
multiple manifolds, a pump relay can be
connected to the closest base unit. See the
circulation pump supplier documentation
before performing the connection.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
21
Page 28
Svenska / Sedish
German / Deutsch
English
Language
12 : 24
Set Date/Time
01 Jan 2008
12 : 24
2010
2009
2008
2007
2006
26
25
24
23
22
02
01
00
59
58
02
01
00
23
22
14
13
12
11
10
Set Date/Time
01 Jan 2008
12 : 00
Set Date/Time
01 Jan 2008
00 : 00
Set Date/Time
01 Jan 2008
12 : 00
Set Date/Time
01 Jan 2008
Uponor
17 Mar 2008 12 : 24
00 : 00
Set Date/Time
01 Jan 2008
Connecting Base Unit Power Source and Selecting
Programming Language
1. Check that the wiring is complete.
2. Ensure power compartment is closed.
3. Connect base units #2 and #3 to the power.
4. Check that the language data stick is connected at the
back of the interface.
5. Ensure power compartment is closed. Connect base
unit #1 to the power.
6. Select a language by pressing the
or keys to
select the language.
7. Press OK to conrm.
• If the language data stick is inserted, the
language screen will automatically appear at
rst installation.
• The language setting is saved in case of
power failure.
• The language can be changed after rst
installation by re-inserting the language stick.
Time and Date Setup
This screen will open automatically when the language
has been set.
Select time and date with the keys.
22
1. Select hours.
2. Set the hour.
3. Select minutes.
4. Set the minutes and continue until the date is set.
5. Press OK to conrm.
www.uponor-usa.com • www.uponor.ca
Page 29
Attaching the Interface to Bracket
STOP
Interface Keys
Displays the next
menu
or
Goes to next field
Displays the
previous menu
Press button longer
than five seconds
to return to display
the Uponor screen
or
Goes to previous
field
Moves to line above
or
Increases the value
Moves to line below
or
Decreases the
value
Press
OK
Displays the next
screen
or
Confirms selection
and displays the
screen of the
current menu
Advanced
Basic
Access Level
Installer
Access Level
OK
Installer
OK
Set Base Unit ID
Reset Base Unit ID
Base Unit
Reset all controller
addresses?
Base Unit ID
Ye s No
Reset Base Unit ID
Base Unit ID
Set Base Unit ID
>1. Base Unit <
2. Base Unit
3. Base Unit
Base Unit ID
>1. Base Unit <
>2. Base Unit <
>3. Base Unit <
Base Unit ID
1. Remove the language data stick from the interface.
2. Attach the language data stick on the bracket.
3 and 4. Position the interface on the bracket.
Access to the Installer Level
1.
On the Uponor screen, simultaneously press and
for 10 seconds to reach the Advanced Level.
The Advanced display appears.
2.
> Press OK.
The Uponor screen is shown.
3. Go to the Advanced level via:
Uponor screen
Settings
> Main Menu >
> System Parameters >
Access Level
4. Simultaneously press
and for 10 seconds.
Installer display appears.
5.
> Press OK.
The Uponor screen is shown.
Interface Setup
Setting Installation Parameters for Multiple
Base Units
If more than one base unit is used together, select heat
demand management (i.e., one common pump relay
or one pump relay per base unit). By default, the heat
demand and valves are exercised once a week.
Change this setting if needed.
Note: If only installing one base unit, go to Section 7:
Thermostat Operation.
To set these parameters, run the Installer Level
as described in the next column.
The system will automatically return to
Advanced mode after 10 minutes.
Setting Base Unit Identication
The default identication of the base unit is
always #1. If more than one base unit is
connected to the interface, all base units
must be identied.
1. Uponor screen
Parameters
> Main Menu > Settings > System
> Base Unit ID
2. Reset Base Unit ID.
> Press OK.
3. Select: Yes.
> Press OK.
4. Press (down) key to move cursor
to set controller ID.
5. The message
ashes: Press the Test button on
base unit #1 (the one connected
to the interface).
6. Repeat the operation for base
units 2 and 3.
> Press OK.
>1. Base Unit <
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
23
Page 30
Setting the Heat Demand Management
STOP
Please choose heat demand
management type.
Heat Demand Manage
Common Individual
Cancel Exercise
Exercise Valve and Pump
Exercise Valve Only
Exercise Setup
! [14/06] Base Unit 3
! [14/06] System
Clear Alarm List
Room List
Monday
1 : 00
Exercise Time
Erase all alarms?
Clear Alarm List
Ye s No
1. Uponor screen
Parameters
> Main Menu > Settings > System
> Heat Demand Management
2. Choose Common or Individual.
> Press OK.
A common pump relay must
not be connected to more than one base unit.
Alarms
To diagnose and resolve alarms, see
Section 11: Troubleshooting.
1. Uponor screen
> All Alarms
> Main Menu > Information > Alarms
2.
> Clear alarm list.
Setting the Exercise Setup
Schedule a weekly ve-minute activation to maintain the
functionality of the valves and pumps.
1. Uponor screen
Parameters
> Main Menu > Settings > System
> Valve/Pump Exercise
2. Select the preferred parameter.
> Press OK.
3. Set the day and time for
the exercise.
> Press OK.
Installation Inspection
> Press OK.
3.
Make sure you have resolved all the alarms
before clearing the list.
Resetting the Interface
Should an error occur and the interface is not functioning
normally, restart the system.
Briey press the reset button. New installation and
registration is not necessary, but the time and date must
be reset.
Completely check the installation.
1. Review Base Unit Installation Section.
• Conrm that the interface and thermostats
are powered.
• Check the interface for alarms.
2. Close the base unit cover.
3. Complete the installation report in Section 12.
4. Give this manual and all information about the system
to the user.
24
www.uponor-usa.com • www.uponor.ca
Page 31
Section 7
�
�
F
�
F
�
F
LCD display
Te mperature sensor for
optimum measurement
of room temperature
(+) and (-) keys to
set the thermostat
Thermostat
registration button
Battery compartment
˚F
Thermostat Operation
Changing the Temperature Format
1. Simultaneously press the (+) and (-) keys for
10 seconds.
The SEL (select) menu is displayed.
Thermostat T-75 Display
LCD Display Denition
(indication of room temperature)
Default Display
2. Press (+) or (-) to change the
temperature format (°C or °F).
3. Wait 5 seconds.
The thermostat returns
to the default display.
Changing the Temperature Setpoint
1. Press the (+) or (-) key.
The setpoint icon and the room
temperature setting display.
2. Press (+) or (-) to change the setpoint value.
3. Wait 5 seconds.
The radio transmission icon displays, conrming that
the setpoint has been recorded and sent. The display
returns to show measured room temperature.
To bring the temperature to default
setpoint, briey press the (+) and (-)
keys simultaneously.
Display of temperatures and menus
Displayed when setting the room
temperature
Displayed during radio transmission
Temperature format for the display
Low-battery indication
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
25
Page 32
Setting the Minimum and Maximum
Temperatures
The minimum and maximum temperatures
(41°F/5°C and 95°F/35°C) of the Thermostat
Display T-75 are pre-set. It is, however, possible
to tailor these temperatures to your system if it
is equipped with an Interface I-75.
Thermostat Battery Replacement
The thermostat uses two alkaline
AAA 1.5V batteries.
Note the polarity.
Opening the Battery Cover
Installing the Batteries
Closing the Thermostat
26
www.uponor-usa.com • www.uponor.ca
Page 33
Section 8
Screen
Navigation
button
Error
indication
Reset
button
Port for
language
data stick
Screen
Navigation button
Error indicator
Reset button
Port for language datastick
Use of the Navigation Buttons
Displays the next
menu
or
Goes to next field
Displays the
previous menu
or
Goes to previous
field
Goes to line above
or
Increases the value
Goes to line below
or
Decreases the
value
Press
OK
Displays the next
screen
or
Confirms selection
and displays the
screen of the
current menu
1
2
3
4
5
Press button longer
than 5 seconds to
display the Uponor screen.

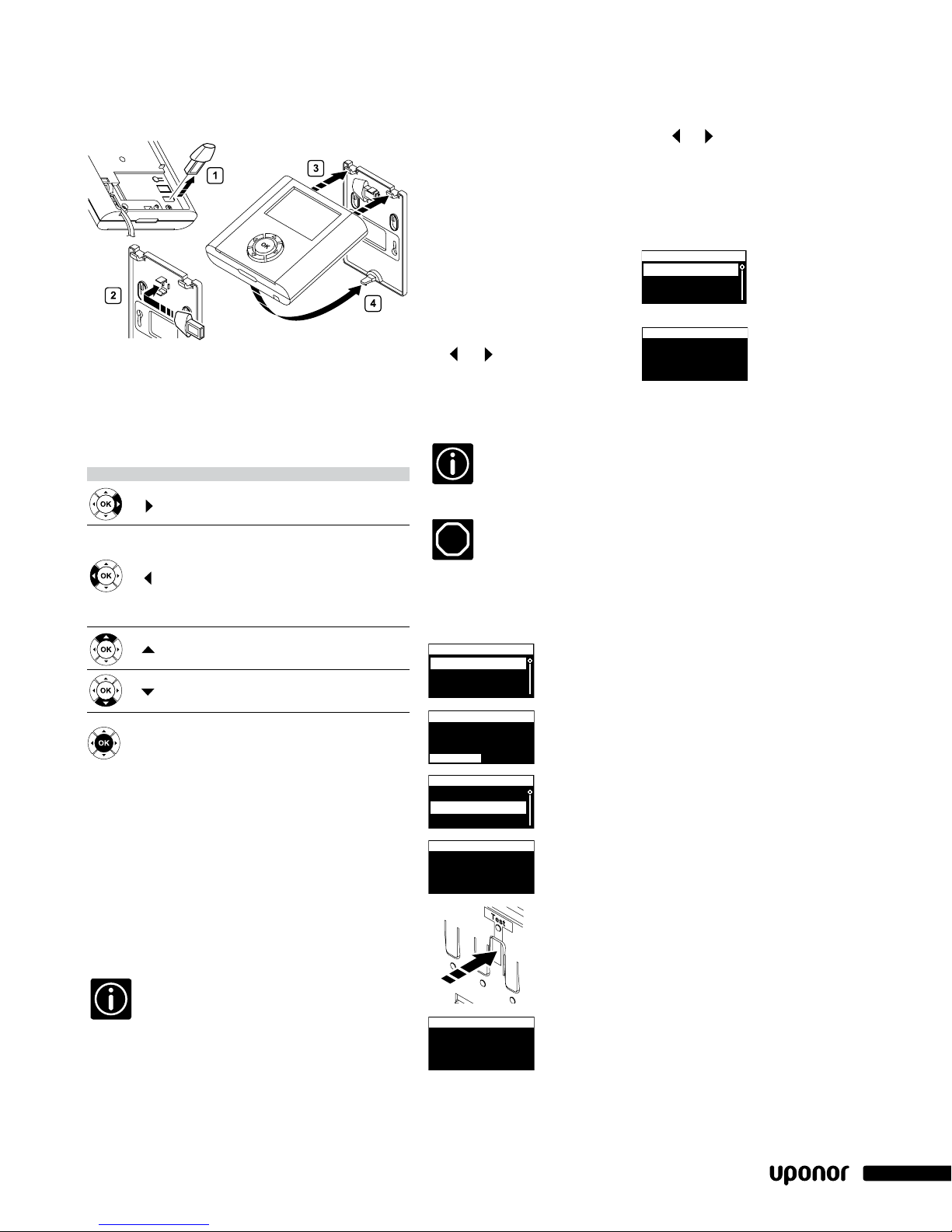

Interface Operation
The user-friendly interface features a digital screen,
navigation, settings and validation keys.
The interface allows you to:
• centralize and optimize the system management.
• display and update the system operation settings.
The interface also displays the causes of any alarms.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
27
Page 34
Interface Screens
Uponor
14 Jun 2008 2 : 00
Vacation Mode
Settings
Information
Main Menu
Alarms
System
Rooms
Information
1.07 Gym
1.02 Living
Room List
Advanced
Basic
Access Level
Uponor
14 Jun 2008 2 : 00
Uponor
10 Nov 2008 5 : 19
Outdoor 32°F
Uponor
20 Nov 2008 5 : 19
Outdoor 32°F
Indoor Average 70.16°F
Vacation Mode
Settings
2
3
1
Information
Main Menu
How to Access and Navigate the Menu
Uponor Screen
• Pressing any button activates backlighting.
• To go to the main menu, press OK.
Uponor Screen Icons
Vacation mode is activated.
An alarm/error message is present.
The outdoor temperature is displayed if the system is
tted with an outdoor temperature sensor.
The Interface menu displays indoor temperature; it will
also display outdoor temperature if the system is tted
with an outdoor temperature sensor.
1. > Press OK.
2. > Information > Press OK.
3. > Rooms > Press OK.
4. > Select the desired room.
> Press OK.
• Display the desired information using the navigation
keys. Use
screen. Use
thermostat.
• To go back to the room list, press OK.
Access Level
This parameter allows the user to set or select the
access level. Two levels are available: basic or advanced.
and to display the previous/next
and to display the previous/next
The basic level allows the user to view some
basic information, but not modify the settings.
Recommended for use in a public location or a
rented accommodation, such as a hotel room.
The advanced level allows users to
modify settings.
Main Menu
1. Upper banner: Menu heading
2. Information zone: The selected line is highlighted.
3. Scroll bar
1.
> Uponor screen > Main Menu > Settings > System
Parameters
> Access Level selection
2. > Basic or Advanced
> Press OK.
To switch from Basic to Advanced Level:
On the Uponor screen, simultaneously press
and
for 10 seconds.
Screen Advanced and OK appears. Press OK to put the
system is in Advanced mode.
28
www.uponor-usa.com • www.uponor.ca
Page 35
Information Menu
Alarms
System
Rooms
Information
1.07 Gym
1.02 Living
Room List
Battery
1.02 Living
More
Signal
Measured
Set Point
1.02 Living
More
69.8˚F
70.16˚F
StatCall: No Act.: Closed
1.02 Living
More
Min: 53.6˚F Max: 78.80
Status
ECO Temp
1.02 Living
More
66.2˚F
COMF
Actuator: Alarm
1.02 Living
More
The Information menu provides information about rooms,
alarms/error messages and settings.
Information Menu: Room Information
1. Uponor screen
> Main Menu > Information > Rooms
> Select the desired room.
2.
> Press OK.
The number at the beginning of the room name
on the display means: First digit: base unit.
Second and third digits: number of the rst
channel controlled by this thermostat
(01, 02, 03, etc.). If several terminals are
controlled by the thermostat, only the lowest
terminal number is displayed.
Room Temperature
When room
information is
accessed, the screen displays room
setpoint and measured temperature.
The temperature setpoint is 69.8°F.
If the temperature set on the thermostat
is outside the allowed temperature range
for the room, the limitation temperature
will be displayed as setpoint.
Battery and Communication Status
Battery and communication status are indicated
with a √ or X.
• Battery: The batteries are
sufciently charged.
• Signal: Radio signal from the
thermostat
is good.
• Battery: The batteries are low.
• Signal: Radio signal from the
thermostat and the antenna is faulty.
Thermostat and Actuator Status
Statcall
Act.
Min
Max
Yes: The thermostat is calling for heat.
No: The thermostat is reporting that the
room temperature is satised.
Open: The actuators
are powered
and open or opening.
Closed: There is no power to the
actuators and they are closed
or closing.
The minimum temperature setpoint of
the room is set at 53.6°F.
The maximum temperature setpoint of
the room is set at 78.8°F.
The measured temperature is 70.16°F.
3.
> to open the next screen.
ECO (Economy)
This screen displays
the temperature
setting for the room when it is in ECO
mode. (Current setting is 66.2°F.)
Current status:
Status
4.
> to open the next screen
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
COMF: Comfort mode.
ECO: Economy mode
Actuator Status
This screen is only displayed during installation.
OK: Normal
Actuator
Alarm: A short circuit or similar problem
operation
is reported.
29
Page 36
Settings Menu
Interface : 1.0.16 (1.0.2)
#1 Base Unit : 1.0.17 (1.0.3)
#2 Base Unit : 1.0.17 (1.0.3)
Software Version
Mode
Heat.
Operating Mode
OK
Basic
Access Level
�
Base Unit List
Controller 1
Controller 1
All
Base Unit List
1.07 Gym
1.02 Living
Room List
1.07 Gym
1.02 Living
Room List
Master BD
Dining
Living
Default Room Names
Max
500˚F
Min/Max temperatures
Min
248˚F
The settings menu allows the user to set the base unit for
individual rooms.
The number at the beginning of the room
name on the display means:
First digit: base unit number (1, 2, 3); second
and third digits: number of the rst channel
controlled by this thermostat (01, 02, 03, ...).
(If several channels are controlled by the same
thermostat, only the lowest terminal number
is displayed.)
Assigning or Changing a Room Name
1. Uponor screen > Main Menu > Settings > Rooms
> Room Names
2. Select the desired controller (only
applies if more than one controller
is installed) > Press OK.
Information Menu: System Information
Heating Mode
Uponor screen
> Main Menu > Information > System >
Operating Mode
Operating Mode
The system is always in heat mode.
Access Level
Uponor screen
> Main Menu > Information > System
> Access level
Displays the current access level.
Software Version
Uponor screen
> Main Menu > Information > System
> Software Version
X.X.X
Software Version
3. Select the desired room or
thermostat. > Press OK.
4. Select the room name from the
predened list. > Press OK.
Setting the Min and Max Temperatures
1. Uponor screen > Main Menu > Settings > Rooms >
Min / Max Temperatures
2. Select the desired base unit or All
for all rooms on all base units >
Press OK.
Selecting All sets the same min and max
temperatures for all rooms.
3. Select the desired thermostat or
room.
> Press OK.
4. Set the temperatures
Use
and to increase and
decrease the value.
Use
and to toggle between
min. and max.
> Press OK.
Example: If the temperature setpoint of the
thermostat is set to 41°F, the temperature will
not fall below 53.6°F because the minimum
and maximum limitations for this room are set
to 53.6°F and 78.8°F respectively.
(X.X.X.)
Hardware Version
ECO Mode
Reset proles to the default values by
re-editing. In heat mode, ECO mode reduces
room temperatures at the set times. There are
ve different time and temperature proles
available, and all can be modied.
Steps to Follow
1. Edit the ECO proles.
2. Apply the ECO proles.
ECO Prole
This system provides ve periods for
temperature reduction settings, which indicate
each setting, but are fully programmable.
Set the timers rst. Then dene which
thermostat each timer is to control.
Heating
ECO Off
ECO All
30
www.uponor-usa.com • www.uponor.ca
Page 37
ECO Night and Day
ECO All
ECO Night&Day
ECO Off
ECO Profiles List
00:00 ECO
ECO Night&Day - Heat
39.2˚F
ECO
14 Jan 2008
2 : 02
Set Date/Time
Please choose the
required time format.
24 hour
AM / PM
Time Format
YYYY / MM / DD
DD Mmm YYYY
DD / MM / YYYY
Date Format
Controller 1
All
Base Unit List
All
1.02 Living
1.07 Gym
Room List
MonTueWedThuFriSatSun
ECO Off
System
MonTueWedThuFriSatSun
ECO Custom
1.02 Living
ECO All
ECO Night&Day
ECO Off
ECO Profiles List
For example:
ECO mode active:
From 10:30 p.m. to 5 a.m.
From 9:30 a.m. to 2:30 p.m.
ECO Night
For example:
ECO mode active:
From 10:30 p.m. to 5 a.m.
ECO Custom
For example:
ECO mode active:
From 12:30 a.m. to 5:30 a.m.
From 12:00 a.m. to 5:30 p.m.
• Displaying the proles:
Comfort or ECO mode off.
Economy or ECO mode on.
• All proles can be modied.
• All customized settings remain saved in the event of
a power failure.
Editing the ECO Proles
1. Uponor screen > Main Menu > Settings
> Edit ECO Proles
2. Select the ECO prole to modify.
> Press OK.
3. Modify the heating prole.
> Press OK.
4. To modify the prole:
• Select the time using the
and keys. The cursor
moves by increments of 30 minutes. The set time is
indicated above the time prole.
• Apply the Comfort mode by pressing the
• Apply the ECO mode by pressing the
5. To set a complete period within the same mode:
• Move the cursor to the start time of the period.
• Set the start time: Press briey the or key.
• Move the cursor to the end time of the period.
• Press and hold the
or key.
The prole applies for the whole period from start time
to end time.
6. Modify the correction value of
the temperature setpoint for the
ECO mode.
> Press OK.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
key.
key.
Apply ECO Proles
1. Uponor screen > Main Menu > Settings > Rooms >
Apply ECO Proles.
2. Select the desired base unit or
all base unit (only applies if more
than one base unit is installed).
> Press OK.
3. Select the desired room or All.
> Press OK.
Select the day:
Go to the day by using the
and
keys and select the day by briey
pressing the
key.
4. The present prole is displayed
5. Select the ECO Proles mode:
Press and hold
.
6. Select the desired ECO Prole.
> Press OK.
7. Repeat for each day.
To check the setting for a certain day, go to the
days by using
and . The current active prole
status prole will display.
Different ECO proles may be applied to the
thermostat for any day of the week.
If one ECO prole is used in most rooms:
Apply the prole to every room. In step 3, select
the setting All. Then set individual rooms.
Setting Time and Date
1. Uponor screen > Main Menu > Settings > System
Parameters
> Clock Settings > Set Date/Time
Toggle between the elds using the
and
keys. Change the values using the
and
keys.
2. Change the time and date.
> Press OK.
Setting the Time Format
1. Uponor screen
Parameters
> Main Menu > Settings > System
> Clock Settings > Time Format
2. 24 hour or AM/PM
> Press OK.
Setting the Date Format
1. Uponor screen
Settings
Clock Settings
> Main Menu >
> System Parameters >
> Date Format
2. Select the format.
> Press OK.
31
Page 38
Exercise Actuators and Pumps
Exercise Valve and Pump
Exercise Valve Only
Cancel Exercise
Exercise Setup
Monday
1 : 00
Exercise Time
Monday
1 : 00
Exercise Time
Please choose the
required temp unit.
˚C
˚F
Temperature Unit
Dimmed (when inactive)
OFF (when inactive)
Always ON
Backlight
14 Jan 2008
2 : 02
Set Date/Time
15 Jun 2008
2 : 02
End Date
59˚F
Vacation Temperature
Cancel Vacation
Mode?
Yes
No
Cancel Vacation Mode
This exercise maintains the functionality of the
actuators and pumps. A ve-minute activation
is scheduled every week.
Cancel Exercise
1. Uponor screen
Parameters
2.
> Press OK.
> Main Menu > Settings > System
> Valve/Pump Exercise > Cancel Exercise
Exercise Valve and Pump
1. Uponor screen
Parameters
> Main Menu > Settings > System
> Valve/Pump Exercise > Exercise Valve
and Pump
2. Set the time and date for the
ve-minute activation.
> Press OK.
Vacation Mode
Vacation mode allows the user to easily set a temperature
reduction common to all rooms. The thermostat settings
are ignored during this period. The symbol
Uponor screen indicates that the system is in
Vacation mode.
• The reduce vacation setpoint applies
throughout the installation for all installed
room thermostats. The setting range is
41°F to 95°F.
• The minimum and maximum limitations have
priority over the Vacation mode reduction.
For example if the minimum and maximum
temperature range of a room is set to 68°F
to 77°F, and the holiday temperature is set
to 59°F for all rooms, the temperature for
this room will not drop below 68°F.
on the
Exercise Actuator Only
1. Uponor screen
Parameters
> Main Menu > Settings > System
> Valve/Pump Exercise > Exercise
Valve Only
2. Set the time and date for the veminute activation.
> Press OK.
Temperature Unit
1. Uponor screen > Main Menu >
Settings
Temperature Unit
2.
>°C or °F
> System Parameters >
> Press OK.
Backlight
1. Uponor screen > Main Menu >
Settings
Backlight
2. Select:
Always ON
Dimmed (when inactive): reduced screen brightness
OFF (when inactive): backlighting off
> System Parameters >
> Press OK.
Applying the Vacation Mode
1. Uponor screen > Main Menu > Vacation Mode >
Apply Vacation Mode
2. Enter time and date for the start
of the vacation period
> Press OK.
3. Enter time and date for the end
of the vacation period
> Press OK.
4. Enter the Vacation temperature
setpoint > Press OK.
Example: Vacation Mode can be cancelled before the
date is entered into the system.
Cancelling the Vacation Mode
1. Uponor screen > Main Menu > Vacation Mode >
Cancel Vacation Mode
2. Select Yes > Press OK.
Installer Level
The device has another mode: the Installer
level. Only the installer should set these
settings.
The Installer access level provides additional access to:
• The information menu
• All advanced level parameters
• Pump management settings
• Base unit identication
• Language
32
www.uponor-usa.com • www.uponor.ca
Page 39
Section 9
Technical Data
General
• IP: IP30 (IP: degree of non-accessibility to the active
parts of the product and degree of non-accessibility
of water)
• Max. ambient relative humidity (RH): 95% max. at
68°F/20°C.
• Class II low-voltage device
Thermostat T-75
• Certication
- FCC Part 15 Subpart C
- Industry Canada Category I device
• Approval and certication:
- KNX: Konnex approval and certication
• Power supply: 2x Alkaline AAA 1.5V
• Voltage: 2.2V to 3.6V
• Operating temperature: 32°F/0°C to 113°F/45°C
• Storage temperature: 14°F/-10°C to 149°F/65°C
• Radio frequency: 902-928 MHz
• Transmitter duty cycle: 1%
Antenna T55
• Power supply: 11VDC ±10% from controller
• Consumption: << 1W
• Radio frequency: 902 to 928 MHz
• Transmitter duty cycle: 1%
• Receiver Class: 2
Base Unit C-55
• Certication
- FCC Part 15 Subpart C
- Industry Canada Category I device
• Certication
- ICES-003
• Power supply: 90-130VAC, 60Hz Class II switching
power supply
• Operating temperature: 32°F/0°C to 131°F/55°C
• Storage temperature: -4°F/-20°C to 158°F/70°C
• Consumption: 70 W in full load max at 24VAC
• Demand contact: 24VAC at 2 Amps max (not fused)
• Valve outputs: 24VDC ±10%, 436 mA max. per
output 1 and 2 24VDC ±10%, 218 mA max. per
output 3 to 12
• Supply connection: terminal strip (push type)
polarity sensitive
* Do not substitute the external power supply. Damage to the controller
and hazardous conditions may occur. Warranty will be voided.
Interface I-75
• CE marking:
- Low-voltage tests: EN 60730-1 and EN
60730-2-1
- EMC tests: EN 60730-1
• Power supply: 11VDC ±10% from controller
• Operating temperature: 32°F/0°C to 131°F/55°C
• Storage temperature: -4°F/-20°C to 158°F/70°C
• Consumption: 1W maximum
Use of Quick Connectors:
1. Without turning, use a thin screwdriver to press
the white button of the terminal to insert or
remove a wire.
2. Insert a wire in the quick connector.
3. Release the white button.
4. Run the cable in the cable guides secure it.
5. Screw clamp to secure the cable
of antenna or/and extension.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
33
Page 40
Te rminal block for connection
of antenna and extensions
for additional I-75 interface
Interface RJ 9
connector for I-75
Push button and LED from
01 to 12 for channel registration
Te st button with LED
Quick connectors for
the actuators
Socket for the connection
of the data stick
Power LED
110v/60Hz Compartment – Heat-demand Relay
110V
0201
110V
A3601012 C-55
IP30
T55
Made in France
Base Unit Connection Diagram
34
www.uponor-usa.com • www.uponor.ca
Page 41
Power Supply
110VAC only
24VDC
Heat Demand
Relay (dry)
+-
~
Power Supply
110VAC only
24VDC
Heat Demand
Relay (dry)
+-
~
Base Unit Connection Diagram
Connection of the interface with the cable tted with RJ 9 connectors (6-foot cable)
Base Unit Connection Diagram
Connection of the interface with the quick connectors (49-foot cable)
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
35
Page 42
36
www.uponor-usa.com • www.uponor.ca
Page 43
Section 10
Climate Co˘ntrol™ Zoning
T- 54 Installation Guide
Step 1: Package Contents
Confirm the contents of the package, which include:
• T-54 Thermostat
• Two AAA batteries
• Hardware pack, anchors
and label
Note: If any contents
are missing, contact your
Uponor representative for
assistance.
Step 2: Battery Installation
Open the back of the T-54, insert the batteries and attach
the appropriate sensor (if used).
This quick-start guide provides instructions for installing
T-54 Thermostats (A3600054) for use with the Uponor
Climate Co˘ntrol™ Zoning System. Please refer to the
Climate Co˘ntrol Zoning System Installation Guide (which
comes with the base unit for A3601000 and A3601012)
for other information not pertaining specifically to the
T-54 Thermostat.
Note: The T-54 Thermostat Installation Guide is only
available in the Zoning System base unit packaging.
The following accessories are available for use with the
T-54 Thermostat:
• A3600010 Slab Sensor, 10K
• A3600254 Outdoor Sensor, 10K
• A3600154 Mounting Kit
Important: Do not use other 10K sensors with the
T-54 Thermostat, as other types of sensors will provide
inaccurate temperature information.
Step 3: Set the Dip Switches
Refer to the Dip Switch Chart on the next page to
properly set the dip switches for the external sensor. To
activate the feature, move the dip switch to the ON
position.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
37
Page 44
68°/20°
77°/25°
86°/30°
95°/35°
104°/40°
113°/45°
F°/C°
Floor
Function
As a standard
room thermostat
With a oor sensor,
maximum limitation
With a oor sensor,
minimum limitation
With an
outdoor sensor
Technical alarm Off Off
Table 1: Dip Switch Chart
Switch 1Switch 2Switch 3Switch
Off Off Off Off
On
On
Off
Off Off Off
Off Off
On
Off Off
On
Step 4: Air and Sensor Settings
Adjust the settings for both the air and slab sensor
temperatures (if used).
Step 5: Thermostat Connection
Register the thermostat to the base unit using the
following procedure:
1. On the base unit, press and release the Test button.
2. Then press the "output" button for the actuator(s) or
outputs that it will control. The
output LED will flash.
3. Using a pointed instrument,
gently press the registration
button on the T-54 until the
output LED on the base unit is
on continuously.
4
On
Off
4. Repeat these steps to connect additional thermostats
to the base unit.
5. Press and release the test button to end the
registration process.
Step 6: Installation
Use screws or adhesive
strips (included) to attach
the thermostat to the
wall. Uponor recommends
labeling each thermostat
with a location name
along with the outputs or
actuators it controls.
Battery Replacement
Replace the thermostat batteries when the red LED
inside the thermostat flashes twice during a heating or
cooling demand.
Temperature Information
1. On the Uponor screen, select Main Menu >
Information > Rooms.
2. Select the desired room and press OK.
Icon Description Screen
If thermostat temperature
is outside the allowed
temperature range for the
room, limitation temperature
is displayed as set point.
Measured temperature
is 70.2°F.
Temperature setting
for room when in ECO
(Economy) mode. (Current
setting 66°F).
Options for current status:
COMF: Comfort mode
ECO: Economy mode
This screen displays if there
is a oor sensor in the room.
Floor temperature is 75°F.
Max. and Min. — Minimum
and maximum oor
temperature set point.
38
www.uponor-usa.com • www.uponor.ca
Page 45
Battery and Communication Status
1. On the Uponor screen, select Main Menu >
Information > Rooms.
2. Select the desired room and press OK.
3. Press the right arrow 3 times.
Icon Description Screen
Battery: Batteries are
sufciently charged.
Signal: Radio signal
from the thermostat and
antenna is good.
Battery: Batteries are
discharged.
Signal: Radio signal from
antenna or thermostat is
poor or faulty.
Room Temperature and Actuator Status
1. On the Uponor screen, select Main Menu >
Information > Rooms.
2. Select the desired room and press OK.
3. Press the right arrow 4 times.
Icon Description Screen
Stat Call Yes: Thermostat is
calling for heating (or
cooling).
No: Thermostat is
reporting that room
temperature is OK.
Act. Open: Actuators are
powered and open, or
on delay and will open
soon.
Closed: No power to
the actuators, which
are closed (or closing).
Min. Minimum set point of
room is set at 60°F.
Max. Maximum set point of
room is set at 72°F.
Minimum and Maximum Temperatures
1. On the Uponor screen, select Main Menu >
Settings > Rooms > Min./Max. Temperatures.
2. Select the desired controller (base unit) or All for all
rooms on all controllers and press OK.
3. Select a thermostat or room (if not using the All
feature in the previous step) and press OK.
4. Set the temperatures. Use the up and down arrows to
increase and decrease each setting. Use the forward
and back arrows to toggle between the Min. and
Max. settings.
Note: The room temperature will not fall below or rise
above the minimum or maximum temperature settings
regardless of the room temperature setpoint.
Cover Alarm
A flashing power indicator on the display indicates
an alarm or error. Specifically to the T-54, this alarm
indicates that the cover of a thermostat is open. In
the example below, this alarm shows that the cover to
the living room is open. To view the room or rooms
communicating the alarm:
1. From the Uponor screen, select Main Menu >
Settings > Rooms > Min./Max. Temperatures.
2. Select the desired alarm and press OK.
Troubleshooting
The thermostat sends an alarm when more than 3 hours
have elapsed since the controller received the last radio
signal from the thermostat.
The table below shows problems that can occur in the
thermostat.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
Indication Cause Solution
Power LED and
Channel LED
ashes
Cover of
thermostat is
open.
Check thermostat
settings
and replace
thermostat cover.
LED ashes
twice
Thermostat
battery power is
Replace the
batteries.
running low.
Table 2: Troubleshooting
39
Page 46
-4 5 14 23 32 37.9 41 50 59 68 77 86 F°
-20 -15 -10 -5 0 3 5 10 15 20 25 30 C°
Table 3: Outdoor and Slab Sensor Resistance Value Table
Note: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2)
this device must accept any interference, including
interference that may cause undesired operation of
the device.
For additional information about Climate Co˘ntrol™
Zoning not pertaining specifically to the T-54
Thermostat, refer to the Climate Co˘ntrol Zoning System
Installation Guide.
40
www.uponor-usa.com • www.uponor.ca
Page 47
Section 11
STOP
System Maintenance
Regular system component checks are recommended
to optimize performance. This system requires no
maintenance, but check system status regularly.
Thermostat Batteries
The thermostats are powered by batteries. Replace the
batteries of the thermostat when the symbol
Base Unit
The Power LED of the Base Unit is always lit. When it
blinks, this means that an alarm has been triggered.
Open the controller cover. The LED of the channel from
which the alarm originated is blinking rapidly. See Section
11: Troubleshooting.
Automatic Exercise Function
The system is tted with an automatic exercise function.
Pump and actuators run every six days to prevent them
from seizing.
appears.
If system is tted with an interface, the exercise
function may be activated at any time.
Cleaning the Zoning System
Use a dry soft cloth to clean the Zoning System
and its components.
Interface Maintenance
• Check for alarms.
• Check the Information Menu every six months.
• Use a dry soft cloth to clean the Zoning System and
all its components.
Disposal of the Product
The Zoning System is made up of various recyclable
components. Dispose of them properly.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
41
Page 48
42
www.uponor-usa.com • www.uponor.ca
Page 49
Section 12
Uponor
20 Dec 2008 1 : 35
Outdoor 64.94˚F
! [14/06] 1.02 Liv. room
Battery Alarm List
1.02 Living.
Battery alarm!
10 Nov 2008
5 : 20
Alarm
! [10/11] 1.01 Therm.
! [10/11] 1.02 Living
! [10/11] 1.02 Living
Alarms
1.02 Liv. room
Battery Alarm !
- Resolved -
14 Jun 2008
2 : 01
Alarm
Troubleshooting
Normal System Operating Conditions
Base Unit
The following indicates that the base unit is
operating properly:
• The power LED of the base unit is lit.
• All channel LEDs are off if there is no demand for
heat.
• LEDs light up when the corresponding actuators
are activated.
• While waiting for the actuators to activate, the
channel LEDs ash, indicating that they are opening.
Thermostat Display T-75
The thermostat is operating properly when the
display shows the room temperature.
Identifying and Resolving Alarms
and Errors
Alarms
Each LED switches off as the corresponding problem is
solved, and the power LED goes back to its normal state
(i.e., always lit). A blinking LED indicator on the base unit
and interface indicates an alarm or error message.
An alarm icon
of the interface display to indicate an alarm. The icon
disappears when the message is read, even if the
issue remains.
appears in the upper right corner
Base Unit Alarm
A blinking power LED indicates an alarm or error
message. To resolve:
1. Remove the base unit cover to see power LED.*
2. If LED is blinking, there is an error.
3. Verify which thermostat is creating the alarm
*If an interface is tted to the system, alarms
display without the need to take the base
unit apart. The interface displays clearly and
accurately the causes of the various alarms.
Note: See Table 10-1, beginning on page 41, for
possible alarms and solutions.
Each LED switches off as the corresponding issue is
solved, and the power LED goes back to its normal state
(i.e., always lit).
Information Menu: Alarms
Alarm menu:
• Battery alarm
• All alarms
Battery Alarm
1. Uponor screen
> Main Menu > Information > Alarms
> Battery Alarm
2. Select the desired alarm.
> Press OK.
Example: There
Alarm
is a battery alarm
regarding the living
room thermostat.
Change batteries in room
thermostats.
Alarms List
1. Uponor screen
> Main Menu > Information > Alarms
> All Alarms
Note: See Table 10-1, beginning on page 41, for
possible alarms and solutions.
Warning: A qualied professional needs to
install the wiring.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
All the alarms are displayed.
The rst alarm is resolved, but
resolution is still needed for the
second and third alarms.
2. Select the desired alarm.
> Press OK.
Example:
The cause of the
Resolved
alarm in the living
room thermostat has
been resolved.
43
Page 50
Short Circuit
1.01 Therm.
Short-circuit!
14 Jun 2008
4 : 01
Alarm
1.02 Living
Radio signal lost!
10 Nov 2008
4 : 20
Alarm
Base Unit
Communication Error!
19 Dec 2008
1 : 38
Alarm
System
Unknown Error!
19 Dec 2008
6 : 38
Alarm
A short circuit is detected on the
channel controlled by thermostat
1.01. (The terminals for the actuators
are protected against short circuits,
therefore there is an error in
the actuator.)
Radio Signal Lost
The radio signal of thermostat 1.02
is lost.
Communication Error
Base unit 3 has a communication
error.
Unknown Error
The system has an unknown error.
Contacting an Installer
Some alarms or errors may require an installer to solve
the issue. See Section 12 to nd contact information.
Prepare the following information before contacting the
installer:
• Installation Report
• List of all alarms, including times and dates
• Drawings of the radiant oor heating system (if
available)
Contacting Uponor
An installer may need to contact Uponor for more
detailed information. Refer to the information in the
interface software version window: Uponor screen
Main Menu
> Information > Software Version.
>
44
www.uponor-usa.com • www.uponor.ca
Page 51
Component Alarms/Issues Causes Solutions Notes
Base Unit • System does not start.
• Power LED off
Base Unit
• Poor radio reception • Antenna mounted inside
and Antenna
• Power LED and channel
LED blink
Thermostat
Battery icon displayed • Thermostat batteries
Display T-75
No voltage Ensure base unit powered
correctly.
Change the location of the
metal cabinet
antenna.
• Antenna out of position
or wire disconnected
• Interference
• Short circuit on a
connected actuator
• Short circuit on the
actuator terminal/wiring
• Use another channel (if an
unused one is remaining).
• For replacement of the
base unit, see Section 3.
error
• Replace the batteries. When the error is
getting low
See Installation Report to
contact an installer.
resolved, the thermostat
screen displays the room
temperature and the battery
icon
disappears.
Display is off • Batteries dead or wrong
Radio transmission icon
is displayed, but the
channel status (LED on/
off) changes only if the
thermostat is close to the
antenna.
Table 10-1: Troubleshooting Solutions
type.
• Batteries installed
incorrectly.
• Transmitter working,
but with reduced signal
intensity
• New installations in the
house create interference.
• Replace the batteries.
• Contact an installer.
• Find a new position
for thermostat and/
or antenna to prevent
interference.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
45
Page 52
Component Alarms/Issues Causes Solutions Notes
Thermostat or
Actuator
Room too cold
Thermostat setting is too
low (corresponding LEDs
ashing).
Press + or – key to
display and change the
temperature setpoint on the
thermometer.
Thermostat inuenced by
a heat source (temperature
Change the location of the
thermostat.
displayed drops when
thermostat is moved)
Thermostats are mixed up. Place each thermostat in the
room supplied by the loops.
• Actuator doesn't open.
Replace the actuator. See Installation Report to
• The white indicator doesn't
display in the indicator
window.
ECO in room information
menu
• Change ECO prole or
assign another prole to
the room.
• End the ECO period by
pressing a thermostat key.
Temperature displayed
in the room information
Change minimum and
maximum limitation.
menu is lower than the
temperature on the
thermostat.
Use minimum and maximum
limitations to protect system
from consequences of
unreasonable temperature
settings.
contact an installer.
Thermostat
Room temperature
OK, but the oor is
cold.
All rooms are cold.
Thermostats of single rooms
are mixed up.
• See Installation Report
and the base unit/
channel numbering under
thermostat battery cover.
• Force thermostat to
transmit and check the
corresponding LEDs are
ashing.
• Place the thermostat in
the room supplied by the
loops controlled by the
thermostat.
Supply system defect: no
warm water in manifold.
Check boiler and circulation
pump.
Vacation mode still on End vacation mode
ECO mode • Change ECO prole or
assign another prole to
the room.
• End the ECO period by
pressing all thermostat
keys.
Table 10-1: Troubleshooting Solutions (cont.)
46
www.uponor-usa.com • www.uponor.ca
Page 53
Component Alarms/Issues Causes Solutions Notes
Thermostat or
Actuator
Interface
Room too warm
The interface is off.
No response or frozen
interface display
Actuator does not close. • Check that the actuator is
correctly mounted.
• Replace the actuator.
Thermostat setting is too
high (corresponding LEDs
ashing).
Press + or – key to
display and change the
temperature setpoint on the
thermometer.
Thermostat inuenced by
a heat source (temperature
Change the location of the
thermostat.
displayed increases when
thermostat is moved)
Thermostats are mixed up. Place each thermostat in
the room supplied by the
loops.
Setting is off when inactive. • Change setting to dimmed
when inactive.
• Display returns when a
key is pressed.
Connection problem • Check the wiring and the
interface connection with
the controller.
• Replace the interface.
System is stalled or
locked up.
Reset the interface: all
parameters are saved,
except for time and date.
See Installation Report to
contact an installer.
Place each thermostat in
the room supplied by the
loops.
• All connected base units
are not found by the
Base Unit
interface.
with Interface
• Base unit ID does not
appear in the menu.
Table 10-1: Troubleshooting Solutions (cont.)
Wiring problems Correct the wiring.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
47
Page 54
Component Alarms/Issues Causes Solutions Notes
Base Unit
with Interface
1 , 2
• Signal
(from a single
thermostat)
• Radio alarm in interface
• Radio icon
in room
information on interface
• Power LED and thermostat
LEDs in the base unit for
connected channels ash
No radio transmission icon
displayed on thermostat
screen when +/- keys
pressed
Radio transmission icon
is displayed, but signals
are received only if the
thermostat close to the
antenna.
Thermostat or antenna not in
correct position.
Transmitter broken in
thermostat
Transmitter working, but with
reduced signal intensity
• Reduce the distance
between thermostat and
base unit.
• Change the location of
the thermostat within the
room.
• Install antenna in correct
position with wire
converter correctly.
• Force the thermostat to
transmit by changing the
temperature setpoint.
• Replace the thermostat.
• To delete the assignment
of the old thermostat and
replace with the new one.
• When the error is
resolved, the
thermostat screen
displays the room
temperature, and
the battery icon
disappears.
Radio icon
replaced with
New installations in the
home create interference.
• Short circuit alarm on
interface
Base Unit,
Interface or
Actuator
• Power LED and concerned
channel LED blink
• Communication error
• Software versions
incompatible
Base Unit or
Interface
• Communication error
• Base unit disappears from
display list.
Table 10-1: Troubleshooting Solutions (cont.)
Interference Find a new position for
thermostat and/or antenna
to prevent interference.
Short circuit on a connected
actuator
Check wiring of the
actuators, replace the
actuator.
Short circuit on the actuator
Replace base unit.
terminal
Wire disconnected or
damaged
• Check wiring of interface
and base unit.
• Replace base unit wire.
Wrong wiring of several base
units, wrong numbering
of the base units or wire
disconnected or damaged
• Check wiring of interface
and base unit.
• Check base unit
conguration.
• Replace wire.
See Installation
Report to contact
installer.
1
Alarm is triggered when more than three hours have elapsed since the base unit received the last radio signal from the thermostat.
2
Power LED on the base unit and relevant channel LEDs blink.
48
www.uponor-usa.com • www.uponor.ca
Page 55
Component Alarms/Issues Causes Solutions Notes
• Display in interface locks
• General failure Reset the interface. • Time and date
up
Interface
• No response when
pressing keys
N/A Change time for pump
Pump
Unfamiliar noise from the
pump at the same time and
exercise.
day of the week
Table 10-1: Troubleshooting Solutions (cont.)
For additional issues, contact Uponor Technical Services at (888) 321-4739 (U.S.) or (888) 994-7726 (Canada)
have to be set.
• All other
parameters are
saved.
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
49
Page 56
50
www.uponor-usa.com • www.uponor.ca
Page 57
Section 13
Installation Report
Installer should provide contact information and indicate assignments for base unit(s), channel numbers and rooms.
Contact Information ____________________________________________________________________________
Company Name ________________________________________________________________________________
Address_______________________________________________________________________________________
_______________________________________________________________________________________
Phone __________________________ Fax _____________________________ e-mail ______________________
Base Unit Number Channels Rooms
#1
Yes 24V
Relay
No 110V
Yes
Pump
No
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
51
Page 58
Option:
Base Unit Number Channels Rooms
#2
52
Yes
Pump
No
www.uponor-usa.com • www.uponor.ca
Page 59
Option:
Base Unit Number Channels Rooms
#3
Yes
Pump
No
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
53
Page 60
54
www.uponor-usa.com • www.uponor.ca
Page 61
Notes:
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
55
Page 62
Notes:
56
www.uponor-usa.com • www.uponor.ca
Page 63
Uponor Climate Co˘ntrol™ Zoning System Installation Guide
57
Page 64
Uponor, Inc.
5925 148th Street West
Apple Valley, MN 55124 USA
Tel: (800) 321-4739
Fax: (952) 891-2008
CCZ_InsG_H176_2-10, Copyright © 2010 Uponor. Printed in the United States
Web: www.uponor-usa.com
Uponor Ltd.
2000 Argentia Rd., Plaza 1, Ste. 200
Mississauga, ON L5N 1W1 CANADA
Tel: (888) 994-7726
Fax: (800) 638-9517
Web: www.uponor.ca
Loading...
