Upm HTM611A User Manual

7 Day Programmable Thermostat

for electric baseboards and radiant heating

High VOLTAGE
120V/240V AC, 60Hz

Model No.

HTM611A

Features:

Ideal for el ectric base boards, fan assisted (co nvectors) and radiant f loor/ceil ing hea ting
7 day prog ramming with 4 prog ram s per day
Copy one day’s program to ano ther day
Temperature display and prog ram ming in Ce lsius or F ahrenh eit
Precisi on temperature con trol, set in half de grees
Precisi on heating (Variance 0.3 Ce lsi us)

±
Selectab le cycle rates for more energy eff ici ent hea ting
TRIAC system (Quiet operation)
Usage monitor - tr acks accu mulated heating “ON” time
12 or 24 hou r clock display
Simple two wire install ation
High-l imit fun ction

SPECIFICATIONS

Installation kit includes:

- 2 Screws

- 2 Wire Nuts

Rating: 120V /240V AC, 60Hz
MAXIM UM LOAD: (12.5A)
3000W @ 240V or
1500W @ 120V

* NOT COMPATIBLE WITH ANY

LOW VOLTAGE CIRCUIT

OR CENTRAL HEATING FURNACE

MINIM UM LOAD: 500W

Table of Contents

Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Programming Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

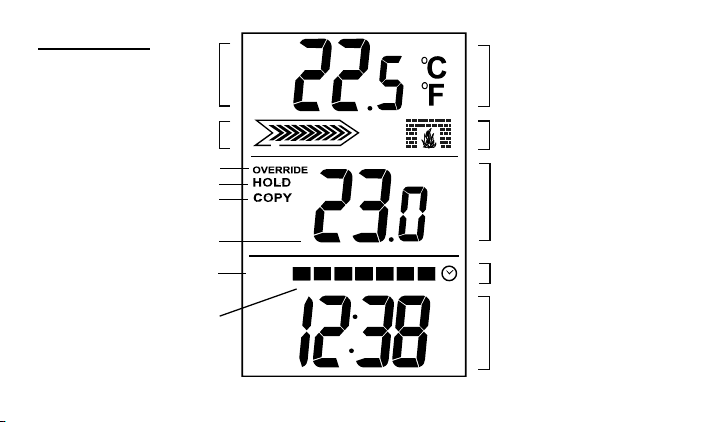

LCD Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

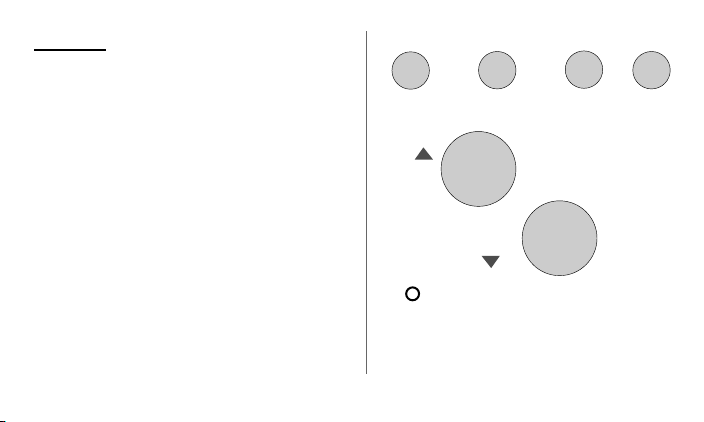

Button Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Set Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Set ºC or ºF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

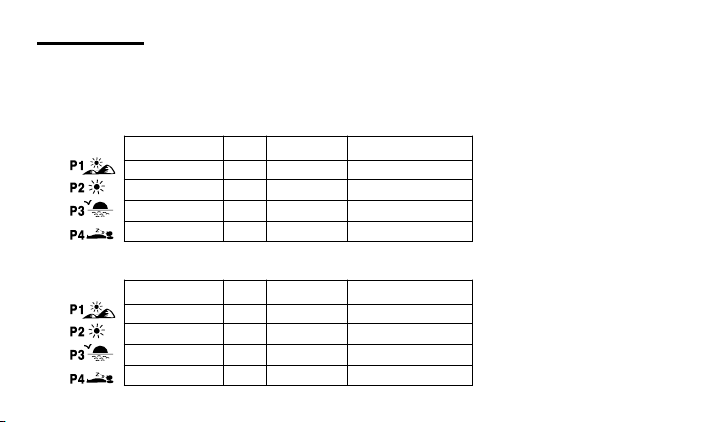

Program Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

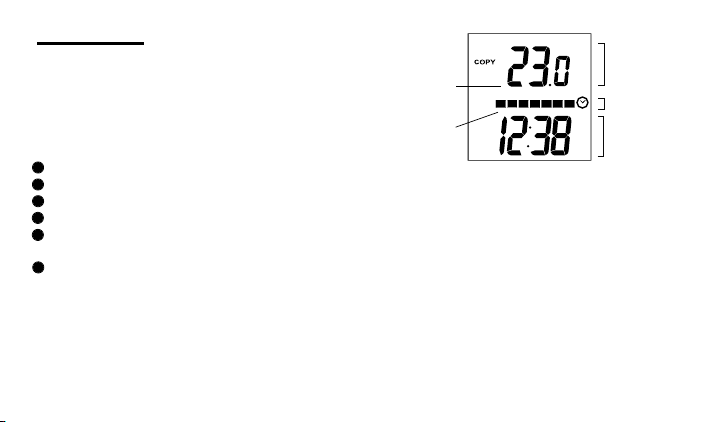

Copy Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Temporary Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Hold Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Usage Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Memory Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Thermostat Surface Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Option Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Pre-comfort Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Heating Cycle Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

High-Limit Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

1

Installation

Guide

2

Installation Guide

Introduction

This thermostat is compatible with electric baseboards, fan- forced (convectors) and radiant
floor/ceiling heating systems. The unit is rated for high voltage wiring only (120V / 240V).
The minimum load requirement is 500W. This thermostat is NOT compatible with central heating
systems (24 volt or millivolt). Please see the compatibility chart on the next page for more details.

Warning

IT IS STRONGLY RECOMMENDED TO HAVE A CERTIFIED ELECTRICIAN
ON SITE TO ENSURE THE SAFE INSTALLATION OF YOUR THERMOSTAT.

The manufacturer assumes no responsibility for improper wiring, or any resulting damages.
Improper installation by a non-professional automatically voids the warranty.

3

Compatibility

Generally, equipment with high voltage control is only compatible with the electric baseboards,
convectors or radiant heating systems.

System Type

Central Heating Furnace System(24V)
Radiant Floor
Baseboard Electric Heater (120/240V)
Fan Assisted (Convectors)
Radiant Floor or Ceilings

* NOT COMPATIBLE WITH CENTRAL HEATING FURNACES (LOW VOLTAGE CIRCUITS)
* DO NOT WIRE TO A SYSTEM EXCEEDING 12.5A (3000@240V, 1500W@120V)

Compatible with Thermostat

No

No
Yes
Yes
Yes

4

Choosing a location for the new thermostat

Thermostat should be mounted:

On the existing metal electrical box which controls your heater.

Note: Ensure the thermostat is not near heat sensitive / flammable material such as exposed wood,
wallpaper or a desk full of papers. The normal surface temperature of the thermostat 45°C - 50°C
(113°F - 122°F) while in operation. The thermostat is rated to operate safely at these temperatures
but should be kept away from fire hazards.

For NEW home installation, the metal electrical box and thermostat should NOT be mounted:

Near temperature-radiating objects which may cause false readings
(For example: in front of a window, next to a door leading outside, or near the heat from a lamp,
direct sunlight, or a fireplace)
Near concealed pipes and chimneys.
In areas with poor air circulation, such as behind a door or in an alcove.

5

INSTALLATION

IT IS STRONGLY RECOMMENDED TO HAVE A CERTIFIED ELECTRICIAN
ON SITE TO ENSURE THE SAFE INSTALLATION OF YOUR THERMOSTAT.

The manufacturer assumes no responsibility for improper wiring, or any resulting damages.
Improper installation by a non-professional automatically voids the warranty.

Before installation begins:

Verify that the heating appliance being connected to is within the specified load range
Ensure that the thermostat being replaced is also rated for 120 or 240 volts.
Ensure that the heating system is protected by appropriate circuit breakers or fuses
Connect to COPPER conductors only.

TO AVOID FIRE, SHOCK, OR DEATH; SHUT OFF POWER SUPPLY
AT THE CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS

*

OFF BEFORE WIRING.

6

INSTALLATION

Remove the old thermostat carefully and identify the

1

two wires from the wall box.
The wiring designation is generally:
BYPASS / CONNECT

Gently remove the faceplate from the new thermostat

2

but DO NOT remove the screws from the back of the
unit because these screws hold the thermostat
together.

Using the wire nuts provided, securely fasten each

3

wire from the new thermostat to the live wires in the
wall box. Refer to the diagram.

NOTE: ENSURE NO BARE WIRE IS EXPOSED.

*Note: If there are 4 wires connected to the old thermostat,
the 2 extra wires should be connected together a wire nut.
(not supplied)

4

Mount the thermostat into the wall box, using two
screws through the mounting holes, then replace the
faceplate. (Place screws in the 2 right or 2 left holes)

5

Reconnect power supply.

7

P
U

WN
O
D

4-WIRE INSTALLATION:

Metal Wall Box

25.8

Wire Nut Wire Nut

*120-240V AC Lines

23.0

PM

8:15

UP

DOWN

Wire Nut

* Remove Faceplate

To remove the
thermostat faceplate,
very gently apply
pressure to the crease
of the thermostat to
detach the four
notches, then pull the
faceplate forward.

Electric
Heater

Connect

Bypass
