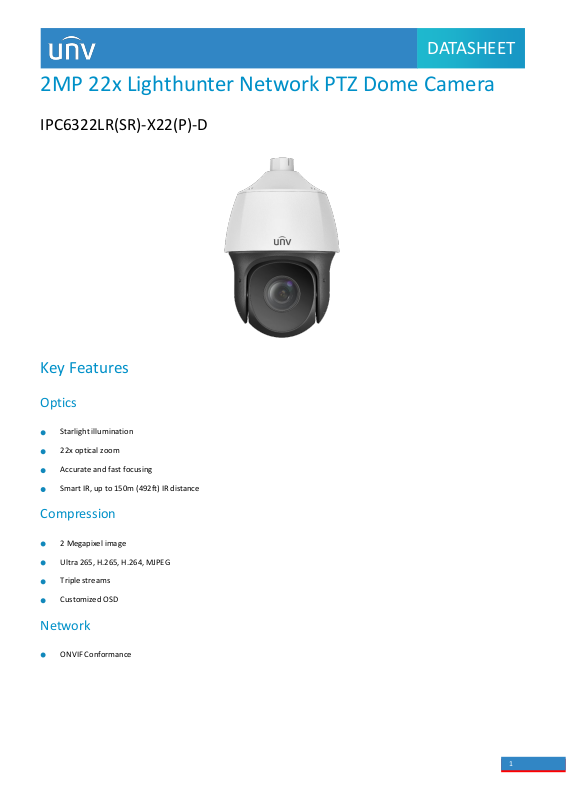

DATASHEET
2MP 22x Lighthunter Network PTZ Dome Camera
IPC6322LR(SR)-X22(P)-D
Key Features
Optics
Starlight illumination
22x optical zoom
Accurate and fast focusing
Smart IR, up to 150m (492ft) IR distance
Compression
2 Megapixel image
Ultra 265, H.265, H.264, MJPEG
Triple streams
Customized OSD
Network
ONVIF Conformance
1
Structure
Innovative snow-removing functionality
Intelligent temperature control technology
6KV surge protection designed for network interface
IP66
Specifications
IPC6322SR-X22P-D IPC6322LR-X22-D
Camera
Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens 5.2 ~ 114.4mm, AF automatic focusing and motorized zoom lens
Digital Zoom 16
Optical Zoom 22
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
DORI Distance
Angle of View (H) 53.4° ~ 2.7°
Angle of View (V) 32.3° ~ 1.5°
Angle of View (O) 60.3° ~ 3.1°
Shutter Auto/Manual; shutter time: 1 ~ 1/100000s
Minimum Illumination
5.2 80.7(264.7ft) 32.3(105.9ft) 16.1(52.9ft) 8.1(26.5ft)
114.4 1775.2(5824.1ft) 710.1(2329.6ft) 355.0(1164.8ft) 177.5(582.4ft)
Colour: 0.001 lux (F1.5,AGC ON)
0 lux with IR
DATASHEET
Iris Auto/Manual; F1.5 ~ F3.8
Day/Night
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range UP to 150m (492ft)
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate
HLC Supported
BLC Supported
EIS Supported
OSD Up to 8 OSDs
Privacy Mask Up to 24 areas(Up to 8 blacks or 8 mosaic in the same picture)
IR-cut filter with auto switch (ICR)
Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
2
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Watermark, IP Address Filtering, Tampering Alarm, Alarm
General Function
Audio
Audio Compression G.711 N/A
Two-way audio Supported N/A
Suppression Supported N/A
Sampling Rate 8KHZ N/A
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range 360° (endless)
Pan Speed
Tilt Range -15° ~ 90° (auto reverse)
Tilt Speed
Number of Presets 1024
Patrol Preset patrol, route patrol, recorded patrol
Home Position Supported
Interface
Audio I/O
input, Alarm output, Access Policy, ARP Protection, RTSP
Authentication, User Authentication
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,
SNMP, QoS, RTMP
2°/s ~ 75°/s
Preset speed:180°/s
2° ~ 75°/s
Preset speed: 80°/s
Audio cable
1 Output: impedance 600Ω; amplitude 2V [p-p]
Watermark, IP Address Filtering, Tampering Alarm, Access
Policy, ARP Protection, RTSP Authentication, User
Authentication
N/A 1 Input: impedance 35kΩ; amplitude 2V [p-p]
DATASHEET
Alarm I/O 1/1 N/A
Serial Port N/A N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A N/A
General
Power
Dimensions (Ø x H) Ø220 x 369mm (Ø8.7” x 14.5”)
Weight 3.4kg (7.5lb) 3.3kg (7.3lb)
Working Environment -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Ingress Resistant IP66
Reset Button Supported
DC 12V±10%, PoE (PSE required) DC 12V±10%
Power consumption: 4~27.6W Power consumption: 4~23.5W
3
Dimensions
DATASHEET
Zhejiang Uniview Technologies Co., Ltd.
Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051)
Email: overseasbusiness@uniview.com; globalsupport@uniview.com
http://www.uniview.com
©2020 Zhejiang Uniview Technologies Co., Ltd. All rights reserved.
*Product specifications and availability are subject to change without notice.
