UNV IPC240 Series Quick Manual

Network Bullet Cameras

Quick Guide

Manual Version: V1.01

Thank you for purchasing our product. If there are any questions,
or requests, please do not hesitate to contact the dealer.

Copyright

Copyright 2015 Zhejiang Uniview Technologies Co., Ltd. All rights
reserved. No part of this manual may be copied, reproduced,
translated, or distributed in any form or by any means without
prior consent in writing from our company.

Trademark Acknowledgement

and other Uniview’s trademarks and logos are the

property of Zhejiang Uniview Technologies Co., Ltd. Other
trademarks, company names and product names contained in this
manual are the property of their respective owners.

Disclaimer

The default password is used for your first login. To ensure
account security, please change the password after your first
login. You are recommended to set a strong password (no
less than eight characters).

 To the maximum extent permitted by applicable law, the

product described, with its hardware, software, firmware
and documents, is provided on an "as is" basis.

 Best effort has been made to verify the integrity and

correctness of the contents in this manual, but no statement,
information, or recommendation in this manual shall
constitute formal guarantee of any kind, expressed or
implied. We shall not be held responsible for any technical or
typographical errors in this manual. The contents of this
manual are subject to change without prior notice. Update
will be added to the new version of this manual.

 Use of this manual and product and the subsequent result

shall be entirely on your own responsibility. In no event shall
we be reliable to you for any special, consequential,
incidental, or indirect damages, including, among others,
damages for loss of business profits, business interruption,
or loss of data or documentation, or product malfunction or

information leakage caused by cyber attack, hacking or virus
in connection with the use of this product.

 Video and audio surveillance can be regulated by laws that

vary from country to country. Check the law in your local
region before using this product for surveillance purposes.
We shall not be held responsible for any consequences
resulting from illegal operations of the device.

 The illustrations in this manual are for reference only and

may vary depending on the version or model. As a result,
some of the examples and functions featured may differ
from those displayed on your monitor.

 This manual is a guide for multiple product models and so it

is not intended for any specific product.

 Due to uncertainties such as physical environment,

discrepancy may exist between the actual values and
reference values provided in this manual. The ultimate right

to interpretation resides in our company.

Environmental Protection

This product has been designed to comply with the requirements
on environmental protection. For the proper storage, use and
disposal of this product, national laws and regulations must be
observed.

Safety and Compliance Information

Safety Symbols

The symbols in the following table may be found on
installation-related equipment. Be aware of the situations
indicated and take necessary safety precautions during
equipment installation and maintenance.

Symbol

Description

Generic alarm symbol: To suggest a general safety
concern.

ESD protection symbol: To suggest
electrostatic-sensitive equipment.

Electric shock symbol: To suggest a danger of high
voltage.

The symbols in the following table may be found in this manual.
Carefully follow the instructions indicated by the symbols to avoid
hazardous situations and use the product properly.

Symbol

Description

WARNING! Indicates a hazardous situation which, if

not avoided, could result in bodily injury or death.

CAUTION! Indicates a situation which, if not
avoided, could result in damage, data loss or

Symbol

Description

malfunction to product.

NOTE! Indicates useful or supplemental information
about the use of product.

Safety Information

Installation and removal of the unit and its accessories must be
carried out by qualified personnel. Please read all of the safety
instructions below before installation and operation.

Installation

 This device is a class A product and may cause radio

interference. Take measures if necessary.

 If the product does not work properly, please contact your

dealer. Never attempt to disassemble the camera yourself.
(We shall not assume any responsibility for problems caused
by unauthorized repair or maintenance.)

 Make sure the power supply voltage is correct before using

the camera.

 Do not drop the camera or subject it to physical shock.
 Do not touch sensor modules with fingers. If cleaning is

necessary, use a clean cloth with a bit of ethanol and wipe it

gently. If the camera will not be used for an extended period
of time, put on the lens cap to protect the sensor from dirt.

 Do not aim the camera lens at the strong light such as sun or

incandescent lamp. The strong light can cause fatal damage
to the camera.

 The sensor may be burned out by a laser beam, so when any

laser equipment is being used, make sure that the surface of
the sensor not be exposed to the laser beam.

 Avoid squashing, shaking, or damping the IP camera

(referred to as camera in this manual) during transport,
storage, and mounting. Keep the camera from vibration
sources during mounting.

 Use a proper power adapter or PoE power supply device. An

improper power adapter may damage your camera.

 Verify that the length of the power cable between the power

adapter and the camera does not exceed 1.5 m. If the power
cable is longer than 1.5 m, the voltage of the camera is
lowered, causing the camera to work abnormally. If it is
required to lengthen the power cable, lengthen the cable
between the power adapter and the mains.

 Be sure to disconnect the power before moving the camera,

and take cautions to avoid electric shock when moving it.
Once the cable is connected to the mains, the camera will be
powered.

 Do not hold the tail cable by hand for weight bearing.

Otherwise, the cable connector of the camera could be
loosened.

 Do not cut the tail cable. A bare tail cable may easily cause a

short circuit, resulting in abnormality of the camera.

 When connecting to an external interface, use an existing

connection terminal, and ensure that the cable terminal
(latch or clamp) is in good condition and properly fastened.
Ensure that the cable is not tense during mounting, with a
proper margin reserved to avoid poor port contact or
loosening caused by shock or shake.

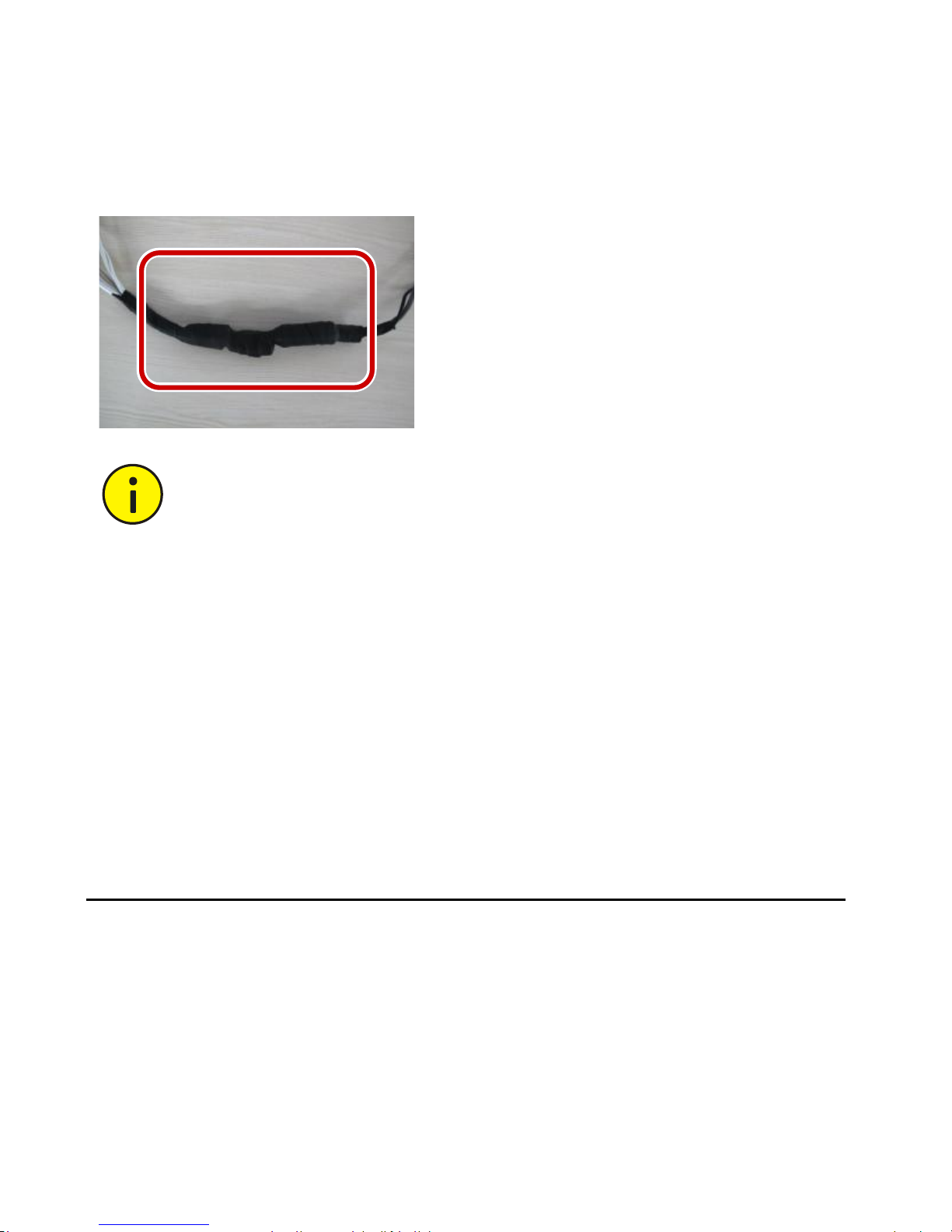

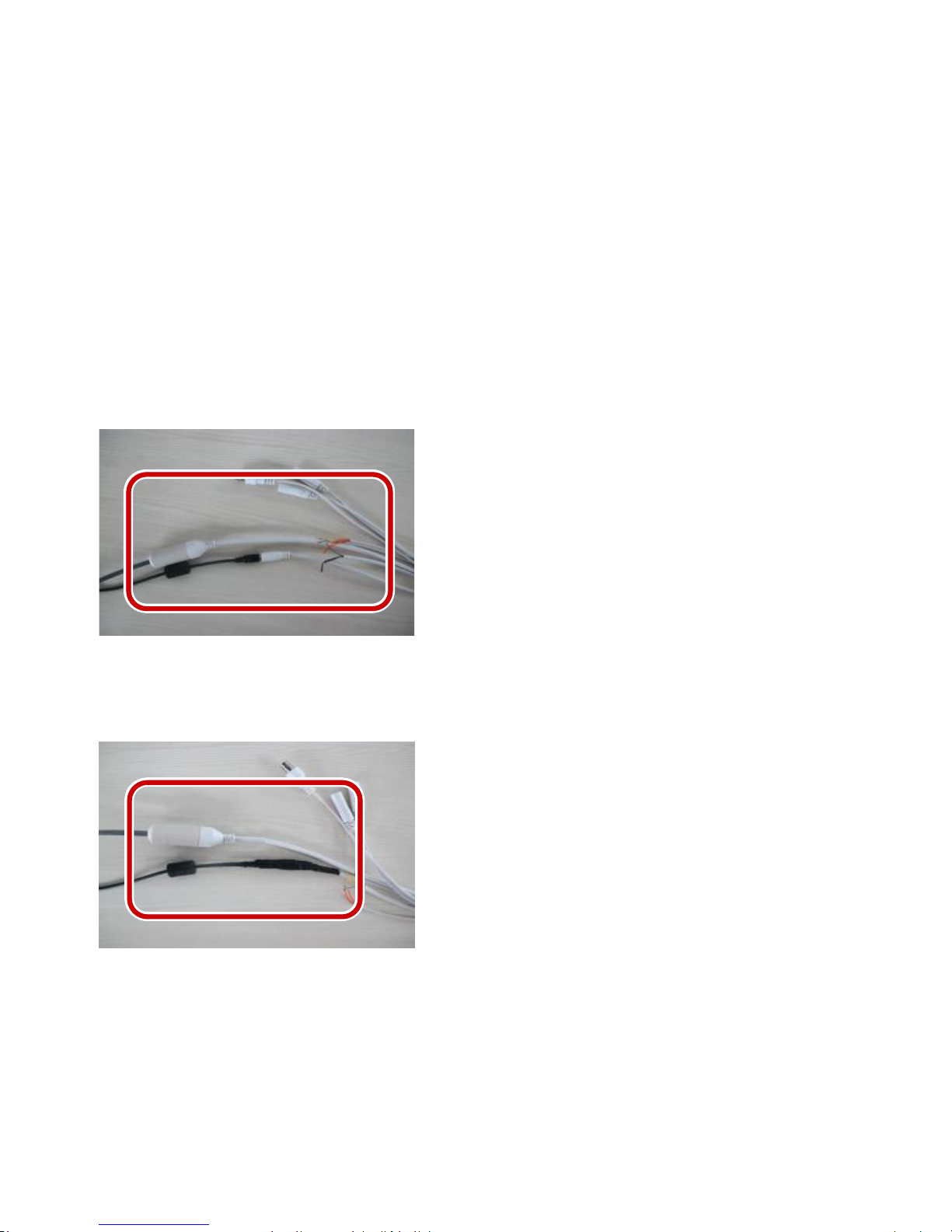

 Use the waterproof tapes to protect the end of tail cable,

and keep the tail cable from water.

 Ensure that the high level signal of the alarm input is not

higher than 5 VDC when the alarm input interface is
connected.

 When mounting the camera on the wall or ceiling, ensure

that the wall or ceiling can bear the weight of the camera.

Maintenance

 If there is dust on the front glass surface, remove the dust

gently using an oil-free brush or a rubber dust blowing ball.

 If there is grease or a dust stain on the front glass surface,

clean the glass surface gently from the center outward using

anti-static gloves or an oil-free cloth. If the grease or the
stain still cannot be removed, use anti-static gloves or an
oil-free cloth dipped with detergent and clean the glass
surface gently until it is removed.

 Do not use organic solvents, such as benzene or ethanol

when cleaning the front glass surface.

 Never look at the transmit laser while the power is on.

Never look directly at the fiber ports and the fiber
cable ends when they are powered on.

 Use of controls or adjustments to the performance or

procedures other than those specified herein may
result in hazardous laser emissions.

Regulatory Compliance

FCC Part 15

This equipment has been tested and found to comply with the
limits for digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.

This product complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

LVD/EMC Directive

This product complies with the European Low Voltage Directive
2006/95/EC and EMC Directive 2004/108/EC.

WEEE Directive–2002/96/EC

The product this manual refers to is covered by the Waste
Electrical & Electronic Equipment (WEEE) Directive and must be
disposed of in a responsible manner.

i

Contents

1 Appearance ........................................................................... 1

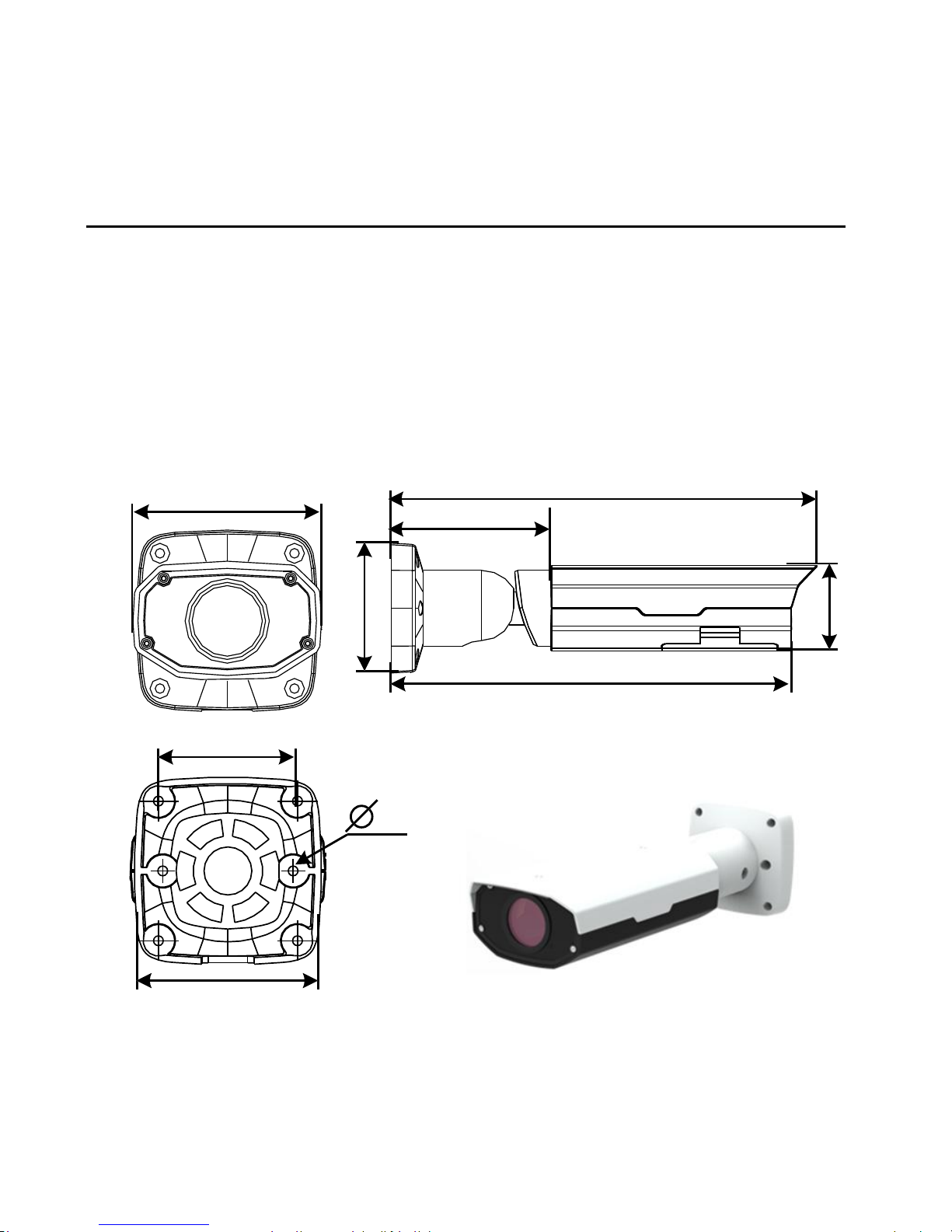

Dimensions and Appearance ................................................... 1

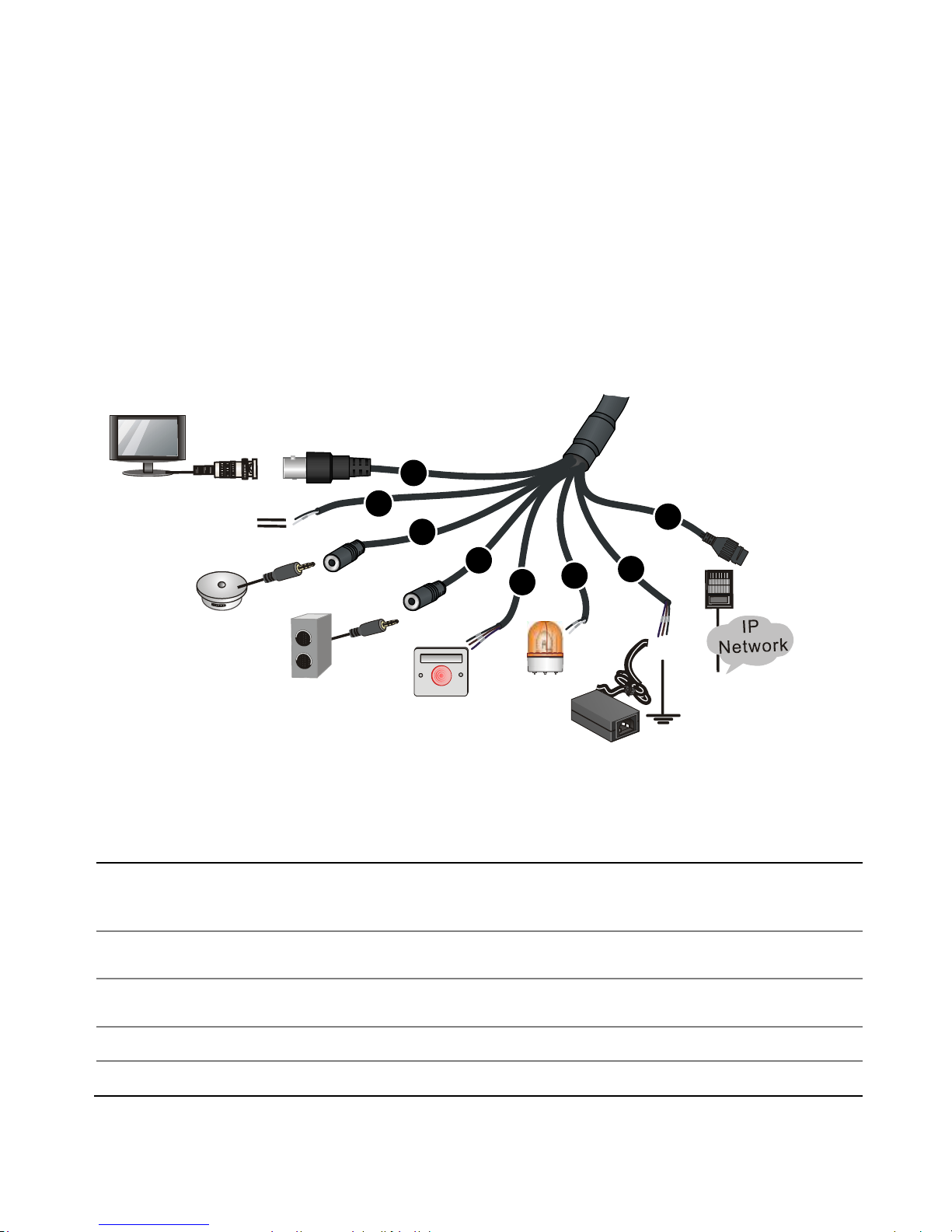

Cable Connection ..................................................................... 2

Status Indicators ...................................................................... 3

2 Mount Your Camera .............................................................. 4

Hardware Installation .............................................................. 4

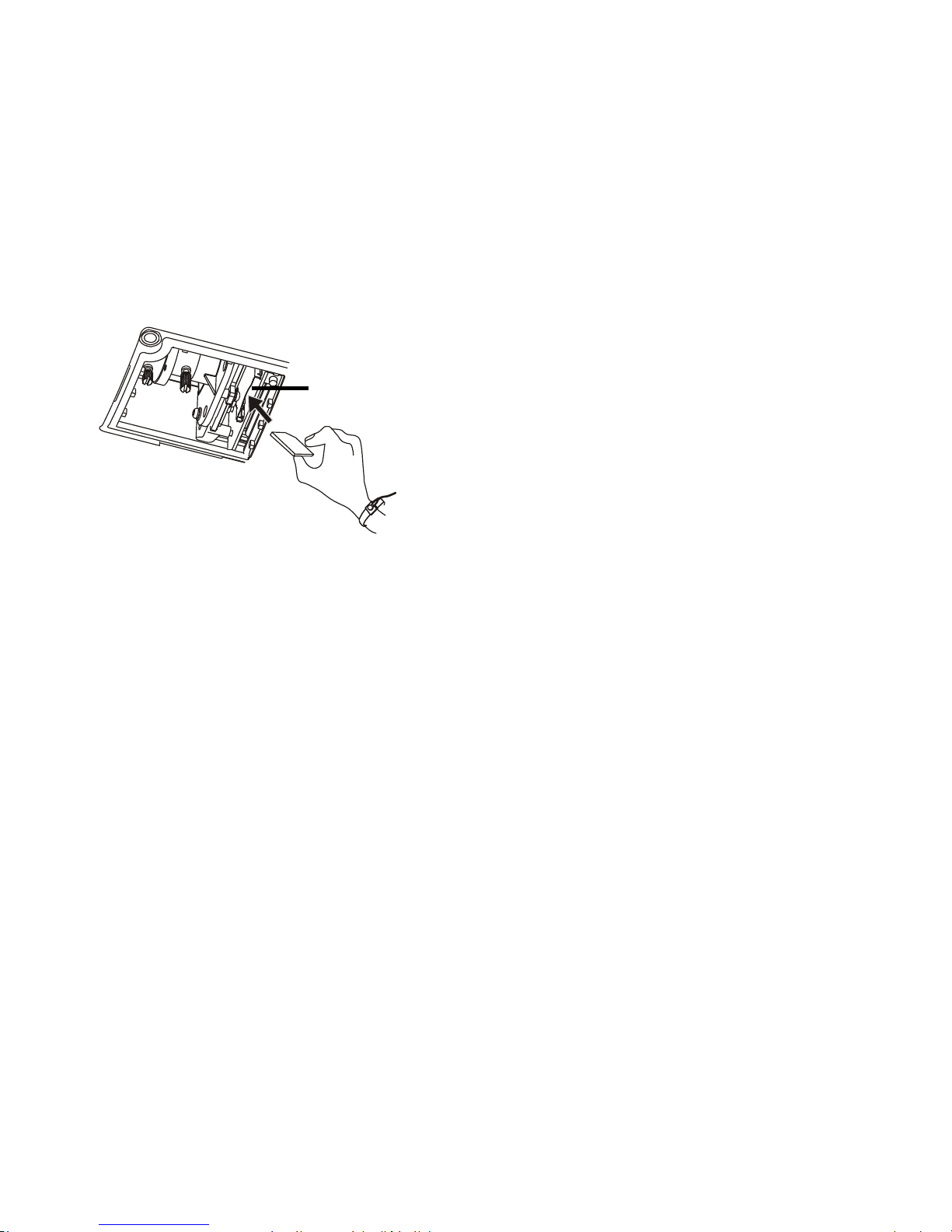

Insert the Micro SD Card (Optional) .................................... 4

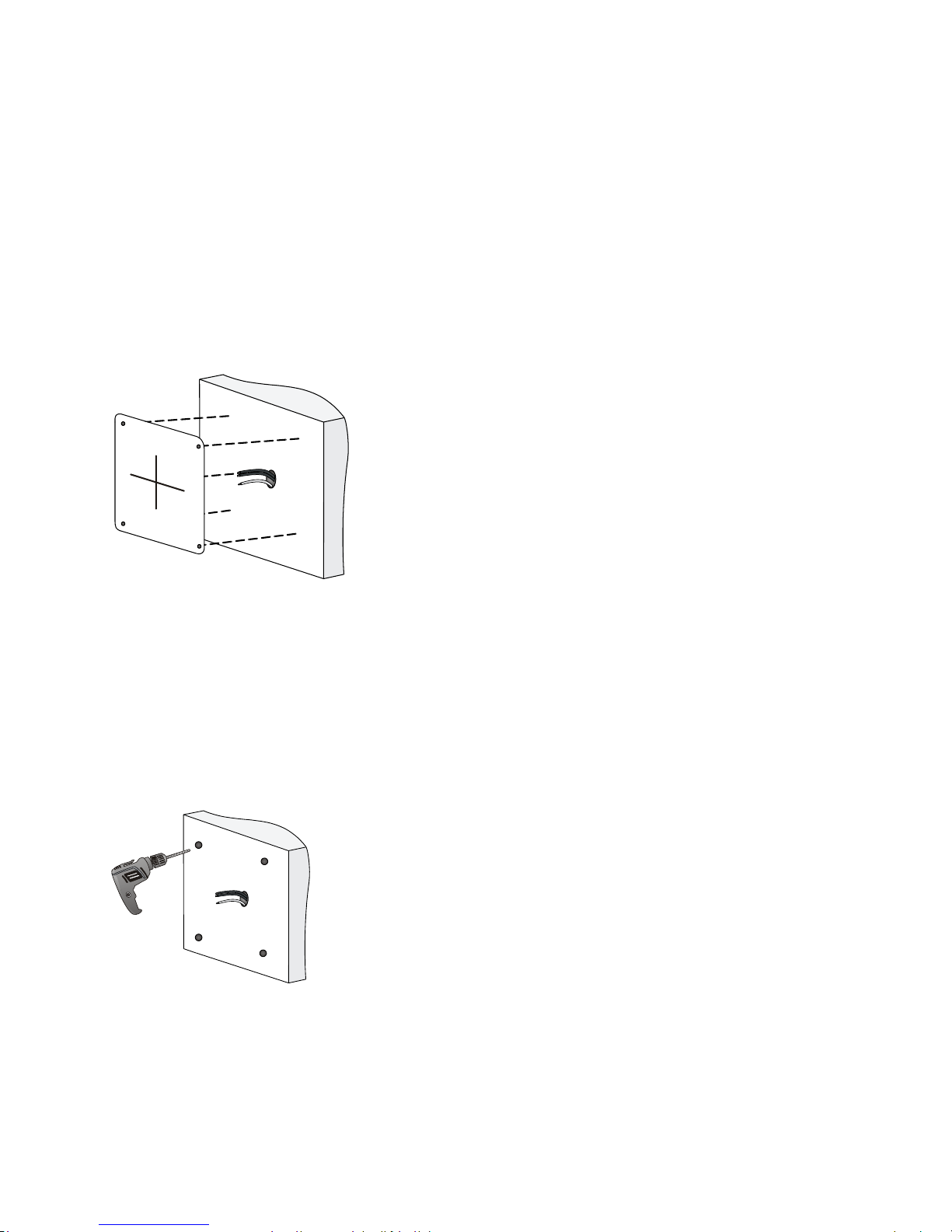

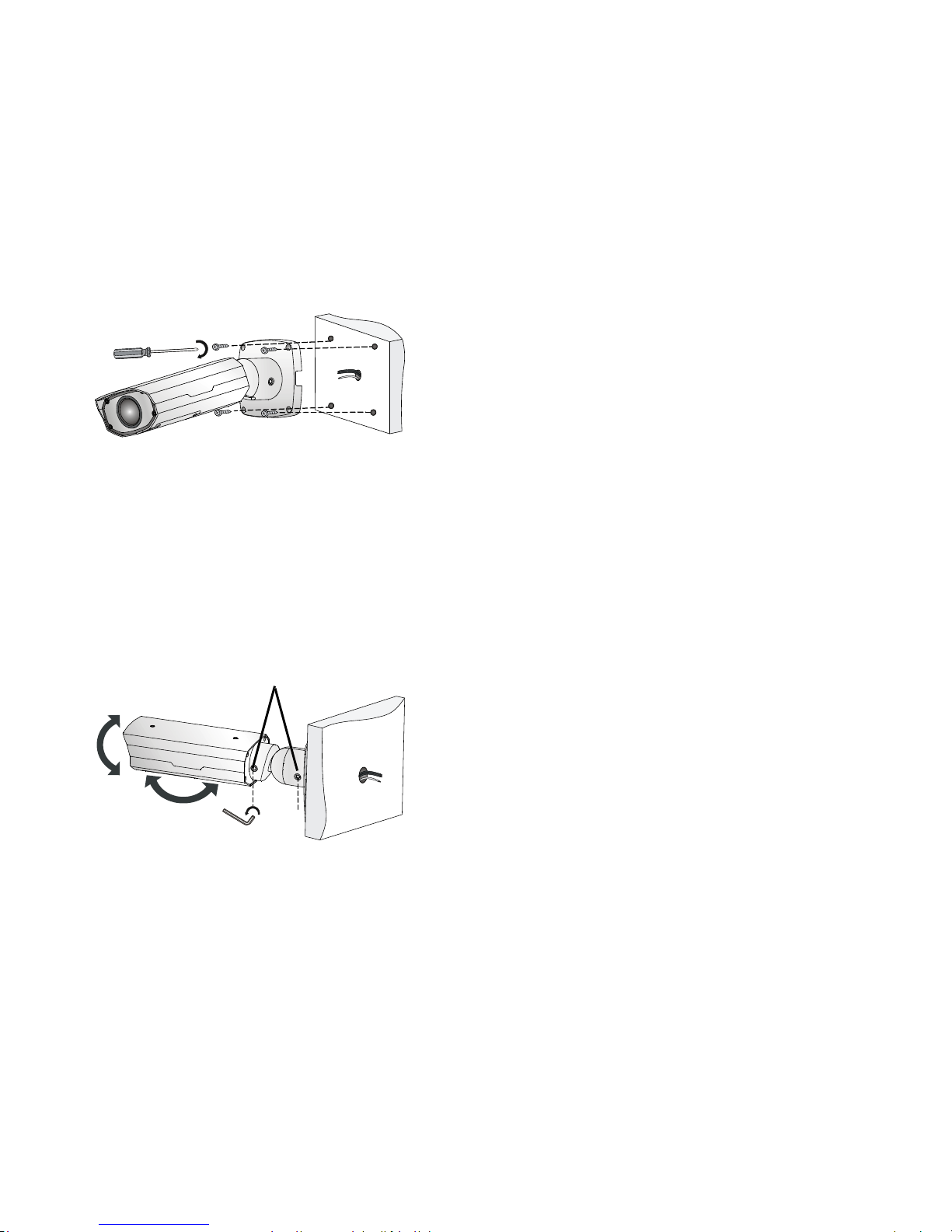

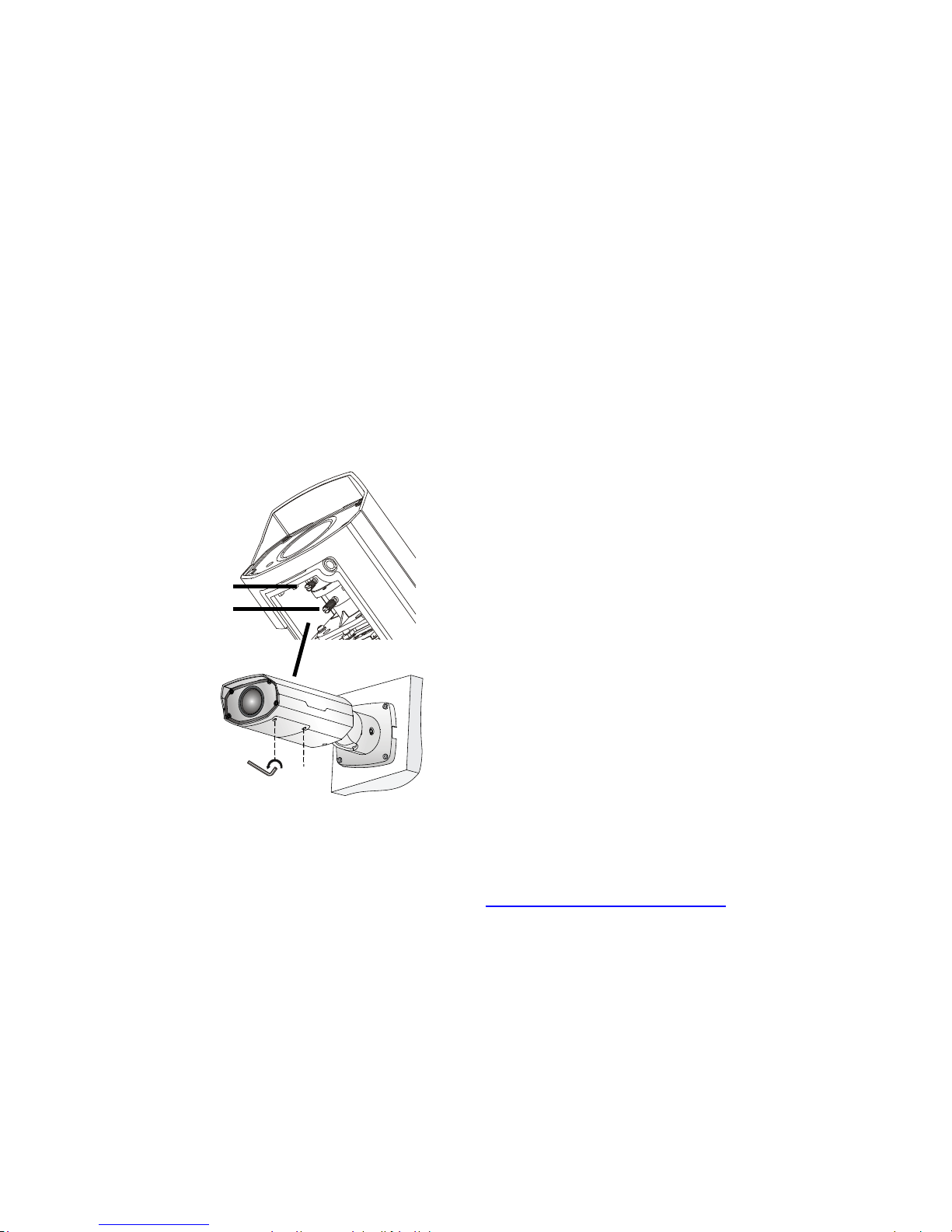

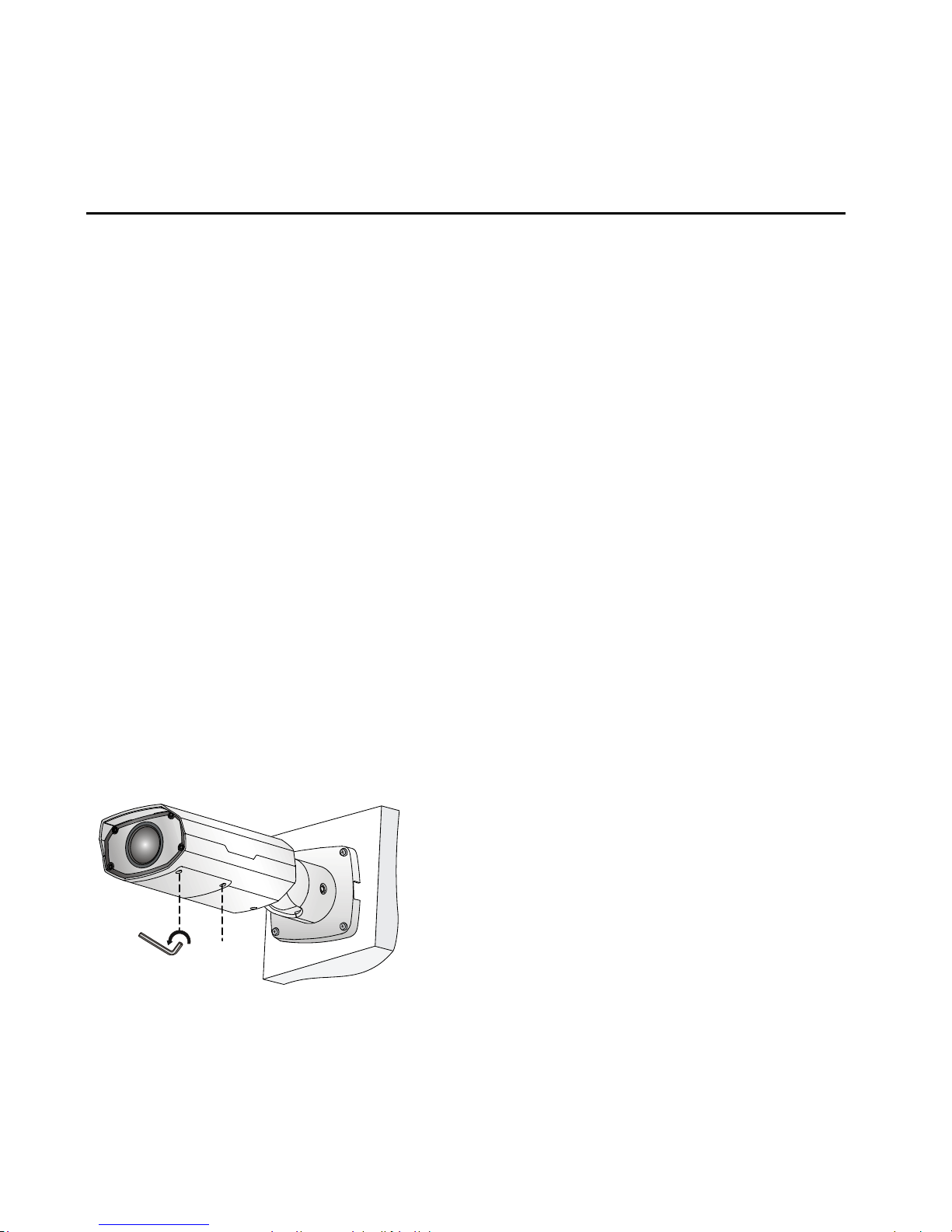

Wall Mount ......................................................................... 5

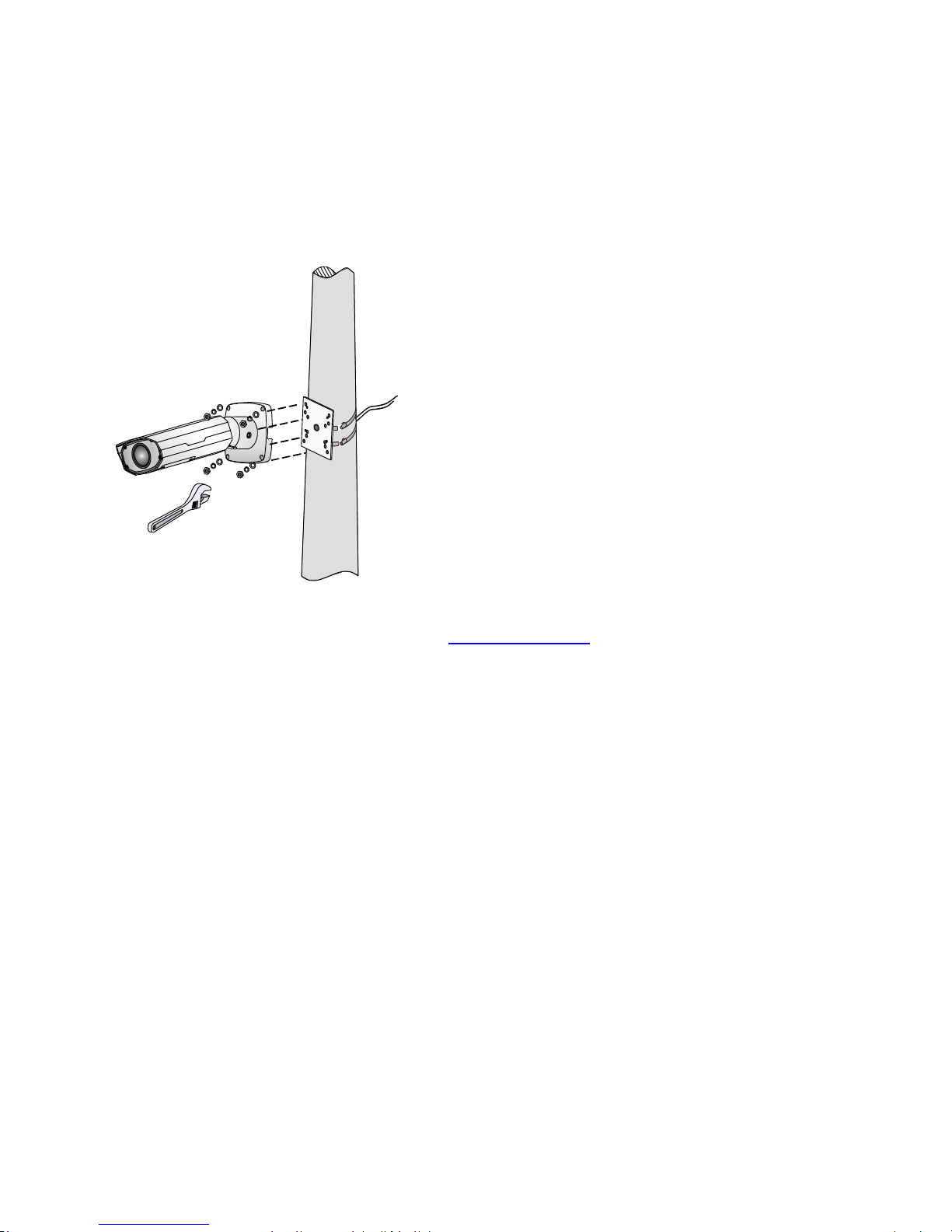

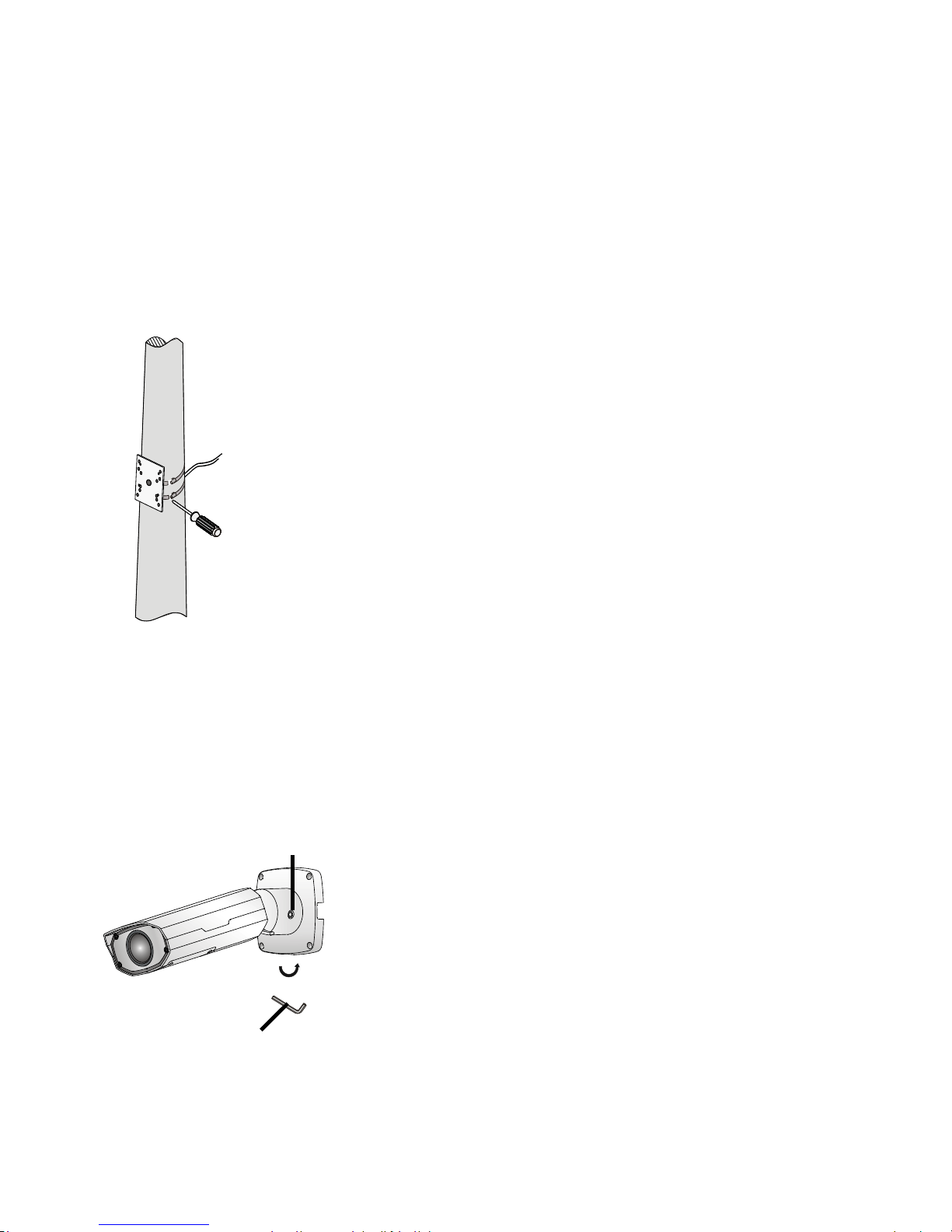

Pole Mount ....................................................................... 11

Start the Camera ............................................................... 12

Reset the Camera to Default Settings ............................... 12

Waterproof Measures ............................................................ 13

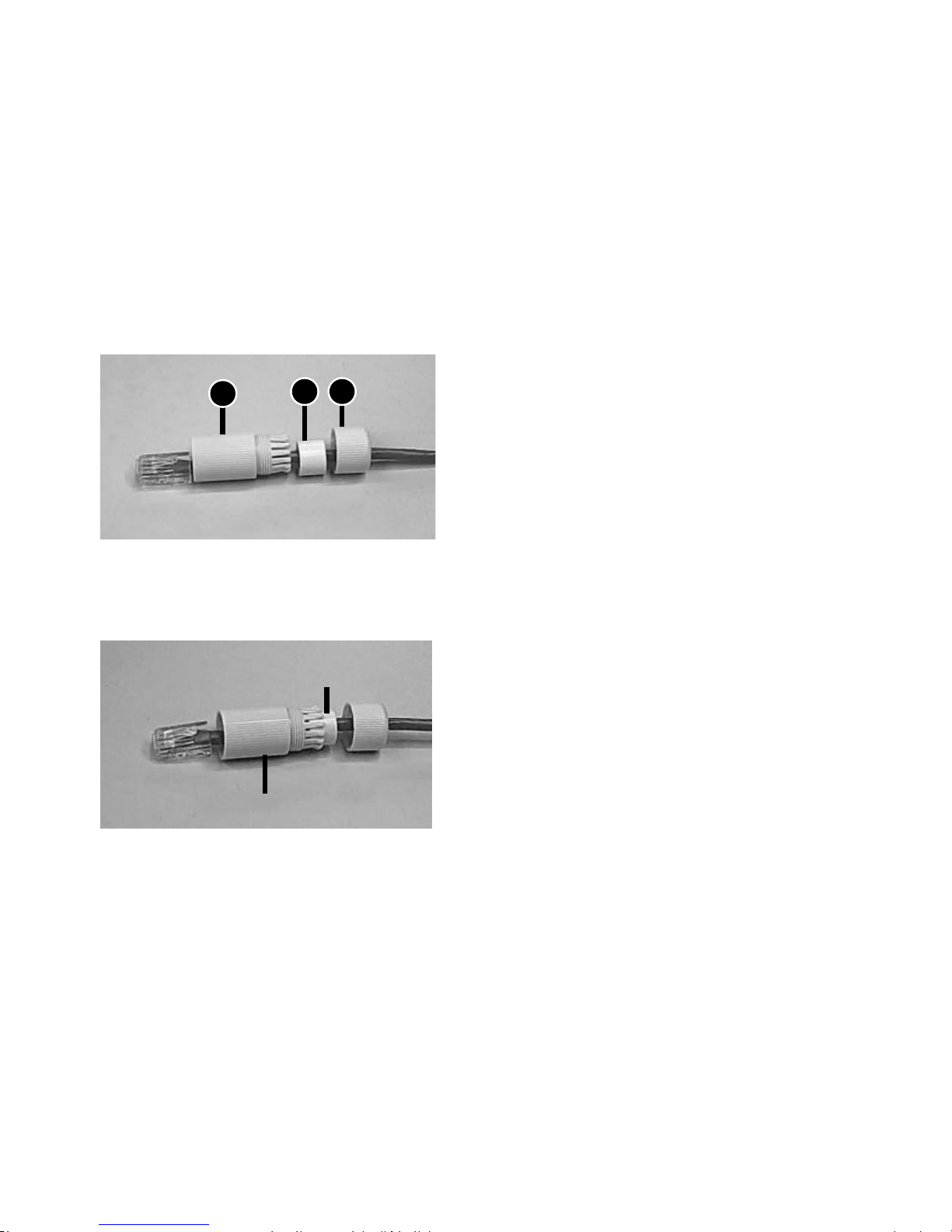

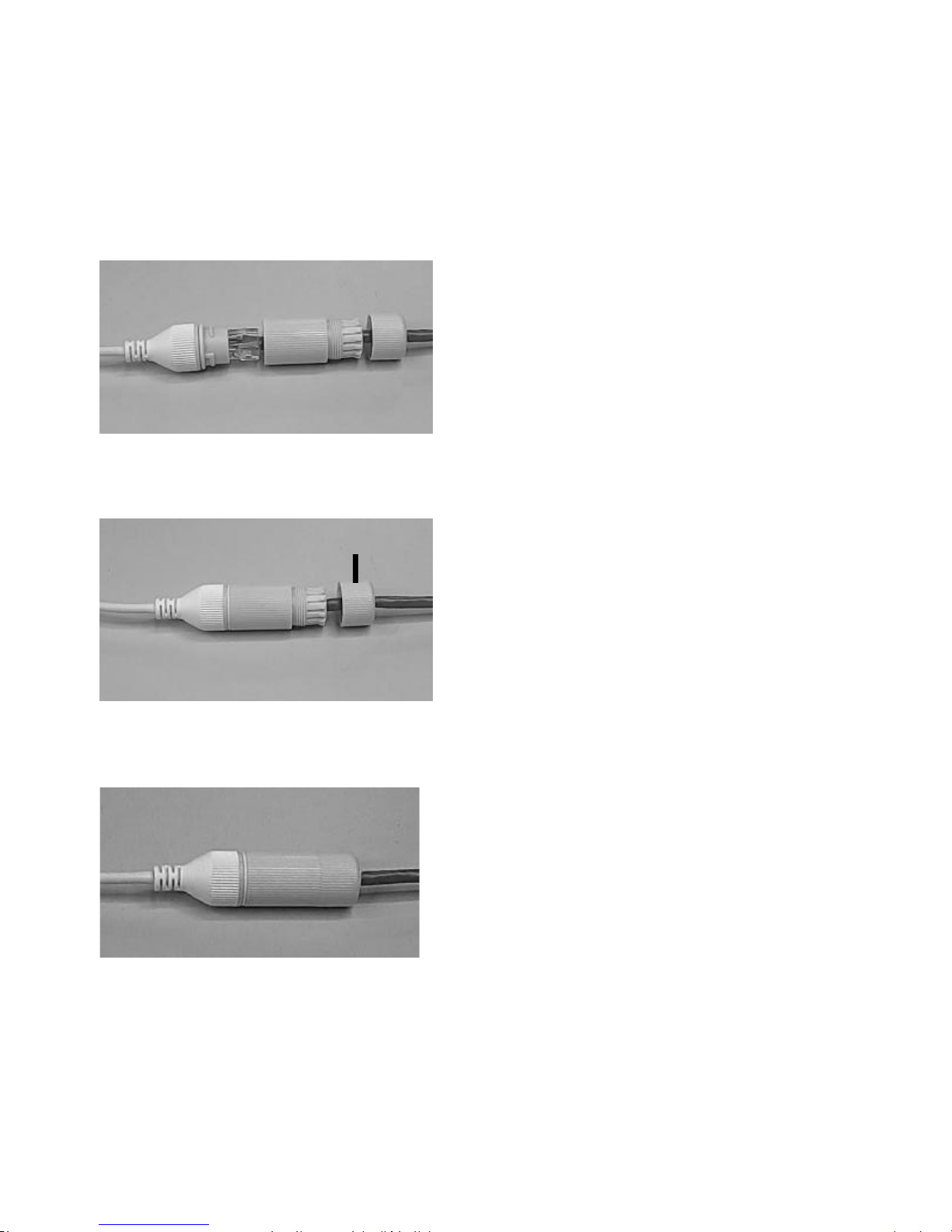

Waterproof Components for an RJ45 Plug ....................... 13

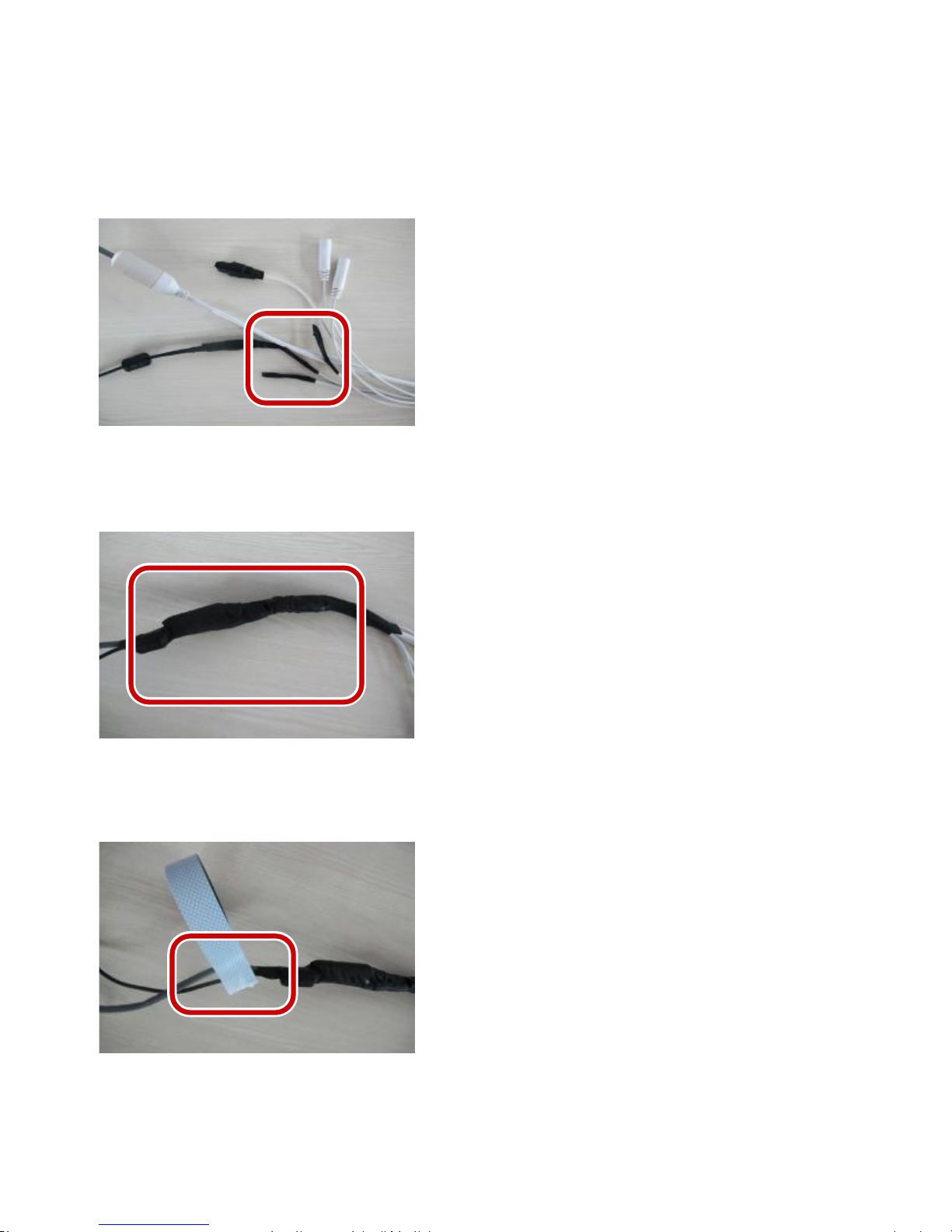

Waterproof Tail Cable ....................................................... 16
