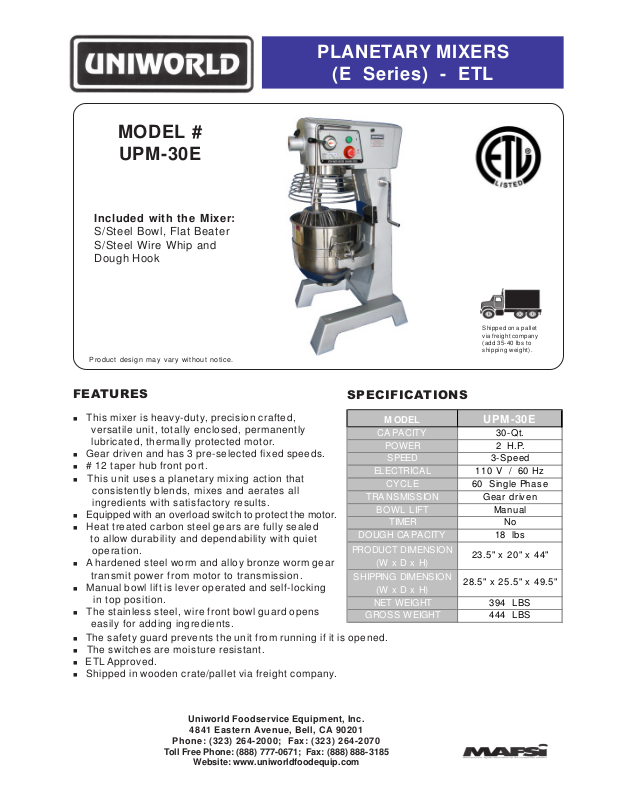

Uniworld UPM-30E User Manual

MODEL #

M ODEL

UP M -30E

CA PA CITY

30-Qt.

POWER 2 H.P.

SPEED 3- Speed

ELECTRICA L 110 V / 60 Hz

CY CLE 60 S ing le Phas e

TRA NSMISSION Gear driven

BOWL LIFT Manual

TIMER No

DOUGH CA PA CITY 18 lbs

PRODUCT DIMENSION

(W x D x H)

23.5" x 20" x 44 "

SHIPPING DIMENSION

(W x D x H)

28.5" x 25.5" x 49 .5"

NET WEIGHT 394 LBS

GROSS WEIGHT 444 LBS

UPM-30E

Included with the Mixer:

S/Steel Bowl, Flat Beater
S/Steel Wire Whip and
Dough Hook

Product design may vary without notice.

PLANETARY MIXERS

(E Series) - ETL

Shipped on a pallet
via freight company
(add 35-40 lbs to
shipping weight).

FEATURES

n This mixer is heavy-duty, precision crafted,

versatile unit, totally enclosed, permanently
lubricated, thermally protected motor.

n Gear driven and has 3 pre-selected fixed speeds.
n # 12 taper hub front port.
n This unit uses a planetary mixing action that

consistently blends, mixes and aerates all
ingredients with satisfactory results.

n Equipped with an overload switch to protect the motor.
n Heat treated carbon steel gears are fully sealed

to allow durability and dependability with quiet
operation.

n A hardened steel worm and alloy bronze worm gear

transmit power from motor to transmission.

n Manual bowl lift is lever operated and self-locking

in top position.

n The stainless steel, wire front bowl guard opens

easily for adding ingredients.

n The safety guard prevents the unit from running if it is opened.
n The switches are moisture resistant.
n ETL Approved.
n Shipped in wooden crate/pallet via freight company.

SPECIFICATIONS

Uniworld Foodservice Equipment, Inc.

4841 Eastern Avenue, Bell, CA 90201

Phone: [phone]; Fax: [phone]

Toll Free Phone: [phone]; Fax: [phone]

Website: www.uniworldfoodequip.com

INCLUDED IN THE UNIT:

S/STEEL MIXING BOWL,
FLAT BEATER,
S/STEEL WIRE WHIP,
& DOUGH HOOK

ATTACHMENT OPTIONS:

GRINDER ATTACHMENT
812HCPL

Fits on Hobart and
compatibles with #12
drive hub

ATTACHMENT OPTIONS

UVS-9DHN / 9SN

Available with disc holder
frame or adjustable
S-Knife. Fits on Hobart
and compatibles with
#12 drive hub

C812HCPL

Chrome finish.
Fits on Hobart and
compatibles with #12
drive hub

OPTIONAL MIXER ACCESSORY :

BOWL DOLLY/TRUCK

with heavy duty casters (cast aluminum).
Fits all models from 20 - 140 qts.

S-Knife, Disc Holder & S/S Grater/Shredder
Discs (3/32”, 3/16”, 1/4”, 5/16”, 1/2”)
