Uniworld UEF-101 Parts List

ELECTRIC FRYER - ECONOMY

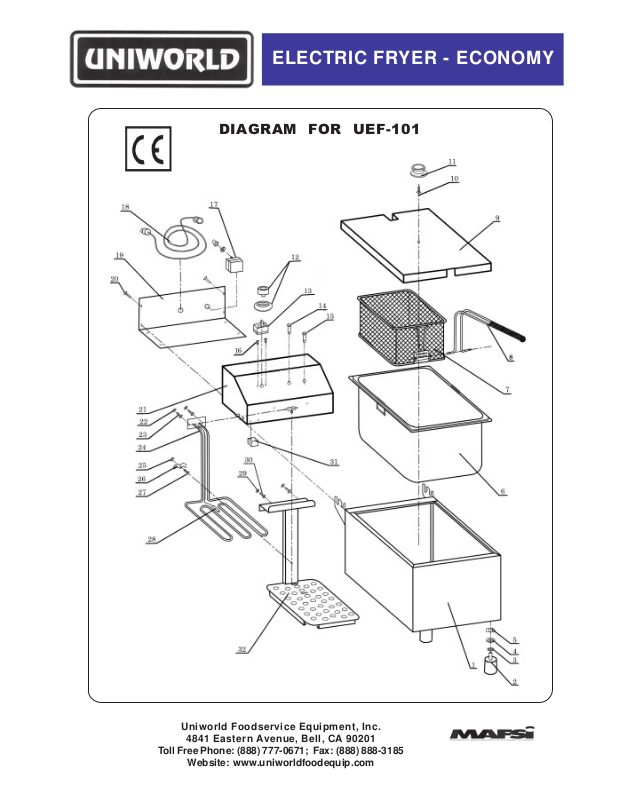

DIAGRAM FOR UEF-101

Uniworld Foodservice Equipment, Inc.

4841 Eastern Avenue, Bell, CA 90201

Toll Free Phone: [phone]; Fax: [phone]

Website: www.uniworldfoodequip.com

ELECTRIC FRYER - ECONOMY

PART

NO. ITEM ID DESCRIP TION

1 UEF-1P 01L

BODY

2 UEF-P02

FOOT

3 UEF-P03

SPRING W A S HER

4 UEF-P04

FLAT W ASHE R

5 UEF-P05

SCRE W NUT

6 UEF-1P 06

TANK (W ELL)

7 UEF-1P 07

BASKET

8 UEF-P08

BASKET HA NDLE

9 UEF-1P 09

TANK COVER

10 UEF -P 10

SCRE W M6x8

11 UEF -P 11

COVER HA NDLE

12 UEF -P 12

THERM OSTAT KNO B

13 UEF -P 13

THERM OSTAT

14 UEF -P 14

SCRE W M4x8

15 UEF -P 15

HEA T INDICATOR LIGHT (YELLOW )

16 UEF -P 16

ON/O FF INDICATOR LIGHT (GREEN)

17 UEF -P 17

HIGH LIMIT SW ITCH

18 UEF -P 18

POW E R S UPPLY CORD

19 UEF-1P19

BACK COVER

20 UEF -P 20

SCRE W ST2. 9x 9.5

21 UEF-1P21

ELECTRICAL BOX

22 UEF -P 22

NUT M 4

23 UEF -P 23

SCRE W M4x8

24 UEF-1P24

HEA TING E LEMENT

25 UEF -P 25

NUT M 4

26 UEF -P 26

HEA TING E LEMENT CLA M P

27 UEF -P 27

SCRE W M4x16

28 UEF -P 28

TEM P E RATURE PROB E

29 UEF -P 29

NUT M 4

30 UEF -P 30

SCRE W M4x8

31 UEF -P 31

MICRO SW ITCH

32 UEF-1P32

HEA TING E LEMENT S UPPORT P LATE

COMPLETE PARTS LIST FOR UEF-101
