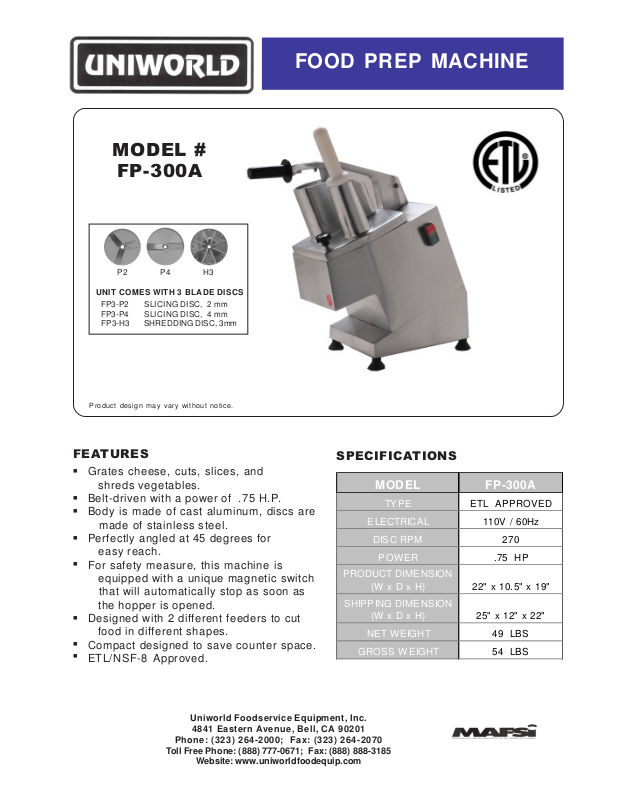

Uniworld FP-300A User Manual
MOD EL FP-300A
TYPE
ETL AP P ROVED
ELECTRICAL 110V / 60Hz
DISC RPM 270
POW ER .75 HP
PRODUCT DIME NS ION
(W x D x H) 22" x 10.5" x 19"
SHIPPING DIME NSION
(W x D x H) 25" x 12" x 22"
NET W E IGHT 49 LB S
GROSS W EIGHT 54 LBS
MODEL #
FP-300A
P2 P4 H3
UNIT COMES WITH 3 BLADE DISCS
FP3-P2
FP3-P4
FP3-H3
SLICING DISC, 2 mm
SLICING DISC, 4 mm
SHREDDING DISC, 3mm
FOOD PREP MACHINE
Product design may vary without notice.
FEATURES
n
Grates cheese, cuts, slices, and
shreds vegetables.
n
Belt-driven with a power of .75 H.P.
n
Body is made of cast aluminum, discs are
made of stainless steel.
n
Perfectly angled at 45 degrees for
easy reach.
n
For safety measure, this machine is
equipped with a unique magnetic switch
that will automatically stop as soon as
the hopper is opened.
n
Designed with 2 different feeders to cut
food in different shapes.
n
Compact designed to save counter space.
n
ETL/NSF-8 Approved.
SPECIFICATIONS
Uniworld Foodservice Equipment, Inc.
4841 Eastern Avenue, Bell, CA 90201
Phone: (323) 264-2000; Fax: (323) 264-2070
Toll Free Phone: (888) 777-0671; Fax: (888) 888-3185
Website: www.uniworldfoodequip.com
COMPLETE DISCS
ITEM # DESCRIPTION PICTURE NOTES
FP3-P2 SLICING DISC, 2 mm
FP3-P4 SLICING DISC, 4 mm
FP3-H3 SHREDDING DISC,
3 mm
FP3-H4 SHREDDING DISC,
4 mm
FP3-H7 SHREDDING DISC,
7 mm
This disc work alone
This disc work alone
This disc work alone
This disc work alone
This disc work alone
FP3-H8 TOP CUTTER DISC, 8 mm
FP3-H10 TOP CUTTER DISC, 10 mm
JULIENNE DISCS
FP3-HU2.5 2.5 mm x 2.5 mm
FP3-HU4 4 mm x 4 mm
FP3-HU10 10 mm x 10 mm
FRENCH FRY CUTTER DISCS
FP3-T8 8 mm x 8 mm
FP3-T10 10 mm x 10 mm
DICING CUTTER DISCS
FP3-D8 8 x 8 x 8 mm
FP3-D10 10 x 10 x 10 mm
FP3-D12 12 x 12 x 10 mm
FP3-D20 20 x 20 x 10 mm
Uniworld Foodservice Equipment, Inc.
4841 Eastern Avenue, Bell, CA 90201
Phone: (323) 264-2000; Fax: (323) 264-2070
Toll Free Phone: (888) 777-0671; Fax: (888) 888-3185
Website: www.uniworldfoodequip.com
This disc work alone or
work together with : D8,
D10, D12, D20, T8, T10
This disc work alone
Must work as follows:
T8 + H8
T10 + H10
Must work as follows:
D8 + H8
D10 + H10
D12 + H10
D20 + H10
