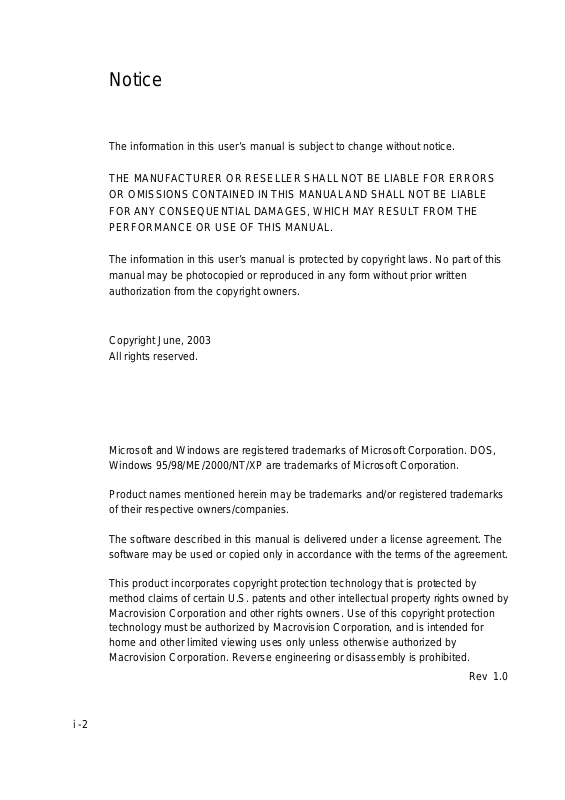

Notice
The information in this user’s manual is subject to change without notice.
THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS
OR OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE
FOR ANY CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE
PERFORMANCE OR USE OF THIS MANUAL.
The information in this user’s manual is protected by copyright laws. No part of this
manual may be photocopied or reproduced in any form without prior written
authorization from the copyright owners.
Copyright June, 2003
All rights reserved.
Microsoft and Windows are registered trademarks of Microsoft Corporation. DOS,
Windows 95/98/ME/2000/NT/XP are trademarks of Microsoft Corporation.
Product names mentioned herein may be trademarks and/or registered trademarks
of their respective owners/companies.
The software described in this manual is delivered under a license agreement. The
software may be used or copied only in accordance with the terms of the agreement.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protect i on
technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or dis assem bl y is prohibited.
Rev 1.0
i -2
TABLE OF CONTENTS
PREFACE
Symbols and Conventions
Protecting Your Computer - Avoid Abusive Handling and Adverse
Environment
Chapter Summaries
1. GETTING TO KNOW THE BASICS
Performance Features (1-2,3)
System at a Glance (1-4)
Top View (1-4,5,6,7)
Rear View (1-8,9,10)
Bottom View (1-11,12)
AC Adapter (1-13)
LED Status Indicators (1-14)
Keyboard Features (1-15)
Function (Quick) Keys (1-15)
Windows Keys (1-16)
Embedded Numeric Keypad (1-16)
Touch Pad with Page Up / Page Down Function (1-17)
Graphic Subsystem (1-18)
Adjusting the Display Brightness (1-18)
Extending the Life of the TFT Display Panel (1-18)
Opening and Closing the Display Panel (1-19)
Audio Subsystem (1-20)
Adjusting the Volume Manually (1-20)
Adjusting the Vol ume in Windo ws (1-20)
Adjusting the Audio Volume via the Volume Dial (1-20)
Voice Recording (1-20)
Modem and Modem Setting (1-21)
Ethernet Adapter (1-22)
2. TROUBLE-SHOOTING
First Step (2-2,3)
Audio Problems (2-4)
i -3
Hard Disk Problems (2-5,6)
CD-ROM, DVD-ROM, CD-RW, or Combo Drive Problems (2-7)
Display Problems (2-8)
Keyboard and Mouse Problems (2-9)
CMOS Battery Problems (2-10)
Memory Problems (2-11)
Modem Problems (2-12)
Network Adapter / Ethernet Problems (2-13)
PC Card / PCMCIA Problems (2-14)
Performance Problems (2-15)
Printer Problems (2-16)
Firewire (IEEE1394) and USB2.0 Problems (2-17)
APPENDIX A Product Specification
APPENDIX B Agency Regulatory Notices
i -4
Preface
Using This Manual
This User’s Manual contains general information about your
computer, hardware and software setup information,
troubleshooting, and techni c al specifications.
Symbols and Conventions
The following conventions and symbols are used in this manual:
When keys are to be pressed at the same time, a plus (+)
symbol is used. For instance, Fn+F7 means holding Fn and
F7 keys at the same time.
When a series of clicking actions is needed in Windows O/S, [ ]
and > symbols are used. For instance, [Start > Settings >
Control Panel > Display] means clicking the Start icon first,
then the Settings, then the Control Panel, then the Display
icon.
When you need to make a selection with the touch pad (or
mouse), you will be asked to ’select’ or ‘click’ or ‘double-click’,
‘right-click’ the item.
Text in this format and symbol means specific instructions, commentary,
Note:
sidelights, or any additional information or notes that you should be aware of.
Warning:
given instructions or information could result in damage to your computer or could
cause bodily harm or loss of life.
Text is this format and symbol means that failures to comply with the
i -5
Protecting Your Computer - Avoid Abusive Handling and
Adverse Environmen t
Follow the advice below will help ensure that you get the most out
of your Investment.
Your computer will serve you well if you take good care of it.
Do not expose the computer to direct sunlight or place it near
sources of heat.
Do not subject it to temperatures below 0oC (32oF) or above
50oC (122oF).
Do not expose the computer to magnetic fields.
Do not expose the computer to moisture or rain.
Do not spill water or liquid on the computer.
Do not subject the computer to adverse shock and vibration.
Do not expose the computer to dust and dirt.
Do not place objects on top of the computer to avoid damaging
the computer.
Do not place the computer on rocky surfaces.
Here are some ways of taking care of your AC adapter.
Do not connect the adapter to any devices other than your
computer.
Do not let water get into the adapter.
Do not block the ventilation airway of the adapter.
Keep the adapter in a cool and ventilated place.
Do not step on the power cord or place heavy objects on top of
it.
Carefully tuck away the power cord and any cables away from
pedestrian traffic.
When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
i -6
Keep the adapter away from children.
The total ampere ratings of the equipment plugged in should
not exceed the ampere rating of the cord if you are using an
extension cord.
The total current rating of all equipment plugged into a single
wall outlet should not exceed the fuse rating.
Do not connect other AC adapter to your notebook. This
Notebook uses exclusively the AC adapter
PA-1121-02 or LISHIN LSE9901A2070 (70w), LSE0202A2090 (90W) or
0227A20120 (120W)
LITE-ON PA-1900-05 or
When cleaning the computer, observe these steps:
1. Power off the computer and remove the battery pack.
2. Disconnect the AC adapter.
3. Use a soft cloth dampened with water. Do not use liquid or
aerosol cleaners.
Contact your dealer or see your service technician if any of the
following occurs:
Computer has been dropped or the body has been damaged.
Liquid has been spilled into the product.
The computer does not operate normally.
i -7
Chapter Summaries
The following is a summary of the available chapters and
appendices in this manual.
Chapter 1: Getting to Know the Basics
In this chapter, you will learn the basic operations and features
of your computer. It gives you a general understanding of the
components of your computer.
Chapter 2: BIOS Setup / Security
In this chapter, you will learn how to change various firmware
settings and what the settings mean. Also, you will learn how to
take advantage of the built-in security feature provided by the
BIOS.
Chapter 3: Battery Power & Power Management
In this chapter, you will learn the fundamentals of power
management and how to use them to achieve longer battery life.
Chapter 4: Upgrading Your Computer
In this chapter, you will learn how to upgrade the system
memory and the hard disk drive.
Chapter 5: Trouble-Shooting
In this chapter, you will learn how to solve common hardware
and software problems.
Appendix A: Product Specification
In this section, you will find a list of the computer’s system
specifications.
Appendix B: Agency Regulatory Notices
In this section, you will find the general electro-magnetic and
safety regulato ry information.
i -8
■ chapter 1 getting to know the basics
CHAPTER▼ ONE
GETTING TO KNOW THE BASICS
This chapter introduces the features and
components of the computer.
1-1
■ chapter 1 getting to know the basics
Performance Features
High Performance Processor
The notebook PC is equipped with a powerful Mobile Intel
Pentium M processor of the latest sub-micron process,
processor technologies, and high bus bandwidths.
Advanced Graphic Engine
An Intel Integrated Extreme Graphic 2 video processor
gives excellent graphic performance. The advanced
graphic chip also incorporates a hardware-based
motion-compensatio n engi ne, whic h gives you sm ooth
MPEG video playback. 3D graphics capability also adds
realism to PC games.
LCD Display
The computer is equipped either with a 14.1-inch TFT in
standard format high-resolution display panel for clear text
and brilliant colors.
Expandability
The system offers upgradeable hard disk drive and 2 DDR
SDRAM sockets for expansion, allowing the user to easily
increase the storage and system capacities as the need
arises.
Built-in Multiple Card Reader
There is built-in 4-in-1 card reader to access many of the
portable media formats (SD Card, MS Card, MMC Card,
and MS-Pro Card). (Note: In some models, Card Reader
may not be available.)
Ethernet Port
The system provides built-in Ethernet network adapter for
1-2
■ chapter 1 getting to know the basics
high bandwidth network connection.
Firewire (IEEE1394 / 1394a) and USB2.0 ports
In addition to a full array of built-in I/O por
ts, the computer
offers IEEE1394 for ultra high-speed connection to high
bandwidth digital video devices and USB2.0 ports to
connect to any USB-based peripheral devices. (Note: In
some models, IEEE1394 Port may not be available.)
Wireless LAN (Optional)
The optional internal Wireless LAN module allows your
notebook to connect wirelessly to other 802.11-enabled
systems, devices, or network.
Integrated USB Devices (Optional)
The optional USB interface gives you added function to the
notebook.
Touch Pad Enable/Disable Button
The T ouch Pad Enable/Disable Button allows you to quickly
disable the built-in Touch Pad when necessary.
Standalone Multimedia Player – Power Cinema
The system has 3 multimedia application launch keys. The
quick keys allow you to view photos, watch DVD movies, or
listen to MP3 tracks without having to boot to Windows.
1-3
■ chapter 1 getting to know the basics
System At A Glance
Top View
1
2
11 10 9
12
3
1. LCD Latch
The LCD latches lock / unlock the LCD panel.
2. LCD Display
The panel is where the system content is displayed.
1-4
3
4
7
6
5
■ chapter 1 getting to know the basics
3. Built-in Stereo Speakers
The built-in speakers output the sound in stereo.
4. Keyboard
The keyboard is used to enter data. It has an embedded
numeric keypad and cursor control keys. (See Keyboard
Section for details.)
5. Built-in Microphone
The built-in microphone records sound.
6. LED Status Indicator
The LED Status indicators reveal the status of these functions:
Numeric keypad, cap lock, scroll lock, WLAN module enabling
and disabling and also the ODD, HDD activities. (See the LED
Status Indicator Section for details.)
The LED Status indicators also reveal the status of the system
power state and battery-charging state. See the LED Status
Indicator Section for details.
7. Touch Pad Enable/Disable Button
Press the button once to disable the built-in touchpad. Press
again to enable. When disabled, the LED on the button lights
up.
8. Touch Pad
The touch pad is a built-in pointing device with functions similar
to a mouse.
9. Power / Suspend Button
The power/suspend button turns the notebook on and off and it
1-5
■ chapter 1 getting to know the basics
also acts as a system suspend key. Press momentarily to turn
on the system. Press and hold for at least 3~4 seconds to turn
off the system. How this key behaves can be defined in [Start >
Settings > Control Panel > Po wer O pti ons > Advanced] menu.
Press the power / suspend button again to return from the
suspend mode. (See Chapter 3 for more details on system
suspend function.)
10. Power Cinema Photo Viewer Quick Key
The Photo Viewer Quick Key launches the Linux-based Power
Cinema application automatically when the system is in
Power-Off mode. This is called the Standalone Player mode;
the system bypasses Windows and boots to a Linux-based
application. See Appendix D to learn more about Power
Cinema application.
When the system is in Power-On Windows mode, the button
launches Silent Mode or Search application.
11. Power Cinema DVD Player Quick Key
The DVD Player Quick Key launches the Linux-based Power
Cinema application automatically when the system is in
Power-Off mode. This is called the Standalone Player mode;
the system bypasses Windows and boots to a Linux-based
application. See Appendix C to learn more about Power
Cinema application.
When the system is in Power-On Windows mode, the button
launches Internet application.
12. Power Cinema MP3 Player Quick Key
The MP3 Player Quick Key launches the Linux-based Power
Cinema application automatically when the system is in
Power-Off mode. This is called the Standalone Player mode;
1-6
■ chapter 1 getting to know the basics
the system bypasses Windows and boots to a Linux-based
application. See Appendix C to learn more about Power
Cinema application.
When the system is in Power-On Windows mode, the button
launches E-mail application.
1-7
■ chapter 1 getting to know the basics
Front and Rear Views
1
2
7
Warning:
damage the display
Do not place any heavy objects on the top of notebook. This may
1. Power Jack (DC-in)
The DC-out jack of the AC Adapter connects here and powers
the computer.
2. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal
heat. Do not block this airway completely.
3. Battery Pack
The battery pack is a built-in power source for the notebook.
4. Kensington Lock Key Hole
A Kensington-type security lock latches to this keyhole for
anti-theft purpose.
3
4
5
6
1-8
■ chapter 1 getting to know the basics
5. LCD Latch
The LCD latches lock / unlock the LCD panel.
6. 4-in-1 Card Reader
The 4-in-1 Card Reader supports SD Card, MS Card, MMC
Card, and MS-Pro Card.
7. Wireless On/Off Switch
Use the Switch to disable or enable Wireless function.
1-9
■ chapter 1 getting to know the basics
Side Views
10
6
5
11
4
3
1
9
2
7
12
Warning:
damage the display
Do not place any heavy objects on the top of notebook. This may
1. PC Card Slot (Type II PCMCIA) and Card Eject Button
The slot is where PC Card (Type II PCMCIA) is inserted. Press
the eject button to release the PC Card.
2. Firewire / IEEE1394 / 1394a Port
This is a high-speed serial data port. You may connect any
Fire-wire-ready device to this port.
3. Microphone Jack
The microphone jack (3.5-mm diameter) is where you connect
a microphone.
8
1-10
■ chapter 1 getting to know the basics
4. Stereo Headphone / SPDIF-out Jack
The stereo headphone jack (3.5-mm diameter) is where you
connect the headphones or external speakers. Alternatively,
you may connect the SPDIF output to an external DTS, AC3, or
PCM sound processor / decoder in your home stereo system.
5. USB2.0 Port (x2)
The Universal Serial Bus (USB2.0-compliant) port allows you to
connect a wide variety of devices to your computer at a rate of
up to 480 Mbps. This port conforms to the latest USB2.0
plug-and-play standards.
6. Modem Port
This is where you plug the phone jack (RJ-11) for fax/modem
functions.
7. TV (S-Video) Port
The S-Video port permits you to redirect the screen output to a
television set or any analog video playback device. This TV
Port is copyright protected; when DVD movie is played, the
output is scrambled to prevent analog recording.
8. Ethernet / LAN Port
The port connects to a network hub via the RJ-45 cable and
also conforms to 10/100Base-TX transmission protocol.
9. External VGA Port
The 15-pin VGA analog port is for connecting the external CRT
monitor or projector.
10. Optical Drive and Disk Eject Button and Manual Eject Key
Hole
If your computer comes with the Combo drive, DVD-RW,
1-11
■ chapter 1 getting to know the basics
DVD+RW, or DVD-Dual drive, you may save data onto a CD-R
/ CD-RW or DVD RW disc. Press the eject button to eject the
disk tray. The manual eject keyhole allows you to manually
eject a jammed disk.
11. USB Device (Optional)
You may install the optional USB interface into this slot.
12. USB2.0 Port (x2)
The Universal Serial Bus (USB2.0-compliant) port allows you to
connect a wide variety of devices to your computer at a rate of
up to 480 Mbps. This port conforms to the latest USB2.0
plug-and-play standards.
1-12
■ chapter 1 getting to know the basics
Bottom View
1
4
3
1. Battery Pack and Battery Latch
The battery pack is a built-in power source for the notebook.
Slide the battery latch to release the battery pack.
2
1-13
■ chapter 1 getting to know the basics
2
1
2. Hard Disk Drive Cover
The system’s hard disk drive is located under the case cover.
The HDD can be upgraded to a larger capacity. (See Chapter 4
for instructions on a memory upgrade.)
3. System Device Cover
The system’s processor with cooler assembly, Wireless LAN
module, and DDR memory module are located under the case
cover. The system memory can be upgraded to a larger
capacity. (See Chapter 4 for instructions on a memory
upgrade.)
4. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal
heat. Do not block this airway completely.
Warning:
surface only. The bottom case may get very hot.
Do not block the Fan Grill outlet. Place the machine on hard
1-14
■ chapter 1 getting to know the basics
AC Adapter
1. DC-out Connector
The DC-out connector docks to the power jack (DC-in) on the
computer.
2. Adapter
The adapter converts alternating current into constant DC
voltage for the computer.
3. AC Plug
The AC plug plugs to the AC wall outlet.
Warning:
ground pin. If not, you may feel a slight tingling sensation on any of the
computer’s metal parts such as the I/O ports. This is caused by leakage current
when the AC adapter is not properly grounded (via the ground pin). However,
the amount of leakage current is within the safety regulation and is not harmful
to human body.
Make sure you are using a standard 3-prong AC wall socket with a
1-15
■ chapter 1 getting to know the basics
LED Status Indicator
The LED Status Indicator displays the operating status of your
notebook. When a certain function is enabled, an LED will light
up. The following section describes its indication.
System Status Indicator
LED Graphic
Symbol
Indication
Blinking orange light indicates the battery
is being charged.
Blinking red light indicates the battery
power is low when the system is turned
ON.
Persistent green light indicates the battery
is Full.
LED-off (Dark) indicates the system is
without battery.
Blinking green light indicates the notebook
is in suspend mode.
Green light indicates the WLAN module
is active.
Green light indicates the scroll-lock is
activated.
Green light indicates the cap-lock is
activated.
Green light indicates the numeric keypad
is activated.
Green light indicates the hard drive
and/or optical drive is being accessed.
Note:
When the system power is initially turned on, the Scroll-lock, Cap-lock,
and Numeric keypad LED indicators will light up momentarily to indicate the
start of the Power-On sequence.
1-16
■ chapter 1 getting to know the basics
Keyboard Features
Function Keys (Quick Keys)
Graphic
Symbol
For various system controls, press the Fn (Function) key and the Fx key
simultaneously.
Action System Control
Fn + F1 Enters Suspend Mode.
Fn + F2 Turns the WLAN module on or
off.
Fn + F3 Turns of the battery warning
Fn + F4 Changes Display Mode:
Fn + F5 Turns Speaker Volume up.
Fn + F6 Turns Speaker Volume down.
Fn + F7 Increases Display Brightness.
Fn + F8 Decreases Display Brightness.
Fn+Num Lk Enables the embedded keypad
Fn + Scr Lk Press the Scroll Lock key and
beep off or on.
LCD-only, CRT-only and
LCD&CRT.
to work in numeric mode. The
keys act like numeric keypads
in a calculator. Use this mode
when you need to do a lot of
numeric data entry. An
alternative would be to connect
an external numeric keypad.
then press ↑or ↓to move one
line up or down.
1-17
■ chapter 1 getting to know the basics
/
Windows Keys
Your keyboard also has two Windows keys:
1. Start Key
This key allows you to pull up the Windows Start Menu at
the bottom of the taskbar.
2. Application Menu Key
This key brings up the popup menu for the application,
similar to a click of the right mouse button.
Embedded Numeric Keypad
Press Num Lock to enable the embedded numeric keypad. The
numbers are printed in upper right corner of a key, in a color
different from the alphabets. This key pad is complete with
arithmetic operators (+, -, * , /).
Press Num Lock to revert to normal character keys.
Num
Lk
789
456
123
0
*
-
+
.
Enter
1-18
■ chapter 1 getting to know the basics
Touch Pad
The built-in touch pad, which is a PS/2-compatible pointing device,
senses movement on its surface. As you move your fingertip on the
surface of the pad, the cursor responds accordingly.
The following items teach you how to use the touch pad:
1. Move your finger across the touch pad to move the cursor.
2. Press buttons to select or execute functions. These two buttons
are similar to the left and right buttons on a mouse. Tapping on the
touch pad twice produces is similar to clicking the left button of a
mouse.
Function Left Button Right
Button
Execution Click twice
Selection Click once Tap once
Drag Click and hold
Access
Context Menu
Move One
Page Up or
Down
quickly
to drag the
cursor
Click once
Tap twice (at the same speed as
Tap twice quickly and on the
Tips on Using the Touch Pad:
1. The double-click speed is timed. If you double-click too slowly,
your notebook responds as if you single-clicked twice.
2. Keep your fingers dry and clean when using the touch pad.
Also keep the surface of touch pad clean and dry to prolong its life.
3. The touch pad is sensitive to finger movements. Hence, the
lighter the touch, the better the response. Heavy touch does not
produce better response.
Equivalent Tapping Action
double-clicking
the mouse button)
second tap hold finger to the touch
pad to drag the cursor
1-19
■ chapter 1 getting to know the basics
Graphic Subsystem
Your computer uses a high performance 15.1-inch active matrix
TFT panel with high resolution and multi-million colors for
comfortable viewing. The Intel Extreme Graphic 2 video graphics
accelerator, which is Microsoft DirectX 9 compatible, performs
graphic rendering at a lighting-fast speed.
Adjusting the Display Brightness
The notebook uses special key combinations, called hot keys,
to control brightness.
Press Fn+F7 to increase the brightness.
Press Fn+F8 to decrease the brightness.
Note:
To maximize your battery operating time, set the brightness to the
lowest comfortable setting, so that the internal backlight uses less power.
Extending the Life of the TFT Display Device
Observe the following guidelines to maximize the life of the
backlight in the display.
1. Set the brightness to the lowest comfortable setting
(Fn+F8).
2. When working at your desk, connect your notebook to an
external monitor and disable the internal display Fn+ F4.
3. Do not disable the suspend time-outs.
4. If you are using AC power and have no external monitor
attached, change to suspend mode when not in use.
1-20
■ chapter 1 getting to know the basics
Opening and Closing the Display Panel
To open the display, push the LCD latch inwardly and lift up the
lid. Then tilt it to a comfortable viewing position.
To close the display cover, fold it down gently until the LCD
latches click into place.
Warning:
place any object on top of the computer when the display is closed
To avoid damaging the display, do no t slam it w hen closing. Do not
1-21
■ chapter 1 getting to know the basics
Audio Subsystem
Your computer’s audio subsystem is Sound Blaster Pro-compatible.
Adjusting the Volume Manually
To increase the volume, press Fn+ F5.
To decrease the volume, press Fn+F6.
Adjusting the Audio Volume in Windows
1. Click the speaker symbol in the task tray in Windows.
2. Drag the volume control bar up or down to adjust the volume.
3. To temporarily silence the speaker without changing the
volume setting, click Mute.
Voice Recording
A built-in microphone allows you to record sound. You will need
to use audio processing software to enable the built-in
microphone. For example, you may use Microsoft Sound
Recorder.
1-22
■ chapter 1 getting to know the basics
Modem
Your computer comes with a 56K V.92 internal fax/modem and a phone
jack (RJ-1 1), w hich is lo cated on the le ft side of your computer.
Use a telephone cable to conne ct the computer to the telephone w all
outlet.
Connectin g the Mode m
1. Plug one end of the phone line into the modem port loca ted on
the rear side of the computer . (For EMI compliance, you need to clip
the included EMI CORE to the phone line.)
2. Plug the other end of the line into the analog phone w all outlet.
Depending on where your compu ter is u sed, you may need to change
settings in the modem. Correct setting will allow you to maintain a stabl e
connection in a country where it s tele communication system may be
different to others.
T o change the modem settin g, do the following:
1. Go to [Start > Settings > Control Panel] and double-click on
Modem Settings icon. You will see a similar dialog box.
2. Click on the pull-dow n menu and select the country where it is
applicable. Click on OK to exit.
1-23
■ chapter 1 getting to know the basics
Ethernet
Your computer is equipped with a 10/100Base-TX Fast Ethernet
network adapter. Connect the active LAN cable to the RJ-45 LAN
port located on the left side of the computer. This allows you to
access and transmit data in the local area network.
Connecting to the Network
Use Unshielded Twisted Pair (UTP) Ethernet cable only.
1. Insert one end of the UTP cable into the network connector
until the connector snaps securely into the receptacle.
2. Either connect the other end of the cable to an RJ-45 jack
wall outlet or to an RJ-45 port on a UTP concentrator or hub in
the network.
Cabling Restriction for Networks
The following restrictions should be observed for
100/1000BASE-TX networks:
The maximum cable run length is 100 meters(m) (328
feet[ft]).
For 100-Mbps operations, use Category 5 wiring and
connections.
1-24
Consult Windows manual and / or Novell Netware user’s guide for the
Note:
software installation, configuration, operation of the network.
■ chapter 2 trouble shooting
CHAPTER▼ FIVE
TROUBLE SHOOTING
In this chapter, you will learn how to
solve common hardware and software
problems.
2-1
■ chapter 2 trouble shooting
Your computer has been fully tested and complies with the
system specifications before shipping. However, incorrect
operations and/or mishandling may cause problems.
This chapter provides a reference for identifying and correcting
common hardware and software problems that you may encounter.
When you encounter a problem, you should first try to go through
the recommendations in this chapter. Instead of returning the
computer and waiting for repair, you may easily solve the problems
by considering the following scenarios and possible solutions. If the
error continues, contact your reseller for service information.
Before taking further actions, consider the following
suggestions:
Check to see if the problem persists when all the external
devices are removed.
Check to see that the green light indicator on the AC adapter
is lit.
Check to see the power cord is properly plugged to the wall
outlet and to the computer.
Check to see the power indicator of the computer is on.
Check to see if your keyboard is operational by pressing and
holding any key.
Check for any incorrect or loose cable connections. Make
sure the latches on the connectors latch securely on to the receptor
end.
Be sure you have not performed an incorrect setting on the
2-2
■ chapter 2 trouble shooting
hardware devices in the BIOS Setup utility. A faulty setting may
cause the system to misbehave. If you are not sure of the changes
you made, try to restore all the settings to factory defaults.
Be sure all the device drivers are installed properly. For
example, without the audio driver properly installed, the speakers
and microphone will not work.
If external devices such as USB camera, scanner, printer do
not function correctly when connected to the system, it is usually
the device’s own problem. Consult the device’s manufacturer first.
Some software programs, which have not gone through
rigorous coding and testing, may cause problems during your
routine use. Consult the software vendor for problem solving.
Legacy peripheral are not plug-and-play capable. You need
to restart the system with these devices powered up and connected
first.
Be sure to go to BIOS SETUP and load DEFAULT SETTING
after BIOS re-flash.
Be sure the Quick Key Lockout Switch on the bottom of the
computer is not engaged; otherwise the quick keys will not work.
2-3
■ chapter 2 trouble shooting
Audio Problems
No speaker output -
Turn up the volume dial located at the right edge of the
computer. See Chapter 1 for its location.
Software volume control is turned down in Microsoft
Sound System or is muted. Double-click the speaker icon on
the lower right corner of the taskbar to see if the speaker has
been muted or turned down all the way.
Most audio problems are software-related. If your
computer worked before, chances are software may have been
set incorrectly.
Go to [Start > Settings > Control Panel] and double-click
the Sounds and Audio Devices icon. In the Audio page, make
sure that Intel Integrated Audio is the default playback device.
Sound cannot be recorded -
Double-click the speaker icon on the lower right corner of
the taskbar to see if the microphone has been muted.
1. Click Options and select Properties.
2. Select Recording and click the OK button.
3. After Click OK button, the recording volume control panel
will appear.
Go to [Start > Settings > Control Panel] and double-click
the Multimedia icon (or Sounds and Audio Devices icon). In the
Volume or Audio page, make sure that Intel Integrated Audio is
the default recording device.
2-4
■ chapter 2 trouble shooting
Hard Disk Problems
The hard disk drive does not work or is not recognizable -
If you had just performed a hard disk upgrade, make sure
the hard drive connector is not loose and the hard disk drive is
also correctly seated. Remove it and reinsert it firmly, and
restart your PC. (Refer to Chapter 4 for details.)
The new HDD may need to be partitioned and
reformatted. O/S and drivers will need to be re-installed as well.
Check the hard disk indicator LED. When you access a
file, the LED lamp should light up momentarily.
The new HDD may be defective or is not compatible.
If your computer has been subjected to static electricity
or physical shock, you may have damaged the disk drive.
The hard drive is making abnormal whining noises -
You should back up your files as soon as possible.
Make sure the source of noise is indeed from the hard
drive and not the fan or other devices.
The hard disk drive has reached its capacity -
Run Disk Cleanup utility in Windows. [Start > All
Programs > Accessories > System Tools > Disk Cleanup] The
system will prompt you for what to do.
Archive files or programs that you had no longer used by
moving them to an alternative storage medium (floppy disk,
optical record-able disk, etc.) or uninstall programs that no
longer use.
Many browsers store files in the hard drive as a cache to
speed up the performance. Check the program’s Online Help
2-5
■ chapter 2 trouble shooting
for instructions on decreasing the cache size or on removing
temporary Internet files.
Empty the Recycle Bin to create more disk space. When
you delete files, Windows saves them to the Recycle Bin.
The hard disk takes longer to read a file -
If you have been using the drive for a period, the files
may be fragmented. Go to [Start > Programs > Accessories >
System Tools > Disk Defragmenter] to perform a disk
defragmentation. This operation may take a while.
Interrupt requests or problems with other hardware
devices may have occupied the CPU and therefore slows down
the system performance.
The files are corrupted -
Run the Error-checking utility in Windows to check the
HDD. Double-click My Computer. Right-click C: and select
Properties. Click Check Now in Error-checking in Tools.
2-6
■ chapter 2 trouble shooting
CD-ROM, DVD-ROM, CD-RW, Combo Drive or
DVD±R/±RW Problems
The CD-ROM, DVD-ROM, or Combo drive does not work -
Try rebooting the system.
The disk is damaged or files are not readable.
After you have inserted a CD-ROM disk, it may take a
moment before you can access its content.
The drive dose not read any disks -
The CD may not be properly seated in the tray. Make
sure the disk is firmly seated onto the spindle.
The disk is damaged or not readable.
The disk cannot be ejected -
Normally, it takes a few seconds to eject the disk.
If the disk cannot be ejected, it may be mechanically
jammed. Straighten out a paper clip and insert it to a tiny hole
next to the eject button. This should reject the disk tray. If not,
return the unit for repair. Do not forcefully pull on the disk tray.
The CD-RW drive (optional device) cannot record -
You need to purchase and install a burner utility program
to record files to a blank media.
2-7
■ chapter 2 trouble shooting
Display Problems
The display panel is blank when the system is turned on -
Make sure the computer is not in the Standby or
Hibernate suspend modes. The display is turned off to
conserve energy in these m odes .
The screen is difficult to read -
The display resolution should at least be set to at
least1024x768 for optimal viewing.
1. Go to [Start > Settings > Control Panel] and double-click
the Display icon.
2. Under the Settings page, set screen resolution to at least
1024x768 and choose at least 256 colors.
The screen flickers -
It is normal if the display flickers a few times during
shutting down or powering up.
2-8
■ chapter 2 trouble shooting
Keyboard and Mouse Problems
The built-in touch pad performs erratically -
Make sure there is no excess perspiration or humidity on
your hand when using the touch pad. Keep the surface of the
touch pad clean and dry.
Do not rest your palm or wrist on the surface of the touch
pad while typing or using the touch pad.
The built-in keyboard accepts no input -
If you are connecting an external keyboard to the system,
the built-in keyboard may not work.
Try restarting the system.
The characters on the screen repeat while I type.
You may be holding the keys down too long while you’re
typing.
Keep the keyboard clean. Dust and dirt under the keys
could cause them to stick.
Configure the keyboard to wait longer before the auto
repeat feature starts. To adjust this feature, Go to [Start >
Settings > Control Panel], and double-click the Keyboard icon.
A dialogue box shows up with the adjustable settings for the
keyboard.
2-9
■ chapter 2 trouble shooting
CMOS Battery Problem
A message “CMOS Checksum Failure” displays during the
booting process or the time (clock) resets when booting -
Try to reboot the system.
If the message “CMOS Checksum Failure” appears
during the booting procedure even after rebooting, it may
indicate failure of the CMOS battery. If so, you need to replace
the battery. This battery normally lasts two to five years. The
battery is of type CR2032 (3V). You may replace it by yourself.
The battery is located next to the DDR DRAM socket. See
Chapter 4 on how to access the DDR DRAM socket. If you are
not sure how this is done, return the notebook to the dealer.
2-10
■ chapter 2 trouble shooting
Memory Problems
The POST does not show an increased memory capacity
when you have already installed additional memory -
Certain brands of memory module may not be
compatible with your system. You should ask your vendor for a
list of compatible DIMM.
The memory module may not be installed properly. Go
back to Chapter 4 to review the details of this operation.
The memory module may be defective.
The O/S issues an insufficient memory error message
during operation -
This is often a software or Windows-related problem. A
program is draining the memory resources.
Close the application programs you’re not using and
restart the system.
You need to install additional memory module. For
instructions, go to Chapter 4 Upgrading Your Computer.
2-11
■ chapter 2 trouble shooting
Modem Problems
The built-in modem does not respond -
Make sure the modem driver is loaded properly.
Go to [Start > Settings > Control Pa nel > Phone and
Modem Options] and go to Modems tab. Make sure SmartLink
56K Voice Modem or Uniwill V.90 Modem is listed. Otherwise,
click the Add button to add the modem drive, which is located in
the factory CD-ROM (or floppy diskette).
Go to [Start > Settings > Control Pa nel > S ystem] and
click Device Manager button in the Hardware page to check for
possible resource or driver conflict. See Windows on-line help
or manual for how to handle such problems.
Make sure the phone line, which the computer is
connected to, is working.
Connection difficulties -
Be sure to disable Call Waiting on the phone line.
Be sure to have the correct country setting where your
computer is used. [Start > Settings > Control Panel > Modem
Settings > Configuration] In the Country/Area pull-down menu,
select the appropriate country setting.
Excessive line noise might cause the connection to be
dropped. To check this, put the regular phone handset on the
line and placing a phone call. If you do hear abnormal noise, try
to make the modem connection with a different line or contact
your local telephony company for service.
Make sure the cable connection is firm.
Try a different receiver number and see if the problem
persists.
2-12
■ chapter 2 trouble shooting
Network Adapter / Ethernet Problems
The Ethernet adapter does not work -
Go to [Start > Settings > Control Pa nel > S ystem >
Hardware > Device Manager]. Double-click on Network
Adapters and check if SiS PCI 10/100M Fast Ethernet Adapter
appears as one of the adapters. If it does not exist, Windows
has not detected the National Semic onductor Fast Eth er net
adapter or the device driver has not been installed properly. If
there is a yellow mark or red-cross on the network adapter, it
may be a device or resource conflict. Replace or update the
device driver from the factory CD-ROM disk or consult
Windows manual on how to solve the resource conflict
problem.
Make sure the physical connections on both ends of the
cable are good.
The hub or concentrator may not be working properly.
Check to see if other workstations connected to the same hub
or concentrator is working.
The Ethernet adapter does not appear to operate in the
100Mbps transmission mode -
Make sure the hub you are using supports 100Mbps
operation.
Make sure that your RJ-45 cable meets the 100Base-TX
requirements.
Make sure the Ethernet cable is connected to the hub
socket that supports 100Base-TX mode. The hub may have
both 100Base-TX and 100Base-T sockets.
2-13
■ chapter 2 trouble shooting
PC Card / PCMCIA Problems
Note:
Some system may not have the PC Card Slot option.
PC Cards do not function-
Make sure you have properly installed the driver for the
card.
Consult the card’s manual or contact the vendor for
trouble-shooting.
The PC card cannot be recognized -
Windows NT4.0 does not support PCMCIA (PC Card)
function. You may need an external program for this.
Make sure the card is fully inserted; the outer end of the
card should be even with the edge of the computer.
Remove and insert the PC card again.
Make sure there is no IRQ conflict with the card. See
Windows on-line help for solving IRQ conflicts.
Reboot the computer and see if the problem persists.
The card may be defective. Try the card on another
system, if possible.
Windows crashes or freezes when you remove the PC
card-
Make sure you have <Stop> the PC card before
removing it. Double-click the Safely Remove Hardware icon at
the lower right corner of the task bar and select the card you
wish to stop. When you click <Close>, in few seconds Windows
will prompt you to remove the card.
2-14
■ chapter 2 trouble shooting
Performance Problems
The computer becomes hot -
In a 35
computer’s back case are expected to reach 50 degrees.
Make sure the air vents are not blocked.
If the fan does not seem to be working at high
temperature (50 degrees Celsius and up), contact the service
center.
Certain programs that are processor-intensive may
increase the computer temperature to a degree where the
computer automatically slows down its CPU clock to protect
itself from thermal damage.
The program appears stopped or runs very slowly -
Press CTRL+ALT+DEL to see if an application is still
responding.
Restart the computer.
This may be normal for Windows when it is proc es sing
other CPU-intensive programs in the background or when the
system is accessing slow-speed devices such the floppy disk
drive.
You may be running too many applications. Try to close
some applications or increase system memory for higher
performance.
The processor may have been overheated due to the
system’s inability to regulate its internal heat. Make sure the
computer’s ventilation grills are not blocked.
o
C environment, the certain areas of the
2-15
■ chapter 2 trouble shooting
Printer Problems
The printer does not print -
Make sure the cable connection is secured and the
printer is powered up, if the printer is connected via the parallel
port. and make sure the parallel port setting in CMOS is
correct.
Run the printer self-test to see if it reports any problem.
Check if the printer displays any error messages. A paper
jam may have occurred.
Make sure you have already installed the printer driver.
Try rebooting the system with the printer powered up and
connected first.
The printer does not print what’s on the screen -
The information displayed on the screen may not exactly
be the same as what is printed.
If the printer prints extra and strange symbols, it is the
result of the cache (garbage) in the printer memory buffer.
Cancel all the printer tasks and toggle off the printer power
switch to clear up the memory buffer. Then, turn the printer
back online and print again.
Make sure you install the correct printer driver.
The printer does not respond to infrared communication -
See Infrared Problems listed elsewhere in this chapter.
2-16
■ chapter 2 trouble shooting
Firewire (IEEE1394) and USB2.0 Problems
The USB device does not work -
Windows NT 4.0 does not support USB protocols
Check the settings in the Windows Control Panel.
Make sure you have installed the necessary device
drivers.
Contact the device vendor for additional support.
The IEEE1394 port does not work -
Go to [Start > Settings > Control Pa nel > S ystem >
Hardware > Device Manager]. You should see an entry which
reads “IEEE 1394 Bus host controllers”. If it does not exist,
Windows has not detected the host controller or the device
driver has not been installed properly. If there is a yellow mark
or red-cross on the 1394 host controller, it may be a device or
resource conflict. Replace or update the device driver from the
factory CD-ROM disk or consult Windows manual on how to
solve the resource conflict problem.
Make sure the cable is fully connected.
Make sure you have installed the necessary device
drivers.
Contact the device vendor for additional support.
2-17
■ appendix A product specification
A
APPENDIX▼ A
PRODUCT SPECIFICATION
-1
■ appendix A product specification
A
▼ Processor and Core Logic
Processor
Core Logic
Memory Type
Default
Memory
Expansion
z Intel P4 2.6 ~ 3.2 GHz, 478 Pins FC-PGA2 Type,
400/533/800 MHz FSB, 512 KB L2, or
z
Desktop Celeron CPU, 2.6G to 3.0GHz
z Intel P4-M, 2.6GHz ~ 3.2 GHz, 1.3V, 400/533
MHz FSB, 512KB L2, uFC-PGA, or
Mobile Celeron CPU, 1.4GHz to 2.5GHz
z
SIS661FX+SIS963L chipset with graphic, audio,
modem and USB controllers integrated
400/533/800 MHz Front Side Bus
266/333/400 MHz DDR interface
System Memory
▼
DDR SDRAM, 400/333/266 MHz, compatible
64/128/256 / 512 / 1024 /2048 MB, 2.5-Volt 64-bit bus
One 184-pin DIMM sockets, Max 2 GB
-2
■ appendix A product specification
A
▼ Display
LCD Panel
Graphic
Accelerator
Motion
Playback
Frame Buffer
Other
Features
15-inch XGA or 15-inch SXGA+ active-matrix TFT
display with up to 16M colors
Integrated A.G.P. compliant target
Hardware Motion Compensation and IDCT Supported
for MPEG2/1 Playback
8MB to 256MB Dedicated DDR SDRAM Frame Buffer
DirectX8.1 compatible
Audio
▼
Chipset
Audio Codec
Sound
Capabilities
SIS integrated audio contro ller
ALC655
DirectSound 3D accelerator
SoundBlaster Pro compatible
AC97 V2.2 compatible
2 Stereo Speakers (1 Watt each)
Modem
▼
Chipset
Transmission
Rate
SIS integrated Modem Controll er integr a ted wit h MD C
card, AC97 V2.2 Modem support
V.90 / K56flex for download data speed up to 56Kbps.
V.34, V.17, V.29 protoco l supporte d
-3
■ appendix A product specification
A
▼ LAN / Ethernet
Chipset
MAC
PnP Function
Flow Control
Speed
Selection
Other
Features
SIS integrated Ethernet function for 10/100Base-TX
network standards
SiS900
Windows 95 / 98 / ME / 2000 / XP Plug and Play
compatible
Automatic Jam and auto-negotiation for flow control
Auto Negotiation and Parallel detection for automatic
speed selection (IEEE 802.3u)
High performance 32-bit PCI bus master architecture
with integrated DMA controller for low CPU and bus
utilization
Remote Wake-up Scheme supported
Hot Insertion supported
Firewire IEEE1394(a)
▼
Chipset
Capabilities
SIS 963L IEEE1394 OHCI Host Controller and
Up to 400 Mbps
Expandable up to 63 devices in chains
▼
Storage
Hard Drive
CD-ROM
DVD-ROM
CD-RW
Combo Drive
DVD±R/±RW
2.5-inch format hard disk drive
5.25-inch format (12.7mm height) fixed module with
24X speed
5.25-inch format (12.7mm height) fixed module
(Optional Purchase)
5.25-inch format (12.7mm height) fixed module
(Optional Purchase)
5.25-inch format (12.7mm height) fixed module
(Optional Purchase)
5.25-inch format (12.7mm height) fixed module
(Optional Purchase)
-4
■ appendix A product specification
A
▼
Keyboard & Touch pad
Keyboard
Touch pad
87/88-key QWERTY keyboard with embedded numeric
keypad and Windows98 keys, 19.05mm Pitch
Built-in Touch Pad with PageUp / PageDown Buttons
19mm Pitch
Ports & Connectors
▼
Audio-In Port
Audio-Out Port
Volume Pot
Speaker Jack
Firewire
USB2.0 Port
Ethernet
Modem
S-Video
Power-In
Parallel
VGA Port
Card Reader
PC Card Slot
PS/2 Port
One Microphone-in jack
One Headphone jack
One VR Dial for audio volume control
One Speaker Jack
One Firewire (IEEE1394) host connector
Four or Five USB2.0-compliant connectors
One standard network Ethernet connector (RJ-45)
One Modem (RJ-11)
One S-video (TV-out) output connector
One DC-in connector
One 25-pin parallel port connector
One 15-pin VGA connector
One Card Reader slot
One PC Card Slot (type II)
One 6-pin PS/2 Port
Battery Pack / AC Adapter
▼
Battery Pack
Feature
Adapter
AC-Input /
DC-Output
z Li-ion 6/8-Cell pack, 14.8V x 4400 mAh, 65.12Wh,
z Smart Battery Compliant
Autosensing AC-in 100~240V, 90W(for Mobile CPU)
AC-in 100~240V 120W,(for Desktop CPU)
DC-Output 20V
-5
■ appendix A product specification
A
▼ BIOS
PnP Function
Self Test
Auto
Detection
Power
Management
Security
Other
Features
AMI PnP BIOS
Power On Self Test
DRAM auto-detection, auto-sizing
L2 Cache auto-detection
Hard disk type auto-detection
APM 1.2 (Advanced Power Management) &
ACPI 2.0B (Advanced Configuration Power Interface)
Smart Power ®
Two Level Password Protections
32bit access, Ultra DMA, PIO5 Mode support
Multi-boot capability
O/S
Support: Microsoft Windows 2000 / XP
Compatible: Microsoft Windows 95/ 98/ 98SE/ ME
Physical Specification
▼
Dimension
Weight
Environmental
Limits
345 (W) x 282 (D) x 39 (H) mm
7.7 lbs / 3.5 KG (with CD-ROM)
Operating Temperature: 5 to 35
Operating Humidity: 20 to 90 percent RH (5 to 35
Storage Temperature: -20 to 50
oC
(41 to 95oF)
oC
(-4 to 122oF)
oC
)
-6
■ appendix B agency regulatory notices
APPENDIX▼ B
AGENCY REGULATORY NOTICES
B-1
■ appendix B agency regulatory notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harm ful inter ference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to
this device that are not expressly approved by the Manufacture may void the user’s
authority to operate the equipment.
Connections to Peripheral Devices
Connections to this dev ice mu st be made with shielded c able s with metallic RF I/EMI
connector hoods to maintain compliance with FCC Rules and Regulations.
Declaration of Conformity
This device complies with Part 15/68 the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC)
and the Low Voltage Directive (73/23/EEC) and R&TTE Directive (1999/5/EC)
issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European
Norms:
EN55022 (CISPR 22) Radio Frquency Interference
B-2
■ appendix B agency regulatory notices
EN50082 (IEC801-2, IEC801-3, IEC801-4) Electro-magnetic Immunity
EN 300 328-2 (ETS 300 328) Radio Spectrum Matter.
TBR21 (ETS TBR21) Terminal Equipment.
EN60950 (IEC950) I.T.E. Product Safety
Canadian Notice
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the radio interference regulations of the
Canadian Department of Communications.
Le present appareil numerique n emet pas de bruits radioelectriques depassant les
limites applicables aux appareils numeriques de Classe B prescrites dans le
reglement sur le brouillage radioelectrique edicte par le Ministere des
Communications du Canada.
Power Cord Requirement
The power cord supplied with the AC adapter should match the plug and voltage
requirements for your local area. Regulatory approval for the AC adapter has been
obtained using the power cord for the local area. However, if you travel to a different
area and need to connect to a different outlet or voltage, you should use one of the
power cords listed below. To purchase a power cord (including one for a country not
listed below) or a replacement ac adapter, contact your local dealer.
U.S. and Canada
The cord set must be UL-Listed and CSA-Certified or C-UL Listed.
The minimum specifications for the flexible cord are (1) No. 18 AWG, (2) Type
SJ, and (3) 3-conductor.
The cord set must have a rated current capacity of at least 10 A.
The attachment plug must be an earth-grounding type with a NEMA 5-15P
(15A, 125V) or NEMA 6-15P (15 A, 250V) configuration.
Japan
All components of the cord set (cord, connector, and plug) must bear a `PSE`
mark and registration number in accordance with the Japanese Dentori Law.
The minimum specification for the flexible cord are: (1) 0.75 mm2 conductors,
(2) Type VCT or VCTF, and (3) 3-conductor.
The cord set must have minimum rated current capacity of 7 A.
The attachment plug must be a two-pole, grounded type with a Japanese
Industrial Standard C8303 (15 A, 125 VAC) configuration.
B-3
■ appendix B agency regulatory notices
Other Countries
The cord set fittings must bear the ce rtificat ion mar k of the ag ency res ponsib le
for evaluation in a specific country. Acceptable agencies are:
BSI (UK)
OVE (Australia)
CEBEC (Belgium)
SEMKO (Sweden)
FIMKO (Finland)
DEMKO (Denmark)
NEMKO (Norway)
SETI (Finland)
EANSW (Australia)
SEV (Switzerland)
IMQ (Italy)
UTE (France)
CCC (China)
PSB (Singapore)
PSE (Japan)
BSMI (Taiwan)
B (Polish)
The flexible cord must be of a HAR (harmonized) type HO5VV-F 3-conductor
cord with a minimum conductor size of 0.03 square inches.
The cord set must have a current capacity of at least 10 A and a nominal
voltage rating of 125 / 250 VAC.
CAUTION: MODEL N755IIx IS DESIGNED TO USE WITH THE FOLLOWING AC
ADAPTER MODEL ONLY
Manufacture: LITE-ON ELECTRONICS, INC.
Model: PA-1900-05 (90W) or PA-1121-02 (120W)
or
Manfacture: Li-shin International Enterprise Corp.
Model: LSE9901A2070 (70w), LSE0202A2090 (90W) or 0227A20120 (120W).
Telephone lines requirement
The appropriate utilization of 26AWG telephone line cord on unit.
CAUTION: Always disconnect all telephone lines from the wall outlet before
servicing or disassembling this equipment.
CAUTION: To reduce the risk of fire, use only No. 26AWG or larger
B-4
■ appendix B agency regulatory notices
telecommunication line cord.
Battery Pack Safety
The battery pack is intended to use only with this notebook.
Do not disassemble the pack.
Do not dispose of the battery pack in fire or water.
To avoid risk of fire, burns, or damage to your battery pack, do not allow a
metal object to touch the battery contacts.
Handle a damaged or leaking battery with extreme care. If you come in
contact with the electrolyte, wash the exposed area with soap and water. If it
contacts the eye, flush the eye with water for 15 minutes and seek medical
attention.
Do not charge the battery pack if the ambient temperature exceeds 45℃
(113℉).
To obtain a replacement battery, contact your local dealer.
Do not expose the battery pack to high storage temperatures (above 60℃,
140℉).
When discarding a battery pack, contact your local waste disposal provider
regarding local restrictions on the disposal or recycling of batteries.
Use only supplied AC Adapter for charging.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
same or equivalent type recommended by the manufacturer. Discard used batteries
according to the manufacturer`s instructions or local laws.
VORSICHT! Explisionsgefahr bei unsachgernazen Austausch der Batterie. Ersatz
nur durch denselben oder einem vom Hersteller em p fohlenem ahnlichen Typ.
Entsorgung gebrauchter Batterien navh Angaben des Herstellers.
Laser Safety
The optical drive used with this computer is certified as a Class 1 laser device
according to the U.S. Department of Health and Human Services (DHHS) Radiation
Performance Standard and International Standards IEC 825 / IEC 825-1 (EN60825 /
EN60825-1). The device is not cons ider ed harmfu l, but the fol low ing precautions are
recommended:
Do not open the unit.
Avoid direct exposure to the laser beam.
If the unit requires service, contact an authorized service center.
Ensure proper use by reading and following the instructions carefully.
B-5
■ appendix B agency regulatory notices
Do not attempt to make any adjustment of the unit.
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
LASERSCHUTZKLASSE 1 PRODUKT
Warning!
Do not attempt to disassemble the cabinet containing the laser. The laser beam
used in this product is harmful to the eyes. The use of optical instruments, such as
magnifying lenses, with this product increase the potential hazard to your eyes. For
your safety, have this equipment serviced only by an authorized service provider.
LED (Infrared) Safety
The infrared port located on the left side of this computer is classified as a Class 1
LED (light-emitting diode) device according to International Standard IEC 825-1
(EN60825-1). This device is not considered harmful, but the following precautions
are recommended:
Do not attempt to view the infrared LED beam with any type of optical device.
Do not attempt to make any adjustment of the unit.
If the unit requires service, contact an authorized service center.
Avoid direct eye exposure to the infrared LED beam. Be aware that the beam
is invisible light and cannot be seen.
CLASS 1 LED PRODUCT
LEDSCHUTZKLASSE 1 PRODUKT
Lithium battery warning
This computer contains a lithium battery to power the clock and calendar circuitry.
CAUTION: Danger of explosion if battery is replaced incorrectly. Replace only with
the same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
ATTENTION: Il y a danger d’xplosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avcc unc batterie du meme type ou d’un type recommande
par le constructer. Mettre au rebut les batteries usagees conformement aux
instructions du fabricant.
B-6
■ appendix B agency regulatory notices
VORSICHT! Explosionsgefahr bei unsachgemBen Austausch der Batterie Ersatz
nur durch denselben oder einem vom Hersteller em p fohlenem ahnlichen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
Der Arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 betragt 70dB (A) oder
weniger.
Zum Netzanschlua dieses Gerates ist eine geprufte Leitung zu verwenden. Fur
einen Nennstrom bis 6A und einem Gerategewicht groBer 3kg ist eine Leitung nicht
leichter als H05VV-F, 3G, 0.75mm2 einzusetzen.
Die Steckdose muB nahe dem Gerat angebracht und leicht zuganglich sein.
B-7
■ appendix B agency regulatory notices
Regulatory statement about the RF transmitter
15.105 Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
---Reorient or relocate the receiving ante nna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
The users manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
IMPORTANT NOTE (CO-LOCATION)
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled environment. This device and its antenna
must not be co-located or operating in conjunction with any other antenna or transmitter.
SAR Exposure
This device has been tested for compliance with FCC RF Exposure (SAR) limits in typical
flat configurations.
In order to comply with SAR limits established in the ANSI C95.1 standards, it is
recommended when using a Personal Computer that the integrated antenna is positioned
more than 1.5cm from your bo dy or nearby p ersons during extended perio ds of operation. If
the antenna is positioned less than 1.5cm from the user, it is recommended that the user
limit the exposure time.
B-8
Loading...
