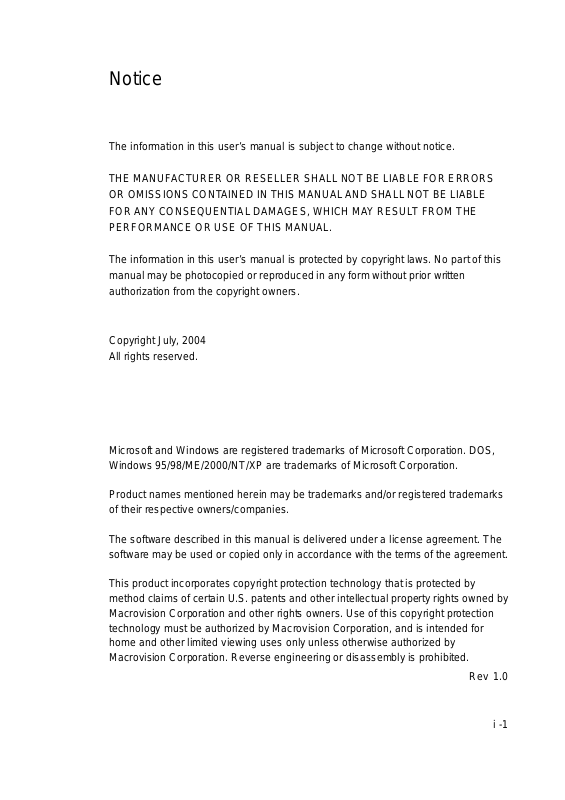

Notice
The information in this user’s manual is subject to change without notice.
THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS
OR OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE
FOR ANY CONSEQUENTIAL DAMAGES, WHICH MAY RESULT FROM THE
PERFORMANCE OR USE OF THIS MANUAL.
The information in this user’s manual is protected by copyright laws. No part of this
manual may be photocopied or reproduced in any form without prior written
authorization from the copyright owners.
Copyright July, 2004
All rights reserved.
Microsoft and Windows are registered trademarks of Microsoft Corporation. DOS,
Windows 95/98/ME/2000/NT/XP are trademarks of Microsoft Corporation.
Product names mentioned herein may be trademarks and/or registered trademarks
of their respective owners/companies.
The software described in this manual is delivered under a license agreement. The
software may be used or copied only in accordance with the terms of the agreement.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Rev 1.0
i -1
TABLE OF CONTENTS
PREFACE
Symbols and Conventions
Protecting Your Computer - Avoid Abusive Handling and Adverse
Environment
Chapter Summaries
1. GETTING TO KNOW THE BASICS
Performance Features (1-2,3)
System at a Glance (1-4)
Front View (1-4,5,6,7)
Rear View (1-8,9,10)
Bottom View (1-11,12,13)
AC Adapter (1-14)
LED Status Indicators (1-15,16)
Keyboard Features (1-17)
Function (Quick) Keys (1-17)
Windows Keys (1-18)
Embedded Numeric Keypad (1-18)
Touch Pad (1-19)
Graphic Subsystem (1-20)
Adjusting the Display Brightness (1-20)
Extending the Life of the TFT Display Panel (1-20)
Opening and Closing the Display Panel (1-21)
Audio Subsystem (1-22)
Adjusting the Volume in Windows (1-22)
Voice Recording (1-22)
Modem and Modem Setting (1-23)
Ethernet Adapter (1-24)
2. BIOS SETUP AND SECURITY
Entering the BIOS Setup Screen (2-3)
Leaving the BIOS Setup Screen (2-3)
BIOS Action Keys (2-3)
Modifying the BIOS Settings (2-4)
i -2
Main Setup (2-4)
Advance Setup (2-4)
Security Setup (2-5,6)
Power Setup (2-6,7)
Boot Setup (2-7,8)
Exit Setup (2-8)
3. BATTERY POWER & POWER MANAGEMENT
The Battery Pack (3-2)
Lithium-Ion Battery Technology (3-2)
Battery Low-Power Warning (3-3)
Installing and Removing the Battery Pack (3-4,5)
Charging the Battery and Charging Time (3-5)
Checking the Battery Level (3-6)
Prolonging the Battery’s Life and Usage Cycles (3-6)
Using Windows Power Options (3-7)
Windows’ Power Schemes (3-7,8)
Suspend Modes (3-9,10)
Power Button Action (3-11)
Low Battery Warning (3-12)
Power Manual Quick Access (3-13)
4. UPGRADING YOUR COMPUTER
Upgrading the Hard Disk Drive (4-2,3,4,5)
Upgrading the System Memory (4-6,7,8,9)
5. TROUBLE-SHOOTING
First Step (5-2,3)
Audio Problems (5-4)
Hard Disk Problems (5-5,6)
CD-ROM, DVD-ROM, CD-RW, or Combo Drive Problems (5-7)
Display Problems (5-8)
Keyboard and Mouse Problems (5-9)
CMOS Battery Problems (5-10)
Memory Problems (5-11)
Modem Problems (5-12)
Network Adapter / Ethernet Problems (5-13)
i -3
PC Card / PCMCIA Problems (5-14)
Performance Problems (5-15)
Firewire (IEEE1394) and USB2.0 Problems (5-16)
APPENDIX A Product Specification
APPENDIX B Agency Regulatory Notices
i -4
Preface
Using This Manual
This User’s Manual contains general information about the
hardware and software setup, troubleshooting, and technical
specifications of the notebook computer.
Symbols and Conventions
The following conventions and symbols are used in this manual:
When keys are to be pressed at the same time, a plus (+)
symbol is used. For instance, Fn+F7 means holding Fn and
F7 keys at the same time.
When a series of clicking actions is needed in Window s O/S, [ ]
and > symbols are used. For instance, [Start > Settings >
Control Panel > Display] means clicking the Start icon first,
then the Settings, then the Control Panel, then the Display
icon.
When you need to make a selection with the touch pad (or
mouse), you will be asked to ’select’ or ‘click’ or ‘double-click’,
‘right-click’ the item.
Note:
Text in this format and symbol means specific instructions, commentary,
sidelights, or any additional information or notes that you should be aware of.
Warning:
given instructions or information could result in damage to your computer or could
cause bodily harm or loss of life.
Text in this format and symbol means that failures to comply with the
i -5
Protecting Your Computer - Avoid Abusive Handling and
Adverse Environment
Follow the advice below will help ensure that you get the most out
of your Investment.
Your computer will serve you well if you take good care of it.
Do not expose the computer to direct sunlight or place it near
sources of heat.
Do not subject it to temperatures below 0
o
30
C (86oF).
o
C (32oF) or above
Do not expose the computer to magnetic fields.
Do not expose the computer to moisture or rain.
Do not spill water or liquid on the computer.
Do not subject the computer to adverse shock and vibration.
Do not expose the computer to dust and dirt.
Do not place objects on top of the computer to avoid damaging
the computer.
Do not place the computer on rocky surfaces.
Here are some ways of taking care of your AC adapter.
Do not connect the adapter to any devices other than your
computer.
Do not let water get into the adapter.
Do not block the ventilation airway of the adapter.
Keep the adapter in a cool and ventilated place.
Do not step on the power cord or place heavy objects on top of
it.
Carefully tuck away the power cord and any cables away from
pedestrian traffic.
When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
i -6
Keep the adapter away from children.
The total ampere ratings of the equipment plugged in should
not exceed the ampere rating of the cord if you are using an
extension cord.
The total current rating of all equipment plugged into a single
wall outlet should not exceed the fuse rating.
Do not connect other AC adapter to your notebook. This
Notebook uses exclusively the AC adapter LITE-ON PA-1650-01,
PA-1650-02 (65W); Lishin 0335C2065, 0335A2065 (65W).
When cleaning the computer, observe these steps:
1. Power off the computer and remove the battery pack.
2. Disconnect the AC adapter.
3. Use a soft cloth dampened with water. Do not use liquid or
aerosol cleaners.
Contact your dealer or see your service technician if any of the
following occurs:
Computer has been dropped or the body has been damaged.
Liquid has been spilled into the product.
The computer does not operate normally.
Cleaning the Ventilation Grills:
It is suggested that you clean the ventilation grills regularly to
maintain optimal thermal regulation of the notebook. To do this, you
may use a soft brush or a vacuum cleaner (with appropriate head
adapter) to remove the dust buildup on the ventilation grills.
i -7
Chapter Summaries
The following is a summary of the available chapters and
appendices in this manual.
Chapter 1: Getting to Know the Basics
In this chapter, you will learn the basic operations and features
of your computer. It gives you a general understanding of the
components of your computer.
Chapter 2: BIOS Setup / Security
In this chapter, you will learn how to change various firmware
settings and what the settings mean. Also, you will learn how to
take advantage of the built-in security feature provided by the
BIOS.
Chapter 3: Battery Power & Power Management
In this chapter, you will learn the fundamentals of power
management and how to use them to achieve longer battery life.
Chapter 4: Upgrading Your Computer
In this chapter, you will learn how to upgrade the system
memory, the hard disk drive.
Chapter 5: Trouble-Shooting
In this chapter, you will learn how to solve common hardware
and software problems.
Appendix A: Product Specification
In this section, you will find a list of the computer’s system
specifications.
Appendix B: Agency Regulatory Notices
In this section, you will find the general electro-magnetic and
safety regulatory information.
i -8
■ chapter 1 getting to know the basics
CHAPTER▼ ONE
GETTING TO KNOW THE BASICS
This chapter introduces the features and
components of the computer .
1-1
■ chapter 1 getting to know the basics
Performance Features
High Performance Processor
The notebook PC is equipped with a powerful Mobile Intel
Pentium M processor of the latest sub-micron process,
processor technologies, and high bus bandwidths.
Advanced Graphic Engine
An Intel Integrated Extreme Graphic 2 video processor
gives excellent graphic performance. The advanced
graphic chip also incorporates a hardware-based
motion-compensation engine, which gives you smooth
MPEG video playback. 3D graphics capability also adds
realism to PC games.
LCD Display
The computer is equipped either with a 15 -inch TFT in
standard format high-resolution display panel for clear text
and brilliant colors.
Expandability
The system offers upgradeable hard disk drive and 2 DDR
SDRAM sockets for expansion, allowing the user to easily
increase the storage and system capacities as the need
arises.
Ethernet Port
The system provides built-in Ethernet network adapter for
high bandwidth network connection.
Firewire (IEEE1394 / 1394a) and USB2.0 ports
1-2
In addition to a full array of built-in I/O por
offers IEEE1394 for ultra high-speed connection to high
bandwidth digital video devices and USB2.0 ports to
ts, the computer
■ chapter 1 getting to know the basics
connect to any USB-based peripheral devices. (Note: In
some models, IEEE1394 Port may not be available.)
Wireless LAN (Optional)
The optional internal Wireless LAN module allows your
notebook to connect wirelessly to other 802.11-enabled
systems, devices, or network.
Integrated USB Devices (Optional)
The optional USB interface gives you added function to the
notebook.
1-3
■ chapter 1 getting to know the basics
System At A Glance
Top View
12
3
7
1. LCD Latch
The LCD latches lock / unlock the LCD panel.
2. Built-in Microphone
The built-in microphone records sound.
1-4
11 10 9
8
44
5
6
■ chapter 1 getting to know the basics
3. LCD Display
The panel is where the system content is displayed.
4. Built-in Stereo Speakers
The built-in speakers output the sound in stereo.
5. Keyboard
The keyboard is used to enter data. It has an embedded
numeric keypad and cursor control keys. (See Keyboard
Section for details.)
6. Touch Pad
The touch pad is a built-in pointing device with functions similar
to a mouse.
7. LED Status Indicator
The LED Status indicators reveal the status of these functions:
Numeric keypad, cap lock, scroll lock, WLAN module enabling
and disabling and also the ODD, HDD activities. (See the LED
Status Indicator Section for details.)
8. Power / Suspend Button
The power/suspend button turns the notebook on and off and it
also acts as a system suspend key. Press momentarily to turn
on the system. Press and hold for at least 3~4 seconds to turn
off the system. How this key behaves can be defined in [Start >
Settings > Control Panel > Power Options > Advanced] menu.
Press the power / suspend button again to return from the
suspend mode. (See Chapter 3 for more details on system
suspend function.)
9. ? Quick Key
The ? Quick Key launches the ? automatically in Windows XP
or 2000.
1-5
■ chapter 1 getting to know the basics
10. Internet Quick Key
The Internet Quick Key launches the Internet Explore
automatically in Windows XP or 2000.
11. Email Quick Key
The Email Quick Key launches the Outlook Express
automatically in Windows XP or 2000.
8. ?Suspend Status LED
Flashing green light indicates the notebook is in suspend mode.
(See the LED Status Indicator Section for details.)
9. ?Battery Status LED
The multi-color LED indicates the battery status of the
notebook. (See the LED Status Indicator Section for details.)
1-6
■ chapter 1 getting to know the basics
Front and Rear View
1
Warning:
damage the display
Do not place any heavy objects on the top of notebook. This may
1. External VGA Port
The 15-pin VGA analog port is for connecting the external CRT
monitor or projector.
2. Battery Pack
The battery pack is a built-in power source for the notebook.
3. Kensington Lock Key Hole
A Kensington-type security lock latches to this keyhole for
anti-theft purpose.
4. Audio Volume Dial
Use the volume dial to control the loudness of the speakers.
5. Wireless On/Off Switch
Use the Switch to disable or enable Wireless function.
2
4
3
5
1-7
■ chapter 1 getting to know the basics
Side Views
12
4
5 8
3
11
9
10
7
6
12
Warning:
damage the display
Do not place any heavy objects on the top of notebook. This may
1. Ethernet / LAN Port
The port connects to a network hub via the RJ-45 cable and
also conforms to 10/100Base-TX transmission protocol.
2. Modem Port
This is where you plug the phone jack (RJ-11) for fax/modem
functions.
3. Optical Drive and Disk Eject Button and Manual Eject Key
Hole
If your computer comes with the Combo drive, DVD-RW ,
DVD+RW , or DVD-Dual drive, you may save data onto a CD-R
/ CD-RW or DVD RW disc. Press the eject button to eject the
disk tray. The manual eject keyhole allows you to manually
eject a jammed disk.
1-8
■ chapter 1 getting to know the basics
4. PC Card Slot (Type II PCMCIA) and Card Eject Button
The slot is where PC Card (Type II PCMCIA) is inserted. Press
the eject button to release the PC Card.
In some models, the PC Card Slot may not be available.
Note:
Note: For safety consideration, please insert the PCMCIA
dummy card if not inserting the PCMCIA card.
5. Microphone Jack
The microphone jack (3.5-mm diameter) is where you connect
a microphone.
6. Audio Line-in Jack
The Audio Line-in jack (3.5-mm diameter ) is where yo u connect
an external audio input source such as a CD Player.
7. Stereo Headphone / SPDIF-out Jack
The stereo headphone jack (3.5-mm diameter) is where you
connect the headphones or external speakers. Alternatively,
you may connect the SPDIF output to an external DTS, AC3, or
PCM sound processor / decoder in your home stereo system.
8. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal
heat. Do not block this airway completely.
9. Firewire / IEEE1394 / 1394a Port
This is a high-speed serial data port. You may connect any
Fire-wire-ready device to this port.
1-9
■ chapter 1 getting to know the basics
Note: In some models, theFirewire/1394 Port may not be available.
10. USB2.0 Port (x3)
The Universal Serial Bus (USB2.0-compliant) port allows you to
connect a wide variety of devices to your computer at a rate of
up to 480 Mbps. This port conforms to the latest USB2.0
plug-and-play standards.
11. Power Jack (DC-in)
The DC-out jack of the AC Adapter connects here and powers
the computer.
12. TV (S-Video) Port
The S-Video port permits you to redirect the screen output to a
television set or any analog video playback device. This TV
Port is copyright protected; when DVD movie is played, the
output is scrambled to prevent analog recording.
1-10
■ chapter 1 getting to know the basics
Bottom View
1
4
3
1. Battery Pack and Battery Latch
The battery pack is a built-in power source for the notebook.
Slide the battery latch to release the battery pack.
(battery release photo)
2. Hard Disk Drive and USB device Cover
You may install the optional USB interface into this slot, And
The system’s hard disk drive is located under the case cover .
The HDD can be upgraded to a larger capacity. (See Chapter 4
for instructions on a memory upgrade.)
3. System Device Cover
The system’s processor with cooler assembly, Wireless LAN
module, and DDR memory module are located under the case
2
1-11
■ chapter 1 getting to know the basics
cover. The system memory can be upgraded to a larger
capacity. (See Chapter 4 for instructions on a memory
upgrade.)
4. Ventilation Grill
The fan grill is where air is exchanged to dissipate the internal
heat. Do not block this airway completely.
Warning:
surface only. The bottom case may get very hot.
Do not block the Fan Grill outlet. Place the machine on hard
1-12
■ chapter 1 getting to know the basics
AC Adapter
1. DC-out Connector
The DC-out connector docks to the power jack (DC-in) on the
computer.
2. Adapter
The adapter converts alternating current into constant DC
voltage for the computer.
3. AC Plug
The AC plug plugs to the AC wall outlet.
Warning:
ground pin. If not, you may feel a slight tingling sensation on any of the
computer’s metal parts such as the I/O ports. This is caused by leakage current
when the AC adapter is not properly grounded (via the ground pin). However,
the amount of leakage current is within the safety regulation and is not harmful
to human body.
Make sure you are using a standard 3-prong AC wall socket with a
1-13
■ chapter 1 getting to know the basics
LED Status Indicator
The LED Status Indicator displays the operating status of your
notebook. When a certain function is enabled, an LED will light
up. The following section describes its indication.
System Status Indicator
LED Graphic
Symbol
Indication
Green light indicates the WLAN module
is active.
Green light indicates the hard drive
and/or optical drive is being accessed.
Green light indicates the numeric keypad
is activated.
Green light indicates the cap-lock is
activated.
Green light indicates the scroll-lock is
activated.
1-14
■ chapter 1 getting to know the basics
Power Indicator
LED Graphic
Symbol
Indication
Persistent green light indicates Power On.
Light-off indicates the notebook is in
Power Off mode.
Blinking green light indicates system is
either in long battery life mode or high
performance mode. (If the notebook is on
AC power and this LED is blinking, it
means the system is now in high
performance mode. If the notebook is on
battery power and this LED is blinking, it
means the system is now in long battery
life mode.) The High Performance Mode
and Long Battery Life Mode can be
enabled or disabled in the BIOS Setup.
See Chapter 2 for details.
Blinking green light indicates the notebook
is in suspend mode.
Blinking orange light indicates the battery
is being charged.
Blinking red light indicates the battery
power is low when the system is turn ON.
Persistent green light indicates the battery
is Full.
LED-off (Dark) indicates the system is
without battery.
1-15
■ chapter 1 getting to know the basics
Keyboard Features
Function Keys (Quick Keys)
Graphic
Symbol
For various system controls, press the Fn (Function) key and the Fx key
simultaneously.
Action System Control
Fn + F1 Enters Suspend Mode.
Fn + F2 Turns the WLAN module on or
off.
Fn + F3 Turns of the battery warning
Fn + F4 Changes Display Mode:
Fn + F5 Turns Speaker Volume up.
Fn + F6 Turns Speaker Volume down.
Fn + F7 Increases Display Brightness.
Fn + F8 Decreases Display Brightness.
Fn+Num Lk Enables the embedded keypad
Fn + Scr Lk Press the Scroll Lock key and
beep off or on.
LCD-only, CRT-only and
LCD&CRT.
to work in numeric mode. The
keys act like numeric keypads
in a calculator. Use this mode
when you need to do a lot of
numeric data entry. An
alternative would be to connect
an external numeric keypad.
then press ↑or ↓to move one
line up or down.
1-16
■ chapter 1 getting to know the basics
/
Windows Keys
Your keyboard also has two Windows keys:
1. Start Key
This key allows you to pull up the Windows Start Menu at
the bottom of the taskbar.
2. Application Menu Key
This key brings up the popup menu for the application,
similar to a click of the right mouse button.
Embedded Numeric Keypad
Press Num Lock to enable the embedded numeric keypad. The
numbers are printed in upper right corner of a key, in a color
different from the alphabets. This key pad is complete with
arithmetic operators (+, -, * , /).
Press Num Lock to revert to normal character keys.
Num
Lk
789
456
123
0
*
-
+
.
Enter
1-17
■ chapter 1 getting to know the basics
Touch Pad
The built-in touch pad, which is a PS/2-compatible pointing device,
senses movement on its surface. As you move your fingertip on the
surface of the pad, the cursor responds accordingly.
The following items teach you how to use the touch pad:
1. Move your finger across the touch pad to move the cursor.
2. Press buttons to select or execute functions. These two buttons
are similar to the left and right buttons on a mouse. Tapping on the
touch pad twice produces is similar to clicking the left button of a
mouse.
Function Left Button Right
Button
Execution Click twice
quickly
Selection Click once Tap once
Drag Click and hold
to drag the
cursor
Access
Context Menu
Move One
Page Up or
Down
Click once
Tap twice (at the same speed as
Tap twice quickly and on the
Tips on Using the Touch Pad:
1. The double-click speed is timed. If you double-click too slowly,
your notebook responds as if you single-clicked twice.
2. Keep your fingers dry and clean when using the touch pad.
Also keep the surface of touch pad clean and dry to prolong its life.
3. The touch pad is sensitive to finger movements. Hence, the
lighter the touch, the better the response. Heavy touch does not
produce better response.
Equivalent Tapping Action
double-clicking
the mouse button)
second tap hold finger to the touch
pad to drag the cursor
1-18
■ chapter 1 getting to know the basics
Graphic Subsystem
Your computer uses a high performance 15.1-inch active matrix
TFT panel with high resolution and multi-million colors for
comfortable viewing. The Intel Extreme Graphic 2 video graphics
accelerator, which is Microsoft DirectX 9 compatible, performs
graphic rendering at a lighting-fast speed.
Adjusting the Display Brightness
The notebook uses special key combinations, called hot keys,
to control brightness.
Press Fn+F7 to increase the brightness.
Press Fn+F8 to decrease the brightness.
Note:
To maximize your battery operating time, set the brightness to the
lowest comfortable setting, so that the internal backlight uses less power.
Extending the Life of the TFT Display Device
Observe the following guidelines to maximize the life of the
backlight in the display.
1. Set the brightness to the lowest comfortable setting
(Fn+F8).
2. When working at your desk, connect your notebook to an
external monitor and disable the internal display Fn+ F4.
3. Do not disable the suspend time-outs.
4. If you are using AC power and have no external monitor
attached, change to suspend mode when not in use.
1-19
■ chapter 1 getting to know the basics
Opening and Closing the Display Panel
To open the display, push the LCD latch inwardly and lift up the
lid. Then tilt it to a comfortable viewing position.
To close the display cover, fold it down gently until the LCD
latches click into place.
Warning:
place any object on top of the computer when the display is closed
To avoid damaging the display, do not slam it when closing. Do not
1-20
■ chapter 1 getting to know the basics
Audio Subsystem
Your computer’s audio subsystem is Sound Blaster Pro-compatible.
Adjusting the Volume Manually
To increase the volume, press Fn+ F5.
To decrease the volume, press Fn+F6.
Adjusting the Audio Volume in Windows
1. Click the speaker symbol in the task tray in Windows.
2. Drag the volume control bar up or down to adjust the volume.
3. To temporarily silence the speaker without changing the
volume setting, click Mute.
Voice Recording
A built-in micropho ne allows you to record sound. You will need
to use audio processing software to enable the built-in
microphone. For example, you may use Microsoft Sound
Recorder.
1-21
■ chapter 1 getting to know the basics
Modem
Y our computer comes with a 56K V.92 internal fax/modem and a phone
jack (RJ-1 1), which is located on the left side of your computer.
Use a telephone cable to connect the computer to the telephone wall
outlet.
Connecting the Modem
1. Plug one end of the phone line into the modem port located on
the rear side of the computer . (For EMI compliance, you need to clip
the included EMI CORE to the phone line.)
2. Plug the other end of the line into the analog phone wall outlet.
Depending on where your computer is used, you may need to change
settings in the modem. Correct setting will allow you to maintain a stable
connection in a country where its telecommunication system may be
different to others.
T o change the modem setting, do the following:
1. Go to [Start > Settings > Control Panel] and double-click on
Modem Settings icon. You will see a similar dialog box.
1-22
2. Click on the pull-down menu and select the country where it is
applicable. Click on OK to exit.
■ chapter 1 getting to know the basics
Ethernet
Your computer is equipped with a 10/100Base-TX Fast Ethernet
network adapter. Connect the active LAN cable to the RJ-45 LAN
port located on the left side of the computer . This allows you to
access and transmit data in the local area network.
Connecting to the Network
Use Unshielded Twisted Pair (UTP) Ethernet cable only .
1. Insert one end of the UTP cable into the network connector
until the connector snaps securely into the receptacle.
2. Either connect the other end of the cable to an RJ-45 jack
wall outlet or to an RJ-45 port on a UTP concentrator or hub in
the network.
Cabling Restriction for Networks
The following restrictions should be observed for
100/1000BASE-TX networks:
The maximum cable run length is 100 meters(m) (328
feet[ft]).
For 100-Mbps operations, use Category 5 wiring and
connections.
Note:
Consult Windows manual and / or Novell Netware user’s guide for the
software installation, configuration, operation of the network.
1-23
■ chapter 2 bios setup and security feature
CHAPTER▼ TWO
BIOS SETUP AND SECURITY FEATURE
In this chapter, you will learn how to
enter the BIOS Setup Menu and
manipulate various hardware control
settings. You will also learn how to use
the built-in security features.
2-1
■ chapter 2 bios setup and security feature
The Setup Utility is a hardware configuration program built into
your computer’s BIOS (Basic Input/Output System). It runs and
maintains a variety of hardware functions. It is a menu-driven
software, which allows you to easily configure and change the
settings.
The BIOS contains manufacture’s default settings for the
computer’s standard operations. However, there are occasions
when you may be required to modify the default settings in the
BIOS. For example, you may need to configure the BIOS power
management (APM) settings if you are using DOS, or
non-Windows operating system.
The BIOS allows you to set up passwords to limit access to users.
This is an important feature because a great deal of vital
information is carried within the computer nowadays. Unauthorized
access can be prevented. Later in this chapter, you will learn how to
use this security feature.
2-2
■ chapter 2 bios setup and security feature
Entering the BIOS Setup Screen
First turn on the power. When the BIOS performs the POST
(Power-On Self Test), press F2 key quickly to activate the AMI
BIOS Setup Utility.
Note:
You may need to press F2 key fairly quickly. Once the system begins to load
Windows, you may have to retry by cycle-power on again
Leaving the BIOS Setup Screen
When you have finished modifying the BIOS settings, exit the BIOS.
It takes a few seconds to record changes in the CMOS.
BIOS Action Keys
Function Key Command Description
Leaves a sub-menu to return to the
ESC Exit
previous menu OR exits the BIOS setup
while saving changes.
Enter Go to Sub Screen Shows the Sub Menu
F1 General Help Shows the Help Screen
F9 Default setting Load Optimal Defaults
F10 Save and Exit
<Tab> Select a field Selects the next field.
↑ Select an item Selects the next upper item.
↓ Select an item Selects the next lower item.
- Lower value Selects the next value within a field.
+ Higher value Selects the next value within a field.
Saves changes and reboots the
computer.
2-3
■ chapter 2 bios setup and security feature
Modifying the BIOS Settings
The AMIBIOS setup main menu is subdivided into sub-menus.
Each menu item is described in this section.
Main Setup
Under this menu, you may change time/date and view basic
processor and system memory information.
Item Selections /
Sub-menu
Date N/A Type in the current date, in MM/DD/YY
Time N/A Type in the current date, in HH:MM:SS
Description
format.
format.
Advanced Setup
Item Selections /
Sub-menu
Internal
Modem
Support
Mini PCI
Wireless
LAN
Enabled
Disabled
Enabled
Disabled
Description
Enable or disable the built-in modem
function.
Enable or disable the built-in wireless
LAN function (optional).
2-4
■ chapter 2 bios setup and security feature
Security Setup
►Boot Settings Configuration
Item Selections /
Sub-menu
Change
N/A Install or Change the Password
Supervisor
Password
Change
N/A Install or Change the Password
User
Password
Clear User
N/A Install or Change the Password
Password
Boot
Sector
Disabled
Enabled
Virus
Protection
Description
To enable or disable the boot sector
protection.
When Enabled, BIOS gives a warning
when any program attempts to rewrite
or delete the boot sector.
Note:
About Boot Sector Virus Protection:
If enabled, the following warning message appears when a program attempts to alter
the boot sector. You may have to enter “N” several times to prevent the boot sector
write.
Boot Sector Write!!!
Possible VIRUS: Continue (Y/N)? _
The following warning message appears when a program attempts to format the
hard disk drive.
Format!!!
Possible VIRUS: Continue (Y/N)? _
Using Password Protection
Two Levels of Password Protection are available. The BIOS
provides both a Supervisor and a User password. If you try to
activate both passwords, the Supervisor password must be set first.
2-5
■ chapter 2 bios setup and security feature
The passwords activate two different levels of protection:
1. System always asks for password every time it is powered on.
2. System asks for password only when you attempt to enter
BIOS utility.
The passwords are encrypted and stored in NVRAM. Make sure
you write them down or memorize them. If you lost the passwords,
the computer may need to be sent back to the factory or to an
authorized service dealer to reset the passwords.
Power Setup
Item Selections /
Sub-menu
Intel
SpeedStep
tech.
Automatic
Reversed
Battery-
Optimized
Maximum-Pe
rformance
Disabled
Power Button
Mode
Long Battery
Life Mode
On/Off
Suspend
Enabled
Disabled
Description
[Automatic]: CPU adjusts its frequency
automatically (on AC power or battery
power) to save battery life.
[Reversed]: (currently no function)
[Battery Optimized]: CPU performance
is minimized to save battery life.
[Maximum Performance]: CPU
performance is maximized.
[Disabled]: SpeedStep function is
disabled.
[On/Off]: When the power button is
pressed, the system is turned off.
[Suspend]: When the power button is
pressed, the system enters the suspend
mode.
When Enabled, maximum battery life
can be achieved. The processor
performance is lowered.
2-6
■ chapter 2 bios setup and security feature
High
Performance
Mode
Enabled
Disabled
When Enabled, maximum system
performance can be achieved. The
processor performance is enhanced.
Note:
The Suspend Mode selection in BIOS only applies to older Windows version
(such as Windows 3.1 or Windows 95 or NT4) or non-Windows operating system. In
Windows ME / 98SE / 2000 / XP, suspend mode and settings are determined by
settings in the Power Options Properties (Start > Control Panel > Power Options).
Note: By default, both the Long Battery Life Mode and High Performance Mode
are enabled. In this combination, when the notebook is on AC power, it enters Higher
Performance Mode automatically, and when the notebook is on battery power, it
enters Long Battery Life Mode.
Boot Setup
►Boot Settings Configuration
Item Selections /
Sub-menu
Quiet Boot Disabled
Enabled
Description
When Enabled, the system will display
OEM logo instead of the POST
messages.
When Disabled, the system will display
POST messages (i.e. devices
information.)
►Boot Device Priority
Item Selections /
Description
Sub-menu
2-7
■ chapter 2 bios setup and security feature
1st Boot
Device
2nd Boot
Device
Removable Dev.
CD/DVD
Hard Drive
Realtek Boot
Agent
Disabled
Set the type of device for the 1st drive
BIOS attempts to boot from. If Realtek
Boot Agent is selected, system will
attempt to load boot sector from the
Ethernet port.
Set the type of device for the 2nd drive
BIOS attempts to boot from.
Note:
If you select Realtek Boot Agent, the system will attempt to boot from the
network.
Note: When the BIOS performs POST, you may also press F12 Key to enable the
Boot Device selection menu. You may choose CD/DVD, Hard Drive, or Realtek Boot
Agent as the first storage device to boot from. If you have already connected a USB
Floppy Disk Drive before powering up, it will appear as a Removable Device in the
Boot Device selection menu
Exit Setup
Item Selections /
Sub-menu
Saves
N/A After you have completed the BIOS
Changes and
Exit
Discard
N/A Discards changes done so far to any of
Changes
Load Optimal
N/A Load Optimal Default value for all the
Defaults
Description
settings, select this item to save all
settings, exit BIOS Setup utility, and
reboot. New system settings will take
effect on next power-up. F10 key can be
used for this operation.
the setup questions.
setup questions. F9 key can be used for
this operation.
2-8
■ chapter 3 battery power & power management
CHAPTER▼ THREE
BATTERY POWER & POWER
MANAGEMENT
In this chapter, you will learn the
fundamentals of power management
and how to use it to achieve longer
battery life.
3-1
■ chapter 3 battery power & power management
In this chapter, you will learn how to operate your notebook on
battery power, how to handle and maintain the battery pack, and
learn about the system’s power saving features.
TFT display, central processor, hard disk drive are the major
hardware subsystems that consume the most power. Power
management deals how these key components should behave to
conserve power. For example, you can have the system turn off its
display after 2 minutes of inactivity to save power. Efficient power
management can help you work longer sessions before having to
recharge the battery.
The Battery Pack
Lithium-Ion Battery
Your notebook uses a six-cell or four-cell Lithium-Ion
battery pack that provides power when you don’t have
access to an AC outlet.
3-2
Note:
It is necessary that you charge the battery pack for at least 6
hours before using it for the first time.
Note: In the Standby Suspend mode, a fully charged battery loses its
power in roughly 1/2 day or less. When not being used, the battery’s
power will deplete in 1-2 month.
■ chapter 3 battery power & power management
Battery Low-Power Warning
1. Low Battery Warning
Low battery condition occurs when battery power is
reduced to 6%. The red battery status LED indicator
blinks and the system beeps once every 16 seconds or
so.
2. Very Low Battery Warning
Very Low battery condition occurs at 3 % power
remaining. The red battery status LED indicator blinks
and the system beeps at 4-second interval.
When the notebook warns you of its low battery condit ion,
you will have about 3-5 minutes to save your current
work.
Warning:
degree Celsius (32 degree F) or above 60 degree C (140F). This may
adversely affect the battery pack.
Do not expose battery packs to temperatures below 0
Note:
Press Fn+F3 to turn off the battery warning beep.
3-3
■ chapter 3 battery power & power management
Installing and Removing the Battery Pack
To Remove the Battery Pack:
1. Place the notebook bottom-side up on a flat and
secured surface.
2. Slide Latch 1 to the unlocked position
3. Hold Latch 2 to the unlocked position as indicated
by the arrow and pull the battery’s hard case away from
the notebook.
(picture)
3-4
■ chapter 3 battery power & power management
To Install the Battery Pack:
1. Place the notebook bottom-side up on a flat and
secured surface.
2. Carefully insert the battery pack into the battery
compartment of the notebook and slide Latch 1 to the
locked position.
(picture)
Charging the Battery and Charging Time
To charge the battery, while the battery pack is in the noteboo k,
plug the AC adapter into the notebook and an electrical outlet.
The charging time is approximately 4-5.5 hours when the
notebook is turned off and approximately 4.5-6 hours when the
notebook is turned on.
When the battery is fully charged, the battery charge indicator
becomes dark (off).
If system runs at heavy loading or in a high temperature environment,
Note:
the battery may not be fully charged. You need to continue to charge it with the
AC adapter plugged in until the charging LED turns off.
3-5
■ chapter 3 battery power & power management
Checking the Battery Level
You can check the remaining battery power in the Windows
battery status indicator , which is located at the lower right-hand
corner of the task bar. (If you do not see a battery or AC-in icon
on the task tray, go to Power Options Properties box and click
on the Advanced tab. Check off ``Always show icon on the task
bar``.)
Alternatively, you can access the power meter by clicking the
Power Options icon in the Windows Control Panel.
Prolonging the Battery’s Life and Usage Cycles
There are ways you can do to prolong the use of battery.
Use the AC adapter wherever AC wall outlet is available.
This will ensure uninterrupted computing.
Purchase additional battery pack.
Store the battery pack in room temperature. Higher
temperature tends to deplete the battery’s power faster .
Make good use of the power management function. Save
To Disk (Hibernate) saves the most energy by storing current
system contents in a hard disk space reserved for this function.
The life expectancy of the battery is approximately 300
recharges.
See the notices section in the beginning of the user
manual on how to care for the battery pack.
Note:
Read Section Protecting Your Notebook in the beginning of this manual
for tips about how to maintain the battery pack.
Note: To achieve optimal battery performance, you may need to do a battery
calibration at a 3-month interval. To do this:
1. Fully charge the battery.
2. Then discharge the battery by entering the BIOS setup screen. (Press F2
key as soon as you turn on the computer. And let it remain at the setup screen
until the battery runs out.
3. Fully charge the battery again.
3-6
■ chapter 3 battery power & power management
Using Windows Power Options
Windows Power Management provides basic power saving
features. In the Windows Power Options Properties [Start >
Settings > Control Panel > Power Options] dialogue box, you
may enter time-out values for display and hard disk drive.
Windows power manager saves power by turning off hard drive
after 1 minute of inactivity, for example.
Windows’ Power Schemes
The power management control panel in Windows XP,
known as Power Schemes, is designed to provide the
user with an easy-to-use interface. The Power Schemes
tab can be found in the Power Options Properties panel
that is accessible via the control panel window.
Schemes are easy to understand, based on notebook
usage scenarios, and control not only processor power
usage but other system peripherals as well.
Go to [Start > Settings > Control Panel] and double-click
the Power Options icon.
Always on mode puts the processor into maximum
performance mode, which provides no power saving.
The other schemes control processor performance
based on demand. For example, Max Battery mode
lowers the processor’s speed and voltage to conserve
power as much as possible.
3-7
■ chapter 3 battery power & power management
In this dialog box, you can manually set the LCD and
hard drive’s time-out values in the Plugged in colu mn and
in the Running on batteries column. Lower time-out
values will save more battery power.
3-8
Note:
Also consult Windows user guide for more information on how
to use Windows power management functions.
Note: Actual dialogue box shown above may appear slightly different.
■ chapter 3 battery power & power management
Suspend Mode
Standby Suspend
The system automatically enters this mode after a period
of inactivity, which is set in the Power Schemes dialog
box. In Standby mode, hardware devices, such as
display panel and hard disk, are turned off to conserve
energy.
Hibernate Suspend
In this mode, all system data are saved in the hard disk
before powering down. When this mode is activated, all
system state and contents are saved to the hard disk
drive after a period of inactivity defined by the user. No
power or very little power is drawn from the battery
module under this mode.
However, depending on how much RAM that have been
installed on your computer, the amount of time the
system requires to restore all its previous contents can
range from 5 to 20 seconds.
For Windows 2000 / XP users, hibernation is handled by
the operating system; therefore, no special disk partition
or disk file is necessary.
If you wish to activate Hibernate mode, you need enable
Hibernate Support in the Hibernate tab of the Power
Options menu.
3-9
■ chapter 3 battery power & power management
3-10
Note:
Do not install or remove the memory module when the system
is in the suspend mode.
Note: Actual dialogue box shown above may appear slightly different.
■ chapter 3 battery power & power management
Power Button Action
The notebook PC’s power button can be set to turn off
the system or activate the suspend mode.
Go to [Start > Settings > Control Panel > Power Options]
and click on the Advanced t ab. In the pull-down menu,
select how you wish the power button to work as.
Note:
Actual dialogue box shown above may appear slightly different.
Warning:
pull-down menu, DO NOT select Do nothing – otherwise the system will
still run at high speed while the processor’s fan grill is fully blocked by
the closed LCD panel. The heat will damage the LCD panel.
In the When I close the lid of my portable computer
3-11
■ chapter 3 battery power & power management
Low Battery Warning
You can define when and how the system warns you of
its battery-low condition.
Go to the Alarms tab in the Power Options Properties box.
If you wish to hear audible beeps, click on the Alarm
Action button and put a check on Sound Alarm.
3-12
Note:
Consult Windows user guide for more information on how to
use Windows power management functions.
Note: Actual dialogue box shown above may appear slightly different.
■ chapter 3 battery power & power management
Power Manu Quick Access
Instead of making specific selections in the Power
Options Properties box, you can quickly and easily
specify which pre-set power saving function you desire
by clicking on the Battery icon at the lower right-hand
corner of the task bar. (If you do not see a battery or
AC-in icon, go to Power Options Properties box and click
on the Advanced t ab. Check off ``Always show icon on
the task bar``.) Select Max Battery if you want the system
to enter suspend mode more often. Or, select Always On
if your notebook PC is plugged into an AC power source.
Actual dialogue box shown above may appear slightly different.
Note:
3-13
■ chapter 4 upgrading your computer
CHAPTER▼ FOUR
UPGRADING YOUR COMPUTER
In this chapter, you will learn how to
upgrade the DRAM, hard disk drive.
Warning: We strongly recommend you sending your notebook
back to your dealer or agent for the specification upgrading.
4-1
■ chapter 4 upgrading your computer
Upgrading the Hard Disk Drive
Replacing the original drive with one of larger capacity can in crease
the hard drive capacity of your computer. The computer uses a 9.5
mm (height), 2.5-inch Ultra ATA-66 / 100 / 133 type hard disk.
Be sure to make a backup copy of all your data before attempting
this operation.
Warning:
instructions carefully or have a qualified technician install it for you. Damages due to
mishandling of this procedure are NOT covered by the manufacture’s warranty.
Hard drive upgrade is a delicate process. Please observe the following
Warning:
Do not drop or apply any shock.
Do not press on the cover.
Do not touch the connector with your fingertips.
Mishandling of the hard drive can result in permanent loss of data. Make a
backup copy of the drive s content before you remove it.
Apply care when handling the hard disk.
Note:
Certain models that come with the IBM-brand hard drive emit a clattering
sound when it is being rattled. This is a normal condition.
4-2
■ chapter 4 upgrading your computer
Upgrading the Hard Disk Drive
To replace the hard disk drive, do the following:
1. Turn OFF the computer. Unhook the AC cord and all
cables/devices attached to the notebook.
2. Place your hand on a large metal object momentarily to
discharge any static electricity.
3. Locate and remove 8 Screw A’s on the System Device
Cover.
(picture)
4. Remove the Device Cover.
5. Locate and remove 2 Screw B’s. Gently pull the soft tab
on the HDD module forward to disengage from the HDD
connector and carefully remove the HDD module from
the bay.
(picture)
6. Locate and remove 4 Screw C’s from the HDD module.
Remove the metal case.
(picture)
7. Re-attach the metal cover to the new hard drive and
tighten 4 Screw C’s. Note the green PC board of the hard disk
drive is facing against the metal case.
8. Re-insert the HDD module to the HDD connector.
9. Re-attach and tighten 2 Screw B’s. (If the HDD assembly
is not fully inserted into the bay, the screw and its hole will not
4-3
■ chapter 4 upgrading your computer
line up.)
10. Replace the System Device Cover and 8 Screw A’s.
Congratulations! You have now completed the hard drive
upgrade. When you boot up the PC, you may need to create a
primary HDD partition and reformat the new drive and re-install
O/S, drivers, and all the necessary applications.
4-4
■ chapter 4 upgrading your computer
Upgrading the System Memory
Many applications will generally run faster when the computer’s
dynamic memory capacity is increased. The computer provides two
DDR memory sockets, located underneath the System Device
Cover. You can increase the amount of memory by replacing the
existing one with a dual inline memory module (commonly known
as SO-DIMM) of a higher capacity. The SO-DIMM can be 128MB,
256MB, or 512MB in capacity. The SO-DIMM is of type DDR
SDRAM, has 200 pins and runs on 2.5V. The SO-DIMM should be
PC2700 compliant.
Warning:
instructions carefully or have a qualified technician install it for you. Damages due to
mishandling of this procedure are NOT covered by the manufacture’s warranty.
Memory upgrade is a delicate process. Please observe the following
Warning:
mode may cause permanent damage to the hardware. Make sure you turn off the
power and unplug the AC cord before proceeding with a memory upgrade.
Changing memory while your computer is in suspend or power-saving
Warning:
or the manufacturer; otherwise the system may become unstable.
You should only use the DIMM module that is approved by the reseller
4-5
■ chapter 4 upgrading your computer
Installing a memory module (DIMM) into the system
To install the DIMM, do the following:
1. Power OFF the notebook. Unplug the AC cord and all
cables/devices attached to the notebook.
2. Place your hand on a large metal object momentarily to
discharge any static electricity. Place the notebook on a flat
surface and fully open the LCD lid.
3. Locate and remove 8 Screw A’s on the Metal Cover.
(picture)
4. Remove the Metal Cover. The DIMM socket is now seen
as shown below.
(picture)
5. If you need to remove an old DIMM from the socket,
press out on the latches located on both edges of the socket at
the same time. The DIMM should pop up to an angle of 30
degree (see diagram below.). Pull the DIMM module out of the
memory socket. Store away the DIMM for the future use.
4-6
6. Install the new DIMM module into the memory socket.
The DIMM will only fit in one orientation. Insert the DIMM at an
angle of approximately 30 degrees into the empty memory
socket. Then press it firmly so that the contact edge is driven
into the receiving socket.
■ chapter 4 upgrading your computer
Notch
7. Pivot the DIMM until the latches on both sides of the
socket snap into place.
Note:
Notice the notch on the DIMM. The notches should fit nicely with the
socket.
8. Replace the System Device Cover and 8 Screw A’s.
Congratulations! You have just completed the memory upgrade.
When you boot up the computer, you should expect to see an
increase in DRAM capacity.
Your computer has been tested with a wide range of DIMM on the
Note:
market. However, not all memory modules are compatible. Check with your
system vendor for a list of compatible DIMM for your computer.
4-7
■ appendix A product specification
A
APPENDIX▼ A
PRODUCT SPECIFICATION
-1
■ appendix A product specification
A
▼ Processor and Core Logic
Processor
Core Logic
Mobile Intel Pentium M (Dothan), 1.6GHz-2.0GHz, 2
MB L2 with Error Correction Code
Intel 855GME + ICH4M (FW82801DBM) chipset with
graphic, audio, modem, and USB2.0 controllers
integrated
400 MHz Front Side Bus
266/333 MHz DDR interface
▼
System Memory
Memory Type
Default
Memory
Expansion
DDR SDRAM 266 / 333, PC2700 / PC2100 compatible
128 / 256 / 512, 2.5-Volt 64-bit bus
Two 200-pin DIMM socket s, Max 1 GB
▼
Display
LCD Panel
Graphic
Accelerator
AGP Bus
Motion
Playback
Frame Buffer
Other
Features
S-Video
TV-out Encoder
15-inch (1400x1050) SXGA+ or 15-inch (1024x768)
XGA active-matrix TFT display with 24-bit colors
Intel Integrated Extreme Graphic2 2D / 3D graphics
accelerator
4X AGP architecture graphics capability
Hardware Motion Compensation and IDCT Supported
for MPEG1/2 Playback
Shared Memory Architecture
Direct3D compatible, DirectX compatible
CH7011
-2
■ appendix A product specification
A
▼ Audio
Chipset
Audio Codec
Sound
Capabilities
Chipset
Transmission
Rate
Module
Transmission
Protocol
Chipset
PnP Function
Flow Control
Speed
Selection
Other
Features
Intel (ICH4M) integrated audio controller
VT1612A
DirectSound 3D, EAX 1.0 & 2.0 compatible
A3D, I3DL2 compatible
AC97 V2.3 compatible
2 or 4 Stereo Speakers
▼
Modem
Intel (ICH4M) integrated Modem Controller with MDC
card, AC97 V2.2 Modem support
V.92 / V.90 / K56flex for download data speed up to
56Kbps.
V.34, V.17, V.29 protocol supported
▼
Wireless LAN
Intel PRO/Wireless 2200, MiniPCI Interface
IEEE802.11 B & G
▼
LAN / Ethernet
Realtek RTL8100CL Ethernet function for
10/100Base-TX network standards
Windows 2000 / XP Plug and Play compatible
Automatic Jam and auto-negotiation for flow control
Auto Negotiation and Parallel detection for automatic
speed selection (IEEE 802.3u)
High performance 32-bit PCI bus master architecture
with integrated DMA controller for low CPU and bus
utilization
Remote Wake-up Scheme supported
Hot Insertion supported
-3
■ appendix A product specification
A
▼ Firewire IEEE1394(a)
Chipset
Capabilities
Hard Drive
Combo Drive
DVD±R/±RW
or DVD-Dual or
DVD-Multi
Standards
Keyboard
T ouch pad
Chipset
PC Card
4-in-1 Card
Reader Format
Support
TI TSB43AB22A IEEE1394 OHCI Host Controller and
Up to 400 Mbps
Expandable up to 63 devices in chains
(Note: In some models, Firewire/1394 function may
note be available.)
▼
Storage
2.5-inch format hard disk drive
5.25-inch format (12.7mm height) fixed module
(Optional Purchase)
5.25-inch format (12.7mm height) fixed module
(Optional Purchase)
▼
Keyboard & Touch pad
86-key QWERTY keyboard with embedded numeric
keypad and Windows keys, 19.05mm Pitch
Built-in Touch Pad
▼
PC Card & Multiple Card Reader
OZ711MC1 (PC Card), OZ711MC1 (Card Reader)
Single Slot TYPE II, Hot insertion and removal
supported
Multimedia Card (MMC), Secure Digital Card (SD),
Memory Stick (MS), and MS Pro Card
-4
■ appendix A product specification
A
▼ Ports and Connectors
Mic-In Port
Audio-Out / SPDIF
Audio-in Port
Firewire
USB2.0 Port
Ethernet
Modem
S-Video
Power-In
VGA Port
Card Reader
PC Card Slot
One Microphone-in jack
One Headphone / SPDIF jack
One Line-in jack
One Firewire (IEEE1394) host connector
Three USB2.0-compliant connectors.
One standard network Ethernet connector (RJ-45)
One modem / phone connector (RJ11)
One S-video (TV-out) output connector
One DC-in connector
One 15-pin VGA connector
One 4-in-1 Card Reader slot
One PC Card Slot (type II)
▼
Battery Pack / AC Adapter
Primary
Battery Pack
Feature
Adapter
AC-Input /
DC-Output
Li-ion 6-Cell pack, 11.1V x 4400 mAh
Low battery state with low battery warning beep
Uniwill SmartPower Power Management
Smart Battery Compliant; low battery warning beep
Autosensing AC-in 100~240V, DC-out 20V, 65W
-5
■ appendix A product specification
A
▼ BIOS
PnP Function
Self Test
Auto
Detection
Power
Management
Security
Other
Features
AMI PnP BIOS
Power On Self Test
DRAM auto-detection, auto-sizing
L2 Cache auto-detection
Hard disk type auto-detection
APM 1.2 (Advanced Power Management) &
ACPI 2.0 (Advanced Configuration Power Interface)
Two Level Password Protections
32bit access, Ultra DMA, PIO5 Mode support
Multi-boot capability
O/S
Compatible with Microsoft Windows 2000 / XP / DOS
▼
Physical Specification
Dimension
Weight
Environmental
Limits
333 (W) x 272 (D) x 25.3-33.1 (H) mm
6.06 lbs / 2.75 KG (with 15”LCD, DVD-ROM Drive, and
6-cell battery pack)
Operating Temperature: 5 to 30oC (41 to 86oF)
Operating Humidity: 20 to 90 percent RH (5 to 35
Storage Temperature: -20 to 50
o
C (-4 to 122oF)
o
C)
-6
■ appendix B agency regulatory notices
APPENDIX▼ B
AGENCY REGULATORY NOTICES
B-1
■ appendix B agency regulatory notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interferen ce
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio or television technician
for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any
B-2
■ appendix B agency regulatory notices
other antenna or transmitter.
"Uniwill declare that 255xIy(with wireless card: Intel WM3B2200BG ) is
limited in CH1~CH11 by specified firmware controlled in USA."
This device is intended only for OEM integrators under the following
conditions:
1) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as conduction above is met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed (for Notebook).
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following:
“Contains TX FCC ID:SAZ-2200BG255
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end
B-3
■ appendix B agency regulatory notices
user regarding how to install or remove this RF module in the users manual
of the end product which integrate this module.
The users manual for OEM integrators must include the following
information in a prominent location “ IMPORTANT NOTE: To comply with
FCC RF exposure compliance requirements. The antenna must not be
co-located or operating in conjunction with any other antenna or
transmitter.
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by the Manufacture
may void the user’s authority to operate the equipment.
Connections to Peripheral Devices
Connections to this device must be made with shielded cables with metallic
RFI/EMI connector hoods to maintain compliance with FCC Rules and
Regulations.
Declaration of Conformity
This device complies with Part 15/68 the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
European Notice
Products with the CE Marking comply with both the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) and R&TTE
Directive (1999/5/EC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the following
European Norms:
EN55022 (CISPR 22) Radio Frequency Interference
EN50082 (IEC801-2, IEC801-3, IEC801-4) Electro-magnetic
Immunity
EN 300 328-2, EN 300 328-1, EN 301 489-1, EN 301 489-17 (ETSI
300 328, ETSI 301 489) Electro-magnetic Compatibility and Radio
Spectrum Matter.
TBR21 ( ETSI TBR21) Terminal Equipment.
EN60950 (IEC950) I.T.E. Product Safety
B-4
■ appendix B agency regulatory notices
Canadian Notice
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the radio interference
regulations of the Canadian Department of Communications.
Le present appareil numerique nemet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de Classe B
prescrites dans le reglement sur le brouillage radioelectrique edicte par le
Ministere des Communications du Canada.
Power Cord Requirement
The power cord supplied with the AC adapter should match the plug and
voltage requirements for your local area. Regulatory approval for the AC
adapter has been obtained using the power cord for the local area.
However, if you travel to a different area and need to connect to a different
outlet or voltage, you should use one of the power cords listed below. To
purchase a power cord (including one for a country not listed below) or a
replacement ac adapter, contact your local dealer.
U.S. and Canada
The cord set must be UL-Listed and CSA-Certified or C-UL Listed.
The minimum specifications for the flexible cord are (1) No. 18 AWG,
(2) Type SJ, and (3) 3-conductor.
The cord set must have a rated current capacity of at least 10 A.
The attachment plug must be an earth-grounding type with a NEMA
5-15P (15A, 125V) or NEMA 6-15P (15 A, 250V) configuration.
Japan
All components of the cord set (cord, connector, and plug) must bear
a `PSE` mark and registration number in accordance with the
Japanese Dentori Law.
The minimum specification for the flexible cord are: (1) 0.75 mm
2
conductors, (2) Type VCT or VCTF, and (3) 3-conductor.
The cord set must have minimum rated current capacity of 7 A.
The attachment plug must be a two-pole, grounded type with a
Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration.
Other Countries
The cord set fittings must bear the certification mark of the agency
responsible for evaluation in a specific country. Acceptable agencies
are:
BSI (UK)
OVE (Australia)
B-5
■ appendix B agency regulatory notices
CEBEC (Belgium)
SEMKO (Sweden)
FIMKO (Finland)
DEMKO (Denmark)
NEMKO (Norway)
SETI (Finland)
EANSW (Australia)
SEV (Switzerland)
IMQ (Italy)
UTE (France)
CCC (China)
PSB (Singapore)
PSE (Japan)
BSMI (Taiwan)
B (Polish)
VDE (Germany)
SASO (Saudi Arabia)
The flexible cord must be of a HAR (harmonized) type HO5VV-F
3-conductor cord with a minimum conductor size of 0.03 square
inches.
The minimum specification for the flexible cord for Class II product
are: (1) 2X0.75 mm
2
conductors, (2) 2-conductor cord.
The cord set must have a current capacity of at least 10 A and a
nominal voltage rating of 125 / 250 VAC.
CAUTION: MODEL 255xIy IS DESIGNED TO USE WITH THE FLLOWING
AC ADAPTER MODEL ONLY
Manufacture: LITE-ON ELECTRONICS, INC.; LI SHIN INTERNATIONAL
ENTERPRISE CORP.
Model: PA-1650-01 (65W), PA1650-02 (65W); 0335C2065 (65W),
0335A2065 (65W)
Telephone lines requirement
The appropriate utilization of 26AWG telephone line cord on unit.
CAUTION: Always disconnect all telephone lines from the wall outlet
before servicing or disassembling this equipment.
CAUTION: To reduce the risk of fire, use only No. 26AWG or larger
telecommunication line cord.
Battery Pack Safety
The battery pack is intended to use only with this notebook.
Do not disassemble the pack.
B-6
■ appendix B agency regulatory notices
Do not dispose of the battery pack in fire or water.
To avoid risk of fire, burns, or damage to your battery pack, do not
allow a metal object to touch the battery contacts.
Handle a damaged or leaking battery with extreme care. If you come
in contact with the electrolyte, wash the exposed area with soap and
water. If it contacts the eye, flush the eye with water for 15 minutes
and seek medical attention.
Do not charge the battery pack if the ambient temperature exceeds
45℃ (113℉).
To obtain a replacement battery, contact your local dealer.
Do not expose the battery pack to high storage temperatures (above
60℃, 140℉).
When discarding a battery pack, contact your local waste disposal
provider regarding local restrictions on the disposal or recycling of
batteries.
Use only supplied AC Adapter for charging.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions or local
laws.
VORSICHT! Explisionsgefahr bei unsachgernazen Austausch der Batterie.
Ersatz nur durch denselben oder einem vom Hersteller empfohlenem
ahnlichen Typ. Entsorgung gebrauchter Batterien navh Angaben des
Herstellers.
Laser Safety
The optical drive used with this computer is certified as a Class 1 laser
device according to the U.S. Department of Health and Human Services
(DHHS) Radiation Performance Standard and International Standards IEC
825 / IEC 825-1 (EN60825 / EN60825-1). The device is not considered
harmful, but the following precautions are recommended:
Do not open the unit.
Avoid direct exposure to the laser beam.
If the unit requires service, contact an authorized service center.
Ensure proper use by reading and following the instructions carefully.
Do not attempt to make any adjustment of the unit.
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
LASERSCHUTZKLASSE 1 PRODUKT
B-7
■ appendix B agency regulatory notices
Warning!
Do not attempt to disassemble the cabinet containing the laser. The laser
beam used in this product is harmful to the eyes. The use of optical
instruments, such as magnifying lenses, with this product increase the
potential hazard to your eyes. For your safety, have this equipment
serviced only by an authorized service provider.
Lithium battery warning / Bridge battery warning
This computer contains a lithium battery to power the clock and calendar
circuitry.
CAUTION: Danger of explosion if battery is replaced incorrectly. Replace
only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
ATTENTION: Il y a danger d’xplosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avcc unc batterie du meme type ou d’un
type recommande par le constructer. Mettre au rebut les batteries usagees
conformement aux instructions du fabricant.
VORSICHT! Explosionsgefahr bei unsachgemBen Austausch der Batterie
Ersatz nur durch denselben oder einem vom Hersteller empfohlenem
ahnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
Der Arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 betragt 70dB
(A) oder weniger.
Zum Netzanschlua dieses Gerates ist eine geprufte Leitung zu verwenden.
Fur einen Nennstrom bis 6A und einem Gerategewicht groBer 3kg ist eine
Leitung nicht leichter als (1)H05VV-F, 3G, 0.75mm
conductors
einzusetzen.
2
(2)2X0.75 mm
2
Die Steckdose muB nahe dem Gerat angebracht und leicht
zuganglich sein.
CAUTION!
This part is hot. Be C areful.
VORSICHT!
Diese Flache wird sehr heiss.
When you see this symbol, be careful as this spot may be very hot.
B-8
Loading...
