Univox 230450, 230453 User Manual

1

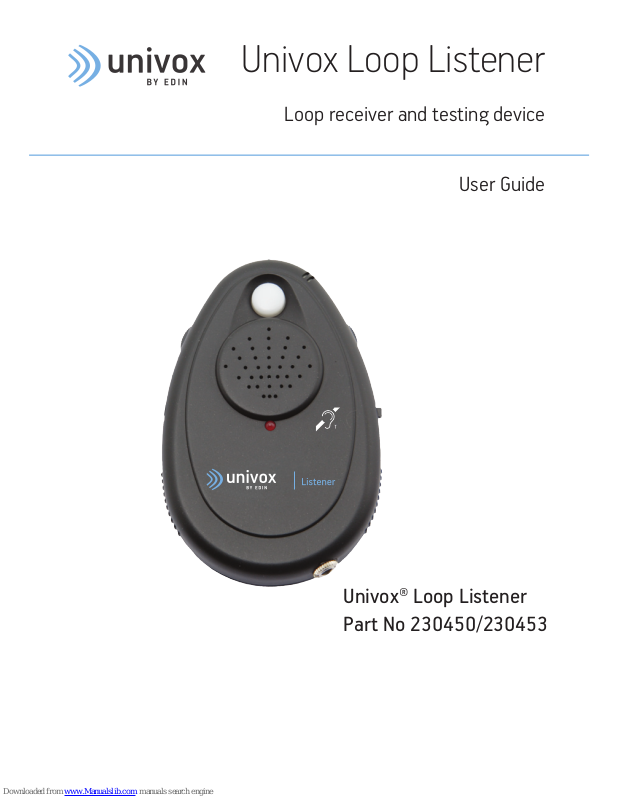

Univox Loop Listener

Loop receiver and testing device

User Guide

Univox® Loop Listener
Part No 230450/230453

2

Content

Introduction ...............................................................................3

Buttons and controls ............................................................... 4

Use Listener as a loop receiver .............................................6

Use Listener as a testing device ...........................................7

Accessories ................................................................................ 9

Warranty .....................................................................................9

Maintenance and care .............................................................9

Troubleshooting and service ................................................10

Technical data .........................................................................11

Environment ............................................................................11

3

Introduction

Univox® Loop Listener is a useful loop receiver and a
small, user friendly testing device. Listener can be used
as a receiver to listen to the induction loop system,
either through the built-in speaker or through separate
headphones. As a testing device Listener can check that
the system works and verify the basic signal strength
according to the international standard IEC 60118-4.

Thank you for chosing a Univox product. We hope that you
will be satisfied!

4

Buttons and controls

1. Tone control

2. LED loop check:
Green= 0 dB
Yellow= -6 dB

3. Neck strap

4. Volume control

5. Built-in speaker

6. LED on/off indicator

7. On/off switch

8. Outlet for headphones/
earphone

1.

2.

3.

5.

4.

7.

6.

8.

5

9. Battery compartment

+

–

9.
