Network Bullet Cameras
Quick Guide
Manual Version: V1.01
Thank you for purchasing our product. If there are
any questions, or requests, please do not hesitate
to contact the dealer.
Copyright
Copyright 2015 Zhejiang Uniview Technologies Co.,
Ltd. All rights reserved. No part of this manual may
be copied, reproduced, translated, or distributed in
any form or by any means without prior consent in
writing from our company.
Trademark Acknowledgement
and other Uniview’s trademarks and logos
are the property of Zhejiang Uniview Technologies
Co., Ltd. Other trademarks, company names and
product names contained in this manual are the
property of their respective owners.
Disclaimer
The default password is used for your first login.
To ensure account security, please change the
password after your first login. You are
recommended to set a strong password (no less
than eight characters).
To the maximum extent permitted by
applicable law, the product described, with
its hardware, software, firmware and
documents, is provided on an "as is" basis.
Best effort has been made to verify the
integrity and correctness of the contents in
this manual, but no statement, information,
or recommendation in this manual shall
constitute formal guarantee of any kind,
expressed or implied. We shall not be held
responsible for any technical or
typographical errors in this manual. The
contents of this manual are subject to
change without prior notice. Update will be
added to the new version of this manual.
Use of this manual and product and the
subsequent result shall be entirely on your
own responsibility. In no event shall we be
reliable to you for any special, consequential,
incidental, or indirect damages, including,
among others, damages for loss of business
profits, business interruption, or loss of data
or documentation, or product malfunction or
information leakage caused by cyber attack,
hacking or virus in connection with the use of
this product.
Video and audio surveillance can be
regulated by laws that vary from country to
country. Check the law in your local region
before using this product for surveillance
purposes. We shall not be held responsible
for any consequences resulting from illegal
operations of the device.
The illustrations in this manual are for
reference only and may vary depending on
the version or model. As a result, some of the
examples and functions featured may differ
from those displayed on your monitor.
This manual is a guide for multiple product
models and so it is not intended for any
specific product.
Due to uncertainties such as physical
environment, discrepancy may exist between
the actual values and reference values
provided in this manual. The ultimate right to
interpretation resides in our company.
Environmental Protection
This product has been designed to comply with the
requirements on environmental protection. For the
proper storage, use and disposal of this product,
national laws and regulations must be observed.
Safety and Compliance Information
Safety Symbols
The symbols in the following table may be found
on installation-related equipment. Be aware of the
situations indicated and take necessary safety
precautions during equipment installation and
maintenance.
Symbol
Description
Generic alarm symbol: To suggest a
general safety concern.
ESD protection symbol: To suggest
electrostatic-sensitive equipment.
Electric shock symbol: To suggest a
danger of high voltage.
The symbols in the following table may be found in
this manual. Carefully follow the instructions
indicated by the symbols to avoid hazardous
situations and use the product properly.
Symbol
Description
WARNING! Indicates a hazardous
situation which, if not avoided, could
result in bodily injury or death.
CAUTION! Indicates a situation which, if
not avoided, could result in damage, data
loss or malfunction to product.
NOTE! Indicates useful or supplemental
information about the use of product.
Safety Information
Installation and removal of the unit and its
accessories must be carried out by qualified
personnel. Please read all of the safety instructions
below before installation and operation.
Installation
This device is a class A product and may
cause radio interference. Take measures if
necessary.
Make sure the power supply voltage is
correct before using the camera.
Do not drop the camera or subject it to
physical shock.
Do not touch sensor modules with fingers. If
cleaning is necessary, use a clean cloth with a
bit of ethanol and wipe it gently. If the
camera will not be used for an extended
period of time, put on the lens cap to protect
the sensor from dirt.
Do not aim the camera lens at the strong
light such as sun or incandescent lamp. The
strong light can cause fatal damage to the
camera.
The sensor may be burned out by a laser
beam, so when any laser equipment is being
used, make sure that the surface of the
sensor not be exposed to the laser beam.
While shipping, the camera should be packed
in its original packing.
Maintenance
If there is dust on the front glass surface,
remove the dust gently using an oil-free
brush or a rubber dust blowing ball.
If there is grease or a dust stain on the front
glass surface, clean the glass surface gently
from the center outward using anti-static
gloves or an oil-free cloth. If the grease or
the stain still cannot be removed, use
anti-static gloves or an oil-free cloth dipped
with detergent and clean the glass surface
gently until it is removed.
Do not use organic solvents, such as benzene
or ethanol when cleaning the front glass
surface.
Never look at the transmit laser
while the power is on. Never
look directly at the fiber ports
and the fiber cable ends when
they are powered on.
Use of controls or adjustments
to the performance or
procedures other than those
specified herein may result in
hazardous laser emissions.
Regulatory Compliance
FCC Part 15
This equipment has been tested and found to
comply with the limits for digital device, pursuant
to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful
interference in which case the user will be required
to correct the interference at his own expense.
This product complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
LVD/EMC Directive
This product complies with the European Low
Voltage Directive 2006/95/EC and EMC Directive
2004/108/EC.
WEEE Directive–2002/96/EC
The product this manual refers to is covered by the
Waste Electrical & Electronic Equipment (WEEE)
Directive and must be disposed of in a responsible
manner.
i
Contents
1 Packing List ..................................................... 1
2 Appearance ..................................................... 2
Dimensions and Appearance .......................................................... 2
Cable Connection ............................................................................ 2
3 Mount Your Camera ........................................ 3
Wall Mount ..................................................................................... 3
Start Your Camera ........................................................................... 6
Waterproof Components for an RJ45 Plug ...................................... 7
Waterproof Tail Cable...................................................................... 8
4 Set Your Camera over the LAN .......................10
5 Access Your Camera .......................................12
Access Your Camera ...................................................................... 12
ii
Install the ActiveX .......................................................................... 13
1
1 Packing List
No.
Item
Quantity
1
Camera
1 2 User document
1
3
Accessory pack
1
Contact your local dealer if the package is
damaged or incomplete.
2
2 Appearance
Dimensions and Appearance
Cable Connection
1
2
Φ
4.5mm
39mm
(1.54")
(0.18")
IP Network
3
4
3
No.
Description
No.
Description
RESET button
Earth terminal
Power interface
Network
interface
For specifications, see the latest product
datasheets.
Press and hold the RESET button for at least
15 seconds to restore factory default
settings. Perform this operation within 10
minutes after the device is powered on or
the reset will fail otherwise.
3 Mount Your Camera
Wall Mount
You can adopt wall mount or ceiling mount and
purchase hardware accessories by yourself. The
4
following part takes wall mount as an example.
Ceiling mount is similar to wall mount and
therefore is omitted here.

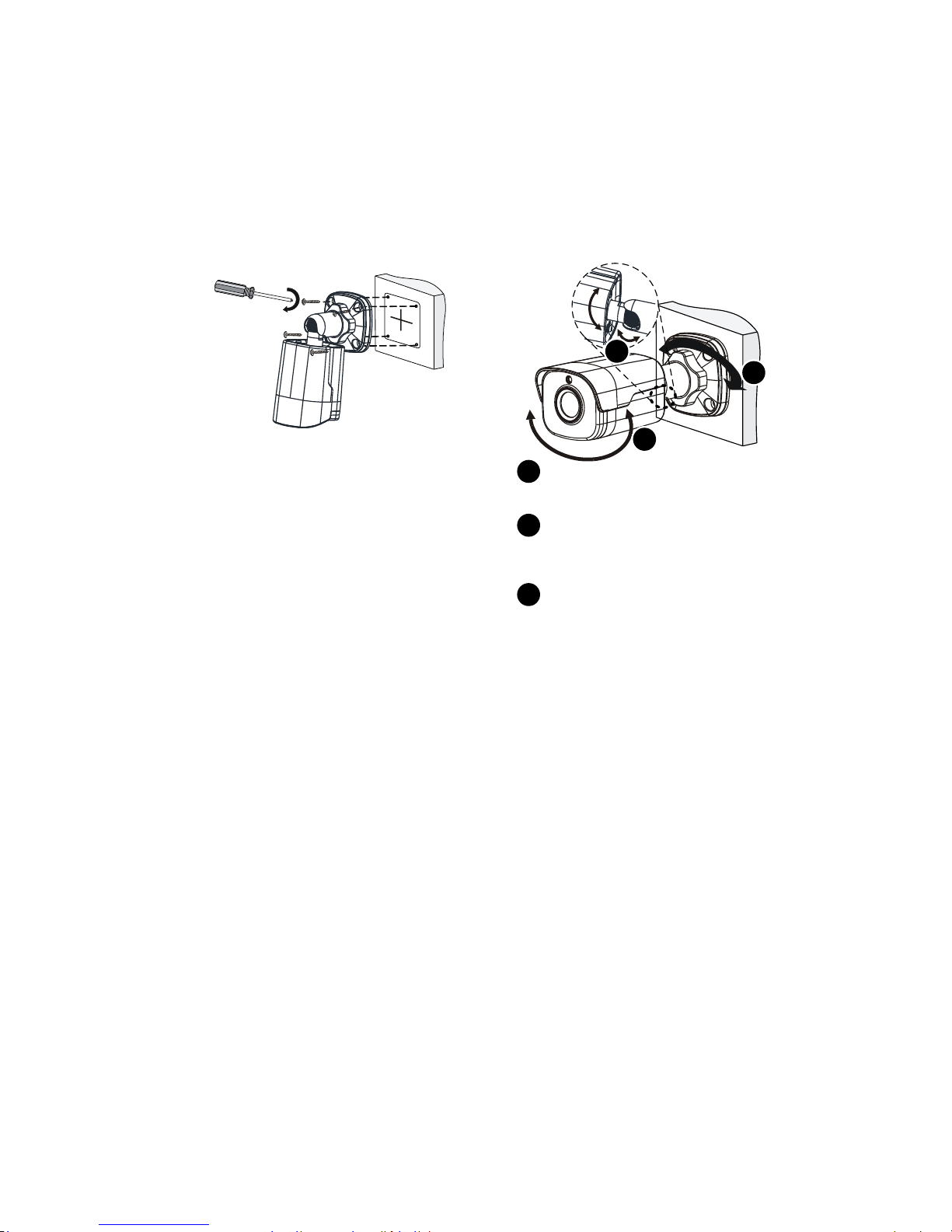

1 Locate the positions
of the holes.
2 Drill holes on the
wall.
3 Mount the plastic
rivets of self-tapping
screws.
4 Screw the locknut to
loosen the universal
joint before attaching
your camera to the
wall.
Paste installation positioning
stickers on the wall and align
the cross center to the hole in
the wall.
Lead the cables across the hole
on the wall.
1
2
Use a Ø 6-6.5mm drill bit.
Drill 30 mm-depth guide
holes according to the
positions marked by stickers.
1
2
Knock the plastic rivets
into the guide holes and
ensure that they are
tightened up.
Locknut
5
5 Mount your camera
onto the wall and
connect all cables.
6 Adjust the
monitoring direction.
7 Power on your
camera and adjust
images.
Lead tapping screws through
the guide holes in the base
and fix them on the wall by
using a screwdriver.
Tighten the locknut.
Adjust the opening of the
universal joints as required.
Rotate the spherical hinge of
the camera to get the desired
monitoring direction.
1
2
2
3
1
3
6
The preceding installation process is for
concealed installation, during which holes are
punched on the wall and cables are penetrated
into the wall. If open installation is adopted,
cables are not penetrated into the wall but
threaded out from the outlet on one side of the
base.
Start Your Camera
After verifying that your camera is properly
mounted, connect the power cable to it and the
other end of the cable to the mains. Then start
your camera.
7
Waterproof Components for an RJ45 Plug
1 Attach the seal ring to
the waterproof
connector.
2 Mount the
waterproof
components.
3 Insert the cylindrical
waterproof ring into
bolt.
4 Insert the cable into
the connector and
screw the waterproof
bolt in.
5 Screw in the
waterproof bolt lid.
6 Finish the waterproof
installation.
Seal ring
Insert in order
3
2
1
Cylindrical waterproof ring
Waterproof bolt
Bolt lid
8
In step 2, you can crimp the inner wires of the
cable with the RJ45 plug first and then cover the
waterproof components. You may also cover the
waterproof components first.
Waterproof Tail Cable
Connect the tail cables and then take the
following steps to protect the tail cables from
water using waterproof tapes. The figures are
only for illustration purpose.
1 Connect the tail
cables.

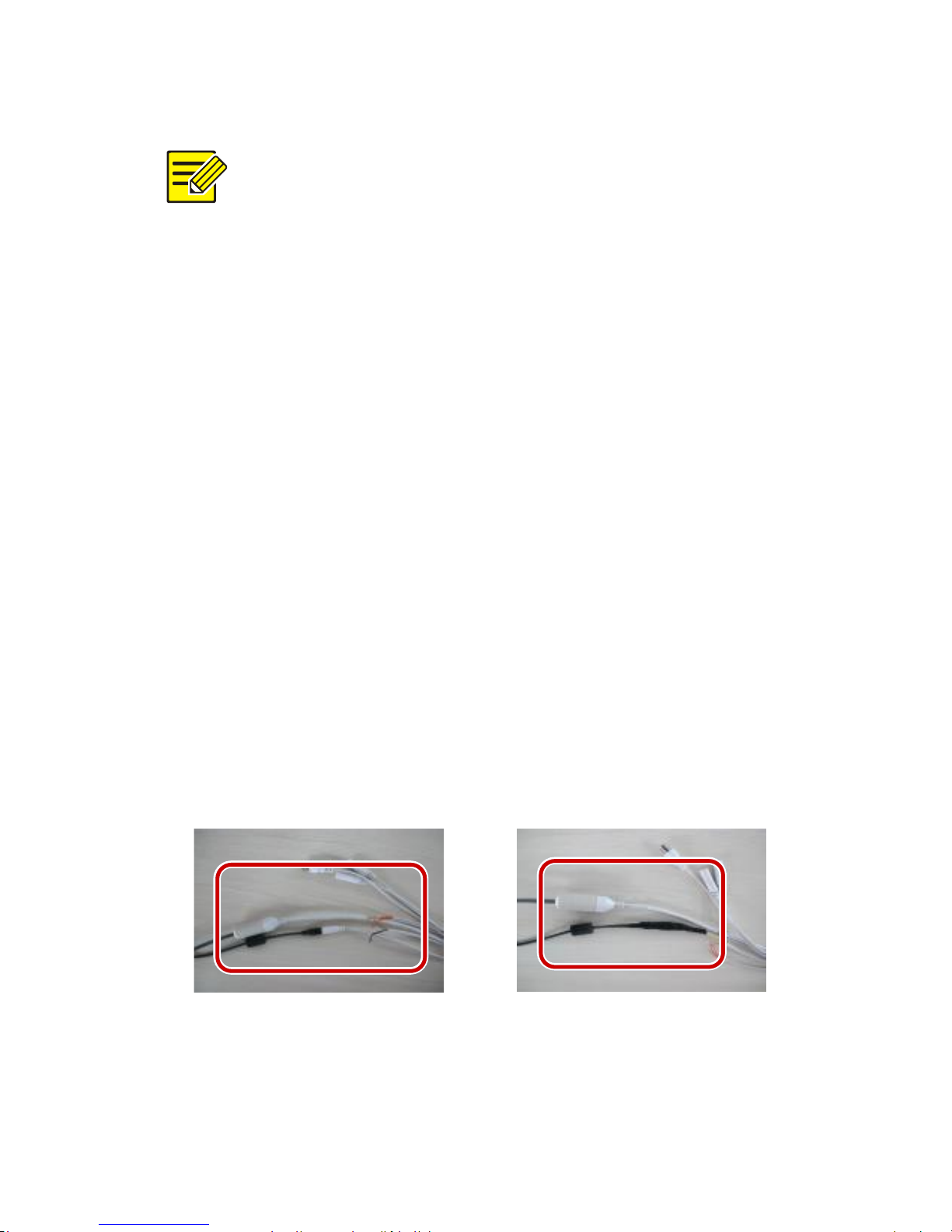

2 Protect the
connected cables
using insulating
tapes.
9
3 Protect other cables
using insulating
tapes.
4 Wrap all the tail
cables together
using insulating
tapes.
5 Choose a start point
for waterproof tapes.
6 Protect the tail
cables using
waterproof tapes.
Waterproof tape
10
Avoid short circuit when insulating the
cables.
Use self adhesive waterproof tapes that will
stick together with the twisted cables.
Tighten waterproof tapes when wrapping the
cables and make sure the cable connections
are fully covered.
You are recommended to put the waterproof
cables in a waterproof junction box which
needs to be purchased separately.
4 Set Your Camera over the LAN
To view and configure your camera via the LAN
(Local Area Network), you need to install the
EZStation to find your camera and change its IP
address.
11
Please contact your dealer to get the
EZStation.
Please refer to the user manual of EZStation
for detailed information.
1. Connect your camera and your PC as shown
in the figure below to ensure the routing is
available.
2. Use EZStation to search online cameras
automatically.
3. Modify your camera settings if necessary,
including its IP address and subnet mask.
12
The default IP address is “192.168.0.13”. The
default username is “admin” and the default
password is “123456”.
To access your camera from a different
subnet, set the gateway for your camera
after you log in.
5 Access Your Camera
Access Your Camera
Before you begin, check that:
Your camera is operating properly and
connected to the network.
The PC you are using is installed with
Internet Explorer 7.0 or later. IE 8.0 is
recommended.
Follow these steps to access your camera
through the Web interface:
13
1. Open your browser, input the IP address of
your camera (default IP is 192.168.0.13) in
the address bar and then press Enter to open
the login page.
2. Enter the username (default is “admin”) and
password (default is “123456”) and then click
Login.
Install the ActiveX at your first login. For the
detailed steps, see Install the ActiveX. When the
installation of the ActiveX is completed, open
your IE to log in.
Install the ActiveX
The following takes the IE browser as an example
to describe the installation steps.
14
1. Click Download.
2. Click Run to install the downloaded ActiveX.
You may also click Save to download the file
to your computer first.
3. Close the browser and follow the steps to
complete the installation.
15
For your first login with Windows 7, if the
system does not prompt you to install
ActiveX, follow these steps to turn off UAC:
click the Start button, and then click Control
Panel. In the search box, type uac, and then
click Change User Account Control Settings.
Move the slider to the Never Notify position,
and then click OK. After UAC is turned off, log
in again.
If the installation failed, open Internet Option
in IE before login. Click the Security tab, click
Trusted sites, and then click Sites to add the
website. If you use Windows 7, you need to
save the setup.exe to your PC first, and then
right-click the file, select Run as
administrator, and then install it according to
instructions.
BOM: 3101C0C5
Loading...
