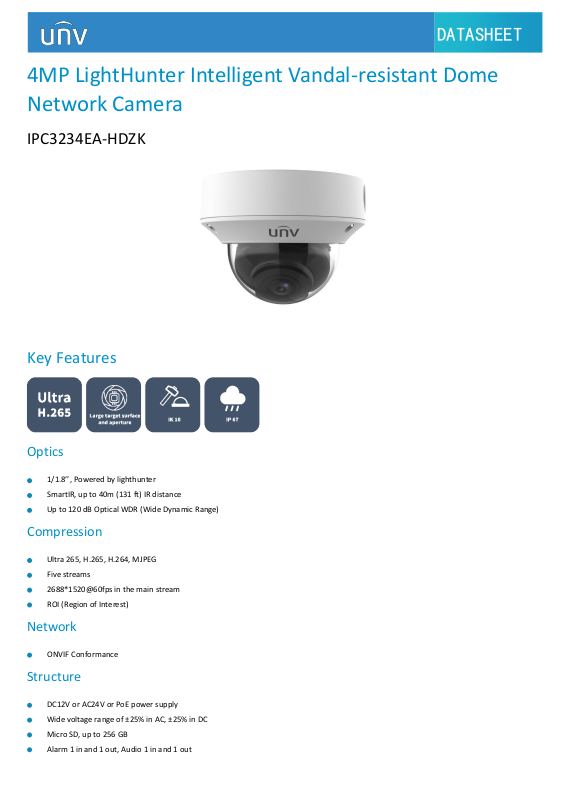

DATASHEET
4MP LightHunter Intelligent Vandal-resistant Dome
Network Camera
IPC3234EA-HDZK
Key Features
Optics
1/1.8’’, Powered by lighthunter
SmartIR, up to 40m (131 ft) IR distance
Up to 120 dB Optical WDR (Wide Dynamic Range)
Compression
Ultra 265, H.265, H.264, MJPEG
Five streams
2688*1520@60fps in the main stream
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
DC12V or AC24V or PoE power supply
Wide voltage range of ±25% in AC, ±25% in DC
Micro SD, up to 256 GB
Alarm 1 in and 1 out, Audio 1 in and 1 out
2
DATASHEET
IPC3234EA-HDZK
Camera
Sensor
1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens
2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens
Iris
Auto aperture
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
63.0(206.6ft)
25.2(82.6ft)
12.6(41.3ft)
6.3(20.7ft)
12
270(885.6ft)
108(354.2ft)
54(177.1ft)
27(88.6ft)
Angle of View (H)
42.6°~113.7°
Angle of View (V)
24.1°~59°
Angle of View (O)
48.9°~128.1°
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0°~355°
Tilt: 0°~70°
Rotate: 0°~355
Min. Illumination
Colour:0.0005lux (F1.2, AGC ON)
0 lux with IR
WDR
120dB
Day/Night
IR-cut filter with auto switch (ICR)
S/N
>55dB
IR Range
Up to 40m (131 ft) IR range
Wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 4MP(2688*1520),Max 60fps; 4MP(2560*1440),Max 60fps; 2MP(1920*1080),Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
Fourth Stream: D1 (720*576), Max 60fps
Fifth Stream: D1 (720*576), Max 60fps
Video Bit Rate
128 Kbps~16 Mbps
ROI
Supported
Video stream
Five streams
OSD
Up to 8 OSDs
Privacy Mask
Up to 8 areas (8 blacks / 8mosaic)
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC
Support
BLC
Support
Smart
General Function
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User
Authentication
IP67 ingress protection
IK10 vandal resistant
Specifications
3
DATASHEET
Audio
Audio Compression
G.711U,G.711A
Two way audio
Supported
Sampling Rate
8KHZ
Storage
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR,NAS(NFS)
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
RTMP
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Client
EZStation
Ezview
EZLive
Web Browser
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O
Audio cable
1 Input: impedance 35kΩ; amplitude 2V *p-p]
1 output: impedance 600Ω; amplitude 2V *p-p]
Alarm I/O
1/1
Network
1 x RJ45 10M/100M/1000M Base-TX Ethernet
Certification
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power
AC24V±25%, DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 8W
Support overcurrent protection , Input short circuit protection
Dimensions (Ø x H)
Φ148 x 111.3mm(Φ5.8’’ x 4.4’’)
Net Weight
1kg(2.2lb)
Material
Metal
Working Environment
-40℃~60℃(-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection
6KV
Vandal Resistant
IK10
Ingress Protection
IP67
4
DATASHEET
Junction Mount
Pole Mount
TR-JB04-C-IN+ TR-A01-IN
TR-JB07/WM04-B-IN、TR-WM04-IN+TR-UP06-IN
Dimensions
Accessories
TR-JB04-C-IN TR-JB07/WM04-B-IN TR-WM04-IN TR-FM152-A-IN
TR-SM04-IN TR-A01-IN TR-UP06-IN TR-SE24-IN
TR-SE24-A-IN TR-CM24-IN
5
DATASHEET
In-celling mount
Electric-box Transfer plate
TR-FM152-A-IN
TR-SM04-IN
Indoor pendent mount
TR-JB04-C-IN + TR-SE24-IN/TR-SE24-A-IN + TR-CM24-IN
Zhejiang Uniview Technologies Co., Ltd.
Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051)
Email: overseasbusiness@uniview.com; globalsupport@uniview.com
http://www.uniview.com
© 2020 Zhejiang Uniview Technologies Co., Ltd. All rights reserved.
*Product specifications and availability are subject to change without notice
