Uniview IPC2322EBR5-P-C DATASHEET

DATASHEET
2MP VF Network IR Bullet Camera
IPC2322EBR5-P-C
Key Features
Day/night functionality
Smart IR, up to 50m (164ft) IR distance
Up to 120dB Optical WDR (Wide Dynamic Range)
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Network
ONVIF Conformance
Structure
Support PoE power supply
2
DATASHEET
Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
IPC2322EBR5-P-C
Camera
Sensor
1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens
2.8 ~ 12mm@F1.6
DORI Distance
Lens (mm)
Detect (m)
Observe (m)
Recognize (m)
Identify (m)
2.8
45
18 9 4.5
12
192.9
77.1
38.6
19.3
Angle of View (H)
94.0° ~ 28°
Angle of View (V)
56.7° ~ 14.4°
Angle of View (O)
122.2° ~ 34.4°
Adjustment angle
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotate: 0° ~ 360°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.002Lux (F1.6, AGC ON)
0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
S/N
>52dB
IR Range
Up to 50m (164ft) IR range
wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
120dB
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate
128 Kbps~16 Mbps
9:16 Corridor Mode
Supported
OSD
Up to 8 OSDs
Privacy Mask
Up to 8 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Wide voltage range of ±25%
IP67
3-Axis
Specifications
3
DATASHEET
Flip
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping
N/A
HLC
Support
BLC
Support
Audio
Audio Compression
G.711
Two-way audio
Supported
Suppression
Supported
Sampling Rate
8KHZ
Storage
Edge Storage
Micro SD, up to 256GB
Network Storage
ANR, NAS(NFS)
Network
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
Client
EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O
Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O
1/1
Network
1 RJ 45 10M/100M Base-TX Ethernet
Certifications
Certifications
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9W
Dimensions (L × W × H)
253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”)
Net Weight
1.0kg (2.2lb)
Material
Front covermetal
Bodymetal
Bracketmetal
Bottom platemetal
Working Environment
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection
6KV
Ingress Protection
IP67
4
DATASHEET

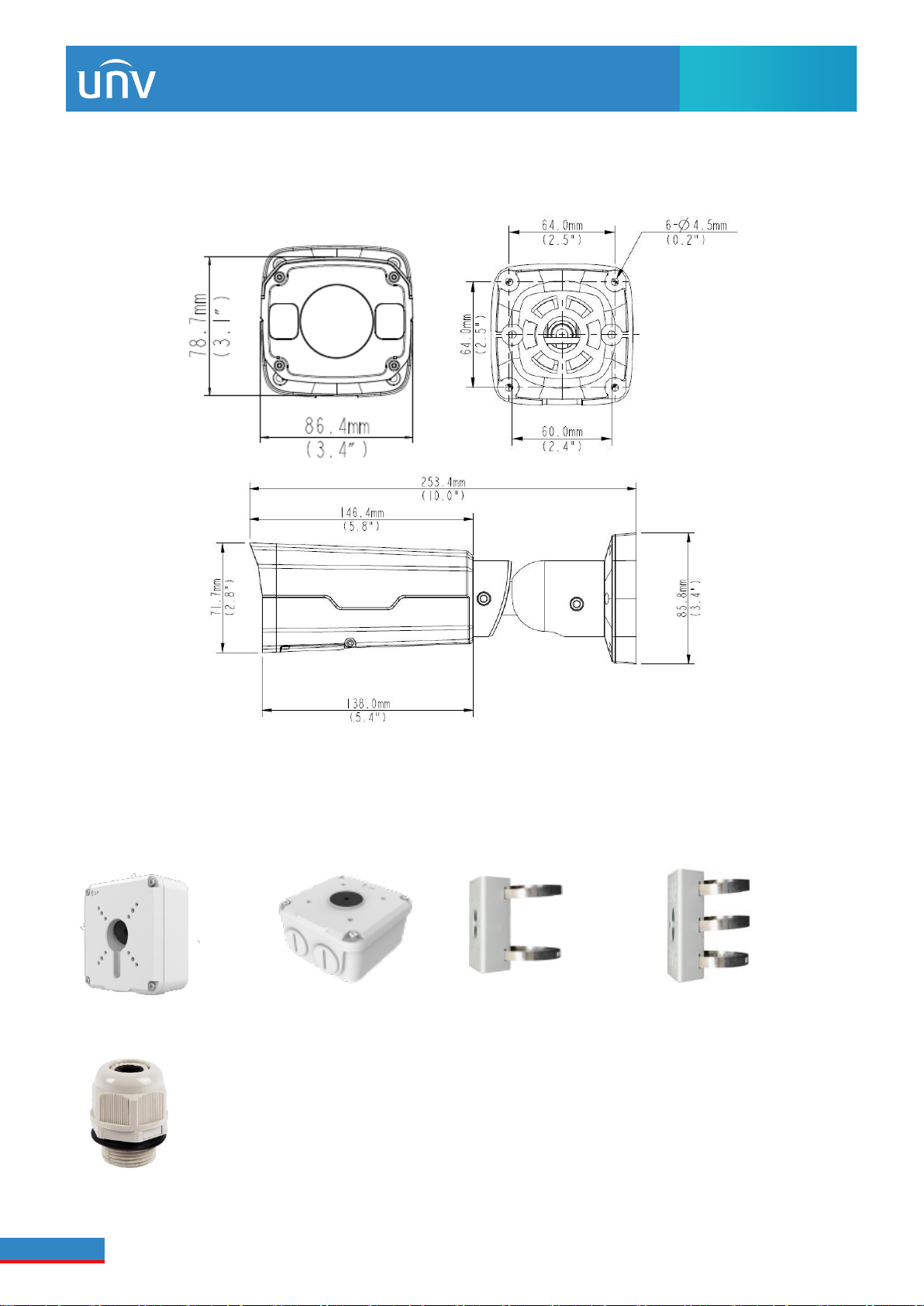

Dimensions
TR-JB07-D-IN
TR-JB06-A-IN
TR-UP06-B-IN
TR-UP06-C-IN
TR-A01-IN
Accessories
5
DATASHEET
Junction Mount
Pole Mount
TR-JB07-D-IN(TR-JB06-A-IN)+ TR-UP06-C-IN
TR-UP06-B-IN
Zhejiang Uniview Technologies Co., Ltd.
Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051)
Email: overseasbusiness@uniview.com; globalsupport@uniview.com
http://www.uniview.com
© 2019 Zhejiang Uniview Technologies Co., Ltd. All rights reserved.
*Product specifications and availability are subject to change without notice.
