Univex Lawn Mower User Manual

Parts List for the Wright Stander 32”, 36”, 42” and 48” WSS Mower

(For Serial Numbers 26288 and Higher Until Superseded)

Replace with newer revisions as they become available

© 2006 Wright Manufacturing, Inc. All rights reserved

Revised: 12/06

32", 36", 42" CUTTER DECKS

REF. # DESCRIPTION 32" 36" 42" PART #

32" CUTTER DECK W/ ISOL. CAPS (#13) Ɣ 93460048
36" CUTTER DECK W/ ISOL. CAPS (#13) Ɣ 93470008
42" CUTTER DECK W/ ISOL. CAPS (#13) Ɣ 93480006

1

32" REAR DISCHARGE CUTTER DECK W/ ISOL. CAPS Ɣ 93460069
36" REAR DISCHARGE CUTTER DECK W/ ISOL. CAPS Ɣ 93470007
42" REAR DISCHARGE CUTTER DECK W/ ISOL. CAPS Ɣ 93480008
DECK COVER, WS 32 Ɣ 93460049

2

DECK COVER, WS 36 Ɣ 93470009
DECK COVER, WS 42 Ɣ 93480007
KNOB, DECK ƔƔƔ18410006

3

3/8-24 NYLOCK NUT (CE MODEL) ƔƔƔ12990047
4 BOLT, HCS, 1/4-20X1 PLAIN ƔƔƔ11990090
5 BUSHING, SPLIT TAPERED FOR PULLEY ƔƔƔ71460008

PULLEY, SINGLE GRV 5.5" Ɣ 71460060
6

PULLEY, SINGLE GRV 6" Ɣ 71460053

PULLEY, SINGLE GRV 7" Ɣ 71460055

PULLEY, SMALL IDLER ƔƔ 71460009
7

PULLEY, LARGE IDLER, USE W/ 4x#10 & #61 Ɣ 71460098

BELT, WRAPPED Ɣ 71460063
8

BELT, WRAPPED Ɣ 71460062

BELT, WRAPPED Ɣ 71460013
9 NUT, TOPLOCK 3/8-16 ƔƔƔ12990031

WASHER, FLAT USS 5/16 z ƔƔ 13990010

10

WASHER, FLAT USS 3/8 x 1 1/2 z Ɣ 13990041

11 NUT, LOCK FLANGE 3/8-24 Z ƔƔƔ12990029
12 T-ROD ƔƔƔ24460002
13 CAP, VINYL 1" ƔƔƔ17460002
14 BOLT, HCS, 1/2-20X3.5 Z ƔƔƔ11990089
15 WASHER, FENDER 5/16 X 1 1/4 Z ƔƔƔ13990032
16 BEARING, BALL, FOR IDLER ARM ƔƔƔ77410010
17 CIS BEARING BUSHING ƔƔƔ25410003
18 SPRING, 2.5" DECK IDLER SPRING ƔƔƔ16460009
19 IDLER ARM ASSEMBLY ƔƔƔ98490007

BOLT, HEX 3/8-16 X 2 Z5

20

BOLT, HEX 3/8-16 X 2 3/4 Z5 Ɣ 11990006

21 MACH BUSH, 1/2 ID X 7/8 OD X 18 GA ƔƔƔ13990015
22 IDLER ARM WASHER ƔƔƔ93490009
23 NUT, NYLOCK 1/2-20 Z ƔƔƔ12990038
24 BOLT, FLANGE 1/2-13 X 1 1/4 Z5 ƔƔƔ11990015
25 NUT, LOCK FLANGE 1/2-13 Z ƔƔƔ12990010
26 BOLT, FLANGE 3/8-16 X 1 Z8 ƔƔƔ11990046
27 NUT, LOCK FLANGE 3/8-16 Z ƔƔƔ12990008

BLADE, 16 1/2" Ɣ 71440002

28

BLADE, 18" Ɣ 71440001

BLADE, 21" Ɣ 71440003

29 WASHER, FLAT USS 5/8 Z ƔƔƔ13990011
30 BOLT, HEX 5/8-11X 10 Z5 ƔƔƔ11990014
31 SPINDLE ASSEMBLY, SHORT ƔƔƔ71460022
32 RETAINING RING, EXTERNAL (SMALL) ƔƔƔ71460014
33 WASHER, SMALL FOR SPINDLE ƔƔƔ71460021
34 RETAINING RING, INTERNAL (LARGE) ƔƔƔ71460015
35 WASHER, SPINDLE ƔƔƔ71460016
36 BEARING, SPINDLE (LARGE) ƔƔƔ71460017
37 SPINDLE HOUSING ƔƔƔ71460018
38 SPINDLE SHAFT, SHORT ƔƔƔ71460025
39 MACHINE KEY 1/4 X 1/4 X 1 ƔƔƔ15990003
40 MACH BUSH 5/8 X 1 1/2 X 1/4 Z ƔƔƔ13990007
41 NUT, HEX 5/8-11 Z ƔƔƔ12990003
42 BOLT, CARRIAGE 3/8 X 1 Z5 ƔƔƔ11990016
43 FLEXIBLE CHUTE DEFLECTOR CLAMP PLATE ƔƔƔ93460061
44 CHUTE DEFLECTOR, RUBBER ƔƔƔ17460007
45 FLEXIBLE CHUTE DEFLECTOR FLANGE ƔƔƔ93460060
46 BOLT, HEX 5/16-18 X 1 Z5 ƔƔƔ11990027
47 MULCHING BLOCK OFF PLATE, INCL HARDWARE ƔƔƔ93460024
48 NUT, NYLOCK 3/8-16 Z ƔƔƔ12990020
49 GRASS GOBBLER FOR WRIGHT (JUMBO) ƔƔƔWRJ300-3
50 LATCH ƔƔƔ GGL1-1
51 DOOR (JUMBO SIZE) ƔƔƔ GGD4-4
52 LEAF GOBBLER ƔƔƔ LG1000

MULCH KIT, CURVED Ɣ 95480003

53

MULCH KIT, CURVED Ɣ 95470002

MULCH KIT, CURVED Ɣ 95480002

54 CHUTE DEFLECTOR KIT, FLEXIBLE ƔƔƔ95460004
55 BOLT, HEX 5/16-18 X 4 1/2 Z5 ƔƔƔ11990003
56 SPRING, TORSION FOR CHUTE DEFLECTOR ƔƔƔ16460002
57 NUT, NYLOCK 5/16-18 Z ƔƔƔ12990021
58 TUBE CLOSURE FOR DECK ƔƔƔ17460004

REAR DISCHARGE BAFFLE ƔƔ 93470018

59

REAR DISCHARGE BAFFLE Ɣ 93480009

60 BOLT, HEX 5/16-18 X 3/4 Z5 ƔƔƔ11990028
61 BORE ADAPTER, 30MM X 41MM (FOR 42" ONLY) Ɣ 22420006

ƔƔ 11990005

© 2006 Wright Manufacturing, Inc. All rights reserved.

48" WSS CUTTER DECK

REF. # DESCRIPTION PART #

1 CUTTER DECK W/ ISOL. CAPS (#29) 93430021
2 DECK COVER 93430020
3 CAP, VINYL 2 1/2, DECK COVER 17460001
4 KNOB, DECK 18410006

4A 3/8-24 NYLOCK NUT (CE MODEL) 12990047

5 BOLT, HCS, 1/4-20X1 PLAIN 11990090
6 BUSHING, SPLIT TAPERED FOR PULLEY 71460008
7 PULLEY, SINGLE GRV 5.5" 71460060
8 PULLEY, DOUBLE GRV 5.5" 71460061

9 PULLEY, SMALL IDLER, DECK 71460009
10 ENGINE-TO-BLADE BELT, WRAPPED 71460074
11 BLADE-TO-BLADE BELT, WRAPPED 71460070
12 NUT, LOCK FLANGE 3/8-24 Z 12990029
13 T-ROD, DECK COVER 24410001
14 BOLT, HCS, 1/2-20X3.5 Z 11990089
15 WASHER, FENDER 5/16 X 1 1/4 Z 13990032
16 BEARING, BALL, FOR IDLER ARM 77410010
17 CIS BEARING BUSHING 25410003
18 SPRING, 2.5" DECK IDLER SPRING 16460009
19 IDLER ARM ASSEMBLY, LEFT 93490013
20 IDLER ARM ASSEMBLY, RIGHT 93490014
21 MACH BUSH, 1/2 ID X 7/8 OD 13990015
22 IDLER ARM WASHER 93490009
23 NUT, NYLOCK 1/2-20 Z 12990038
24 BOLT, HEX 3/8-16 X 2 1/2 Z5 11990004
25 NUT, TOPLOCK 3/8-16 12990031
26 WASHER, FLAT USS 5/16 z 13990010
27 BOLT, FLANGE 1/2-13 X 1 1/4 Z5 11990015
28 NUT, LOCK FLANGE 1/2-13 Z 12990010
29 ISOLATION CAP, VINYL 17460002
30 BOLT, FLANGE 3/8-16 X 1 Z8 11990046
31 NUT, LOCK FLANGE 3/8-16 Z 12990008
32 BLADE, 16 1/2" 71440002
33 WASHER, FLAT USS 5/8 Z 13990011
34 BOLT, HEX 5/8-11X 10 Z5 11990014
35 SPINDLE ASSEMBLY 71460022
36 RETAINING RING, EXTERNAL (SMALL) 71460014
37 WASHER, SMALL FOR SPINDLE 71460021
38 RETAINING RING, INTERNAL (LARGE) 71460015
39 WASHER, SPINDLE 71460016
40 BEARING, SPINDLE (LARGE) 71460017
41 SPINDLE HOUSING 71460018
42 SPINDLE SHAFT 71460025
43 MACHINE KEY 1/4 X 1/4 X 1 15990003
44 MACH BUSH 5/8 X 1 1/2 X 1/4 Z 13990007
45 NUT, HEX 5/8-11 Z 12990003
46 CHUTE DEFLECTOR KIT, FLEXIBLE 95460004
47 NUT, NYLOCK 5/16-18 Z 12990021
48 SPRING, TORSION FOR CHUTE DEFLECTOR 16460002
49 BOLT, HEX 5/16-18 X 4 1/2 Z5 11990003
50 BOLT, CARRIAGE 3/8 X 1 Z5 11990016
51 FLEXIBLE CHUTE DEFLECTOR CLAMP PLATE 93460061
52 CHUTE DEFLECTOR, RUBBER 17460007
53 FLEXIBLE CHUTE DEFLECTOR FLANGE 93460060
54 BOLT, HEX 5/16-18 X 1 Z5 11990027
55 MULCHING BLOCK OFF PLATE, INCL HARDWARE 93460024
56 NUT, NYLOCK 3/8-16 Z 12990020
57 GRASS GOBBLER FOR WRIGHT (JUMBO) WRJ300-3

57T GRASS GOBBLER TURBO 10 FRONT WRGGT10FRNT

58 LATCH GGL1-1
59 DOOR (JUMBO SIZE) GGD4-4

59T DOOR (TURBO 10) GGD-T10

60 LEAF GOBBLER LG1000

60T GRASS GOBBLER TURBO 10 REAR WRGGT10REAR

61 MULCH KIT, CURVED 95430003

61A MULCH BAFFLE,CURVED, RIGHT 93430013
61B MULCH BAFFLE,CURVED, LEFT 93430014

62 DECK BAFFLE KIT, 48", W/ HARDWARE 95430005

© 2006 Wright Manufacturing, Inc. All rights reserved.

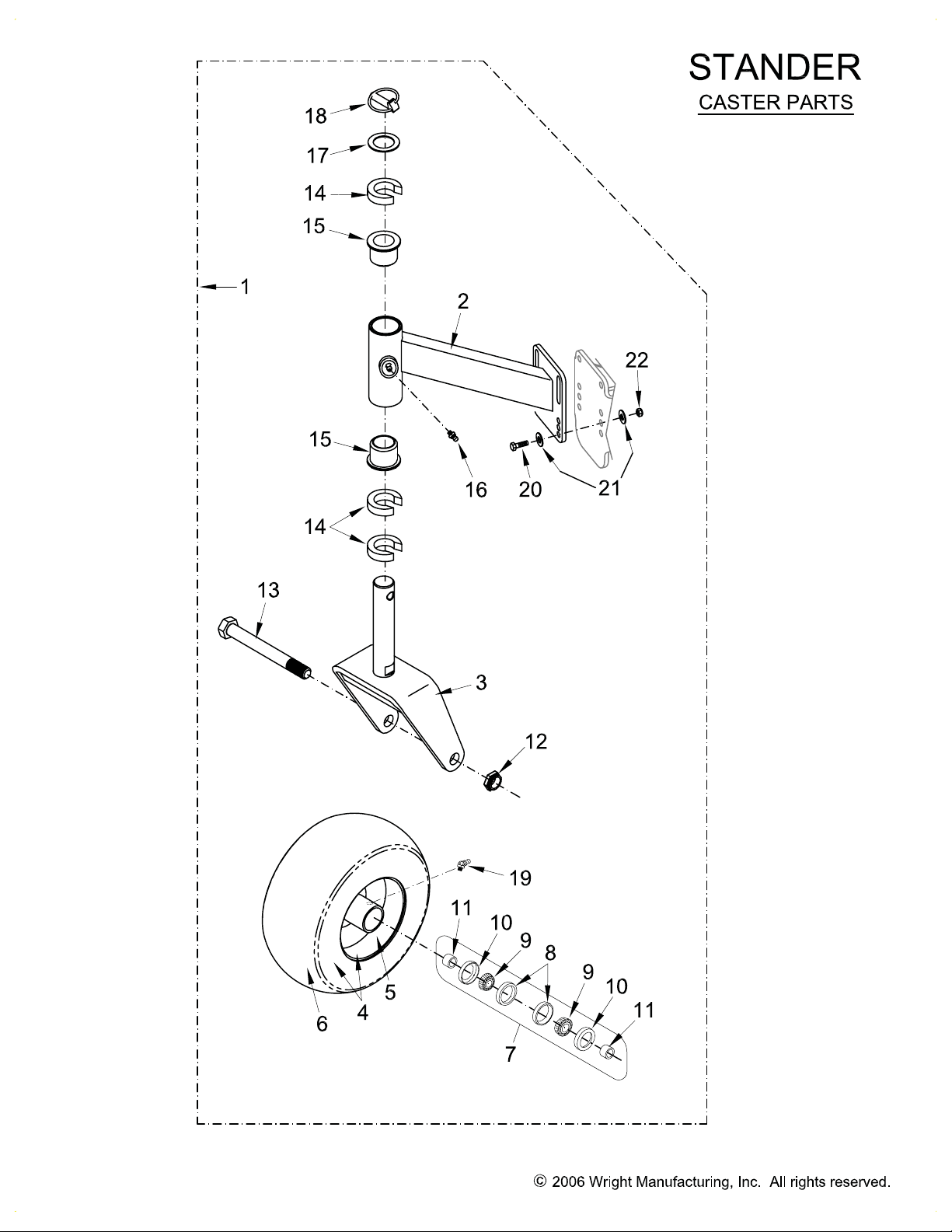

CASTER PARTS

REF. # DESCRIPTION PART #

1 L-S CASTER KIT W/O BRACKETS - SET OF 2 98460013
2 L-S CASTER ARM ASSEMBLY INCL #15x2, #16 98460016
3 L-S CASTER YOKE 93460008

PNEUMATIC WHEEL ASSEMBLY, 11X400-5 INCL #7, #19 72460002

4

FLAT-FREE WHEEL ASSEMBLY, INCL #7, #19 72460012
5 RIM ONLY (FOR PNEUMATIC ASSY) 77460008
6 TIRE ONLY 11 X 400-5 (FOR PNEUMATIC ASSY) 77460009
7 BEARING KIT FOR 11X400-5 CASTER WHEEL 98460019
8 TAPERED ROLLER BEARING RACE 77460007
9 BEARING, FOR CASTER WHEELS 77460006

10 SEAL, FOR CASTER WHEELS 77460005
11 SPACER, FOR CASTER WHEELS 77460004
12 NUT, NYLOCK JAM 3/4-10 Z 12990026
13 BOLT, HEX 3/4-10 X 6 1/2 Z5 11990034
14 CASTER SPACER, NOTCHED C-TYPE 13990022
15 BUSHING, CASTER, FOR 1 1/4 PIN 14990003
16 ZERK, (GREASE FITTING) 15990006
17 MACH BUSH, 1 1/4 ID X 1 7/8 OD X 14 GA 13990023
18 LYNCH PIN FOR CASTERS 15990013
19 GREASE FITTING FOR WHEEL VKWHLZERK
20 BOLT, HEX 3/8-16 X 1 1/4 Z5 11990032
21 WASHER, FLAT USS 5/16 z 13990010
22 NUT, NYLOCK 3/8-16 Z 12990020

© 2006 Wright Manufacturing, Inc. All rights reserved.

S

TRACTOR

REF. # DESCRIPTION PART # REF. # DESCRIPTION PART #

1 OBTAIN FROM AUTHORIZED ENGINE DEALER N/A 65 CIS BEARING BUSHING 25410003
2 HYDRO PUMP-STANDER 31490005 66 BOLT, HEX 3/8-16 X 2 Z5 11990005
3 HYDRO PUMP-STANDER 31490004 67 BELT, WRAPPED 71460033
4 LEVER, PUMP CONTROL 93410098 68 OBTAIN FROM AUTHORIZED HYDRO-GEAR DEALER N/A
5 LEVER, PUMP CONTROL 93410097 69 COTTER PIN 1/8 X 2 15990012
6 BOLT, CARRIAGE 7/16-14 X 1 Z5 11990017 70 NUT, LUG 1/2-20 72410001
7 PULLEY GUARD PLATE 93410105 71 WHEEL ASSEMBLY, 18X650-8 (32" DECK) 72410006
8 WASHER, FLAT 1/4 Z 13990009 71A WHEEL ASSEMBLY, 18X850-8 (36", 42" DECK) 72410007

9 NUT, LOCK FLANGE 5/16-18 Z 12990007 71B WHEEL ASSEMBLY, 18x800-10 (48" DECK) 72410036
10 SCREW, TRUSS HD MACH 1/4-20 X 3/4 SS 11990024 72 RIM ONLY FOR 18X650-8 (32" DECK) 72410010
11 T-ROD, PUMP CONTROL 24420012 72A RIM ONLY FOR 18X850-8 (36", 42" DECK) 72410005
12 PUMP LEVER SPACER, 3/4" 93410164 72B RIM ONLY FOR 18x800-10 (48" DECK) 72410035
13 PUMP LEVER SPACER, 3/8" 93410163 73 TIRE ONLY, 18X650-8 (32" DECK) 72410008
14 NUT, LOCK FLANGE 5/8-11 Z 12990050 73A TIRE ONLY, 18X850-8 (36", 42" DECK) 72410009
15 WHEEL, PLASTIC, ANTI-SCALP 72490001 73B TIRE ONLY, 18x800-10 (48" DECK) 72410023
16 BOLT, HCS, 5/8-11X4 1/2 11990110 74 STUD FOR TAPERED HUB 72410013
17 NUT, NYLOCK JAM 1/2-20 Z 12990018 75 WHEEL HUB, TAPERED 72410017
18 WASHER, FLAT USS 7/16 Z 13990002 76 BOLT, FLANGE 3/8-16 X 1 Z8 11990046
19 BOLT, HEX 1/4-20 X 1 Z5 11990069 77 NUT, LOCK FLANGE 7/16-14 Z 12990009
20 NUT, JAM, HEX 5/16-24 Z 12990053 78 WHEEL MOTOR SUPPORT, LEFT 93410101
21 SPRING, LRG COMPRESSION 16410002 79 WHEEL MOTOR SUPPORT, RIGHT 93410102
22 O-RING, FOR KAWASAKI OIL DRAIN ADAPT 35410024 80 BOLT, HEX 1/2-20 X 2 1/4 Z5 11990011
23 OIL DRAIN VALVE ADAPTER 35410018 81 FOOT PLATE PIVOT 96410002
24 OIL DRAIN VALVE 36410003 82 HYDRO MOTOR 32410004
25 FITTING, MALE BARB 1/2 - 90 36410005 83 WOODRUFF KEY 3/16 X 3/4 15990015
26 TUBE, OIL DRAIN 81410017 84 NUT, LOCK FLANGE 5/16-18 Z 12990007
27 BOLT, HEX 5/16-24 X 1 1/2 Z5 11990009 85 TRACTOR FRAME 93410103
28 NUT, LOCK FLANGE 5/16-24 Z 12990011 86 NUT, NYLOCK 1/2-20 Z 12990038
29 OPC ACTUATOR 93410085 87 FUEL TANK STAND, WS 32" 93410106
30 FOAM TUBE FOR PUMP GUARD 17420006 87A FUEL TANK STAND, WS 36-48" 93410096
31 BOLT, FLANGE 3/8-16 X 3/4 Z5 11990030 88 BOLT, HEX 5/16-18 X 3/4 Z5 11990028
32 PAD BAR LINK 93410162 89 RELAY, FOR MAIN HARNESS 53490019
33 HYDRO PUMP GUARD BAR 91410024 90 NUT, NYLOCK 10-32 12990016
34 BOLT, FLANGE 7/16-14 X 1 1/4 Z5 11990093 91 WASHER, FLAT SAE #10 Z 13990003
35 MACH BUSH, 1/2 ID X 7/8 OD X 18 GA 13990015 92 SCREW, PHLPS PAN 10-32 X 3/4 Z 11990042
36 MACH BUSH, 1/2 ID X 14 GA 13990035 93 T-STUD 24420010
37 BOLT, SHLDR ALLEN 1/2 X 3/8 11990075 94 CAP, VINYL 1" 17460002
38 LEVER, PUMP LOCK 93420041 95 HOSE, FUEL 42420001
39 SPRING, DECK COG 16410008 96 HOSE CLAMP, 1/4 43410001
40 BRAKE, LATERAL LINK BAR 93410099 97 FUEL FILTER 34490003
41 NUT, LOCK FLANGE 3/8-16 Z 12990008 98 FUEL TANK PROTECTOR PLATE FOR TWO BLADE DECK
42 NUT, NYLOCK 1/4-20 Z 12990019 99 VALVE, BALL 90 FOR FUEL TANK 41410004

BRAKE SHOE, FOR 32", 36" & 42" 93410007 100 BUSHING FOR FUEL TANK VALVE 41410003

43

BRAKE SHOE, FOR 48" 93410215 101 NUT, LOCK FLANGE 1/4-20 Z 12990006
44 NUT, LOCK FLANGE 7/16-14 Z 12990009 102 SCREW, ROUND PHLP 1/4-20 X 2 Z 11990025
45 SWITCH, BLACK OPC 52410003 103 FUEL TANK STRAP, 36", 42" AND 48" 91410002
46 NUT, TOPLOCK 3/8-16 12990031 103A FUEL TANK STRAP FOR 32" ONLY 91410001
47 PULLEY, IDLER 4 1/2 71460006 104 FUEL TANK 41410005
48 MACHINE KEY 1/4 X 1/4 X 1 15990003 104A FUEL TANK, 32" STANDER 41410011
49 PULLEY, 4.5 OD 71410002 105 FUEL TANK CAP W/ ADV VENT 41410002
50 BUSHING SPLIT TAPERED 71460051 106 MUFFLER GUARD - (CE ONLY) 91410014
51 MACHINE KEY 5MM X 5MM X 25MM 15990004 107 BOLT, FLANGE 3/8-16 X 3/4 Z5 11990030
52 BOLT, HCS, 1/4-20X1 PLAIN 11990090 108 HARNESS, ENGINE KAW (RECOIL/ELECTRIC) 53490017
53 CLUTCH / BRAKE SMALL 71410014 108A HARNESS, ENGINE KAW (RECOIL ONLY) 53490014
54 SPACER, FOR CLUTCH 71410007 109 BOLT, HEX 5/16-18 X 1 3/4 Z5 11990044
55 WASHER, LOCK 7/16 Z 13990014 110 BOLT, HEX 5/16-18X1 1/4 Z5 11990065
56 BOLT, HEX 7/16-20 X 2 3/4 Z5 11990010 111 ROD END, BALL JOINT - RIGHT HAND THREAD 77410008
57 IDLER ARM 93490012 112 NUT, NYLOCK, 5/16-24 Z 12990051
58 BOLT, HCS, 1/2-20X3.5 Z 11990089 113 OPERATOR PLATFORM 93410021
59 WASHER, FLAT USS 5/16 z 13990010 114 RECOIL LOWER HARNESS 53490016
60 BEARING, BALL, FOR IDLER ARM 77410010 114A RECOIL/ELECTRIC LOWER HARNESS 53490005
61 WASHER, FENDER 5/16 X 1 1/4 Z 13990032 115 5/8-11 TOPLOCK NUT 12990056
62 CABLE TIE 15990014 116 5/8 X 1 3/8 FLAT WASHER 13990037
63 IDLER ARM WASHER 93490009
64 PULLEY, SINGLE GRV 5.75" 71460005

91410004

© 2006 Wright Manufacturing, Inc. All rights reserved.

UPRIGHT ASSEMBLY

REF. # DESCRIPTION PART #

1 UPRIGHT WELDMENT 93420038
2 CUSHION, THIGH REST 98420002
3 STATIONARY HANDLEBAR 93420007
4 INSTRUMENT PANEL 93420006
5 GROOVE PIN, 1/2 22420002
6 HBUSH SHORT 14990004
7 MACH BUSH, 1/2 ID X 7/8 OD 13990015
8 E-CLIP 15990009

9 CONTROL LEVER ASSEMBLY, LEFT, INCL #11x2 & #6x2 98420044
10 CONTROL LEVER ASSEMBLY, RIGHT, INCL #11x2 & #6x2 98420045
11 GRIP, HANDLE BAR 11" 17420004
12 HOUR METER 54420001
13 IGNITION SWITCH, FOR ELECTRIC START 20420002

13a IGNITION SWITCH, FOR RECOIL START 20420001

14 SWITCH, BLADE ON/OFF, RED 52420003
15 PLUG, PANEL, BLACK 17420001
16 THROTTLE CABLE 52420002
17 HYDRO TANK 91420007
18 PLUG, STEEL 35410015
19 HYDRO OIL FILTER HOUSING BLOCK 34490001
20 HYDRO OIL FILTER 34490002
21 WASHER, LOCK 1/4 Z 13990020
22 BOLT, HEX 1/4-20 X 5/8 Z5 11990001
23 BRAKE, PUSH BAR 93410100
24 BRAKE HANDLE W/ GRIP & BUSHING 98420003
25 HANDLE GRIP FOR BRAKE 17420003
26 BOLT, SHLDR ALLEN 1/2 X 1 1/4 11990021
27 BATTERY BOX WELDMENT 93420039
28 BATTERY BOX COVER 93420042
29 OBTAIN FROM AUTHORIZED DEKA BATTERY DEALER 56410001
30 CABLE, BATTERY, RED 38" W/ LUG INSUL. 53490010
31 BOLT, FLANGE 5/16 -18 X 3/4 Z5 11990012
32 NUT, LOCK FLANGE 5/16-18 Z 12990007
33 CABLE, BATTERY, BLACK 18 1/2" 53490011
34 NUT, NYLOCK 1/4-20 Z 12990019
35 BOLT, HEX 1/4-20 X 1 Z5 11990069
36 BOLT, CARRIAGE 5/16-18 X 3/4 Z5 11990059
37 SOLENOID 53490009
38 NUT, JAM 1/4-20 Z 12990042
39 WIRE, GROUNDING 53490007
40 HYDRO OIL COOLER SHIELD 93410104
41 HYDRO TANK END SUPPORT 91420009
42 HYDRO TANK END SUPPORT SPACER 91420011
43 NUT, LOCK FLANGE 1/4-20 Z 12990006
44 WASHER, FLAT 1/4 Z 13990009
45 BOLT, HEX 5/16-18 X 2 1/2 Z5 11990100
46 BOLT, FLANGE 3/8-16 X 3/4 Z5 11990030
47 NUT, LOCK FLANGE 3/8-16 Z 12990008
48 NUT, U 1/4-20 12990012
49 SPRING, EXT 16410009
50 BOLT, HEX 5/16-18X1 1/4 Z5 11990065
51 SCREW, TRUSS HD MACH 1/4-20 X 3/4 SS 11990024
52 SCREW, TRUSS HD MACH 10-32 X 1/2 11990023
53 NUT, KEP 10-32 Z 12990015
54 NUT, TOPLOCK 3/8-16 12990031
55 NUT, NYLOCK, 5/16-24 Z 12990051
56 ROD END, BALL JOINT - LEFT HAND THREAD 77410009
57 NUT, LH JAM 5/16-24 Z 12990052
58 T-ROD, PUMP CONTROL 24420012
59 WASHER, FLAT USS 5/16 z 13990010
60 BOLT, HEX 5/16-18 X 1 Z5 11990027
61 WASHER, FENDER 5/16 X 1 1/4 Z 13990004
62 RECOIL UPPER HARNESS 53490015

62A RECOIL/ELECTRIC UPPER HARNESS 53490033

63 HYDRO TANK BREATHER VENT 33410046

© 2006 Wright Manufacturing, Inc. All rights reserved.

HYDRAULIC PARTS

REF. # DESCRIPTION PART #

1 HYDRO TANK WELDMENT 91420007

2 PLUG, STEEL 35410015

3 HYDRO MOTOR 32410004

4 ELBOW, 45 DEGREE 35410045

5 HYDRO OIL COOLER SHIELD 93410104

6 STRAIGHT, MJIC X FJIC 35410044

7 FITTING, FPIPE X MALE JIC ELBOW 35410026

8 FITTING, BARBTITE FEMALE 35410012

9 HOSE, HYDRO LOW, SMST, TNK-FLTR 33410058
10 HYDRO PUMP 31490005
11 HYDRO PUMP 31490004
12 CONNECTOR, STRGHT THRD ORING 35410046
13 TEE, NYLON HOSEBARB MALE 35410001
14 HOSE, HYDRO LOW, SMST, FLTR-PUMP 33410059
15 HOSE, HYDRO LOW, SMST, PUMP-TNK 33410060
16 ELBOW, STRGHT THRD ORING X JIC 35410007
17 HYDRO OIL FILTER HOUSING BLOCK 34490001
18 HYDRO OIL FILTER 34490002
19 HOSE, HYDRO HIGH PRESS, SM ST 33410061
20 HYDRO TANK BREATHER VENT 33410046

© 2006 Wright Manufacturing, Inc. All rights reserved.

1

2

3

6

7

8

4

5 (Qty.3)

9

10 (Qty.2)

11

15

18

16

12

14

13 (Qty.2)

17

20

19 (Qty.2)

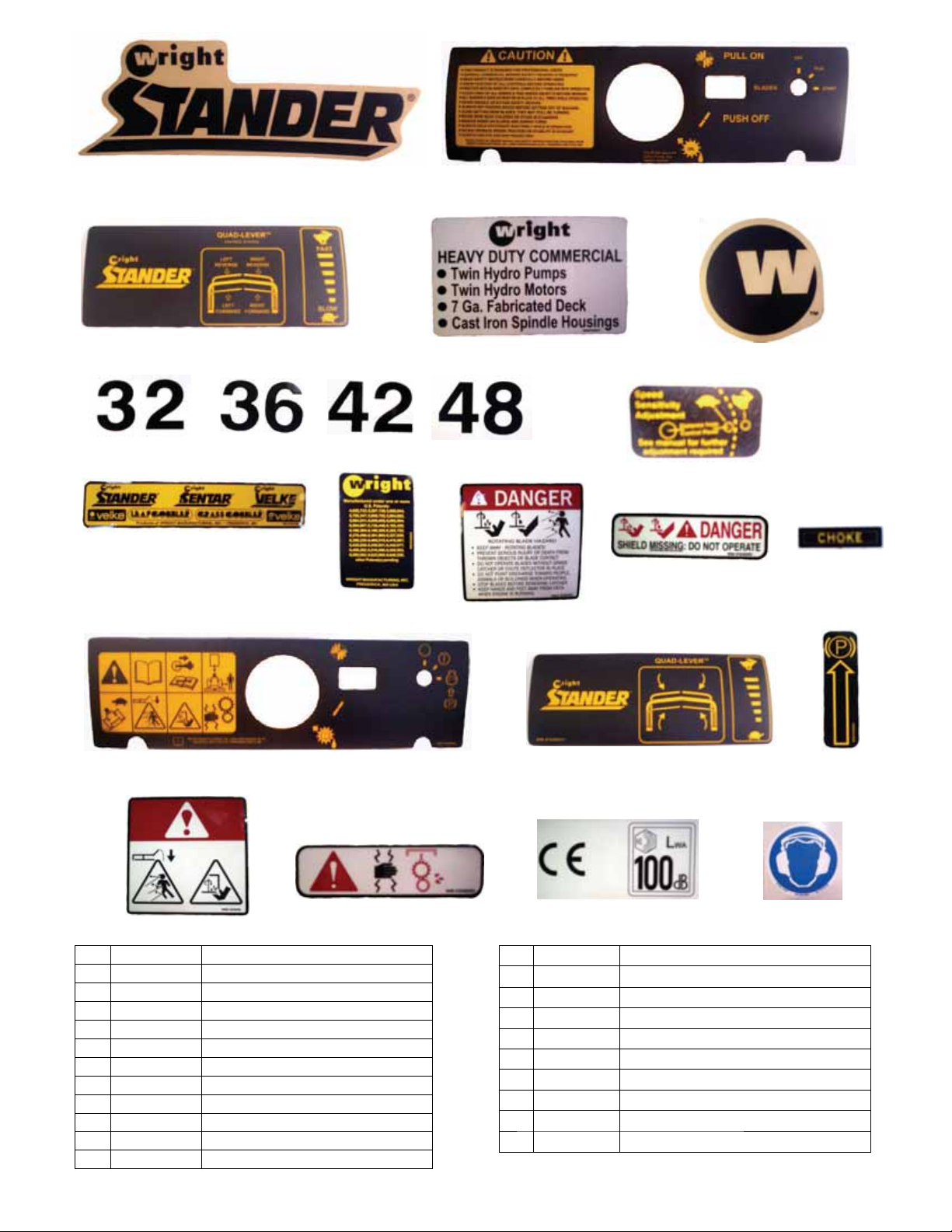

1 76490004 Decal, Stander
2 76490013 Decal, Main Inst. Panel, Dash
3 76490005 Decal, Throttle / Instructions
4 76490051 Decal, Commercial Benefits
5 76490023 Decal, Circle with ”W”
6 76490027 Decal, 32” Deck Size
7 76490015 Decal, 36” Deck Size
8 76490016 Decal, 42” Deck Size

9 76490008 Decal, 48” Deck Size
10 76490018 Decal, Speed Sensitivity Adj.
11 76410001 Decal, All Logos
12 76490036 Decal, Patent Numbers

21

13 76460001 Decal, Danger Blade Hazard
14 76490001 Decal, Shield Missing
15 76490017 Decal, Choke
16 76490030 Decal, CE, Main Inst. Panel, Dash
17 76490031 Decal, CE, Throttle / Instructions
18 76490053 Decal, CE, Parking Brake
19 76490028 Decal, CE, Danger Blade Hazard
20 76490029 Decal, CE, Shield Missing
21 76490045 Decal, CE, Noise 100 dB
22 76490058 Decal, CE, Hearing Protection

22

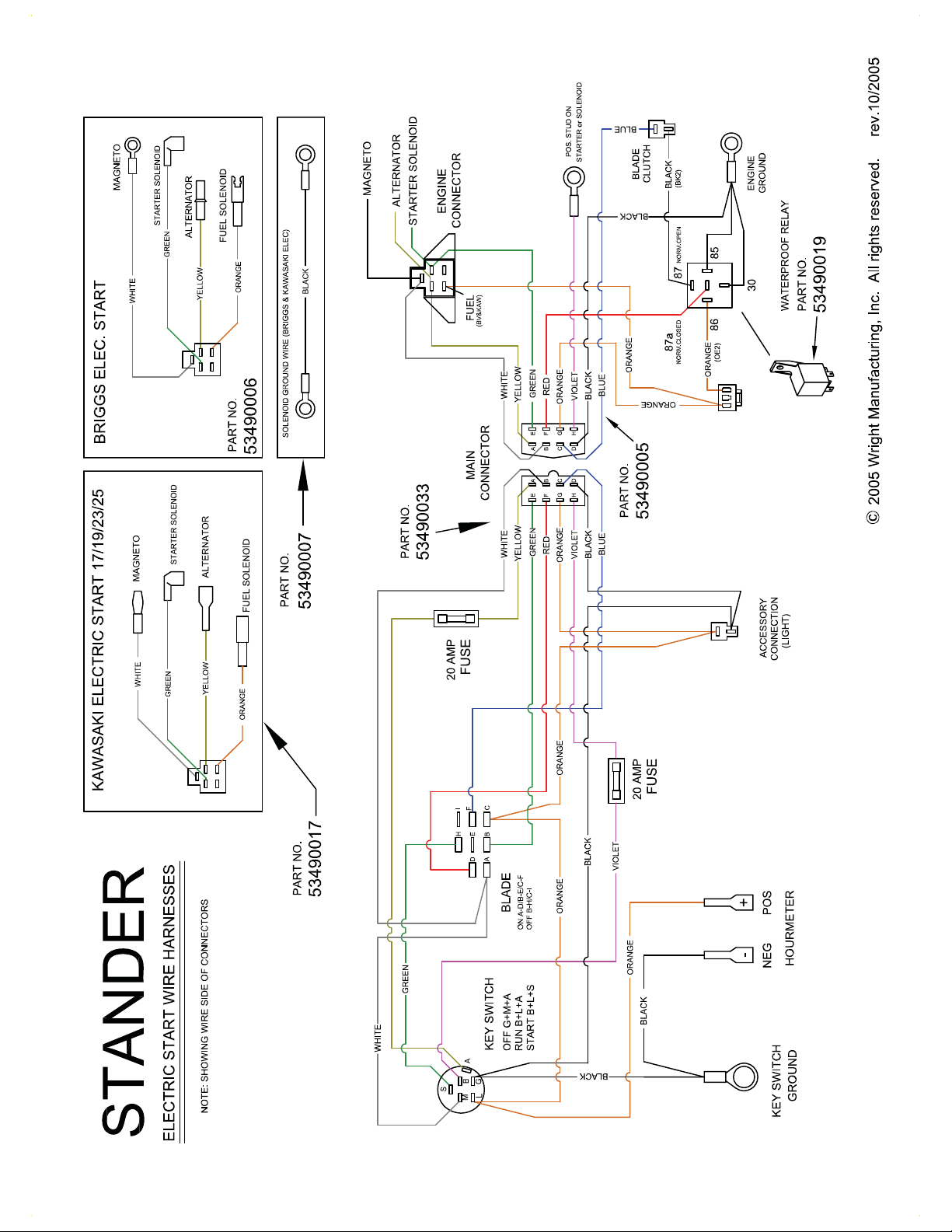

4600X Wedgewood Blvd

Frederick, MD 21703
www.wrightmfg.com
