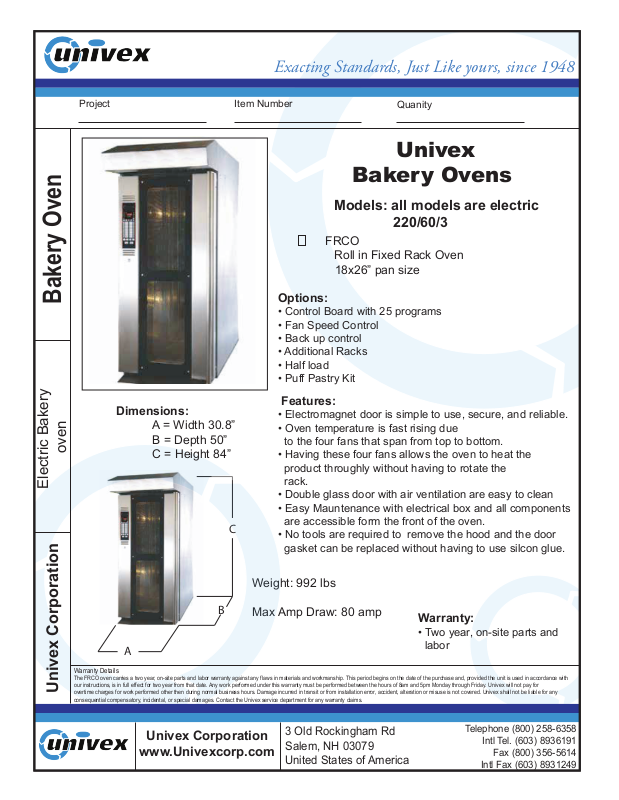

Univex FRCO User Manual
Exacting Standards, Just Like yours, since 1948
Project Item Number
Roll in Fixed Rack Oven
18x26” pan size
Bakery Oven
Quanity
Univex
Bakery Ovens
Models: all models are electric
220/60/3
FRCO
Options:
• Control Board with 25 programs
• Fan Speed Control
• Back up control
• Additional Racks
• Half load
• Puff Pastry Kit
Dimensions:
A = Width 30.8”
B = Depth 50”
oven
C = Height 84”
Electric Bakery
C
• Electromagnet door is simple to use, secure, and reliable.
• Oven temperature is fast rising due
to the four fans that span from top to bottom.
• Having these four fans allows the oven to heat the
product throughly without having to rotate the
rack.
• Double glass door with air ventilation are easy to clean
• Easy Mauntenance with electrical box and all components
are accessible form the front of the oven.
• No tools are required to remove the hood and the door
gasket can be replaced without having to use silcon glue.
Weight: 992 lbs
Features:
B
A
Warranty Details
The FRCO oven carries a two year, on-site parts and labor warranty against any flaws in materials and workmanship. This period begins on the date of the purchase and, provided the unit is used in accordance with
our instructions, is in full effect for two year from that date. Any work performed under this warranty must be performed between the hours of 8am and 5pm Monday through Friday. Univex will not pay for
Univex Corporation
overtime charges for work performed other then during normal business hours. Damage incurred in transit or from installation error, accident, alteration or misuse is not covered. Univex shall not be liable for any
consequential compensatory, incidental, or special damages. Contact the Univex service department for any warranty claims.
Max Amp Draw: 80 amp
Warranty:
• Two year, on-site parts and
labor
Univex Corporation
www.Univexcorp.com
3 Old Rockingham Rd
Salem, NH 03079
United States of America
Telephone (800) 258-6358
Intl Tel. (603) 8936191
Fax (800) 356-5614
Intl Fax (603) 8931249
