Operation Manual
www.universal-space.com
Super big rig Manual Rev.1.0
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ......................................................... 2
1. SPECIFICATIONS ...................................................................................... 4
2. PACKAGE CONTENTS ............................................................................... 5
3. PART NAME ............................................................................................... 6
4. SET UP & INSTALLATION ......................................................................... 7
5. HOW TO PLAY ........................................................................................ 10
6. GAME OPTION ....................................................................................... 15
7. ERROR MESSAGE AND RECOVERY .................................................... 19
8. MAINTENANCE & INSPECTION ........................................................... 21

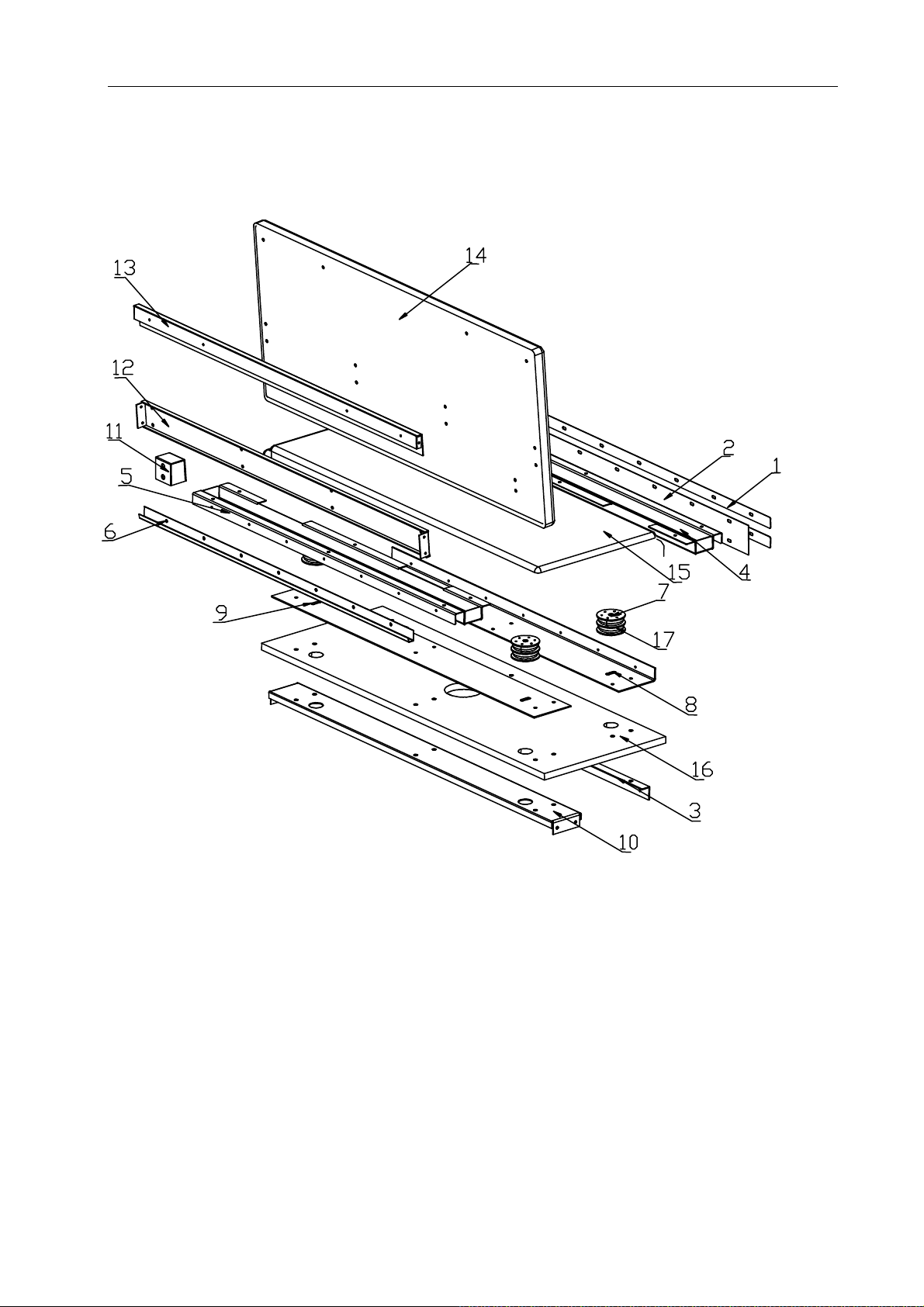

9. OVERALL CONSTRUCTION ................................................................... 22

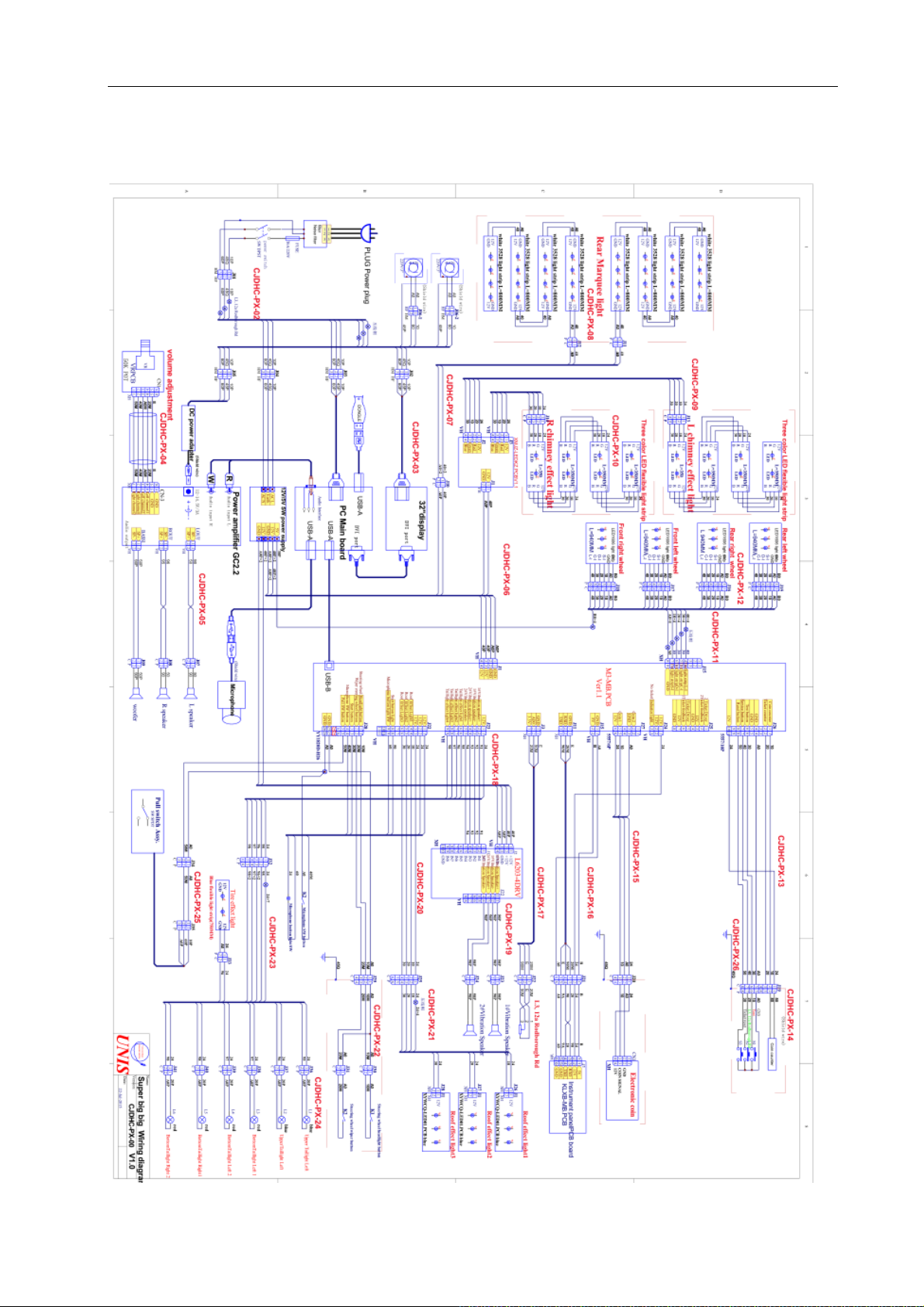

Wiring Diagram ......................................................................................... 39
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual. Failing
to comply can cause severe accidents such as electric shock or other
serious injuries. All repairs must be performed to original manufacturer
specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
1
Super big rig Manual Rev.1.0
Thank you for purchasing Super big rig. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
before
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
2
Super big rig Manual Rev.1.0
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install
outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.
3
Super big rig Manual Rev.1.0
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz
Min. Power consumption: 170W
Max. Power consumption：260W
Dimensions： W1240×D1330×H1920 (mm)
Weight： Approximately 280kg
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game parameters are subject to change without notice.
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
4
Super big rig Manual Rev.1.0
2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1. 1 x Body Assembly
2. Following accessories
No. Part No. Code Name Spec. Qty Picture
1 S127-443-000 23301000001 Power cord 10A/250V 1.8M 1
2 S127-417-000 21901000012 Fuse
Φ5×20mm T10A
250VAC
1
3 S127-801-000 41440000077 Manual ENGLISH 1
4 S127-452-000 25300171002 Key 171A 2
5 S127-454-000 25300172002 Key 171B 1
6 S127-465-001
40607000001
L-type hex wrench
CR-4mm
1
NOTE: Part models are subject to change without notice.
5
Super big rig Manual Rev.1.0
St
l
3. PART NAME
Rear Marquee
Chimney Assy.
Spare tire Assy.
Taillight Assy.
Top Marquee
Microphone
32” Display
Pull-cord Switch
eering whee
Coin mech.
6
Super big rig Manual Rev.1.0
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install
outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.

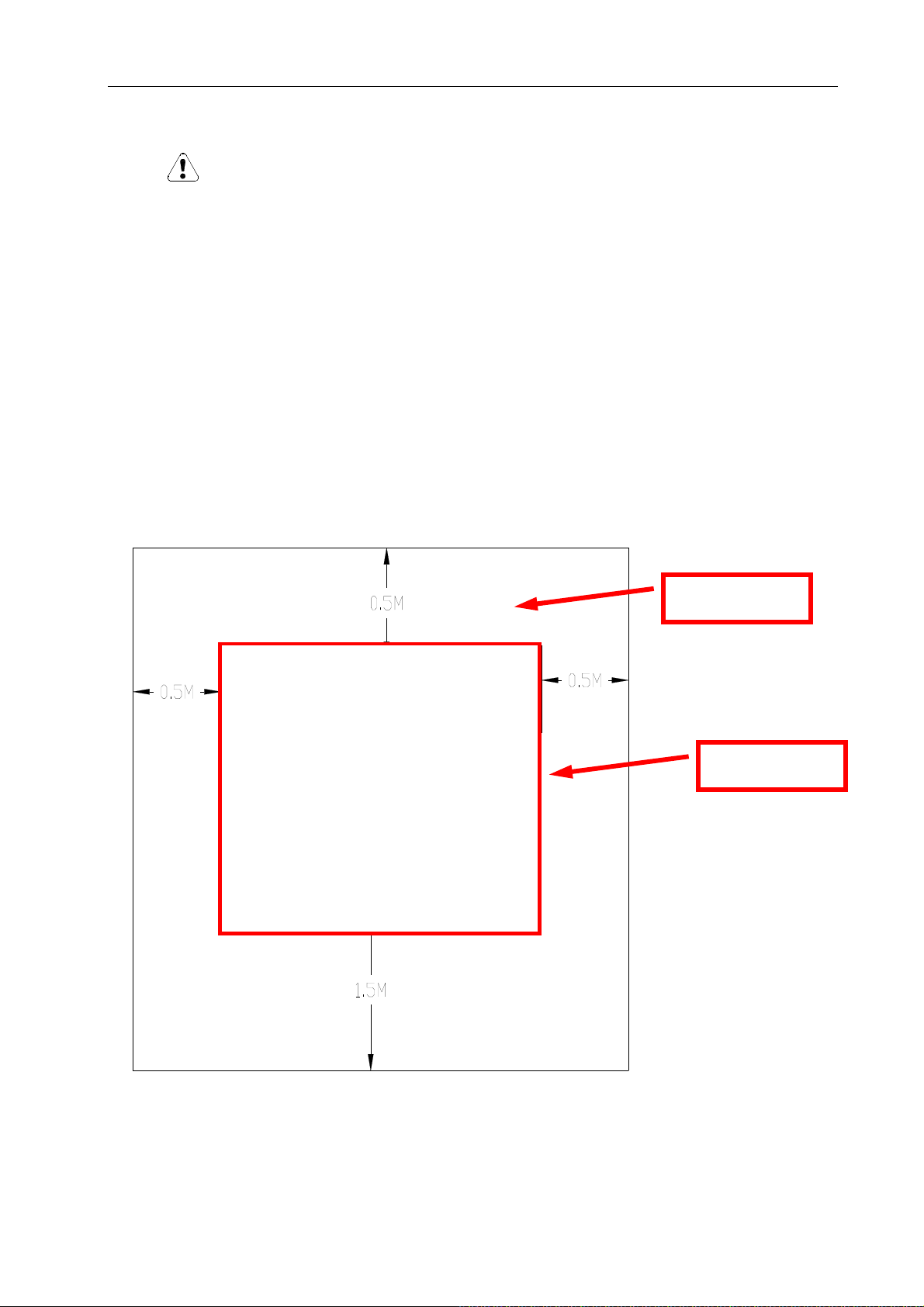

4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 500mm
The machine
Service area
play area
7
Super big rig Manual Rev.1.0
F
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 5mm. Repeat the same for all levelers.
Leveler Caster
About 5 mm
Move
Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
NOTICE
Fix
4.3 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position so the casters
touch the ground.
Leveler Caster
Move
NOTICE
Be careful not to damage the machine during transport.
The machine should be handled with care when bringing it down from a higher level.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to
8
Super big rig Manual Rev.1.0
an electrical outlet to ensure that the required voltage and frequency match
the available power source. Please refer the label of the machine.
Do not plug the equipment power cables into an electrical outlet if the power cable
is damaged.
Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.

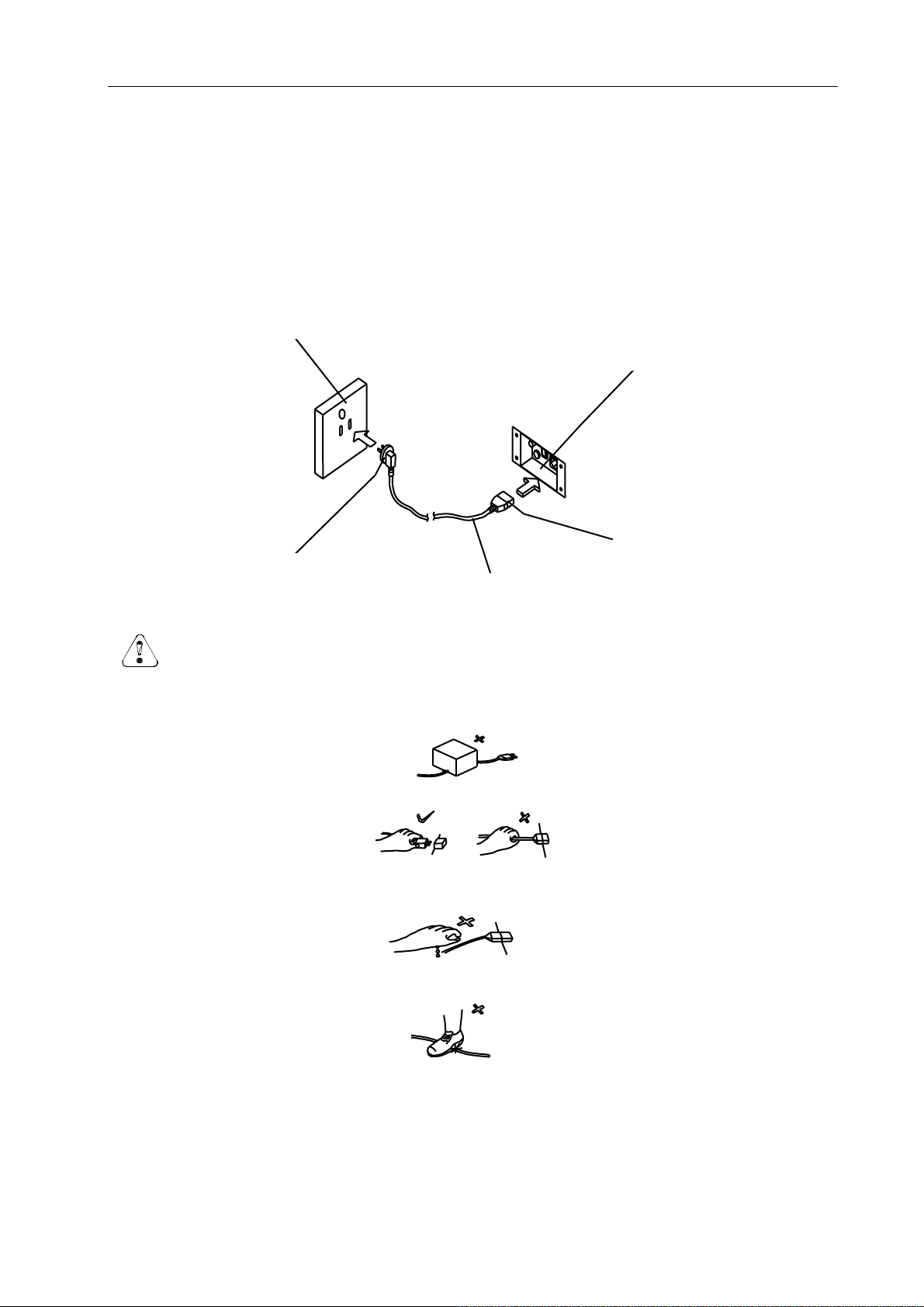

Connect the grounding conductor to the earth terminal (GND):
Power socket
Power outlet
Power plug
Power plug
Power cord
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet
does not sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the
cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be
stepped on or tripped over.
9
Super big rig Manual Rev.1.0
5. HOW TO PLAY
5.1 Game interface
A
A：Items to Deliver and game time.
B：Game start.
A
B
10
Super big rig Manual Rev.1.0

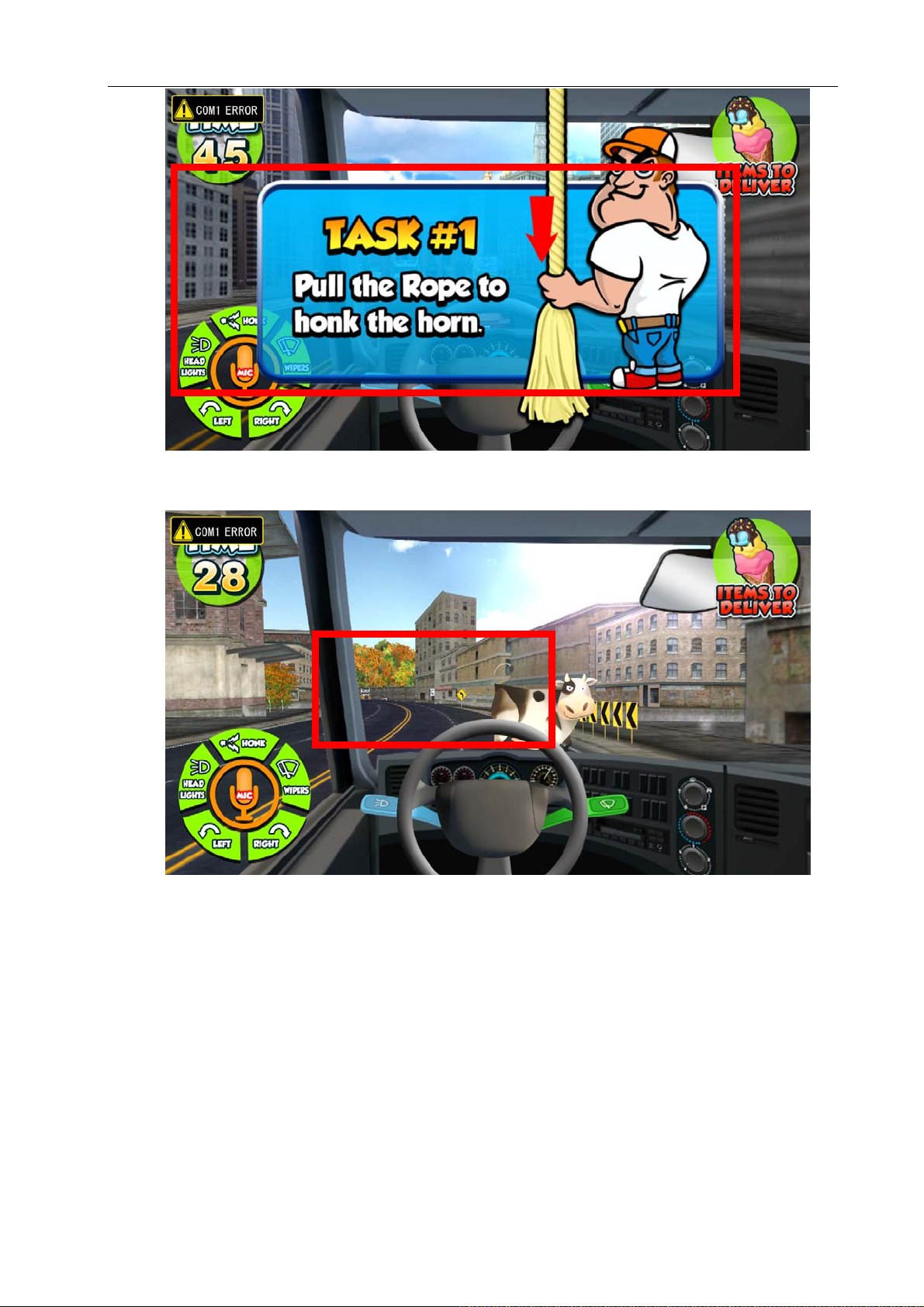

A
A：There will be different tasks in the game.
A
A：There will be different tasks in the game.
11
Super big rig Manual Rev.1.0

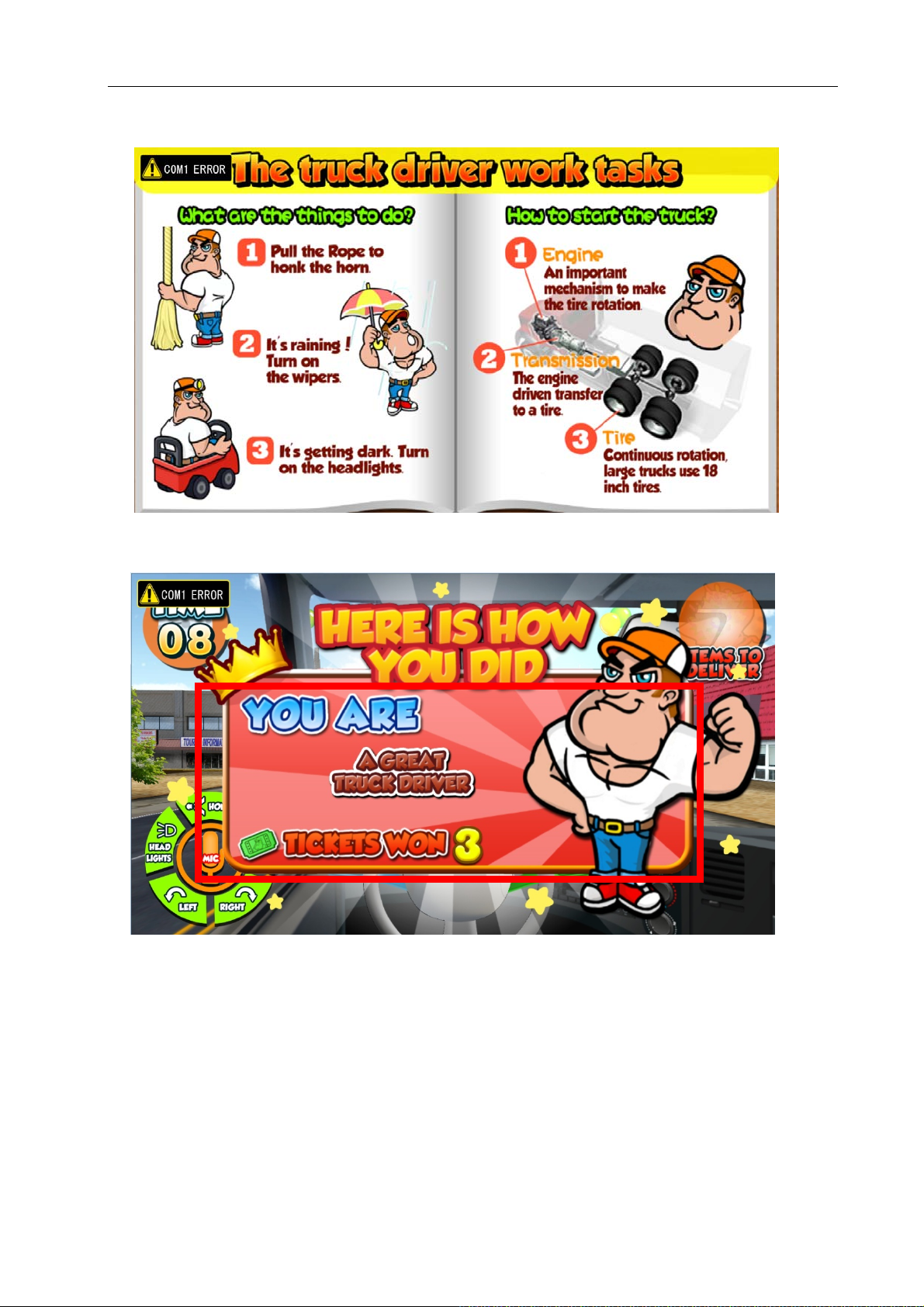

5.2 Game Introduction:
Announcement of the results
12
5.2 Task Setting.
Set three tasks in the game.
Super big rig Manual Rev.1.0
13
Super big rig Manual Rev.1.0
5.3. Scene setting
There are two scenes in the game.
Scenes 1
Scenes 2
14
Super big rig Manual Rev.1.0
6. GAME OPTION
6.1 Adjustment button instruction
Open the coin door there is a meter panel. Press service button to get into the setting
menu.
6.2 Setting menu
6.2.1 Main Menu
6.2.2 Basic Setting
Test Service Reset
Main Menu
Basic Setting
Customized Setting
Input Test
Output Test
Game Reset
Date/Time Setting
Language/语言/言語選択
Bookkeeping
Daily Record
About This Game
Back to Game
Super BigRig1.0
Free Play OFF
Tickets Out ON
Demo Music OFF
Memory Save ON
Volume 10
Game Time 60
Coins Per Game 1
Out of Tickets Store in memory
Back&Save
Back
Super BigRig1.0
15
Super big rig Manual Rev.1.0
6.2.3 Customized Setting
Fixed Ticket 0
Two Tickets Equal One OFF
The Best Truck Driver 5
An Excellent Truck Driver 4
A Great Driver 3
A Good Driver 2
Back&Save
Back
Super BigRig1.0
Customized Setting
6.2.4 Input Test and Output Test
Microphone OFF
Start Button OFF
Steering Wheel OFF
Super BigRig1.0
Coin OFF
Horn Button OFF
Wippers Button OFF
Headlights Button OFF
Input Test
Back
Super BigRig1.0
6.2.5 Game Reset
Super BigRig1.0
Reset Game Mode Settings
Game Reset
Factory Restore
Clear all records
Clear unused coin
lear Owed Ticket
Clear Unused Coin
Back
Output Test
Voice Control Button
Start Button
Ticket Driver
Motor1
Motor2
Motor3
Meter D
Meter R
16
Super big rig Manual Rev.1.0
6.2.6 Date/Time Setting
Year 2014
Month 9
Day 24
Hour(24) 22
Minute 26
Second 0
Back&Save
Back
Super BigRig1.0
Date/Time Setting
6.2.7 Bookkeeping
Super BigRig1.0
Player Coins Tickets Payout
1 0 0 0
2 0 0 0
Sum 0 0 0
NON RESETTABLL POINTS
NON RESETTABLE TICKETS
Bookkeeping
Back
6.2.9 Daily Record
Super BigRig1.0
Date Weekday RunTime Coins Tickets Payout
Daily Record
Clear
Back
17
Super big rig Manual Rev.1.0
6.2.10 About this game
CPU Intel(R)Core(TM)i5-3450CPU@3.10GHz
MainBoard MSI
HDD ST500DM002-1BD142 ATA Device 465GB
RAM 3553MB
Monitor LT32BM20(L)
Screen 1360X768
Version Super BigRig1.0
Super BigRig1.0
About This Game Press Setting Button to Back
18
Super big rig Manual Rev.1.0
7. ERROR MESSAGE AND RECOVERY
7.1 Trou ble S ho otin gs
Please confirm whether every connector connected tightly.
Troubles Cause Methods
Cannot start
Power cutting
Coin mech. no
reaction
Speaker no
sound
Monitor black
screen
Monitor blue
screen
Playing normal,
but appear
system halted
Start button no
reaction
Frame assembly connector fall off
Frame assembly fault Please contact with dealer
Circuit protector make power SW
in cutting state
Coin mech. fault Change coin mech.
Coin mech. signal cable loosen
IO control board fault Change IO board
Volume set too low Please raise the volume
Connector falls off Please plug in connector tightly
PCB fault Please change PCB
Speaker fault Please change speaker
Connector falls off Please plug in connector tightly
Monitor fault Please change monitor
PC power cord is loose Check PC power cord whether is loose.
VGA signal cable is loose. Check VGA signal whether is loose.
PC video card is loose. Plug video card again.
PC into protection
Video card is loose or poor contact
PC crash Restart or system recovery
Connector falls off Please plug in connector tightly
Button breakdown Please change star button
Thumb reverse Gun calibrate reverse
Please plug in connector tightly
Please turn on power SW again. If
appeared again and again, machine
has anomaly. Please contact with
Check coin mech. signal line loosen or
Open front cover, if power on light flash
all the time. Press power button 30s,
then restart. If no work, please call
Lenovo: 8008108888
Plug video card again
dealer
not
19
Super big rig Manual Rev.1.0
7.2 Sy stem Recov er y Operation
1. Turn off the game. Insert the memory
stick into the USB port at the back of
the computer.
2. Restart PC to enter the system
recovery screen as shown.
3. The game will automatically start
recovery which will last about 5
minutes.
Please wait until process is complete.
Please wait until process is complete.
4. Once system recovery is finished (as shown on
the left), remove the USB flash drive from the
computer and turn off the PC. Wait at least 30
seconds before restarting the PC.
WARNING: the USB flash drive should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.
20
Super big rig Manual Rev.1.0
8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running
smoothly
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and
pay attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to
the cautionary matters herein stated can cause personal injury or damage to the machine
• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
• When or after installing the product, avoid pulling the power cord to prevent
unnecessary wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire,
electric shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the
machine. Unplug the power cord of the service outlet. Operating the machine without
correcting the problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating,
resulting in fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the
labels are not hidden behind other game machines.
WARNING
21
Super big rig Manual Rev.1.0
9. OVERALL CONSTRUCTION
9.1 General Part 1
22
Super big rig Manual Rev.1.0
No. Part No. Code Name Spec. Qty
1 S127-105-000 20251408004 Long line slot Q235 1
2 S127-104-000 20251408003 Short line slot Q235 1
3 S127-155-000 20251408054 Toplight bracket cover Q235 1
4 S127-154-000 20251408053 Toplight bracket Q235 1
5 S127-106-000 20251408005 Speaker net cover Q235
6 S127-231-000 20251408001
7 S127-103-000 20251408002
S127-143-000 20251408042 Sheet metal frame δ1.5 Red 1
8
S127-144-000 20251408043 Back Marquee plastic plate δ1.5 Red 1
9 S127-157-000 20251408056 Spare tire sheet metal Q235 1
10 S127-719-000 20551408009 Wheel cover B Clear plastic 1
11 S127-197-000 20651401A014 Double rear lamp shade ABS 2
12 S127-232-000 23001000001 License plate frame
13 S127-198-000 20651401A017 Exhaust pipe ABS 2
14 S127-124-000 20251408023 Chimney pipe fixed plate δ1.5 Black 2
15 S127-131-000 20251408030 Rope pulley frame δ3 Black 1
16 S127-715-000 20551408001 Display plastic Clear plastic 1
17 S127-119-000 20251408018 Display bracket Q235 2
S127-137-000 20251408036
18
S127-138-000 20251408037 Steering wheel bottom sheet metal δ2 Black 1
19 S127-219-000 20651408021 Control panel plastic δ3 1
20 S127-527-000 20351408A001 PC bed plate δ15 1
21 S127-191-000 20251408092 Left pedal Steel 1
22 S127-221-000 20651408023 Rubber pedal pad Rubber 1
23 S127-192-000 20251408093 Right pedal Steel 1
Back upper left strengthen sheet
metal
Back upper right strengthen sheet
metal
Steering wheel bottom sheet metal
cover
Q235
Q235
Aluminum
alloy
δ1.5 Black 1
1
1
1
23
Super big rig Manual Rev.1.0
9.2 Control panel plastic
No. Part No. Code Name Spec. Qty
1 S127-440-000 22804000008 Microphone Microphone 181 1
2 S127-210-000 20651408012 Microphone fixed glue PU 1
3 S127-189-000 20251408090 Microphone seat Aluminum alloy 1
4 S127-713-000 20551408002 Microphone plastic decal Clear plastic 1
5 S127-121-000 20251408020 Start button baffle Q235
6 S127-122-000 20251408021 SW button fixed plate Q235 1
7 S127-219-000 20651408021 Control panel plastic Red ABS 1
8 S127-123-000 20251408022 Control wire box Q235 1
9 S127-187-000 20251408088 Hexagonal nut column Brass 1
10 S127-714-000 20551408003 Pointer plate decal Clear plastic 1
11 S127-220-000 20651408022 Meter plastic Clear plastic 1
24
9.3 Chimney Assy.
No. Part No. Code Name Spec. Qty
1 S127-203-000 20651408005 Chimney bottom ABS Chrome 1
2 S127-714-000 20551408004 Chimney cover decal Clear plastic 1
3 S127-171-000 20251408070 Light fixed plate SECC 1
4 S127-170-000 20251408069 chimney pipe buckle
5 S127-202-000 20651408004 Top chimney pipe ABS Chrome 1
Super big rig Manual Rev.1.0
SECC 1
25
Super big rig Manual Rev.1.0
9.4 Pull-cord Switch Assy.
No. Part No. Code Name Spec. Qty
1 S127-129-000 20251408028 Pull-cord SW cover
2 S127-130-000 20251408029 Pull-cord SW fixed plate
3 S127-188-000 20251408089 Tassel rope
4 S127-436-000 22606040001 Dual-direction pull-cord SW
26
Q235
Q235
yellow
FHKT2
1
1
1
1

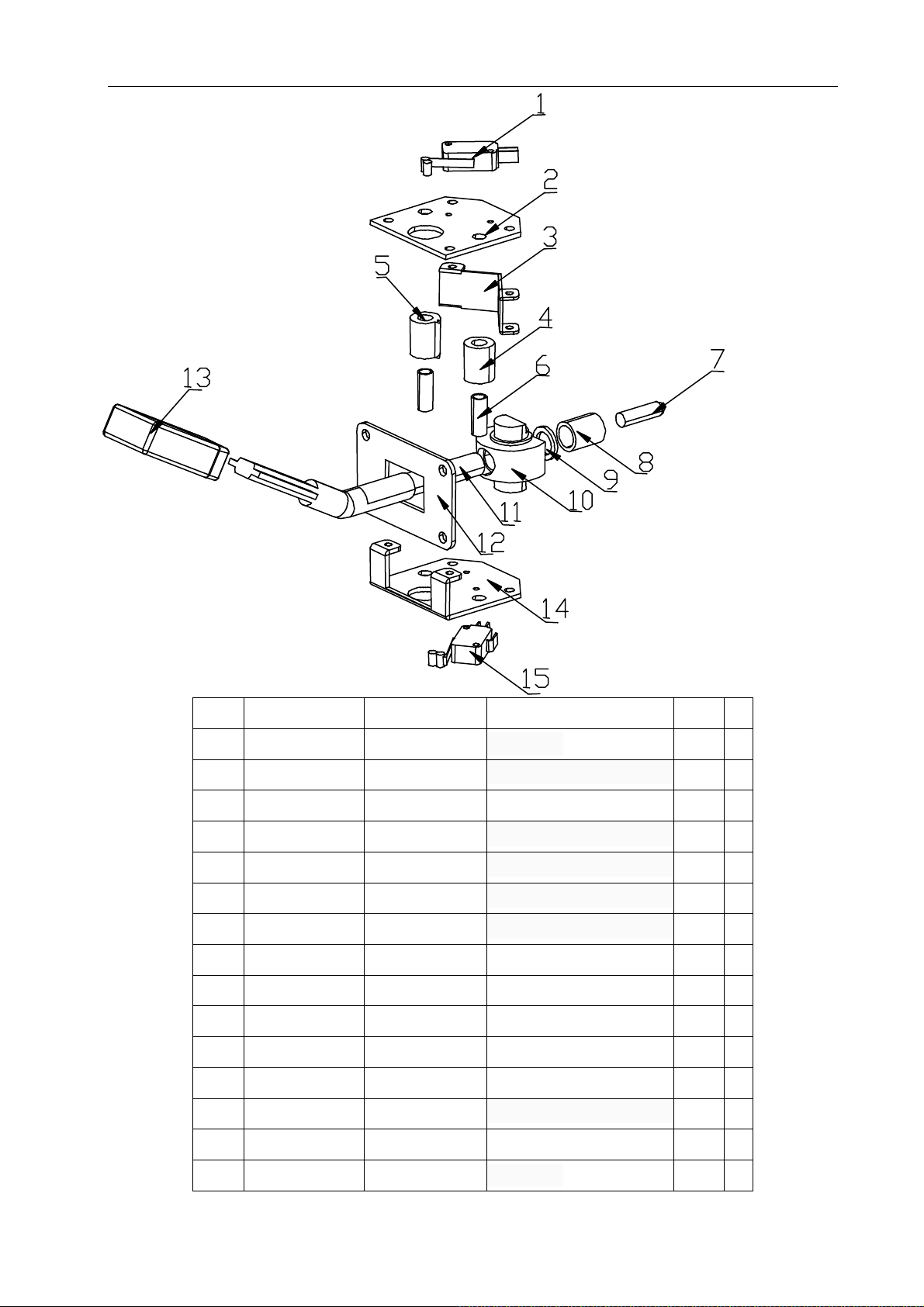

9.5 Shockproof Part
Super big rig Manual Rev.1.0
No. Part No. Code Name Spec. Qty
1 S127-435-000 22604000007 Micro SW
2 S127-134-000 20251408033
Reset SW cover plate
3 S127-132-000 20251408031 Point angle
4 S127-212-000 20651408014
5 S127-135-000 20251408034
6 S127-136-000 20251408035
7 S127-184-000 20251408085
Reset SW limit set 1
Reset SW limit set 2
Sheet metal case
Sliding column
8 S127-211-000 20651408013 Lever sleeve
9 S127-160-000 20251408059 Washer
10 S127-185-000 20251408086 Shaft
11 S127-366-000 20107020001 Hollow pin
12 S127-133-000 20251408032 Reset SW chassis plate
13 S127-179-000 20251408080
Handle suite 1
14 S127-133-000 20251408032 Reset SW chassis plate
Green
Q235
Q235
PU
PU
PVC
Black
PU
White
Black
65Mn
Q235
Assy.
Q235
1
1
1
1
1
2
1
1
4
1
1
1
1
1
15 S127-435-000 22604000007 Micro SW
27
Green
1
Super big rig Manual Rev.1.0
9.6 Steering wheel Assy.
No. Part No. Code Name Spec. Qty
1 S127-463-000 41106000021 Black steering wheel
PU + Aluminum
alloy
1
2 S127-181-000 20251408082 Steering wheel shaft Color zinc plating 1
3 S127-141-000 20251408040 Steering wheel frame Q235 1
4 S127-186-000 20251408087 Locating sleeve Black steel 1
5 S127-139-000 20251408038 Limit block Color zinc plating 1
6 S127-140-000 20251408039 Limit column fixed plate Color zinc plating 1
7 S127-172-000 20251408071 Potentiometer bracket SECC 1
8 S127-311-000 20101010035
Cross recessed pan head screws
kit
Q235
1
28

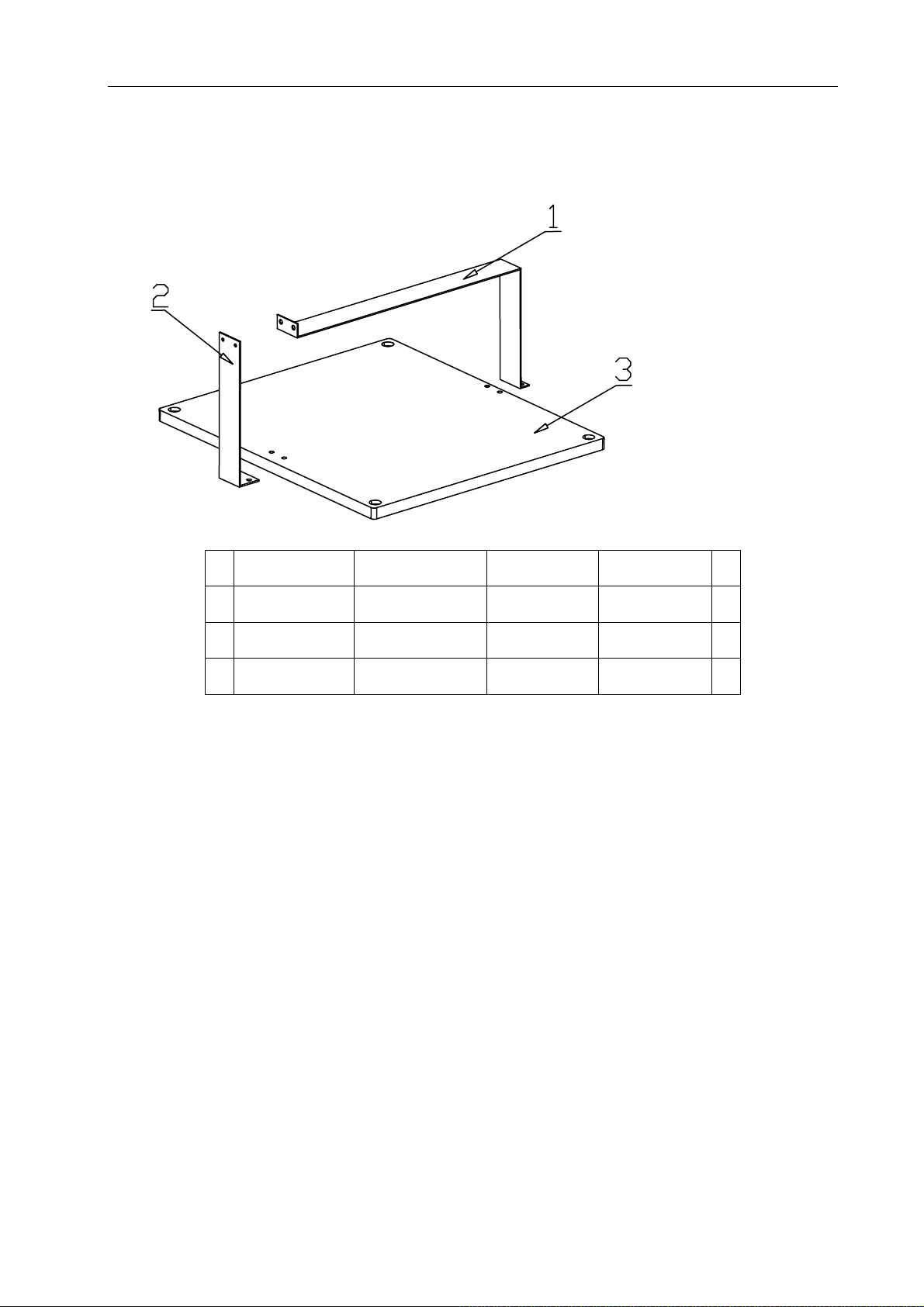

9.7 PC Assy.
Super big rig Manual Rev.1.0
No. Part No. Code Name Spec. Qty
1 S127-194-000 20251408A001 PC hoop SECC 1
2 S127-231-000 20251408073 PC fixed plate SECC 1
3 S127-527-000 20351408A001 PC bed plate MDF red mica 1
29
Super big rig Manual Rev.1.0
9.8 Rear Marquee Assy.
No. Part No. Code Name Spec. Qty
1 S127-143-000 20251408042 Sheet metal frame Q235 1
2 S127-173-000 20251408074 Light belt fixed sheet metal SECC 1
3 S127-145-000 20251408044 Head guard plate Assy. 1
4 S127-714-000 20551408007 Rear Marquee plastic Clear plastic 1
30
9.9 Seat Assy.
Super big rig Manual Rev.1.0
31
Super big rig Manual Rev.1.0
No. Part No. Code Name Spec. Qty
1 S127-146-000 20251408045 Non-woven press plate Q235 2
2 S127-218-000 20651408020 Non-woven Black 1
3 S127-147-000 20251408046 Front connection sheet metal Q235 1
4 S127-174-000 20251408075 Rear sheet metal SECC 1
5 S127-175-000 20251408076 Front sheet metal SECC 1
6 S127-176-000 20251408077 Guide tank SECC 1
7 S127-148-000 20251408047 Speaker embedded Q235 2
8 S127-149-000 20251408048 Front plate Q235 1
9 S127-150-000 20251408049 Rear plate Q235 1
10 S127-151-000 20251408050 Seat bracket plywood 1
11 S127-152-000 20251408051 Backrest top plate Q235 3
12 S127-153-000 20251408052 Backrest middle sheet metal Q235 1
13 S127-193-000 20251408094 Backrest top bar steel 1
14 S127-504-000 20351408004 Backrest Assy. 1
15 S127-505-000 20351408005 Seat surface Assy. 1
16 S127-506-000 20351408006 Seat bottom plate plywood 1
S127-101-000 20241315101 Spring bracketA Q235 8
17
S127-102-000 20241315102 Spring bracketB Q235 4
S127-195-000 20641315032 Rubber cushion ring Natural rubber 8
32

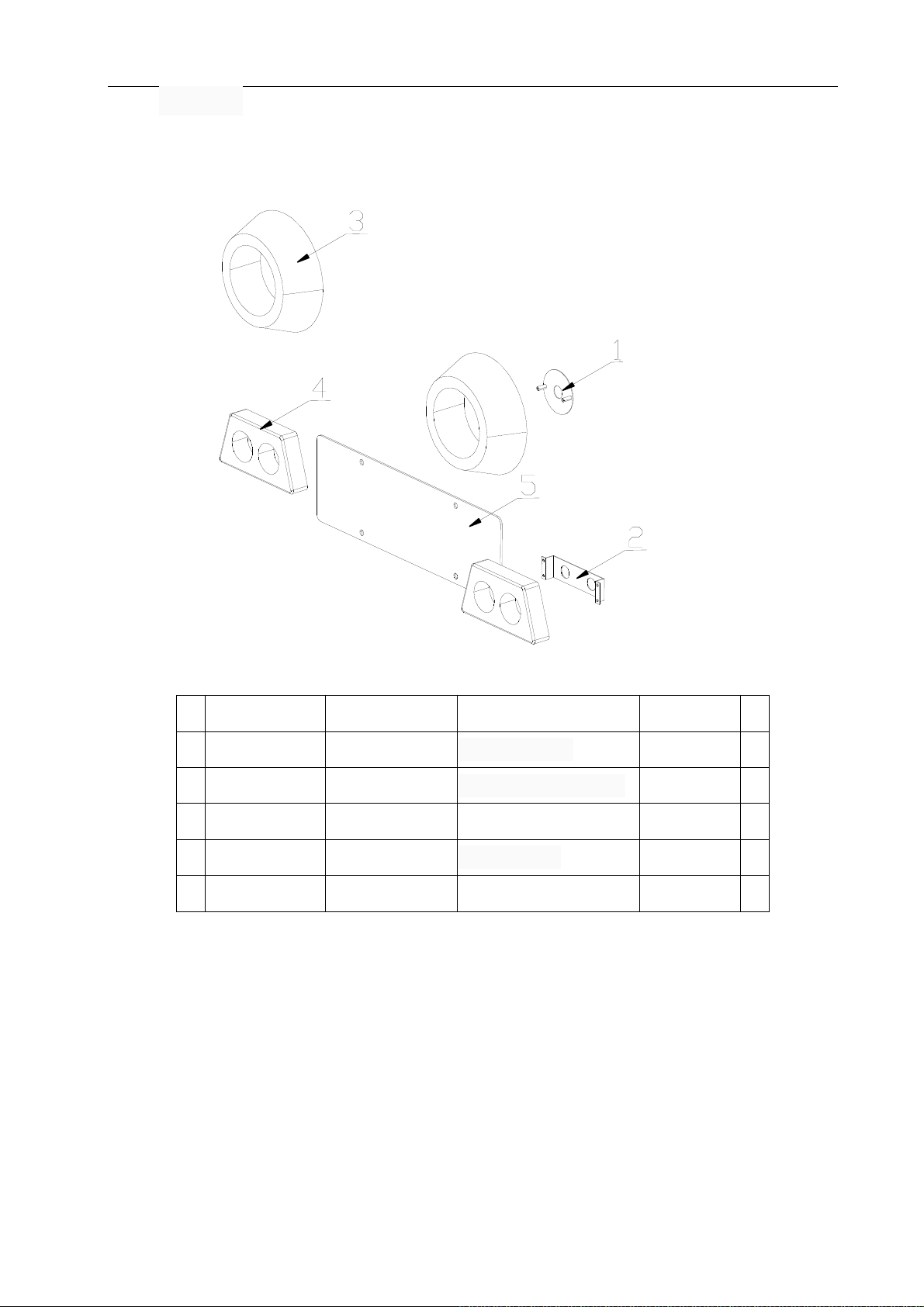

9.10 Taillight Assy.
Super big rig Manual Rev.1.0
No. Part No. Code Name Spec. Qty
1
S127-177-000 20251408078 Taillight frame SECC 2
2
S127-178-000 20251408079 Exhaust pipe bracket SECC 2
3
S127-197-000 20651401A014 Double rear light cover ABS 2
4
S127-198-000 20651401A017 Exhaust pipe ABS 2
5
S127-716-000 20551408008 License plate plastic Clear plastic 1
33
Super big rig Manual Rev.1.0
9.11 Caster Assy.
No. Part No. Code Name Spec. Qty
1 S127-356-000 20104010002 Cross recessed hexagon bolt Q235 6
2 S127-223-000 26000008000 2.5”leveller Q235 4
3 S127-455-000 25501000056 2.5”castor 3-2689-52 4
4 S127-224-000 26000010000 2.5”castor support bracket Q235 4
34
9.12 Electrical Part 1
1 2
3
1
2
Super big rig Manual Rev.1.0
3
No
1 S127-424-000 22003070014 Blue mushroom light E14-22-MG5050B-Z9-DC12V 2
2 S127-423-000 22003070013 Red mushroom light E14-22-MG5050R-Z9-DC12V 4
3 S127-420-000 22002013013 LED flexible lamp belt DC12V 3528LED 60z/m blue 1
Part No. Code Name Spec. Qty
.
1
2
No. Part No. Code Name Spec. Qty
1 S127-442-000 23201000003 Filter CW2B-6A-T(004) UL 1
2 S127-414-000 21602000071 Power supply box EPT-S150D12+5R 1
3 S127-456-000 29741315004 Motor driver board L6203-4DRV.PCB(V1.2) 1
35
Super big rig Manual Rev.1.0
4 5
1
2
3
No. Part No. Code Name Spec. Qty
1
1 S127-438-000 22801000085 Speaker
2 S127-439-000 22803010001 Amplifier board GC2.2 1
3 S127-415-000 21603020001 Adapter DC14/15-3AGF 1
4 S127-457-000 29740917006 PCB board XMJZ-LEDKZ.PCB V1.1 1
5 S127-413-000 21201032004 32”display S127-413-000 1
1
4”5Ω 20W
2
2
No. Part No. Code Name Spec. Qty
1 S127-458-000 21102000042 PC VF6012(M) 1
2 S127-459-000 29791300001 M3 board M3-MB V1.1 1
36
9.13 Decal
Super big rig Manual Rev.1.0
8
No. Part No. Code Name Qty
1 S127-701-000 20551408018 Front marquee decal 1
2 S127-702-000 20551408013 Front head decal 1
3 S127-703-000 20551408017 Top decal 1
4 S127-704-000 20551408010 L side board decal 1
5 S127-705-000 20551408011 L side board decal 1
6 S127-706-000 20551408005 Wheel plastic 4
7 S127-707-000 20551408003 Control panelpointer board decal 1
8 S127-708-000 20551408002 Control panel microphone plastic 1
9 S127-709-000 20551408006 Glue film 1
10 S127-710-000 20551408014 Button decal 1
11 S127-712-000 20551408021 Control panel decal 1
12 S127-713-000 20551408016 Handle knob decal 1
37
Super big rig Manual Rev.1.0
No. Part No. Code Name Qty
1 S127-714-000 20551408007 Rear marquee plastic 1
2 S127-715-000 20551408001 Display plastic 1
3 S127-716-000 20551408008 license plate plastic 1
4 S127-717-000 20551408004 Chimney cover plastic 2
5 S127-718-000 20551408015 Speaker board decal 1
6 S127-719-000 20551408009 Wheel cover B 1
7 S127-720-000 25601000001 Coin counter label 1
8 S127-721-000 25601000003 Volume label 1
9 S127-722-000 25601000005 Test label 1
10 S127-723-000 20551408012 Rear plate label 1
11 S127-724-000 25601000009 Service label 1
12 S127-725-000 25601000006 Reset label 1
13 S127-726-000 25601000072 New Voltage 220V 1
14 S127-727-000 25601000017 Power SW labelB 1
15 S127-728-000 25601000067 Fuse T5A/250 1
16 S127-729-000 20551408019 Non-certification 220V nameplate 1
17 S127-730-000 20551408020 certification 220V nameplate 1
18 S127-731-000 25601000036 High voltage warning(small) 1
38
Wiring Diagram
Super big rig Manual Rev.1.0
39
Have Questions? Contact us!
www.universal-space.com
International Support Center USA Support Center
Tel: +1-905-477-2823
Fax: +1-905-477-2660
Email: service@universal-space.com
(Contact: Clement Yau)
Tel: 972-241-4263
Fax: 214-919-4918
Email:tsnelling@unisusasupportcenter.com
(Contact: Tim Snelling)
Loading...
