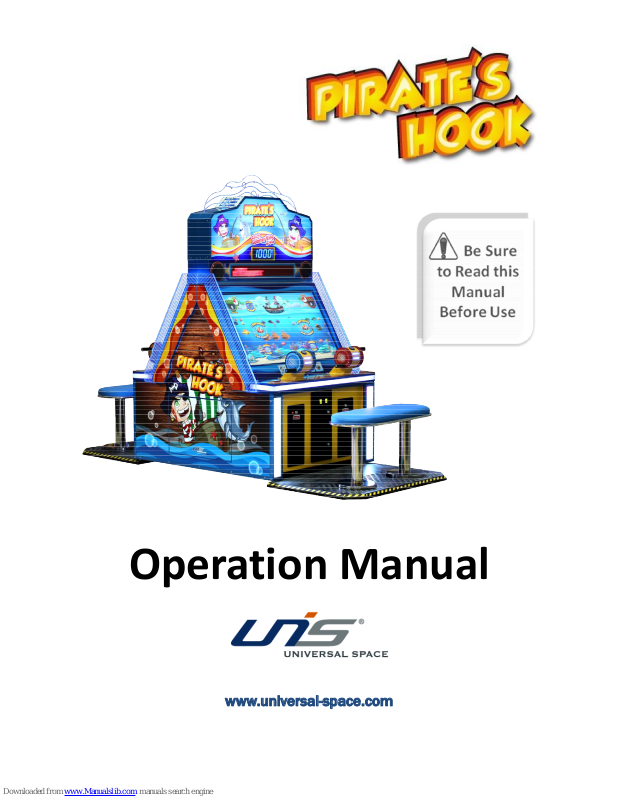

Operation Manual
www.universal-space.com
Pirate’s Hook 4p Manual
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
Important Safety Instructions………………………………………….………………………….……2
1. SPECIFICATIONS……………………………………………………………………….………………...4
2. PACKAGE CONTENTS……………………………………………………………………………….….5
3. PART NAMES…………………………………………………………………………......................…6
4. SET UP & INSTALLATION………………………………………………………………………….….7
5. HOW TO PLAY……………………………………………………………..……………………….……10
6. GAME OPTION………………………………………………………..…………………………………11
7. ERROR MESSAGE AND RECOVERY…………………………………………………….………16
8. MAINTENANCE, INSPECTION………………………………………………………………….….17
9. OVERALL CONSTRUCTION…………………………………………………………..……………..18
Pirate’s Hook 4p Manual
2
Thank you for purchasing Pirate’s Hook from Universal Space. We hope you
enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel should
under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause
fire, electric shock or personal injury. Unplug the game from the outlet when not in use, when
moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on
the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
Pirate’s Hook 4p Manual
3
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury and/or
machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.
Pirate’s Hook 4p Manual
4
1. SPECIFICATIONS
Rated power supply: AC220-240V 50/60Hz
Min. Power consumption: 210W
Max. Power consumption：380W
Dimensions： W2707×D1074×H2043(mm)
Weight： Approximately 380kg
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: Game parameters are subject to change without notice.
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Pirate’s Hook 4p Manual
5
2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1 x Body Assembly
Following accessories
NO. Part number Code Name SPEC. Qty Illustration
1 P113-450-000 23301000001
Power
cord
10A/250V
1.8m
1
2 P113-740-000 41460837083 Manual Chinese 1
3 P113-451-000 25300171002
Key 171 2
4 P113-452-000 25300172002
key 171B 2
5 P113-453-000 41300000004
Memory
stick
4G 1
6 P113-446-000 21901000013
Fuse
Φ5×20mm T10A
250VAC
1
If any items are found to be missing, please contact your sales representative
for help immediately.
NOTE: Part models are subject to change without notice.
Pirate’s Hook 4p Manual
6
3. PART NAME
Marquee
Monitor
Control panel
Fishing
mech
.
Cabinet
Stool assembly
Ticket payout
Coin door
Pirate’s Hook 4p Manual
7
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
4.1 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Length: 3.7M
Width: 1.6M
Play Zone
250
Pirate’s Hook 4p Manual
8
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 5mm. Repeat the same for all levelers.
4.3 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position so the casters
touch the ground.
NOTICE
Be careful not to damage the machine during transport.
The machine should be handled with care when bringing it down from a higher level.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages
Leveler
Caster
About 5 mm
Move
Fix
Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
NOTICE
Leveler Caster
Move
Fix
Pirate’s Hook 4p Manual
9
4.4 Connecting Power
WARNING: Check the voltage rating before you connect the equipment to
an electrical outlet to ensure that the required voltage and frequency match the
available power source. Please refer the label of the machine.
◎ Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged.
◎ Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
◎ Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does
not sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be stepped
on or tripped over.
Power socket
Power outlet
Power plug
Power cord
Power plug
Pirate’s Hook 4p Manual
10
5. HOW TO PLAY
5.1 Game Interface
5.2 How To Play
The machine provides for 4 players at the same time.
1. Insert coin(s).
2. aim for your target, press the button to lower the hook.
3. Rotate the handles to reel in the fish.
4. Catch as many fishes as possible within the time limit. Junk Items= No Tickets.
5. Catch the Lobster King to win the MEGA BONUS!
Play time
Current tickets
Current coins
Main play zone
Pirate’s Hook 4p Manual
11
6. GAME OPTIONS
6.1 Testing Button Distribution:
You can see the testing button after you open the coin
door below orange fishing mechanism. Press test
button and enter Menu adjustment options.
6.2 Main Menu Options:
Main Menu
Game Mode
Input Test
Output Test
Game Reset
Language
Date/Time Setting
Host configuration
Bookkeeping
Daily Record
Exit& Without Save
Exit& Save
6.2.1 Game mode
Name Option Description
Free Play ON/OFF Turn on/off the free play mode.
Ticket Out ON/OFF Turn on/off payout tickets.
Coins per Round 1-10 Coin needed to insert for one game.
Demo Music ON/OFF Turn on/off the demo music.
Save Coins ON/OFF
Whether memorize inserted coins after
power off.
Volume 0-10 0 is mute, 10 is max.
Fixed Ticket 0-100
Fixed ticket setting. “0” is fixed ticket
off.
Lobster king
appears every
1-15(seconds) The frequency lobster appears
Ticket/Point Ticket/Point Award is given as ticket or points.
Average Ticket Out
8-100
Ticket payout setting. It is invalid when
fixed ticket ON or point mode ON.
Target Tickets Please refer to 6.2.1.1
Target Point
Setting
Please refer to 6.2.1.2
T
est button
Pirate’s Hook 4p Manual
12
Name Option Description
Score Board Please refer to 6.2.1.3
Game Difficulty 1-4 1 is the easiest, 4 is the hardest.
Auto Play Game 5-20 seconds Time for player to play before auto play
Game Duration
10,20,30,40,50,60,70,80,90
seconds
Play time setting
Resistance Setting
Please refer to 6.2.1.4
Fish Score Display
ON/OFF Whether to display score on each fish
Ticket Owed Mode
Continue to play/call
attendant
“call attendant”: game is stop until the
game is reset.
“Continue to play”: game is continue to
play when ticket is owed.
Angler Bonus 1000 Tickets awarded in Angler Bonus
Angler Bonus Need
Points
1100 Points needed to gain angler bonus
Comp bonus OFF Whether to combat with other players
Back Back to the main menu
6.2.1.1 Target Tickets:
Note: When Fixed Ticket is 0 and target is defined as Ticket, Lobster Mega Bonus can be
manual adjusted. The rest of the targets tickets are adjusted automatically base on the play
time, difficulty and average payout settings.
Target Image Ticket
SM fish
0-100 ticket
M fish
0-100 ticket
LG fish
0-200 ticket
Junk
0-10 ticket
Shark
0-500 ticket
Octopus
0-500 ticket
Lobster Mega Bonus
0-2000 ticket
Pirate’s Hook 4p Manual
13
6.2.1.2 Target Point Setting:
Note: When Fixed Ticket is 0 and target is defined as Ticket, Lobster Mega Bonus can be
manual adjusted.The rest of the targets tickets are adjusted automatically base on the play
time, difficulty and average payout settings.
6.2.1.3 Score Board:
Target Ticket Adjustment Range
SM fish 0-100 point
M fish 0-100 point
LG fish 0-200 point
Junk 0-10 point
Target Ticket Adjustment Range
Shark 0-500 point
Octopus 0-500 point
Lobster Mega Bonus
0-2000 point
Point Range Setting Range
0-4 PointGetTickets
1,2,3,4,5,6,7,
8,9,10,15,20,
25,30,40,50,6
0,70,80,90,10
0.
5-100 PointGetTickets
101-200 PointGetTickets
201-350 PointGetTickets
351-500 PointGetTickets
500-1000 PointGetTickets
1001-2000 PointGetTickets
Target Range
Small Fishes Resistance 0-7(default 0)
Middle Fishes Resistance 0-7(default 1)
Big Fishes Resistance 0-7(default 2)
Note: This item is available to adjust when
Target is defined as Points. When Fixed Ticket
is set to more than 0, this item is invalid.
6.2.1.4 Resistance Setting
:
Note: Targets in row 0,1,2,5 are
considered as Small Fishes. Targets in
row 3 and 4 are considered as Middle
Fishes. Targets in row 6 are considered
as Big fishes. Resistance is increased
from 0 to 7.
Pirate’s Hook 4p Manual
14
6.2.2 Input Test
Input test Output test
Player1 Resistance 0-7
Player2 Resistance 0-7
Player3 Resistance 0-7
Player4 Resistance 0-7
Player1 vibration ON/OFF
Player2 vibration ON/OFF
Player3 vibration ON/OFF
Player4 vibration ON/OFF
Player1 out of ticket light ON/OFF
Player2 out of ticket light ON/OFF
Player3 out of ticket light ON/OFF
Player4 out of ticket light ON/OFF
Player1 lower hook light ON/OFF
Player2 lower hook light ON/OFF
Player3 lower hook light ON/OFF
Player4 lower hook light ON/OFF
Player1 Ticket Out ON/OFF
Player2 Ticket Out ON/OFF
Player3 Ticket Out ON/OFF
Player4 Ticket Out ON/OFF
Player1 Multi Face light
ON/OFF
Player2 Multi Face light
ON/OFF
Player3 Multi Face light ON/OFF
Player4 Multi Face light ON/OFF
Lattice Display ON/OFF
Digital Display 0000-9999
CoinMech 1
CoinMech 2
CoinMech 3
CoinMech 4
CoinMech 5
CoinMech 6
CoinMech 7
CoinMech 8
Player1 Reel In
Player2 Reel In
Player3 Reel In
Player4 Reel In
Player1 Lower Hook
Player2 Lower Hook
Player3 Lower Hook
Player4 Lower Hook
Multi Face Off 1
Multi Face Off 2
Multi Face Off 3
Multi Face Off 4
Free Play 1, 2
Free Play 3, 4
Repair
BACK
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
ON/OFF
Mega bonus light
ON/OFF
BACK
6.2.7 Daily Record:
Game Reset
Reset Game Setting
Delete All Record
Clear Tickets
Back
aDte/Time Setting
Year 2012
Month 2
Date 13
Hour(24) 13
Minute 25
Back & apply
Back
Daily Record
Date
2012-02-04
Weekday
SAT
Run Time
00:01
Coins
3
Tickets
15
Payout
5.00
Reset
6.2.6 Bookkeeping
Bookkeeping
Player coin out tickets in payout
1 1 5 5.00
2 2 10 5.00
Reset
back
6.2.5 Date/Time setting
6.2.4 Game Reset
Pirate’s Hook 4p Manual
15
7. ERROR MESSAGE AND RECOVERY
7.1 Error Message
Symptom: Screen displays message “Communication ERROR” (there is communication
problem with the game)
Possible Causes & Fixes:
Communication data wire is damaged Replace the data wire.
SCM is not working Ask your technician to check and repair
PC COM port has been used Ask your technician to check and repair
Symptom: Screen displays ““PLEASE CALL ATTENDENT”, “TICKET ERROR” (there is problem in
the ticket payout function)
Possible Causes & Fixes:
No tickets in the game Replenish tickets and then press the TICKET RESET button.
Ticket dispenser is damaged Replace with a new ticket dispenser.
Faulty connection Ask the technician to check and repair.
7.2 System Recovery Operation
1. Turn off the game. Insert the memory stick into the USB port at the back of the computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will automatically start recovery which will take last about 5 minutes. Please
wait until process is complete.
4. Once system recovery is finished (as shown below), remove the USB flash drive from the
computer and turn off the PC. Wait at least 30 seconds before restarting the PC.
WARNING: the USB flash drive should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.
Pirate’s Hook 4p Manual
16
8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running smoothly
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to
the cautionary matters herein stated can cause personal injury or damage to the machine
• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
• When or after installing the product, avoid pulling the power cord to prevent
unnecessary wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire,
electric shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the machine.
Unplug the power cord of the service outlet. Operating the machine without correcting the
problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating,
resulting in fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the labels
are not hidden behind other game machines.
WARNING
Pirate’s Hook 4p Manual
17
9. OVERALL CONSTRUCTION
9.1 Wooden Part Assembly
Pirate’s Hook 4p Manual
18
No.
Part No. Draw No. Name Material Qty
1 P113-001-000 29941122S001A Wooden frame Assembly 1
2 P113-103-000 20241122S021 Hinge plate Metal plateδ1.5 2
3 P113-104-000 20241122S020 Light bar mounted plate Metal plateδ0.8 2
4 P113-105-000 20241122S019 Button light mounted plate Metal plateδ1.0 4
5 P113-106-000 20241122S001 Case lock assembly plate Q235 δ1.5 black 4
6 P113-107-000 20241122S002 Base metal strip Q235 δ1.2 blue 2
7 P113-108-000 20241122S003 Air spring mounted plate 1 Metal plateδ2.0 4
8 P113-109-000 20241122S004 Base reinforced strip Q235 δ1.2 blue 2
9 P113-111-000 20241122S006
Power connecter
fixed
plate
Metal plateδ1.0 1
10 P113-112-000 20241122S007 Side marquee plate Q235 δ1.5 blue 4
11 P113-113-000 20241122S008 Side marquee cover plate Q235 δ1.0 blue 4
12 P113-114-000 20241122S009 Limit SW base Metal plateδ1.5 2
13 P113-115-000 20241122S010 Dongle bracket Metal plateδ1.2 1
14 P113-601-000 20641122S001 Side marquee plastic
Transparent plastic
4
15 P113-602-000 29941122S015 L side plastic Transparent plastic
2
16 P113-603-000 29941122S016 R side plastic Transparent plastic
2
17 P113-408-000 25102000001 Stainless steel case lock C124
4
18 P113-101-000 26000012000 Anti-vibration screw A zinc
4
19 P113-903-000 20341122S001 Bottom board plywood
1
20 P113-904-000 20341122S002 Upper board MDF blue JQ11038 2
21 P113-905-000 20341122S003 L lower board MDF blue JQ11038 1
22 P113-906-000 20341122S004 R lower board MDF blue JQ11038 1
23 P113-907-000 20341122S005 Mid board MDF blue JQ11038 1
24 P113-908-000 20341122S006 Front board MDF yellow JQ11067 2
25 P113-909-000 20341122S007
Sided L marquee
supported board
MDF blue JQ11038 2
26 P113-910-000 20341122S008
Sided R marquee
supported board
MDF blue JQ11038 2
27 P113-911-000 20341122S009 Frame supported bracket MDF blue JQ11038 2
28 P113-912-000 20341122S010 door frame MDF blue JQ11038 6
29 P113-913-000 20341122S011 Sided door board MDF blue JQ11038 2
30 P113-914-000 20341122S012 Mid partition MDF blue JQ11038 1
31 P113-915-000 20341122S013
top board
MDF blue JQ11038 1
32 P113-916-000 20341122S014
Sided board L supported
board
MDF blue JQ11038 2
33 P113-917-000 20341122S015
Sided board R supported
board
MDF blue JQ11038 2
34 P113-918-000 20341122S016 computer partition MDF blue JQ11038 1
Pirate’s Hook 4p Manual
19
9.2 Marquee Assembly
No. Part No. Draw No. Name Material Qty
1
P113-002-000 29941122S002A Marquee frame Assembly 1
2
P113-120-000 20241122S018 Display board fixed plate1 Metal plateδ1.0 2
3
P113-121-000 20241122S013 Display board fixed plate2 Metal plateδ1.0 2
4
P113-122-000 20241122S014 Dot matrix fixed plate Metal plateδ1.0 8
5
P113-123-000 20241122S015 Dot matrix mounted plate Metal plateδ1.0 8
6
P113-124-000 20241122S016 Marquee metal strip Q235 δ1.0 blue 2
7
P113-125-000 20241122S017 Metal strip fixed plate Metal plateδ1.0 6
8
P113-126-000 20241122S022 Marquee 1 Q235 δ1.0 blue 1
9
P113-127-000 20241122S023 Marquee 2 Q235 δ1.0 blue 1
10
P113-128-000 20241122S024 Marquee edge strip Q235 δ1.0 blue 2
11
P113-129-000 20241122S025 Marquee mounted plate Metal plate δ1.5 4
12
P113-605-000 20641122S005 Marquee plastic Transparent plastic 1
13
P113-701-000 20541122S001 Marquee decal Plastic silk screen 1
14
P113-919-000 20341122S017 marquee bottom board MDF blue JQ11038 1
15 P113-920-000 20341122S018 marquee top board MDF blue JQ11038 1
16 P113-921-000 20341122S019 marquee mid plate MDF blue JQ11038 1
17 P113-922-000 20341122S020 marquee sided board MDF blue JQ11038 2
18 P113-923-000 20341122S021 speaker plate MDF blue JQ11038 4
19 P113-924-000 20341122S022 speaker front board MDF 4
20 P113-925-000 20341122S023 Wind tunnel partition 1 MDF blue JQ11038 4
21 P113-926-000 20341122S024 Wind tunnel partition 2 MDF blue JQ11038 4
Pirate’s Hook 4p Manual
20
9.3 Control Panel Assembly
No.
Part No. Draw No. Name material Qty
1 P113-130-000 20241122S026
Control panel
upper board
Q235 δ1.5 blue
1
2 P113-131-000 20241122S027
Control panel
lower board
Q235 δ1.5 blue
1
3 P113-606-000 20641122S006
Control panel
plastic 1
Transparent white
1
4 P113-607-000 20641122S007
Control panel
plastic 2
Transparent white
2
5 P113-132-000 20241122S028
Control panel
hinge
Stainless steelδ1.2
1
6 P113-133-000 20241122S029 Locked board Metal plateδ2.0
2
7 P113-702-000 20541122S002 Control panel 1
Transparent plastic
1068×213×6 silk screen
1
8 P113-102-000 26000040000 5mm screw pad chromium 6
Pirate’s Hook 4p Manual
21
9.4 Monitor Assembly
No.
Part No. Draw No. Name
Material
Qty
1 P113-134-000 20241122S030 Monitor front plate
Q235 δ1.5 blue
1
2 P113-135-000 20241122S031 Monitor side fixed plate Metal plate δ1.2
2
3 P113-136-000 20241122S032 Monitor upper fixed plate Metal plateδ1.5
1
4 P113-608-000 20641122S008 Monitor pad 1 Foam δ2 black
2
5 P113-609-000 20641122S009 Monitor pad 2 Foam δ2 black
2
6 P113-401-000 20641122S010 Monitor glass Tempered glass δ6
1
7 P113-137-000 20241122S033 Monitor lower fixed plate Metal plate δ1.5
1
8 P113-138-000 20241122S034 Monitor main fixed board
Metal plate δ2 2
9 P113-139-000 20241122S035 Monitor hinge Stainless steel δ1.2
1
10 P113-108-000 20241122S003 Air spring fixed plate 1 Metal plateδ2.0
2
Pirate’s Hook 4p Manual
22
9.1.5 Fishing mechanism assembly
No.
Part No. Draw No. Name Material Qty
1 P113-140-000 20241122S036 Fishing mech. frame Q235 δ1.5 yellow 2
2 P113-143-000 20241122S039 Bearing seat Aluminum 2
3 P113-144-000 20241122S040 Wheel 1 Stainless steel(201) 1
4 P113-148-000 20241122S044 R cover Q235 δ2.0 blue 1
5 P113-152-000 20241122S048 Clutch seat Metal plate δ2.0 2
6 P113-153-000 20241122S049 Infrared socket Metal plate δ1.2 2
7 P113-154-000 20241122S050
Light bar mounted
plate
Metal plate δ1.2
4
8 P113-610-000 20641122S011 Shaded plastic acrylic δ2.0 white 4
9 P113-160-000 20241122016 washer Q235 2
10 P113-161-000 20241122034 Key 1 Q235 2
11 P113-162-000 20241122035 Key 2 Q235 2
12 P113-163-000 20241122037 Eccentric wheel Copper 2
13 P113-164-000 20241122038 Infrared sensor Q235 2
14 P113-178-000 20102008003 Round nut Q235 M18×1.5 2
15 P113-403-000 20106150003 One-way bearing CSK20 2
16 P113-402-000 20106000127 Ball bearing 6204-2Z 2
17 P113-406-000 23413000002 Magnetic powder brake CZK-0.3 3N 2
18 P113-405-000 23404000030 DC motor
45ZY12-15 DC12V
15W 3000RPM 2
19 P113-159-000 20641122005 Grabbed handle 2
20 P113-179-000 20102030001 Hexagon locknut
Q235 M10 white
zinc 2
21 P113-404-000 22402000201 Lower-hook button 57-1820-02 white 2
Pirate’s Hook 4p Manual
23
9.6 Stool Assembly
No.
Part No. Draw No. Name Material Qty
1 P113-158-000 20241122S057 Stool base Welding black 1
2 P113-157-000 20241122S056 Stool connected plate Q235 δ2 black 1
3 P113-156-000 20241122S052 Stool rod 201 stainless steel 2
4 P113-149-000 20241122S058 Strip light cover plate Q235 δ1 1
5 P113-150-000 20241122S059 Pad 1 Q235 δ2 1
6 P113-151-000 20241122S060 Pad 2 Q235 δ2 2
7 P113-152-000 20241122S061 Pad 3 Q235 δ2 1
8 P113-614-000 20641122S012 Shaded plastic
Transparent plastic
δ10silk screen 1
9 P113-153-000 20241122S062 Stool rod fixed plate Q235 δ2black 2
10 P113-154-000 20241122S063 Stool cover fixed plate Metal plate δ1.5 4
11 P113-155-000 20241122S064 Connecting plate 1 Q235 δ2 black 2
12 P113-156-000 20241122S065 Connecting plate 2 Q235 δ2 black 2
13 P113-157-000 20241122S066 Stool surface ring 201 stainless steel 1
14 P113-003-000 20641122S013 Stool seat Foam assembly 1
15 P113-412-000 25900022001 Adjustable leveller M8×15 white 15
16 P113-901-000 20311301043 Stool mounted board plywood 2
17 P113-902-000 20311301044 Stool board plywood 2
Pirate’s Hook 4p Manual
24
9.2 Electrical Equipment Part:
No.
Part No. Draw No. Name Material Qty
1 P113-454-000 21101000023 Computer DELL 3020 4G memory 1
2 P113-414-000 20741122S003 Sound card
1723，connecter PCI Express x1
1
3 P113-415-000 21107030033 Video card Gigabyte GV-N630D5-1GI 1
4 P113-419-000 20741122S102 Dongle Dongle for pirate’ s hook 1
5 P113-437-000 23307010001 Video cable 1 DVI-HDMI(3.0M) 1
6 P113-436-000 23307020001 Video cable 2 DVI-DVI(3m) 1
7 P113-420-000 22003080004 Inner light W5630-LC20cm-60z/m-DC12V 2
8 P113-439-000 23305000003 Stereo cable 3.5 cable 1.8M 2
9 P113-421-000 22601010003
Gate controlled
SW
SB175 2
10 P113-448-000 22601000042 Big rocket switch R220-1-C5N-BB/NW 1
11 P113-438-000 23304010030 USB cable A type 0.6m,bracket attached 1
12 P113-812-000 29741315001
Power box port
pcb
BTX3039-CH.PCB(V1.1) 1
13 P113-803-000 22803000047 20-A AMP board GC-2.0-A(updated) 2
14 P113-418-000 21602000001 Power box BTX-3039(110V220V universal) 1
15 P113-801-000 20741122S101 IO board Pirate’s hook’s IO board 1
16 P113-805-000 29741122S002 IO extender board XHD2-CH.PCB(V1.1) 1
17 P113-423-000 23303020002 Serial line DB9F-DB9F(1M) Cross-Over 1
18 P113-449-000 23309000125
Whole game
cable
Pirate’s hook’s sleeve wire 1
19 P113-455-000 21107230001 Serial port card CN-05R33FC 1
12
15
16
13 14 17
18
1
19 2 3
4
5
7 8
9
6
11
10
Pirate’s Hook 4p Manual
25
No.
Part No. Draw No. Name Material Qty
1 P113-447-000 21412000001 Terminal 10A/15A/250V black 1
2 P113-445-000 22601000005 Small rocket SW T125/55 1
3 P113-444-000 21902000006 Fuse socket R3-11 110V/250V/10A 1
4 P113-446-000 21901000013 Fuse Φ5×20mmT10A 250VAC 3
5 P113-442-000 23201000001 Filter YB10A1 10A/250V 1
6 P113-441-000 23301018002 Power cord 3x18AWG 0.5M UL 4
7 P113-429-000 23000000006 Counter C-012 12VDC 18CPS 2
8 P113-433-000 22402010002 Test button PB:11C02R(red) 2
9 P113-432-000 22402050001 Service button PB:11C02R(black) 2
10 P113-434-000 22402030002 Reset button PB:11C02R(green) 1
11 P113-430-000 22501000017 POT RB1K duplex 2
12 P113-816-000 21709000002 POT board VR.PCB 2
13 P113-431-000 22403000001 POT knob black 2
14 P113-427-000 23401000022 DC12V blower XW1232H12B 1.0A 4
15 P113-417-000 21201042002 Monitor 42 inches LED 2
16 P113-443-000 23201000003 filter CW2B-6A-T(004) UL 1
17 P113-807-000 29740917007 Marquee LED board XMJZ-LED01.PCB(V1.0) white 8
18 P113-428-000 22801000005 Speaker 4 inches 4 Ω 15W 4
19 P113-804-000 29741122003 BONUS LED PGLY-LED23B4.PCB blue 2
20 P113-802-000 20741122S103 Dot matrix drive board Fir Pirate’s hook’s 1
21 P113-814-000 21714000228 Dot matrix board Φ3.75 red, 76x304mm 4
22 P113-445-000 22601000005 Small rocket SW T125/55 1
2
3
4
1 7
11
12
13
9
10
5
14
15
8 6
16
22
17
19
20
21 18
Pirate’s Hook 4p Manual
26
No.
Part No. Draw No. Name Material Qty
1 P113-425-000 22201000028
12V white light
socket
Coin mech indicating light
socket
4
2 P113-426-000 22003000018 LED bulb DC12V white 3LED 4
3 P113-810-000 297441122S004 Side light PCB LED5050RGB-NC 21LED 4
4 P113-422-000 22301000007 Coin mech TW-800 II 4
5 P113-811-000 21712000001
Ticket converted
board
TICK-CH.PCB 4
6 P113-423-000 23100000005 Ticket mech CL-022Q-270 4
7 P113-424-000 22003000075
Coin mech red
light
Ф3 LED 4
8 P113-815-000 22002013004
Monitor side LED
board
DC12V 3528LED 60/m
blue
10
9 P113-809-000 29741122S003
Control panel
LED board
LED48-NC-6 6 white LED 4
10 P113-813-000 22002013002
Control panel
rim LED board
DC12V 5050LED tri-color
LED
2.5
11
P113-806-000 29710701003 Sensor board
SenSoR
MOC70T4.PCBV1.1
11
12
P113-808-000 29741122S001
Fishing mech
LED board
XHD2-LED01PCB(V1.0) 8
13 P113-435-000 22402000201
Lower- hook
button
57-1820-02white 4
1
2
4
7 5 6
3
11 12 13
10 8
9
Pirate’s Hook 4p Manual
27
9.3 Decals
No.
Part No. Draw No. Name Material Qty
1 P113-701-000 20541122S001 Marquee decal Plastic 2
2 P113-702-000 20541122S002 Control decal 1 Plastic 1
3 P113-703-000 20541122S003 Control decal 2 Plastic 1
4 P113-704-000 20541122S004 Both side decal 0.3PVC 2
5 P113-705-000 20541122S005 Monitor decal 0.3PVC 1
6 P113-706-000 20541122S006 L side decal 0.3PVC 1
7 P113-707-000 20541122S007 R side decal 0.3PVC 1
8 P113-708-000 20541122S008 Orange fish mech right side decal 0.3PVC 1
9 P113-709-000 20541122S009 Blue fish mech right side decal 0.3PVC 1
10 P113-710-000 20541122S010 Red fish mech right side decal 0.3PVC 1
11 P113-711-000 20541122S011 Green fish mech right side decal 0.3PVC 1
12 P113-712-000 20541122S012 Lower hook decal White PVC100u 4
13 P113-713-000 20541122S013 Base decal 0.3PVC 1
14 P113-714-000 20541122S014 Orange fish mech left side decal 0.3PVC 1
15 P113-715-000 20541122S015 Blue fish mech left side decal 0.3PVC 1
16 P113-716-000 20541122S016 Red fish mech left side decal 0.3PVC 1
17 P113-717-000 20541122S017 Green fish mech left side decal 0.3PVC 1
18 P113-730-000 25600000023 Coin mech decal δ0.2plastic 4
19 P113-731-000 25600000034 Ticket decal White PVC100u 4
20 P113-732-000 25600000035 Fork decal White PVC100u 4
2
1
3 4
6 7
8
12
19
16
10
11 17
8
14
13
15
Pirate’s Hook 4p Manual
28
No.
Part No. Draw No. Name Material Qty
1 P113
-
718-000 20541122S018
Uncertif
ied 110V nameplate
1mmPVC
1
2 P113
-
719-000 20541122S019
Uncertifi
ed 220V nameplate
1mmPVC
1 3
P113
-
720-000 20541122S020
Certificated 220V nameplate
1mmPVC
1
4 P113
-
721-000 20541122S021
Certificated 110V nameplate
1mmPVC
1
5 P113
-
724-000 25600000001
Coin counter label
White PVC100u
1
6 P113
-
725-000 25600000002
Ticket counter label
White PVC100u
1
7 P113
-
726-000 25600000003
Volume label
White PVC100u
2
8 P113
-
727-000 25600000005
Test button label
White PVC100u
2 9
P113
-
728-000 25600000006
Reset button label
White PVC100u
2
10 P113
-
729-000 25600000017
Power switch label
White PVC100u
1
11 P113
-
733-000 25600000036
High voltage warning label
White PVC100u
1
12 P113
-
734-000 25600000037
Low voltage warning label
White PVC100u
2
13 P113
-
735-000 25600000042
Service information label 1
White PVC100u
1
14 P113
-
736-000 25600000067
service information label 2
White PVC100u
1 15
P113
-
737-000 25600000071
New voltage label 1
White PVC100u
1
16 P113
-
738-000 25600000072
New voltage label 2
White PVC100u
1
17 P113
-
739-000 25600000077
Fuse T10A/250V
White PVC100u
1
18 P113
-
340-000 25600000080
Fuse T5A/125V
White
PVC100u
1
19 P113
-
342-000 25600000092
Setting label
White PVC100u
1
20 P113
-
343-000 25600000095
Big new service label
White PVC100u
2 21
P113
-
344-000 25600000096
Small new service label
White PVC100u
2
16
15 18
17
1
18
3
4
2
11
13
20
14
7
12
21
5
6
8
9
Pirate’s Hook 4p Manual
29
No.
Part No. Draw No. Name Material Qty
1 P113-722-000 20541122S022 Power converted label White PVC100u 1
2 P113-723-000 20541122S023 Computer label White PVC100u 1
3 P113-341-000
25600000091 GND wire label White PVC100u 14
3
1
2
Pirate’s Hook 4p Manual
30
1 2 3 4 5 6 7 8
A
B
C
D
87654321
D
C
B
A
Name:
Date:
Version:
30-May-2014
123456789
ABCDEFGHI
brown
red
orange
yellow
green
blue
violet
grey
white
black
pink
light green
sky blue
shield layer
JKLMNOP
Q
AWG30 UL1007
AWG28 UL1007
AWG26 UL1007
AWG24 UL1007
AWG22 UL1007
AWG20 UL1007
AWG18 UL1007
AWG16 UL1007
Note: Wire color and wire size is shown in code.
Wire color code
Wire size code
Tolerance
unit mm
scale
:
0~1000
1001~2000
2001~3000
3001~4000
4001~5000
±10
±20
±30
±40
±50
jkLmnopqr
AWG30 UL1015
AWG28 UL1015
AWG26 UL1015
AWG24 UL1015
AWG22 UL1015
AWG20 UL1015
AWG18 UL1015
AWG16 UL1015
AWG14 UL1015
Wire size code
Example 2 0 m
Color of the wire: 20 means red
Size of the wire: m means AWG24 UL1015
Universal Space
Amusement machine
UNIS
XHD4(GMP)-PX-00
V1.1
2
2
Left reel assy.
123456789
10
J220
C
123456789
10
P
+12V
Button signal
Hook signal sensor
Button light
Resistance -
Resistance +
GND
Vibration motor
+12V
GND
Coin 1
Coin 2
12345
6
J222
C
45QGND2
GND
1
2
J221
C
1
2
P
LED
Ticket owed light
1K
20
A0
123
J227
C
123
P
1
2
J228
C
1
2
P
M
M1
45Q
K1
L1
123
J1
XH3P
+12V
OUT
GND
20
20
Magnetic powder brake
20
A0
SenSoR MOC70T4.PCB
Ticket converted board
123
4
902060
A0
902050
A0
123
4
J3
123
4
J1
TICK-CH.PCB
CL-022Q-270 ticket dispenser
123
4
J229
with C5030HF
12345
6
P
1234567
8
J223
C
TW800
12345
6
J1
XH6P
NO.
+12V
GND
1024A0
Coin mech 3
L3 L4
TW800
12345
6
J1
XH6P
NO.
+12V
GND
9124A0
Coin mech 4
123
4
J1
XH
LED5050RGB-NC 21LED
Control panel bottom/ left
123
4
J219
C
1
2
J1
XH
VR.PCB
12345
6
XH6P
Right reel assy.
123456789
10
J224
C
123456789
10
P
+12V
Button signal
Hook signal sensor
Button light
Resistance -
Resistance +
GND
Vibration motor
GND
1
2
J225
C
1
2
P
LED
Ticket owed light
1K
20
A0
123
J230
C
123
P
1
2
J231
C
1
2
P
M
M1
K1
L1
123
J1
XH3P
+12V
OUT
GND
20
20 Magnetic powder brake20A0
SenSoR MOC70T4.PCB
Ticket converted board
123
4
902060
A0
902050
A0
123
4
J3
123
4
J1
TICK-CH.PCB
CL-022Q-270 ticket dispenser
123
4
J232
with C5030HF
123
4
J1
XH
LED5050RGB-NC 21LED
Control panel bottom/right
1
2
J1
XH
LED48-NC-6 6pcs white LED
LED48-NC-6 6pcs white LED
Left reel assy.
+12V
button signal
Hook signal sensor
Button light
Resistance-
Resistance+
GND
Vibration motor
40PA01020703030M
40M
20M24A0
60
+12V
GND
Coin 1
Coin 2
24A010M
91M
45Q GND2
45Q GND
LED
Ticket owed light
1K
45Q
24A02430A0
40M24A0
30M
K1
L1
+12V
OUT
GND
102024
70
20
20Magnetic powder brake20A0
XHD2-LED01.PCB
SenSoR MOC70T4.PCB
Ticket converted board
902060
A0
902050
A0
TICK-CH.PCB
CL-022Q-270 ticket dispenser
Coin counter
20Mx2
A0M
24
A0
L1L2
TW800
NO.
+12V
GND
1024A0
Coin mech1
10
91
3528LED light/ monitor side light blue
LED5050RGB-NC 21LED
Control panel bottom left
LED5050RGB-NC 21LED
Control panel
VR.PCB
E
LED48-NC-6 6pcs white LED
1
2
J201
C
1
2P123
4
J1
XH
123
4
J1
XH
1
2
J1
XH
1
2
J1
XH
123
J1
XH3P
123
J210
C
123
P
1
2
J211
C
1
2
P
M
M1
123456789
10
J203
C
123456789
10
P
1
2
J204
C
1
2
P
123
4
J1
VH
123
4
J3
VH
123
4
123
4
J212
配C5030HF
12345
6
J1
XH6
TW800
NO.
+12V
GND
9124A0
12345
6
J1
XH6
12345
6
J205
C
12345
6
P
12345
6
J1
XH
1234567
8
P
1234567
8
J206
C
Left reel assy.
+12V
Button signal
Hook signal sensor
Button light
Resistance-
Resistance+
GND
Vibration motor
GND
LED
Ticket owed light
1K
45Q
K1
L1
+12V
OUT
GND
20
20Magnetic powder brake20A0
SenSoR MOC70T4.PCB
Ticket converted board
902060
A0
902050
A0
TICK-CH.PCB
CL-022Q-270 ticket dispenser
LED48-NC-6 6pcs white LED
1
2
J1
XH
123
J1
XH3P
123
J215
C
123
P
1
2
J216
C
1
2
P
M
M1
123456789
10
J207
C
123456789
10
P
1
2
J208
C
1
2
P
123
4
J1
VH
123
4
J2
VH
123
4
123
4
J217
with C5030HF
3528LED light/monitor side light blue
RGB flexible light blet
Control panel bottom/right
1
2
J209
C
1
2
P
123
4
J202
C
3#coin signal 1
3#ticket signal
3# hook signal
3# button signalNCNC
4# coin signal 1
4#ticket signal
4# hook signal
4# button signalNCNC
reset
settings
10M
30M
40M
96M
91M
93M
94M
98M
97M
123456789
1011121314151617181920212223242526
JP2
RA26
test
123456789
1011121314151617181920212223242526
JP2
RA26
+12V
+12V
+12V
+12V
GND
GND
GND
Resistance 3+
Resistance3-
3＃Hook btn light
3＃race btn light
3＃ ticket light
3＃ ticket drive
3#vibration motor
Resistance 4+
Resistance 4-
4＃Hook btn light
4＃race btn light
4＃ ticket light
4＃ ticket drive
4＃vibration motor
LED-R
LED-G
LED-B
123456789
1011121314151617181920212223242526
JP1
RA26
+12V
+12V
+12V
+12V
GND
GND
GND
Coin counter
Ticket counter
Resistance 1+
Resistance 1-
1＃ Hook btn light
1＃race btn light
1＃ ticket light
1＃ ticket drive
1＃vibration motor
Resistance 2+
Resistance 2-
2＃Hook btn light
2＃race btn light
2＃ ticket light
2＃ticket drive
2＃ vibration motor
LED-R
LED-G
LED-B
1#Coin signal1
1#Ticket signal
1# Hook signal
1# button signal
1#Race button
NC
NC
2#Coin signal1
2#ticket signal
2# hook signal
2#button signal
NC
NC
reset
Settings
123456789
1011121314151617181920212223242526
JP1
RA26
Test
L channel 1
L channel 2
GND
R channel 1
R channel 2
GND
20M
40M
50M
A0M
E
CN-3
XH
2.0-A AMP board (upgrade)
20M
40M
50M
A0M
E
20M
92M
10M
30M
40M
96M
91M
93M
94M
97M
98M
20M
92M
90919293959697
2410242024
3050A060A0
70
80
98
90919293959697
2410242024
3050A060A0
70
80
98
Coin counter
Ticket counter
67
68
67
68
24A02490809824908098249080
98
24A01020703030M
40M
24
50
20
A0
246768A096M
97M
98M
40PA09192979393M
94M
92M24A0
96
45Q
249524
A0
24
A0
24
A0
24
A0
2490809824908098249080
98
24A01020703030M
40M
24A010
91
24A010M
91M
246768A096M
97M
98M
24
A0
45Q
12345
6
L channel 1
L channel 2
GND
R channel 1
R channel 2
GND
CN-3
XH
2.0-A AMP board(upgrade)
12345
6
20M
40M
50M
A0M
20M
40M
50M
A0M
E
30A040M24A0
30M10202470
24
2430A0
40M24A0
30M10202497
45Q GND2
45QGND2
45Q
BTX3039-CH.PCB底座
GND
S3
Test
Ticket reset
A0x2
70
1234567
8
P
S1S2S3
Test
Ticket reset
Settings
Ticket counter A0M
12345
J6
VH
+24V
+12V
+12V
GND
GND
40P
40P
12345
6
J3
VH
+12
GND
+12
GND
40P
40P
249080
98
45Q
45Q45Q
123
4
P
123
4
P
45Q
40PA09192979393M
94M
92M24A096249545Q
45Q
40PA01020703030M
40M
20M24A0
60
24
50
24A01020703030M
40M
24A01020703030M
40M
1P
2P
3P
4P
249080
98
XHD2-LED01.PCB
1
2
J1
XH
A0P
A0P A0P
A0P
1
2
J218
C
1
2
P
1
2
J226
C
1
2
P
3528LED light/monitor side light blue
24
A0
24
A0
3528LED light/monitor side light blue
24
A0
24
A0
1
2
J1
XH
24
A0
XHD2-LED01.PCB
1
2
J1
XH
XHD2-LED01.PCB
1
2
J1
XH
1
2
J1
XH
24
A0
24
A0
XHD2-LED01.PCB
1
2
J1XHXHD2-LED01.PCB
1
2
J2
XH
1
2
J1
XH
24
A0
24
A0
XHD2-LED01.PCB
1
2
J1XHXHD2-LED01.PCB
1
2
J2
XH
1
2
J1
XH
24
A0
123
4
J2
VH
123
J213
C
123
P
20P
A0P
45Q
1
2
J214
C
1
2
P
20P
A0P
45Q
3528LED light belt
blue 2700mm
Seat GND
123
4
J2
123
J233
C
123
P
1
2
J234
C
1
2
P
24
A0
3528LED soft light belt
Blue 2700mm length
24
A0
Seat GND
20P
A0P
45Q
20P
A0P
45Q
750mm length
750mm length 750mm length
750mm length
DC12V 5050LED 3 color LED
1250mm length
RGB flexible light belt
DC12V 5050LED 3 color LED
1250mm length
2/2
IO board
XHD2-CH.PCB
(V1.1)
2/2
2/2
BTX3039-CH.PCB(V1.1)
1P,2P
2/2
3P,4P
2/2
A0x36070
80
RBGRB
G
RBG
RBG
RBG
RBG
XHD4(GMP)-PX-201
XHD4(GMP)-PX-202
XHD4-PX-203
XHD4-PX-204
XHD4(GMP)-PX-205
24A02430A0
40M24A0
30M10202470
20A024
A0
S2
80
Pirate’s Hook 4p Manual
31
1 2 3 4 5 6 7 8
A
B
C
D
87654321
D
C
B
A
Name:
Date:
Version:
30-May-2014
123456789
ABCDEFGHI
brown
red
orange
yellow
green
blue
violet
grey
white
black
pink
light green
sky blue
shield layer
JKLMNOP
Q
AWG30 UL1007
AWG28 UL1007
AWG26 UL1007
AWG24 UL1007
AWG22 UL1007
AWG20 UL1007
AWG18 UL1007
AWG16 UL1007
Note: Wire color and wire size is shown in code.
Wire color code
Wire size code
To lerance
unit mm
scale
:
0~1000
1001~2000
2001~3000
3001~4000
4001~5000
±10
±20
±30
±40
±50
jkLmnopqr
AWG30 UL1015
AWG28 UL1015
AWG26 UL1015
AWG24 UL1015
AWG22 UL1015
AWG20 UL1015
AWG18 UL1015
AWG16 UL1015
AWG14 UL1015
Wire size code
Example 2 0 m
Color of the wire: 20 means red
Size of the wire: m means AWG24 UL1015
Universal Space
Amusement machine
UNIS
XHD4(GMP)-PX-00
V1.1
1
2
+12V
GND
+12V
GND
123
4
JP8
RS232
A0P
A0P2424
IO board
12345
6
J1
XH6P
PGLY-LED23B4.PCB
+12
GND
GND
LAT
CLK
DATA
5x0.3mm2 shielded wire
40A0506020
E
PC
USB port
DVI port
RS232 serial port
DVI port
42" LCD
Power plug
滤波器
NOise filter
Power SW
SW-DPST
FUSE1
1
2
3
J101 HM
1
2
3
HF
L N
10P
60P
45P
Power outlet
10P
60P
XHD4-PX-102
DONGLE
USB cable
Power outlet GND
P1
P2
ATX24P
ATX4P
A0P
12345
6
CN1
VH
+5V
+5V
+12V
+12V
GND
GND
123456789
10111213141516
JP7
RA16
+12V
+12V
GND
GND
+12V
GND
LAT
CLK
DATA
GND
+5V
GND
DR1
DR2
DR3
DR4
12345
6
J2
XH6P
12345
6
J1
XH6P
PGLY-LED23B4.PCB
+12
GND
GND
LAT
CLK
DATA
12345
6
J2
XH6P
40A0506020
E
5x0.3mm2 shielded wire
123
4
CN2
VH
+5V
+5V
GND
GND
1234567
8
JP3
XH
123
4
JP3
VH
123
4
JP3
VH
123
4
JP3
VH
123
4
JP3
VH
+5V
GND
IN1
IN2
IN3
IN4
Dot matrix board
Dot matrix board
Dot matrix board
Dot matrix board
Dot matrix board
123456789
101112131415161718192021222324
J108
C
123456789
101112131415161718192021222324
P
DVI port
42" LCD
HDMI port
Audio output
R-
R+
L
R
Audio input L
Audio input R
50
90
2
1
2
1
CN-5
VH
GND
+12V
2
1
2
A0P140P
Power
CN-1
2.0-A AMP board(upade)
Audio output
L-
L+
40
70
2
1
2
1
CN-5
VH
VH
Audio output
R-
R+
L
R
Audio input L
Audio input R
95
98
2
1
2
1
CN-5
VH
GND
+12V
2
1
2
A0P140P
Power
CN-1
2.0-A AMP board(upgrade)
Audio output
L-
L+
94
97
2
1
2
1
CN-5
VH
VH
123
4
J2
VH
+5V
+5V
GND
GND
20P
20P
1
2
J5
VH
1
2
J4
VH
AC IN
Power supply
BTX-3039
P1
10P
60P
45P
P2
(500)
Power supply cable
Power supply cable
1P
2P
16P ribbon calbe
16P ribbon cable
16P ribbon cable
16P ribbon cable
123
J107
C
123
P
AC IN
10P
60P
45P
(500)1
2
3
J106
C
123
P
AC IN
10P
60P
45P
(500)1
2
3
J105
C
123
P
AC IN
10P
60P
45P
(500)
A0P
90P
50P
123
J104
C
123
P
26P ribbon cable
26P ribbon cable
26P ribbon cable
20P
20P
40P
A0P
A0P
123456789
101112
J7
VH12
+12V
+12V
GND
GND
45Q
45Q
BTX3039-CH.PCB
+12V
1
2
J113
C
1
2
J110
C
1
2
J111
C
1
2
J112
C
40P
20P
24
A0
1
2
C
24A024
1
2
J117
P
A024A0
1
2
P
1
2
P
20
A0
20
A0
Fan
Fan
1
2P1
2
P
20A020
A0
Fan
Fan
XHD2-CH.PCB
A0P
40P
24x2
40P
40P
A0P
A0P
GND
40P
20P
Door SW
K2
1
2
J114
C
24
A0
1
2
P
20
A0
Door SW
K2
1
2
J115
C
24
A0
1
2
P
20
A0
5630 200MM LED
5630 200MM LED
24
24
SP
2P speaker
+
-70
409050
1
2
C
1
2
J119
P
1
2
C
1
2
J120
P
50
90
SP
1P speaker
+
-
50
90
SP
4P speaker
+
-
1
2
C
1
2
J121
P
1
2
C
1
2
J122
P
50
90
SP
3P speaker
+
-
50
90
1234567
8
J109
C
1234567
8
P
40705090949795
98
40705090949795
98
949795
98
1P
2P
3P
4P
+12V
GND
B0B02424A0A0A0A040A0506020
E
1718192021
22
JP6
RA26
DR5
DR6
IN5
IN6
9192939495
96
9192939495
96
B0
A0
5-core shielded wire
5-core shielded wire
5-core shielded wire
B0B02424A0A0A0A040A0506020E9192939495
96
B0
A0
919293949596B0
A0
B0B0A0
A0
B0B0A0
A0
B0B0A0
A0
B0B0A0
A0
24
A0
A0P
40P
+12V
GND
45R
S?
Power SW
123
J103
VLP
123
J102
VLP
123
VLR
10P
60P
45R
10P
60P
45R
123
VLR
Three-in-one filter
10P
60P
45R
10P
60P
45R
Marquee power input
10P
60P
45R
10P
60P
45Q
1
2
J1
VH
24
A0
24
A0
24
A0
24
A0
24
A0
1
2
C
1
2
J118
P
24
A0
1
2
C
1
2
J116
P
24
A0
24
A0
24
A0
24
A0
24
A0
3528 soft light belt
blue 950mm
1
2
J1
VH
1
2
J1
VH
1
2
J1
VH
1
2
J1
VH
1
2
J1
VH
1
2
J1
VH
1
2
J1
VH
LED01-XMJZ.PCB LED01-XMJZ.PCB LED01-XMJZ.PCB LED01-XMJZ.PCB
LED01-XMJZ.PCB LED01-XMJZ.PCB LED01-XMJZ.PCB LED01-XMJZ.PCB
(V1.1)
JP3
JP4
JP5
JP3
JP4
JP5
blue
blue
1P,2P
3P,4P
1/2
1/2
1/2
1/2
(V1.1)
A0P
90P
50P
A0P
90P
50P
A0P
90P
50P
1P,2P monitor
3P,4P monitor
Pirate's Hook 4-player(GMP) wiring diagram
XHD4-PX-101
XHD4-PX-103
XHD4-PX-104
XHD4-PX-105
XHD4-PX-106
XHD4-PX-107
XHD4-PX-108
XHD4-PX-109
XHD4-PX-110
1P
2P
4P
3P
pc
Power outlet
IO board
XHD2-CH.PCB
Power box
BTX3039-CH.PCB
1P,2P AMP
3P,4P AMP
Control panel
Pirate’s Hook 4p Manual
32
Have Questions? Contact us!
www.universal-space.com
International Support Center USA Support Center
Tel: +1-905-477-2823
Fax: +1-905-477-2660
Email: service@universal-space.com
(Contact: Clement Yau)
Tel: 972-241-4263
Fax: 214-919-4918
Email:tsnelling@unisusasupportcenter.com
(Contact: Tim Snelling)
Loading...
