Universal Space LANE MASTER Operation Manual

Operation Manual

www.universal-space.com

Lane Master Manual

1

For parts and service

Have Questions? Contact us!

International Support Center USA Support Center

Tel: [phone]

Fax: [phone]

Email: [email protected]

Tel: [phone]

Fax: [phone]

Email: [email protected]

Lane Master Manual

2

Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual. Failing
to comply can cause severe accidents such as electric shock or other
serious injuries. All repairs must be performed to original manufacturer
specifications.

WARNING: To reduce the risk of fire, electric shock or personal injury,

unplug or disconnect the machine from the power supply before

servicing.

CONTENT

IMPORTANT SAFETY INSTRUCTIONS ........................................................................ 3

1. SPECIFICATIONS ..................................................................................................... 5

2. PACKAGE CONTENTS .............................................................................................. 7

3. PART NAME ............................................................................................................. 8

4. SET UP & INSTALLATION ........................................................................................ 9

5. HOW TO PLAY ........................................................................................................ 12

6. GAME OPTION ....................................................................................................... 15

7. ERROR MESSAGE AND RECOVERY .................................................................... 19

8. MAINTENANCE & INSPECTION ........................................................................... 22

9. OVERALL CONSTRUCTION ................................................................................... 26

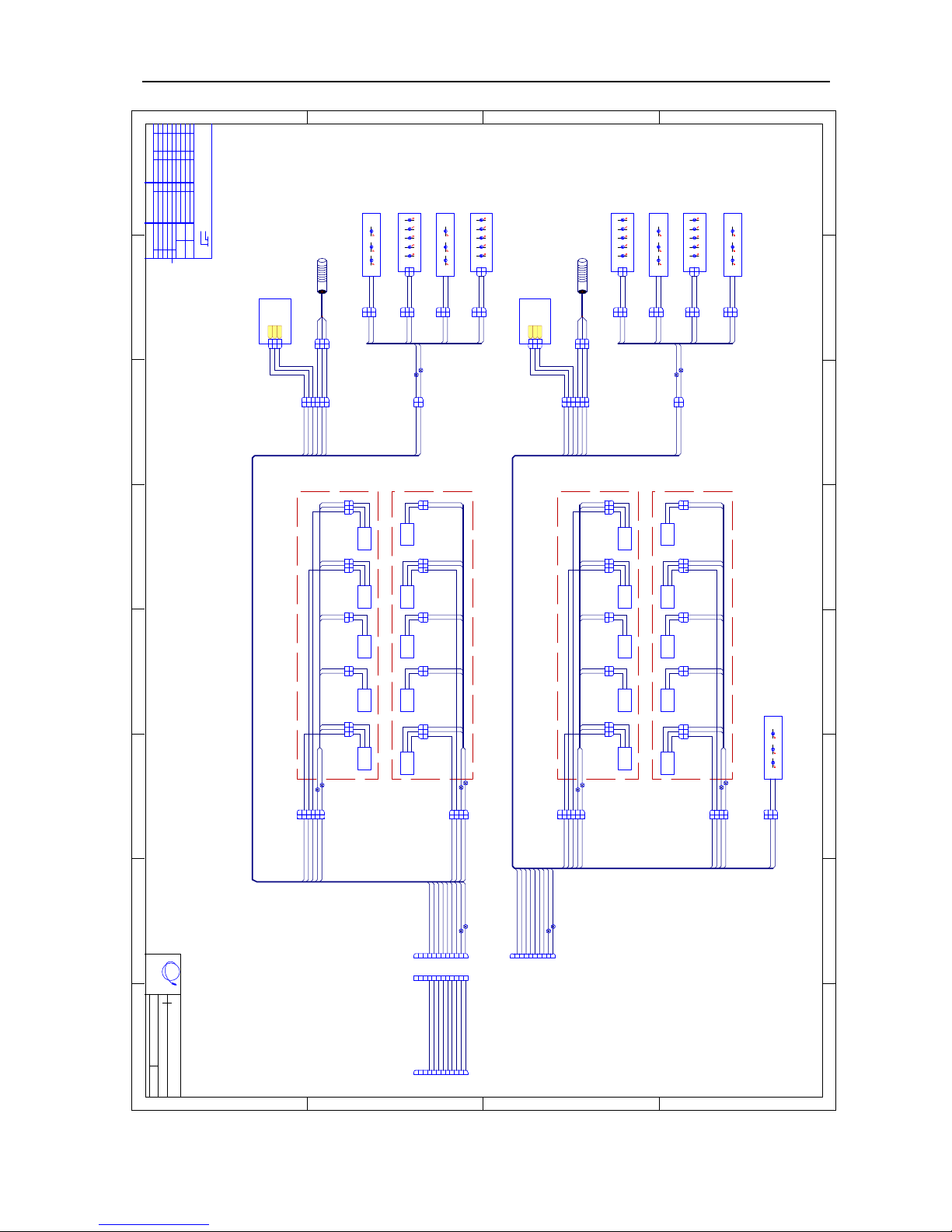

WIRING DIAGRAM ..................................................................................................... 43

Lane Master Manual

3

Thank you for purchasing Lane Master. We hope you enjoy the product.

This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS

To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.

Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:

High Voltage and Shock Hazard:

High voltage can cause electric shock.

Turn off/unplug power before servicing.

High Temperature Hazard:

This part may cause scalding.

Do not touch. Surface may be hot.

No Touching Hazard:

This part may be hot or can cause electric shock.

Do not touch.

Lane Master Manual

4

Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.

This product is an indoor game machine. Do not install outdoors.

Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:

 Places subject to rain/moisture, or places subject to high humidity.
 Places subject to direct sunlight, or places subject to extremely hot or cold

temperatures to ensure that it is used within the specified operating range.

 Places where inflammable gas may be present or in the vicinity of highly

inflammable/volatile chemicals or items that can easily catch fire

 On unstable or sloped surfaces. The machine may topple or cause unforeseen

accidents.

 Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures

IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.

Note: The contents of this manual may be updated without notice.

Lane Master Manual

5

1. SPECIFICATIONS

Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz;

Min. Power consumption: 520W

Max. Power consumption: 580W

Dimension: W65×D115.2×H116.2 in

Weight：Approximately 440 lb

Part No: L105

Model No: C-489

NOTICE: After turning off the game, please wait at least 1 minute

before restarting again.

Note: Game parameters are subject to change without notice.

Lane Master Manual

6

This machine will be divided into two parts during transportation.

Display part: W65×D28.8×H82.7 in

Lane part: W64.34×D87.21×H40.12 in

Note: Game parameters are subject to change without notice.

Lane Master Manual

7

2. PACKAGE CONTENTS

Open the package and make sure all the items are included:

1. Following accessories

NOTE: Part models are subject to change without notice.

No. Part No. Code Name Qty


1 L105-801-000 25300171002

Key

(171)

6

2 L105-803-000 25300172002

Key

(171B)

1

3 L105-802-000 23301010020

Power cord 1

4 L105-529-000 21901000013

Fuse

(Φ5×20mm

T10A)

1

5 L105-804-000 41440000173

Manual

(170405)

1

6 L105-805-000 20611605027

Bowling ball 4

7 L105-320-000 20211605A001 Cashier door 1

8 L105-525-000 21503000053

Sensor

SW(receive)

2

Please refer

to P20

Disassemble

the lane

sensor

9 L105-526-000 21503000052

Sensor

SW(send)

2

Lane Master Manual

8

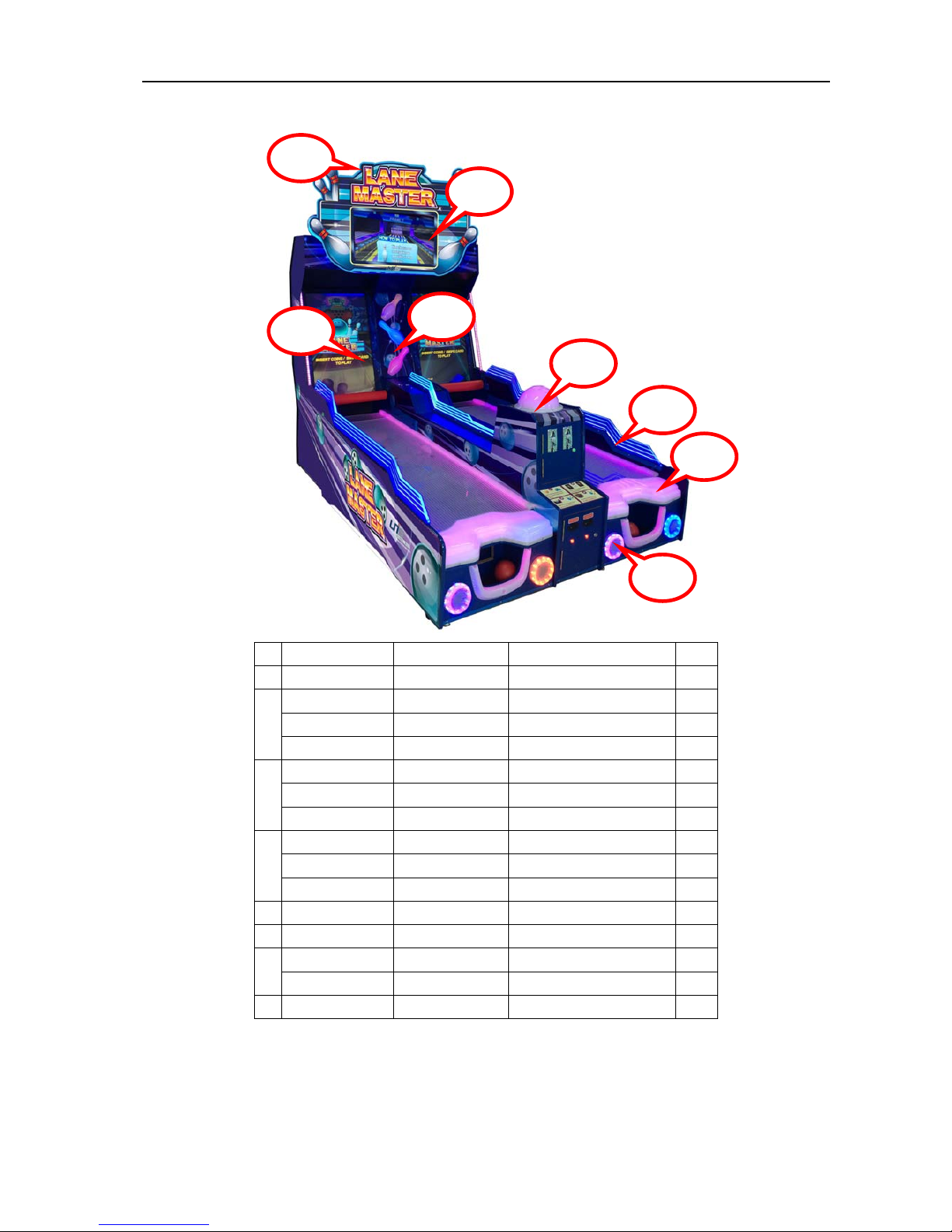

3. PART NAME

Service cabinet

Coin Assy.

Marquee Assy.

Ticket dispenser

Display

Play field

Lane Master Manual

9

4. SET UP & INSTALLATION

This product is an indoor game machine. Do not install outdoors.

 Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
 Place the unit on a dry level surface
 Ventilation openings in the back of the unit must not be obstructed by objects or by

wall.

4.1 Transporting the Game

If you need to move the game, adjust the levelers back to an “up” position.

NOTICE

 Be careful not to damage the machine during transport.
 Always unplug the game before moving.
 Keep the machine in upright position during transport.
 For longer distance transport, package the game properly to prevent damages.

4.2 Level Adjustment

Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.

Leveler Caster

Move F

i

Caster

Leveler

About

0.2 in

Move

Fix

NOTICE

Make sure the machine is level.

Lane Master Manual

10

4.3 Play Zone

This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:

Service area: 20 in

Service area

Play area

Lane Master Manual

11

4.4 Marquee Installation

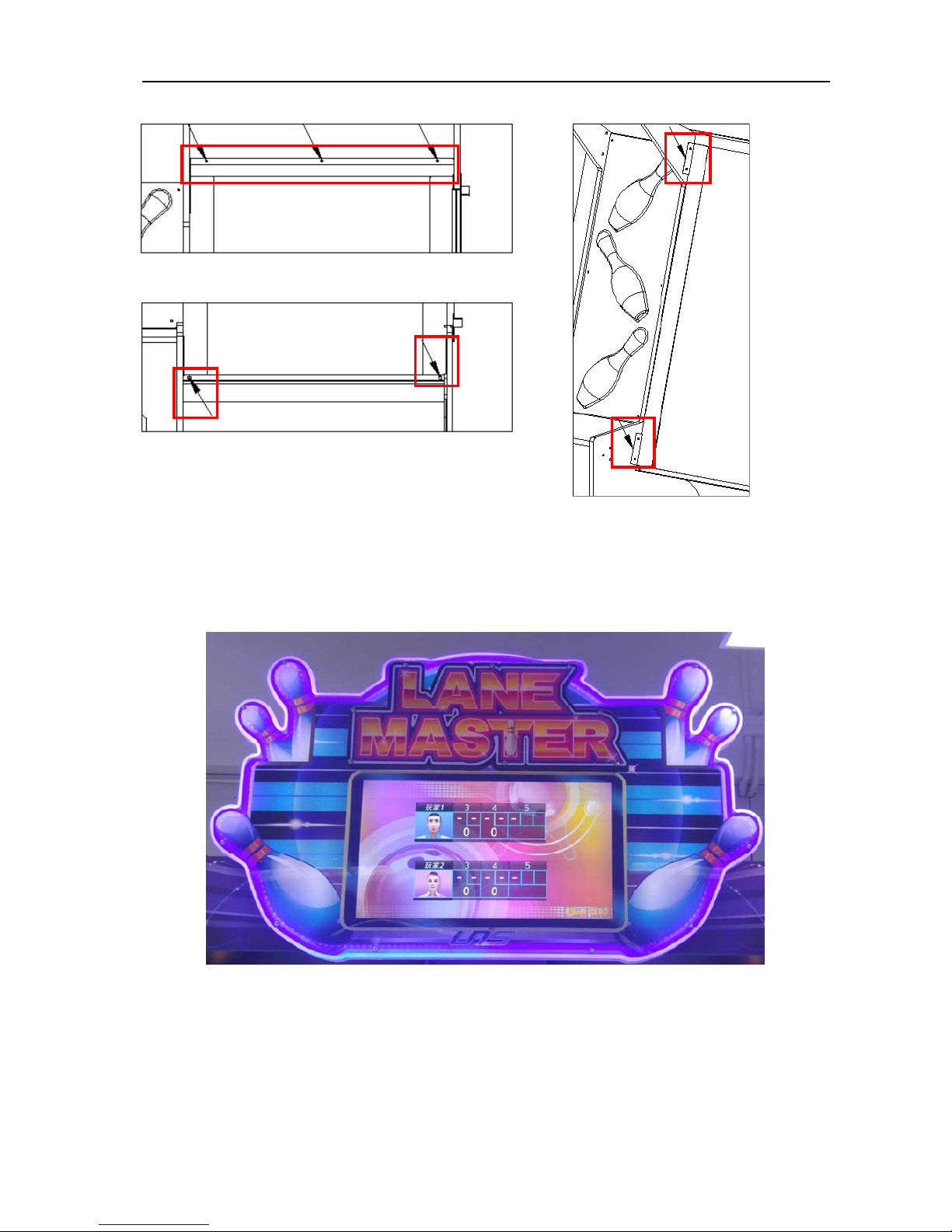

4.4.2 Lift up the marquee above the display frame.

Note: It is recommended to have the minimum of two
staff members available for this installation.

4.4.1 Place the marquee on the display
frame as shown and install hardware
where indicated by the red arrows.

P1

4.4.3 Install the bolts as indicated in the red area and red arrows.

P3

P2

Lane Master Manual

12

4.5 Cabinet Installation

4.5.1 Lane Assembly：

Place 2 Lanes side by side, open the coin door and the ticket door to install the

hardware in the red arrow area. ( Front :P4; Back: P5)

4.5.2 Lane Assembly & Display Assembly:

Place the Lane in front of the display assembly and install as shown.

P4

P6 P5 P7

Connect the Lane Assembly
and Display Assembly.

Install the R&L side
reinforced plates.

Lane Master Manual

13

4.6 Connecting Power

WARNING: Check the voltage rating before you connect the equipment to
an electrical outlet to ensure that the required voltage and frequency match
the available power source. Please refer the label of the machine.

 Do not plug the equipment power cables into an electrical outlet if the power cable

is damaged.

 Avoid overloading on one electrical outlet as it could generate heat and fire resulting

from overload.

 Connect the grounding conductor to the earth terminal (GND):

WARNING

Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet
does not sit on the power cord as this could damage the cord and become hazardous.

To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the
cord.

To prevent electric shock, do not touch the power plug if your hand is wet.

Ensure the power cord is not located where it can be stepped on or tripped over.

Power plug

Power outlet

Power socket

Power plug

Power cord

Lane Master Manual

14

5. HOW TO PLAY

5.1 Insert coins/swipe to start..

5.2 For competition, insert coin/swipe card to active each lane.

5.3 Roll the ball down the lane to hit the pins.

5.4 Hit the Turkey to win the MEGA BONUS!

5.5 Game scene

Lane Master Manual

15

6. GAME OPTION

6.1 Adjustment button instruction

6.2 Setting menu

6.2.1 Main menu

Basic Setting

Customized Setting

Input Test

Output Test

Game Reset

Date/Time Setting

Language/语言

About This Game

Bookkeeping

DailyRecord

Back to game

6.2.3 Customized Setting

Regulation Mode OFF/ON

Link Mode OFF/ON

Alternating Ball Color OFF/ON

Number of Games Frame 1- 10

Pin(s) Hit Per Ticket 1-999

Multiplayer Join Time 5-10-15-20

Number Of Strike(s) To Enter the Mega Bonus

1-3

Mega Bonus Game OFF/ON

Mega Pins Set 10~100

Each Mega Pin Score

1-10

Go Back&Save

Back

Free Play OFF/ON

Tickets Out OFF/ON

Demo Music OFF/ON

Memory Save OFF/ON

Volume 1-10

Coins Per Game 1-10

Go Back & Save 

Back 

6.2.2 Basic Setting

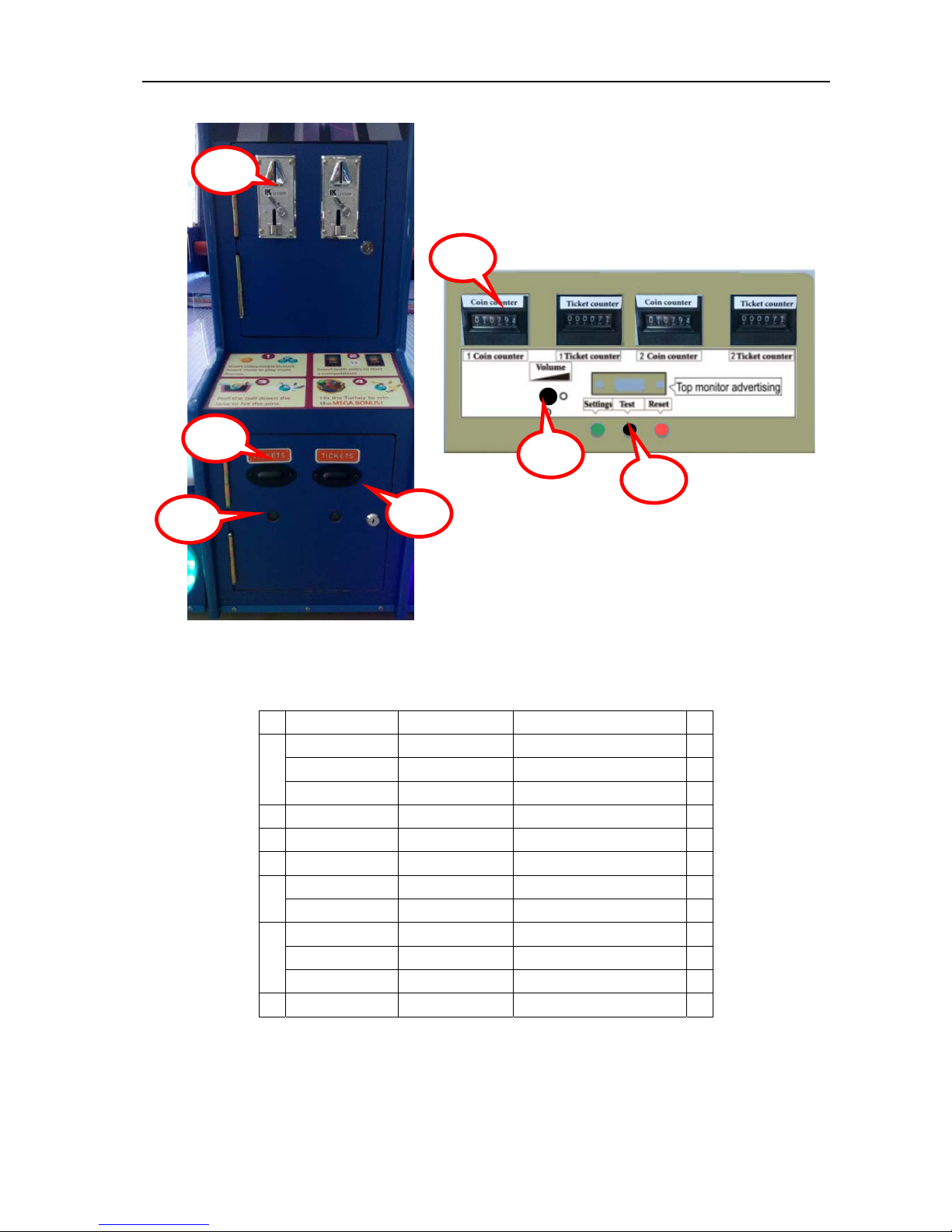

Open the coin door and there is a
meter panel. Press test button to get
into the setting menu.

Settings Test Reset

Lane Master Manual

16

6.2.4Input Test

1P Coin

OFF/ON

2P Coin

OFF/ON

Service Button

OFF/ON

Reset Button

OFF/ON

1P Lane Sensor

OFF/ON

1P Ball Detect

OFF/ON

1P Ball Signal

OFF/ON

1P Ball Location

0/100

1P Ball Speed

0/100

1P Ball Direction

0/180

Detection Time for 1P Ball to Pass Sensor1

0

Detection Time for 1P Ball to Pass Sensor2

0

Detection Time for 1P Ball to Pass Sensor3

0

Detection Time for 1P Ball to Pass Sensor4

0

Detection Time for 1P Ball to Pass Sensor5

0

1P Infrared1

OFF/ON

1P Infrared2

OFF/ON

1P Infrared3

OFF/ON

1P Infrared4

OFF/ON

1P Infrared5

OFF/ON

2P Lane Sensor

OFF/ON

2P Ball Detect

OFF/ON

2P Ball Signal

OFF/ON

2P Ball Location

0-100

2P Ball Speed

0-100

2P Ball Direction

0-180

Detection Time for 2P Ball to Pass Sensor1

0

Detection Time for 2P Ball to Pass Sensor2

0

Detection Time for 2P Ball to Pass Sensor3

0

Detection Time for 2P Ball to Pass Sensor4

0

Detection Time for 2P Ball to Pass Sensor5

0

6.2.5 Output Test

2P Infrared1 OFF/ON

2P Infrared2 OFF/ON

2P Infrared3 OFF/ON

2P Infrared4 OFF/ON

2P Infrared5 OFF/ON

1P Ticket Error OFF/ON

2P Ticket Error OFF/ON

1P Send Ball Error OFF/ON

2P Send Ball Error OFF/ON

Back 

Lane Master Manual

17

6.2.9 Bookkeepin

g

6.2.8 About This Game

1P Send Ticket

2P Send Ticket

1P Send Ball

2P Send Ball

Track Random Light

Track Red Light

Track Yellow Light

Track Blue Light

Back

Factory Restore YES/NO

Reset Basic Setting YES/NO

Reset Customized Setting YES/NO

Clear All Records YES/NO

Clear Owed Ticket YES/NO

Clear Unused Coin YES/NO

Back

Year 2010-2100

Month 1-12

Day 1-31

Hour(24) 0-23

Minute 0-59

Second 0-59

Go Back & Save 

Back 

CPU

Motherboard

Disk Drive

Memory

Display Adapter

Monitor

Screen

Version

Press the Test Button to Go Back

6.2.6 Game Reset

6.2.7 Date/Time Setting

Date Weekday RunTime Coins Tickets Payout
2014-06-061 Fri 00:01 0 0 0.00

Prev. Page

Next Page

Clear

Back

6.2.5 Output Test

Player1 Coins TicketsPayout

1 0 0 0.00

Back

6.2.10 Daily Record

Lane Master Manual

18

6.3 Display Advertisement Operation

In Version 1.05 for Lane Master, operator can put advertisement to the machine and
display on the top monitor.
Please note that the advertisement video format has to be AVI.
Please prepare a mouse, a keyboard and a memory stick.

Step 1
Power down the machine. Plug in a mouse and a keyboard. Power up the machine. Insert a
memory stick after pc showing system interface.
Note: Please do not put any ghost system file to the memory stick and do not insert the
memory stick before power up the machine. Which may cause to damage the system.
Put the video file to a certain file.

Step 2

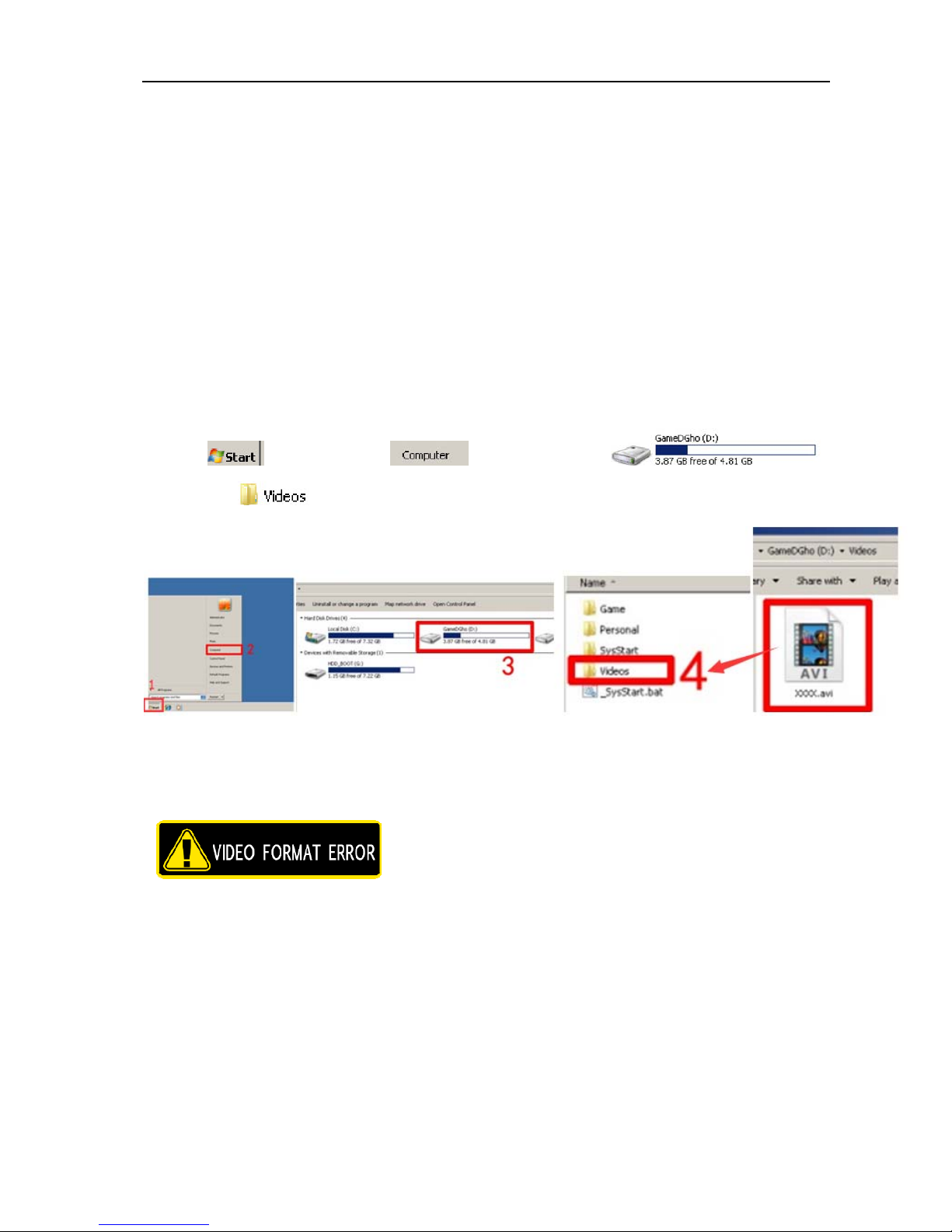

Copy the AVI file from memory stick into “Videos” folder.

(“Start” → ”Computer” → ” GameDGho”

→ ”Videos” )

Step 3
Unplug the memory stick. Power off and on the machine. The advertisement video will be
shown on the top screen. If the video format is not AVI. It will shown an error as below.

Lane Master Manual

19

7. TROUBLE SHOOTINGS

7.1 Common Problem
Please confirm whether every connector connected tightly.

Symptom Possible Cause Recommended action

Game will not

start

Frame assembly connector is

loose.

Plug the connector tightly.

Frame assembly fault Contact with UNIS Service.

Power cutting

Circuit protector make power SW

in cutting state

Turn on power SW again. If appeared

again and again, machine has

anomaly. Please contact with UNIS

Service.

Game will not

coin up

Coin mech. fault or sample coin

not installed.

Change coin mech. or sample coin.

Coin mech. signal cable loose. Check coin mech. signal cable loose.

IO control board no signal. Change IO board.

No ticket

dispensing

Out of ticket. Add ticket and press reset button

Ticket jamming.

Remove the jammed tickets and press

reset button.

Wrong connection. Check the connections.

No sound

Volume set too low. Raise the volume.

Connector loose. Plug in connector tightly.

PCB fault. Change PCB.

Speaker fault. Change speaker.

POT installation error. Install POT correctly.

POT fault. Change POT.

Audio cable problem.

Reconnect the audio cable or change

it.

PC crash. Restart or system recovery.

Driver problem Restart the audio driver.

Display black

screen

Check connectors. Plug in connector tightly

Display fault.

Vitalize another source such as a PC to

verity if the display is operational.

RAM is loose.

Pull it out and insert it again or change

main board or RAM.

Display blue

screen

PC power cord is loose Check PC power cord whether is loose.

VGA signal cable is loose. Check VGA cable

PC video card is loose. Reseat video card.

PC into protection

Open front cover, if power on, light

flash all the time. Press power button

30s, then restart.

“0X000000A” code appears.

Conflict between computer drive

and software.

Uninstall or disable the new drivers or

software.

Lane Master Manual

20

Symptom Possible Cause Recommended action

Display blue screen

when playing

Software problem.

Update the driver of the video card or

reinstall the system.

Hardware problem. Check the hardware one by one.

Playing normal, but

appear system

halted

Video card is loose or poor

contact

Plug video card again.

PC crash Restart or system recovery

Display abnormal

color

Bad connection between the

video card and the display

video cable.

Reconnect the video card and the

display video cable.

Video card driver problem. Restart the video driver.

Display can not

show the whole

desktop.

Screen resolution problem.

For WIN 7, right-click in the blank

space at the desktop

---Click “screen resolution”

---Click “change the appearance of the
display” to adjust the screen
resolution.

Bouncing motion of

the display

Screen resolution problem.

---Click “screen resolution”

---Click “change the appearance of the
display” to adjust the screen refresh
rate.

No response in

BIOS

Battery is loose.

Reinstall the battery of the main board

and restart the game or change the

main board.

Main board fault.

Fail to save the

BIOS setting

Battery fault. Change the battery of the main board.

PC restart or crash

repeatedly

Poor heat dissipation

Add silicon on the cooling fin.

Check or change the CPU fan if

needed.

RAM or main board fault.

Change the RAM or change the main

board.

Power source problem. Change the power source.

Fail to install the

driver

Driver fault.

Download “Driver Genius” or

something similar and try again.

CPU fan off and on.

Main board fault. Change the main board.

Slow computer

start-up times after

reinstalling the

system.

Hard disk problem.

Please let the PC automatically run the

software, or change the hard disk.

Lane Master Manual

21

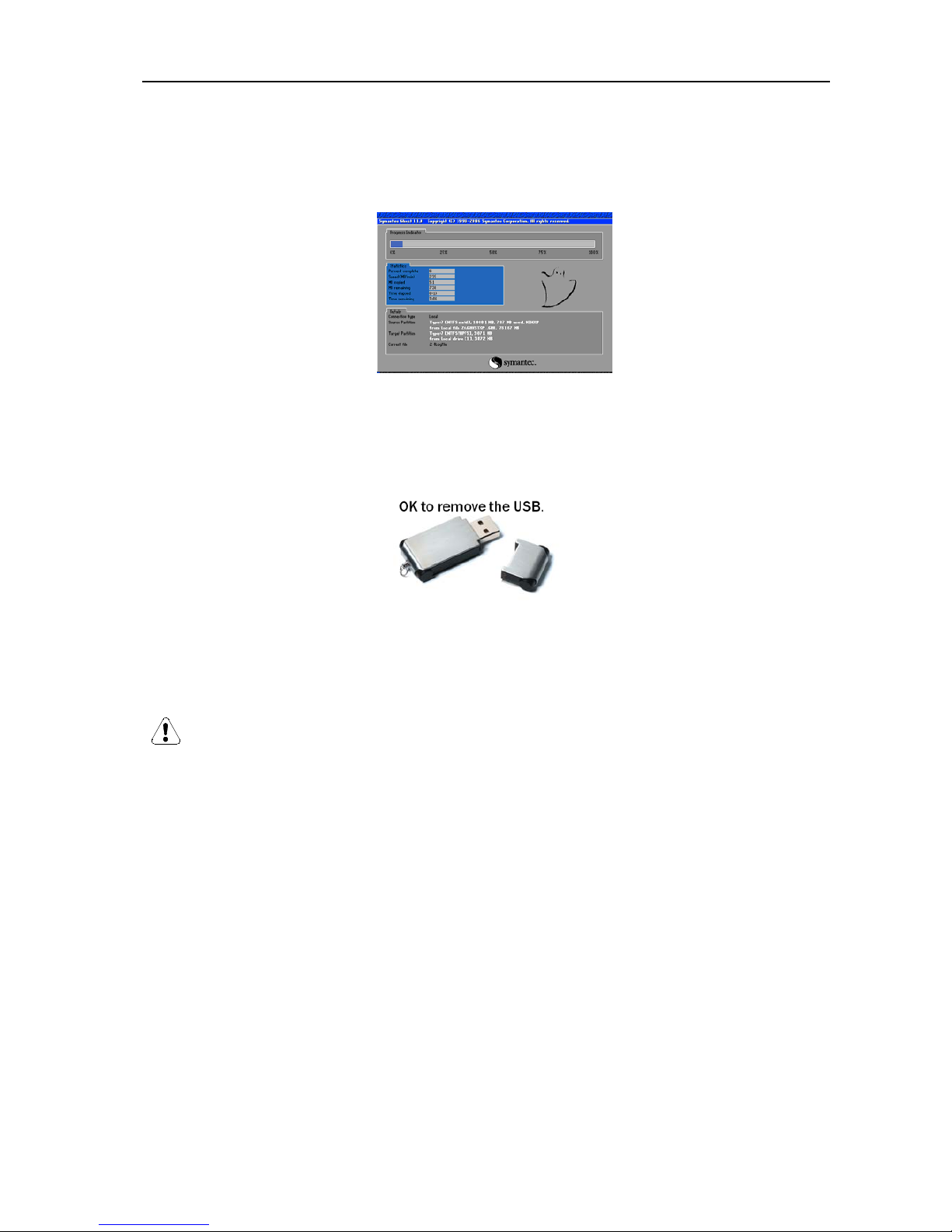

7.2 System Recovery Operation

1. Turn off the game. Remove recovery USB from the header. (Note: This process may take
30-45 minutes to reform.) Insert the memory stick into the USB port at the back of the
computer.

2. Restart PC to enter the system recovery screen as shown.

3. The game will automatically start recovery.

4. Once system recovery is finished (as shown below), and the remove screen appears,

remove the USB flash drive from the computer and turn off the PC. Wait at least 30

seconds before restarting the PC.

5. Assure that the recovery USB has been properly secured for future use.

WARNING: the USB flash drive should only be used to fix software errors. Using it for

other purposes may cause unexpected results and damages.

Lane Master Manual

22

8.3.1 Cleaning
Soak the cloth with cleaner and twist it dry until it is not
dripping, then wipe the lane for several times. At last,
wipe dry the lane with clean cloth.

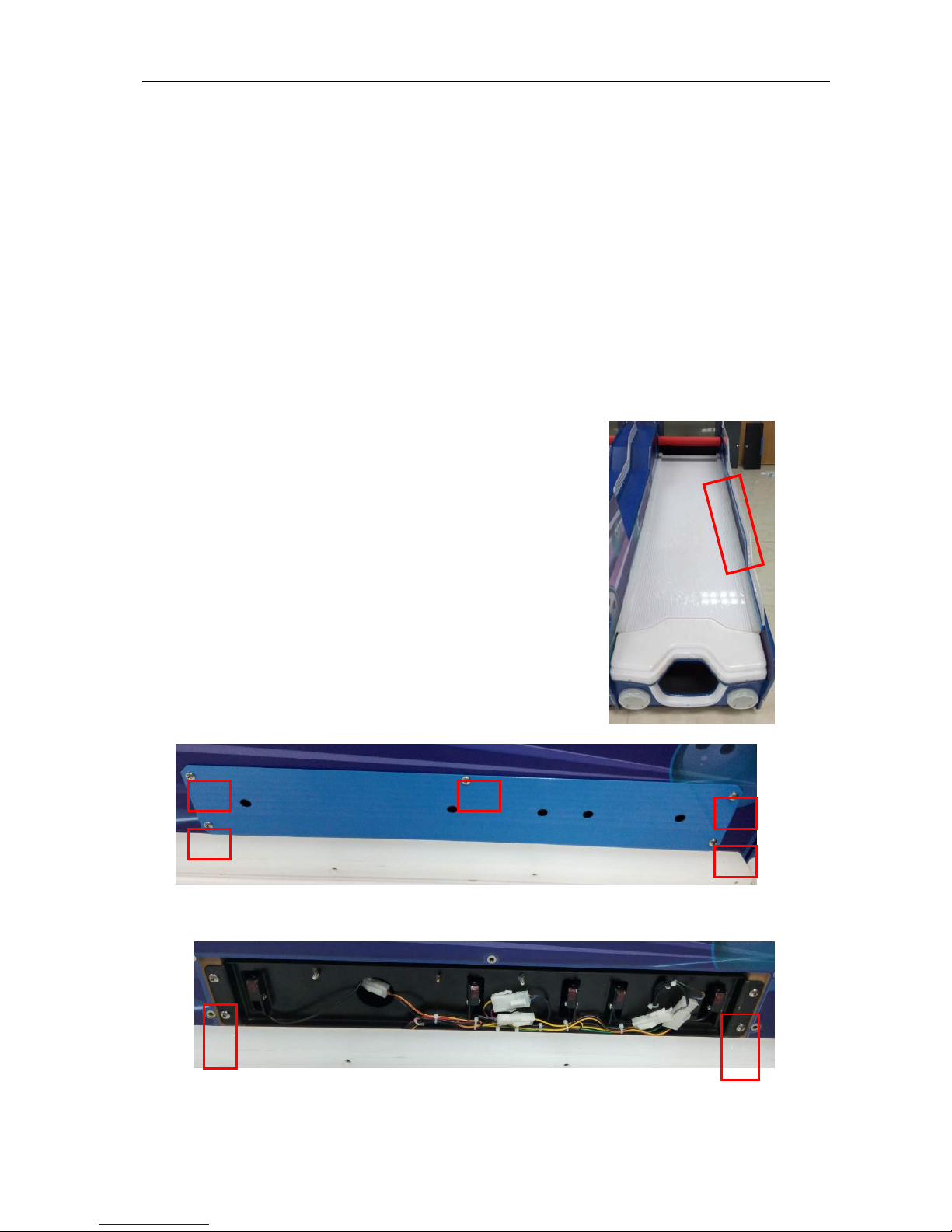

8.3.2 Disassemble the lane sensor

Sensor

The sensors can be changed one by one or you can remove the screws at two sides to
take out the whole sensor mounting plate to change the sensor.

Note: Please remove the cable ties before servicing this part and retie them after

servicing or may cause damage to the connection.

8. MAINTENANCE & INSPECTION

8.1 Safety Check

Check the points listed before operating the machine. These checks are necessary for safe
machine operation:

1. Test game before operation each day.

2. Conduct monthly routine checks of game components ensure good working condition

3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to maintain proper
operation.

8.2 Handling Precautions

When installing or inspecting the machine, be very careful of the following points and

pay attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the

cautionary matters herein stated can cause personal injury or damage to the machine

8.3 Lane Maintenance

Lane Master Manual

23

Front plastic

Screws inside

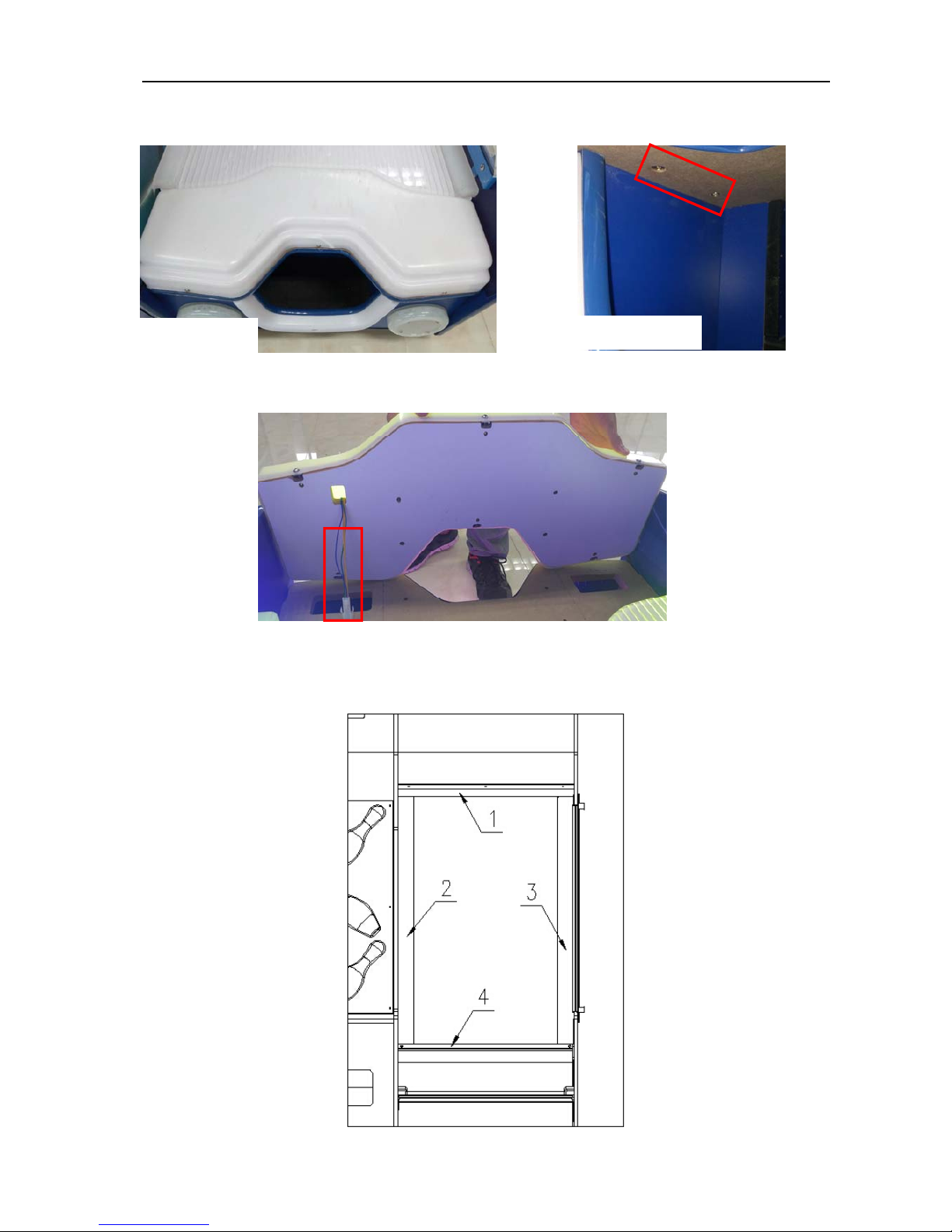

8.4 Disassemble the lane front plastic

Loose 4 screws on the wood board under the front plastic

Lift up the front plastic. Unplug the plug before take out the front plastic

8.5 Display maintenance

8.5.1 Disassemble displays
Loose 4 metal plates in order 1-2-3-4

Lane Master Manual

24

8.5.3 Cleaning display
After disassemble the display part, soak the cloth and twist it dry until it is not dripping,
then gently wipe the display for several times.

Metal plate 1 (3 screws) Metal plate 2&3 (2 screws)

Metal plate 4 (2 screws)

Note: Please hold the plastic of the display when

removing metal plate 4 or it may drop down.
Please reassemble the display part in
reversed order. (4-3-2-1)

8.5.2 Disassemble marquee display
Loose all the screws on the surface of the marquee plastic, and make sure there is enough
space for placing the plastic, avoid any scratch to the plastic.

Lane Master Manual

25

• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.

• To avoid electric shock or short circuit, do not plug then unplug the power quickly

• Do not expose power cords and earth wires, these are susceptible to damage.

• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.

• When or after installing the product, avoid pulling the power cord to prevent
unnecessary wear and tear. Use the power button to disconnect power.

• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire,
electric shock or leakage.

• Perform grounding appropriately. Inappropriate grounding can cause electric shock.

• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.

• Should a problem occur, turn off the power immediately and stop operating the

machine. Unplug the power cord of the service outlet. Operating the machine without
correcting the problem may cause a fire or injuries.

• Insert the power plug securely into the outlet. Poor contact may cause overheating,

resulting in fire or burns.

• To ensure the warning labels attached on the machine are visible and legible, install

the machine in a well-lit location, and keep the labels clean at all times. Make sure the
labels are not hidden behind other game machines.

WARNING

Lane Master Manual

26

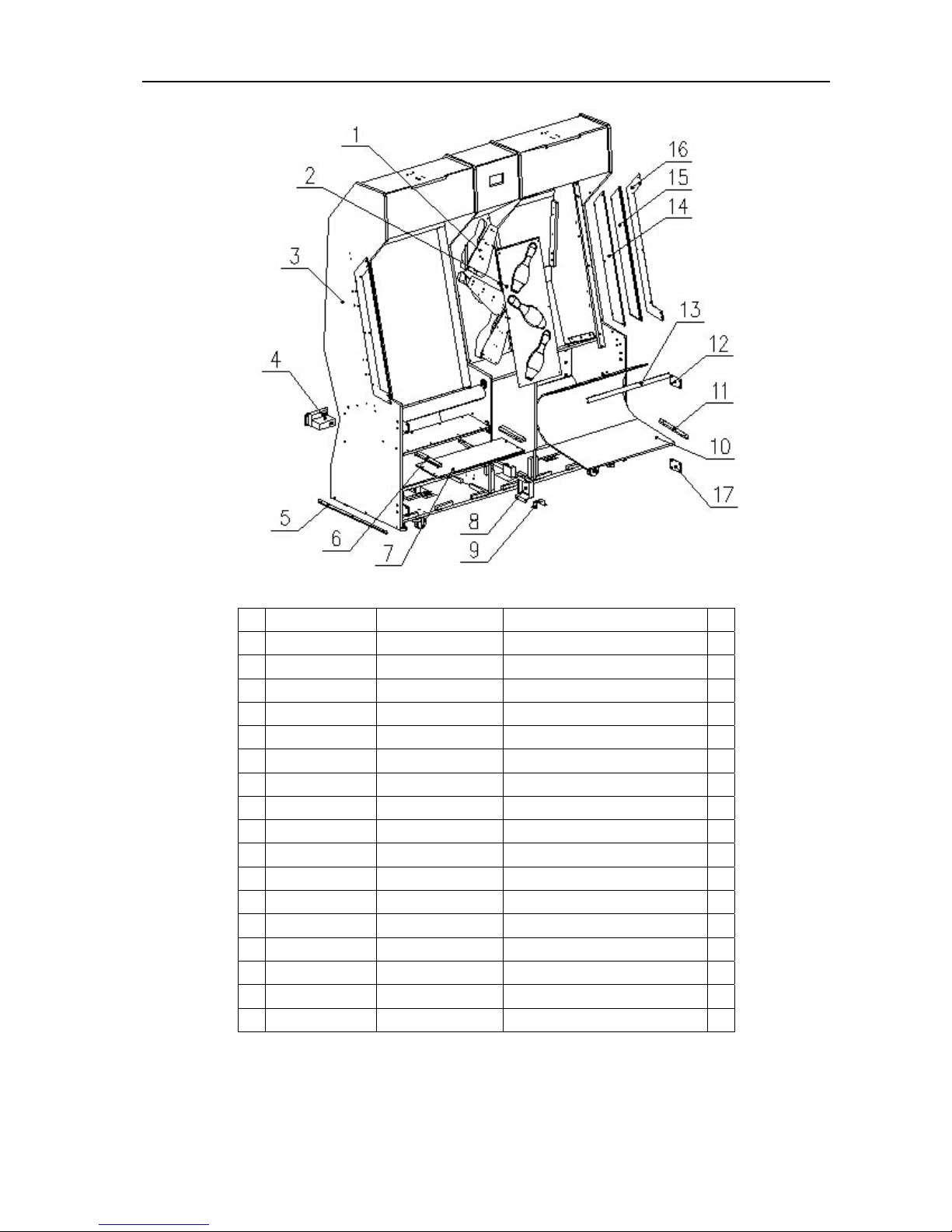

9. OVERALL CONSTRUCTION

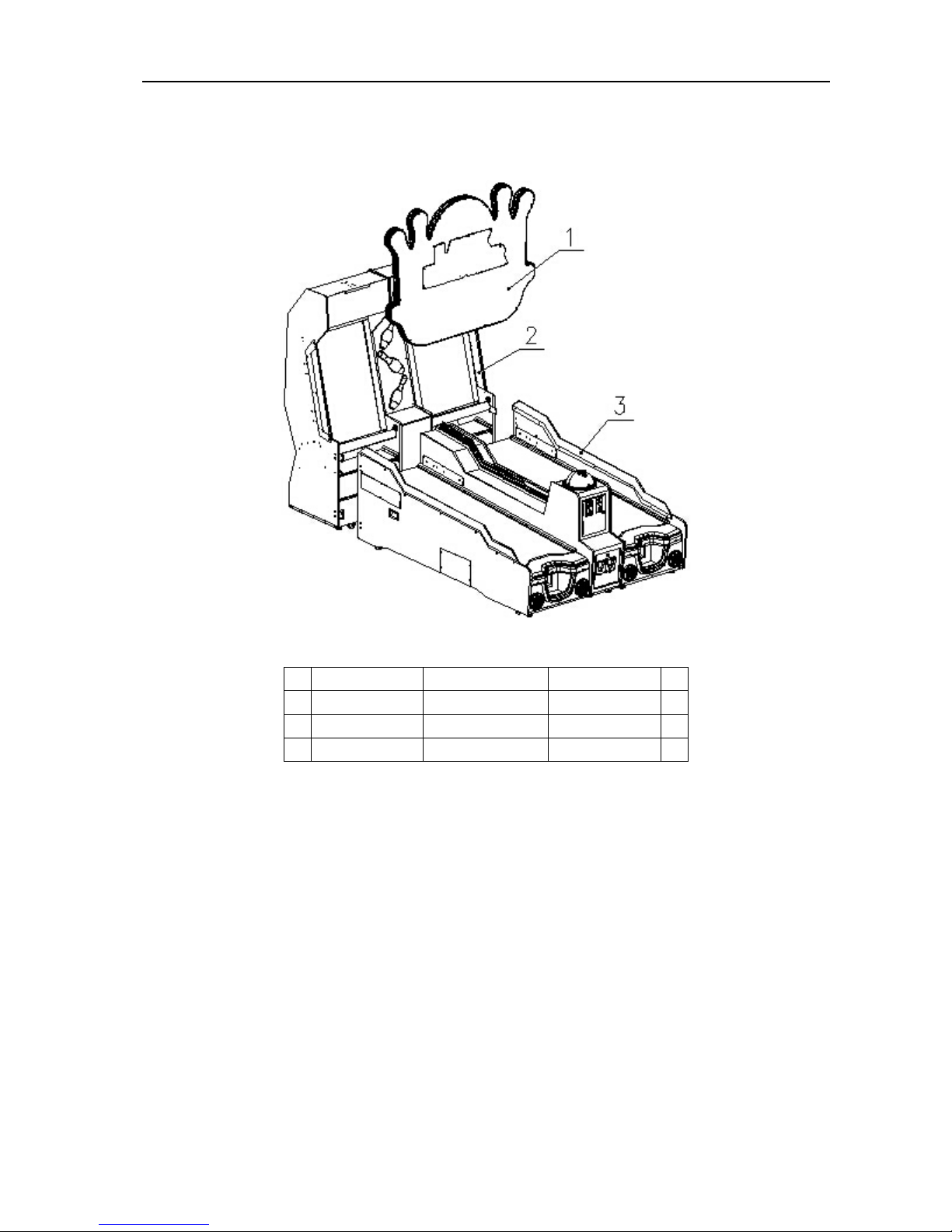

9.1 General Assembly

No. Part No. Code No. Name Qty

1

L105-010-000 29911605A003 Marquee Assy. 1
2 L105-001-000 29911605A001 Display Assy. 1
3 L105-003-000 29911605A002 Lane Assy. 1

Lane Master Manual

27

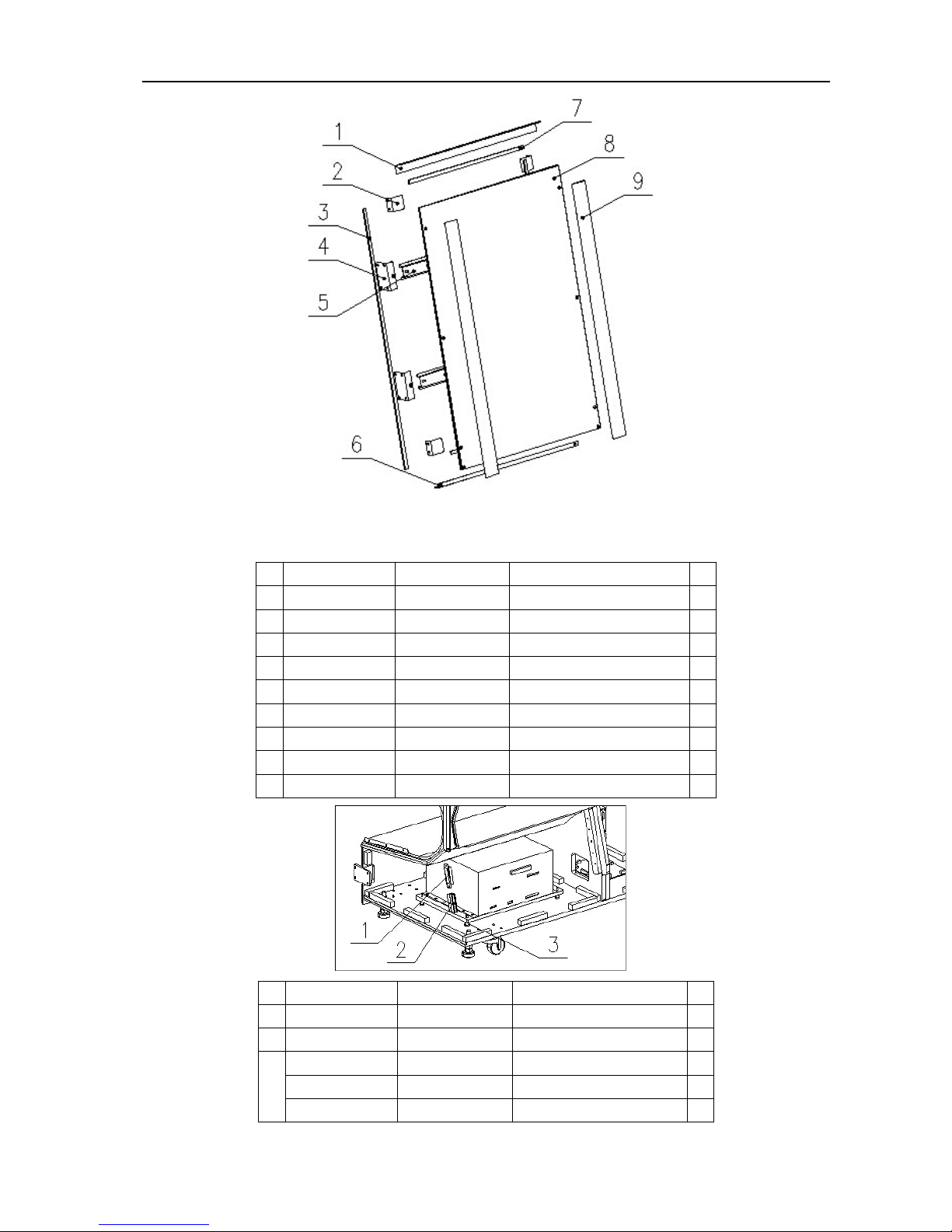

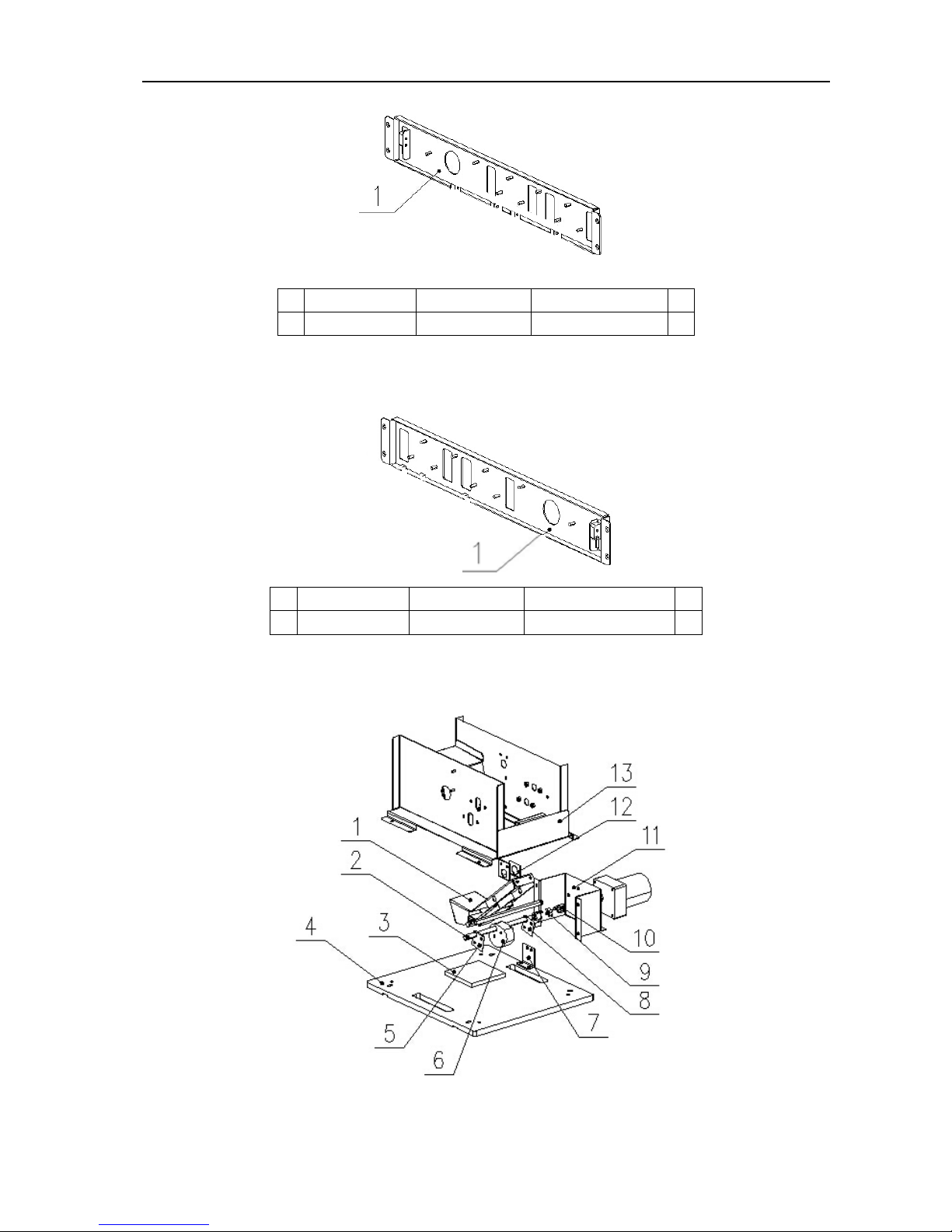

9.2 Display Assy.

No. Part No. Code No. Name Qty

1 L105-222-000 20611605028

Light bar fixed plate 3

2 L105-235-000 20611605002

Light plate 1
3 L105-002-000 29911605A004 Display Wood frame Assy. 1
4 L105-296-000 26000042000A

Power box assy. 1

5 L105-214-000 20211605009

Side angle bead 2

6 L105-229-000 20611605001

Lane side light bar 2 4

7 L105-332-000 20611605043

Lane rear board 2

8 L105-234-000 20611605029

Protect cover 1

9 L105-233-000 20211605043

Power fixed plate 1

10 L105-225-000 20611605011

Damping foam 1 2

11 L105-228-000 20211605017

Foam pressing plate 4
12 L105-318-000 20211605062 Cabinet connected board 2 2
13 L105-226-000 20211605016 Damping foam fixed bar 2
14 L105-220-000 20611605016

Side light board 2

15 L105-224-000 20611605017

Side light board 2 2

16 L105-333-000 20211605071

Side light cover 1

17 L105-223-000 20211605015 Cabinet connected board 2

Lane Master Manual

28

No. Part No. Code No. Name Qty

1 L105-213-000 20211605008 Display horizontal cover 2
2 L105-230-000 20211605018 Display fixed plate 8
3 L105-231-000 20611605012 Display vertical bar 4
4 L105-212-000 20211605007 Display fixed bracket 8
5 L105-211-000 20211605006 Display mounting bar 4
6 L105-217-000 20211605011 Display down cover 2
7 L105-232-000 20611605013 Display horizontal bar 4
8 L105-236-000 20611605019

Display cover 2

9 L105-219-000 20211605013 Display vertical cover 4

No. Part No. Code No. Name Qty

1 L105-303-000 26000064000 U disk fixed plate 1
2 L105-299-000 26000055000

Dongle holder 1

3

L105-440-000 20311605008 PC connected board 1
L105-292-000 26000012000 Shake proof screw A 4
L105-302-000 26000061000 PC power fixed bracket 1

Lane Master Manual

29

No. Part No. Code No. Name Qty

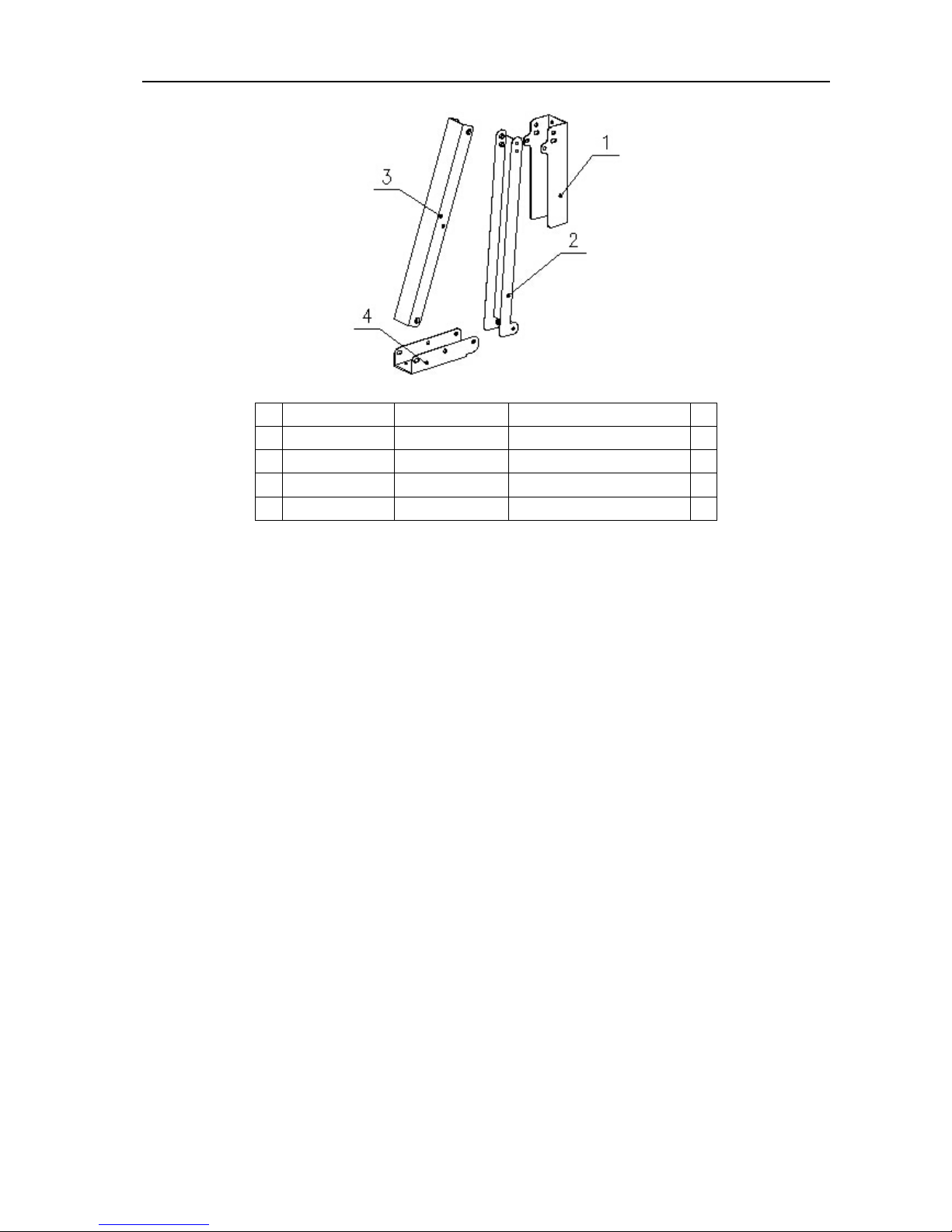

1 L105-216-000 20211605010 Damping fixed bracket 4
2 L105-218-000 20211605012 Protect bar connecting rod 4
3 L105-215-000 20211605056

Protect bar 2

4 L105-305-000 29911605003 Bumper protect bar 2

9.3 Display Frame

No. Part No. Code No. Name Qty

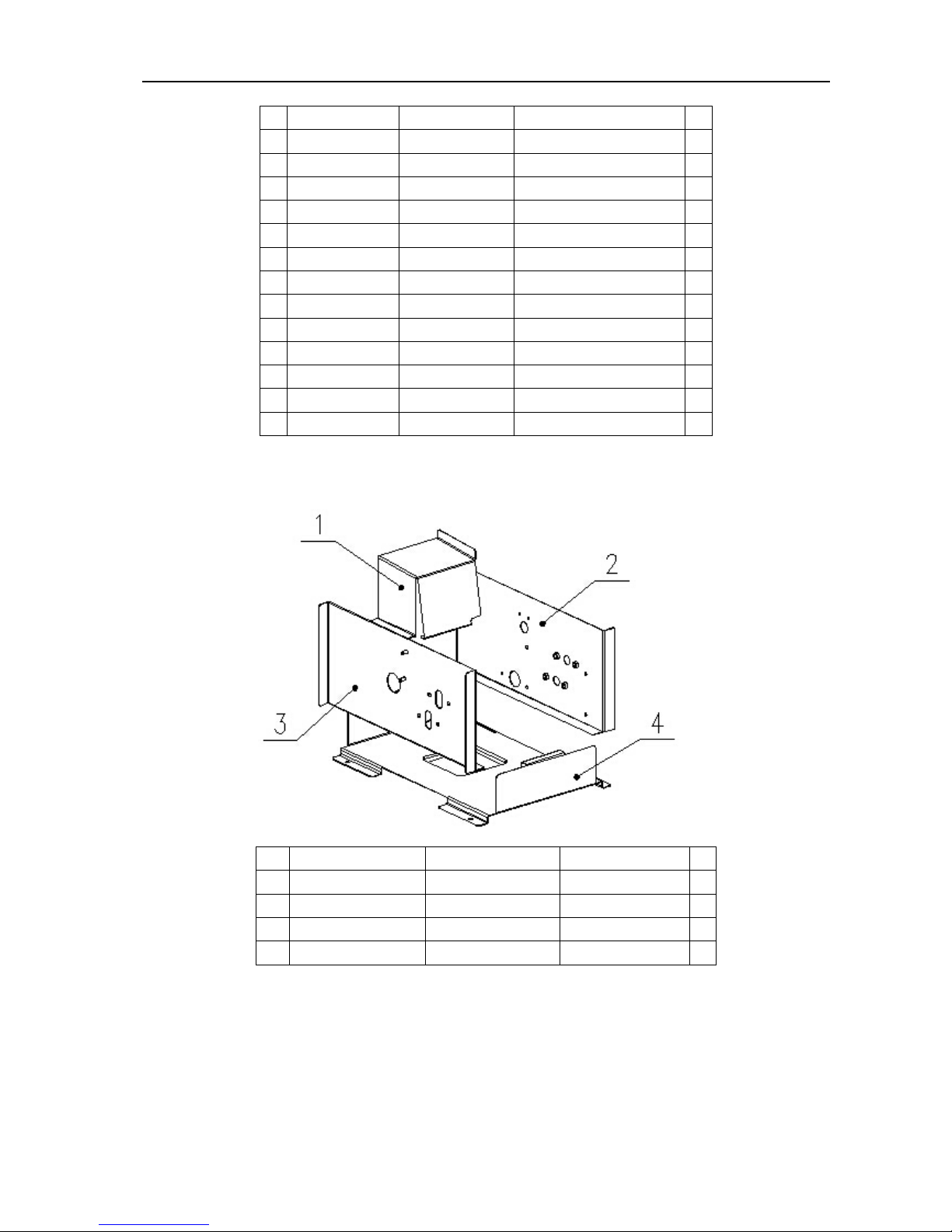

1 L105-202-000 20211605001 Marquee reinforced board 2
2 L105-209-000 20211605042 Up mid connected plate 3
3 L105-206-000 20211605041 Mid connected plate 2 3

Lane Master Manual

30

No. Part No. Code No. Name Qty

4 L105-207-000 20211605003 Rear R Lane reinforced board 4
5 L105-208-000 20211605004 Rear L Lane reinforced board 2 5

6

L105-290-000 26000008000

Cabinet leveller 10

L105-291-000 26000010000

Caster bracket 12

7 L105-204-000 20211605002

Lane reinforced board 6

8 L105-205-000 20211605040

Mid connected plate 1 1

9 L105-203-000 20211605039

Up mid connected plate 1

10 L105-419-000 20311605063

Side board 1

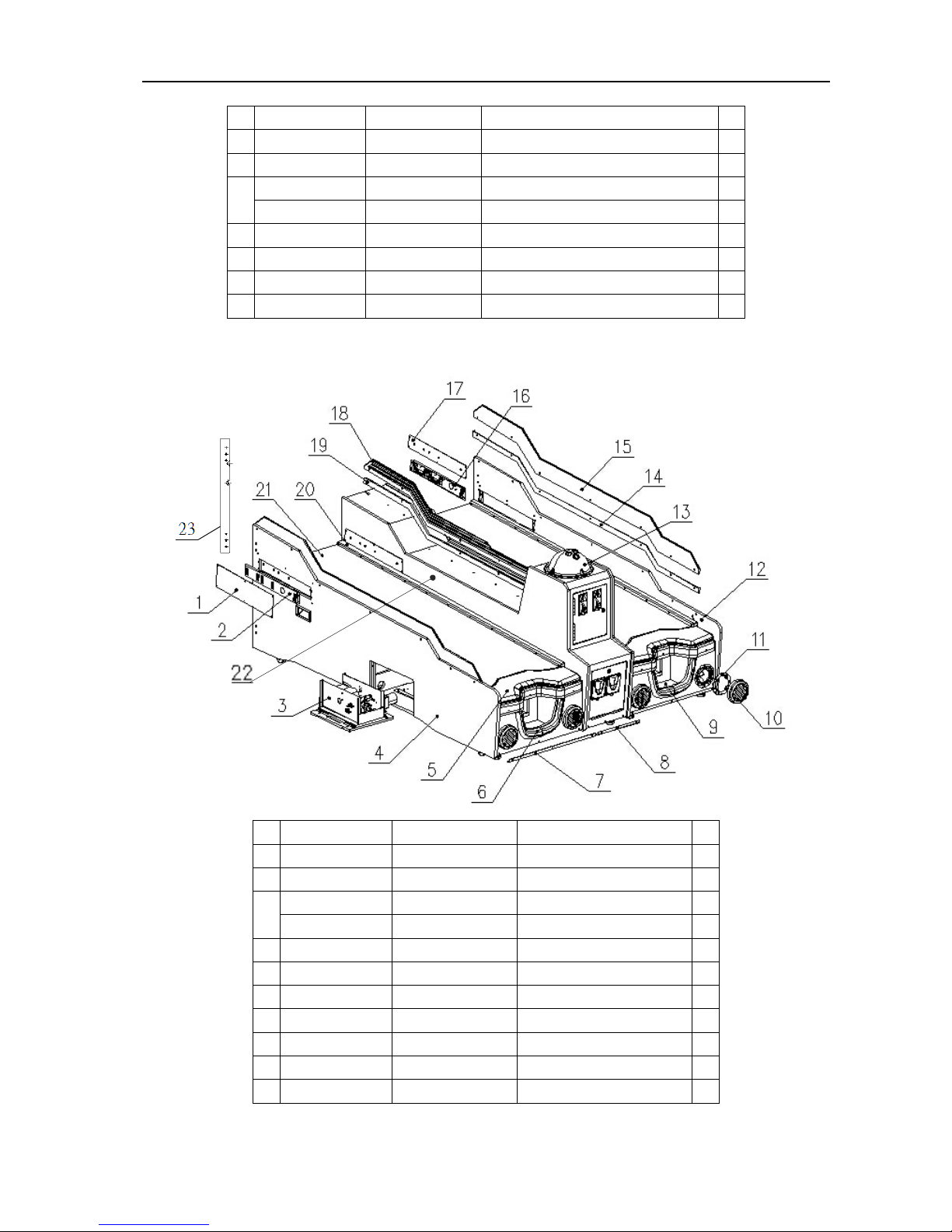

9.4 Lane Assy.

No. Part No. Code No. Name Qty

1 L105-260-000 20211605026

Sensor cover 2

2 L105-006-000 29911605012

L sensor Assy. 2

3

L105-008-000

29911605006

Ball out system 2

L105-257-000 20211605025 Side light fixed plate 2
4 L105-004-000 29911605A005 L Lane frame Assy. 1
5 L105-009-000 29911605007 Ball basket light Assy. 2
6 L105-265-000 20611605026 Ball basket light cover 2
7 L105-272-000 20211605032

Angle bead 2

8 L105-273-000 20211605033

Angle bead 1

9 L105-336-000 20611605045 Damping foam 2 2

10 L105-301-000 26000057001 Speaker net light cover 4

Lane Master Manual

31

No. Part No. Code No. Name Qty

11

L105-288-000 20251301065 Speaker net light bracket 4
12 L105-005-000 29911605A006 R Lane frame Assy. 1
13 L105-266-000 20611605003

Bowling light cover 1

14

L105-267-000 20211605029 L side plastic fixed plate 1

L105-268-000 20211605030 R side plastic fixed plate 1
15 L105-259-000 20611605021 Side clear light board 2
16 L105-007-000 29911605005

R sensor Assy. 2

17 L105-241-000 20211605022

Sensor cover 4
18 L105-269-000 20611605022 Mid clear light board 1
19 L105-270-000 20211605031 Mid plastic fixed plate 1
20 L105-271-000 20611605004

Lane side light bar 4

21 L105-335-000 20611605044

Lane clear plate 2

22

L105-306-000 20611605030 Lane damping foam 1 2
L105-307-000 20611605031 Lane damping foam 2 2

23

L105-322-000 20211605065 R side reinforced plate 1
L105-323-000 20211605066 L side reinforced plate 1

No. Part No. Code No. Name Qty

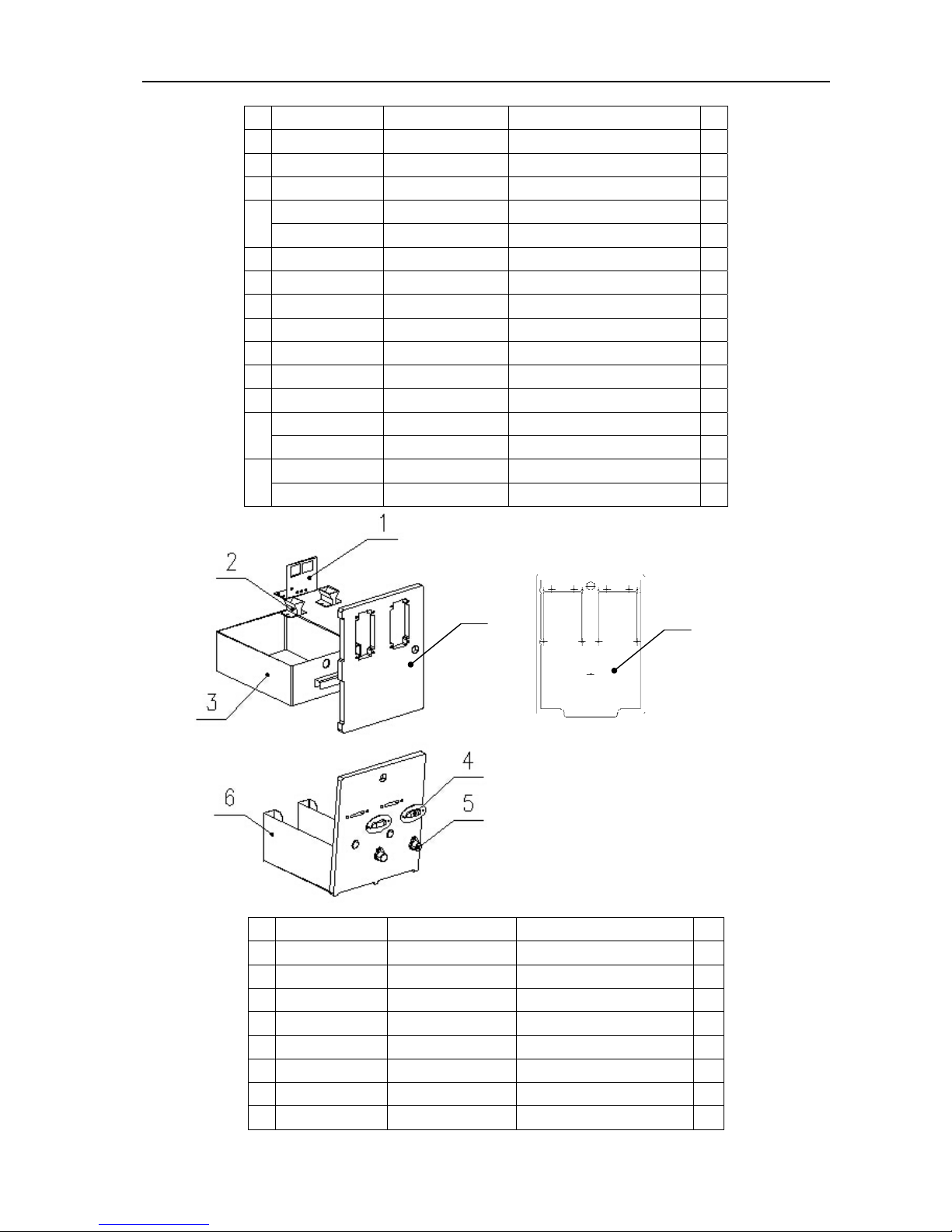

1 L105-324-000 20211605067 Dual meter bracket 1
2 L105-264-000 20211605028

Coin conduit 2

3 L105-263-000 20211605027

Coin box 1

4 L105-298-000 26000051000

Ticket cover 2
5 L105-304-000 26000065000 Out of ticket light cover 2
6 L105-289-000 26000007000

Ticket box 120 2

7 L105-473-000 20311605086

Coin door 1

8 L105-320-000 20211605A001

Cashier door 1

7

Note：7 &8 are alternative.

8

Lane Master Manual

32

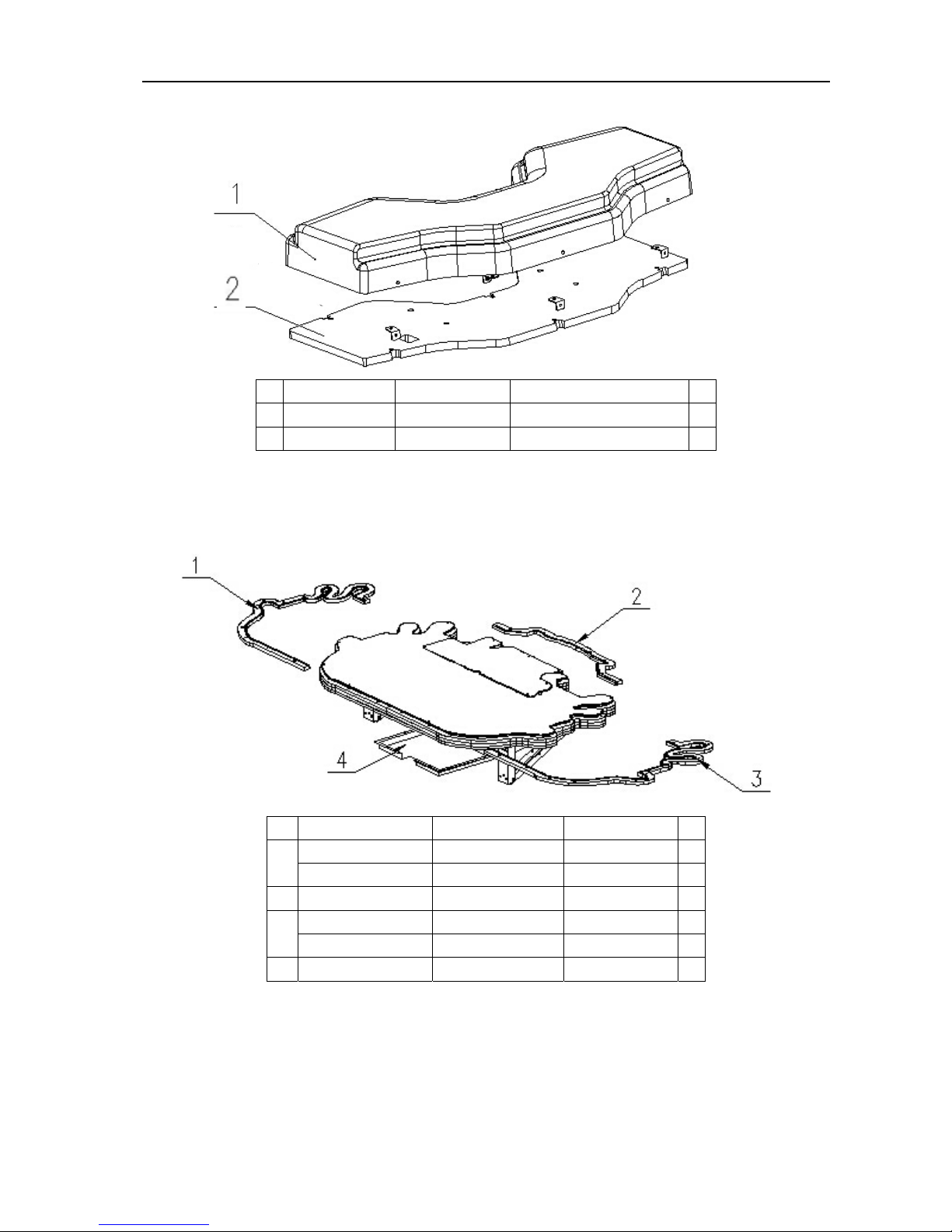

9.5 Left sensor Assy.

No. Part No. Code No. Name Qty

1

L105-238-000 20211605019 Sensor fixed plate 1

9.6 Right sensor Assy.

No. Part No. Code No. Name Qty

1 L105-240-000 20211605021 Sensor fixed plate 2 1

9.7 Ball out Assy.

Lane Master Manual

33

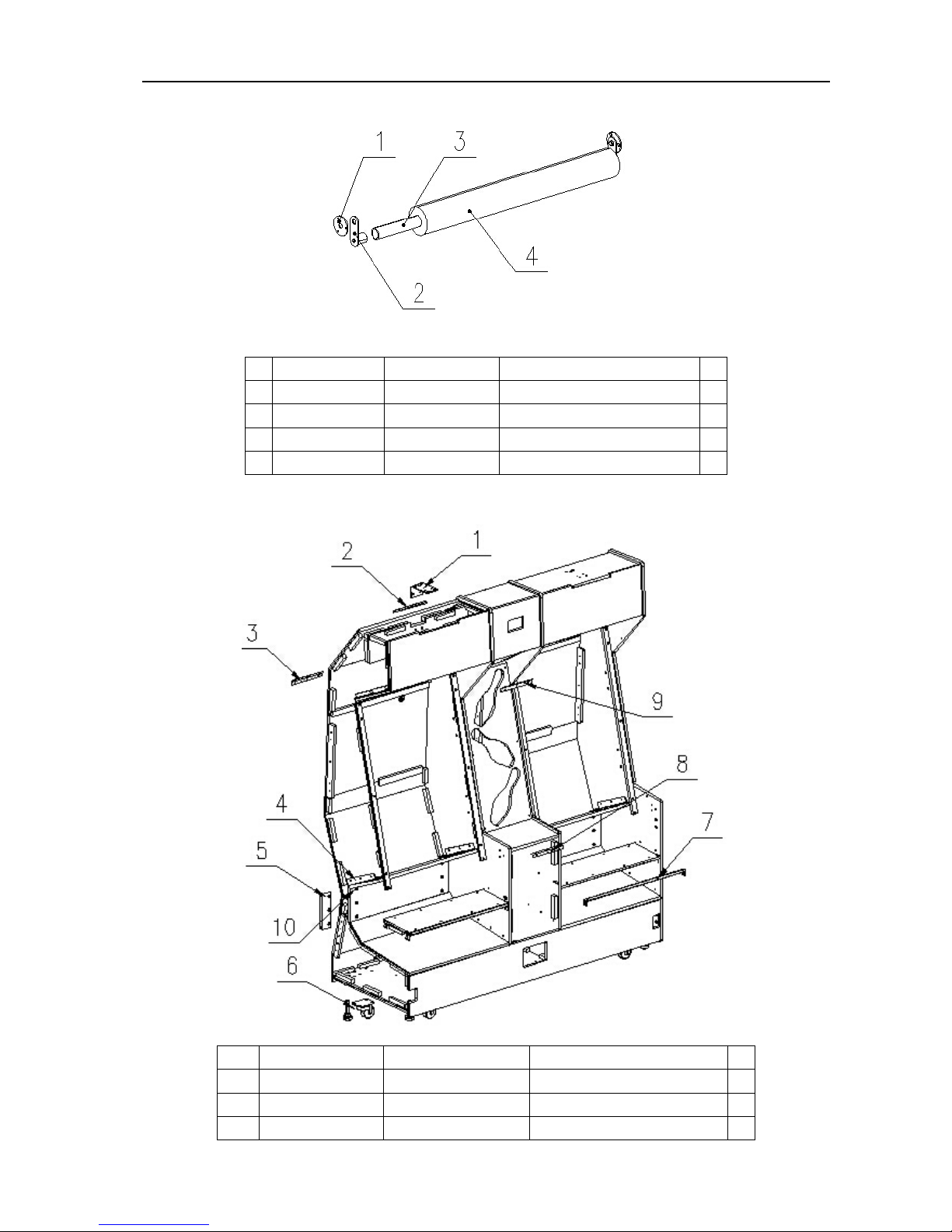

No. Part No. Code No. Name Qty

1 L105-249-000 20211605023 Up bowling bracket 1
2 L105-250-000 20211605024

Motor shaft 1
3 L105-255-000 20611605014 Damping board 1
4 L105-481-000 20311605024 Cabinet support board 1
5 L105-252-000 20211605051 Eccentric wheel pad 1
6 L105-251-000 20611605023 Eccentric wheel 1
7 L105-254-000 20211605053 Sensor fixed plate B 1
8 L105-253-000 20211605052

Sensor baffle 1

9 L105-287-000 20610701011 Coupling damping pad 1

10 L105-256-000 20211605055

Coupling 2

11 L105-248-000 20211605050

Motor bracket 1
12 L105-247-000 20211605049 Sensor fixed plate A 1
13 L105-242-000 20211605057 Cabinet bracket 1

9.8 Cabinet part

No. Part No. Code No. Name Qty

1 L105-246-000 20211605048

Cantboard 1
2 L105-244-000 20211605046 Side board B 1
3 L105-243-000 20211605045 Side board A 1
4 L105-245-000 20211605047

Bed board 1

Lane Master Manual

34

9.9 Ball basket light Assy.

No. Part No. Code No. Name Qty

1 L105-329-000 20611605039 Bowling light plate 1
2 L105-330-000 20611605040 Bowling light cover 1

9.10 Marquee Assy.

No.

Part No. Code No. Name Qty

1

L105-314-000

20611605035 Light bar 4 1

L105-315-000 20611605036 Light bar 5 1

2 L105-311-000 20611605032 Light bar 1 1

3

L105-312-000 20611605033 Light bar 2 1
L105-313-000 20611605034 Light bar 3 1

4 L105-284-000 20211605038 Marquee cover 1

Lane Master Manual

35

No. Part No. Code No. Name Qty

1 L105-278-000 20211605034 Marquee fixed plate 1
2 L105-280-000 20211605035 Marquee connected rod 1
3 L105-282-000 20211605037 Fixed connected rod 1
4 L105-281-000 20211605036 Marquee fixed bracket 1

Lane Master Manual

36

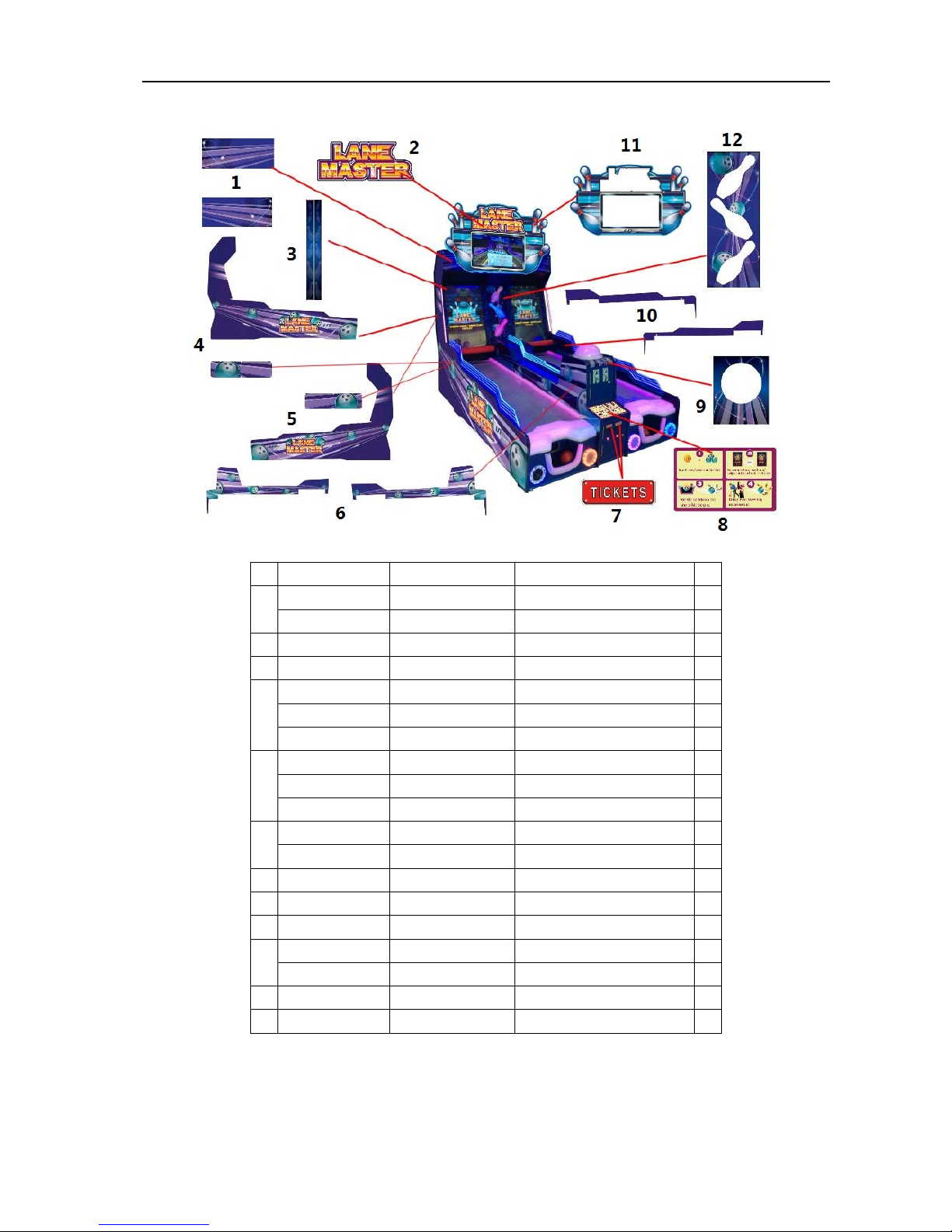

9.11Decals

No. Part No. Code No. Name Qty

1

L105-703-000 20511605A003

L top side decal 1

L105-704-000 20511605A004

R top side decal 1

2 L105-732-000 20511605A017

Marquee decal 1

3 L105-715-000 20511605014

Display frame 2

4

L105-706-000 20511605A005

L side 01 1

L105-707-000 20511605A006

L side 02 1

L105-739-000 20511605A023 Sensor L cover decal 1

5

L105-708-000

20511605A007

R side 01 1

L105-709-000 20511605A008

R side 02 1

L105-738-000 20511605A022 Sensor R cover decal 1

6

L105-711-000 20511605010 Mid L wood board 1
L105-713-000 20511605011 Mid R wood board 1

7 L105-721-000 25600000034

Ticket label 2
8 L105-710-000 20511605A009 Instruction decal 1
9 L105-712-000 20511605A010 Front panel wood board 1

10

L105-716-000 20511605015

Purple R 1

L105-717-000 20511605016

Purple L 1

11 L105-733-000 20511605A018

LOGO decal 1

12 L105-705-000 20511605005

Cover decal 1

Lane Master Manual

37

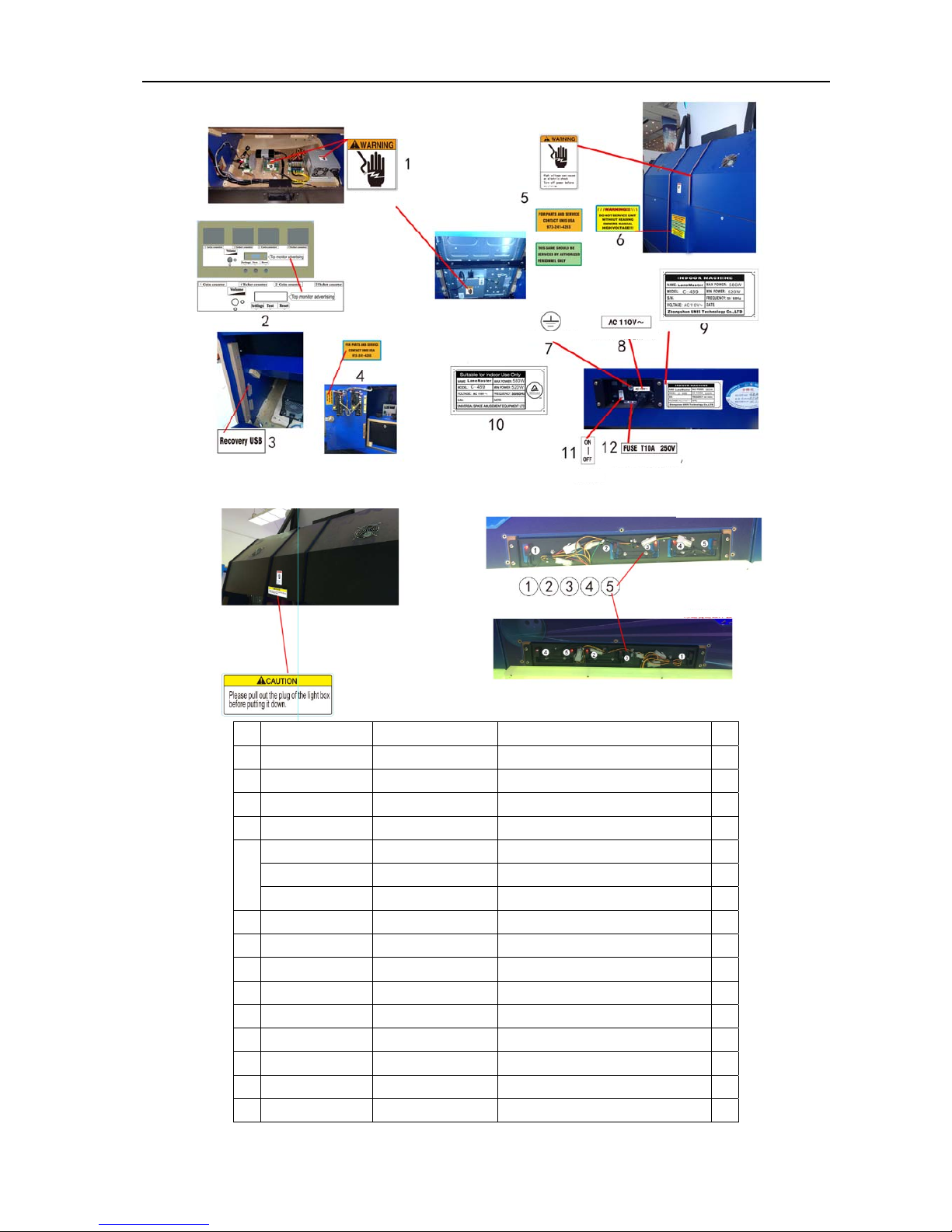

No. Part No. Code No. Name Qty

1 L105-722-000 25600000036

Warning label S 4

2 L105-718-000 20511605A020

Meter label 1

3 L105-719-000 26601100283

U disk label 1

4 L105-730-000 25600000096

Service label (S) 1

5

L105-723-000

25600000037

Warning label L 2

L105-729-000 25600000095

Service label (L) 1

L105-724-000 25600000042

Service label 1 1

6 L105-725-000 25600000067

Service label 1

7 L105-728-000 25600000091

GND label 1

8 L105-726-000 25600000071

110 V label 1

9 L105-714-000 20511605A012 110V uncertified nameplate 1
10 L105-736-000 20511605A021 TUV 110V nameplate 1
11 L105-717-000 20511605016

Purple L 1

12 L105-727-000 25600000077

Fuse T10A/250V 1

13 L105-734-000 20511605A019

Notice label 1

14 L105-735-000 20511605022

Sensor label 1

13

14

Lane Master Manual

38

9.12 Electrical components

No. Part No. Code No. Name Qty

1 L105-531-000 22002013003 LED soft light band 5.5

2

L105-568-000

23307010002 DVI-HDMI cable 1

L105-569-000 23307060001

DVI-DVI cable 1

L105-522-000 21201032006 32" display assy. 1

3

L105-555-000

23307000021

DP-DVI cable 1

L105-554-000 23307000015

DVI-DVI cable 1

L105-523-000 21201042002 42" LED display 2

4

L105-533-000 22002013013 5050 soft light band 0.3
L105-534-000 22002015003 5050 soft light band 0.3

L105-535-000 22002015007 5050 soft light band 0.3
5 L105-532-000 22002013004 LED soft light band 12.5
6 L105-530-000 22002013002 RGB soft light band 12.5

7

L105-560-000 29751301003 Speaker light board 4

L105-547-000 22801000046 Hi-mid speaker 4
8 L105-518-000 20740914002

PCB board 1

2

3

4

5

6

7

8

1

Lane Master Manual

39

No. Part No. Code No. Name Qty

1

L105-539-000

22301000001

Coin mech. 2
L105-538-000 22201000028 12V white light socket 2
L105-537-000 22003000018

LED light bulb 2
2 L105-550-000 23100000005 Ticket dispenser 2
3 L105-536-000 22003000003 LED light bulb(12V) 2
4 L105-549-000 23000000005

Meter 4

5

L105-543-000 22403000001

POT knob 1

L105-563-000 29791400001 POT connected board 1

6

L105-540-000 22402010002

Button (Red) 1

L105-541-000 22402030002

Button (Green) 1

L105-542-000 22402050001

Button (Black) 1

7 L105-561-000 29790700002

T

icket converted board 2

1

2

3

7

4

5

6

Lane Master Manual

40

No. Part No. Code No. Name Qty

1

L105-519-000 21102000051

PC 1

L105-521-000 21107030038 PC graphic card 1

2 L105-520-000 21107020036

Dongle 1

3 L105-564-000 41300000005

U disk 1
4 L105-552-000 23304030001 USB extended cable 1
5 L105-551-000 23301050002

Power cord 1

6 L105-553-000 23305000003

Audio cable 1

7 L105-528-000 21603020001

5050 Mushroom

light adapter

1

8 L105-548-000 22803000031

2.0 amplifier 1

9 L105-565-000 29710826003

PCB board 2
10 L105-559-000 29711605001 Short circuit board 1
11 L105-527-000 21602000001

Power box 1

12 L105-562-000 29791300001 M3 main board 1

8

9

7

10

11

12

3

4

2 1

6

5

Lane Master Manual

41

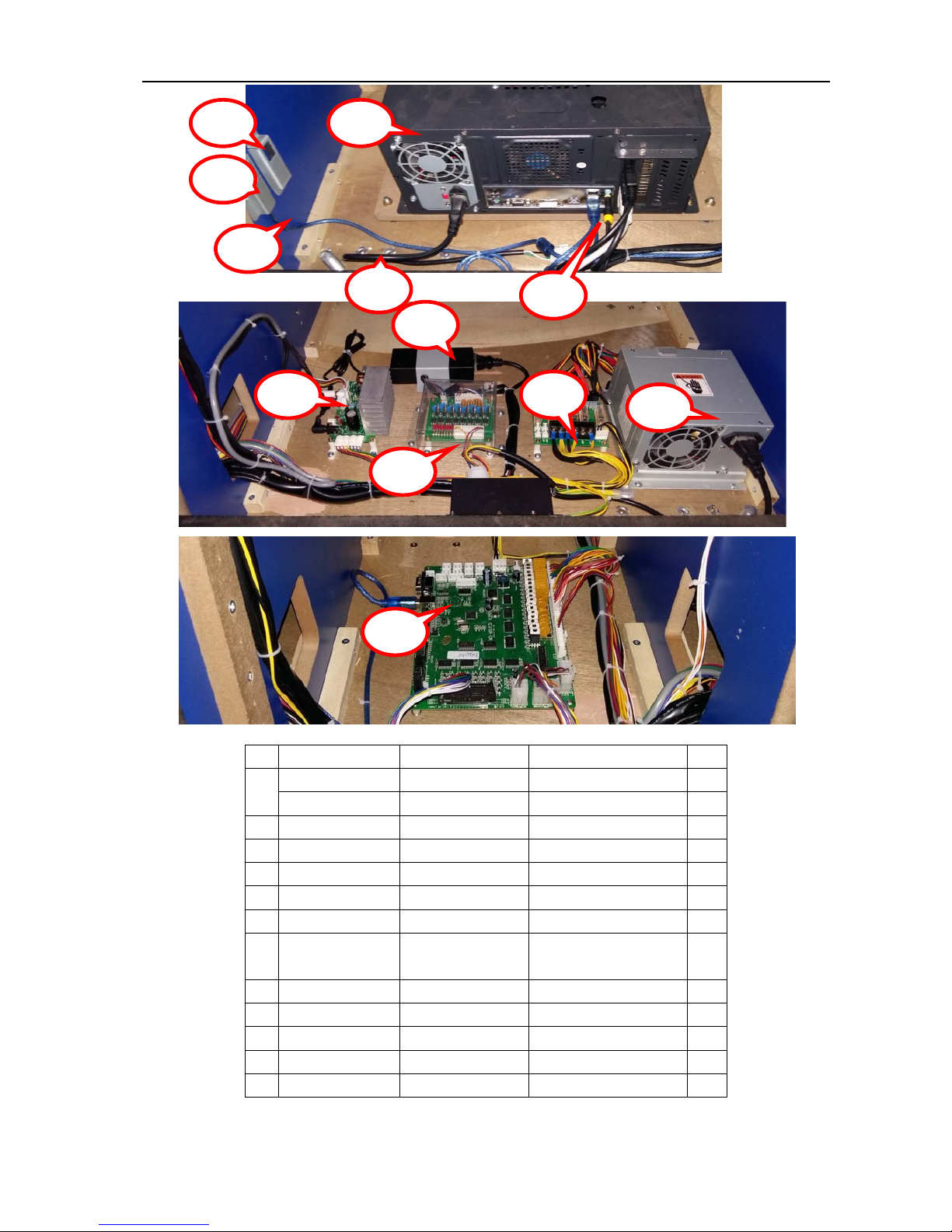

No. Part No. Code No. Name Qty

1 L105-524-000 21503000034

Sensor SW 2

2 L105-558-000 29710701003

Sensor board 2
3 L105-525-000 21503000053 Sensor SW(receive) 10
4 L105-526-000 21503000052 Sensor SW(send) 10

4

3

1

2

Lane Master Manual

42

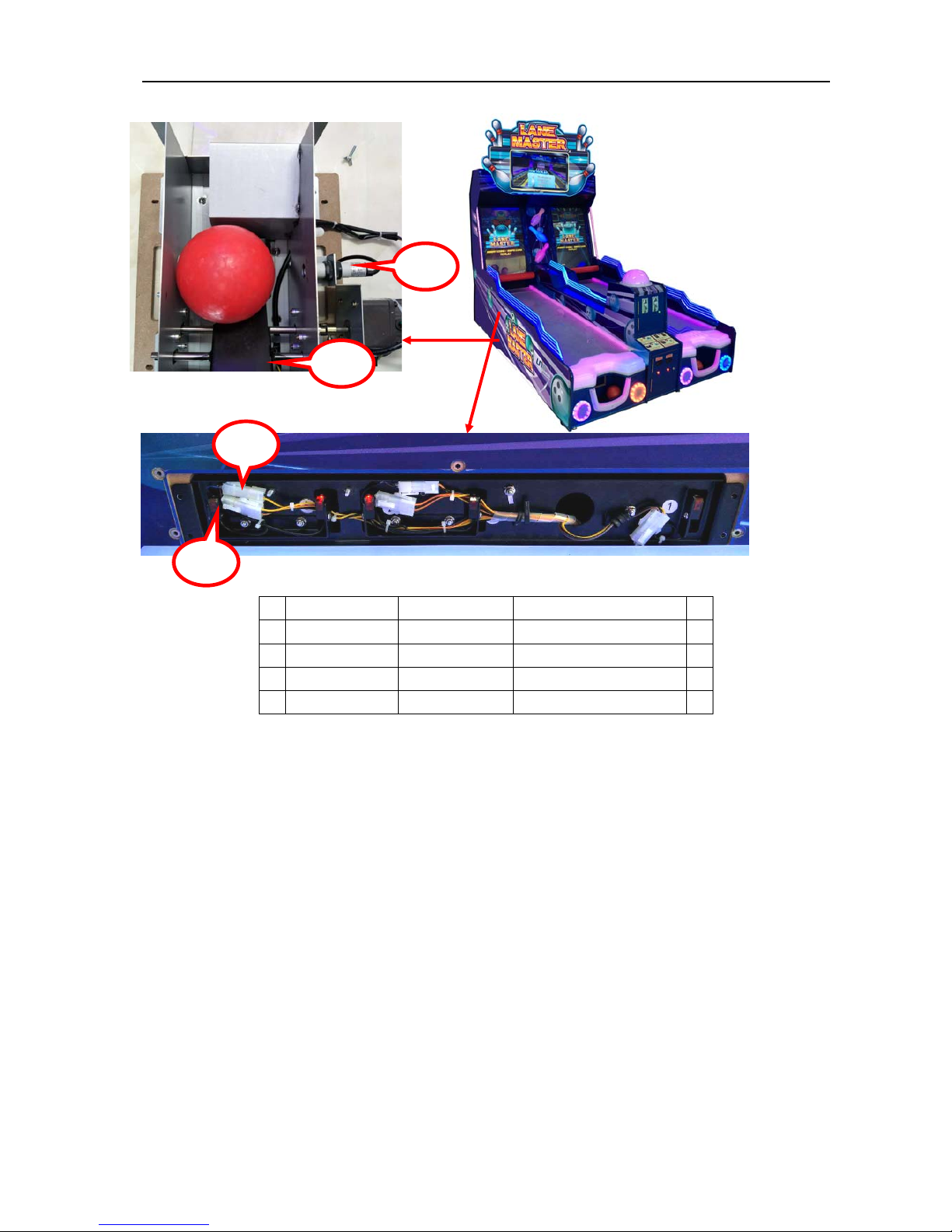

No. Part No. Code No. Name Qty

1

L105-544-000 22601000005 Rocket SW (S) 1

2

L105-517-000 21902000006 Fuse socket 1
L105-529-000 21901000013

Fuse 1

3

L105-545-000 22702000010 Fan net 4
L105-546-000 22702010025 DC fan 2

4 L105-566-000 23201000001

Filter

1

2

3

4

AC110

Lane Master Manual

43

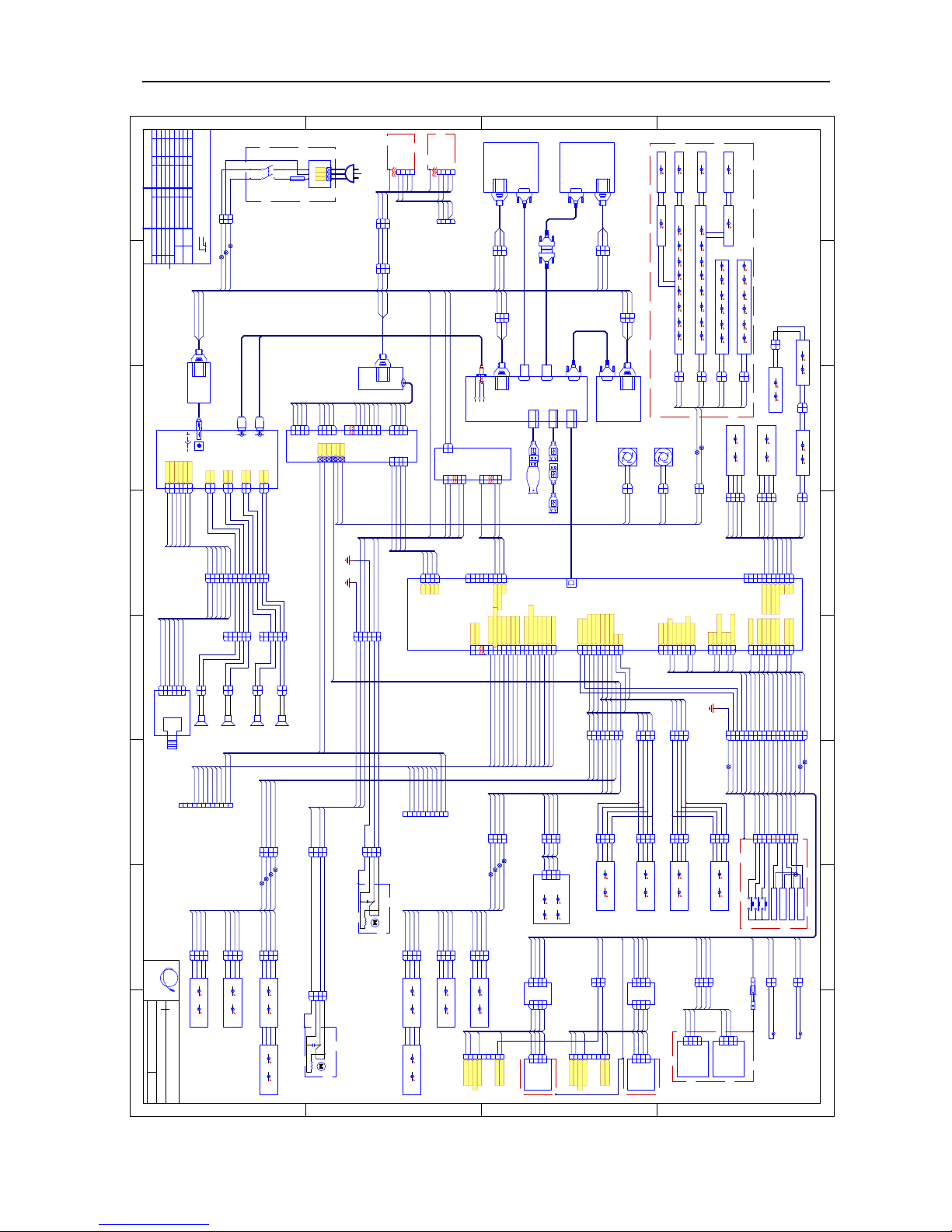

1 2 3 4 5 6 78

A

B

C

D

8

7654321

D

C

B

A

Name:

Date:

Version:

24-Mar-2017

123456789

ABCDEFGHI

brown

red

orange

yellow

green

blue

violet

grey

white

black

pink

light green

sky blue

shield layer

JKLMNOP

Q

AWG30 UL1007

AWG28 UL1007

AWG26 UL1007

AWG24 UL1007

AWG22 UL1007

AWG20 UL1007

AWG18 UL1007

AWG16 UL1007

Note: Wire colo r and wire size is shown in code.

Wire color code

Wire s ize c ode

Tolerance

unit mm

scale

:

0~1000

1001~200 0

2001~300 0

3001~400 0

4001~500 0

±10

±20

±30

±40

±50

Example 2 0 m

Color of the wire: 20 m ean s red

Size of the wire: m means AWG24 UL1007

Universal Space

Amusement machine

UNIS

PC

1P 42"Display (L)

Audio port

FUSE

T10 A/1 10 V

Power S W

SW DPS T

Earth

10P

45Q

60P

123

4

J1

123

4

VH

12V

GND

12V

GND

M3-MB.PCB

V er1.1

2 Tik feedback

1234567

8

J25

1234567

8

5557/8P

123

HM

123

J01

HF

10P

45Q

60P

12V

GND

R

W

Audio in put L

Audio in put R

1

2

J30

C

1

2

P

1P L speaker

Audio o utput

1

2

CN-4

L+

L-

1

2

VH

1

2

J29

C

1

2

P

92

91

905090

50

2 Tik drive

123456789

10111213141516

J20

123456789

10111213141516

YY1820D-H26

1P Lane senser1

AC220V

A0O

50

15

16

15

16

123

4

P2

123

4

P

A0P

A0P

40P

40P

Power supp ly

40O

40O

11

10

11

10

P1

A0O

77

1717

A0O

JSBL-PX-01

1 Tik feedback

12V

GND

1Tik drive

123456789

10

J21

123456789

10

VH

1P Green light

1P Red light

1P Blue light

12V

12V

20M

90

10M

20M

10M

80

90

80

1

2

J39

C

1

2

P

1

2

J40

C

1

2

P

91

92

USB-A

DONGLE

USB-A

USB-B

80

24

90

24

123456789

10

J22

123456789

10

VH

12V

12V

12V

123456789

J23

123456789

VH

12V

1111

10×2

20×2

30×2

24

24

FAN

12V

A0

A0

1

2

C

1

2

J13

P

1P Fan

10P

45P

60P

123

HM

123

J05

HF

10P

45Q

60P

10P

45P

60P

A0

24

24

DVI PORT

1P Motor drive

1P Out of tik light

V1.0

Lane m aste r GMP w iring 1

JSBL-PX-00-01G

91

Display li ght-Green

Display light-Red

Display light-Blue

Pin lig h t

2525

2626

GND

GND

20

10

1P Tik light

LMP1

A0

24

2P Tik li ght

LMP1

A0P

A0P

40P

40P

A0P

A0P

40P

40P

A0P+A0×2

40P+24×2

91

92

PLUG

Noise filter

N
L

E

DP port

+

-

123

HM

123

J03

HF

10P

45Q

60P

10P

45P

60P

2424

2P Motor drive

2P Out of tik light

1P Lane senser2

1P Lane senser3

1P Lane senser4

1P Motor initial position

1P Ball senser

2P Lane senser1

2P Lane senser2

2P Lane senser3

2P Lane senser4

2P Motor initial position

2P Ball sensor

1P Lane senser5

2P Lane senser5

LEDLED

12VRG

B

12VRG

B

302410

20

123

4

J20

C

123

4

P

302410

20

1P Display L side light

LEDLED

12VRG

B

12VRG

B

302410

20

123

4

J21

C

123

4

P

2P Displa y R side light

24

10

1

2

J22

C

1

2

P

24

91

123456789

10

J26

5557/10 P

Coin 1

Settin gs bt n

Test b t n

123456789

10

Reset btn

12345

6

J27

12345

6

5557/6P

GND

Coin 2

1P Coin mete r

GND

12V

12V

GND

10

40A030

50

24

123456789

10

J38

C

123456789

10

P

1P Co in mete r

GND

S1S2S3

Tset

Reset

Settings

102030

A0

403050

A02410

123

4

J41

C

123

4

P

A02470

1020304050

A02024

10×2

20×23040

50

A0×46024×6

70

VR

50K POT

12345

6

J28

XH

12345

6

CN1

VRP CB

A0ME60M

50M

40M

20M

1P Tik meter

60

60

1P Tik meter

70

60

70

1P Coin mech.

123

4

XH

123

4

CN1

12V

GND

COIN SIGNAL

A02410

2P Coin mech.

123

4

XH

123

4

CN1

12V

GND

COIN SIGNAL

A02420

20

10

20

A0×2

24×2

123456789

101112131415161718

J37

C

123456789

101112131415161718

P

10M

20M90809192

1

2

CN-5

1

2

VH

50

60

R+

R-

1

2

CN-10

1

2

VH

70

80

R+

R-

1

2

CN-11

L+

L-

1

2

VH

94

93

12345

6

CN-3

XH

12345

6

L chann el 1

L chann el 2

GND

R chan nel 1

R chan nel 2

GND

A0ME60M

50M

40M

20M

123456789

1011121314

J25

C

123456789

1011121314

P

1

2

J32

C

1

2

P

1

2

J31

C

1

2

P

905090

50

506070

80

A0ME60M

50M

40M

20M

506070

80

A0ME60M

50M

40M

20M 50

607080

1234567

8

J47

C

1234567

8

P

10203040506040P

40P

10×2

20×2

30×2

40×2

50×2

60×2

123

4

J53

C

124

3

P

302410

20

2P Control panel light

123

4

J54

C

10

124

3

P

203024

Round ball light

123

4

VH

123

4

CN1

G

12VRB

ZLJF-L ED. PC B

102030

24

405060

40P

123456789

10

J55

C

1

2

J3

1

2

J2

XZSL-LJ.PCB(V1.1)

Motor control board

12V

1

2

L

N

L

1

2

J07

1

2

12345

6

HM

12345

6

J33

HF

DVI port

2P 42"Display(R )

10P

45Q

60P

123

HM

123

J04

HF

10P

45P

60P

DVI por t

FAN

12V

A0

A0

1

2

C

1

2

J14

P

2P Fan

A0

24

A0

24

1

2

C

1

2

J15

P

A0P

40P

Marquee light

1

2

J18

C

1

2

P

12V

GND

12V

GND

A0

24

A0

24

1

2

J16

C

1

2

P

Blue 3528 light 3 150mm

12V

GND

A0

24

A0

24

A0P

40P

302410

20

1P Ball motor

123

4

J34

HM

123

4

HF

90P+A0P

20P+A0P

A0PM45Q

24

20

10

96

60

60

10

10

601045Q9610

45Q

96

601045Q

10

45Q

45Q

91M

92M

93M

10M

20M

30M

40M

60M

70M

97M

50M

94M

95M

96M

A0P

40P

10M

20M

30M

40M

60M

70M

50M

91M

92M

93M

97M

94M

95M

96M

A0P

40P

1P Lane R side light

123

4

J49

C2521HM-4P

124

3

C2521HF-4P

123

4

J50

C2521HM-4P

124

3

C2521HF-4P

LEDLED

12VRG

B

12VRG

B

1P Lane L side light

LEDLED

RGB

RGB

200mm

2P Lane R side light

123

4

J51

C2521HM-4P

124

3

C2521HF-4P

LEDLED

12VRG

B

12VRG

B

2P Lane L side light

LEDLED

12VRG

B

12VRG

B

405060

24

405060

24

405060

24

405060

24

45Q

45Q

A0

24

45Q

45Q×3

200mm

200mm

200mm

1P R Sp eaker

2P L speaker

2P R Sp eaker

A0×4

24×4

2P Lan e R side light

123

4

J66

C

124

3

P

LEDLED

12VRG

B

12VRG

B

405060

24

2000mm

123

4

J65

C

124

3

P

405060

24

2P Lane L side light

LEDLED

12VRG

B

12VRG

B

405060

24

2000mm

405060

24

40P+24

24

12345

6

J26

C

12345

6

P

12345

6

J27

C

12345

6

P

506070

80

506070

80

770mm

770mm

12V

GND

12V

GND

A0

24

1

2

J23

C

1

2

P

24

A0

12V

GND

12V

GND

12V

GND

12V

GND

A0

24

1

2

J24

C

1

2

P

24

A0

Purple 5050 light 300MMBlue 5050 light 300 MM

Red 5050 light 300MM

1010

99

1

2

J1

1

2

1010

99

12V

123

4

J59

C

123

4

P

123456789

101112

J63

C

2P Ball motor

90P+A0 P

20P+A0 P

A0PM45Q

961045Q

12V/4A

Amplifier power sup p ly

10P

45P

60P

123

4

J48

C

124

3

P

24

40P

123

4

P3

123

4

JHD5 08 4HP /4P

40O

A0O

A0O

20O

123

4

P4

123

4

JHD5 08 4HP /4P

40O

A0O

A0O

20O

40P×2

A0P×2

40P×2

1

2

J17

C

1

2

P

Blue 3528 light 3 150mm

12V

GND

A0

24

A0

24

123

4

J35

HM

123

4

HF

123

4

J36

HM

123

4

HF

JSBL-PX-02G

JSBL-PX-03

JSBL-PX-04

JSBL-PX-05

JSBL-PX-06

JSBL-PX-07

JSBL-PX-08

JSBL-PX-09 JSBL-PX-10

JSBL-PX-11

JSBL-PX-12

JSBL-PX-13

JSBL-PX-14

JSBL-PX-15

JSBL-PX-16

JSBL-PX-17

JSBL-PX-18

JSBL-PX-19

JSBL-PX-20

JSBL-PX-21

JSBL-PX-23

JSBL-PX-24

JSBL-PX-25

JSBL-PX-28

JSBL-PX-26

601045Q9610

45Q

10

123

4

J52

C2521HM-4P

124

3

C2521HF-4P

JSBL-PX-29

JSBL-PX-30

123

4

J105

C

124

3

P

12V 12V

123

4

J64

C

124

3

P

LEDLED

12VRG

B

12VRG

B

1100

302410

20

LEDLED

12VRG

B

12VRG

B

300

102030

40P

808024

123

4

J1

124

3

VH

GND

GND

12V

12V

GND

12V

J2

White 3528 light 1000mm

12V

GND

12V

GND

A0

24

White 3528 light 81 5mm

12V

GND 12V GND

A0

24

White 3528 light 650mm

12V

GND

12V

GND

A0

24

White 3528 light 65 0mm

1

2

J19

C

1

2

P

12V

GND

12V

GND

A0

24

A0

24

White 3528 light 1000mm

12V

GND

12V

GND

A0

24

White 3528 light 81 5mm

12V

GND

12V

GND

White 3528 light 450mm

12V

GND

12V

GND

A0

24

White 3528 light 35 0mm

A0

24

2P Green light

2P Red light

2P Blue light

405060

241020

30

241020

30

241020

30

405060

24

1P Control panel light

1P Lane R side light

123

4

J62

C

124

3

P

LEDLED

12VRG

B

12VRG

B

2000mm

123

4

J61

C

124

3

P

1P Lan e L side light

LEDLED

12VRG

B

12VRG

B

2000mm

123

4

J60

C

124

3

P

LEDLED

12VRG

B

12VRG

B

1100

302410

20

LEDLED

12VRG

B

12VRG

B

300

40×3

50×3

60×3

24×3

10×3

20×3

30×3

24×3

102030

24

102030

24

102030

24

102030

24

102030

24

102030

24

10×2

20×2

30×24050

60

405060

24

24

24

1P Senser assy.

2P Senser Ass y.

102030

40P

405060

24

JSBL-PX-27

JSBL-PX-31

929194

93

929194

93

929194

93

929194

93

929194

93

241020

30

241020

30

32"Display(marquee)

DVI port

10P

45Q

60P

123

HM

123

J06

HF

10P

45P

60P

HDMI po rt

123

4

J43

VH

10M91A0

24

1# Tik dispesner

341

2

341

2

J1

Tik con v e r ted boa rd

TIC K- CH . PC B

341

2

J3

214

3

VH

HX5030 0-4RF

123

4

J1

60×2 60

20×220A0×2A090×2

90

45Q

1# Coin signal

GND

+12V

1# Tik sign al

Lock coin s ig n al

1# Tik d rive

6020A09050

123456789

J45

AAMA C 5 03 0 HF-3 X3 P

123

J42

C

123

P

20

10

123

4

J44

VH

20M92A0

24

2# Tik dispenser

341

2

341

2

J1

Tik converted board

TIC K- CH . PC B

341

2

J3

214

3

VH

HX5030 0-4RF

123

4

J1

60×2 60

20×220A0×2A090×2

90

45Q

2# Coin signal

GND

+12V

2# Tik sign al

Lock coin s ig n al

2# Tik d rive

6020A09050

123456789

J46

AAMA C 5 03 0 HF-3 X3 P

50

50

JSBL-PX-22G

92

A0

2# Cashier

10

60

J10

876

4

C4140HM-9P

91

A0

1# Cashier

10

60

J09

876

4

C4140HM-9P

123

4

J41P

P

A09291

A0

10×2

45Q×2

60×2

10P

45Q

60P

123

HM

123

J08

HF

10P

45Q

60P

123

HM

123

J07

HF

JSBL-PX-41G

Cashier to JSBL -PX-19G -J41C

2P Coin mete r

2P Tik meter

93

94

93

94

93

94

93

94

2P Co in mete r

2P Tik meter

80

80

45Q

MPD2-15 6

FRD2-156

USB-A

USB PORT Video port

WIRING DIAGRAM

Lane Master Manual

44

1 2 3 4 5 6 78

A

B

C

D

8

7654321

D

C

B

A

Name:

Date:

Version:

9-Jan-2017

123456789

ABCDEFGHI

brown

red

orange

yellow

green

blue

violet

grey

white

black

pink

light green

sky blue

shield layer

JKLMNOP

Q

AWG30 UL1007

AWG28 UL1007

AWG26 UL1007

AWG24 UL1007

AWG22 UL1007

AWG20 UL1007

AWG18 UL1007

AWG16 UL1007

Note: Wire colo r and wire size is shown in code.

Wire color code

Wire s ize c ode

Tolerance

unit mm

scale

:

0~1000

1001~200 0

2001~300 0

3001~400 0

4001~500 0

±10

±20

±30

±40

±50

Example 2 0 m

Color of the wire: 20 m ean s red

Size of the wire: m means AWG24 UL1007

Univ ersa l Spa ce

Amusement machine

UNIS

V1.0

Lane maste r GMP wiring 2

JSBL-PX-00-02G

GND

12V 1

2

J1

1

2

XH

LED-SP.PCB V1.0

24

A0

1P L sp eaker light

Sensor project 4 Sensor receive 5

1
2
3

J70

C

10M

60M

10M

A0M

60M

Track sensor

（

L

）

Sensor receive 4

10M

A0M

60M

123

J

E3 F-DS 5C 4

1
2
3
P

1
2
3

J72

C

1
2
3

P

1
2

J69

C

1
2
P

Sensor project 3

10M

60M

1
2

J68

C

1
2
P

Sensor receive 2

1
2
3

J67

C

10M

A0M

60M

1
2
3
P

Senso r receive 1

10M

60M

1
2

J66

C

1
2
P

Sensor receive 3

10M

A0M

60M

1
2
3

J73

C

1
2
3
P

10M

60M

1
2

J75

C

1
2

P

Sensor receive 1

10M

A0M

60M

1
2
3

J76

C

1
2
3
P

Sensor project 5

10M

60M

1
2

J74

C

1
2

P

Sensor project 2

Track sensor

（

R

）

123456789

10

J55

P

10M

20M

30M

40M

60M

70M

50M

91M

92M

93M

97M

94M

95M

96M

A0

24

A0

24

123

4

J65

C

123

4

P

10M

20M

30M

50M

40M

40M

A0

24

12345

6

J71

C

12345

6

P

10M

30M

A0

24

1P Trac k sensing

1

2

C

1

2

J80

P

123

J83

C

123

P

12V

GND

12V

GND

A0

24

A0

24

123

J82

C

A0

24

123

P

A0

24

Purple 5050 light (600mm)

GND

12V 1

2

J1

1

2

XH

LED-SP.PCB V1.0

24

A0

1P R speaker lig ht

123

J84

C

A0

24

123

P

OUT

12V

GND

123

J78

XH

12345

6

P

MOC70T4.PCB V1.1

1P Motor initial position

1P Ball sensor

12345

6

J77

C

1P Ball out light

60

60M

10

A0

24

A0

60M

A0

24

20M

50M

A0

24

40M

10M

30M

A0

24

A0

24

70M

A0

24

60M

A0

24

A0×4

24×4

GND

12V 1

2

J1

1

2

XH

LED-SP.PCB V1.0

24

A0

2P L sp eaker light

123

J

1

2

C

1

2

J100

P

123

J102

C

123

P

12V

GND

12V

GND

A0

24

A0

24

123

J101

C

A0

24

123

P

A0

24

GND

12V 1

2

J1

1

2

XH

LED-SP.PCB V1.0

24

A0

2P R speaker lig ht

123

J103

C

A0

24

123

P

OUT

12V

GND

123

J98

XH

12345

6

P

MOC70T4.PCB V1.1

2P Motor initial position

12345

6

J97

C

2P Ball out light

60M

A0

24

60M

A0

24

92M

95M

A0

24

94M

91M

93M

A0

24

A0

24

97M

A0

24

96M

A0

24

A0×4

24×4

123456789

101112

J106

P

123

4

J85

C

123

4

P

12345

6

J91

C

12345

6

P

24

A0

1P L p lastic light

123

J81

C

A0

24

123

P

24

A0

2P R plastic light

123

J104

C

A0

24

123

P

24

A0

1P R p lastic light

123

J64

C

A0

24

123

P

40P

24×6

A0P

A0×6

40P

24×6

A0P

A0×6

12V

GND

12V

GND

Blue 3528 light (2100 mm)

12V

GND

12V

GND

Blue 3528 light (2100 mm)

12V

GND

12V

GND

Blue 3528 light (1650 mm)

JSBL-PX-32

JSBL-PX-33

JSBL-PX-34

JSBL-PX-37

JSBL-PX-36

123

J79

C

123

P

70M

A0

24

E3 F-DS 5C 4

2P Ball sensor

60

10

A0

123

J99

C

123

P

70M

A0

24

JSBL-PX-35

JSBL-PX-38

A0

24

A0

24

A0

24

A0

24

20M

50M

A0

24

A0

24

A0

24

A0

24

24×5

A0×5

24×5

A0×5

Sensor p roject 4 Sen sor recieve 5

1
2
3

J66

C

10M

60M

10M

A0M

60M

Track senso r

（

L

）

Sens or reciev e 4

10M

A0M

60M

1
2
3
P

1
2
3

J76

C

1
2
3
P

1
2

J67

C

1
2
P

Sensor project 3

10M

60M

1
2

J68

C

1
2
P

Sensor reci eve 2

1
2
3

J69

C

10M

A0M

60M

1
2
3
P

Sensor project 1

10M

60M

1
2

J70

C

1
2
P

Sensor reci eve 3

10M

A0M

60M

1
2
3

J75

C

1
2
3
P

10M

60M

1
2

J73

C

1
2

P

Sensor project 1

10M

A0M

60M

1
2
3

J72

C

1
2
3
P

Sensor project 5

10M

60M

1
2

J74

C

1
2

P

Sensor project 2

Track sensor

（

R

）

A0

24

A0

24

10M

20M

30M

50M

40M

40M

A0

24

10M

30M

A0

24

2P Trac k sensing

A0

24

A0

24

A0

24

A0

24

20M

50M

A0

24

A0

24

A0

24

A0

24

24×5

A0×5

24×5

A0×5

Purple 5050 light (600mm)

91M

92M

93M

97M

94M

95M

96M

123456789

101112

J63

P

40P

A0P

91M

92M

93M

97M

94M

95M

96M

A0P

40P

123456789

101112

J106

C
