Universal Space Dizzy Lizzy Operation Manual

Operation Manual

www.universal-space.com

IMPORTANT

Dizzy Lizzy STD Manual

03/14/2018

1

CONTENT

IMPORTANT SAFETY INSTRUCTIONS ........................................................................ 3

1. SPECIFICATIONS ..................................................................................................... 5

2. PACKAGE CONTENTS .............................................................................................. 7

3. PART NAME .............................................................................................................. 8

4. SET UP & INSTALLATION ........................................................................................ 9

5. HOW TO PLAY ........................................................................................................ 12

6. IO SETTING ............................................................................................................. 13

7. TROUBLE SHOOTINGS .......................................................................................... 17

8. MAINTENANCE & INSPECTION ........................................................................... 20

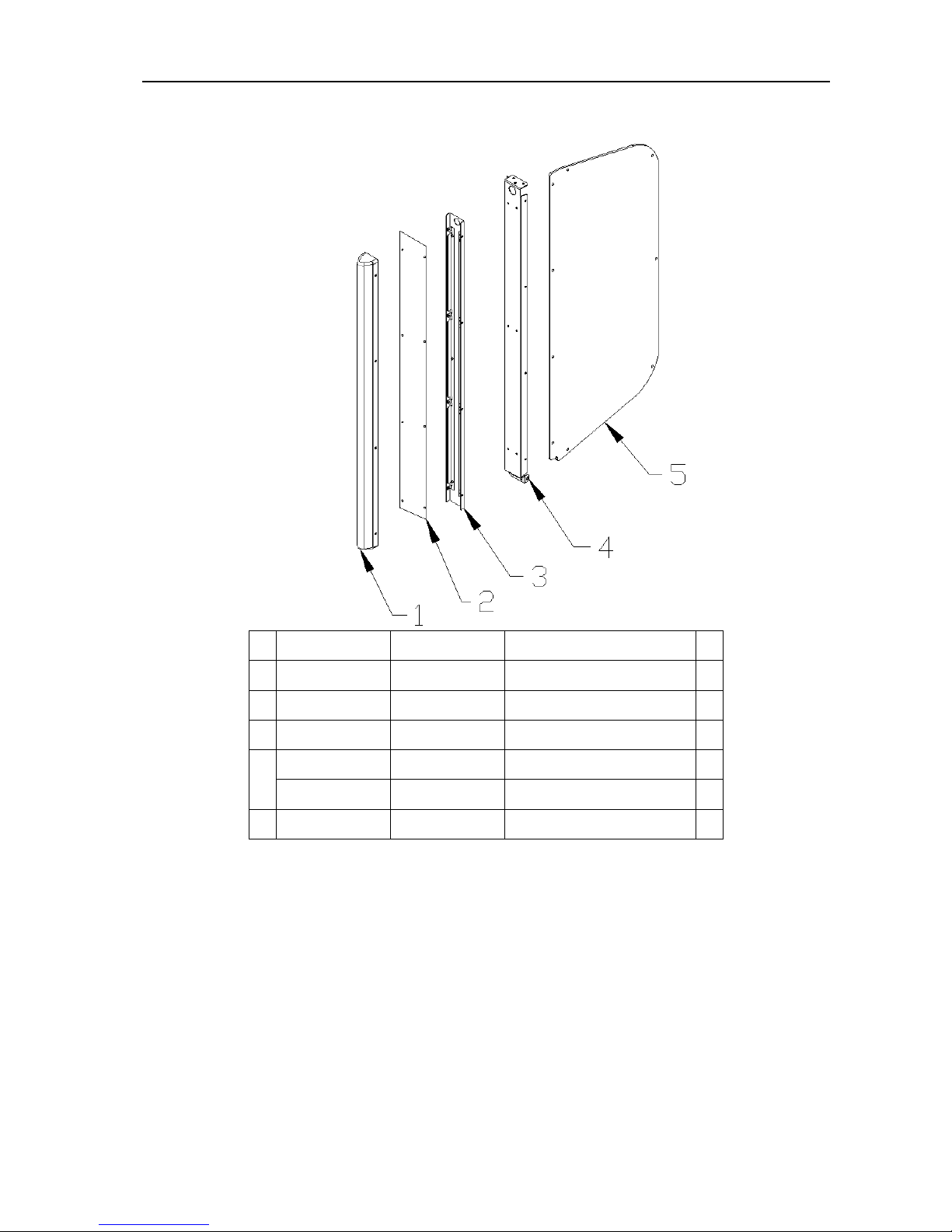

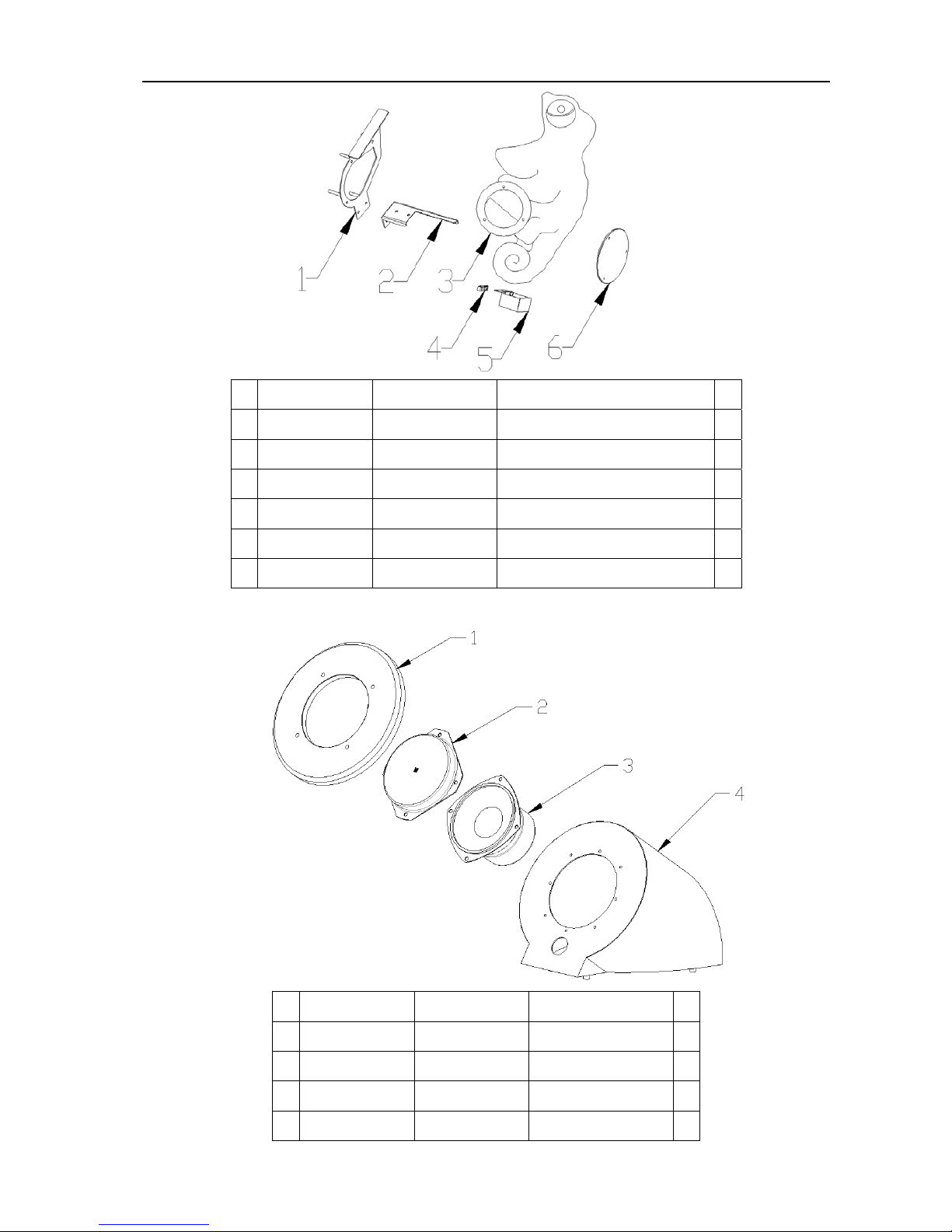

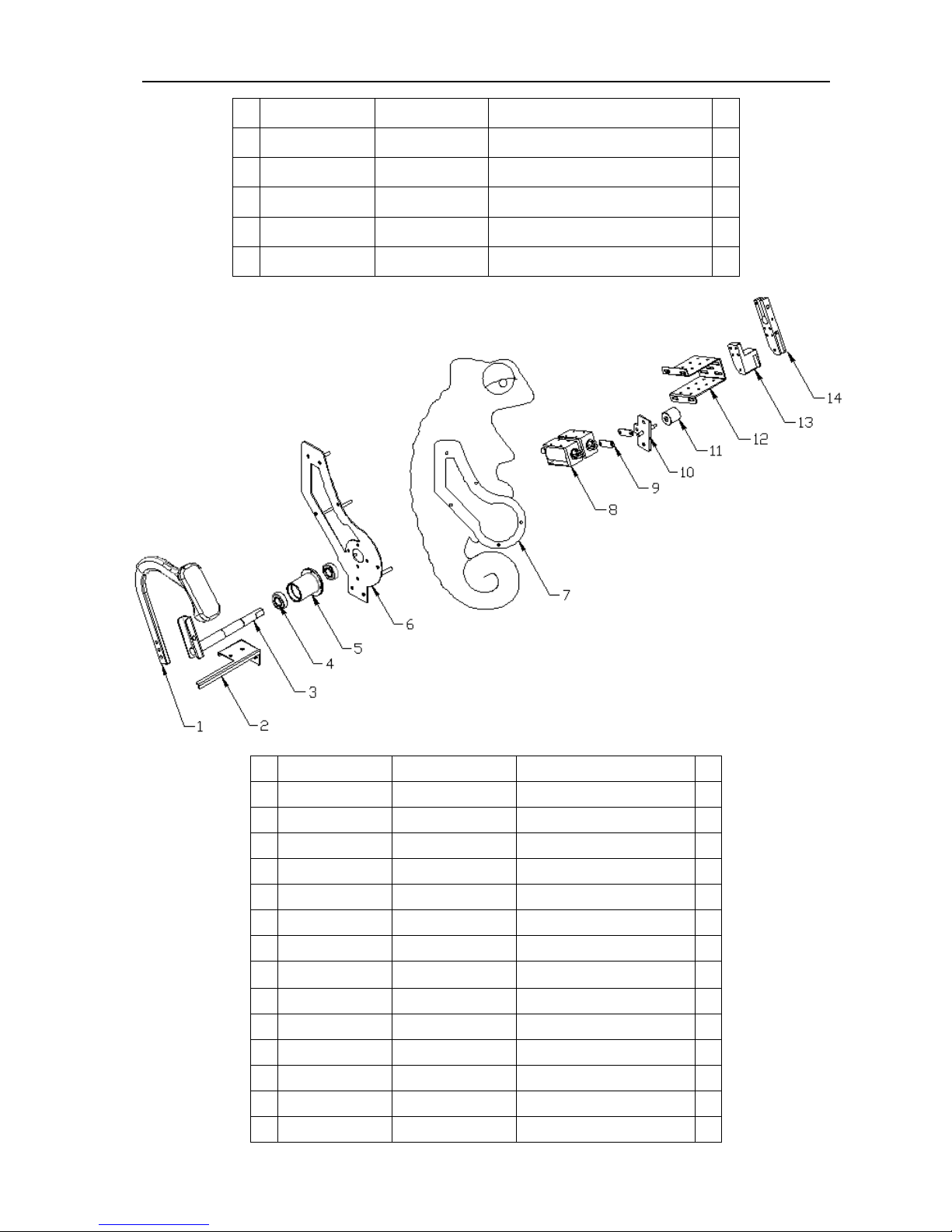

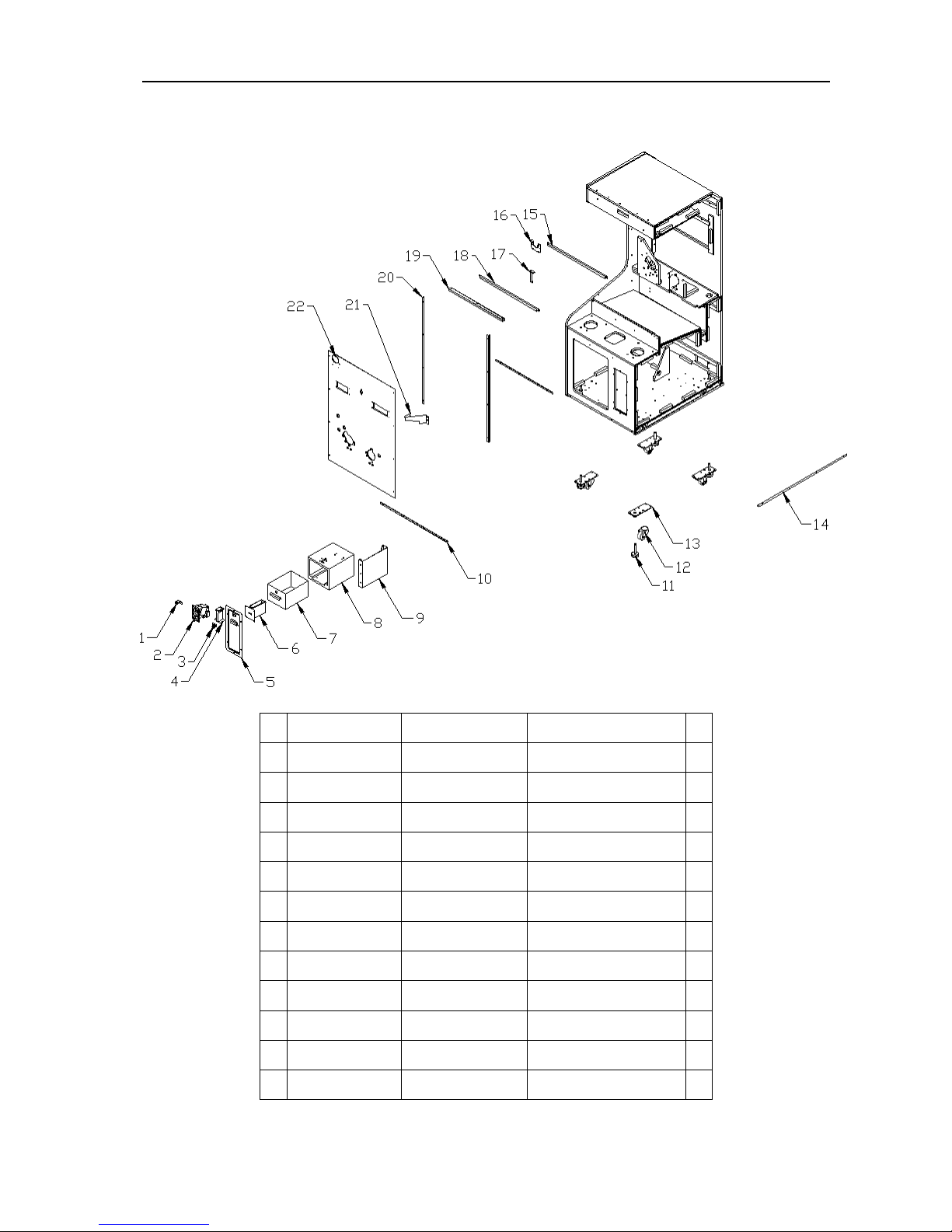

9. OVERALL CONSTRUCTION ................................................................................... 20

Dizzy Lizzy STD Manual

03/14/2018

2

WE ARE HERE TO ASSIST

For parts and service

Have Questions? Contact us!

UNIS SERVICE CENTER

Tel: 972-241-4263

Fax: 214-919-4918

Email: [email protected]

Dizzy Lizzy STD Manual

03/14/2018

3

Thank you for purchasing Dizzy Lizzy. We hope you enjoy the product.

This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation. Carefully read and understand the instructions. If you need any help during installation and setup please utilize this manual and troubleshooting guide. If the product fails to function properly, non-technical personnel should under no circumstance attempt to service the machine. Contact your distributor or manufacturer for help. Before use, please read IMPORTANT SAFETY INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS

To ensure the safe usage of this product, carefully read and understand these instructions before operating your game. Save these instructions for future reference.

Use this product only as described in this manual. Other uses not recommended may cause fire, electric shock or personal injury. Unplug the game from the outlet when not in use, when moving from one location to another, and before cleaning/servicing. Explanations which require special attention are indicated by signs of warning. Depending on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used. NOTE: A NOTE indicates useful hints or information about product usage. NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem. WARNING: A WARNING indicates a potential for product damage or serious personal Injury. It is important to understand the meaning of the following HAZARD SIGNS before continuing:

High Voltage and Shock Hazard:

High voltage can cause electric shock.

Turn off/unplug power before servicing.

High Temperature Hazard:

This part may cause scalding.

Do not touch. Surface may be hot.

No Touching Hazard:

This part may be hot or can cause electric shock.

Do not touch.

Dizzy Lizzy STD Manual

03/14/2018

4

Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage.

This product is an indoor game machine. Do not install

outdoors.

Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning:

 Places subject to rain/moisture, or places subject to high humidity.

 Places subject to direct sunlight, or places subject to extremely hot or cold

temperatures to ensure that it is used within the specified operating range.

 Places where inflammable gas may be present or in the vicinity of highly

inflammable/volatile chemicals or items that can easily catch fire

 On unstable or sloped surfaces. The machine may topple or cause unforeseen

accidents.

 Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures

IMPORTANT NOTE: ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS. FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL RISKS.

Note: The contents of this manual may be updated without notice.

Dizzy Lizzy STD Manual

03/14/2018

5

1. SPECIFICATIONS

Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz

Min. Power consumption: 70W

Max. Power consumption: 135W

Dimension: W29×D 38×H 86 in

Weight：Approximately 322 lb

Part No.: D137

Model No: A-406

NOTICE: After turning off the game, please wait at least 1 minute

before restarting again.

Note: Game parameters are subject to change without notice.

Dizzy Lizzy STD Manual

03/14/2018

6

The dimension of the game during transportation.

W29×D38×H75.2 in

Note: Game specifications are subject to change without notice.

Dizzy Lizzy STD Manual

03/14/2018

7

2. PACKAGE CONTENTS

Open the package and make sure all the items are included:

1. Following accessories

No. Part No. Code No. Name QTY Picture

1 D140-301-000 20101048005

Hexagon flat round head

screws

2

2 D140-302-000 20113000053

C large washer 2

3 D140-303-000 25300171002

Key 2

4 D140-304-000 25300172002

Key 2

5 D140-305-000 410000170 Ping pong(yellow) 7

6 D140-306-000 410000171 Ping pong(red) 7

7 D140-307-000 410000172 Ping pong(blue) 7

8 D140-308-000 21901000013

Fuse(Φ5×20mm T10A ) 1

9 D140-309-000 23301000001

Power cord 1

10 D140-310-000 Manual 1

NOTE: Part models are subject to change without notice.

Dizzy Lizzy STD Manual

03/14/2018

8

3. PART NAME

Coin Assy.

Marquee Assy.

Ticket dispenser Assy.

Display

J

oystick

Dizzy Lizzy STD Manual

03/14/2018

9

4. SET UP & INSTALLATION

This product is an indoor game machine. Do not install outdoors.

 Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by

wall.

4.1 Transporting the Game

If you need to move the game, adjust the levelers back to an “up” position.

NOTICE

 Be careful not to damage the machine during transport.  Always unplug the game before moving.  Keep the machine in upright position during transport.  For longer distance transport, package the game properly to prevent damages.

4.2 Level Adjustment

Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game

. If the game is installed on an unsuitable floor, it could cause game malfunction.

To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 0.2 in. Repeat the same for all levelers.

Leveler Caster

Move F

i

Caster

Leveler

About 0.2 in

Move

Fix

NOTICE

Make sure the machine is level.

We do not recommend using power tools as they may cause damage.

NOTICE

Dizzy Lizzy STD Manual

03/14/2018

10

4.3 Play Zone

This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation:

Service area: 20 in

Service area

Play area

Your unit must be leveled to operate properly.

NOTICE

Dizzy Lizzy STD Manual

03/14/2018

11

4.4 Marquee installation

Before processing with assembly assure you have the following tool.

No. Part No. Code No. Name Picture Qty

1 D140-301-000 20101048005

Hexagon flat round head

screws

2

2 D140-302-000 20113000053 C large washer

No.

Name Picture

Use for

1

Allen hexagon wrenches

Marquee installation

Use Hexagon flat round head screws and C large washers to

lock the marquee.

Dizzy Lizzy STD Manual

03/14/2018

12

5. HOW TO PLAY

Dizzy Lizzy STD Manual

03/14/2018

13

6. IO SETTING

6.1 Adjustment button instruction

6.2 IO setting

SW 1

Open the coin door and there is a meter panel. Press test button to get into the setting menu.

Settings Test Reset

Item Content

SW1

1 2

1

ON ON

Coin 2

off on

per game 3

on off

4

off off

Item Content

SW1

3 4 5

10 balls

on

on on

Balls 15 balls

off on on

per game 20 balls

ON

OFF ON

30 balls

off off on

40 balls

on

on off

50 balls

off on off

Item Content

SW1

6

Ticket

1：1

ON

payout ratio*

2：1

off

Item Content

SW1

7

Demo

Yes ON

music

No off

Item Content

SW1

8

Save

Yes ON

Memory

No off

Ticket

payout ratio*

1：1

Ticket payout as one to one

2：1

Ticket payout will be divided by 2

Dizzy Lizzy STD Manual

03/14/2018

14

SW 2

SW 3

Item Content

SW2

1 2 3

A group

ON ON ON

Bonus B group

off on on

Score C group

on off on

D group

off off on

E group

on on off

Item Content

SW2

4 5 6

200

on on on

Bonus 300

off on on

Payout 400

on off on

Ticket

500

off off on

600

ON ON OFF

800

off on off

1000

on off off

1500

off off off

Item Content

SW2

7

Ticket

payout

Yes ON

No off

Item

Content

SW2

8

Out of

Continue ON

ticket

Call attendant off

Item Content

SW3

1 2 3

4

A

on on on

on

Score

B

off on on on

groups C

on off on on

D

OFF OFF ON ON

CEC

off off off

off

Item Content

SW3

5

Shoot ball

Continuously on

Mode*

Once OFF

Bonus score:

Balls per game

A group B group C group D group E group

10 balls 1000 900

15 balls 1500 1400

20 balls 2000 1900 1800

30 balls 3000 2900 2800 2700

40 balls 4000 3900 3800 3700 3600

50 balls 5000 4900 4800 4700 4600

Shoot ball mode**:

Continuously:

Player pulls the joystick and hold still, the tongue will move in and out continuously.

Once:

Player pulls the joystick once, the tongue moves once. Players need to pull the joystick repeatedly.

Dizzy Lizzy STD Manual

03/14/2018

15

10 balls score group:

Score 0-400 500-600 700

800 - ＜bonus score ≧bonus score

A 1 ticket(s) 5 ticket(s) 15 ticket(s)

20 ticket(s) bonus ticket(s)

B 3 ticket(s) 10 ticket(s) 20 ticket(s)

30 ticket(s) bonus ticket(s)

C 5 ticket(s) 15 ticket(s) 30 ticket(s)

50 ticket(s) bonus ticket(s)

D 10 ticket(s) 20 ticket(s) 50 ticket(s)

100 ticket(s) bonus ticket(s)

CEC 1 ticket(s) 3 ticket(s) 5 ticket(s) 7 ticket(s) bonus ticket(s)

15 balls score group:

Score 0-700 800-900 1000-1100

1200 - ＜bonus score ≧bonus score

A 1 ticket(s) 5 ticket(s) 15 ticket(s)

20 ticket(s) bonus ticket(s)

B 3 ticket(s) 10 ticket(s) 20 ticket(s)

30 ticket(s) bonus ticket(s)

C 5 ticket(s) 15 ticket(s) 30 ticket(s)

50 ticket(s) bonus ticket(s)

D 10 ticket(s) 20 ticket(s) 50 ticket(s)

100 ticket(s) bonus ticket(s)

CEC 1 ticket(s) 3 ticket(s) 5 ticket(s) 7 ticket(s) bonus ticket(s)

20 balls score group:

Score 0-900 1000-1300 1400-1500

1600 - ＜bonus score ≧bonus score

A 1 ticket(s) 5 ticket(s) 15 ticket(s)

20 ticket(s) bonus ticket(s)

B 3 ticket(s) 10 ticket(s) 20 ticket(s)

30 ticket(s) bonus ticket(s)

C 5 ticket(s) 15 ticket(s) 30 ticket(s)

50 ticket(s) bonus ticket(s)

D 10 ticket(s) 20 ticket(s) 50 ticket(s)

100 ticket(s) bonus ticket(s)

CEC 1 ticket(s) 3 ticket(s) 5 ticket(s) 7 ticket(s) bonus ticket(s)

30 balls score group:

Score 0-1400 1500-2000 2100-2300

2400 - ＜bonus score ≧bonus score

A 1 ticket(s) 5 ticket(s) 15 ticket(s)

20 ticket(s) bonus ticket(s)

B 3 ticket(s) 10 ticket(s) 20 ticket(s)

30 ticket(s) bonus ticket(s)

C 5 ticket(s) 15 ticket(s) 30 ticket(s)

50 ticket(s) bonus ticket(s)

D 10 ticket(s) 20 ticket(s) 50 ticket(s)

100 ticket(s) bonus ticket(s)

CEC 1 ticket(s) 3 ticket(s) 5 ticket(s) 7 ticket(s) bonus ticket(s)

40 balls score group:

Score 0-1900 2000-2700 2800-3100

3200-＜bonus score ≧bonus score

A 1 ticket(s) 5 ticket(s) 15 ticket(s)

20 ticket(s) bonus ticket(s)

B 3 ticket(s) 10 ticket(s) 20 ticket(s)

30 ticket(s) bonus ticket(s)

C 5 ticket(s) 15 ticket(s) 30 ticket(s)

50 ticket(s) bonus ticket(s)

D 10 ticket(s) 20 ticket(s) 50 ticket(s)

100 ticket(s) bonus ticket(s)

CEC 1 ticket(s) 3 ticket(s) 5 ticket(s) 7 ticket(s) bonus ticket(s)

Dizzy Lizzy STD Manual

03/14/2018

16

Item Content

SW4

1

Game

Free on

mode

Coins OFF

Item Content

SW3

6 7 8

Random

ON ON ON

Side Red

off on on

light& Blue

on off on

Speaker Green

off

off on

light Yellow

on on off

Purple

off on off

Blue

on off off

White

off off off

50 balls score group:

Score 0-2400 2500-3400 3500-3900

4000 - ＜bonus score ≧bonus score

A 1 ticket(s) 5 ticket(s) 15 ticket(s)

20 ticket(s) bonus ticket(s)

B 3 ticket(s) 10 ticket(s) 20 ticket(s)

30 ticket(s) bonus ticket(s)

C 5 ticket(s) 15 ticket(s) 30 ticket(s)

50 ticket(s) bonus ticket(s)

D 10 ticket(s) 20 ticket(s) 50 ticket(s)

100 ticket(s) bonus ticket(s)

CEC 1 ticket(s) 3 ticket(s) 5 ticket(s) 7 ticket(s) bonus ticket(s)

Dizzy Lizzy STD Manual

03/14/2018

17

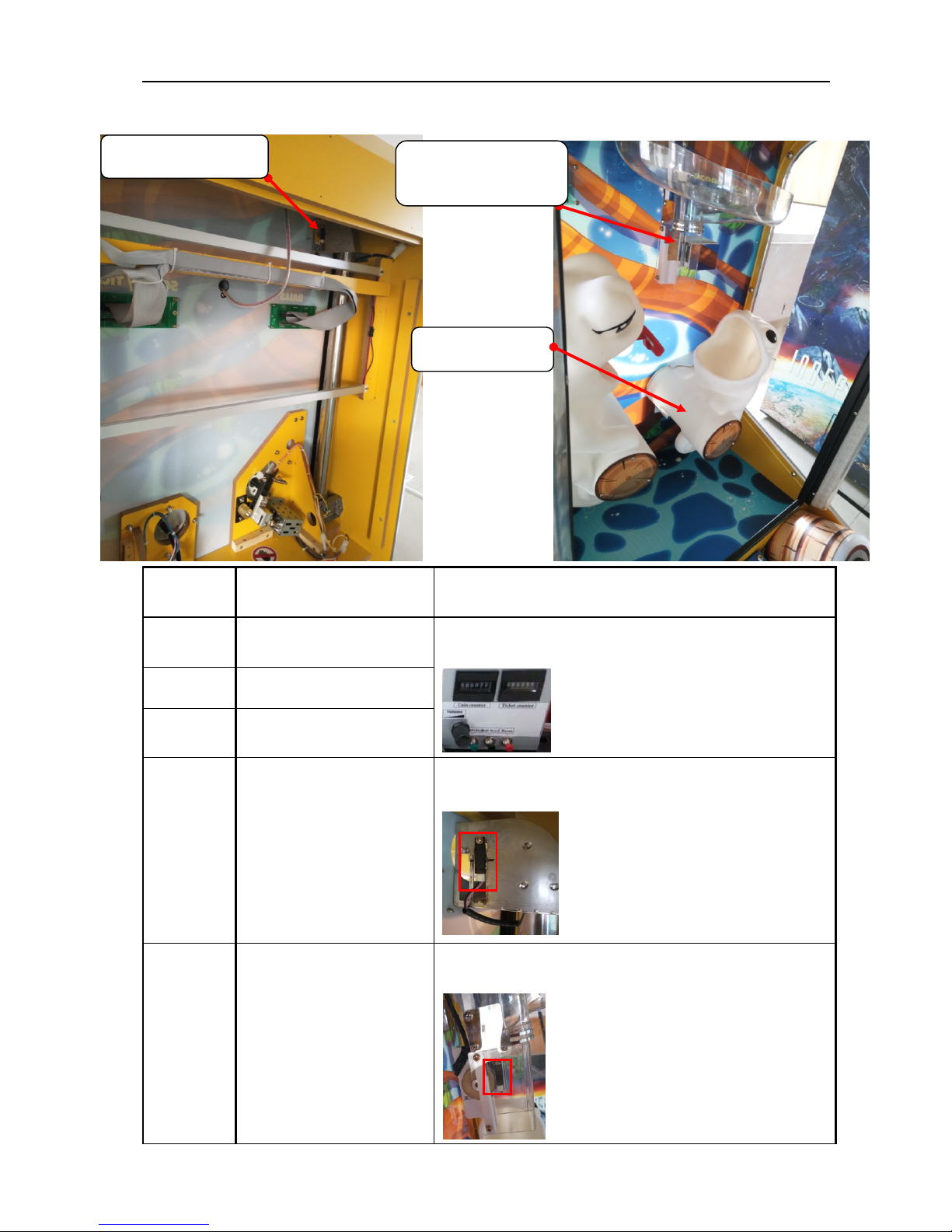

7. TROUBLE SHOOTINGS

7.1 Common Problem Please confirm whether every connector connected tightly.

Symptom Possible Cause Recommended action

Game will not

start

Frame assembly connector is

loose.

Plug the connector tightly.

Frame assembly fault Contact with UNIS Service.

Power cutting

Circuit protector make power SW

in cutting state

Turn on power SW again. If appeared

again and again, machine has

anomaly. Please contact with UNIS

Service.

Game will not

coin up

Coin mech. fault or sample coin

not installed.

Change coin mech. or sample coin.

Coin mech. signal cable loose. Check coin mech. signal cable loose.

IO control board no signal. Change IO board.

No ticket

dispensing

Out of ticket. Add ticket and press reset button

Ticket jamming.

Remove the jammed tickets and press

reset button.

Wrong connection. Check the connections.

No sound

Volume set too low. Raise the volume.

Connector loose. Plug in connector tightly.

PCB fault. Change PCB.

Speaker fault. Change speaker.

POT installation error. Install POT correctly.

POT fault. Change POT.

Audio cable problem.

Reconnect the audio cable or change

it.

PC crash. Restart or system recovery.

Driver problem Restart the audio driver.

Dizzy Lizzy STD Manual

03/14/2018

18

7.2 Error co de

If you see following error code showing on the display, please try the recommended action.

Error Code

Error Recommended action

Er01 Settings button

Check the connection of the buttons. Replace the buttons.

Er02 Test button

Er03 Reset button

Er04 Ball deliver sensor error

Check the connection of the sensor. Replace the sensor.

Er05

Ball out counting sensor error

Check the connection of the sensor. Replace the sensor.

Ball deliver sensor

Ball out counting

sensor

Score sensor

Dizzy Lizzy STD Manual

03/14/2018

19

Error Code

Error Recommended action

Er06

Joystick button error

Check the connection of the button. Replace the button.

Er09

Score sensor error

Check the connection of the sensor. Replace the sensor.

HELP Out of ticket

Please check the connection. Add ticket or remove the jammed tickets, then press reset button.

E83

Coin mech. error

Change coin mech. or sample coin. Check the connection. Replace the Coin mech.

E84

Coin mech. error

Change coin mech. or sample coin. Check the connection. Replace the Coin mech.

Dizzy Lizzy STD Manual

03/14/2018

20

8. MAINTENANCE & INSPECTION

8.1 Safety Check

Check the points listed before operating the machine. These checks are necessary for safe machine operation:

1. Test game before operation each day.

2. Conduct monthly routine checks of game components ensure good working condition

3. Check the machine regularly for dust and clean when necessary. Note: Parts and components require preventative maintenance to maintain proper operation.

8.2 Handling Precautions

When installing or inspecting the machine, be very careful of the following points and

pay attention to ensure that the player can enjoy the game safely. Non-compliance with the following points or inappropriate handling running counter to the

cautionary matters herein stated can cause personal injury or damage to the machine

9. OVERALL CONSTRUCTION

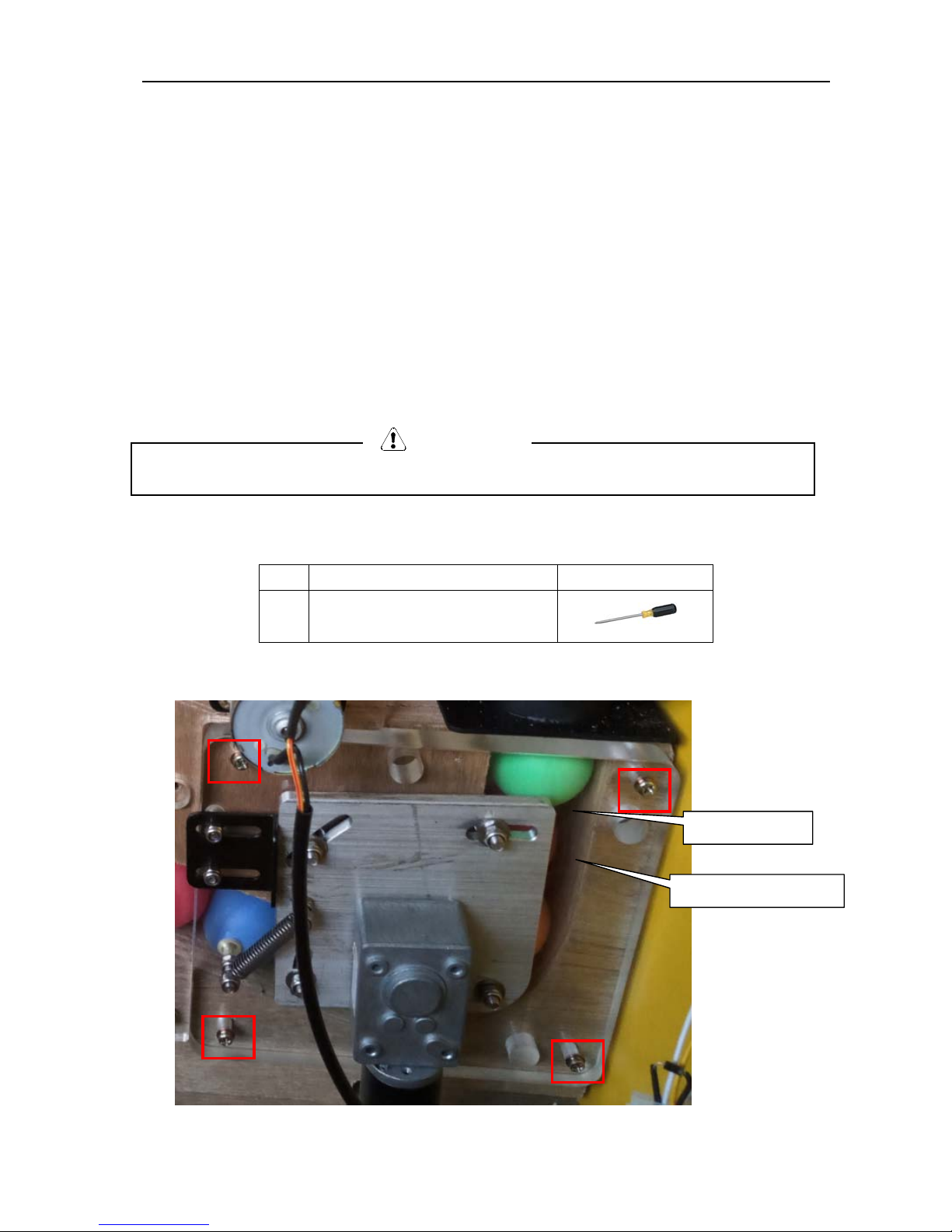

8.3 How to clean the send ball Assy.

Step1 Open the back door of the cabinet and remove four screws as picture shown (Red

area) to take out the assembly for cleaning.

No.

Name


1

Phillips screwdriver

We do not recommend using power tools as they may cause damage.

NOTICE

Clean the ball track.

Clean the ball

Dizzy Lizzy STD Manual

03/14/2018

21

Step2 After cleaning balls, open the front window to put balls back through the mouth of

the small character.

8.4 How to fix balls cannot be sent out problem

If the send ball Assy. is unable to send ball, that is because the send ball Assy. may gradually lose the friction after running a period of time. Please adjust the friction. Loosen the screws and move the black metal plate to the right side to increase the friction, and adjust it until the send ball Assy. works well.

Put balls back through the mouth.

Dizzy Lizzy STD Manual

03/14/2018

22

9. OVERALL CONSTRUCTION

9.1 General Assembly

No.

Part No. Code No. Name Qty

1 D140-427-000 25300171001

Lock 1

2 D140-411-000 22301000002

Coin mech. 1

3 D140-428-000 25300172001

Lock 1

4 D140-102-000 20211703D001

Coin slot 1

5 D140-170-000 26000018000

Ticket door 1

6 D140-420-000 23100000005 Ticket dispenser 1

7 D140-105-000 20211703003

Coin inner box 1

8 D140-503-000 20311703D005 Coin outer box 1

9 D140-166-000 26000006000

Ticket box 1

10 D140-103-000 20211703002 Front & back binding 2

11

D140-167-000 26000008000

2.5“leveller 4

12 D140-429-000 25501000056

2.5“ caster 4

Dizzy Lizzy STD Manual

03/14/2018

23

9.2 Send ball Assy.

No. Part No. Code No. Name Qty

13

D140-168-000 26000010000

Caster bracket 4

14 D140-101-000 20211703001

Side binding 2

15 D140-408-000 22003080017

5630 light(LC60cm) 2

16 D140-134-000 20211703050

Ball out fix plate 1

17 D140-136-000 20211703061

Ball track (down) plate 1

18 D140-407-000 22003080001

5630 light 1

19 D140-152-000

20211703032 Front baffle(up) 1

20 D140-106-000

20211703004 Main decal side mounting plate 2

21 D140-107-000

20211703005 Ball baffle 1

22 D140-703-000

20511703003 Main decal 1

Dizzy Lizzy STD Manual

03/14/2018

24

No. Part No. Code No. Name Qty

1 D140-425-000 23404010004

Motor 1

2 D140-109-000 20211703045 Send ball motor mounting plate 1

3 D140-602-000 20611703005

Send ball motor fix plate 1

4 D140-110-000 20211703046

Send ball spindle 1

5 D140-605-000 20611703031

Spin ball wheel 1

6 D140-123-000 20211703054

Ball pipe retaining plate 2

7 D140-502-000 29911703002

Send ball bracket 1

8

D140-120-000

20211703051

Send ball pipe(down) 1

D140-121-000 20211703052

Send ball pipe(up) 1

9 D140-117-000 20211703012

Send ball pipe connector 1

10 D140-124-000 20211703014

Ball pipe fix plate 2

11 D140-122-000 20211703053

Send ball pipe(up) 1

12

D140-604-001 20611703006A

Retaining plastic 2

13 D140-113-000 20211703009

Hinge mounting plate 1

14 D140-115-000 20211703010

Connecting rod 1

15 D140-114-000 20211703056

Connecting rod sleeve 2

16 D140-112-000 20211703008

Shaft 1

17 D140-431-000 26300020034

Hinge 1

18 D140-116-000 20211703011 Vibration plate-connecting bracket 1

19 D140-501-000 20311703035

Vibration plate 1

20 D140-601-000 20611703004

Ball track cover 1

21 D140-118-000 20211703013

Send ball limited plate 1

22 D140-111-000 20211703007 Vibration motor mounting plate 1

23 D140-423-000 23404000232

Motor 1

Dizzy Lizzy STD Manual

03/14/2018

25

9.3 Marquee Assy.

No. Part No. Code No. Name Qty

1

D140-702-000 20511703002

Marquee decal

1

2 D140-438-000 29790800008

Display 1

3 D140-625-000 20611703002 Front light plastic plate 1

4 D140-626-000 20611703D001 Small marquee decal plate 1

5 D140-627-000 20611703003 Small marquee plastic plate 1

6 D140-503-00 20311703034 Small marquee back plate 1

7 D140-407-000 22003080001

5630 light(LC50cm) 1

8 D140-165-000 20211703055

Small marquee hinge 1

Dizzy Lizzy STD Manual

03/14/2018

26

9.4 Ball drop assy.

No. Part No. Code No. Name Qty

1 D140-127-000 20211703017

Ball drop motor cover 1

2 D140-403-000 21501000026

Sensor 1

3 D140-424-000 23404000233

Motor 1

4 D140-129-000 20211703018

Cable square tube 1

5 D140-126-000 20211703016 Ball drop motor mounting plate 1

6

D140-128-001 20211703047A

Friction gear bracket 1

7 D140-607-000 20611703021

Friction gear 1

Dizzy Lizzy STD Manual

03/14/2018

27

No. Part No. Code No. Name Qty

8 D140-125-000 20211703015 Send ball pipe(down) fix plate 1

9 D140-606-000 20611703007

Ball pipe(down) cover 1

10 D140-130-000 20211703048

Track pressing plate 1

11 D140-131-000 20211703049

Track fix plate 1

12

D140-608-000 20611703008

Ball track 1

9.5 Shoot ball assy.

No. Part No. Code No. Name Qty

1

D140-611-001 20611703020A

Bat 1

2

D140-146-000

20611703017 model Support plate

1

3 D140-138-000 20211703023

Spindle 1 4 D140-308-000 20106000082 Deep groove ball BR 2 5 D140-137-000 20211703022

BR bracket 1

6 D140-140-000 20211703024

Bed plate 1

7 D140-612-000 20611703014

Large character 1

8 D140-426-000 23501000041

Magnetic valve 2

9 D140-144-000 20211703027 Magnetic valve rod 2

10 D140-143-000 20211703026

Limited plate 1

11

D140-613-001 20611703015A

Limited block 1 12 D140-142-000 20211703B007 Magnetic valve fix plate 1 13 D140-147-000 20211703062 Magnetic valve block 1 14 D140-141-000 20211703057 Magnetic valve pull rod 1

Dizzy Lizzy STD Manual

03/14/2018

28

9.6 Ball in assy.

No. Part No. Code No. Name Qty

1 D140-133-000 20211703020 Small character bed plate 1

2 D140-132-000 20211703019

Support plate 1

3

D140-609-001 20611703012A

Small character 1

4 D140-403-000 21501000026

Sensor 1

5 D140-135-000 20211703021 Score sensor mounting plate 1

6 D140-704-000 20511703004

Cover 2

9.7 Speaker assy.

No. Part No. Code No. Name Qty

1 D140-620-000 20611703001 Speaker light plate 2

2 D140-175-000 26000027000 Speaker net 2

3 D140-418-000 22801000047

4”Speaker 1

4 D140-154-000 20211703034 Speaker box 2

Dizzy Lizzy STD Manual

03/14/2018

29

9.8 Joystick assy.

Dizzy Lizzy STD Manual

03/14/2018

30

No. Part No. Code No. Name Qty

1 D140-108-000 20211703006

Control panel 1

2 D140-701-000 20511703001 Control panel decal 1

3 D140-158-000 20211703039

Guide plate 1

4 D140-162-000 20611703024

Pressing rod 1

5 D140-164-000 20211703043

Washer 1

6 D140-163-000 20211703060

Spring 1

7 D140-160-000 20211703041 Connecting plate 2

8 D140-622-000 20611703016

Limited plastic 2

9 D140-157-000 20211703038 Limited plastic fix shaft 2

10 D140-309-000 20108020009

Hexagon nut 2

11 D140-156-000 20211703037

Side plate 2

12 D140-417-000 22604000041

Micro SW 2

13 D140-155-000 20211703036

Top plate 1

14 D140-621-000 20611703019

Spindle 1

15

D140-623-000 20611703025

Top cover 1

D140-624-000 20611703026

Down cover 1

16 D140-161-000 20211703042

Control rod 1

17 D140-159-000 20211703040

Light plate 1

Dizzy Lizzy STD Manual

03/14/2018

31

9.9 Side light assy.

No. Part No. Code No. Name Qty

1 D140-616-000 20611703009

Side light cover 2

2 D140-617-000 20611703023 Side light cover pad 2

3 D140-148-000 20211703028 Side light cover bed plate 2

4

D140-149-000

20211703029

R side post 1

D140-150-000 20211703030

L side post 1

5 D140-618-000 20611703010

Side plastic plate 2

Dizzy Lizzy STD Manual

03/14/2018

32

9.10 Front door assy.

No. Part No. Code No. Name Qty

1 D140-716-000 20511703021 Ticket instruction decal 1

2 D140-619-000 20611703011 Front door plate 1

3 D140-151-000 20211703031 Front door frame 1

4 D140-427-000 25300171001

Lock 1

Dizzy Lizzy STD Manual

03/14/2018

33

9.11 Decals

No. Part No. Code No. Name Qty

1 D140-702-000 20511703002

Marquee decal 1

2 D140-708-000 20511703D008

Top decal 1

3 D140-704-000 20511703004

Cover 2

4 D140-717-000 20511703E008

Ticket door decal 1

5 D140-701-000 20511703001

Control panel decal 1

6 D140-719-000 20511703E019 Send ball pipe(down) decal 1

7 D140-711-000 20511703D012 Speaker round decal 2

8 D140-718-000 20511703B018

Score label 1

9 D140-721-000 20511703E023

DBV cover decal 1

10 D140-710-000 20511703D011

Marquee mid decal 1

11 D140-720-000 20511703E020

Motor decal 1

12 D140-716-000 20511703021 Ticket instruction decal 1

13 D140-703-000 20511703003

Main decal 1

14 D140-709-000 20511703D010 Cabinet bed plate decal 1

15 D140-707-000 20511703D007

Speak decal 2

16 D140-706-000 20511703D006

R side decal 1

17 D140-705-000 20511703D005

L side decal 1

18

D140-730-000 25600000108

Ticket label 1

Dizzy Lizzy STD Manual

03/14/2018

34

No. Part No. Code No. Name Qty

1 D140-722-000 25600000100

Meter label 1

2 D140-723-000 25600000016

Power SW 1

3 D140-728-000 25600000074

Fuse label 1

4 D140-727-000 25600000072

220V label 1

5 D140-729-000 25600000091

GND label 1

6 D140-726-000 25600000071

110V label 1

7 D140-724-000 25600000033 No touching label 1

8 D140-715-000 20511703017

Cable label 1

9 D140-725-000 25600000036 Voltage warning label 2

10 D140-712-000 20511703D013 220V nameplate 1

11 D140-713-000 20511703D014 CE 220V nameplate 1

12 D140-714-000 20511703D015 110V nameplate 1

Dizzy Lizzy STD Manual

03/14/2018

35

9.12 Electrical components

No. Part No. Code No. Name Qty

1 D140-434-000 29790300001

V9 main board(V1.4) 1

2 D140-432-000 29711208002 Drive board (MOS-DRV(V1.0)) 1

3 D140-401-000 20751704001

Light control board 1

4 D140-404-000 21602000001 Power box(BTX-3039) 1

5 D140-433-000 29711605001

Short circuit board

(Fuseboard01(V1.0)

1

2

1

5

4

3

Dizzy Lizzy STD Manual

03/14/2018

36

No. Part No. Code No. Name Qty

1

D140-416-000 22601000005 Rocket SW 1

2

D140-444-000 21901000004A

Fuse 3

D140-405-000 21902000006 Fuse bracket 1

3 D140-421-000 23201000001

Filter 1

4

D140-419-000 23000000006

Meter 2

D140-181-000 26000044000 Meter bracket 1

5 D140-415-000 22403000001 POT knob 1

6

D140-412-000 22402010002 Red button 1 D140-413-000 22402030002 Green button 1 D140-414-000 22402050001 Black button 1

5

3

1

4

2

6

Dizzy Lizzy STD Manual

03/14/2018

37

No. Part No. Code No. Name QTY

1 D140-409-000 22005020005 Color light(MH-G80) 2

2

D140-406-000 22002013002 RGB light( 5050LED) 3 D140-407-000 22003080001 5630 light(LC50cm) 1

D140-438-000 29790800008 Display(LED23B4) 1 3 D140-406-000 22002013002 RGB light( 5050LED) 1.7 4 D140-406-000 22002013002 RGB light( 5050LED) 1.8 5 D140-406-000 22002013002 RGB light( 5050LED) 5.5 6 D140-406-000 22002013002 RGB light( 5050LED) 1.1 7 D140-436-000 29790800006 Display(LED18B3) 1 8 D140-437-000 29790800007 Display(LED18B4) 1

2

4

1

3

6

5

7

8

Dizzy Lizzy STD Manual

03/14/2018

38

9. WIRING DIAGRAM

1 2 3 4 5 6 78

A

B

C

D

8

7654321

D

C

B

A

UNIS

Un iv e r sa l Sp a ce

Amusement machine

Name:

Size:

Date:

路径

:

Ver.:

A3

30-Aug-2017

123456789

ABCDEFGHI

brown

red

orange

yellow

green

blue

violet

grey

white

black

pink

light green

sky blue

shield la yer

JKLMNOP

Q

AWG30 UL1 007

AWG28 UL1 007

AWG26 UL1 007

AWG24 UL1 007

AWG22 UL1 007

AWG20 UL1 007

AWG18 UL1 007

AWG16 UL1 007

Wire col or code

Wire s ize code

Tolerance

unit mm

scale

:

0~100 0

1001~ 200 0

2001~ 300 0

3001~ 400 0

4001~ 500 0

±10

±20

±30

±40

±50

BSLL-PX-00-00

Dizzy Lizzy Wiring

J27

J28

Speak er

40

705090

40

70

VH

50

90

Reset

Tik drive

Tik feedback

12V

GND

V9 Mai n b oa rd

Settin gs

Test

L cha n n el 1

L cha n n el 2

R ch annel 1

R ch annel 2

GND

34162

5

J20

XH

34651

2

YY1 820DH40

J9

12V

GND

12V

GND

20M

40M

90M

A0M

E

J1

VH

34162

5

34651

2

12V

40P

A0P

J19

Coin

GND

J21

Tik m ete r

Coin meter

GND

+5V

123456789

40

123

4

123

4

123456789

40

J8

10M

20M

30M

40M

249293

C

A0P

60M

50M

Test

Reset

88888 8

Coi n meter

Tik mete r

1234567

8

1234567

8

10M

20M

30M

A0

20X2

93

92

10M

20M

30M

A0

24

A0

PC

Filter

FUS E

T5A/250V

Power SW

PLUG

Earth

10P

45Q

60P

HM

1

2

3

J01

1

2

3

HF

L

N E

L

N E

45Q

60P

10P

VR

1K POT

VR.PCB

Volume control

XH

CN-1

123 123

456 456

20M

40M

90M

A0M

E

4X24 AWG

9124A0

Coin mech.

12V

GND

NO

Ti cket dis pen ser

Meter assy.

50M

Ball deliver sensor

Ball out counting sensor

1234567

8

1234567

8

C

12345

6

12345

6

C

123

4

123

4

3024A0

70

9124A0

30

24X2A070

1

2

1

2

121

2

1

2

C

1

2

P

1

2

C

1

2

P

123

C

123

P

B0X2

B0

A0

90

B0

A0

Ball deliver sensor

Ball out counting sen sor

Joystick SW

XH

VH

123

A2007H

Settings

12V

40M

123

C

123

P

B0

A0

90

B0

A0

123

A2007H

Score sensor

90M

1

2

C

1

2

P

60M

A0

60

A0

Joystick SW

40P

A0P

10

Power box

AC110V /220V

4

6

10

16

17

4

6

10

16

17

P

P1

20P

40P

A0P

50P

BTX -3039

1111

40P

A0P

1515

1818

A0P

23

24

23

24

20P

A0P

123

4

P4

123

4

J1

123

4

P3

123

4

P2

123

4

P

123

4

123

4

123

4

VH

A0P

40P

A0P

20P

JHD5084HP/4P

1

2

J5

J2

12V

GND

40P

A0P

1

2

VH

A0X2

Fuseboard01(V1.0)

Ball

J12

J11

LED<1-2>

LEDCS 1

Score/ Tik

MEGA B OUNS

60CM cabinet light

1

2

1

2

A0X2

20

A0

C

24X2

P

60CM cabinet light

1

2

1

2

C

P

50CM cabinet light

1

2

1

2

A0

C

24

P

1

2

1

2

A0

20P

A0P

C

24

P

Light bulb

Bulb

Light box

123

J6

VH

123

J7

VH

AAAABB

BB

GND

10P

45Q

60P

HM

1

2

3

J02

1

2

3

HF

45Q

60P

10P

Joystick SW 60

A0

60X2

A0X2

24X2

Bulb Bulb

204090

123

C

123

P

123

C2521HM/3P

123

C2521HF/3P

Bulb

24A091

209040

24A091

J03

J04

J07

J08

J09

J10

J12

J13 J14

J15

J16 J17

123

C

123

P

J05

J06

102030

919293

Φ6mm PVC

1

2

1

2

C P

J32

20

A0

24

40

123

C

123

P

J34

24A091

40

Out of tik light

LED

Out of tik light

AY-MIB-V1. 1

BSL L -P X -0 1

BSL L -P X -0 2

BSLL-PX-03

BSL L -P X -0 4

BS L L -P X-05

BSL L -P X -0 6

BSL L -P X -0 7

BS L L -P X-08

BSLL-PX-09

VH

Joystick light R

Joystick light G

Joystick light B

Electromagnet

L cha racter light

123

4

C

123

4

P

203040

24

S cha racter light

123

4

C

123

4

P

506070

24

Electromagnet

1

2

1

2

93

24

A0

C

24

+12V

RRGGB

B

M

1

2

C

1

2

P

Ball out motor24

A0

Φ9mm PVC

P

DC12V 5050LED

DC12V 5050L ED

1234567

8

1234567

8

VH

J22

Ba ll o u t mo to r

L character G

L character B

S character R

1234567

8

1234567

8

VH

J23

S character G

S character B

Light box R

Light box G

L character R

Light box B

Side light R

Side light G

Side light B

10203040506070

10

203040

5060702424

24

Light box S plexi .

123

4

C

123

4

P

809091

24

L sid e ligh t 850m m

+12V

RGB

Φ9mm PVC

DC12V 5050L ED

L sid e ligh t 850m m

Φ9mm PVC

Joyst ick li ght 55 0mm

123

4

C

123

4

P

959697

24

+12V

RGB

DC12V 5050L ED LED

M

1

2

C

1

2

P

Ball flick motor

24

A096

24

94X2

93X2

8090919293

94

959697

80X2

90X2

91X2

24X2

92X2

93X2

94X2

249293

94

959697

24

1234567

8

J24

1234567

8

M

Ball deliver motor

20

A0

95

24

93X2

123

C

123

P

R spe aker l ight

L spe aker l ight

92X2

24X2

D4 IN4 007

D3 IN4 007D2IN4 007

D1 IN4 007

123

4

C

123

4

P

809091

24

Light box L plexi .

809091

24

+12V

RGB

Φ9mm PVC

DC12V 5050L ED

1350mm

2300mm

J18

J19

J20

J21

J22

J23

J24

J25

J26

J27

J29

J30

24X29596

BSLL-PX-03

BS L L -P X-12

BSLL-PX-12

BSLL-PX-14

Ball deliver sensor

Ba ll fl i c k mo to r

123

J3

VH

1

2

J6

VH

1234567

8

J4

VH

123456789

J5

VH

MOS-DRV(1.0)

IN1

IN2

IN3

12345

J2

VH

IN4

IN5

IN6

IN7

IN8

+12 V

GND

+12 V

248090

Side light R

Side light G

Side light B

Light box light R

Light box light G

Light box light B

Ball deliv er motor

Ba ll fl i c k mo to r

+12 V

123

4

J1

VH

91

123

4

C

123

4

P

929394

24

+12V

RGB

Φ9mm PVC

DC12V 5050L ED

123

4

C

123

4

P

929394

24

+12V

RGB

Φ9mm PVC

DC12V 5050L ED

95

96

24X2

92X2

93X2

94X2

249293

94

123

4

C

123

4

P

929394

24

+12V

RGB

Φ9mm PVC

DC12V 5050L ED

123

4

C

123

4

P

929394

24

+12V

RGB

Φ9mm PVC

DC12V 5050L ED

+12 V

J28

A0P

40P

90M

A0

123

C

123

P

B0

J11

24X4

A0X4

A0P

40PX 2

24X3

BSL L -P X -0 3

BSLL-PX-03

BS L L -P X-03

93

Electromagnet

Score sensor 90

B0

A0

123

A2007H

1

2

J3

1

2

VH

B0

A0

20CM cabinet light

A0

24

123

C

123

P

24A091

J32

1

2

1

2

C

P

J35

A0

20

1

2

C

1

2

P

A0

24

J31

Φ6mm PVC

VDD

SDO

GND

VDD

GND

1100mm

900mm
