Page 1
www.universal-space.com
Operation Manual
IMPORTANT
Page 2
D-Day Manual
12/02/2017
1
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ........................................................................ 2
1. SPECIFICATIONS ..................................................................................................... 4
2. CONTENTS OF THE ACCESSORY KIT .................................................................... 6
3. PART NAME .............................................................................................................. 7
4. SET UP & INSTALLATION ........................................................................................ 8
5. HOW TO PLAY ........................................................................................................ 17
8. TROUBLE SHOOTINGS .......................................................................................... 18
9. MAINTENANCE & INSPECTION ........................................................................... 23

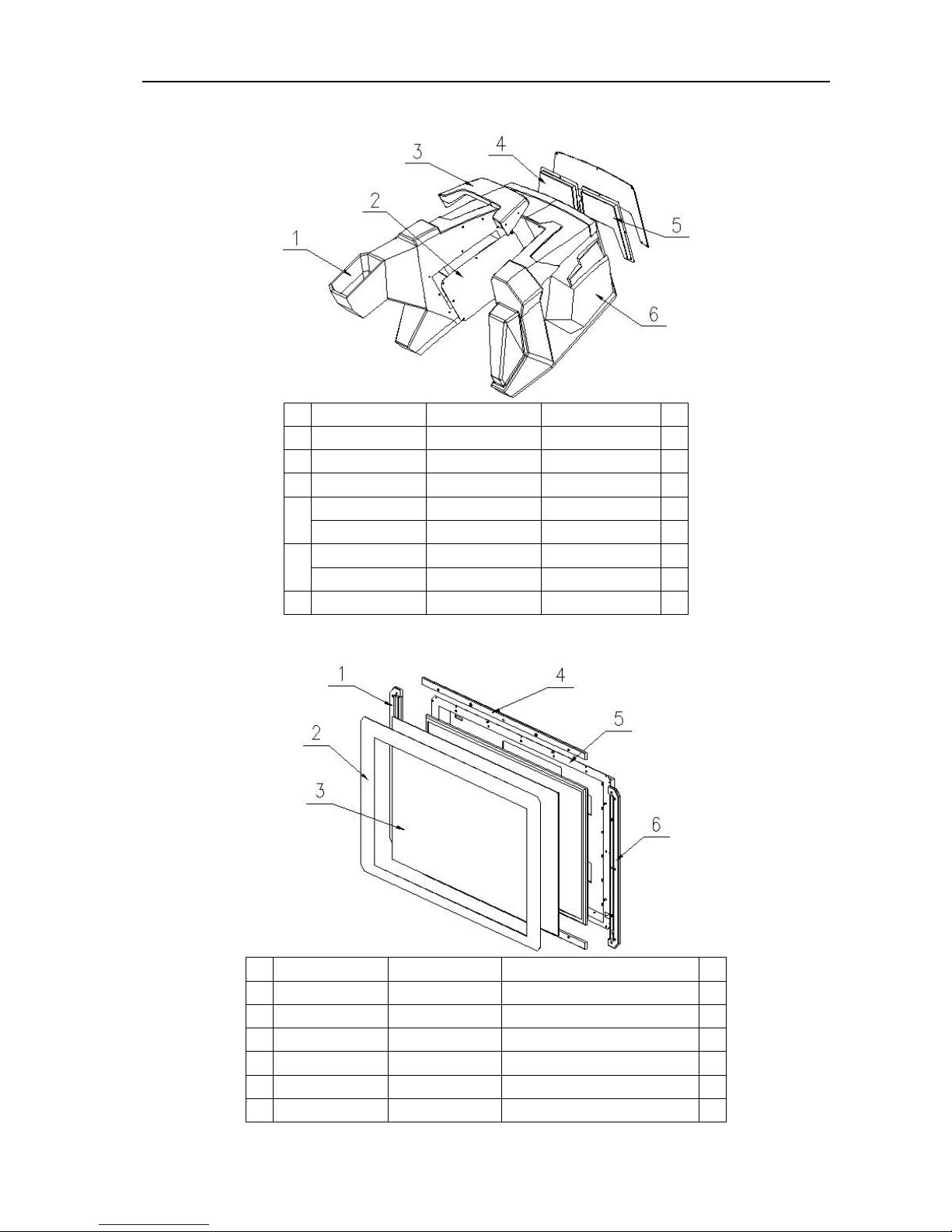

8. OVERALL CONSTRUCTION ................................................................................... 24
9. WIRING DIAGRAM ................................................................................................ 40
Page 3
D-Day Manual
12/02/2017
2
Thank you for purchasing D-Day. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
Page 4
D-Day Manual
12/02/2017
3
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.
Page 5
D-Day Manual
12/02/2017
4

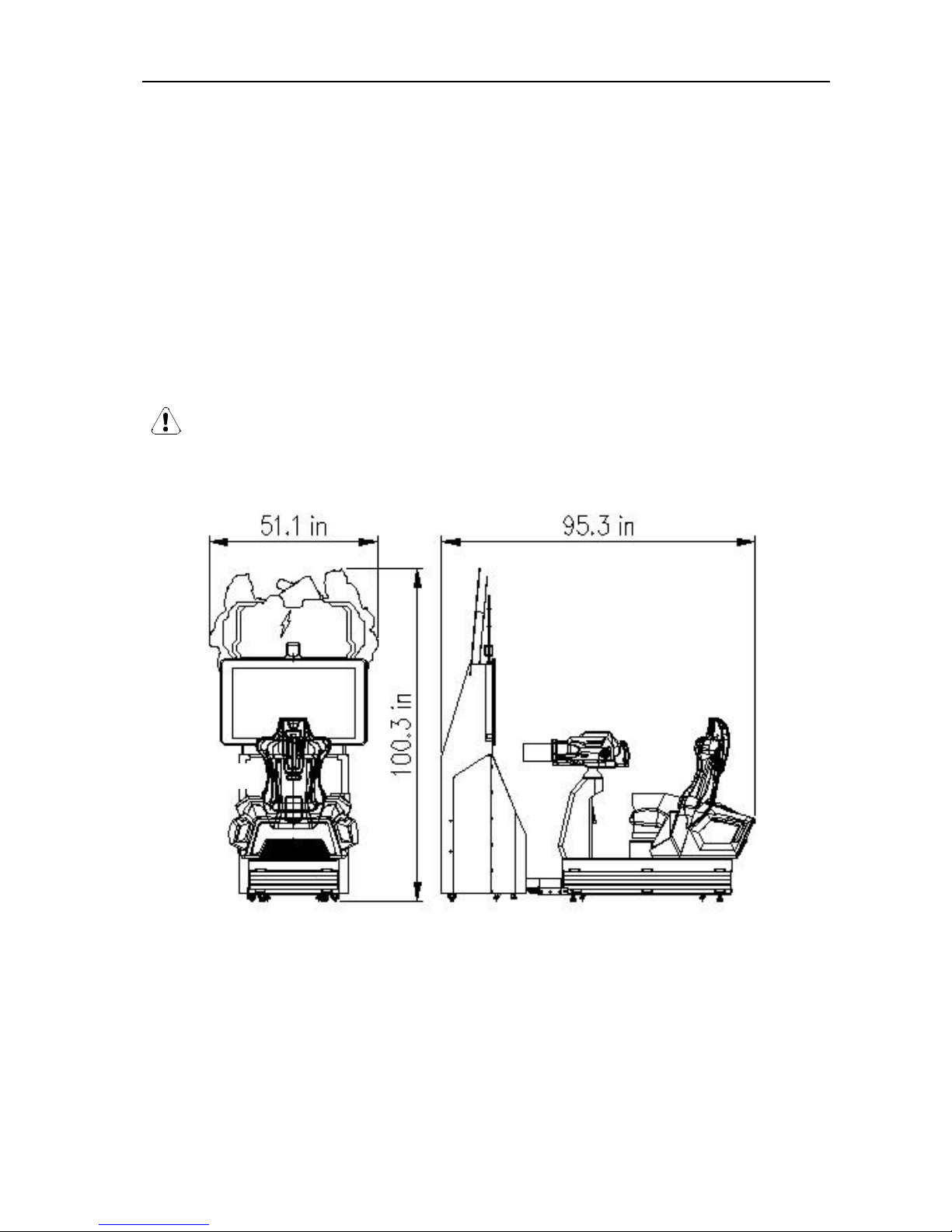

1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V-240V 50/60Hz
Min. Power consumption: 200W
Max. Power consumption: 1200W
Dimension: W51.1×D95.3×H100.6 in
Weight：Approximately 771.6 lb
Part No: D139
Model No: V-006
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.
Page 6
D-Day Manual
12/02/2017
5

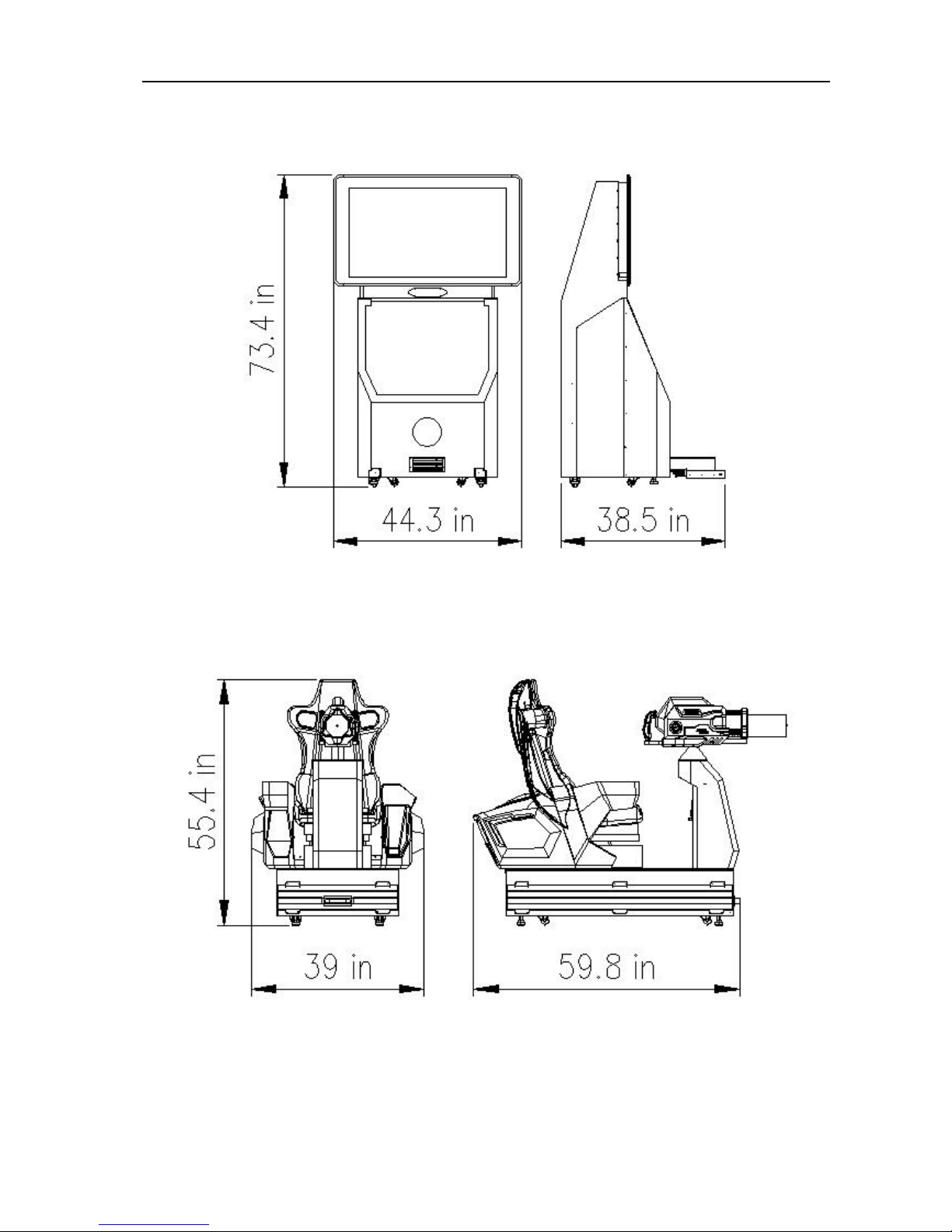

This machine will be divided into two parts during transportation.
Display part: W44.3×D38.5×H73.4 in
Seat part: W39×D59.8×H55.4 in
Note: Game specifications are subject to change without notice.
Page 7
D-Day Manual
12/02/2017
6

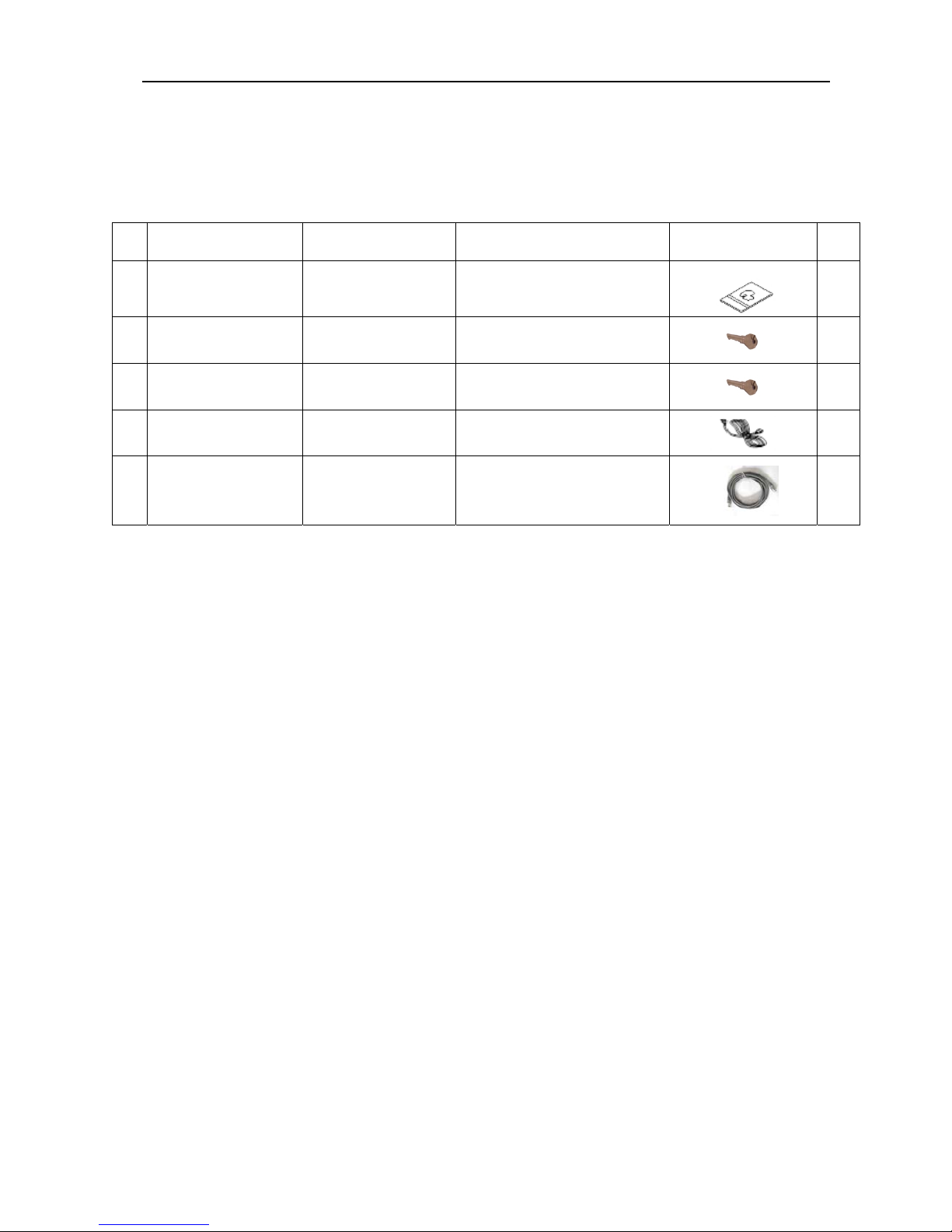

2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
No. Part No. Code Name Picture Qty
1 D139-805-000 41440000234A Manual
1
2 D139-801-000 25300171002 Key
2
3 D139-802-000 25300172002 Key
2
4 D139-541-000 23301000001 Power cord
1
5 D139-578-000 23302000012 Network cable
1
NOTE: Part models are subject to change without notice.
Page 8
D-Day Manual
12/02/2017
7

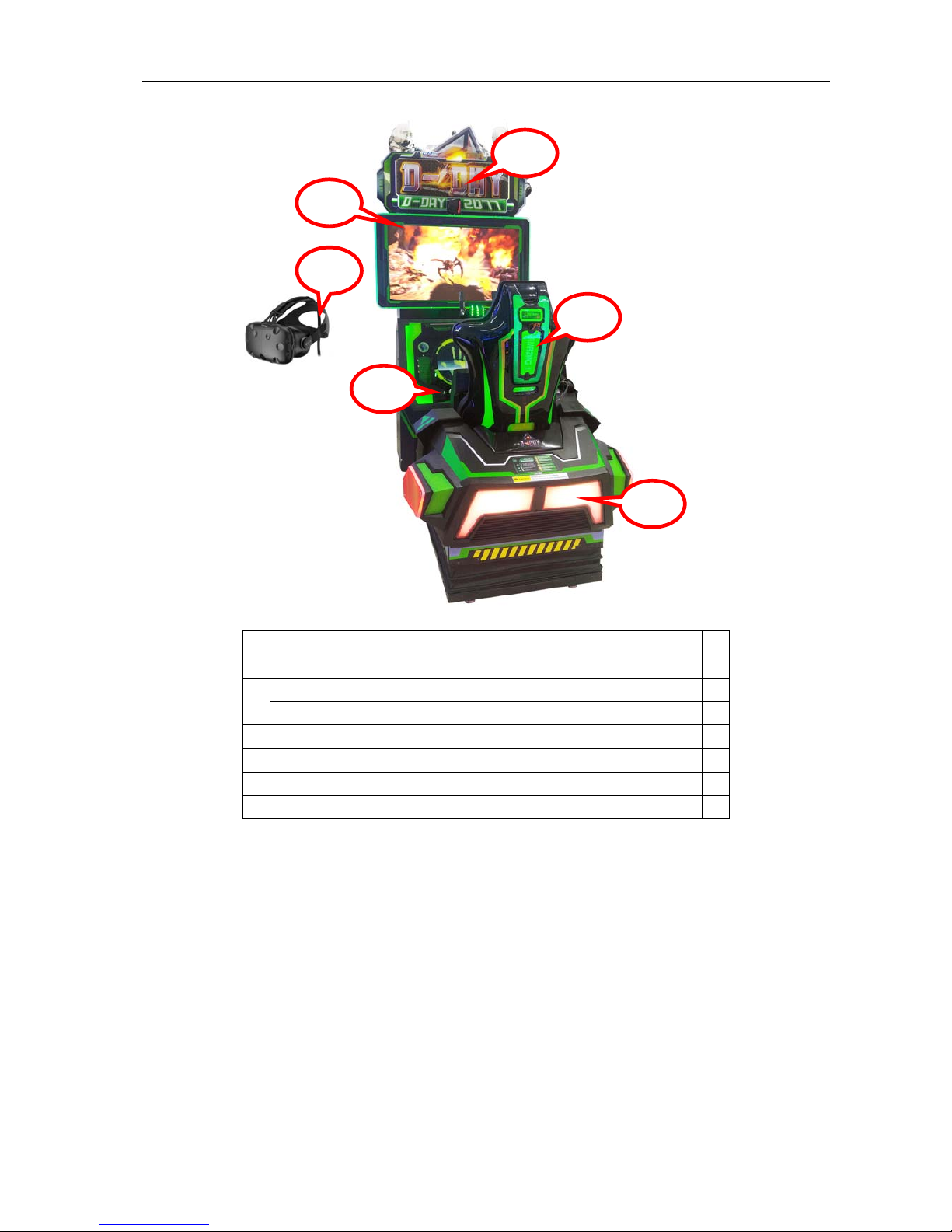

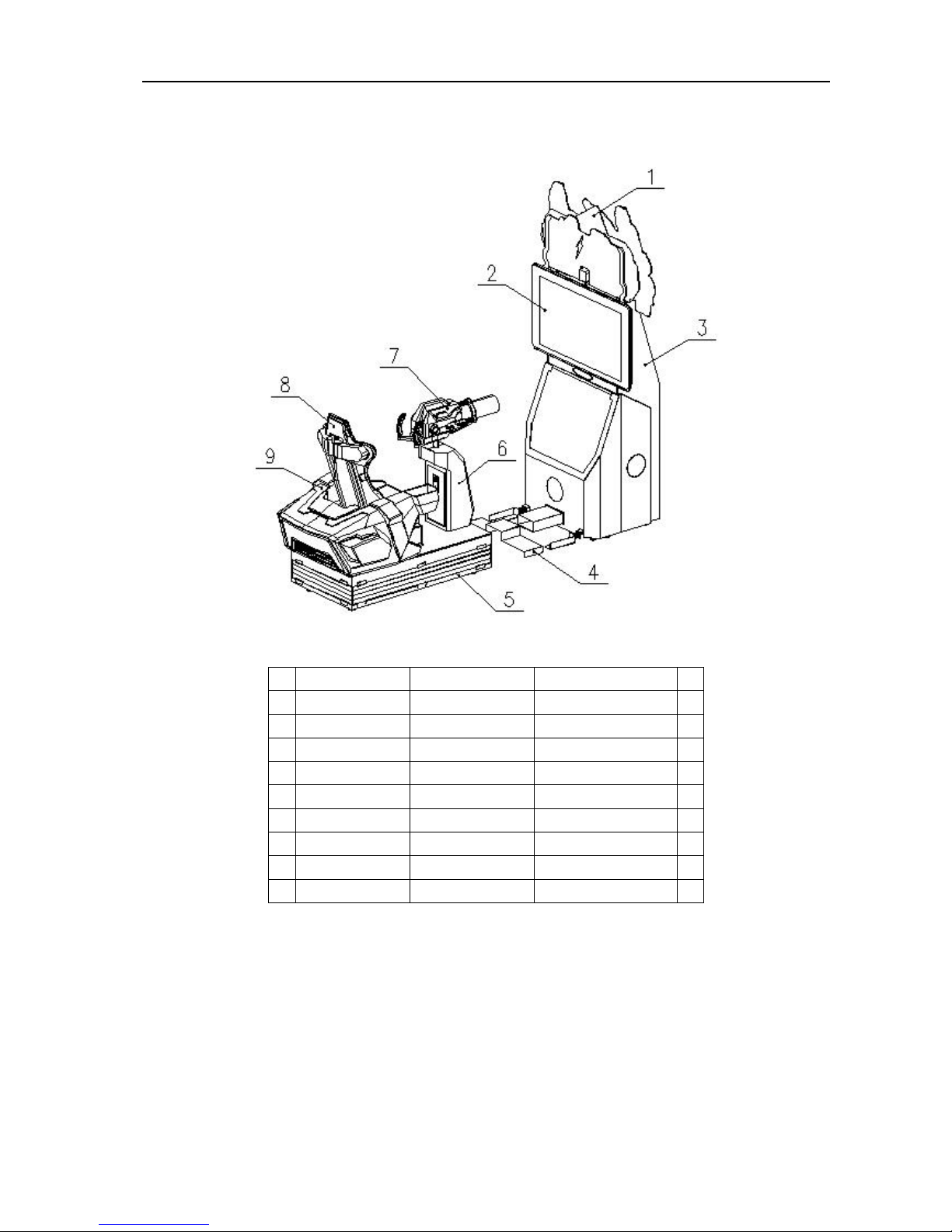

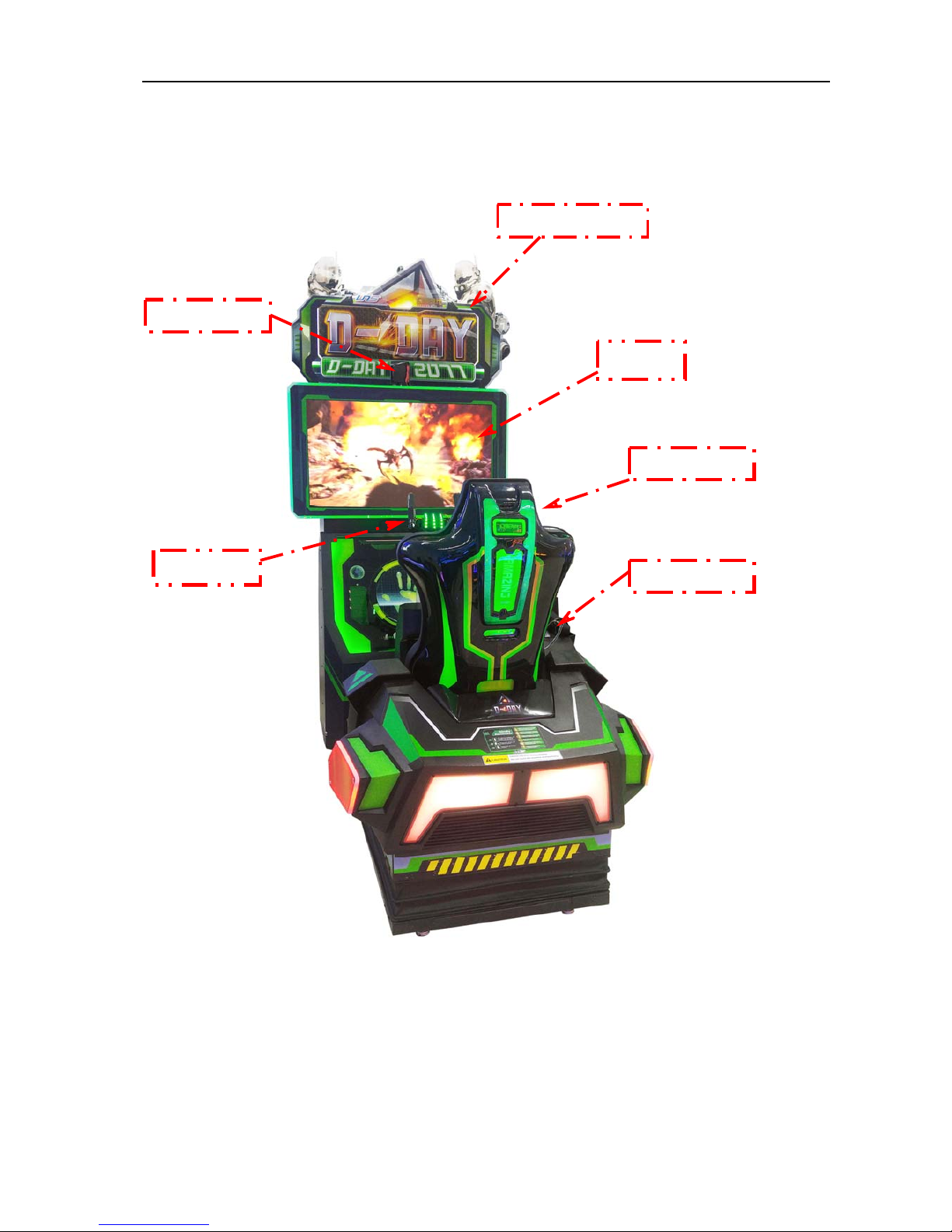

3. PART NAME
Key Components
Coin assy.
HTC headset
Marquee Assy.
Display
Gun assy.
Base Station
Page 9
D-Day Manual
12/02/2017
8
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.

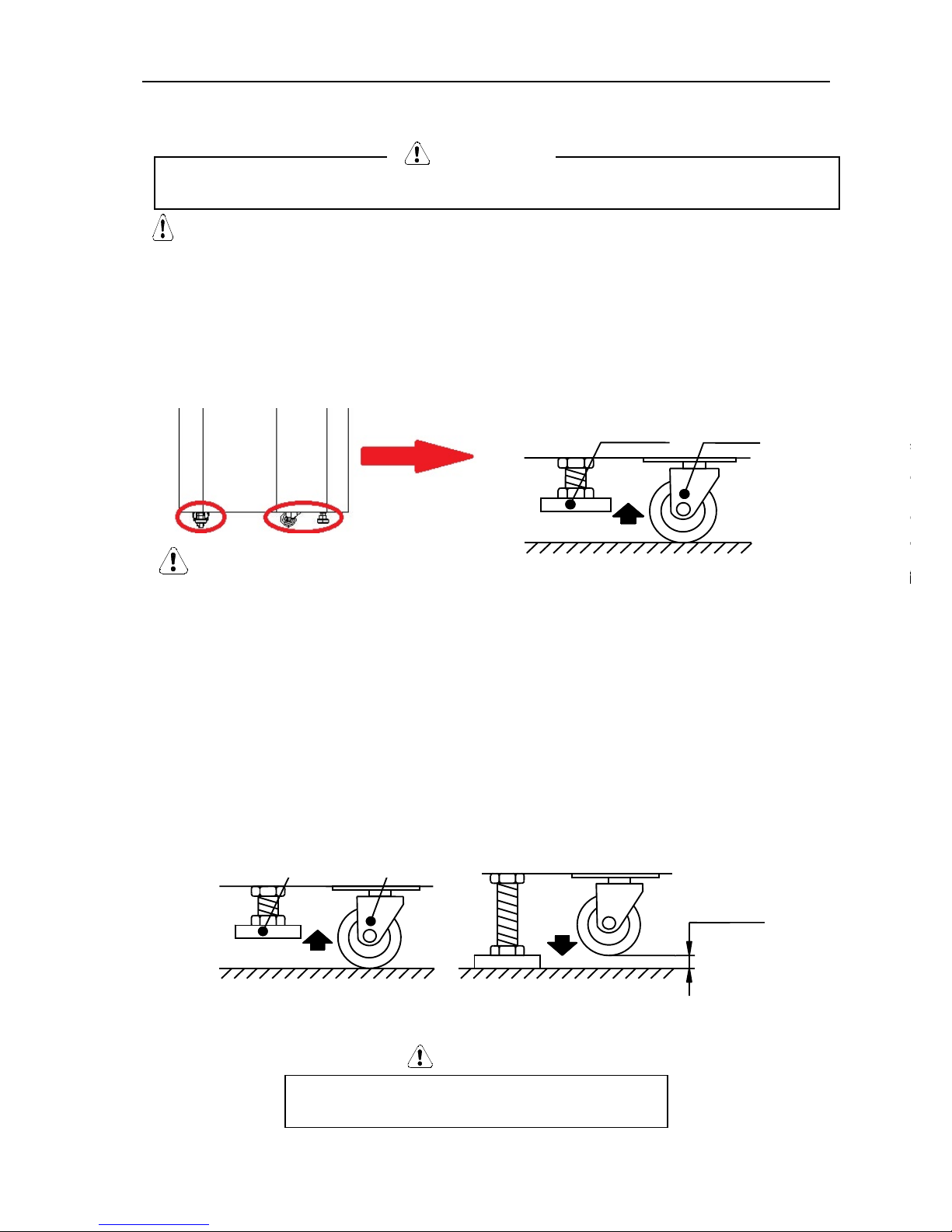

4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game
. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler Caster
Move F
i
Caster
Leveler
About 0.2 in
Move
Fix
NOTICE
Make sure the machine is level.
We do not recommend using power tools as they may cause damage.
NOTICE
Page 10
D-Day Manual
12/02/2017
9

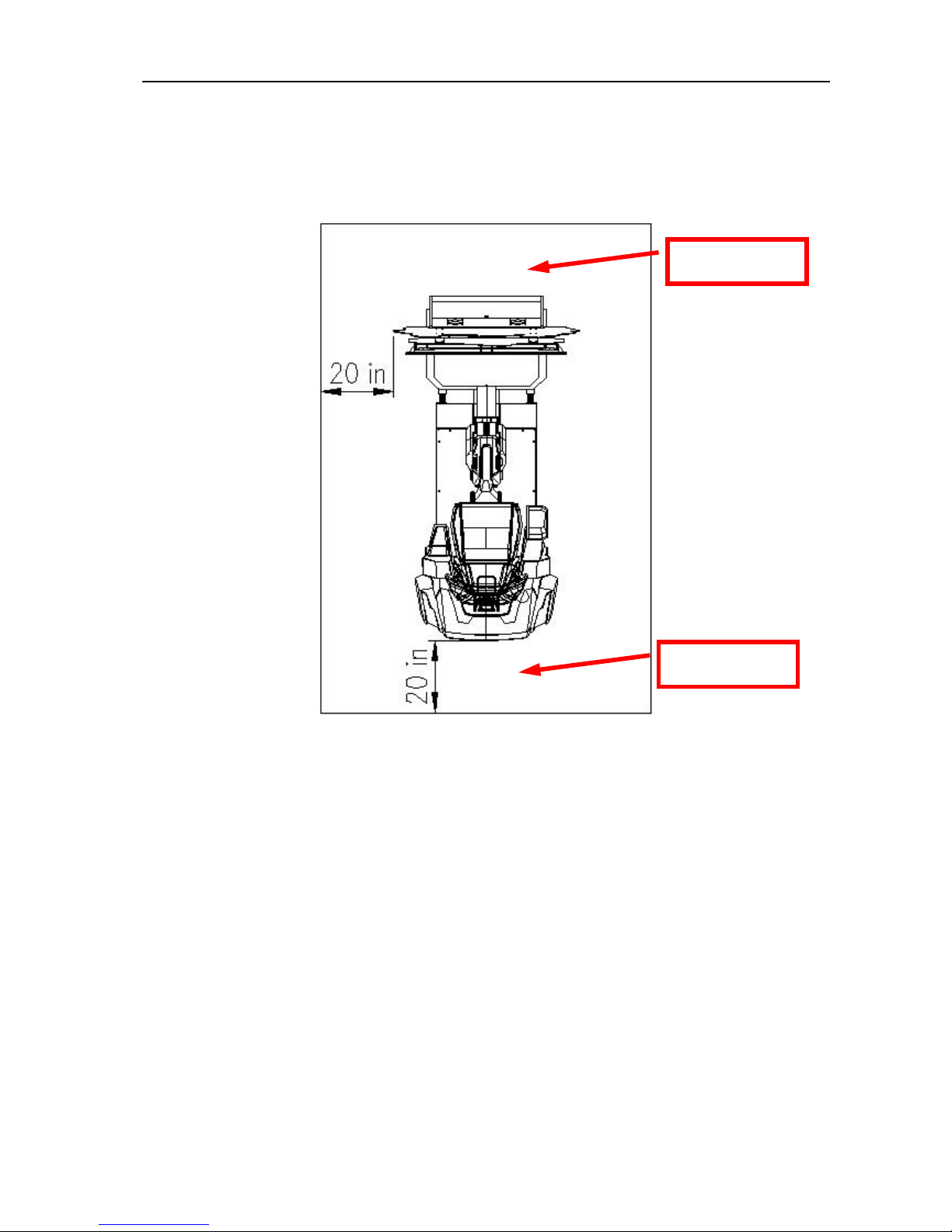

4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area
Page 11
D-Day Manual
12/02/2017
10

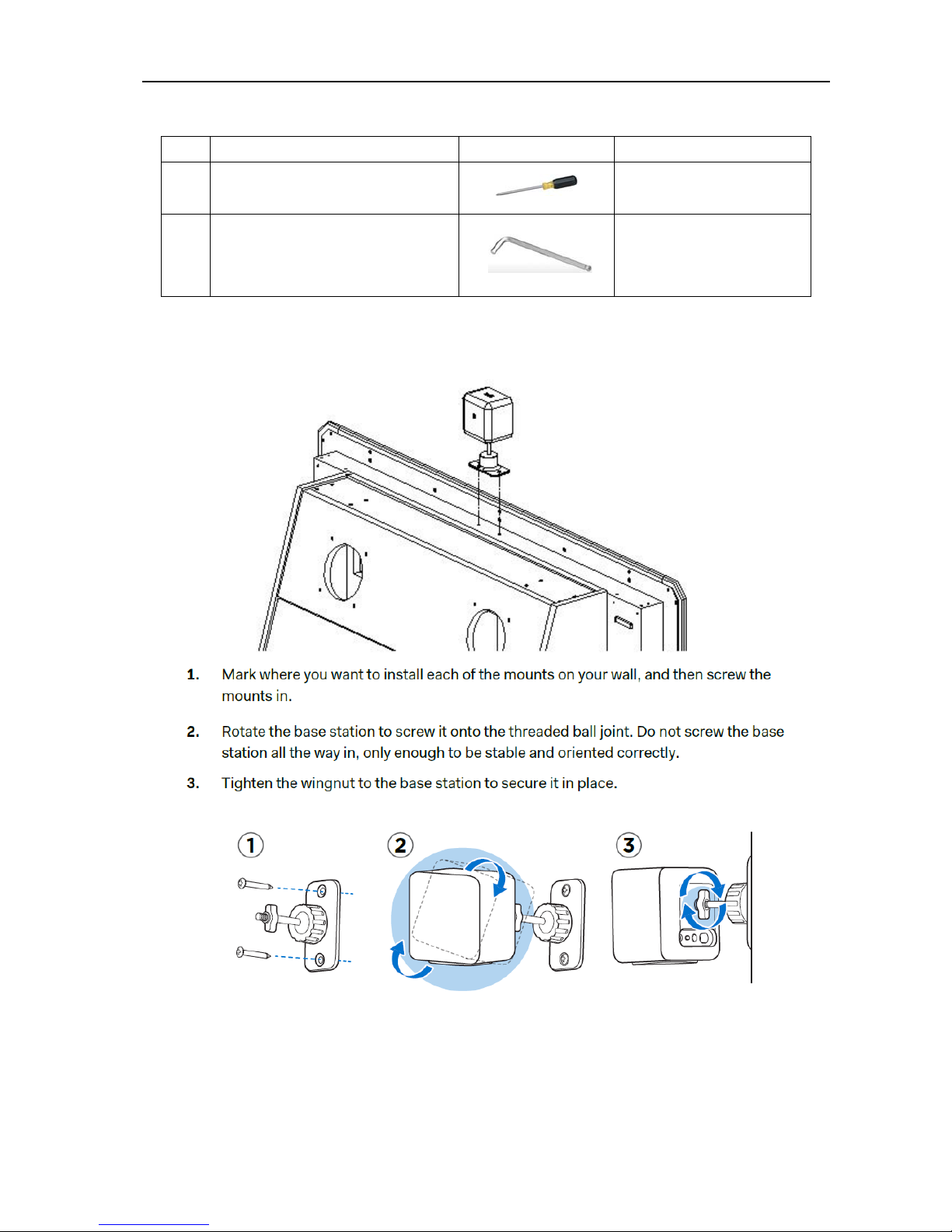

4.4 Machine Installation
Before processing with assembly assure you have the following tools.
Step 1 Install base station and set the channel.
1-1 Install the base station
No.
Name Picture
Use for
1
Phillips screwdriver
Step 2 & Step 3
2
Allen hexagon wrenches
Step 2 & Step 3

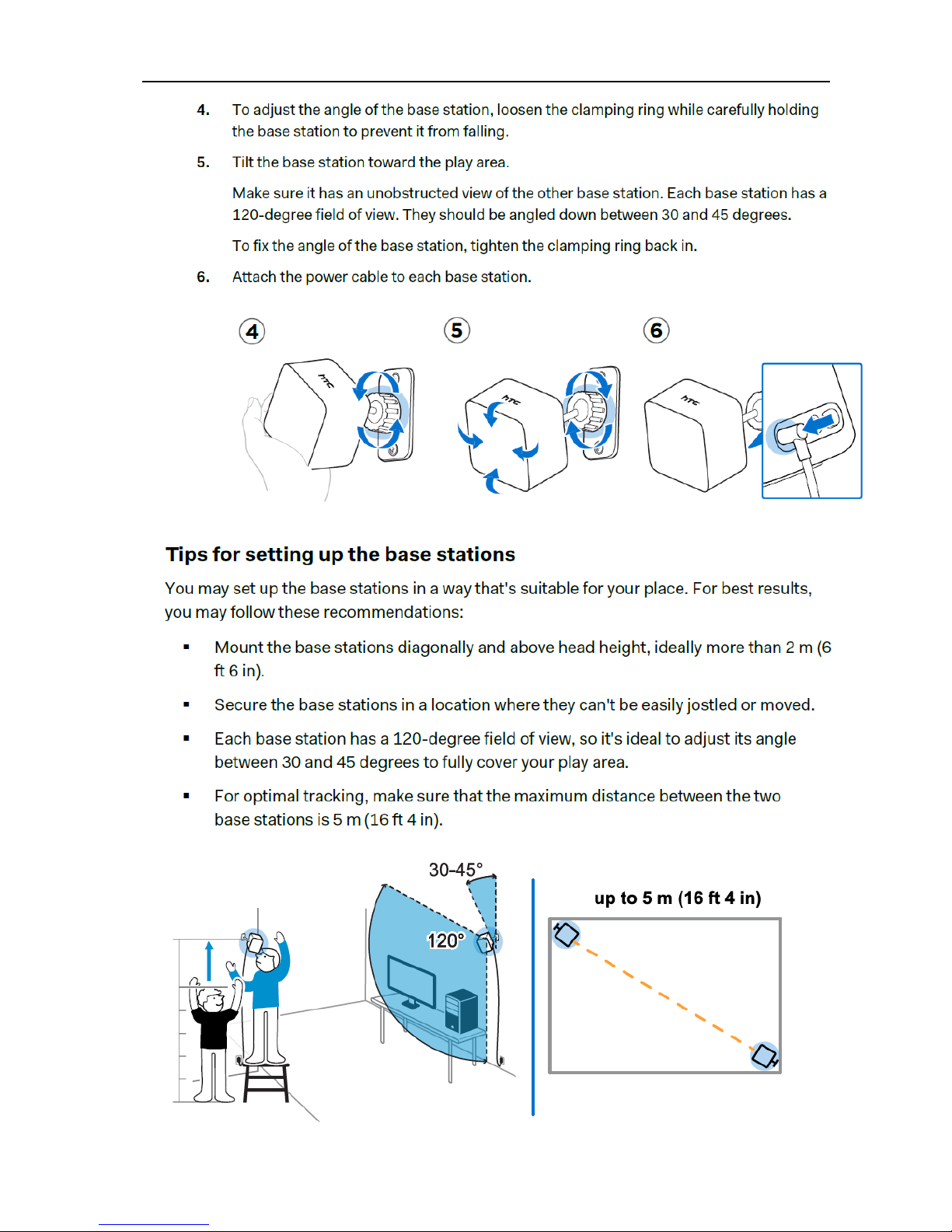

Page 12
D-Day Manual
12/02/2017
11
Page 13
D-Day Manual
12/02/2017
12

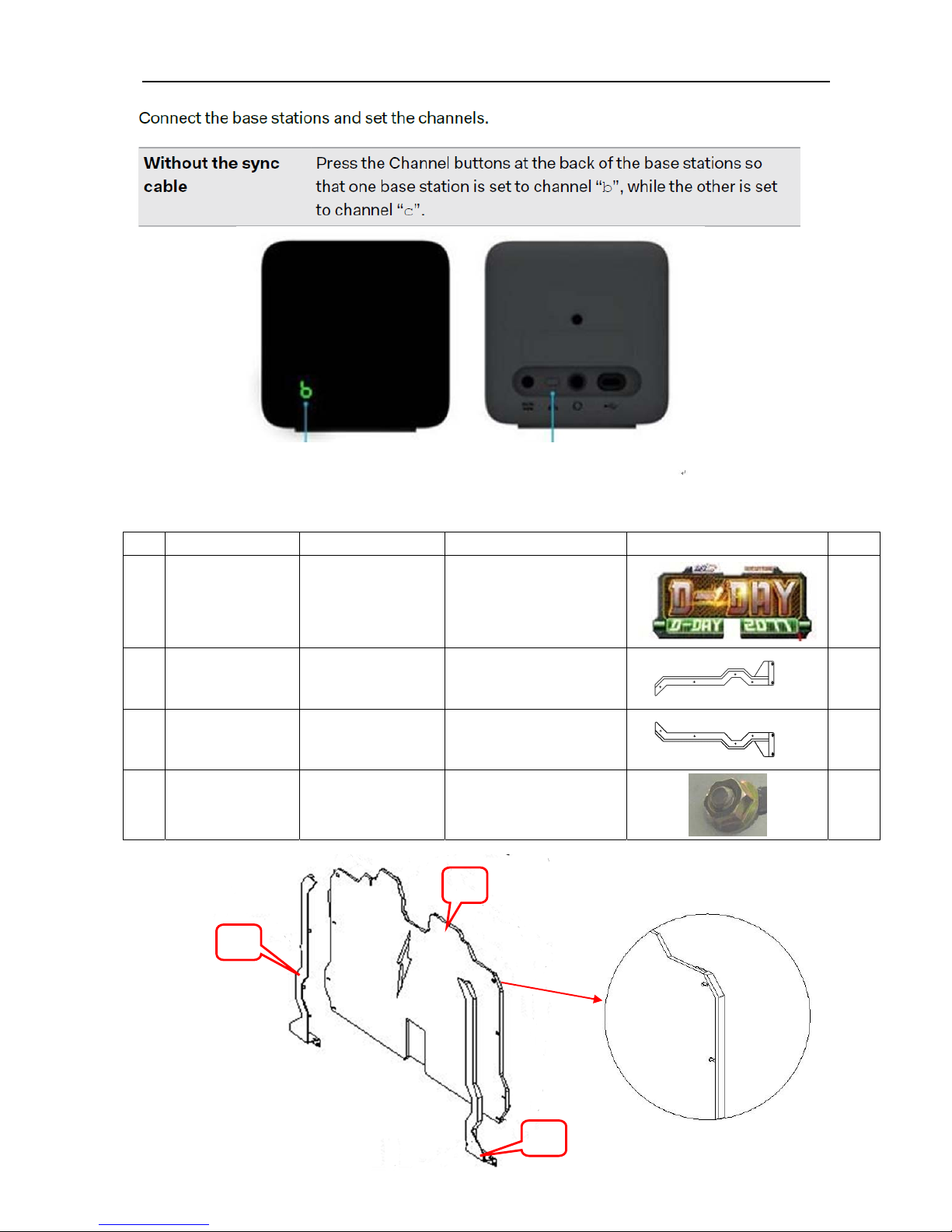

1-2 Set the channel
Step 2 Marquee installation
2-1 Install marquee fix plates on the Marquee decal 1 with Hexagon flange nuts.
No. Part No. Code No. Name Picture Qty
1 D139-702-000 20541706A002
Marquee decal 1
1
2 D139-310-000 20241706045 Marquee fix plate 1
1
3 D139-309-000 20241706046 Marquee fix plate 2
1
4 D139-171-000 20102040011 Hexagon flange nut
8
Signal light Channel button
1
2
3
Page 14
D-Day Manual
12/02/2017
13

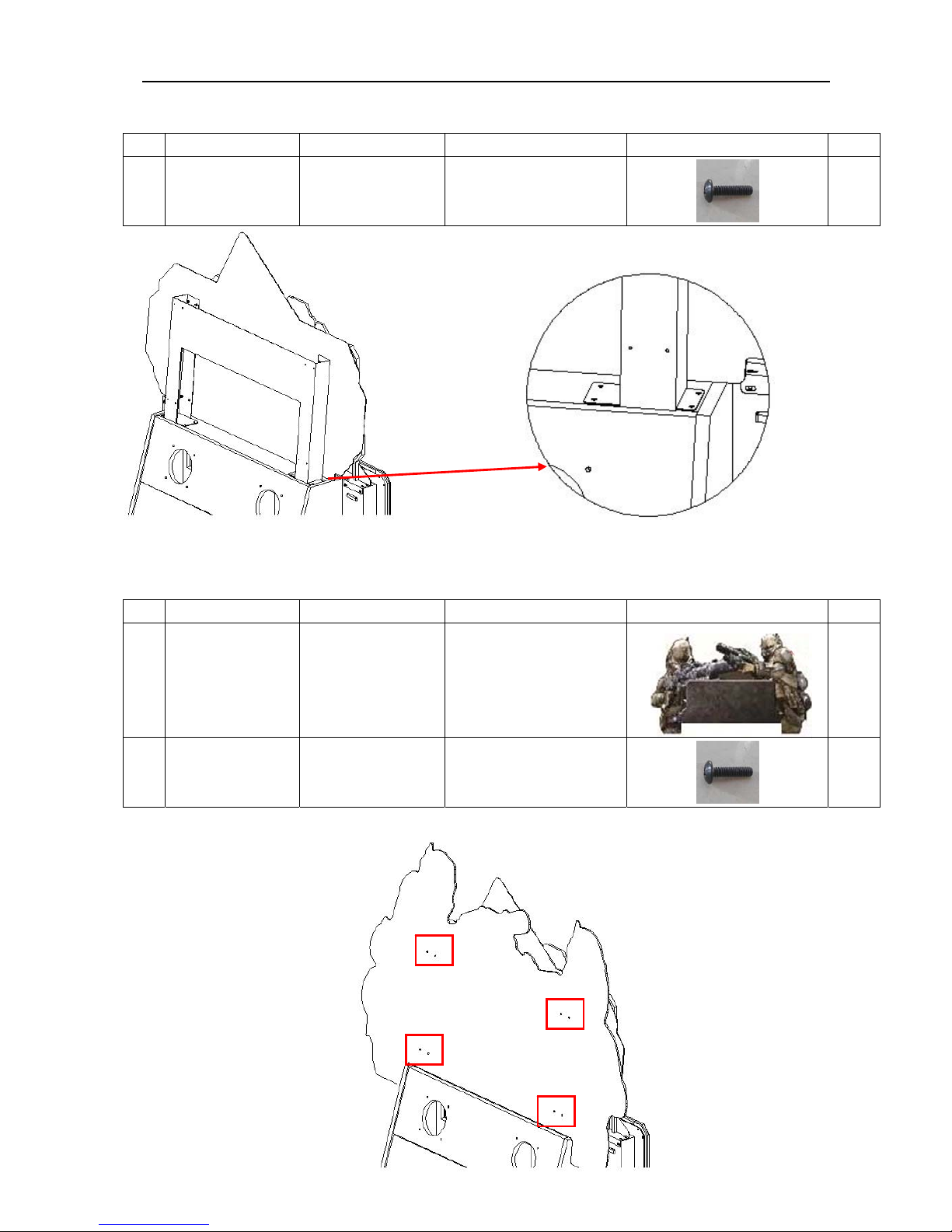

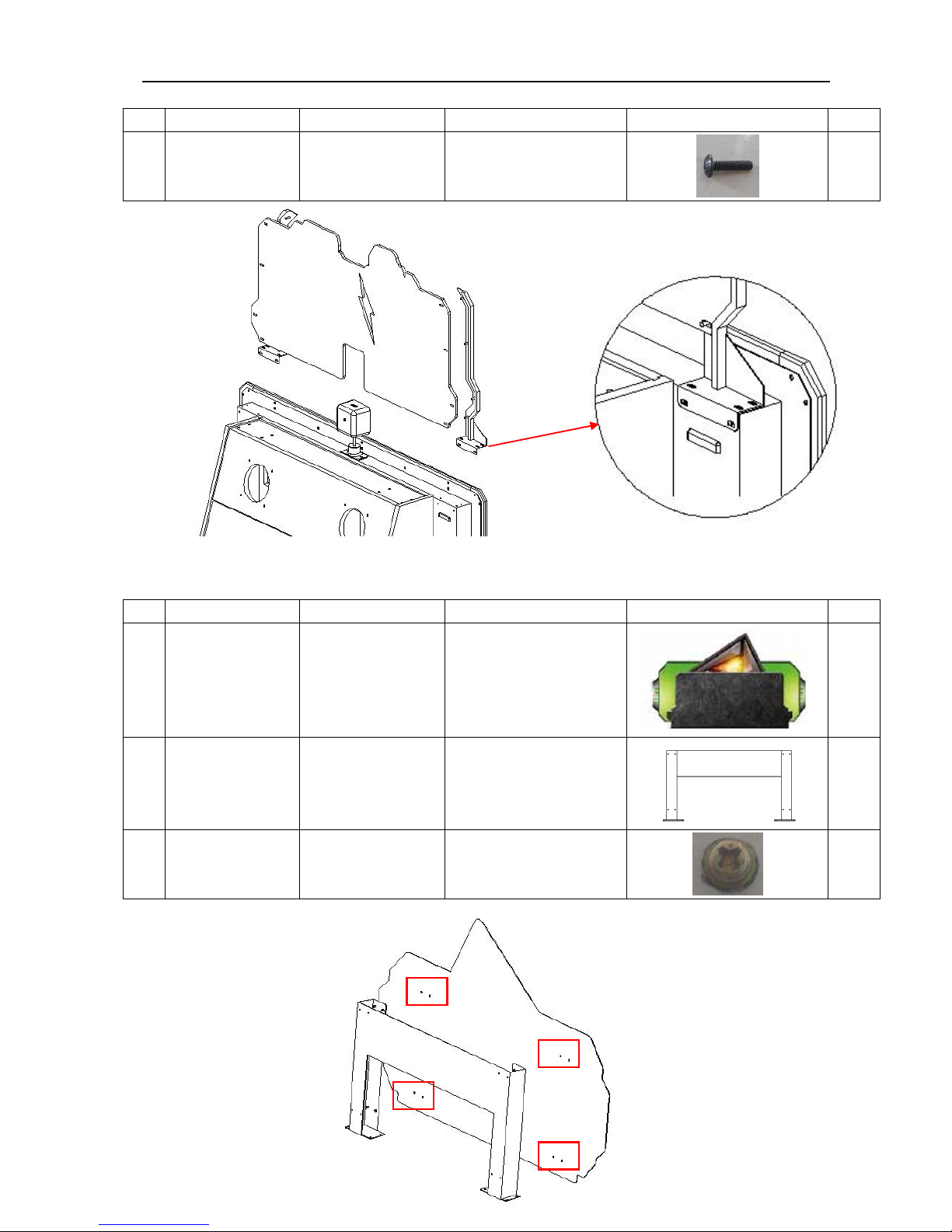

2-2 Install marquee fix plates (with marquee decal) on the cabinet.
No. Part No. Code No. Name Picture Qty
1 D139-124-000 20101020039
Cross recessed pan
head screw set
8
2-3 Install Marquee decal 2 on the Marquee fix plate 3 in red square area.
No. Part No. Code No. Name Picture Qty
1 D139-717-000 20541706003 Marquee decal 2
1
2 D139-311-000 20241706047 Marquee fix plate 3
1
3 D139-169-000 20101010140
Cross recessed pan
head screw
8
Page 15
D-Day Manual
12/02/2017
14
2-4 Install Marquee fix plate 3 (with marquee decal) on the cabinet.
No. Part No. Code No. Name Picture Qty
1 D139-124-000 20101020039
Cross recessed pan
head screw set
8
2-5 Install Marquee POP decal on the cabinet.
No. Part No. Code No. Name Picture Qty
1 D139-720-000 20541706006 Marquee POP decal
1
2 D139-169-000 20101010140
Cross recessed pan
head screw
8
Page 16
D-Day Manual
12/02/2017
15

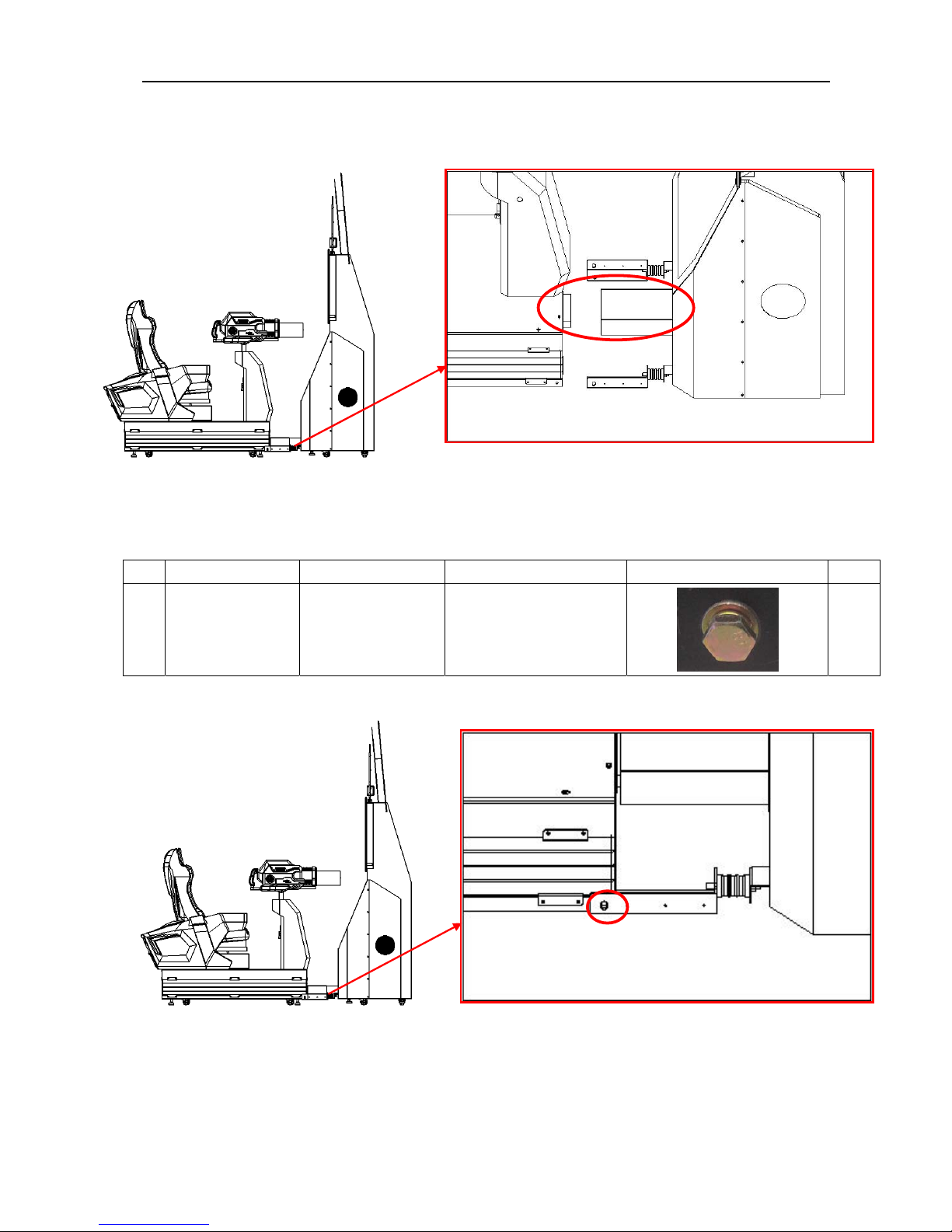

Step 3 Cabinet Installation
3-1 Place two parts as picture shown and connect all the plugs in red circle area.
3-2 Connect the display part and seat part with Cross recessed hexagon screw kits in red
circle area.
No. Part No. Code No. Name Picture Qty
1 D139-170-000 20104003006
Cross recessed
hexagon screw kit
2
Page 17
D-Day Manual
12/02/2017
16

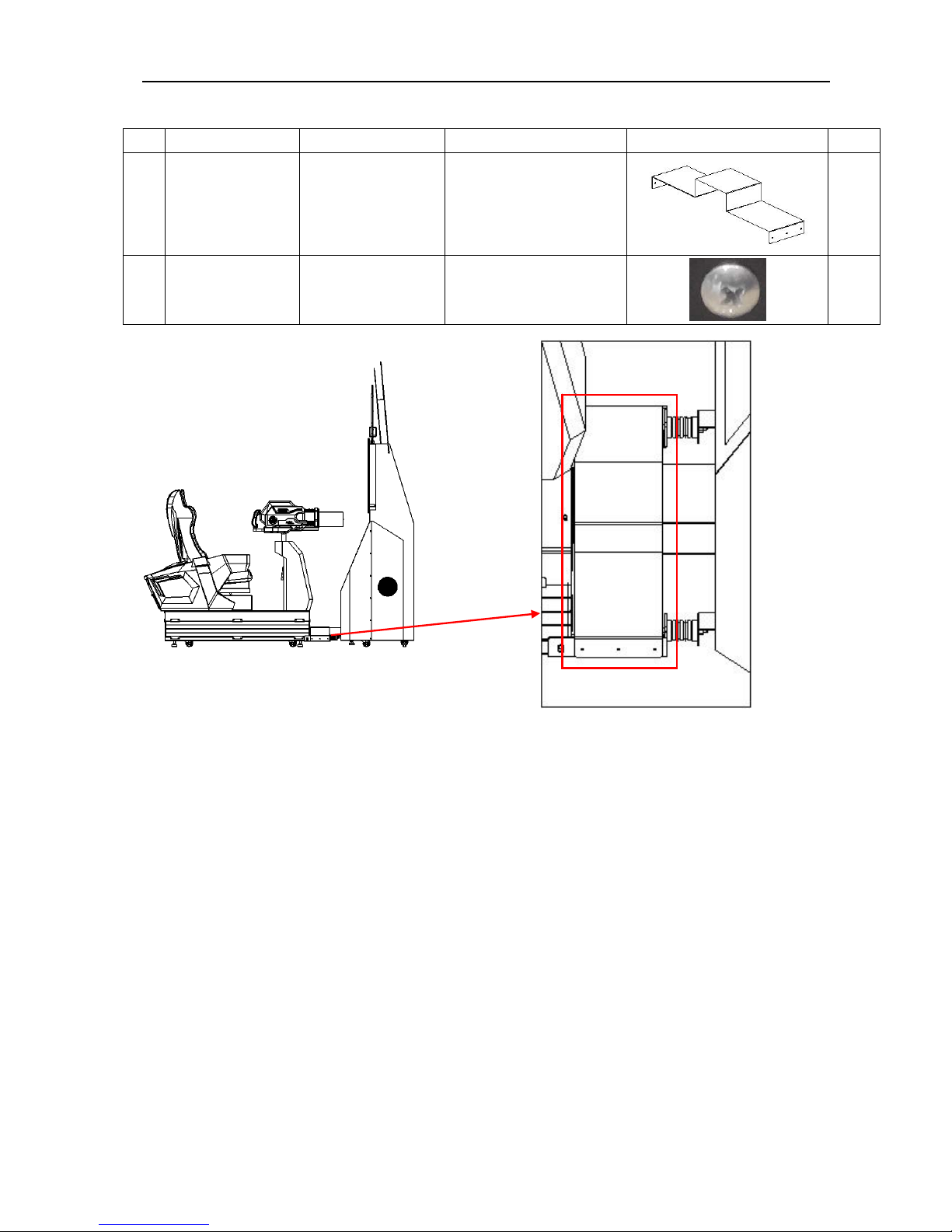

3-3 Install the Wiring cover with Cross recessed pan head screws in red rectangle area.
No. Part No. Code No. Name Picture Qty
1 D139-308-000 20241706001 Wiring cover
1
2 D139-169-000 20101010140
Cross recessed pan
head screw
6
Page 18
D-Day Manual
12/02/2017
17

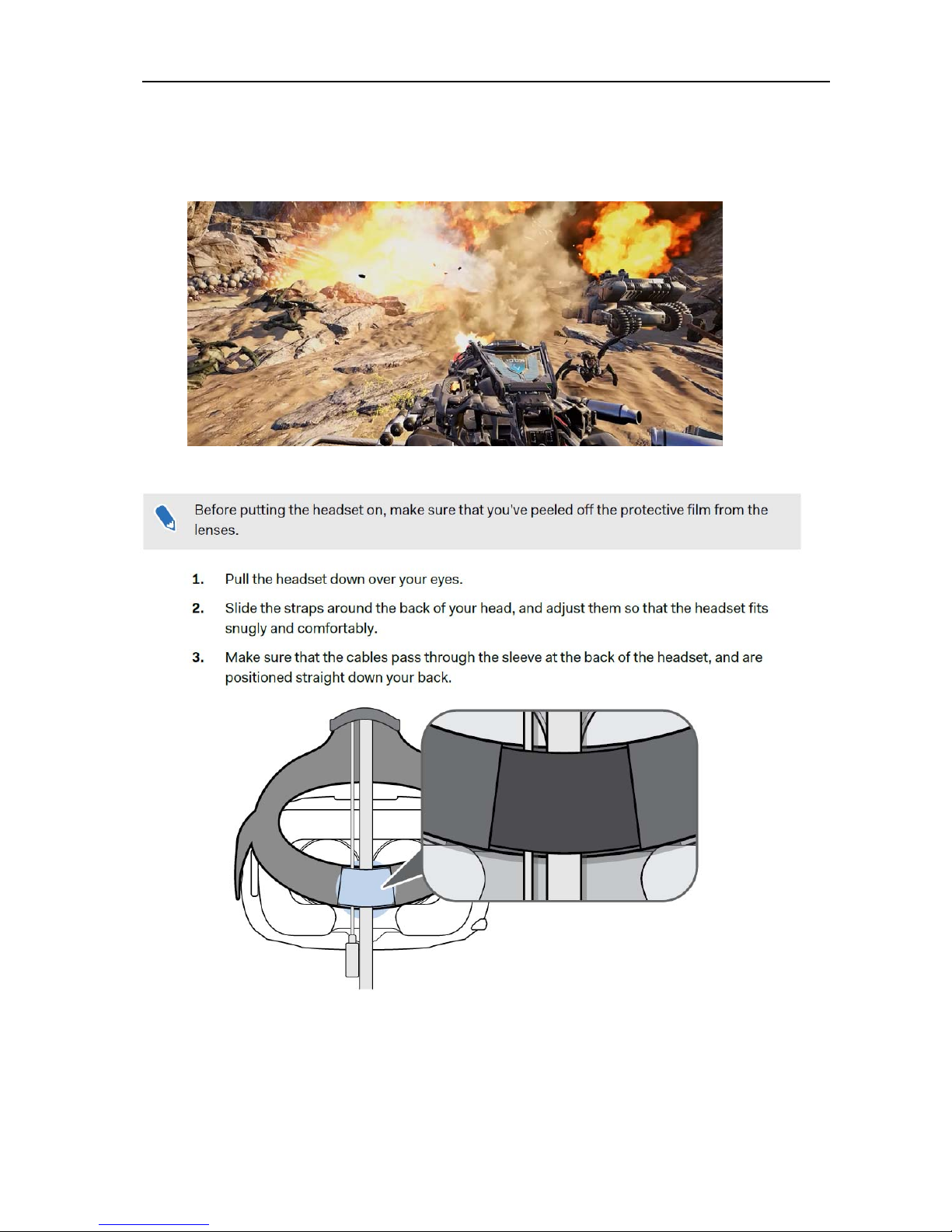

5. HOW TO PLAY
5.1 Insert coin(s) to start the game.
5.2 Put on the headset and fasten the seat belt.
5.2 Press the trigger to shoot.
Page 19
D-Day Manual
12/02/2017
18
6. TROUBLESHOOTING
6.1 Common Problem
Please confirm that all connectors fit tightly.
Symptom Possible Cause Recommended action
Game will not
start
Frame assembly connector is
loose.
Check connector.
Frame assembly fault Contact with UNIS Service.
Power off
Circuit protector make power SW
in off state.
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.

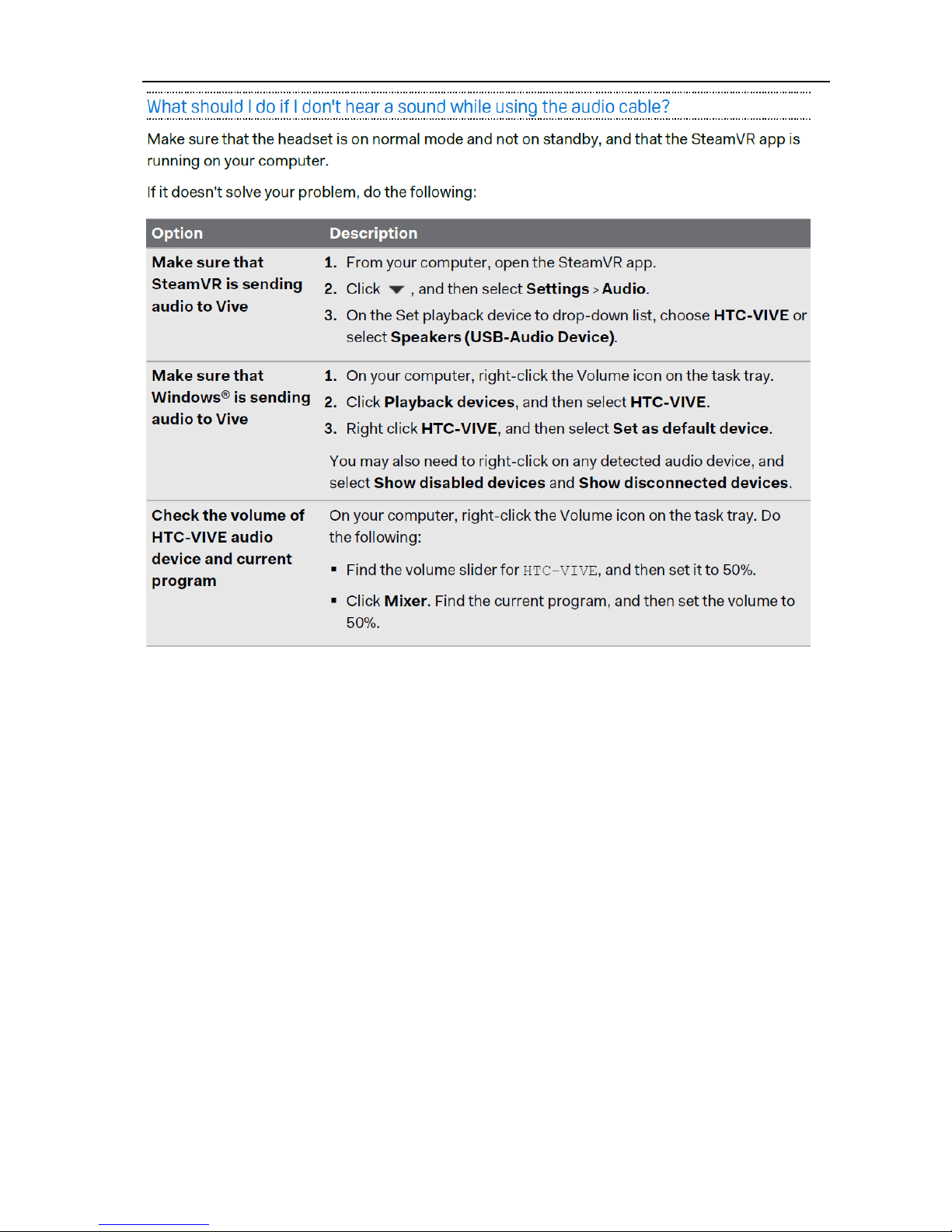

No sound
Low volume Raise the volume.
Connector loose. Check connector.
Speaker fault. Check speaker.
POT installation error. Install POT correctly.
POT fault. Change POT.
Audio cable problem.
Reconnect the audio cable or change
it.
PC crash. Restart or system recovery.
Driver problem Restart the audio driver.
Display black
screen
Check connectors. Plug in connector tightly
Display fault.
Utilize another source such as a PC to
verity if the display is operational.
RAM is loose. Remove and reinsert RAM.
Display blue
screen
PC power cord is loose Check PC power cord whether is loose.
VGA signal cable is loose. Check VGA cable
PC video card is loose. Reseat video card.
“0X000000A” code appears.
Conflict between computer drive
and software.
Contact service
No motion and
gun is
immovable.
Stop button is activated.
Press the stop button again to
deactivate the stop button.
Seat belt unfasten. Fasten the seat belt.
No motion or
weak motion,
but gun is
movable.
Not enough air pressure for air
compressor.
Waiting for air supply.
Air compressor is off.. Turn on the air compressor.
Blow-down valve is on. Turn off the blow-down valve.
Air compressor error Change the air compressor.
Gun is
immovable.
Gun rotary motor malfunction. Change the gun rotary motor
Note: After replacing component from pc (except for RAM), and replacing monitor, the
game should be recovered again with the memory stick attached to the machine.

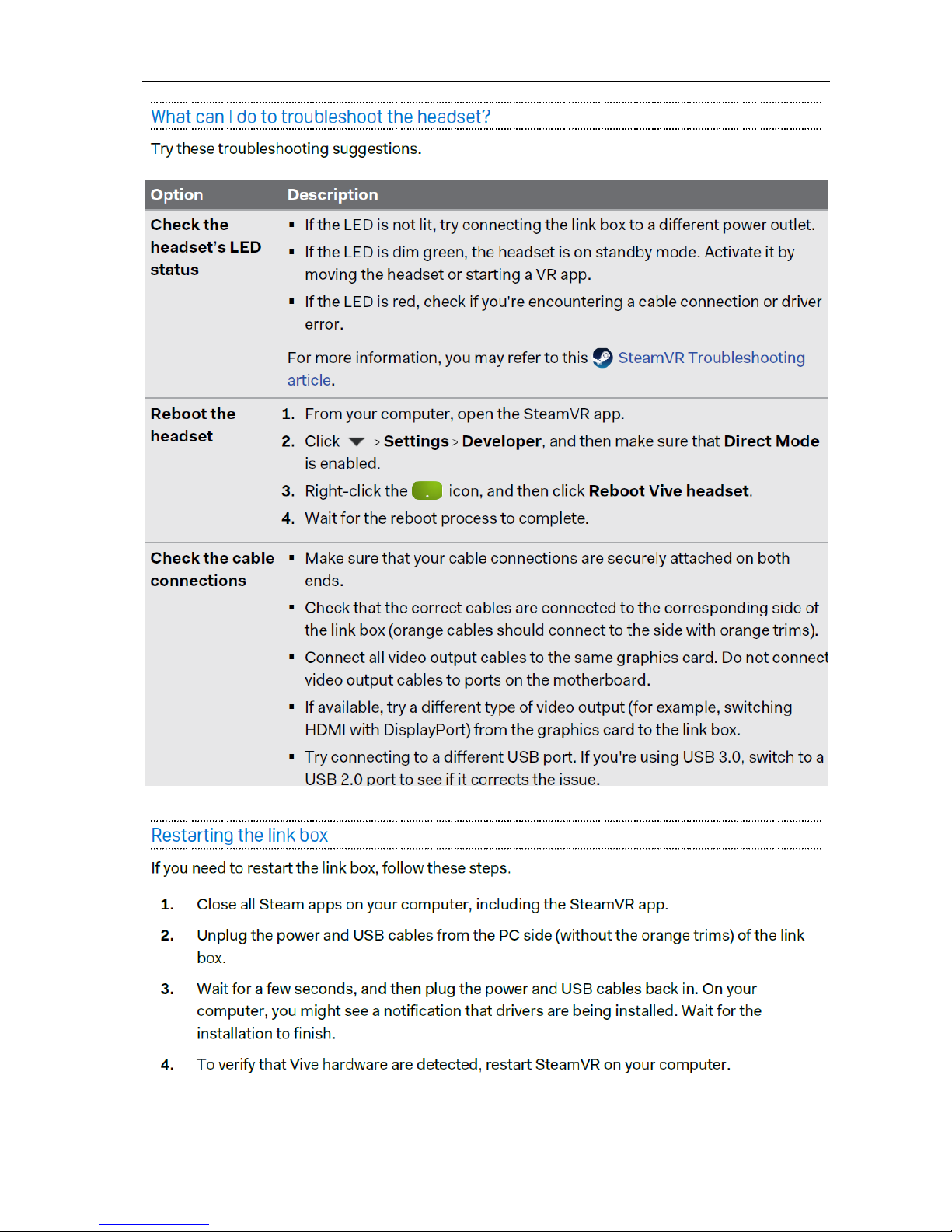

Page 20
D-Day Manual
12/02/2017
19

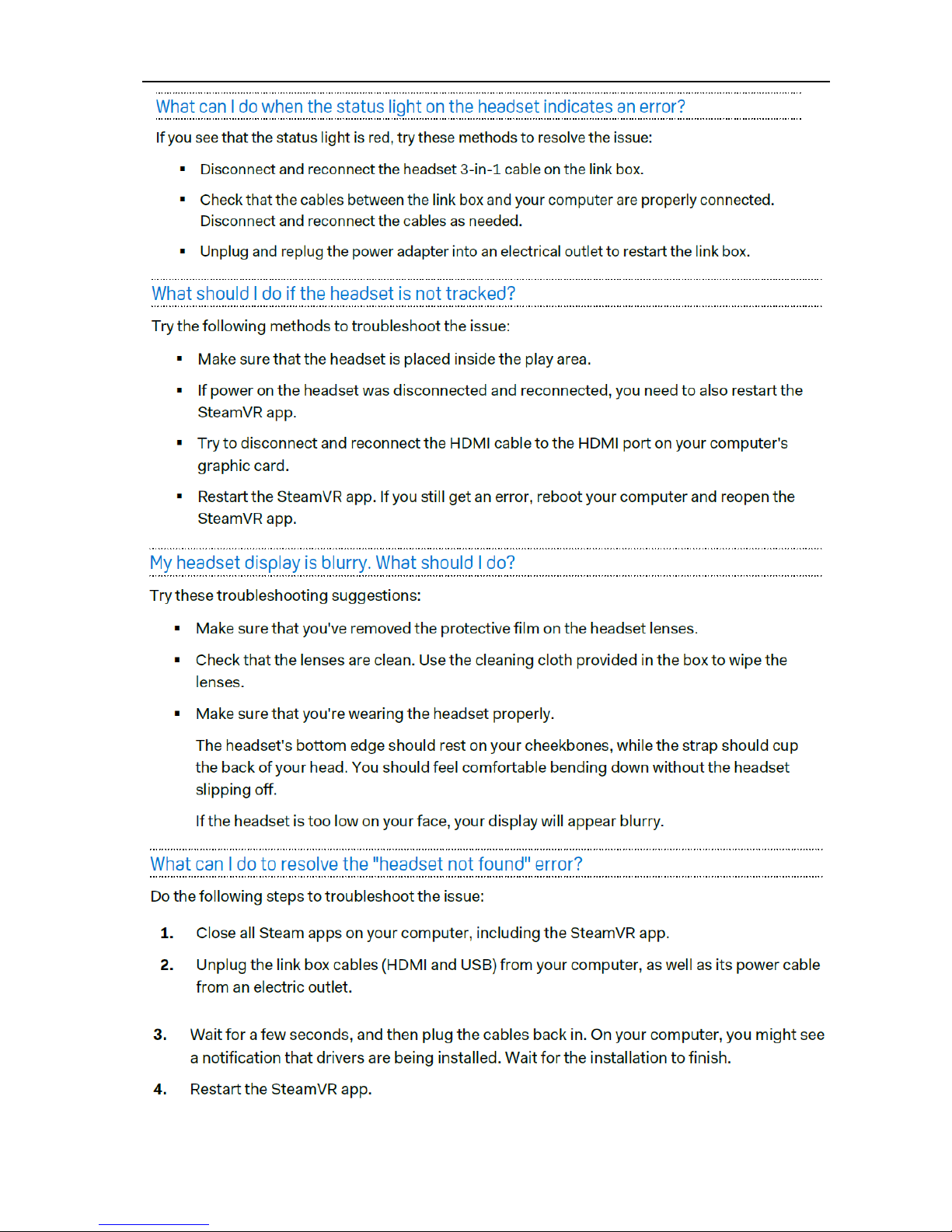

Page 21
D-Day Manual
12/02/2017
20
Page 22
D-Day Manual
12/02/2017
21
Page 23
D-Day Manual
12/02/2017
22

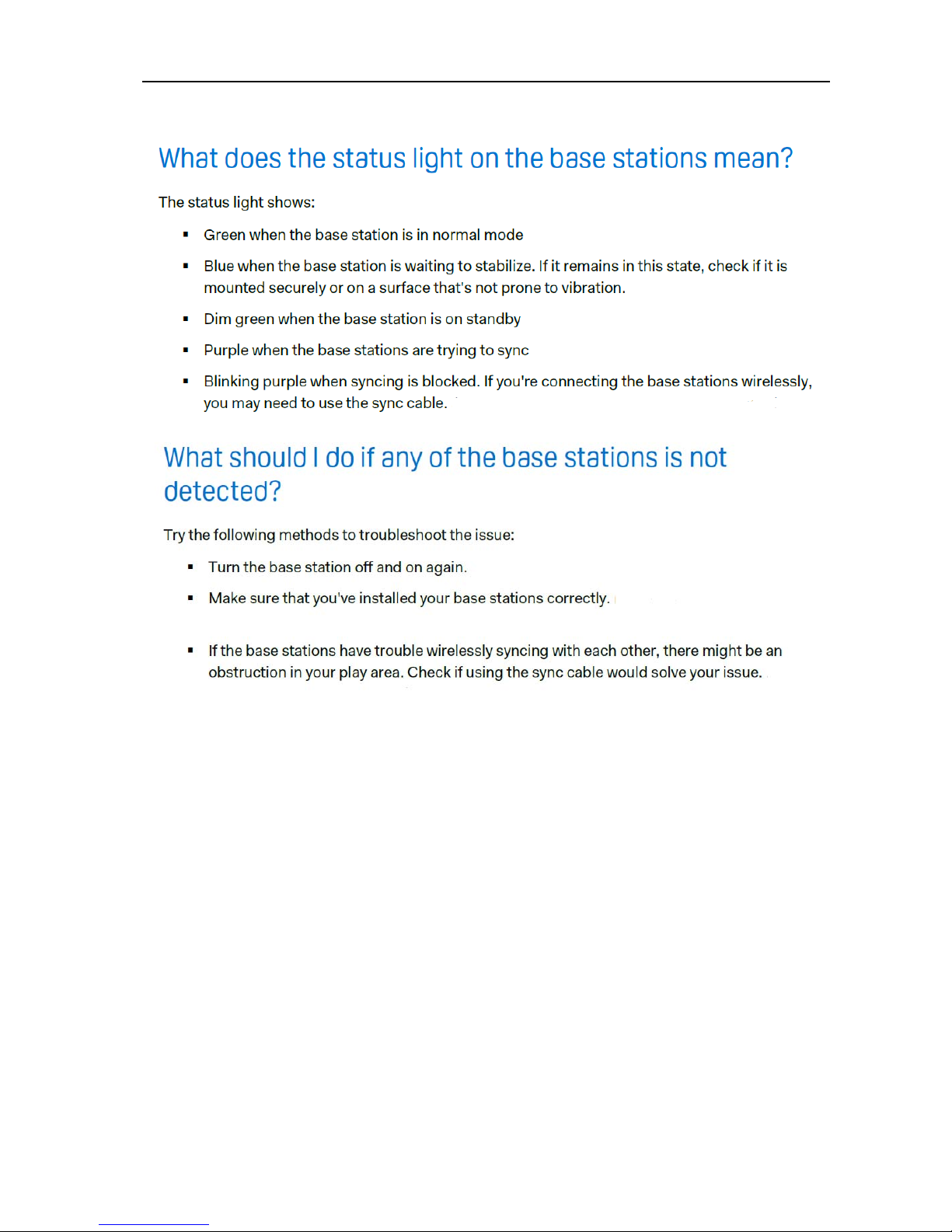

For base station:
Page 24
D-Day Manual
12/02/2017
23
7. MAINTENANCE & INSPECTION
7.1 Saf ety Ch ec k
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Test game before operation each day.
2. Conduct monthly routine checks of game components to ensure good working
condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to maintain proper
operation.
7.2 Han dl in g Prec au ti ons
When installing or inspecting the machine, be very careful of the following points and
pay attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine
We do not recommend using power tools as they may cause damage.
NOTICE
Page 25
D-Day Manual
12/02/2017
24
8. OVERALL CONSTRUCTION
8.1 General Assembly
No. Part No. Code No. Name Qty
1 D139-007-000 29941706A003 Marquee assy. 1
2 D139-005-000 29941706008 Display assy. 1
3 D139-001-000 29941706A001 Frame assy. 1
4 D139-308-000 20241706001
Wiring cover 1
5 D139-002-000 29941706005
Motion assy. 1
6 D139-008-000 29941706011 Gun platform assy. 1
7 D139-003-000 29941706006
Gun assy. 1
8 D139-004-000 29941706A002
Seat assy. 1
9 D139-006-000 29941706009 Seat back assy. 1
Page 26
D-Day Manual
12/02/2017
25

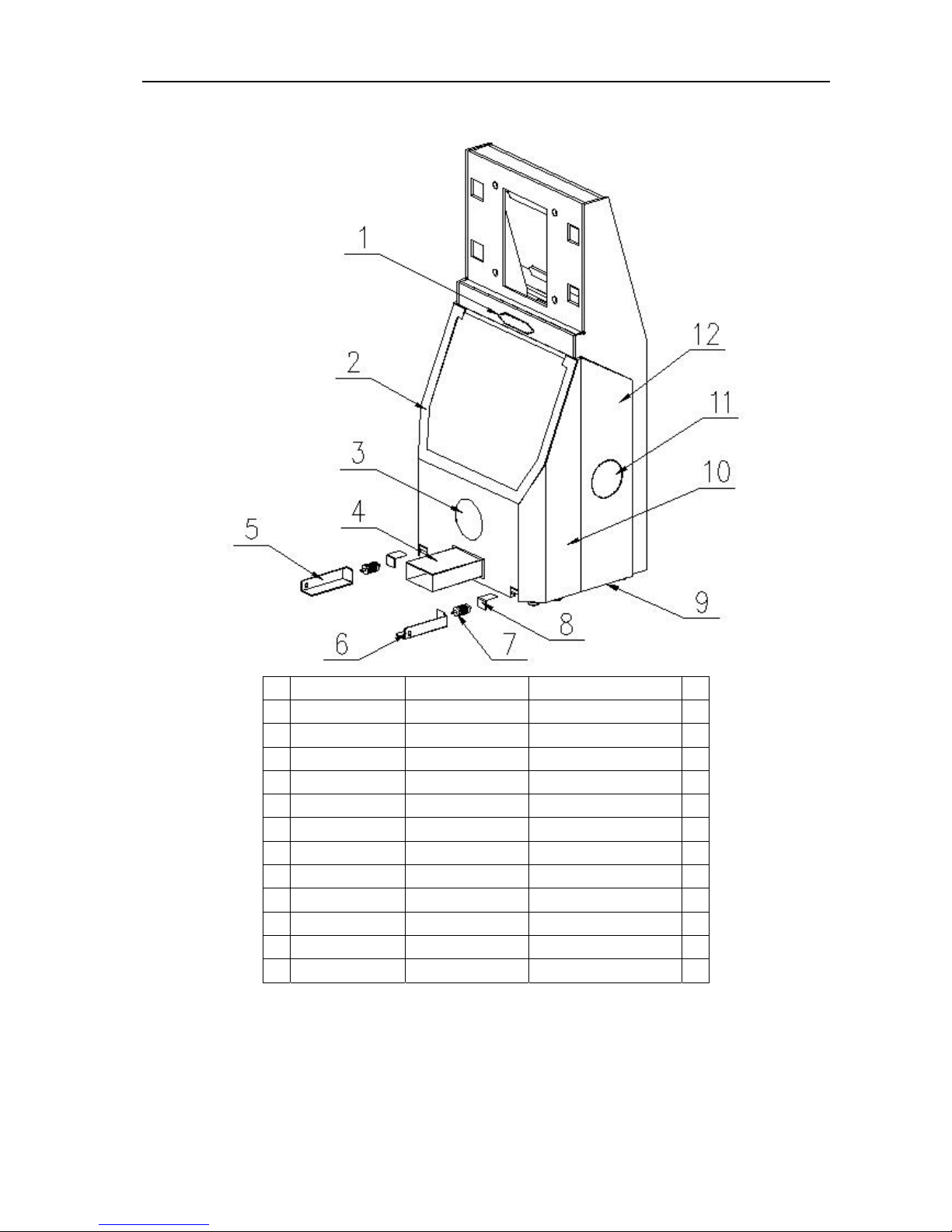

8.2 Display Assy.
No. Part No. Code No. Name Qty
1 D139-207-000 20241706004A Air outlet cover 1
2 D139-208-000 20241706003 Front light cover 1
3 D139-209-000 20241706056 Speaker cover 1
4 D139-210-000 20241706005 Wiring metal plate 1
5 D139-221-000 20241706007 Connected plate 2 1
6 D139-223-000 20241706008 Connected plate 3 1
7 D139-222-000 20641706018 Damping rod rubber 1
8 D139-220-000 20241706006 Connected plate 1 2
9 D139-226-000 20241706015 Side binding plate 1 1
10 D139-206-000 20241706002 Frame front cover 1
11 D139-225-000 20241706057
Fan cover 1
12 D139-009-000 29941706002 Wood case assy. 1
Page 27
D-Day Manual
12/02/2017
26
8.3 Motion assy.
No. Part No. Code No. Name Qty
1 D139-302-000 20641706019 Antiskid plate 1
2 D139-301-000 20241706017 Cabinet face panel 1
3 D139-299-000 20241706073 Cabinet top bracket 1
4 D139-298-000 20241706063 Gasbag bracket 4
5
D139-297-000 20241706074 Cabinet bracket 1
D139-201-000 26000010000 Caster bracket 4
D139-202-000 26000008000 Cabinet leveller 4
6
D139-306-000
20241706019 Wiring outlet plate 1 1
D139-307-000 20241706020 Wiring outlet plate 2 1
7
D139-304-000
20641706016
Protect cover 1
D139-303-000 20241706018 Pressing plate 20
Page 28
D-Day Manual
12/02/2017
27

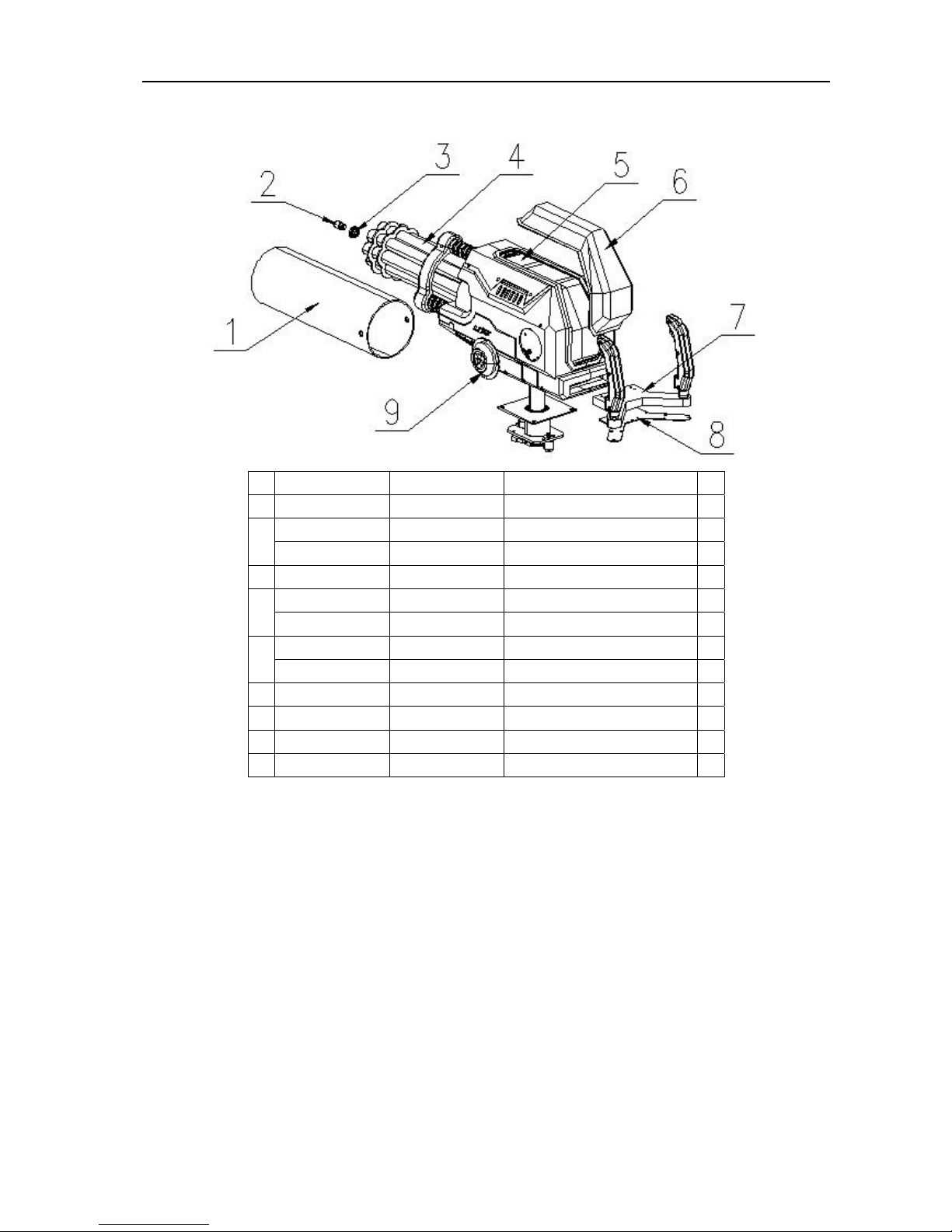

8.4 Gun assy.
No. Part No. Code No. Name Qty
1 D139-232-000 20641706012
Clear gun cover 1
2
D139-229-000 20241706029 Gun tube BR fix shaft 1
D139-230-000 20241706032 Gun tube fix BR sleeve 1
3 D139-231-000 20241706082 Gun tube top flange 1
4
D139-233-000 20641706013 Gun tube light fix tube 1
D139-234-000 20641706020
Plastic tube 1
5
D139-272-000 20641706004
L side gun shell 1
D139-270-000 20641706005
R side gun shell 1
6 D139-271-000 20641706002 Gun top light cover 1
7 D139-240-000 20241706030
Gun handle seat 1
8 D139-241-000 20241706031 Gun handle bracket cover 1
9 D139-273-000 20641706003 Gun shell side light cover 2
Page 29
D-Day Manual
12/02/2017
28

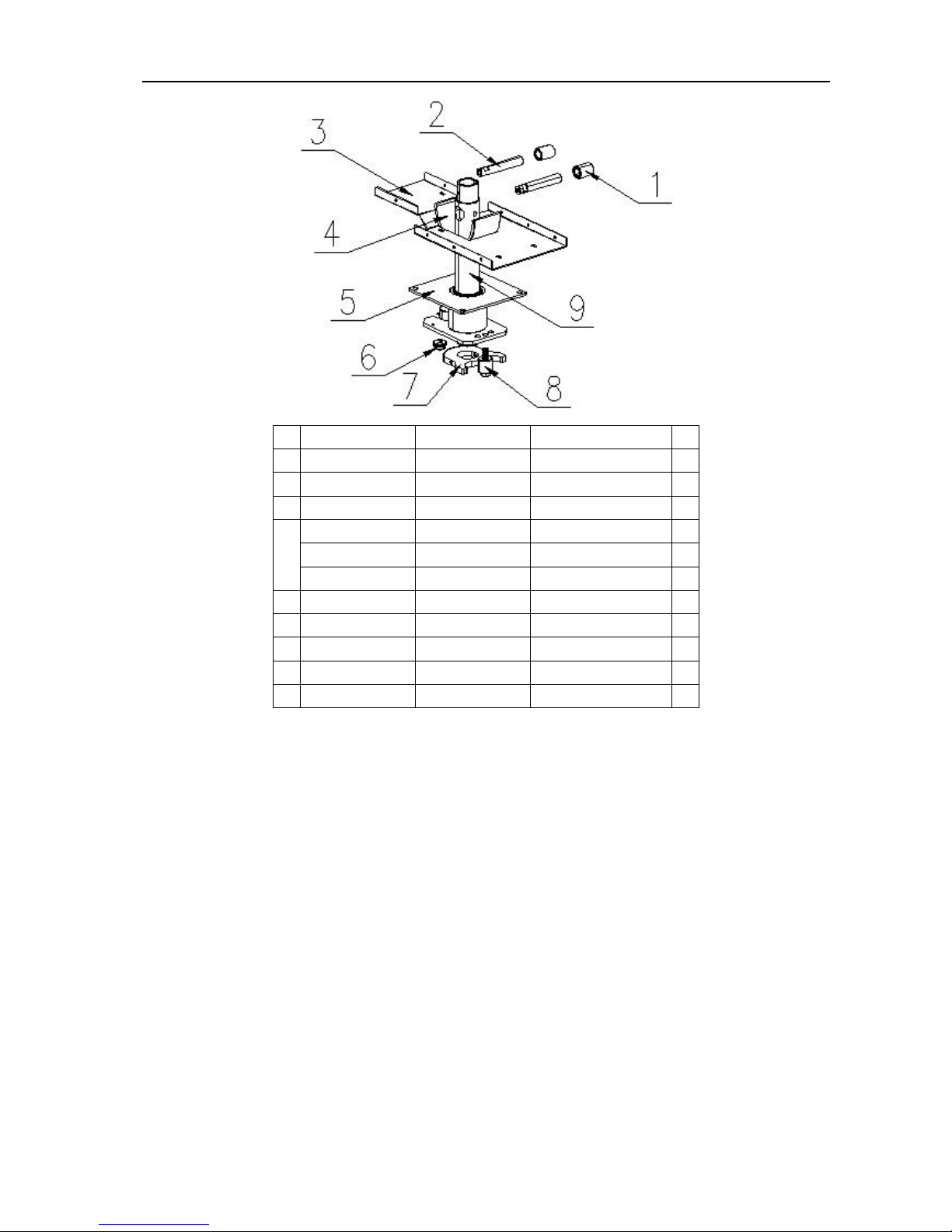

No. Part No. Code No. Name Qty
1 D139-257-000 20641123002 Damping sleeve 2 2
2 D139-258-000 20241123015
Fix shaft 2
3 D139-262-000 20241706026 Gun bed plate 1
4
D139-259-000 20241706080
Slide block 1
D139-260-000 20241706040 Sliding channel 2 1
D139-261-000 20241706039 Sliding channel 1 1
5 D139-263-000 20241706033 Gun bracket 1
6 D139-264-000 20241706078 Level rotary gear 2 1
7 D139-265-000 20241706034 Level rotary gear 1 1
8 D139-267-000 20641706021 Damping sleeve 1
9 D139-266-000 20241706025 Middle rotary tube 1
Page 30
D-Day Manual
12/02/2017
29

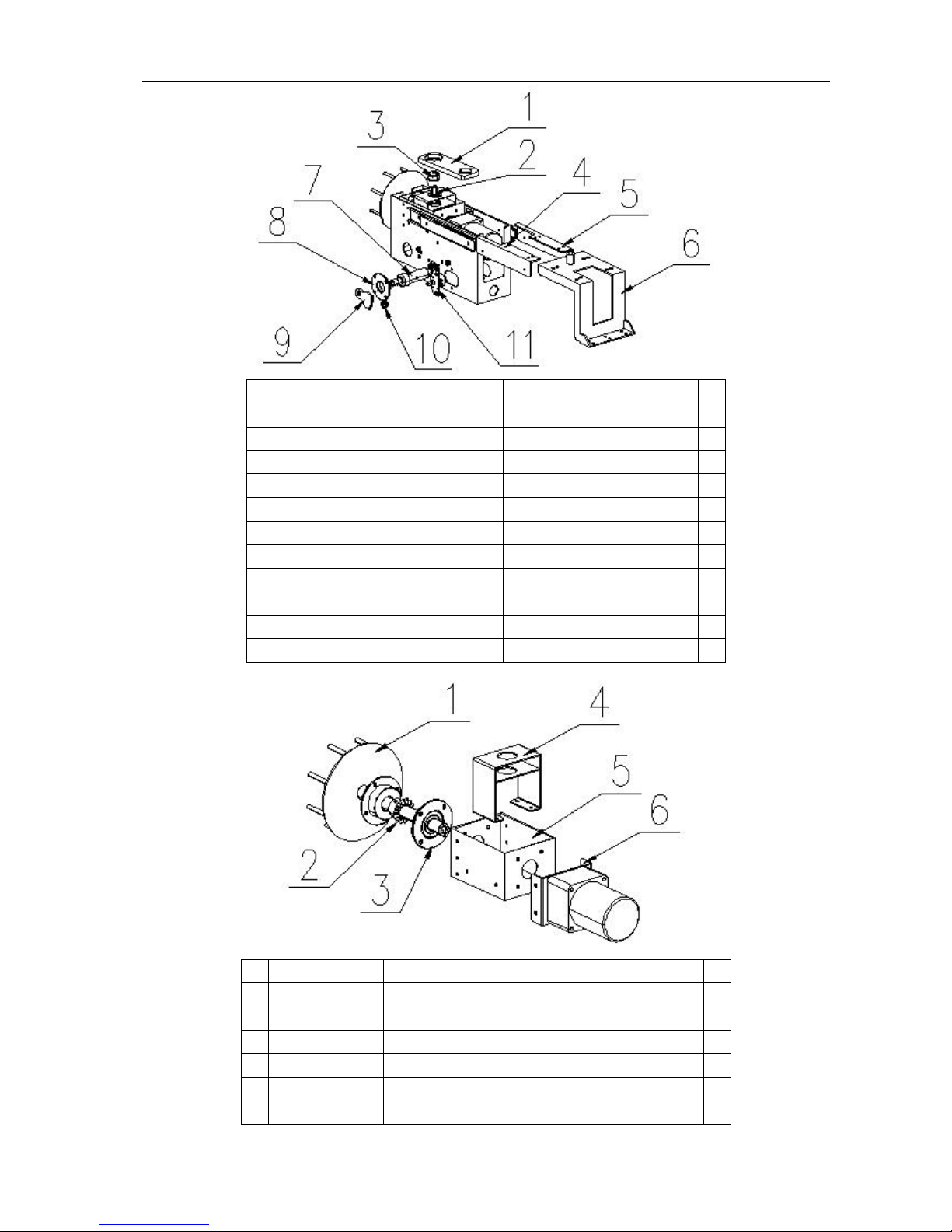

No. Part No. Code No. Name Qty
1 D139-243-000 20241706023
Linking block 1
2 D139-269-000 20241706076
Rotary gear 2 1
3 D139-268-000 20241706024
Eccentric shaft 1
4 D139-244-000 20241123004
R slide plate 1
5 D139-248-000 20241123003
R slide plate 1
6 D139-239-000 20241706027 Slide rail connected block 1
7 D139-252-000 20241706077 Axis of rotation(middle) 1
8 D139-253-000 20241123014
BR bracket 1
9 D139-251-000 20241706035 Vertical rotary gear 1 1
10 D139-250-000 20241706079 Vertical rotary gear 2 1
11 D139-249-000 20241123008
POT plate 1
No. Part No. Code No. Name Qty
1 D139-254-000 20241706037 Gun connected flange 1
2 D139-238-000 20241706075
Rotary gear 1 1
3 D139-237-000 20241706081 Gun BR mounting bracket 2
4 D139-256-000 20241706022 Shaft mounting plate 1
5 D139-235-000 20241706038A
Gun body 1
6 D139-245-000 20241706028A Motor mounting plate 1
Page 31
D-Day Manual
12/02/2017
30
8.5 Seat Assy.

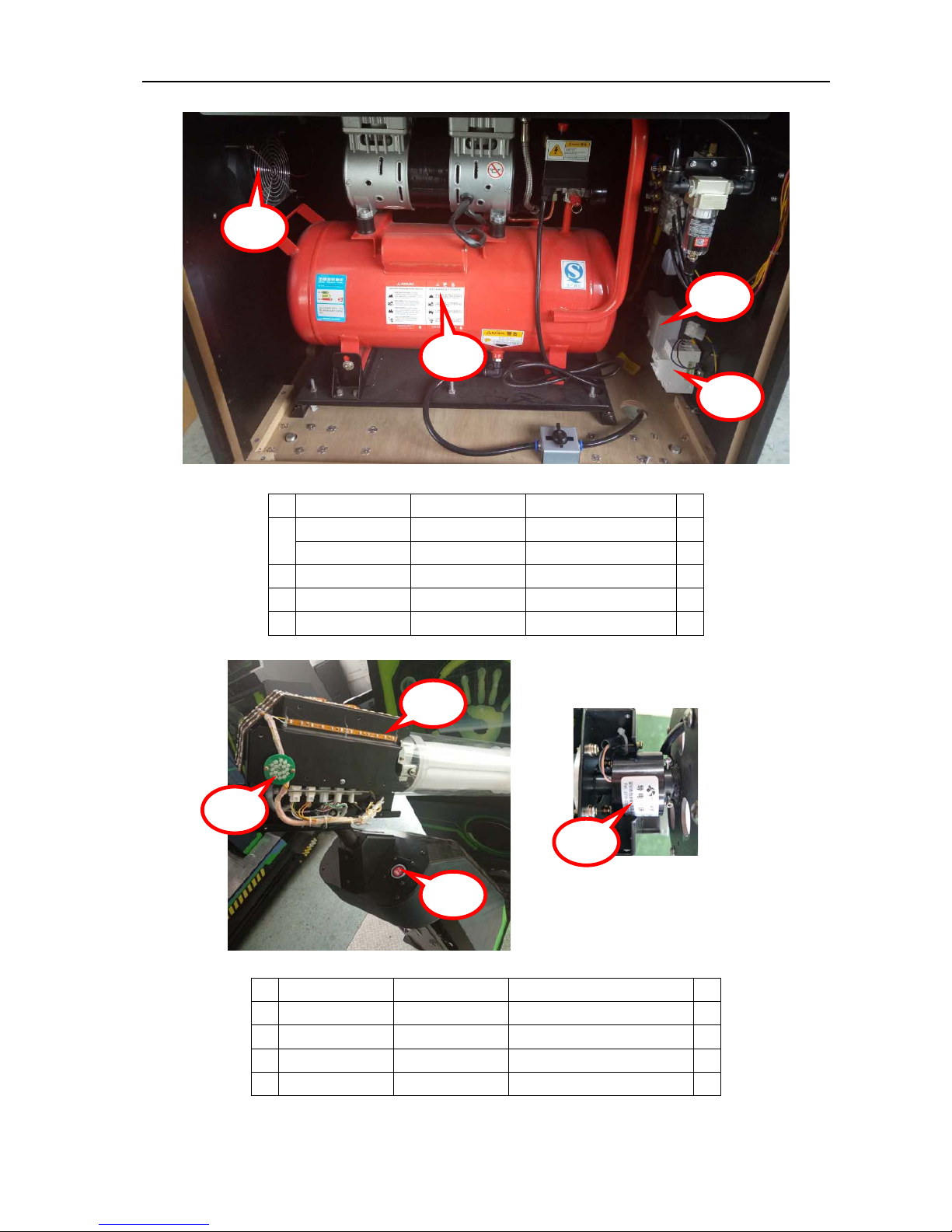

No. Part No. Code No. Name Qty
1
D139-274-000 20641706017
Seat 1
D139-280-000 20641706011 Plastic screws assy. 6
2 D139-276-000 20241706065 Light bar bracket 1
3 D139-275-000 20241706066 Speaker cover 2
4 D139-278-000 20241706068 Seat fixing metal 2
5 D139-281-000 20241706067 Motor fix plate 1
6 D139-279-000 20241706041
Seat base 1
7 D139-277-000 20641706015
Seat belt 2
8.6 Marquee assy.
No. Part No. Code No. Name Qty
1 D139-310-000 20241706045 Marquee fix plate 1 1
2 D139-309-000 20241706046 Marquee fix plate 2 1
3 D139-311-000 20241706047 Marquee fix plate 3 1
Page 32
D-Day Manual
12/02/2017
31
8.7 Seat back assy.
No. Part No. Code No. Name Qty
1
D139-296-000 20241706069 Box metal plate 1
2 D139-294-000 20241706044 Back cover 1
3 D139-295-000 20641706001 Logo plate 1
4
D139-292-000 20641706009 L light bracket 1
D139-537-000 20841105004 Brass post 3
5
D139-293-000 20641706010 R light bracket 1
D139-537-000 20841105004 Brass post 3
6 D139-291-000 20641706007 Back plastic 1
8.8 Display assy.
No. Part No. Code No. Name Qty
1 D139-314-000 20641706022
L side plate 1
2 D139-312-000 20241706043
Display panel 1
3 D139-313-000 20641706014 Display protect plastic 1
4 D139-316-000 20641706024 Top and bottom side plate 2
5 D139-317-000 20241706042
Display bracket 1
6 D139-315-000 20641706023
R side plate 1
Page 33
D-Day Manual
12/02/2017
32
8.9 Gun platform
No. Part No. Code No. Name Qty
1 D139-284-000 20241706051 Gun platform block 1 1
2 D139-283-000 20241706052 Gun platform block 2 1
3 D139-290-000 20241706055 Button bracket 1
4 D139-289-000 20241706050 Gun platform cover 2 1
5 D139-288-000 20241706049 Gun platform cover 1 1
6 D139-282-000 20241706048
Gun platform 1
7 D139-285-000 20241706070 Meter bracket 1
8 D139-287-000 20241706053 Coin box cover 1
9 D139-286-000 20241706054
Coin box 1
Page 34
D-Day Manual
12/02/2017
33

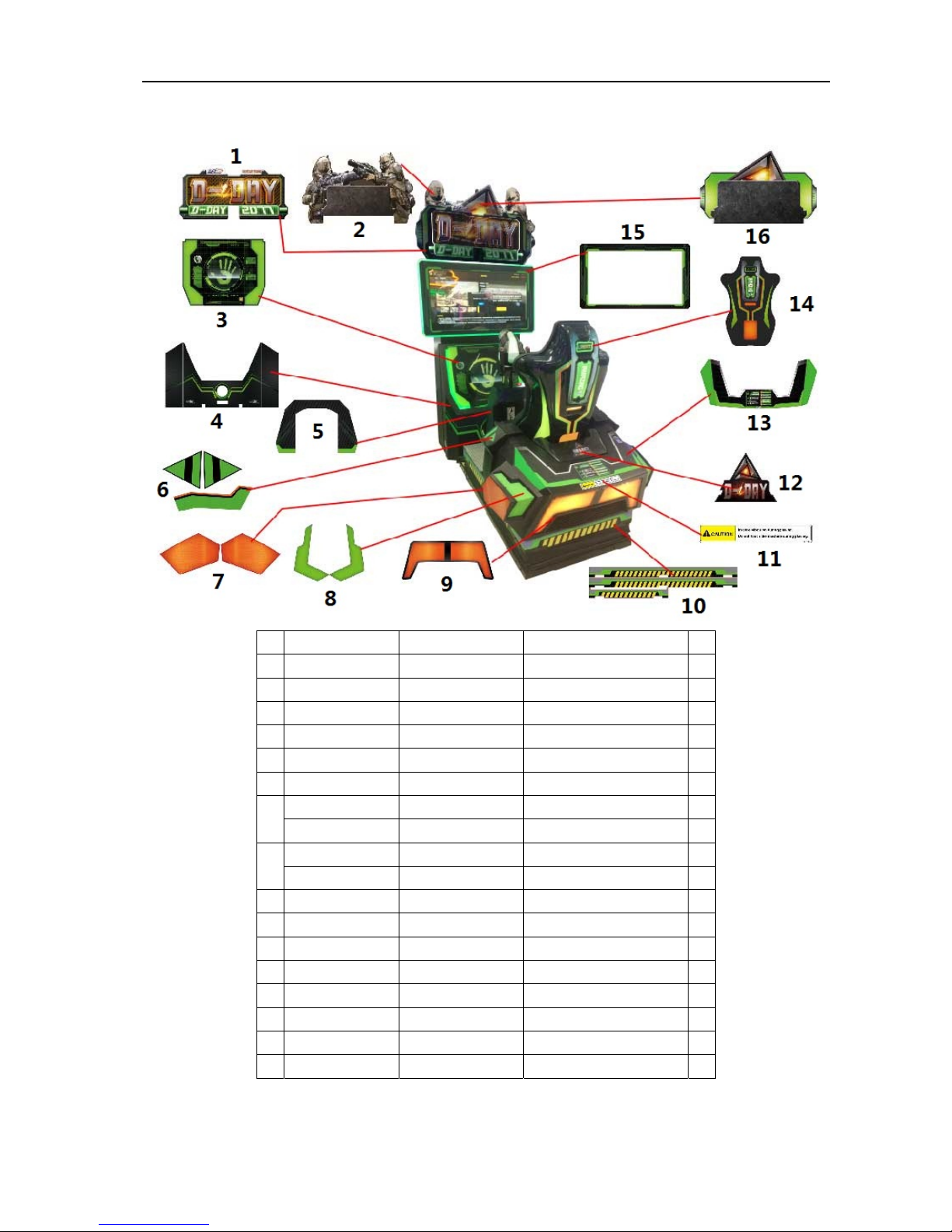

8.10 Decals
No. Part No. Code No. Name Qty
1 D139-702-000 20541706A002 Marquee decal 1 1
2 D139-720-000 20541706006 Marquee POP decal 1
3 D139-718-000 20541706004 Front light plate decal 1
4 D139-705-000 20541706A005
Cabinet decal 1
5 D139-727-000 20541706016 Gun platform decal 1
6 D139-724-000 20541706011
Seat side decal 1
7
D139-725-000
20541706014
L side decal 1
D139-726-000 20541706015
R side decal 1
8
D139-722-000 20541706009
L green cover 1
D139-723-000 20541706010
R green cover 1
9 D139-719-000 20541706005 Back light plate decal 1
10 D139-728-000 20541706017 Platform side decal 1
11 D139-706-000 20541706A006
Warning label 1
12 D139-704-000 20541706A004 Back LOGO decal 1
13 D139-707-000 20541706A007 Seat back cover 1
14 D139-701-000 20541706A001 Seat back shell 1
15 D139-721-000 20541706007 Display frame decal 1
16 D139-717-000 20541706003 Marquee decal 2 1
Page 35
D-Day Manual
12/02/2017
34

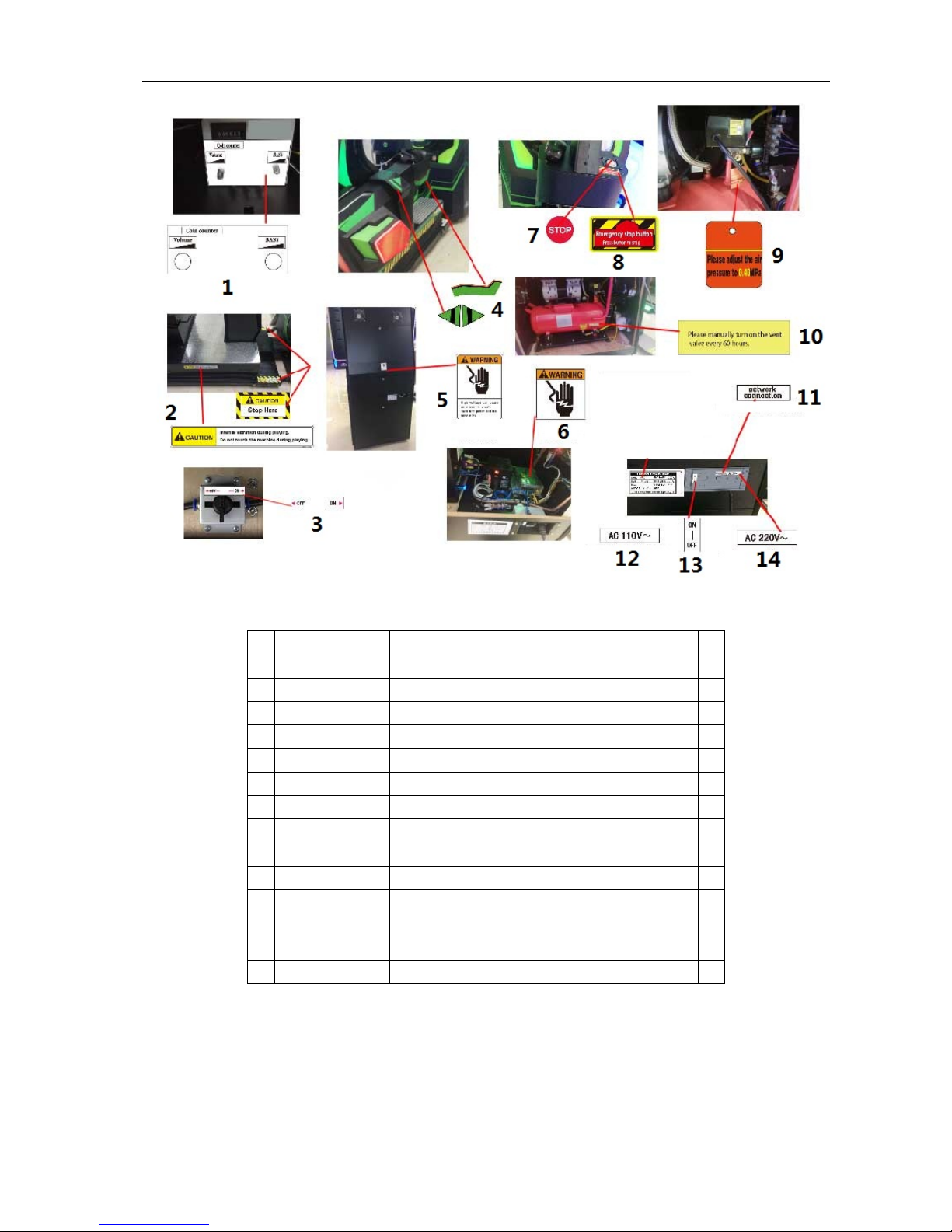

No. Part No. Code No. Name Qty
1 D139-712-000 20541706A012
Meter label 1
2 D139-706-000 20541706A006
Warning label 1
3 D139-716-000 20541706A017 Air valve SW label 1
4 D139-724-000 20541706011
Seat side decal 1
5 D139-731-000 25600000037
Voltage label L 1
6 D139-729-000 25600000036
Voltage label S 1
7 D139-703-000 20541706A003 Stop button decal 2
8 D139-709-000 20541706A009 Button instruction label 2
9 D139-710-000 20541706A010 Air pressure adjust label 1
10 D139-711-000 20541706A011 Air valve instruction 1
11 D139-733-000 25600000097
Network label 1
12 D139-730-000 25600000071
110V label 1
13 D139-732-000 25600000016 Power SW label A 1
14 D139-734-000 25600000072
220V label 1
Page 36
D-Day Manual
12/02/2017
35

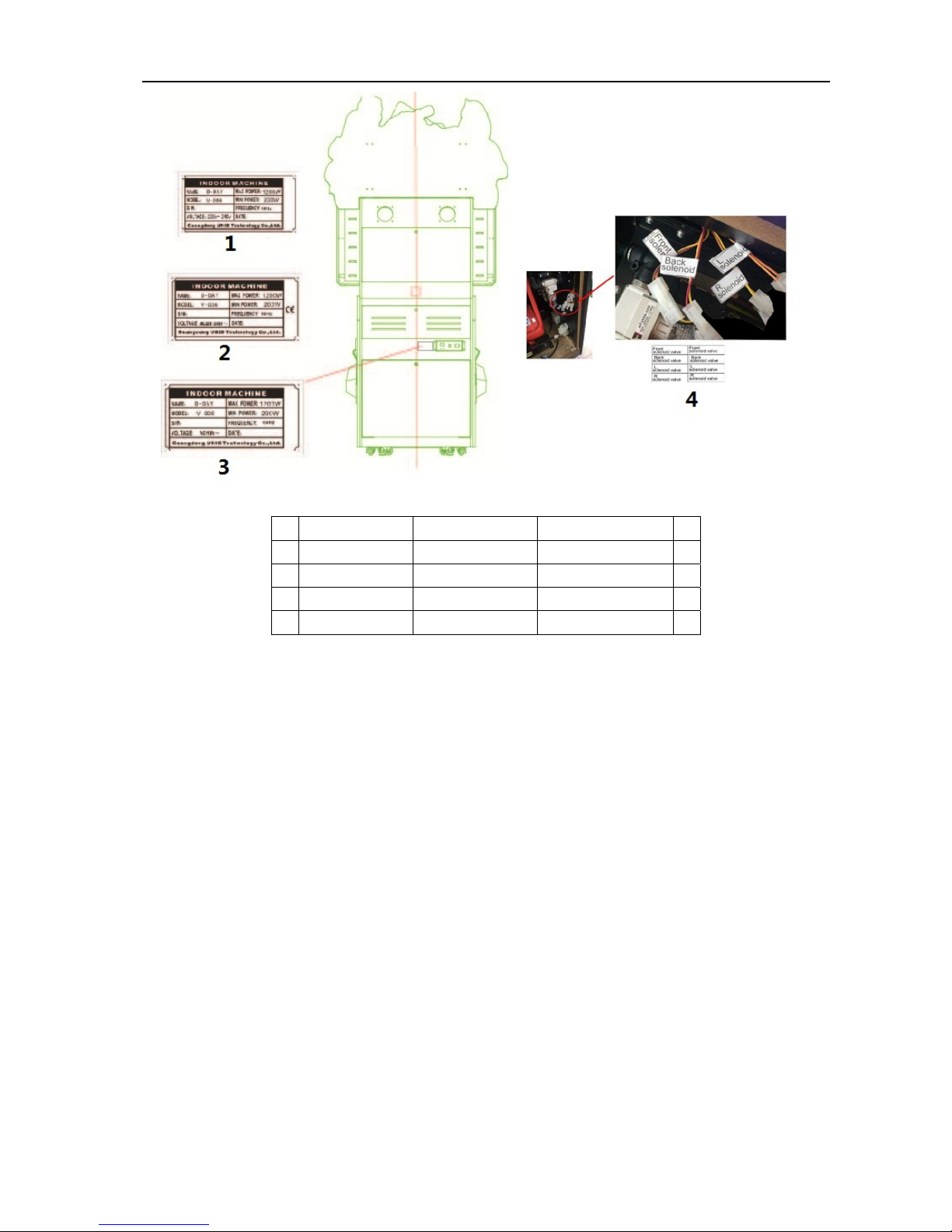

No. Part No. Code No. Name Qty
1 D139-713-000 20541706A014 220V nameplate 1
2 D139-714-000 20541706A015 220V nameplate 1
3 D139-715-000 20541706A016 110V nameplate 1
4 D139-716-000 20541706A017 Air valve SW label 1
Page 37
D-Day Manual
12/02/2017
36
8.11 Electrical components
No. Part No. Code No. Name Qty
1 D139-582-000 20741611028 HTC Vive base station 1
2
D139-551-000 21201043001
43" display 1
D139-563-000 23307000015 DVI-DVI video cable 1
3 D139-552-000 22801000001
Base speaker 1
4 D139-576-000 22002015009 RX5050G light strip--green 3.3
5 D139-575-000 22002013003 3528 LED light strip--white 2
6 D139-581-000 20741611026
HTC VIVE headset 1
2
3
4
5
1
6
Page 38
D-Day Manual
12/02/2017
37

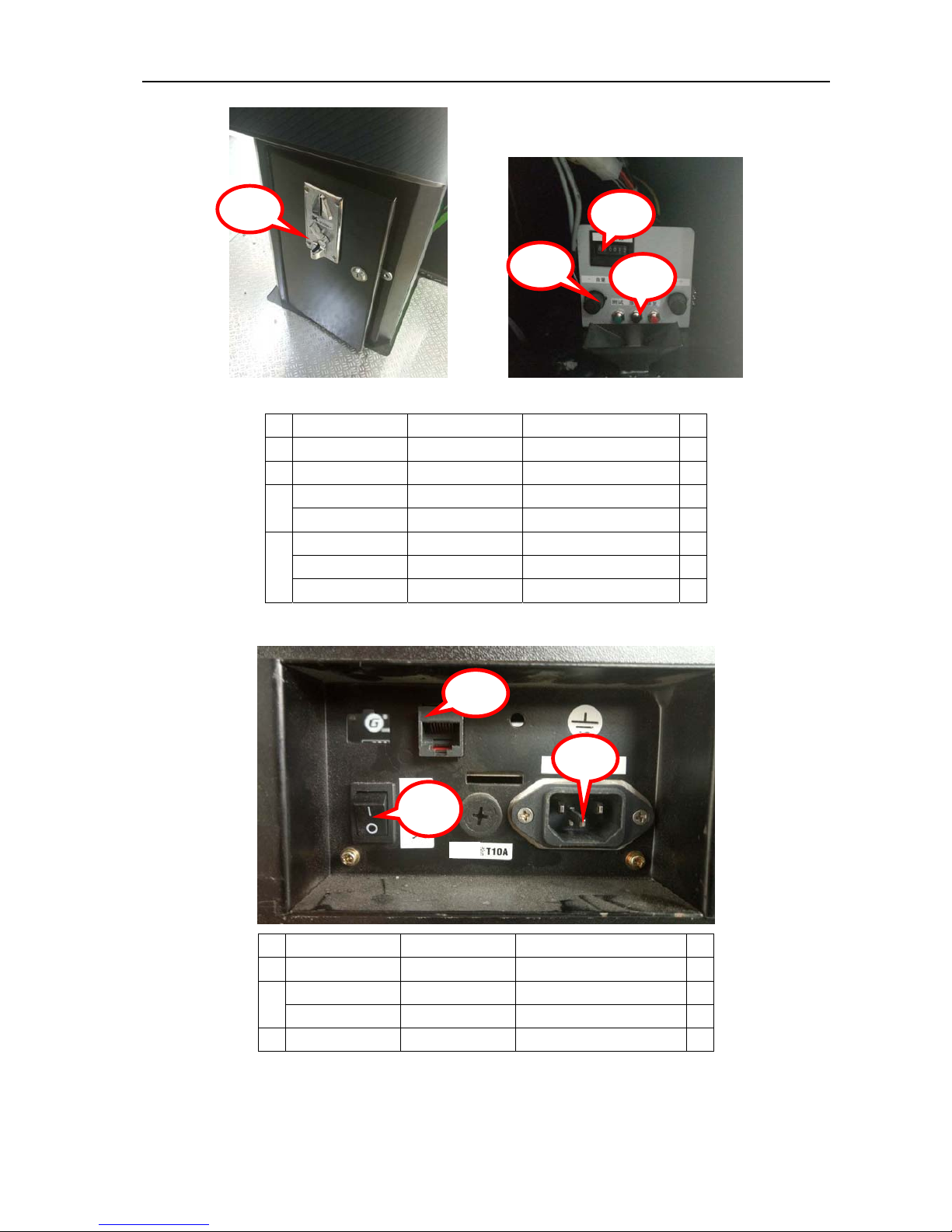

No.
Part No. Code No. Name Qty
1 D139-580-000 22301000001
Coin mech. 1
2 D139-547-000 23000000005
Meter 1
3
D139-545-000 22403000001
POT knob 2
D139-559-000 29791400001 POT connected plate 2
4
D139-542-000 22402010002
Red button 1
D139-543-000 22402030002 Green button 1
D139-544-000 22402050001
Black button 1
No.
Part No. Code No. Name Qty
1 D139-558-000 22601000076
SW 1
2
D139-566-000 23302000013
Network cable 1
D139-564-000 23302000001 Network cable bracket 1
3 D139-560-000 23201000004
Filter 1
1
2
3
4
1
2
3
Page 39
D-Day Manual
12/02/2017
38
No. Part No. Code No. Name Qty
1
D139-579-000 21100000043
PC Assy. 1
D142-590-000 21107070004
CPU fan 1
D142-591-000 23303030002
Serial line 1
D142-592-000 21107270001
Cabinet 1
D142-593-000 21107060005
Hard disk 1
D142-594-000 21107090012
Memory 1
D142-595-000 21107070009
Cabinet fan 1
D142-596-000 21107030088
Video card 1
D142-597-000 21107220009
Main board 1
D142-598-000 21107190021
CPU 1
D142-599-000 21107170013 Power supply 1
D142-541-000 23301000001
Power cord 1
D142-586-000 41300000008
U disk 1
D142-584-000 23304000033 USB extended cable 1
2 D139-505-000 23401000025
Blower 1
3
D139-550-000 22803000032
Amplifier 1
D139-570-000 21404000015
Audio plug 1
4 D139-577-000 21602000029 Power supply 1
5
D139-549-000 29791300001
Main board 1
D139-557-000 23309000259
Wiring set 1
3
1
4
5
2
Page 40
D-Day Manual
12/02/2017
39
No. Part No. Code No. Name Qty
1
D139-548-000 22702010025
Fan 3
D139-546-000 22702000010
Fan net 6
2 D139-507-000 40611010008 Air compressor 1
3 D139-555-000 22601000086 Electric leakage SW 1
4 D139-568-000 21606000010
Socket 1
No. Part No. Code No. Name Qty
1 D139-573-000 22002013006 3528 LED light strip--red 2.2
2 D139-556-000 29741208001
LED light board 2
3 D139-571-000 22402000201
Button 1
4 D139-585-000 21608000006
Conductive ring 3
1
2
3
4
1
2
4
3
Page 41
D-Day Manual
12/02/2017
40
1 2 3 4 5 6 78
A
B
C
D
8
7654321
D
C
B
A
Name:
Date:
Version:
2-Dec-2017
123456789
ABCDEFGHI
brown
red
orange
yellow
green
blue
violet
grey
white
black
pink
light gre en
sky blue
shield layer
JKLMNOP
Q
AWG30 UL1007
AWG28 UL1007
AWG26 UL1007
AWG24 UL1007
AWG22 UL1007
AWG20 UL1007
AWG18 UL1007
AWG16 UL1007
Note: Wire colo r and wire size is sho wn in cod e.
Wire color code
Wire s i ze co de
Tolerance
unit mm
scale
:
0~1000
1001~2 00 0
2001~3 00 0
3001~4 00 0
4001~5 00 0
±10
±20
±30
±40
±50
Example 2 0 m
Color of the wire: 20 mean s red
Size of the wire: m means AWG24 UL1007
Universal Space
Amusement machine
UNIS
VR Wirin g diagram
VRDL- PX-00 V 1 .0
SW
Noise filter
PLUG
10Q
45Q
60Q
L
N
E
L
N
E
L
N
10Q
60Q
45Q
L
N
10Q
60Q
Electric leakage SW
A ir c o mp r essor
10Q
45Q
60Q
L
N
L
N
10P
60P
10P
60P
8340-F120 20 A
16A
Fron t s o l eno id va lv e
Back solenoid valve
L sol eno id va lv e
R solenoid valve
Air outlet solenoid v alve
123
4
J1
123
4
VH
12V
GND
12V
GND
M3-MB.P CB
Ver 1. 1
USB-B
123456789
10
J22
123456789
10
VH
1111
12V
GND
A0P
40P
A0P
40P
L trigg er btn
L fire btn
R trigger btn
R fire btn
Stop
123456789
10
J20
123456789
10
YY1820 D-H26
2525
12V
Display bot tom light
12V
2626
24×2
24×2
24×2
60M
10M
20M
30M
40M
50M
A0
123456789
10
J21
123456789
10
VH
12V
12V
Gun motor 1
6010204040P3050
40P
123
J3
3.3V
GND 1
2
3
XH
AD1
90ME20M
123
J4
3.3V
GND 1
2
3
XH
AD0
90ME20M
GND
PC
43" display
Audio port
DVI p ort
USB-A
DONGLE
USB-A
123
HM
10P
45Q
60P
A0P
50P
90P
DVI p ort
123
J03
HF
A0P
50P
90P
VRD L-PX-02
Network c able
123
HM
123
J01
HF
Gun motor 2
Gun light 1
Seat motor
Seat bottom light
Seat side light
10P
45Q
60P
SW power supply
12V/150 W
AC L
AC N
Earth
GND
12V
GND
12V
x axis
123
123
J28
C
123
P
E
90M
20M
Y axis
123
123
4
J36
C
123
4
P
E
90M
20M
K1
Trigger btn K2Fire btn
L handle
123456789
1011121314
J33
C
1
2
J34
C
1
2
P
A0O
20O
12V motor
123456789
1011121314
P
E
90M
20M
Gun assy.
M
+
-
MOTOR ( DC)
Fus e GF1 1 0
Gun light 1
3528 Light strip (green)(3 00MM)
12V
GND
12V
GND
1234567
8
J27
C
1234567
8
P
242010A0403050
Coin meter
80
80
45Q
24
91
123
J26
C
123
4
CN1
123
4
Coin mech.
12V
GND
COIN SIGNAL
A02491
123
P
A02491
Coin
12345
6
J27
12345
6
5557/6P
12V
Loc k
123456789
10
J26
5557/10 P
Test btn
Setting btn
123456789
10
10
2040A03050
Choose btn
GND
24
Coin meter
GND
12V
91
123456789
1011121314
C
123456789
1011121314
J25
P
102040A0305024
91
45Q
1
2
J14
VH
1
2
L channe l
1
2
J13
VH
1
2
R channel
20M
90M
E
123
J12
XH
123
Bass output
2.1 Amplifier
123
4
J11
XH
20M
123
J15
VH
90M
E
123
Audio input
123
4
Bass v olume control
L-L+R-
R+W-W+
123456789
10111213141516
J17
C
905095
96
90P
50P
20M
90ME20M
90ME20M
90M
E
Bass speaker
1
2
P
1
2
J16
C
Fro nt s ole noid v al v e
1
2
12V
GND
1
2
12V
GND
1
2
12V
GND
1
2
12V
GND
Back sol enoid val v e
L sole noid v al ve
R solenoid v alv e
6010204030
3528
（
5MM width
）
green li ght (1950MM)
12V
GND
12V
GND
1
2
P
1
2
J07
C
60 60
24 24
90ME20M
102040
A0×23050
24×2
91
45Q
90ME20M
6010204030
50
10M
20M
30M
40M
50M
60MA090ME20M
60102040305024×2
10M
20M
30M
40M
50M
60M
A0×2
90ME20M
60
10
20
24
30
50
24
10M
20M
30M
40M
50M
A0A090ME20M
123
4
J45
C
123
4
P
A0 A0
St op btn
50
Green
1
2
J1
TJXS-PGLED01
1
2
J40
XH
12V
Green
1
2
J1
TJXS-PGLED01
1
2
J41
XH
12V
24
30
24
30
24
30
A0P
40P
123456789
10111213141516
P
905095
96
VR
50K POT
12345
6
J19
XH
12345
6
CN1
VRPCB
20M
90ME20M
90M
E
20M
90M
E
VR
50K POT
12345
6
J18
XH
12345
6
CN1
VRPCB
Bass control
L speak er
1
2
P
1
2
J21
C
R speaker
1
2
P
1
2
J22
C
Fu ll rang e con trol
20M
90ME20M
90ME20M
90M
E
12345
6
J20
C
12345
6
P
A0P
40P90509596
A0P
40P90509596
905095
96
90
50
96
9595
96
90
50
Seat back light (L )
5050 Green ligh t strip (380MM)
12V
GND
123
J23
C
123
P
A0
24
A0
24
Seat b ack l ight (Midd le)
5050 Green ligh t strip (1000MM )
12V
GND
123
J24
C
123
P
A0
24
A0
24
A0×2
24×2
1
2
J47
C
1
2
P
40
24
Seat R side light
3528 lig ht strip (Red)(600 MM)
12V
GND
12V
GND
123
J50
C
123
P
50
24
24
Seat back light (L )
3528 lig ht strip (White)(2000MM)
12V
GND
12V
GND
1
2
J49
C
1
2
P
60
24
24
60
Seat back light (R)
3528 lig ht strip (White)(2000MM)
12V
GND
12V
GND
1
2
J51
C
1
2
P
60
24
24
HTC headset
HDMI port
USB-A
HTC
HDMI port
12-1. 5A
Extend cabl e
（
2PU6110
）
USB-A
HTC headset（HDMI）
HTC hea dset
（
3.0
）
Seat belt SW
60M
123
J46
C
123
P
A0
60
123
J38
C
123
P
A0
123
J37
C4501HM
123
C4501HF
K1
Trigger btn K2Fire btn
R handle
1
2
J39
C4501HM
1
2
C4501HF
40
Two holes socket
24
60P
10P
12V adap te r
Base station
12-2. 5A
10P
45Q
60P
A0P
50P
90P
90P
50P
90P
50P
1
2
P
1
2
J08
C
1
2
P
1
2
J04
C
1
2
P
1
2
J05
C
1
2
P
1
2
J06
C
A0 A0×2
A0
VRDL-PX-01
VRD L-PX-03
VRD L -PX-04
VRD L-PX-05
VRD L -PX-07
VRD L -PX-06
VRD L -PX-08
VRD L-PX-09
VRD L-PX-10
VRD L-PX-11 VRDL -PX-12
VRD L-PX-13
VRD L-PX-14
VRD L-PX-15
VRD L-PX-16
VRD L-PX-22
VRD L -PX-21
VRD L -PX-23
123456789
1011121314151617181920
J29
C
123456789
1011121314151617181920
P
Gun light 2
5050 light strip (Red)(200MM)
12V
GND
12V
GND
Gun light 2
Gun light 2
5050 light strip (Red) (200MM)
12V
GND
12V
GND
1
2
J35
C2521HF-2P
1
2
C2521HM-2P
Double bla ck
Double whi te
Single Yellow
Single black
Single white
Sin gle or ange
Sin gle bl ue
Single purple
Sin gle br own
Doub le blue
Double pur ple
Double br own
Double yell ow
Doub le orange
Single black
Single white
Sin gle or ange
Brown
Blue
Purple
Red
Brown
Blue
Purple
Red
Brown
Blue
Purple
Red
Brown
Blue
Purple
Red
Double whi te
Yellow
Doub le b lack
Single yellow
Single blue
Single purple
Sin gle br own
Dou ble blue
Double pur ple
Double b rown
24
30
Cond u ctiv e ri ng
10
A0A0
10
1
2
J43
C
1
2
P
1
2
J44
C
1
2
P
Light stri p (Red)(550MM)
12V
GND
12V
GND
White
Yellow
White
Yellow
White
Yellow
白
黄
白
黄
Gun he ad light
FAN
12V
A0
A0
1
2
C
1
2
J10
P
R fan
A0
24
FAN
12V
A0
A0
1
2
C
1
2
J09
P
L fan
A0
24
Air outlet motor
Air outlet motor
70P
40P
M
+
-
A0P
20P
70P
91
A0P+A0×4
40P×2+24×4
A0
VRD L-PX-18
VRD L -PX-19
VRD L-PX-20
VRD L -PX-24
1
2
J53
C
1
2
P
Seat motor
40
24
60
123
J52
C
123
P
A0
A0
Seat belt SW
A0
M
+
-
40
24
50
Seat L side light
3528 light strip (Red)(600MM)
12V
GND
12V
GND
123
J48
C
123
P
50
24
24
VRD L-PX-17
70
5050 green light (3300MM)
12V
GND
12V
GND
1
2
P
70 70
24 24
1
2
J55
C
Display side light
Seat back light (R)
5050 Green ligh t strip (380MM)
12V
GND
123
J54
C
123
P
A0
24
A0
24
Two holes socket
60P
10P
12V ad ap ter
A0
24
1
2
J56
C
1
2
P
3528 LED light strip--white (500MM)
GND
12V
Marquee light
GND
12V
A0
24
1
2
J58
C
1
2
P
A0
24
A0
24
A0
24
A0
24
A0
24
40
24
30
24
20
24
10
24
3528 light strip -white(2000 MM)
12V
GND
12V
GND
1
2
J59
C
1
2
P
3528 LED light strip--white (500MM)
GND
12V
GND
12V
A0
24
1
2
J57
C
1
2
P
A0
24
A0
24
A0
24
A0
24
123
J30
C
123
P1
2345678
9
J23
123456789
VH
Stop bt n ligh t
91 91
24
91
Stop b tn l ight
24
91
FAN
12V
A0
A0
1
2
C
1
2
J60
P
Side fan
A0
24
24×6
压线帽
40P
40P 40P
Dis pla y bott om ligh t
Display side light
3528 Light strip (g reen)(3 0 0 MM)
12V
GND
12V
GND
3528 Light strip (g reen)(3 0 0 MM)
12V
GND
12V
GND
30
24
30
24
Seria l port srial
45Q
9. WIRING DIAGRAM
Page 42
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: 972-241-4263
Fax: 214-919-4918
Email: [email protected]
Loading...
