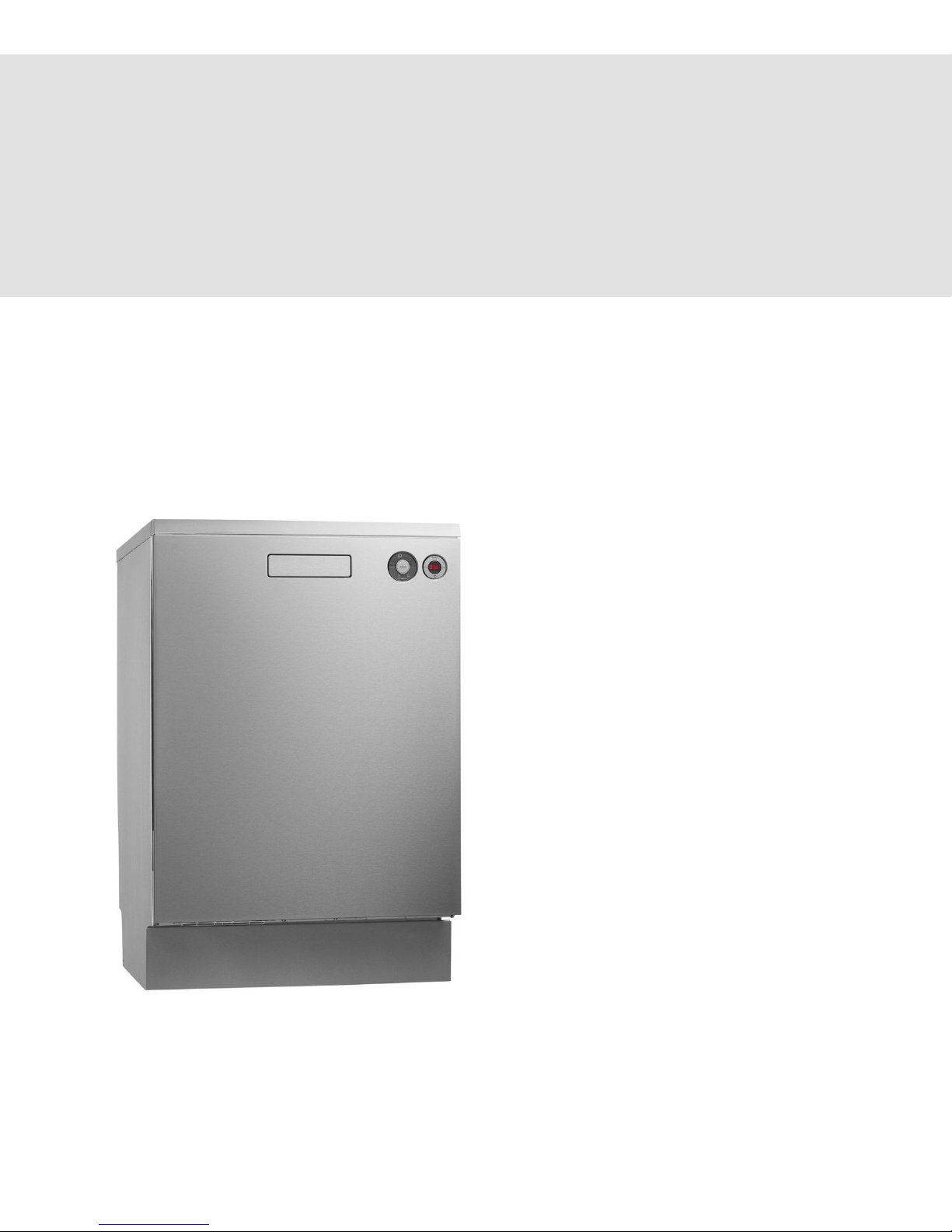

Universal Scientific 5434L Operating Instructions Manual

To get the most out of your new Undercounter Laboratory Glassware Washer, we recommend that you read the operating instructions before using it. The operating instructions also include information on how you can help protect the environment.

Dear Customer, Thank you for choosing this quality product from UNIVERSAL SCIENTIFIC, INC. We hope it will meet your expectations and fulfill your needs for many years to come. Our design combines clean lines, everyday functionality, and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout laboratories in the U.S.A.

5434L

Operating Instructions

Operating Instructions Undercounter Glassware Washer

Warranty 27

Contents

Read the operating instructions 3

Before washing for the first time 3

Be careful with certain materials 3

Rinse aid 21 Error messages 22 Troubleshooting 23

Checking water hardness 3

Important safety instructions 4

Technical information 26

Technical data 26 Winter storage/Transport 4 Overflow guard function 4 Care and maintenance Instructions 4 Packing material 4 Disposal 4 Safety 5 Activate button lock 5

Glassware Washer Components 6 Glassware Washer baskets 7

Front panel 8

Detergent/Rinse Aid Dispenser 9 Washing 10

Load the baskets correctly 11 Add detergent 11 Select the program 11 Select options 13 After glassware washing 14

Settings 15 Time remaining 17

Care and maintenance Instructions 18

Read the operating instructions

Read through the operating instructions before using

Important Safety Instructions, Safety, and Laboratory

Be careful with certain materials

Checking water hardness

determine how much detergent and rinse aid to use.

Before washing for the first time

the glassware washer, especially the sections Glassware Washing.

Read the section Fragile Laboratory Glassware before washing.

If you are not using a R.O. or purified water you should contact the local water utility to check the water hardness in your area. This is important to

WARNING!

the gas is flammable, do not smoke or use an open

Winter storage/Transport

Overflow guard function

Care and maintenance instructions

Packing material

Disposal

SAVE THESE INSTRUCTIONS FOR FUTURE

This manual does not cover all possible conditions and

• To reduce the risk of injury, keep detergents and rinse

Items not “dishwasher safe” could become deformed or

• Do not tamper with controls by removing or changing.

Important Safety Instructions

REFERENCE

situations that may occur. Common sense and caution should always be used when installing, operating, and maintaining any appliance.

• Read all instructions before using the laboratory

glassware washer.

• Laboratory glassware washers must be electrically

grounded. Read the Installation Instructions for details.

• Use the laboratory glassware washer only for its

intended purpose.

• Do not run the laboratory glassware washer while you

are out of the laboratory.

• Use only low sudsing laboratory glassware washer detergents and rinse agents.

flame during this time.

• When removing an old laboratory glassware washer from service or discarding it, remove the door to the washing compartment.

• Do not store or use combustible materials, gasoline, or other flammable vapors and liquids in the vicinity of this or any other appliance.

• Disconnect electrical power to laboratory glassware washer before servicing.

• Repairs should be done by a qualified technician.

• Read the grounding instructions in the installation

instructions.

• Store the laboratory glassware washer where the temperature remains above freezing.

• Avoid long transport distances in very cold weather.

• Transport the laboratory glassware washer upright or

lying on its back.

aids out of the reach of children.

• Do not load sharp items near the door; you could

damage the door seal.

• Place sharp items in the small parts basket with the

sharp ends down to avoid the risk of cut-type injuries.

• Do not wash plastic items unless they are marked

“dishwasher safe” or the equivalent. For items not

marked, check the manufacturer’s recommendations.

melt and create a potential fire hazard.

• Do not operate the laboratory glassware washer

unless all enclosure panels are properly in place (i.e., guard plate, access panel, toe kick, etc.).

• Do not abuse, sit on, or stand on the laboratory

glassware washer door or baskets.

• To reduce the risk of injury, do not allow children to play in or on a laboratory glassware washer.

• Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for two weeks, before using the laboratory glassware washer turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As

The overflow protection starts pumping out the machine and turns off the water supply if the water level in the laboratory glassware washer exceeds the normal level. If the overflow protection is triggered, turn off the water supply and call the Customer Care Center.

When cleaning the edge around the door, use only a slightly damp cloth. Do not spray water around the edge! Moisture can make its way into the lock, which contains electrical components.

Please sort waste materials in accordance with local guidelines.

• When the machine has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible.

• The laboratory glassware washer is manufactured and labeled for recycling.

• Contact your municipality for information about where and how your laboratory glassware washer can be recycled correctly.

TIP!

Detergents and rinse aids are corrosive, so

should be loaded with pointed ends down.

Activate Button Lock

(see the section Settings).

Safety

always keep them out of reach of children.

• Should someone swallow detergent or rinse aid, give plenty to drink immediately, i.e., one or two glasses of milk or water. Do not try to induce vomiting. Seek medical advice immediately: Call the National Capital Poison Center at 1-800-222-1222.

• Always close the door and start the glassware washer as soon as you put in the detergent.

• Always keep small children away from the

machine when it is open. There may be some

detergent residue left inside the machine.

• If detergent gets in someone’s eyes, rinse them with plenty of water for at least 15 minutes.

You can activate the button lock to prevent

people from starting the glassware washer

• Do not allow children to use or play in or on

the glassware washer.

• Load sharp objects with the pointed end

facing the back of the glassware washer. Sharp items loaded in the small parts basket

6. Serial Number Plate

*Specifications may differ depending on the model and market.

1. Filters

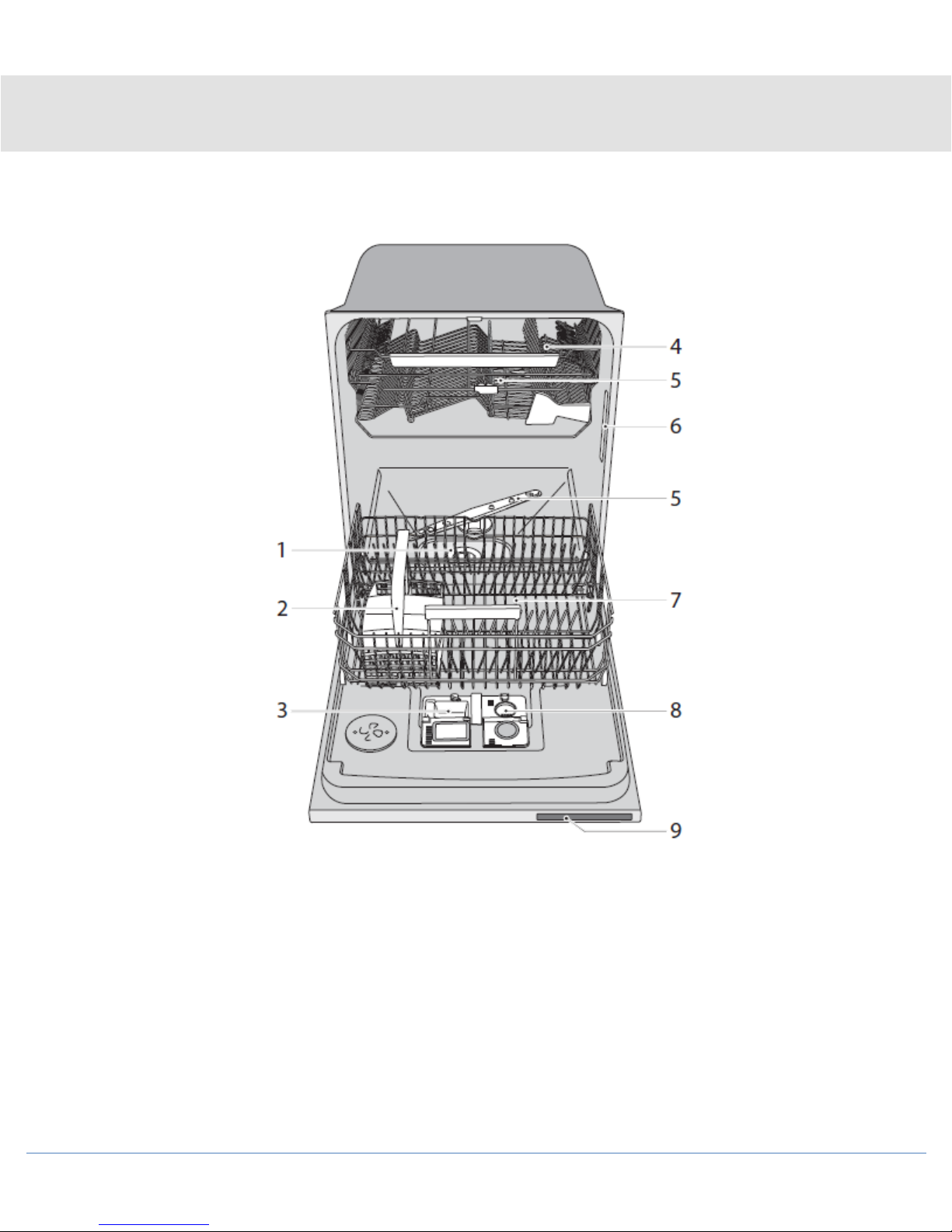

Glassware Washer Components*

2. Small Parts Basket

3. Detergent Compartment

4. Upper Basket

7. Lower Basket

8. Rinse Aid Compartment

9. Panel

5. Spray Arms

Small Parts Basket

Lower Basket

1. Small item shelf

*Specifications may differ depending on the model and market.

1. Fold-down support left

with a diameter greater than 9 ¾” (25 cm))

Glassware Washer Baskets*

2. Beaker Shelf

2. Fold-down support right

3. Forward mount support (used for items

4. Handle

The panel is fitted with touch buttons with audible feedback (see the chapter Settings)

Note!

1. Program selector

8. High Temperature

• Keep the touch buttons clean. Wipe them clean with a dry or slightly damp cloth. Never

buttons unintentionally.

Front Panel

2. Daily wash

3. Heavy wash

4. Normal wash

5. Eco wash

6. Quick wash

7. Rinse & Hold

9. Long Dry

10. Start/Stop

11. Display

12. Delayed Start

13. Wash Lock

14. Start/Stop

use cleaners – they can scratch the surface. Use the main power switch to turn off the laboratory glassware washer before cleaning the touch buttons to avoid activating any

2. Main wash detergent compartment

Detergent/Rinse Aid Dispenser

1. Prewash detergent compartment

3. Rinse aid compartment

4. Detergent compartment lid

5. Rinse aid compartment lid

Below are step-by-step instructions to help you

washer.

Note!

1

detergent for the programs Quick or Super Quick.

Note!

This could cause a film on your labware.

Note!

All dirty surfaces should face in and down!

3

Liquid hand-washing detergent must not be used

cannot open correctly.

Detergent tablets are not recommended for short

detergent manufacturer.

2

Washing

and wash system. In hard water areas, both the achieve the best possible laboratory glassware washing results.

Load the baskets correctly

Do not rinse labware under running water

before loading them in the laboratory glassware washer. Simply scrape off large particles before loading the laboratory glassware

labware and the machine can develop a white or gray film after a while. If this happens, run the Heavy program with high temperature and two tablespoons of citric acid or commercially available “dishwasher cleaner” in the detergent compartment (with no labware in the machine).

Check that the spray arms can

rotate freely

Add detergent

detergent. Using the wrong detergent could cause flooding and/or damage your laboratory glassware washer. Do not use detergent that has been wet and is clumped. Also, check the expiration date on the container.

The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you

may need. Refer to the chart below for the

recommended detergent amounts based on water hardness. Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount. Twelve grains and higher is extremely hard water and detergent alone may not be enough. You may need to use a water softener to maximize the performance of your laboratory glassware washer. Also, in areas with hard water (9+) you may need to wash at lower temperatures to prevent hard water deposits from forming in tank

We recommend that you use only

unscented, low sudsing granular

We recommend that you do not add prewash

If you use a detergent with a rinse aid additive, you should not fill the rinse aid dispenser.

as the foam that forms prevents the laboratory glassware washer from operating effectively.

Detergent Tablets

Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and

programs (less than 75 minutes). Use powder or liquid detergent instead.

3-in-1/ All-in-one detergent

Read through the directions for these products carefully. If anything is unclear, contact the

Normal Wash

Eco

Press the main power switch and

Program for very dirty labware. Only load labware

4

5

Washing (continued)

close the door Select the program

Press the Program selector one or more times until the desired program symbol lights.

Daily Wash

A program suitable for day-to-day laboratory glassware washing. This program is for lightly soiled labware.

that can withstand a Heavy wash.

Heavy Wash

Use to wash normally soiled labware.

Eco Wash

Use when you want to save energy. For normally soiled labware.

Quick Wash

This program is used for glasses and labware that is lightly soiled.

Rinse & Hold

Use to rinse labware while you wait for the Laboratory glassware washer to become fully loaded.

Washing (continued)

Delayed start

and the glassware washer resumes the program.

Select options

option buttons. The field next to the button

program. Once you have started the program, the

6

7

Note!

Washing (continued)

To select an option, press one of the lights when the option is activated. The

available options depend on the selected options you selected are saved for the next time

you use the same program. An exception is the Delayed start option.

High temperature

Activate this option for improved glassware washing results. The machine then uses a higher temperature for the main wash.

If you want to use the lower temperature, press until the field next to the button turns off.

You can vary the temperature as shown below:

A higher temperature in the final rinse and a longer drying phase improves the drying result if you activate the Long dry option. This causes a slight increase in energy consumption.

If you want to use the lower temperature, press until the field next to the button turns off.

Long dry

When you select Delayed start, the glassware washer will start 1-24 hours after you press the Start/Stop button.

1. Press the button once to activate Delayed start. Press the button several times – or hold it in – to set the desired number of hours.

2. Press Start/Stop and the glassware

washer counts down 1 hour at a time and starts after the selected delay.

Press and hold Start/Stop for five seconds if you want to cancel the Delayed start option.

Remember to press the Start/Stop button to start the program.

Press Start/Stop

The display flashes three times with the remaining time to indicate that the

program has started. Close the door properly, otherwise the glassware washer will not start. The display indicates if the door is open.

If the machine does not start within 2 minutes of the last button press, the display returns to showing the last program run.

Stopping or changing a program

If you want to change programs after starting the glassware washer, open the door then press and hold Start/Stop for five seconds. Add more detergent if the lid of the detergent dispenser has opened. Then choose a new program, press Start/Stop, and close the door.

Do you want to add more glassware?

Open the door. The glassware washer stops automatically. Add the glassware, close the door,

If the glassware washer is turned off

minutes.

Note!

8

After glassware washing

Washing (continued)

using the main power switch or due to a power failure

If the program was not finished, the interrupted program resumes when power is restored.

During drying, the program is interrupted if the power is cut or the door is open for more than 2

A buzzer also sounds at the end of the program. See the section Settings, which describes how to change this function.

Once the glassware washer has finished, it uses only standby power. Turn off the glassware washer using the main power switch if you want to completely cut the power. Turn off the water supply valve after each use.

Once the program has finished, “End”

appears on the display.

Do as follows to open the settings menu:

Tip!

You can activate the protective lock

cally reactivated after 2 minutes.

Protective lock

(button lock)

Settings

1. Turn off the glassware washer using the main power switch. Wait about five seconds.

2. Then press the main power switch again. Wait until the numbers appear in the right-hand display before continuing to the next step.

3. Within five seconds, press and hold the Program selector (wait for the audible signal confirming the button press) and then immediately press the Long dry button without releasing the Program selector.

4. Keep the buttons pressed until the symbols for the Daily wash and Rinse & Hold programs

start to flash.

Be sure to press right on the symbols, so as not to inadvertently activate any other button. Try again if you fail to open the settings menu the first time.

(button lock) option to prevent people from starting the glassware washer.

Press the High temperature and Long dry buttons simultaneously to temporarily deactivate the button lock when you want to start the glassware washer. The button lock is automati-

The glassware washer uses a buzzer

finished or when a fault has occurred.

Settings (continued)

to indicate when a program is

Once you have selected a program and options,

Note!

Time remaining

the display indicates how long the program took the last time it was used. Once you have started the glassware washer, the display indicates how much program time remains. The remaining time is updated after the water for the final rinse has been heated.

This may differ somewhat from time to time depending on the temperature of the water

supply, the amount of glassware, and other

factors. While the program is running, the time counts

down and the remaining program time is shown on the display. The remaining time is shown, for example, as 1:15 which means the program will run for another 1 hour and 15 minutes.

During the first run of each program, the

remaining time displayed can be slightly

misleading, as the glassware washer is estimating the time. When you run the program a second time, the glassware washer will calculate the remaining time based on the previous duration of the program.

The glassware washer tub is made of stainless

cannot get past the drain pump. Empty the coarse

However, the fine filter and its pipe section should

1. Turn the handle counterclockwise once.

the coarse filter is incorrectly fitted.

Note!

Care and maintenance instructions

steel and is kept clean through normal use. However, if you have hard water, lime scale deposits may form in the glassware washer. If this happens, run the Heavy wash program with high temperature and two tablespoons of citric acid or commercially available glassware washer cleaner in the detergent compartment (with no glassware in the machine).

Coarse filter

The coarse filter traps larger particles, which

filter as necessary.

1. Lift the coarse filter by the handle.

2. Empty the coarse filter. Remember to replace it!

Fine filter

Debris that collects on the fine filter is automatically rinsed away during each wash.

be cleaned a couple of times a year.

2. Lift the pipe section straight up by the handle. Free the coarse filter to clean the pipe section.

3. Remove and clean the fine filter.

4. Replace in reverse order. Check that the edges seal properly when replacing the fine filter.

5. Lock the filter in place by turning the handle clockwise to the stop position. The handle should point straight out from the glassware washer.

The glassware washer must not be used without the filter in place!

Glassware washing efficiency can be affected if

Drain pump

Do not forget to reinstall the drain pump access

1. Pull the lower spray arm straight up to release

illustration). The basket can now be removed.

Care and maintenance instructions (continued)

The pump can be accessed from inside the glassware washer.

4. Cut the power to the glassware washer by unplugging the unit from the power outlet.

5. Remove the coarse filter and pipe section.

6. Remove the small yellow drain pump access cover at the left of the bottom drain (see illustration below).

7. By inserting your finger into the hole, you can turn the pump blades to release anything blocking the pump.

8. Reinstall the success cover and filters.

9. Plug the machine in again.

cover.

Lower spray arm

Holes and bearings can sometimes become blocked.

it.

2. Remove any debris using a needle, toothpick, or some other similar pointed device. The spray arms also have holes underneath.

Upper spray arm

The upper basket must be removed before the upper spray arm can be released.

1. Pull out the upper basket and turn the basket catch on each runner outward (see

If the glassware washer still does not start and a whirring sound is heard, the overflow protection has been triggered.

 Shut off the water.  Unplug the unit from the power outlet.

2. Loosen the upper spray arm in the same manner as the lower spray arm and clean it.

 Call Universal Scientific, Inc.

Door

WARNING!

Care and maintenance instructions (continued)

When cleaning the edge around the door, use only a slightly damp cloth (with a little cleaner if necessary).

Do not use a spray bottle or the like around the door lock. This is to ensure that water does not

penetrate the door catch and come into contact

with the electrical components.

Note!

Select dosage

Care and maintenance instructions (continued)

Drying is faster if you use rinse aid. When the rinse aid needs topping up, the above symbol lights on the display.

Top up with rinse aid

Top up with rinse aid as follows:

1. Open the rinse aid compartment lid.

The rinse aid dispenser can be adjusted between 0 (off) and 6.

Increase the rinse aid dosage:

 If the glassware has water marks.

Reduce the rinse aid dosage:

 If the glassware has a sticky white/blue film.  If the glassware is streaked.  Heavy foaming. If you have very soft water,

the rinse aid can be diluted 50:50 with water.

Set the dosage

The section Settings describes how to set the rinse aid dosage.

2. Carefully top up with rinse aid. Only add rinse

aid to the level marked max.

3. Wipe up any spilled rinse aid around the

compartment.

4. Close the lid firmly.

After topping up, it may take a while before the symbol goes out.

Water outlet fault

Call Universal Scientific, Inc.

See “Possible causes” in the chapter

Troubleshooting.

Check that the water supply valve is on.

Turn off the water supply valve and call

Universal Scientific, Inc.

Overfilling

Water inlet fault

Inlet valve leakage

Turn off the machine with the main power switch and then turn it on again to clear the error message from the

display.

Error messages

The glassware is not clean.

The spray arms do not rotate.

Remove the arms and clean.

Check that the glassware is not blocking the spray arms.

Avoid large packages.

Detergent is too old. Detergent is a perishable product.

Spots or films on the glassware. The glassware has a sticky

white/blue film.

Spots on stainless steel or silver. Spots left after washing.

Rattling sound when glassware washing.

The glassware is not correctly placed or the spray arms are not rotating.

Lipstick and tea can be difficult to wash off.

Some types of chemicals can cause spots on stainless steel if

left for too long.

Some metals can cause spots on other metals if they come into contact during glassware washing.

Check that the glassware is secure. Spin the spray arms to make sure they can rotate.

Use a detergent with a bleaching agent.

Silver and stainless steel items should not come into contact during glassware washing.

Rinse off chemicals if not starting the glassware washer. Or why

not run the Rinse & Hold

program?

Reduce the amount. See the sections Rinse aid and Settings. You may want to dilute the rinse aid 50:50 with water.

Rinse aid dosage setting too high.

See the sections Rinse aid and

Settings.

Wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer.

Too high temperature and/or too much detergent can cause etching on crystal.

Incorrect rinse aid dosage setting.

The filter is not correctly fitted.

Screw the filter firmly into place. See the section Care and maintenance instructions.

Glassware has toppled over during the program.

Dose according to water

hardness. Far too much or far

too little detergent.

Select a higher temperature or a more powerful program.

Load the glassware securely.

Do not cover glassware. Avoid placing very tall glasses in the corners of the baskets.

Glassware washing program too weak

Incorrect detergent dosage.

Glassware loaded incorrectly.

Troubleshooting

The glassware washer does not start.

You have forgotten to turn on the main power switch.

Pressing the main power switch.

The door is not properly closed.

Check.

A fuse/circuit breaker has been tripped.

The plug is not plugged into the power outlet.

Water supply valve is turned off.

Overflow/leaks.

1 minute appears on the display.

A whirring sound is heard from the glassware washer and does not stop when the main power switch is turned off.

The program is taking longer than estimated.

Blocked drain hose.

Kink in drain hose.

Check that the Delayed start option has not been selected.

The filters are blocked.

Debris in the drain pump.

Dirt around the seals and in

corners.

Low temperature settings have been selected for a long duration.

Drying power too low.

Bad odor in the glassware

washer.

The glassware is not dry enough.

Water remains in the glassware above the filters.

Open the door a little once the program has finished.

Top up with rinse aid or increase the rinse aid dosage. See the sections Rinse aid and Settings.

None. The correct time will be displayed the next time it runs.

Turn off the water supply valve. Pull out the plug and call Universal Scientific, Inc.

Press and hold Start/Stop for five seconds to cancel the Delayed start option.

Loosen the drain hose from where it terminates. Check that no debris has clogged the hose. Is the cone-shaped part of the drain boot cut to the maximum size of the fitting where it attaches?

Fully load the glassware washer.

Activate the Long dry option.

Run a program with a higher temperature about once a month.

Clean with brush and low foaming

cleaner.

Clean the drain pump. See the section Care and maintenance.

Clean the coarse and fine filters.

Check that the hose is free from kinks and sharp bends.

The washer is not fully loaded.

Rinse aid needs topping up or dosage is set too low.

Troubleshooting (continued)

Cannot close door.

The touch buttons do not react when pressed.

The baskets are not correctly positioned.

The touch buttons were pressed too soon after opening the door.

Dirt on the touch buttons.

The button lock is activated.

Check that the baskets are correctly positioned horizontally.

Check that the glassware is not blocking the baskets from sliding properly into place.

See the section Settings.

Clean with a dry or damp cloth.

Wait a moment then try again.

Troubleshooting (continued)

Technical data

Technical information

Height: 34 3/8” – 36” Width: 24” Depth: 22 7/8” Weight: 195 lbs. Water pressure: 18-176 psi

Electrical: 120 V, 60 Hz, 15 Amp

Rated power: See serial number tag and rating plate.

Warranty Information

Universal Scientific Inc. provides a full one (1) year warranty on all parts and factory workmanship. It expires one (1) year from the date of installation.

We have the option to void the warranty if:

Product failures caused by the use of highly corrosive chemicals or materials.

SERVICE

Your Universal Scientific Inc. Laboratory glassware washer is backed by a nationwide network of factory authorized service companies. If you need service please call us at 440-428-7800 and ask for the service department.

 Non-authorized service group provides service work.

 Accident of abuse.

 Not following operating instructions  Running the D.I. system without water.



 Installation does not comply with local codes.  Washer is installed on a single circuit with other washers, appliances, and or

outlets on that circuit.

Universal Scientific 5434L Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
