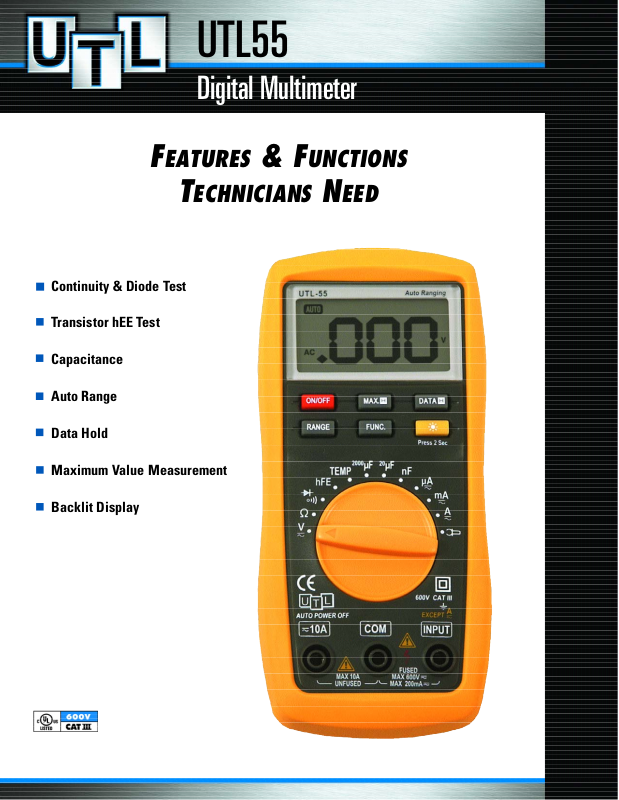

Universal Enterprise UTL55 User Manual

F
EATURES
& F
UNCTIONS
T
ECHNICIANS
N
EED
Digital Multimeter
Continuity & Diode Test
Transistor hEE Test
Capacitance
Auto Range
Data Hold
Maximum Value Measurement
Backlit Display
DC Voltage
200m / 2 / 20 / 200 / 600V ±0.7%
AC Voltage
200m / 2 / 20 / 200 / 600V ±0.8%
DC Current
200µ / 2000µ / 20m / 200mA 1.2%, 2/10A ±2.0%
AC Current
200µ / 2000µ / 20m / 200mA 1.5%, 2/10A ±3.0%
Resistance
200 / 2k / 20k / 200k / 2MM ±1.2%, 2MM ±2.0%
Temperature
0˚~1800˚F ±3.0% (-20˚~1000˚C ±3.0%)
Capacitance
20n / 200n / 2µ / 20µ / 200µ / 2000µF ±4.0%
The UTL55 is a full featured digital multimeter. It has the measurement functions (including temperature and capacitance) needed to help technicians successfully troubleshoot, repair and verify appliance operation. IEC1010 CAT III 600 Volt.
The UTL55 has the following features:
• Continuity test
• Capacitance temperature
• Diode test
• Transistor hEE test
• Auto range
• Data hold
• Maximum value measurement
• Backlit display
• Auto power off
• Display: 1999 counts, digit is 16mm high
• Power: 1.5V (AAA) x 3
• Designed to international safety standard IEC1010-1 CAT III 600V
• Secondary injection molding case
• Size: 6.2: x 2.9” x 1.2” (158 x 74 x 31mm)
• Weight: approx. 220g (including battery)
• One year limited warranty
Copyright © 2007 UTL Specifications are subject to change without notice. UTL is distributed by UEi. L632 4/07
UTL55 • Digital Multimeter
