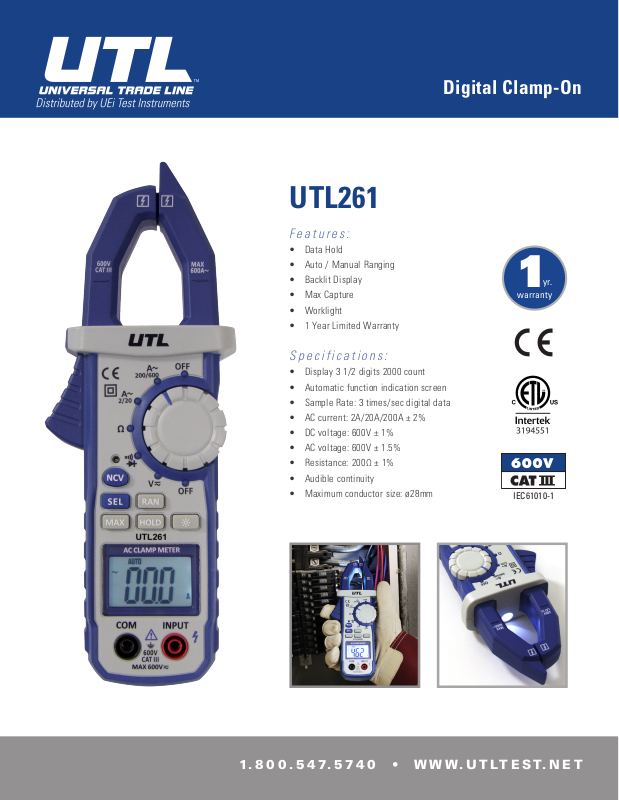

Universal Enterprise UTL261 User Manual

UTL261

Features:

• Data Hold

• Auto / Manual Ranging

• Backlit Display

• Max Capture

• Worklight

• 1 Year Limited Warranty

Specifications:

• Display 3 1/2 digits 2000 count

• Automatic function indication screen

• Sample Rate: 3 times/sec digital data

• AC current: 2A/20A/200A ± 2%

• DC voltage: 600V ± 1%

• AC voltage: 600V ± 1.5%

• Resistance: 200Ω ± 1%

• Audible continuity

• Maximum conductor size: ø28mm

Digital Clamp-On

yr.

1

warranty

IEC61010-1

1.800.547.5740 • WWW.UTLTEST.NET

• Display: LCD 3-1/2 Digits 2000 count

• Refresh Rate: 3 times/sec

• Overrange display: “OL”

• Power battery: DC1.5V x 3 SIZE AAA.

• Battery Life: Approx. 100 hours

• Clamp jaw opening: 1.02” (26mm)

• Operating Elevation Up to 6571.7 ft. (2000m)

• Operating Temperature: 32°F to 104°F (0°C to 40°C) at < 75% R.H

• Storage Temperature: 14°F to 140°F (-10°C to 60°C) at < 80% R.H

• Accuracy Temperature: Stated Accuracy at 73°F ± 41°F (23°C to ± 5°C) < 75% R.H

• Dimensions: 8.66 x 3.19 x 1.6” (220 x 81 x 41mm)

• Weight: about 0.63lbs. (286g) (battery installed)

• Certifications: CE, C-ETL-US

• Standards: IEC61010-1, IEC61010-2-032, Double Insulated

• Operating Category: 600V CAT III

• Pollution degree: 2.

Specifications

DC Voltage Measurement

Range Resolution Accuracy

200mV 0.1mV
2V 1mV
20V 10mV
200V 0.1V
600V 100mV ± (0.8% + 3 dgts)

Input impedance: 10MΩ Overload protection: 600V RMS

AC Voltage Measurement

Range Resolution Accuracy

200mV 0.1mV ± (2.0% + 3 dgts)
2V 1mV

200V 0.1V
600V 1V ± (1.0% + 5 dgts)

Input impedance: 10MΩ Frequency Range: 50Hz to 60Hz

Overload protection: 600V RMS

Diode Test

Range Max. Test Current Open Circuit Voltage

0.5 to 2.7V 1mA 1.5V

Overload protection: 250V RMS

± (0.6% + 3 dgts)

± (0.8% + 5 dgts)20V 10mV

UTL261 •

DIGITAL CLAMP-ON

IncludesGeneral Specifications

• Soft Carrying Case

• Test Leads

• 3 X 1.5V AAA Batteries

• Manual

AC Current

Range Resolution Accuracy

2A 0.001A
20A 0.01A
200A 0.1A
600mA 1A

Frequency Range: 50Hz to 60Hz Overload protection: 600A for 20 seconds

Resistance

Range Resolution Accuracy

200Ω
2kΩ 0.001k
20kΩ 0.01k
200kΩ 0.1k
2MΩ 0.001M
20MΩ 0.01MΩ± (1.2% + 5 dgts)

Overload protection: 250V RMS

Continuity

Audible Threshold Open Test Circuit Resolution

≤ 60Ω 0.45V 100mΩ

Overload protection: 250V RMS

± (2.0% + 5 dgts)

0.1

Ω
Ω

± (0.8% + 4 dgts)

Ω
Ω
Ω
