Universal Enterprise UTL260 User Manual

F

EATURES

& F

UNCTIONS

T

ECHNICIANS

N

EED

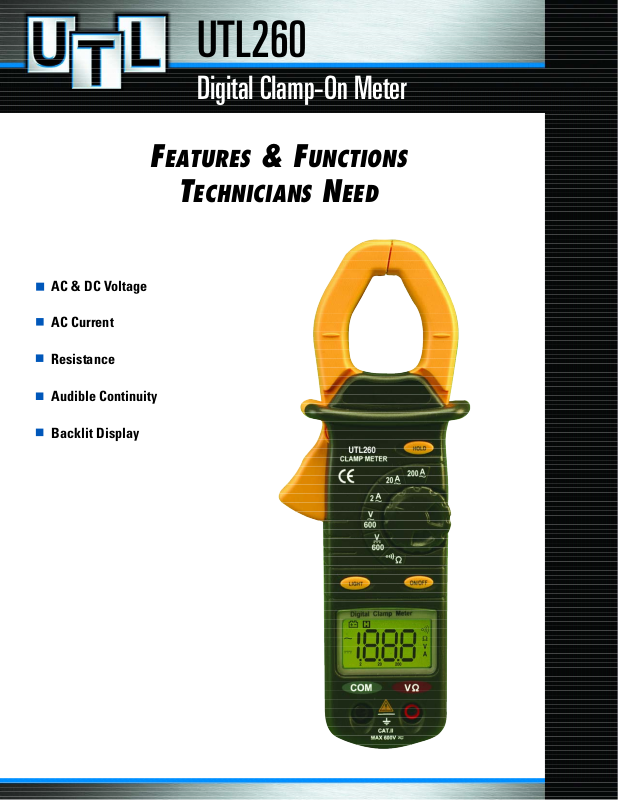

UTL260

Digital Clamp-On Meter

AC & DC Voltage

AC Current

Resistance

Audible Continuity

Backlit Display

Range Resolution Accuracy

2A 0.001A
20A 0.01A ±(2%+5)
200A 0.1A

The UTL260 has all the features and
measurement functions that appliance technicians
need. It’s ruggedized and slim compact design
makes for easy one handed use.

The UTL260
has the following features:

• AC Current 2A/20A/200A

• AC/DC voltage 600V

• Resistance 2KΩ

• Audible continuity

• LCD display with max. Reading 1999

• Automatic indictation of functions and symbols

• Sample rate: 2 times/sec for digital data

• Backlit display for use in low light applications

• One year limited warranty

Copyright © 2007 UTL Specifications are subject to change without notice. UTL is distributed by UEi. L621 4/07

UTL260 • Digital Clamp-On Meter

Distributed By:

1-800-547-5740 • Fax: [phone]
www.ueitest.com
Email: [e-mail]

IN CANADA

Vancouver: Phone: [phone] • [phone] • Fax: [phone]
Toronto: Phone: [phone] • Fax: [phone]

IN EUROPE

Phone: [phone] • Fax: [phone]

Specifications

PLEASE

RECYCLE

AC Current

Range Resolution Accuracy

600V 1V ±(1%+5)

DC Voltage

Range Resolution Accuracy

600V 1V ±(1.5%+5)

AC Voltage

Range Resolution Accuracy

2kΩ 1Ω ±(1%+5)

Resistance

Range Continuiyt Beeper

< approximately 50Ω

Audible Continuity
