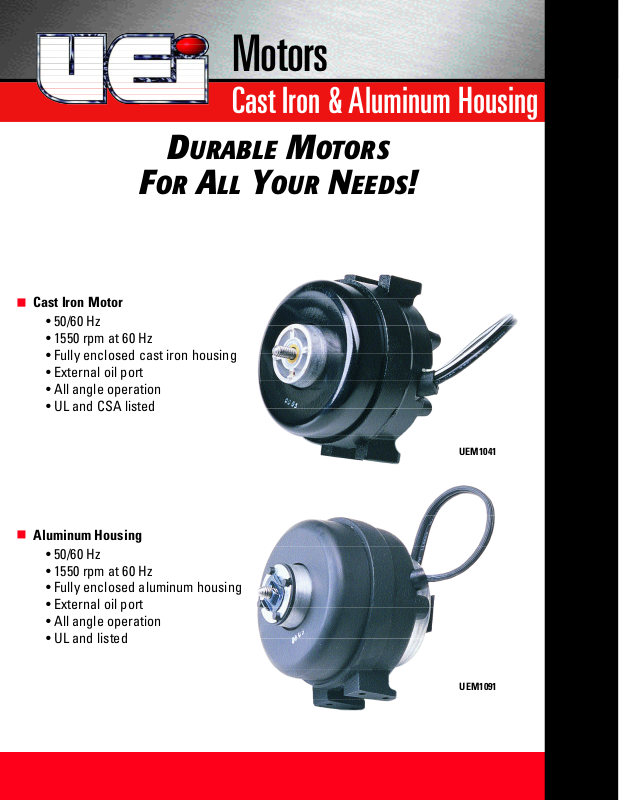

Universal Enterprise UEM1021 User Manual

Cast Iron Motor

• 50/60 Hz

• 1550 rpm at 60 Hz

• Fully enclosed cast iron housing

• External oil port

• All angle operation

• UL and CSA listed

Aluminum Housing

• 50/60 Hz

• 1550 rpm at 60 Hz

• Fully enclosed aluminum housing

• External oil port

• All angle operation

• UL and listed

D

URABLE

M

OTORS

F

OR

A

LL

Y

OUR

N

EEDS

!

M o t o r s

Cast Iron & Aluminum Housing

UEM1091

UEM1041

MOTORS • Cast Iron & Aluminum Housing

Copyright © 2007 UEi Specifications are subject to change without notice. L649 1/07

Distributed By:

1-800-547-5740 • Fax: [phone]
www.ueitest.com • Email: [e-mail]

IN CANADA

Vancouver: Phone: [phone] • [phone] • Fax: [phone]
Toronto: Phone: [phone] • Fax: [phone]

IN EUROPE

Phone: [phone] • Fax: [phone]

UEM1021 2W 115VAC Yes 5109 CW

UEM1025 2.5W 115VAC Yes 5111 CW

UEM1041 4W 115VAC Yes 5211 CW

UEM1042 4W 115VAC Yes 5212 CCW

UEM1061 6W 115VAC Yes 5311 CW

UEM1062 6W 115VAC Yes 5312 CCW

UEM1091 9W 115VAC Yes 5411 CW

UEM1092 9W 115VAC Yes 5412 CCW

UEM1161 16W 115VAC Yes 5811 CW

UEM2091 9W 230VAC Yes 5421 CW

UEM2092 9W 230VAC Yes 5422 CCW

UEM2161 16W 230VAC Yes 5821 CW

Cast Iron Housing

Each motor furnished with hub washer, speed nut, neoprene silencer/vibration damper,
and 3 mounting screws.

Aluminum Housing

Part Industry Rotation
Number Watts Voltage UL Referance Rotation

UEM1021AL 2W 115VAC Yes 5109 CW

UEM1041AL 4W 115VAC Yes 5213 CW

UEM1042AL 4W 115VAC Yes 5214 CCW

UEM1061AL 6W 115VAC Yes 5313 CW

UEM1091AL 9W 115VAC Yes 5413 CW

UEM1092AL 9W 115VAC Yes 5415 CCW

Part Industry Rotation
Number Watts Voltage UL Referance Rotation

All motors sold in 12 lot quantities.

Cast Iron Motors A B C D E F G

2W 3.275 2.920 1.250 2.5

2.5 & 4W 3.245 2.895 1.350 1.395 2.5 1.125 .625
6 & 9W 3.775 3.410 1.865 1.810 2.5 1.125 .625
16W 4.030 3.6655 1.862 2.09 2.5 1.125 .625

Aluminum Motors A B C D E F G H

2W 2.5
4W 3.250 2.875 2.5 1.225 2.4 1.1225 .625 1.4
6 & 9W 3.525 3.150 2.80 1.475 2.4 1.125 .625 1.4
