THL1

INSTRUCTION MANUAL

C o n t r ols and Indicators

1. USB: Connects to a USB port on a computer.

2. Start Button: Activates datalogger.

3. Alarm LED: Illuminates red or yellow.

4. Record LED: Illuminates green.

5. RH and Temperature Sensors

6. Slot to Open Battery: Refer to battery replacement.

Introduction

Use the UEi THL1 to log temperature and humidity values for later
analysis. Verify cold storage requirements are being met, or test temper­atures and humidity for comfort analysis.

Features include

• 32,000 data points (16,000 Temperature, 16,000 Relative Humidity)

• Analysis software with dew point calculation, charting of results,
and export to other file formats

• USB interface and Windows™ compatible

• Instant or manual start

• Alarm LED’s with user selectable values

• Magnetic mount

• Long battery life

Operating Instructions

LEDs Indication Description Action

Both LED lights off Not logging Start logging

Low battery Replace battery and download data

One Green flash every 10 seconds* Logging - No alarm**

Double Green flash every 10 seconds* Not logging - in Manual Start Mode Press “START” to begin logging

Single Red flash every 10 seconds* Logging - Low Alarm RH%***

Double Red flash every 10 seconds* Logging - High Alarm RH%***

Single Red flash every 60 seconds Low battery**** Logging will stop automatically.

Replace battery and download data

(No Data will be lost)

Single Yellow flash every 10 seconds* Logging - Low Temp Alarm***

Double Yellow flash every 10 seconds* Logging - High Temp Alarm***

Single Yellow flash every 60 seconds Logger memory full Download Data

THL1-MAN P. 1

1

3
4

5

2

6

Front

Back

REC ALM

REC ALM

REC

ALM

REC ALM

M a i n t e n a n c e

Periodic service

WARNING!

Repair and service of this instrument is to be performed by qualified
personnel only. Improper repair or service could result in physical
degradation of the meter. This could alter the protection from
electrical shock and personal injury this meter provides to the
operator. Perform only those maintenance tasks that you are
qualified to do.

Cleaning

Pe r i o d i cal ly clean your meter’s case using a damp cloth. DO NOT u s e
a b rasive, flammable liquids, cleaning solvents, or strong detergents as
they may damage the finish, impair safety, or affect the reliability of the
s t r u c t u ral components.

Battery Replacement

Only use 3.6V lithium battery.

1. With a small screw driver, open the case. Lever the casing off in
the direction of the arrow.

2. Pull the data logger from the casing.

3. Replace/insert the new battery into the battery compartment
observing the right polarity. The two displays briefly light up for
control purposes (alternating green, yellow, green).

4. Slide the data logger back into the casing until it snaps into place.
Now the data logger is ready for programming.

WARNING!

Under NO circumstance should you expose batteries to extreme heat or
fire as they may explode and cause injury.

NOTE: Leaving the THL1 Datalogger plugged into the USB port for
longer than necessary will cause some of the battery capacity to be
lost.

To save power, the logger’s LED flashing-cycle can be changed to
20 or 30 seconds via the supplied software.

To save power alarm LED’s for temperature and humidity can be
disabled via the supplied software.

When both temperature and relative humidity readings exceed the
alarm levels the LED status indication alternate every cycle. For
example if there is only one alarm cycle the “REC” LED will blink
for one cycle, and the Alarm LED status will blink on the next
cycle. If there are two alarms the “REC” LED will be disabled and
the two alarms will alternate on each cycle.

When the battery is low all operations will be disabled
automatically.

NOTE: Logging will automatically stop if the battery level is low
(logged data will be retained). The software is required to
download data and restart logging.

To delay logger start, use the software and select “MANUAL”
instead of “INSTANT”. This is available from the “LINK” menu
and then “LOGGER SET”, or by clicking on the computer icon on
the Logger Software task bar. If you select “MANUAL” the logger
will not begin logging until you press the yellow button on the
logger housing.

Software Installation

The THL1 comes with software that must be installed before the device
can be used. Insert software cd into computer and follow the install
instructions. After installation, place unit in the PC USB port to begin
download data.

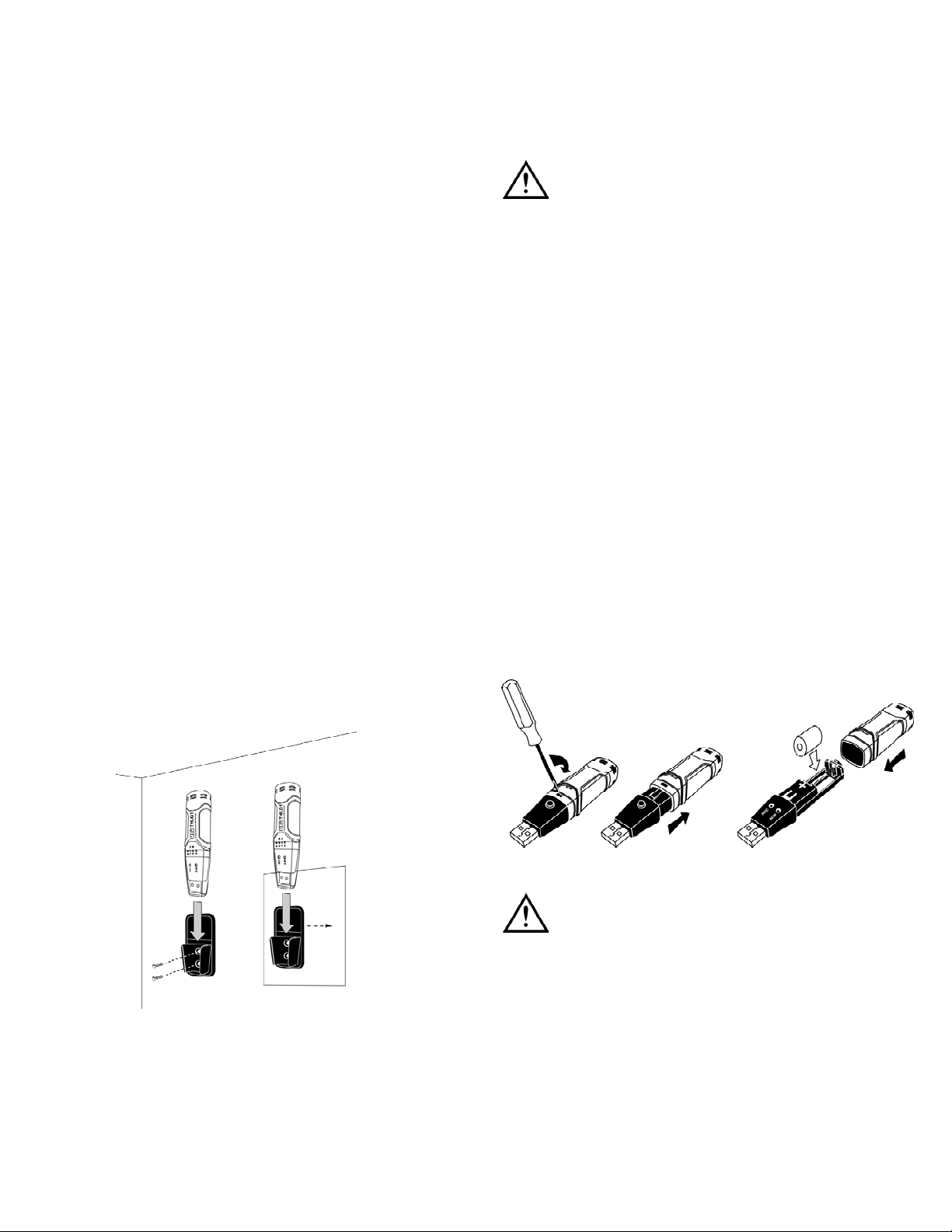

Mounting to Wall

Screw wall mount to wall and place the THL1 datalogger inside the
holder as shown.

Or, use the magnetic mount on metal surfaces and place the THL1
datalogger inside the holder as shown.

THL1-MAN P. 2

*

**

***

****

*****

Wall Mount Magnet

S p e c i f i c a t i o n s

Sensor Reconditioning

Over time, the internal sensor may be compromised as a result of pollu­tants, chemical vapors, and other environmental conditions which can
lead to inaccurate readings. To recondition the internal sensor, please
follow the procedure below:

Dry the logger at 176˚F (80˚C) at <5% RH for 36 hours followed by
70˚ - 90˚F (20˚ - 30˚C) at >74% RH for 48 hours (for re-hydration).

If permanent damage to the internal sensor is suspected, replace the
Logger immediately to ensure accurate readings.

THL1-MAN P. 3

Relative Humidity Overall range 0 to 100%

Accuracy (0 to 20 and 80 to 100%) ±5.0%
Accuracy (20 to 40 and 60 to 80%) ±3.5%
Accuracy (40 to 60%) 3.0%

Temperature Overall range -40˚ to 158˚F

(-40˚ to 70˚C)
Accuracy (-40˚ to +14 and 104˚ to 158˚F) ±3.6˚F
Accuracy (+14˚ to +104˚F) ±1.8˚F
Accuracy (-40˚ to -10˚ and +40˚ to +70˚C) ±2˚C
Accuracy (-10˚ to +40˚C) ±1˚C

Dew Point Overall range -40˚ to 158˚F
Temperature (-40˚ to 70˚C)

Accuracy (25˚C, 40 to 100% RH) ±4.0˚F (2.0˚C)

Logging Rate Selectable sampling interval: From 2 seconds up to

24 hours.

Operating -31˚ to 175˚F (-35˚ to 80˚C)
Temperature
Battery Type 306V lithium (1/2AA) (SAFT LS14250, Tadiran TL-5101

or equivalent)

Battery Life 1 year (typ.) depending on logging rate, ambient

temperature and use of alarm LEDs.

Dimensions 101 x 25 x 23 mm (4 x 1 x 9”)
Weight 172 g (6 oz)

Limited Warranty

The THL1 is warranted to be free from defects in materials and workmanship for a period of
one year from the date of purchase. If within the warra n ty period your instrument should
become inoperative from such defects, the unit will be repaired or replaced at UEi’s option.
This warra n ty covers normal use and does not cover damage which occurs in shipment or
failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper
maintenance. Batteries and consequential damage resulting from failed batteries are not
covered by warra n ty.

Any implied warranties, including but not limited to implied warranties of merchantability
and fitness for a particular purpose, are limited to the express warranty. UEi shall not be
liable for loss of use of the instrument or other incidental or consequential damages,
expenses, or economic loss, or for any claim or claims for such damage, expenses or
economic loss. A purchase receipt or other proof of original purchase date will be required
before warra n ty repairs will be rendered. Instruments out of warra n ty will be repaired (when
r e p a i r able) for a service charge. Return the unit postage paid and insured to:

1-800-547-5740 • FAX: [phone]

www.ueitest.com • Email: [e-mail]

This warranty gives you specific legal rights. You may also have other rights which vary from
state to state.

THL1

Temperature/Humidity USB Datalogger

Copyright © 2008 UEi THL1-MAN 3/08
