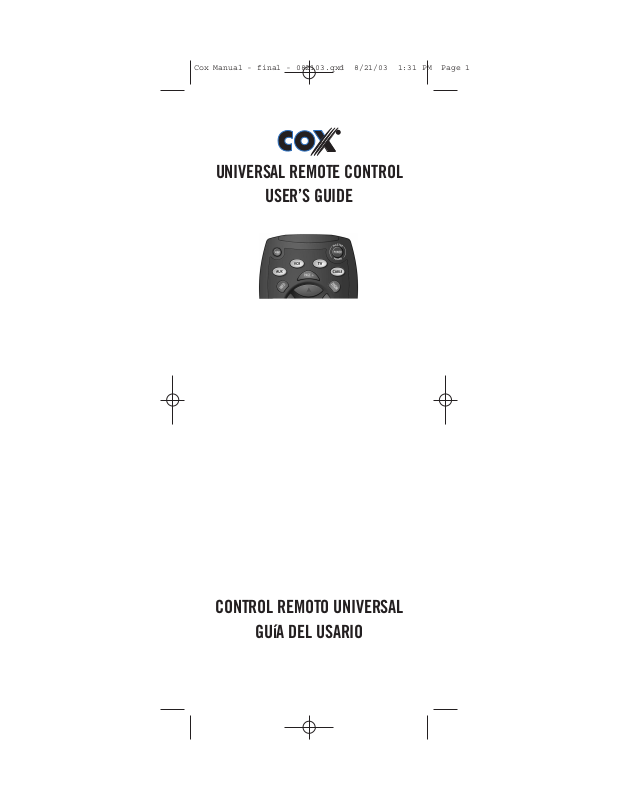

Universal Electronics Cox Universal Remote Control User Manual

UNIVERSAL REMOTE CONTROL

USER’S GUIDE

CONTROL REMOTO UNIVERSAL

GUíA DEL USARIO

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 1

TABLE OF CONTENTS

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features And Functions . . . . . . . . . . . . . . . . . . . 6

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . 7

Programming Device Control. . . . . . . . . . . . . . . 8

Programming TV/VCR Combo Control . . . . . . . . 9

Searching For Your Code . . . . . . . . . . . . . . . . . 11

Checking The Codes . . . . . . . . . . . . . . . . . . . . 12

Programming ID Lock . . . . . . . . . . . . . . . . . . . 13

Programming Channel Control Lock . . . . . . . . 14

Using The Master Power Key . . . . . . . . . . . . . . 15

Re-Assigning Device Keys . . . . . . . . . . . . . . . . 16

Changing Volume Lock . . . . . . . . . . . . . . . . . . 17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 18

Additional Information . . . . . . . . . . . . . . . . . . . 19

Manufacturer’s Codes . . . . . . . . . . . . . . . . . . . 38

TABLA DE CONTENIDOS

Introducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Características y Funciones . . . . . . . . . . . . . . . . 21

Instalación de las Baterías . . . . . . . . . . . . . . . . 24

Programación de Control de Dispositivos . . . . . 25

Programación de Control de Combos TV/VCR . . 27

Búsqueda de su Código . . . . . . . . . . . . . . . . . . . 28

Comprobación de los Códigos . . . . . . . . . . . . . . 29

Programación del Bloqueo de ID . . . . . . . . . . . . 30

Programación del Bloqueo del Control de Canal

31 Utilización del Botón de Encendido Principal . . 32

Reasignación de Teclas de Dispositivos . . . . . . . 33

Cambio del Bloqueo de Volumen. . . . . . . . . . . . . 34

Resolución de Problemas . . . . . . . . . . . . . . . . . . 36

Información Adicional . . . . . . . . . . . . . . . . . . . . . 37

Códigos del Fabricante . . . . . . . . . . . . . . . . . . . 38

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 2

INTRODUCTION

The Cox Universal Remote Control by Universal Electronics is our latest generation universal remote control. It is designed with sophisticated technology that will allow you to consolidate the clutter of all of the original remote controls in your home entertainment system. Moreover, it’s packed with easy-to-use features such as:

• Preprogrammed to operate the cable converter sup-

plied by Cox Communications

• Preprogrammed interactive technology links hot keys

to your interactive service

• Master Power key for master on/off control of all of

your equipment with a single keystroke

• Cable ID Lock to lock your remote control for use

only with the cable converter

• Channel Lock to lock channel selection only to the

cable converter

• Code Search to help program control of older or

discontinued components

• Code library for video and audio devices

• Color-coded keys to quickly locate popular functions

Before using the product, you will need to program it to operate the specific home entertainment devices you wish to control. Follow the instructions detailed in this manual to set up your unit and then start enjoying your new remote control.

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 3

FEATURES AND FUNCTIONS

Use the illustration below to locate features on the Cox Universal Remote Control and then study the Key Charts (on the next two pages) to learn how they function.

Key Charts

Use SETUP for all programming sequences.

Press POWER once to turn on or off a home entertainment device.

Press and hold MASTER POWER for 3 seconds to turn on or off all home entertainment devices (see Using The Master Power Key on page 15).

Press AUX, VCR, TV, or CABLE once to select a home entertainment device to control. Each key has an embedded LED (red light) that blinks upon selection and indicates that the remote control is working and is sending signals.

Use INFO to display the current channel and program information.

Use PAGE+ to page up through menu screens and program guide.

Press ZOOM to change the aspect ratio on your Scientific Atlanta or Motorola HD receiver. (Not available on all receivers.)

Use th e Cursor keys to move the cursor in the program guide and menu screens and to navigate within the interactive service.

Use SELECT to choose options, PPV events, and to tune programs fromthe program guide.

Use GUIDE to display the program guide.

Use PAGE- to page down through menu screens and program guide.

Use EXIT to exit out of your cable converter’s menu and guide.

Use A, B, or C to access additional cable features (see your cable converter’s manual).

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 5

FEATURES AND FUNCTIONS

Use SETTINGS to access additional cable features (see your cable converter’s manual).

Press MENU once to display the available interactive services.

Press PPV to view the available Pay-Per-View event.

Use VOL+ (or VOL–) to raise (or lower) the sound volume.

Press LAST once to recall the last channel.

Use FAV to cycle through your favorite channels stored in your cable converter.

Press MUTE once to turn the sound off or on.

Use CH+ (or CH–) to select the next higher (or lower) channel.

Use INPUT to control the input select feature on most TVs.

Press ENTER once after entering channel numbers on some TVs.

Use th e k eypad (0 ~ 9) to directly select channels (e.g., 09 or 31).

In the VCR and TV modes, use REW, PLAY, FFWD, STOP, and PAUSE to con- trol your VCR, DVD player, or PVR. To record a program in the VCR or AUX mode, press RECORD twice.

In the CABLE mode, use these keys (except RECORD) to control VOD (Video On Demand).

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 6

INSTALLING BATTERIES

1. On the back of the remote control, push the

tab and lift off the battery cover.

2. Obtain two (2) fully-charged AA alkaline bat-

teries. Match the + and – marks on the batteries to the + and – marks in the battery case, then insert the new batteries.

3. Align the cover’s keys with the case’s holes

and press the cover back into place. The tab should click when the cover is locked.

Te st t h e u ni t b y p r e ss i n g POWER and any mode key (for example, AUX, VCR, TV, or CABLE). If the batteries are inserted correctly, the selected mode key will blink once.

NOTE: Whenever batteries need replacement, the remote control will cease to operate. Simply replace the batteries and the remote control will be restored to its full functionality, complete with your favorite settings.

❶

❸

❷

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 7

PROGRAMMING DEVICE CONTROL

The Cox Universal Remote Control is preprogrammed to operate your cable converter, an RCA TV, an RCA VCR, and a Pioneer audio receiver. To control devices other than the default brands, perform the following steps; otherwise skip this section:

NOTES: To control a DVD player, program the VCR or AUX key. To control a PVR, program the VCR key. To control a stereo amplifier or receiver, program the AUX key. For TV/VCR Combo control, skip this section and perform the instructions on the next page.

If you have another brand of cable converter and interactive service you would like to control, you’ll first need to unlock the cable ID Lock before changing the converter code—see

Programming ID Lock on page 13.

1. Turn on a device and, if applicable, insert

video media, (e.g., cassette or disc).

NOTE: Please read steps 2–4 completely before proceeding. Highlight or write down the codes and device you wish to program before moving on to step 2.

2. On the remote control, press a device key once

(e.g., AUX, VCR, TV, or CABLE). Press and hold SETUP until the selected mode key blinks twice, then release SETUP.

3. Use the Manufacturer’s Codes (starting on

page 38) to locate the the type of device and brand name and then enter the first four-digit code for your device. If performed correctly, the selected mode key will blink twice.

NOTE: If the selected mode key emits a long blink, the code is invalid. Repeat steps 2 through 3 and try entering the same code again.

4. Aim the remote control at the device and press

POWER once. The device should turn off. If it does not, repeat steps 2–3, trying each code for your brand until you find one that works. If it still does not work, try searching for the code (see Searching For Your Code on page 11).

NOTE: If the device does not have a POWER key, press the (Play) key.

5. Repeat steps 1–4 for each device you want the

the remote control to control. For future reference, write down each working device code in the following boxes:

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 8

AUX

AUX Device ____________________

VCR

CABLE

PROGRAMMING TV/VCR COMBO CONTROL

If you own a TV/VCR Combo, perform the following instructions to control this device:

1. Turn on your TV/VCR Combo and insert a

video cassette.

2. On the remote control, press VCR once.

Press and hold SETUP until the VCR key blinks twice, then release SETUP.

3. Use the setup codes for TV/VCR combos on

page 47 to locate the brand name and then enter the first four-digit code for your TV/VCR Combo. If you perform this procedure correctly, the VCR key will blink twice.

NOTE: If the VCR key did not blink twice after entering the code’s last digit, then repeat steps 2 through 3 and try entering the same code again.

4. Aim the remote control at your TV/VCR

Combo and press POWER once. The device should turn off. If it does not respond, repeat steps 2-3, trying each code listed for your brand until you find one that works. If it still does not work, try searching for the code (see Searching For Your Code on page 11).

5. If you’ve located a TV/VCR setup code that

works your TV/VCR Combo and a separate TV code is also listed, you’ll need to program this code into the remote control to access volume control (see Programming Device Control on page 8).

If there is no separate TV code listed, you will need to perform the following steps to access volume control:

a. Press and hold SETUP until the VCR key

blinks twice, then release SETUP.

b. Enter 9 - 9 - 3. The VCR key will blink

twice.

c. Press VCR once. The VCR key will blink

twice.

6. For future reference, write down each work-

ing device code in the boxes below:

TV/VCR

TV (if used)

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 10

SEARCHING FOR YOUR CODE

If your TV, VCR, Cable Converter or Auxiliary device does not respond to the Cox Universal Remote Control after trying all of the codes listed for your brand, or if your brand is not listed at all, try searching for your code.

For example, to search for a code for your TV:

1. Turn on your TV.

2. On the remote control, press TV once.

Then press and hold SETUP until the TV key blinks twice, then release SETUP.

3. Enter 9 - 9 - 1. The TV key will blink twice.

4. Aim the remote control at the the TV and

slowly alternate between pressing POWER and TV.

Stop when the TV turns off.

NOTE: In the search mode, the remote control will send IR codes from its library to the selected device, starting with the most popular code first.

5. Press SETUP once to lock in the code.

6. To search for the codes of your other devices,

repeat steps 1–5, but substitute the appropriate key (that is, AUX, VCR, or CABLE) for the (Auxiliary, VCR, or Cable) device you are searching for.

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 11

CHECKING THE CODES

If you have set up the Cox Universal Remote Control using the Searching For Your Code procedure on the previous page, you may need to find out which fourdigit code is operating your equipment. For example, to find out which code is operating your TV:

1. Turn on your TV.

2. On the remote control, press TV once.

Then press and hold SETUP until the TV key blinks twice, then release SETUP.

3. Enter 9 - 9 - 0. The TV key will blink twice.

4. To view the code for the first digit, press

1 once. Wait 3 seconds and count the number of times the TV key blinks (for example, 3 blinks = 3) and write down the number in the leftmost TV Code box (see below).

NOTE: If a code digit is “0”, the selected mode key will not blink.

5. Repeat step 4 three more times for remaining

digits. Use 2 for the second digit, 3 for the

third digit, and 4 for the fourth digit. Write

down the remaining digits in the boxes below.

6. To check for other device codes, repeat steps

1–5, but substitute the appropriate key (that is, AUX, VCR, or CABLE) for the (Auxiliary, VCR, or Cable) device you are checking. Write down the codes in the appropriate boxes below.

AUX Code

Aux Device ____________________

VCR Code

TV Code

CABLE Code

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 12

PROGRAMMING ID LOCK

The Cox Universal Remote Control is preprogrammed and locked at the factory to operate the cable converter and interactive service given to you by your cable company.

However, if you have another brand or model of cable converter and interactive service that you would like to control, then you’ll need to perform the following steps

PROGRAMMING CHANNEL CONTROL LOCK

By default, the remote control’s channel-control capabilities are locked to the cable converter. The affected keys are 0~ 9, CH+, CH–, ENTER, and LAST. This will guarantee that you do not inadvertently change a channel on your TV or VCR. However, you can de-activate this feature to allow full access to these keys in the TV and VCR modes.

To De-Activate Channel Control Lock:

1. On the remote control, press CABLE once.

Then press and hold SETUP until the CABLE key blinks twice, then release SETUP.

2. Enter 9 - 7 - 3. The CABLE key will blink twice.

3. Press CH– once. The CABLE key will blink

four times.

4. Now, the remote control will provide TV and

VCR channel-control capabilities while in the TV or VCR mode.

NOTE: This feature does not affect the AUX mode.

To Re-Activate Channel Control Lock:

1. On the remote control, press CABLE once.

Then press and hold SETUP until the CABLE key blinks twice, then release SETUP.

2. Enter 9 - 7 - 3. The CABLE key will blink twice.

3. Press CH+ once. The CABLE key will blink twice.

4. Now, regardless of what mode you select

(that is, TV, VCR, or CABLE), only the channel control capability of your cable converter will be accessible.

NOTE: This feature does not affect the AUX mode.

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 14

USING THE MASTER POWER KEY

The Cox Universal Remote Control is equipped with a unique feature that allows you to sequentially turn on or off all of your home entertainment devices with a single key press as follows:

1. Point the remote control at the devices.

2. Press and hold MASTER POWER for 3 seconds

to sequentially turn on or off all home entertainment devices.

Depending on what mode is currently selected, the remote control will send IR commands to the devices in the following order:

For example, if TV is selected, pressing and holding MASTER POWER for 3 seconds will turn off the VCR, an auxiliary device, and the cable converter.

NOTE: The remote control always defaults to the CABLE mode after all devices are turned off. Therefore, the initial power-on sequence will always be TV, VCR, and an auxiliary device, if no other device key is pressed first.

Start Mode Device On/Off End Mode

AUX Cable, TV, VCR CABLE

VCR Auxiliary, Cable, TV CABLE

TV VCR, Auxiliary, Cable CABLE

CABLE TV, VCR, Auxiliary CABLE

Cox Manual - final - 082103.qxd 8/21/03 1:31 PM Page 15
