ATLAS DVR/PVR 5-DEVICE
Universal Remote Control with Learning
Control Remoto Universal con Aprendizaje
Users Guide
Guía del Usuario
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Key Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Device Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installing Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Programming Device Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Programming TV/VCR Combo Control . . . . . . . . . . . . . . . . . . . . . . .10
Searching for Your Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Checking the Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using Learning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Learning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Programming a Learned Key . . . . . . . . . . . . . . . . . . . . . . . . .13
Deleting a Single Learning Key. . . . . . . . . . . . . . . . . . . . . . . . 14
Deleting All Learned Keys in a Specific Mode . . . . . . . . . . . . 15
Programming Channel Control Lock . . . . . . . . . . . . . . . . . . . . . . . . 15
Unlocking Channel Control. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Locking Channel Control to CBL. . . . . . . . . . . . . . . . . . . . . . .16
Changing Volume Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Unlocking Volume Control for a Single Device (Individual
Volume Unlock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Unlocking All Volume Control (Global Volume Unlock) . . . . .17
Locking Volume Control To One Mode (Global Volume Lock) 17
Programming ID Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programming Tune-In Keys for Specific Channels . . . . . . . . . . . . . 18
Programming a Tune-In Key. . . . . . . . . . . . . . . . . . . . . . . . . .19
Clearing a Tune-In Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the Master Power Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Programming the Master Power Key . . . . . . . . . . . . . . . . . . . 20
Using the Master Power Key. . . . . . . . . . . . . . . . . . . . . . . . . .20
Clearing the Master Power Key . . . . . . . . . . . . . . . . . . . . . . . 21
Re-Assigning Device Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Clearing Custom Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
FCC Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Índice de Materias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Manufacturer’s Codes (Códigos del Fabricante) . . . . . . . . . . . . . . . 51
Setup Codes for Audio Amplifiers. . . . . . . . . . . . . . . . . . . . . .51
Setup Codes for Audio Amp/Tuners . . . . . . . . . . . . . . . . . . . .52
Setup Codes for Miscellaneous Audio . . . . . . . . . . . . . . . . . .55
Setup Codes for Cable Boxes/Converters . . . . . . . . . . . . . . . 55
Setup Codes for DVD Players . . . . . . . . . . . . . . . . . . . . . . . . . 56
Setup Codes for PVRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Setup Codes for Satellite Receivers . . . . . . . . . . . . . . . . . . . 60
Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Setup Codes for VCRs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Setup Codes for Video Accessories . . . . . . . . . . . . . . . . . . . .70
www.urcsupport.com
2
INTRODUCTION
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning by Universal Electronics is our latest
generation universal remote control. Its sophisticated
technology allows you to consolidate up to five of your
original home entertainment remote controls into one
easy-to-use product. Moreover, its packed with
advanced features such as:
• Preprogrammed control to operate the cable
converter supplied by your cable service provider
• Dedicated keys to control popular functions on your
DVR/PVR (Digital/Personal Video Recorder)
• Programmable Master Power key for master on/off
control of your home entertainment equipment with
a single keystroke
• Instant Tune-In keys for assignment to your favorite
channels
• Channel Lock to lock channel selection only to the
cable converter
• Volume Lock to lock volume controls to one mode or
individual modes
• Device Key Re-Assignment to remotely control a
second (duplicate) device
• Code Search to help program control of older or
discontinued components
• Color-coded keys to quickly locate popular
functions
• Code library for popular video and audio devices
Before using the product, you will need to install the
enclosed batteries and also perform some programming
to operate the specific home entertainment devices you
wish to control.
Please follow the instructions detailed in this manual to
set up the unit and then start enjoying your new remote
control and cable service.
www.urcsupport.com
3
FEATURES AND FUNCTIONS
Use the illustration below to locate features on the Atlas
DVR/PVR 5-Device Universal Remote Control with
Learning and then study the Key Charts (on the next
three pages) to learn how they function.
To find out what type of devices can be controlled by
each device key after programming, see “Device Table”
on page 7 .
www.urcsupport.com
4
Key Charts
Key Function
Use SETUP for all programming
sequences.
Press PWR once to turn on or off a home
entertainment device. For MASTER
POWER control, see “Using the Master
Power Key” on page 20.
Press AUX, DVD, AUD, TV, or CBL once to
select a home entertainment device to
control. Also see “Device Table” on
page 7.
Each device key has an embedded LED
(red light) that blinks upon selection
and indicates the remote control is
working and (after programming) is
sending signals.
Use GUIDE to display the program
guide.
Press SETTINGS once to display available
interactive services.
Use INFO to display the current channel
and program information.
Use DAY+ (or DAY-) to move a day
forward (or back) on your cable
converter’s program guide.
Use the Cursor keys to move the cursor
in the program guide and menu screens
and to navigate within the interactive
service.
Use OK/SELECT to choose options, PPV
events, and to tune programs from the
program guide.
Use PAGE+ (or PAGE-) to page up (or
page down) through menu screens and
the program guide.
Use EXIT to exit out of your cable
converters menu and guide.
Use A, B, or C to access additional cable
features (see your cable converter’s
manual).
Use VOL+ (or VOL-) to raise (or lower)
the audio volume.
www.urcsupport.com
5
Key Function
Use FAV to cycle through your favorite
channels stored in your cable converter.
Use CH+ (or CH-) to select the next
higher (or lower) channel.
For DVD players, use these keys to skip
forward (or reverse) through chapters.
For amplifiers/receivers, use these keys
to select the next higher (or lower)
preset station.
Press MUTE once to turn the sound off
or on.
Press LAST once to recall the last
channel.
Reserved for use as Tune-In keys (see
“Programming Tune-In
Keys for Specific Channels” on page 18).
Use to command your PVR to
instantly replay the last 7 seconds of a
program you are watching.
Press LIST once to display a list of
recorded shows on your PVR.
Press LIVE to return to watching live TV.
In all modes except CBL, use REW, PLAY,
FFWD, STOP, and PAUSE to control a
VCR, DVD player, or a PVR (after
selecting a desired device). To record in
the VCR mode, press REC twice.
In the CBL mode, use these keys to
control the DVR/PVR functions of the
set-top box.
Use the keypad numbers (1-9, and 0) to
directly tune channels (e.g., 09).
For amplifiers/receivers, use the keypad
numbers to select inputs 1 through 10.
ress
HD/ZOOM
P
ratio of the show you are watching. (Not
available on all set-top boxes)
once to change the aspect
.
Use PIP ON-OFF to switch the PictureIn-Picture feature on or off (if available
on your TV or cable service).
Use PIP SWAP to switch images and
sound between the main and window
pictures.
www.urcsupport.com
6
Key Function
se
PIP MOVE
U
to different positions in the main picture
Use PIP CH+ (or CH-) to select the next
higher (or lower) PIP channel.
In the CBL mode, use VIDEO SOURCE to
view other video sources (A or B)
instead of cable.
In all other modes, use VIDEO SOURCE
to watch TV or video programs on a
desired device.
For amplifiers/receivers, use VIDEO
SOURCE to select an input source.
Device Table
NOTE: Please refer to the table below when
performing the instructions in
“Programming Device Control” on page 8 or
“Programming TV/VCR Combo Control” on
page 10.
to move the window picture
.
After programming, the Atlas DVR/PVR 5-Device
Universal Remote Control with Learning will be able to
control the following types of devices:
Device Key Controls these types of devices
VCR, TV/VCR Combo, PVR (Personal
Video Recorder), or extra DVD Player
DVD Player
Audio Amplifier, Tuner, or Receiver
Television
Cable Box (Converter) or Satellite
Receiver
www.urcsupport.com
7
INSTALLING BATTERIES
❶
❷
❸
1. On the back of the remote control, push the
tab and lift off the battery cover.
2. Locate the two (2) enclosed AA batteries.
Match the + and - marks with those in the
battery case, then insert them.
3. Align the covers keys with the cases holes and
press the cover back into place. The tab should
click when the cover is locked.
4. Test the remote control by pressing any mode
key (e.g., TV). If the batteries are inserted
correctly, the LED (red light) will blink once.
NOTE: When batteries need replacement, the remote
control will cease to operate. Replace the
batteries and the unit will be restored to its
full functionality, complete with your favorite
settings.
PROGRAMMING DEVICE CONTROL
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning is preprogrammed to operate the cable
box (converter) provided by your cable system, an RCA
TV, a Toshiba DVD player, an RCA VCR (as an AUX
device), and a Pioneer audio receiver. To control devices
other than the default brands, perform the following
steps; otherwise skip this section.
www.urcsupport.com
8
NOTES: For TV/VCR Combo control, skip this section
and perform the instructions on “Programming TV/VCR Combo Control” on page 10.
Also refer to “Device Table” on page 7 to find
out which devices can be programmed onto
each device key.
If you have another brand of cable converter
or a satellite receiver you would like to control,
you’ll need to unlock the cable ID Lock before
changing the converter code (see “Programming ID Lock” on page 18).
1. Turn on a device and, if applicable, insert
video media, (e.g., cassette or disc).
NOTE: Please read steps 2 through 4 completely
before proceeding. Highlight or write down
the codes and device you wish to program
before moving on to step 2.
2. On the remote control, press a device key once
(i.e., AUX, DVD, AUD, TV, or CBL); it will blink
once. Then press and hold SETUP until the
selected mode key blinks twice.
3. Use the “Manufacturer’s Codes (Códigos del
Fabricante)” starting on page 51) to locate the
type of device and brand name and then enter
the first four-digit code for your device. If
performed correctly, the selected mode key
will blink twice.
NOTE: If the selected mode key emits a long blink,
the entry is invalid. Repeat steps 2 through 3
and try entering the same code again.
4. Aim the remote control at the device and
press PWR once. The device should turn off. If
it does not, repeat steps 2 through 3, trying
each code for your brand until you find one
that works. If it still does not respond, try
searching for the code (see “Searching for
Your Code” on page 11).
NOTE: If the device does not have a PWR key, press
the(Play) key.
5. Repeat steps 1 through 4 for each device you
want the remote control to operate. For future
reference, write down each working device
code in the boxes on the following page.
AUX Co de
Device Type:___________________
www.urcsupport.com
9
DVD Code
Device Type:___________________
AUD Co de
Device Type:___________________
CBL Code
Device Type:___________________
TV Code
Device Type:___________________
PROGRAMMING TV/VCR COMBO CONTROL
If you own a TV/VCR Combo, perform the following
instructions to control this device:
1. Turn on your TV/VCR Combo and insert a
video cassette.
2. On the remote control, press AUX once; it will
blink once. Then press and hold SETUP until
the AUX key blinks twice.
3. Use the “Manufacturer’s Codes (Códigos del
Fabricante)” starting on page 51 to locate the
brand name and enter the first four-digit code
for your TV/VCR Combo. If you perform this
procedure correctly, the AUX key will blink
twice.
NOTE: If the AUX key did not blink twice after enter-
ing the codes last digit, repeat steps 2 through
3 and try entering the same code again.
If you’ve located a TV/VCR setup code that
works for your TV/VCR Combo and a separate
TV code is also listed, you’ll need to program
this code into the remote control to access vol-
www.urcsupport.com
10
ume control (see “Programming Device Control” starting on page 8).
4. Aim the remote control at your TV/VCR
Combo and press PWR once. The device
should turn off. If it does not respond, repeat
steps 2 through 3, trying each code listed for
your brand until you find one that works. If it
still does not respond, try searching for the
code (“Searching for Your Code” starting on
page 11).
5. For future reference, write down each working
device code in the boxes below:
TV/VCR Code
TV Code (if used)
SEARCHING FOR YOUR CODE
If your home entertainment device does not respond to
the Atlas DVR/PVR 5-Device Universal Remote Control
with Learning after trying all of the codes listed for your
brand, or if your brand is not listed at all, try searching
for your code.
For example, to search for a code for your TV:
1. Turn on your TV.
2. On the remote control, press TV once; it will
blink once. Then press and hold SETUP until
the TV key blinks twice.
3. Enter 9 9 1. The TV key will blink twice.
4. Aim the remote control at the TV and press
PWR once.
5. Press CH+ one or more times and stop when
the TV turns off.
NOTE: In the search mode, the remote control will
send IR codes from its library to the selected
device, starting with the most popular code
first.
www.urcsupport.com
11
6. Press SETUP once to lock in the code. The TV
key will blink twice.
7. To search for the codes of your other devices,
repeat steps 1 through 5, but substitute the
appropriate key (e.g., AUX, DVD, AUD, or CBL)
for the device you are searching for.
CHECKING THE CODES
If you have set up the Atlas DVR/PVR 5-Device
Universal Remote Control with Learning by searching
for your device code (on the previous page), you may
need to find out which four-digit code is operating your
equipment.
or example, to find out which code is operating your TV
F
1. On the remote control, press TV once; it will
blink once. Then press and hold SETUP until
the TV key blinks twice.
2. Enter 9 9 0. The TV key will blink twice.
3. To view the code for the first digit, press 1
once. Count the number of times the TV key
blinks (e.g., 3 blinks = 3) and write down the
number in the leftmost TV Code box on
page 10.
NOTE: If a code digit is 0, the selected mode key will
not blink.
4. Repeat step 3 three more times for the
remaining digits. Use 2 for the second digit, 3
for the third digit, and 4 for the fourth digit.
Finish writing down the code in the TV Code
boxes on page 10.
:
5. To check for other device codes, repeat steps 1
through 4, but substitute the appropriate key
(e.g., AUX, DVD, AUD, or CBL) for the device
you are checking. Write down the codes in the
appropriate boxes on page 10.
USING LEARNING
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning includes a Learning feature so you can
add functions that are unique to your home
entertainment devices (e.g.,VCR T
However, there are some considerations
www.urcsupport.com
12
racking Up or Down).
.
Learning Precautions
• Your original remote controls must be in working
order for learning to work properly.
• Learned keys are mode-specific, so each one can
store a unique function for each mode.
• Do not use the following keys for learning: Device
Keys, SETUP, Record (•), Tune-In Keys.
• Learning capacity is approximately 16 to 25 keys,
depending on the code being learned.
• Certain device functions are not learnable including
multi-frequency types, some high frequency ones,
and other unusual formats.
• For optimum learning, avoid high levels of ambient
light such as natural sunlight or energy-efficient
fluorescent lights.
NOTE: Please have your original remote controls
handy before programming learning.
Programming a Learned Key
NOTE: If more than 15 seconds pass between key
presses, the remote exits programming.
1. Press and hold SETUP until the last-selected
mode key blinks twice, then press 9 7 5.
NOTE: If the LED displays one long flash instead,
either your batteries are low, or the Atlas DVR/
PVR 5-Device Universal Remote Control with
Learning has a memory fault. In either case,
the remote will not learn a new key. See “Additional Information” on page 24.
2. Press a mode key once (i.e., AUX, DVD, AUD,
TV, or CBL) to assign a mode for learning, then
the key that will learn the new code.
3. Place the Atlas DVR/PVR 5-Device Universal
Remote Control with Learning head-to-head
(about 2" apart) from your original remote
control. Also locate the key (on your original
remote control) that you want the Atlas DVR/
PVR 5-Device Universal Remote Control with
Learning to learn.
2"
www.urcsupport.com
13
4. On the original remote, press and hold the key
to be learned. The Atlas DVR/PVR 5-Device
Universal Remote Control with Learning’s
LED will blink rapidly, then turn off. Continue
holding the key on the original remote until
the Atlas DVR/PVR 5-Device Universal
Remote Control with Learning’s LED blinks
twice.
NOTE: If the LED displays one long blink, a learning
error has occurred. Try repeating this step
again until a successful capture occurs. If the
function is still not captured, press and hold
SETUP to exit programming and review the
“Learning Precautions” on the previous page.
If needed, also see “Troubleshooting” on
page 22. After review, start programming
again at step 1.
5. Repeat steps 2 through 4 for another mode
and/or key or press and hold SETUP to exit
programming.
Deleting a Single Learning Key
his process returns the key to its original programmin
T
for the mode you select. You can also delete learned
programming by teaching a different function to the key
(see “Programming a Learned Key” on page 13)
g
NOTE: If more than 15 seconds pass between key
presses, the remote exits programming.
1. Press and hold SETUP until the last-selected
mode key blinks twice, then press 9 7 6.
2. Press a mode key once (i.e., AUX, DVD, AUD,
TV, or CBL).
3. Press the key containing the learned function
to be deleted twice. The remote will blink
twice.
4. Repeat steps 2 through 3 for another key or
press and hold SETUP to exit programming.
www.urcsupport.com
14
Deleting All Learned Keys in a Specific Mode
NOTE: If more than 15 seconds pass between key
presses, the remote exits programming.
1. Press and hold SETUP until the last-selected
mode key blinks twice, then press 9 7 5.
2. Press a mode key twice (i.e., AUX, DVD, AUD,
TV, or CBL) to clear all the learned keys for
that mode. The LED blinks twice.
3. Repeat step 2 for another mode or press and
hold SETUP to exit programming.
PROGRAMMING CHANNEL CONTROL LOCK
By default, the remote control’s channel-control
capabilities are locked to the cable converter. The
affected keys
LAST. This will guarantee that you do not inadvertently
change a channel on your TV or VCR. However, you can
de-activate this feature to allow full access to these keys
in the TV and VCR modes.
*
NOTE: This feature does not affect the AUD mode.
*
are 1 through 0, CH+, CH-, ENTER, and
Unlocking Channel Control
1. On the remote control, press CBL once; it will
blink once. Press and hold SETUP until the
CBL key blinks twice.
2. Enter 9 7 3. The CBL key will blink twice.
3. Press CH- once. The CBL key will blink four
times.
Now the remote control will provide TV and VCR
channel-control capabilities while in the TV or VCR
mode.
www.urcsupport.com
15
Locking Channel Control to CBL
1. On the remote control, press CBL once; it will
blink once. Press and hold SETUP until the
CBL key blinks twice.
2. Enter 9 7 3.The CBL key will blink twice.
3. Press CH+ once. The CBL key will blink twice.
Now, regardless of what mode you select (except AUD),
the channel keys will only change channels on your cable
converter.
CHANGING VOLUME LOCK
Volume Lock allows you to control the volume through
the device identified as having your primary speaker(s),
regardless of which mode you are using. On the Atlas
DVR/PVR 5-Device Universal Remote Control with
Learning, Global Volume Lock is set to TV, so you can
control TV volume while in the AUX, DVD, TV or CBL
mode. You can perform Individual Volume Unlock on a
selected device to set its volume control for independent
operation.
NOTE: The audio mode’s (AUD) volume controls are
active regardless of Volume Lock settings.
However, if you lock the volume controls to
the AUD mode, you will have control of the
audio device’s volume in all other modes (i.e.,
AUX, DVD, TV, and CBL). This can be an advan-
tage if, for example, you always listen to home
entertainment devices through your receiver’s
speakers.
Unlocking Volume Control for a Single Device
(Individual Volume Unlock)
1. Assuming Global Volume Lock is active, select
a mode on the remote control that you want to
unlock (e.g., CBL) and press it once. Next,
press and hold SETUP until the device key
blinks twice.
2. Enter 9 9 3. The last-selected device key will
blink twice.
www.urcsupport.com
16
3. Press VOL- once. The last-selected device key
will blink four times.
4. Repeat steps 1 through 3 for each device you
want volume to be unlocked.
Now, after you select a device that has volume unlocked
(e.g., CBL), pressing VOL+, VOL-,or MUTE, will control
only that device’s volume.
Unlocking All Volume Control (Global Volume Unlock)
NOTE: Performing these instructions will set inde-
pendent volume control for all programmed
devices.
1. On the remote control, press and hold SETUP
until the last-selected device key blinks twice.
2. Enter 9 9 3. The last-selected device key will
blink twice.
3. Press VOL+ once. The last-selected device key
will blink four times.
Locking Volume Control To One Mode (Global
Volume Lock)
NOTE: The audio mode’s volume controls are active
regardless of Volume Lock settings. However,
if you lock the volume controls to the AUD
mode, you will control the audio device’s volume in all other modes (i.e., AUX, DVD, TV, or
CBL). This can be an advantage if, for example, you always listen to home entertainment
devices through your receiver’s speakers.
1. On the remote control, press and hold SETUP
until the last-selected device key blinks twice.
2. Enter 9 9 3. The last-selected device key will
blink twice.
3. Select a mode (e.g., TV or AUD) which you
want to use to control the volume. The
selected device key will blink twice.
Now, when you press VOL+, VOL-,or MUTE, the volume of
the selected device (e.g., TV) is controlled regardless of
mode.
www.urcsupport.com
17
PROGRAMMING ID LOCK
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning is locked at the factory to operate a
Scientific Atlanta cable converter. However, if you have
another brand or model of cable converter or satellite
service that you would like to control, then you’ll need to
perform the following steps to unlock the ID Lock, enter
a new manufacturer’s code, and lock the ID Lock again.
1. Turn on the cable converter.
2. On the remote control, press CBL once; it will
blink once. Then press and hold SETUP until
the CBL key blinks twice.
3. Enter 9 8 2. The CBL key will blink four
times, indicating ID Lock is unlocked.
4. Perform the instructions under
“Programming Device Control” on page 8 to
program device control for the desired cable
converter or satellite receiver.
When you are done, perform steps 5 and 6 on
this page to again lock the ID Lock.
5. On the remote control, press CBL once; it will
blink once. Then press and hold SETUP until
the CBL key blinks twice.
6. Enter 9 8 2. The CBL key will blink twice,
indicating ID Lock is again locked.
PROGRAMMING TUNE-IN
KEYS FOR SPECIFIC CHANNELS
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning includes three Tune-In keys (located
directly below the MUTE and LAST keys). Each can be
programmed to remember five of your favorite cable
channel settings for a total of fifteen channels. If you
want to change the cable channels in a previouslyprogrammed Tune-In key, you’ll need to clear the key
first (see “Clearing a Tune-In Key” on page 19).
www.urcsupport.com
18

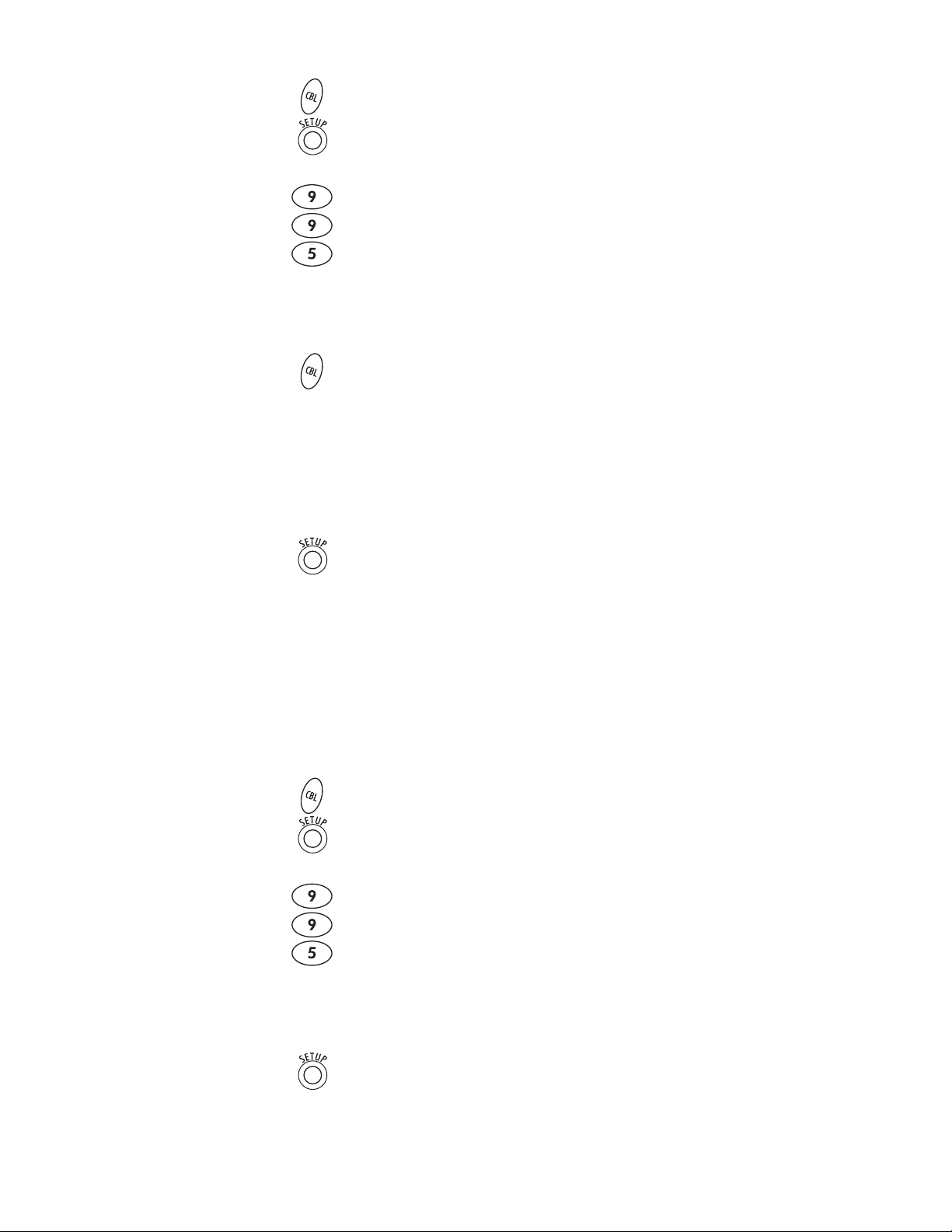

Programming a Tune-In Key
1. On the remote control, press CBL once; it will
blink once. Then press and hold SETUP until
the CBL key blinks twice.
2. Enter 9 9 5. The CBL key will blink twice.
3. Select a Tune-In key and press it once.
4. Press CBL once, followed by the channel
number to be programmed (e.g., 3 9 for
channel 39).
NOTE: If you are programming a channel for a Digital
Cable Converter, you need to enter all
channels in a 3-digit channel format. For
example, to program channel is 39, enter
039.
5. Press and hold SETUP until the CBL key blinks
twice.
6. To add another channel, repeat steps 1
through 5, substituting the new channel to be
added in step 4.
NOTE: Programming more than five channels on the
same Tune-In key will overwrite previous
settings.
Clearing a Tune-In Key
1. On the remote control, press CBL once; it will
blink once. Then press and hold SETUP until
the CBL key blinks twice.
2. Enter 9 9 5. The CBL key will blink twice.
3. Press the Tune-In key you want to clear once.
4. Press and hold SETUP until the CBL key blinks
twice.
This Tune-In key is now clear and ready for
reprogramming (see “Programming a Tune-In Key” on
page 19). If desired, repeat these to clear another TuneIn key.
www.urcsupport.com
19
USING THE MASTER POWER KEY
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning has a unique feature that allows you to
sequentially turn up to five of your home entertainment
devices on or off with a single key press.
NOTE: MASTER POWER (PWR) only works in the CBL
mode. If it is not programmed, only the cable
converter will turn on or off. In any other
mode, pressing MASTER POWER (PWR) once
will turn the selected device on or off.
Programming the Master Power Key
1. On the remote control, press and hold SETUP
until the last-selected device key blinks twice.
2. Enter 9 9 5. The last-selected device key
blinks twice.
3. Press PWR once.
4. For the first device you want in the power on
sequence, press a device key (e.g., CBL) once.
Then press PWR once.
5. Repeat step 4 up to four more times to add the
second, third, fourth, and fifth device, as
desired.
6. To save the settings and exit the program:
a. Press CBL once.
b. Press and hold SETUP until the CBL key blinks
twice.
Using the Master Power Key
1. After programming, point the remote control
at the devices. Press CBL once.
Press
PWR
2.
programmed home entertainment devices on
or off.
You will see the devices turn on or off according to the
programmed sequence.
once to sequentially turn the
www.urcsupport.com
20
Clearing the Master Power Key
1. On the remote control, press and hold SETUP
until the last-selected device key blinks twice.
2. Enter 9 9 5. The last-selected device key
blinks twice.
3. Press and release PWR.
4. Press and hold SETUP until the CBL key blinks
twice.
RE-ASSIGNING DEVICE KEYS
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning can be set up to control a second device of
an already-assigned type. For example, to have the unit
control a TV, a Cable Converter, and two DVD players,
re-assign the unused AUX key to operate the second DVD
Player as follows:
NOTE: AUX is preset at the factory to control an RCA
VCR. Performing the steps below will overwrite those settings.
1. On the remote control, press AUX once; it will
blink once. Then press and hold SETUP until
the AUX key blinks twice.
2. Enter 9 9 2. The AUX key will blink twice.
3. Press DVD once, then press AUX once. The AUX
key will blink twice.
The AUX key is now ready to be programmed for your
second DVD player. See “Programming Device Control”
on page 8. To re-assign other device keys, repeat these
and substitute the key sequence using the following
chart:
www.urcsupport.com
21
NOTE: Only one device can be assigned to an unused
device key at a time.
To Re-Assign Perform Key Sequence
AUX as 2nd
AUD key
AUX as 2nd
TV key
AUX as 2nd
CBL key
AUX back to
AU X
To re-assign another unused device key, substitute it for
the AUX key above and then perform the sequence. For
example, to re-assign an unused AUD key as a second
DVD key, perform
AUDÆSETUPÆ9Æ9ÆÆDVDÆAUD.
When a re-assignment is done, the selected device key
(e.g., AUD) will blink twice to confirm your choice. At
that time, you will need to program device control (see
“Programming Device Control” on page 8).
AUXÆSETUPÆ9Æ9Æ2ÆAUDÆAUX
AUXÆSETUPÆ9Æ9Æ2ÆTVÆAUX
AUXÆSETUPÆ9Æ9Æ2ÆCBLÆAUX
AUXÆSETUPÆ9Æ9Æ2ÆAUXÆAUX
CLEARING CUSTOM PROGRAMMING
The Atlas DVR/PVR 5-Device Universal Remote Control
with Learning contains a Custom Programming Reset
program. You can use it to remove all custom
programming, except your setup codes and reassigned
device keys.
IMPORTANT: Executing this program will erase all cus-
tom settings for Volume Lock, Learned Keys,
Tune-In Keys, and Channel Lock. However,
your device programming remains.
1. On the remote control, press and hold SETUP
until the last-selected device key blinks twice.
2. Enter 9 8 0. The last-selected device key
blinks twice, pauses, and blinks twice again to
confirm that all custom programming is
cleared.
TROUBLESHOOTING
PROBLEM: Device key does not blink when you press a
key.
SOLUTION: Replace the batteries with two (2) new AA
alkaline batteries (see “Installing Batteries” on page 8).
www.urcsupport.com
22
Loading...
