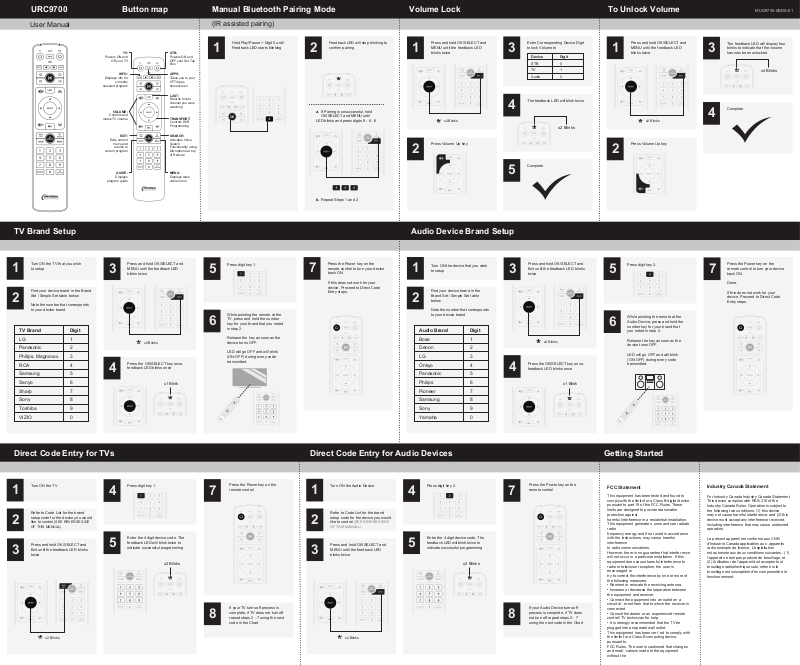

Universal Electronics 9700 Users Manual

URC9700 Manual Bluetooth Pairing Mode Volume Lock To Unlock Volume

Button map

MUG9700-SDDS-01

User Manual

Powers ON and

Displays info for

selected program

mutes TV volume

current program

TV:

Off your TV

INFO:

currently

VOLUME:

Controls and

EXIT:

Exits current

menu and

returns to

GUIDE:

Displays

program guide

STB: Powers ON and OFF your Set Top Box

APPS:

Takes you to your OTT/Apps homescreen

LAST:

Returns to last channel you were watching

TRANSPORT: Controls DVR Programming

SEARCH: Activates Voice Search Functionality using Microphone at top of Remote

MENU:

Displays main cable menu

(IR assisted pairing)

Hold Play/Pause + Digit 0 until

1 2

Feedback LED starts blinking

Feedback LED will stop blinking to confirm pairing

a. If Pairing is unsuccessful, hold OK/SELECT and MENU until LED blinks and press digits 9 - 6 - 6

Press and hold OK/SELECT and MENU until the feedback LED blinks twice.

x2 Blinks

Press Volume Up key

Enter Corresponding Device Digit to lock Volume to

Device Digit

STB 0

TV 1

Audio 2

The feedback LED will blink twice

x2 Blinks

Complete

Press and hold OK/SELECT and MENU until the feedback LED blinks twice.

x2 Blinks

Press Volume Up key

The feedback LED will display four blinks to indicate that the volume has now been unlocked

x4 Blinks

Complete

TV Brand Setup

Turn ON the TV that you wish

to setup

Find your device brand in the Brand Set / Simple Set table below.

Note the number that corresponds to your device brand

TV Brand Digit

LG 1

Panasonic 2

Philips, Magnavox 3

RCA 4

Samsung 5

Sanyo 6

Sharp 7

Sony 8

Toshiba 9

VIZIO 0

Press and hold OK/SELECT and MENU until the feedback LED blinks twice

x2 Blinks

Press the OK/SELECT key once, feedback LED blinks once

x1 Blink

Press digit key 1.

While pointing the remote at the TV, press and hold the number key for your brand that you noted in step 2.

Release the key as soon as the device turns OFF.

LED will go OFF and will blink (ON-OFF) during every code transmitted.

b. Repeat Steps 1 and 2

Press the Power key on the

remote control to turn your device back ON.

If this does not work for your device, Proceed to Direct Code Entry steps.

Audio Device Brand Setup

Turn ON the device that you wish

to setup

Find your device brand in the Brand Set / Simple Set table below.

Note the number that corresponds to your device brand

Audio Brand Digit

Bose 1

Denon 2

LG 3

Onkyo 4

Panasonic 5

Philips 6

Pioneer 7

Samsung 8

Sony 9

Yamaha 0

Press and hold OK/SELECT and Exit until the feedback LED blinks twice

x2 Blinks

Press the OK/SELECT key once, feedback LED blinks once

x1 Blink

Press digit key 2.

While pointing the remote at the Audio Device, press and hold the number key for your brand that you noted in step 2.

Release the key as soon as the device turns OFF.

LED will go OFF and will blink (ON-OFF) during every code transmitted.

Press the Power key on the remote control to turn your device back ON.

Done.

If this does not work for your device, Proceed to Direct Code Entry steps.

Turn ON the TV

Refer to Code List for the brand setup code for the device you would like to control

OF THIS MANUAL)

Press and hold OK/SELECT and Exit until the feedback LED blinks twice

(SEE REVERSE SIDE

x2 Blinks

Press digit key 1.

Enter the 4 digit device code. The feedback LED will blink twice to indicate successful programming

x2 Blinks

Press the Power key on the remote control

If your TV turns off process is complete, if TV does not turn off repeat steps 2 - 7 using the next code in the Chart

Direct Code Entry for Audio Devices Getting StartedDirect Code Entry for TVs

Turn ON the Audio Device

Refer to Code List for the brand setup code for the device you would like to control

OF THIS MANUAL)

Press and hold OK/SELECT and MENU until the feedback LED blinks twice

(SEE REVERSE SIDE

x2 Blinks

Press digit key 2.

Enter the 4 digit device code. The feedback LED will blink twice to indicate successful programming

x2 Blinks

Press the Power key on the remote control

If your Audio Device turns off process is complete, if TV does not turn off repeat steps 2 - 7 using the next code in the Chart

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged or try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase or decrease the separation between the equipment and receiver.

• Connect the equipment into an outlet on a

circuit di�erent from that to which the receiver is

connected

• Consult the dealer or an experienced remote control/ TV technician for help.

• It is strongly recommended that the TV be plugged into a seperate wall outlet.

This equipment has been veri�ed to comply with

the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes

and modi�cations made to the equipment

without the

Industry Canada Statement

For Industry Canada Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Code Lists

Audio Brand Code(s)

Aiwa 0158, 0189, 0121, 1641 Alco 1390 AMC 1077 Anam 1609 Apex Digital 1774 Arcam 0189 Audio Solutions 3622 Audioengine 4311 AudioSource 3721 Audiovox 1390 Bose 3706, 3708, 4307, 1933, 1629, 1841, 4024 Boston Acoustics 3698 Bowers & Wilkins 2441, 3943 Carver 0189, 0121 Coby 1389, 2748 Curtis 3942, 1389 Definitive Tech 3645 Denon 2502, 4025, 2134, 2706, 2857, 2516, 1360, 2279, 3347, 3380, 4111 Dynavox 3231 Emotiva 4059, 4101, 3763 Fisher 1801 Gateway 1517 GPX 3214 Haier 3516 Harman/Kardon 3045, 3517, 3756, 2241, 0110, 0189, 3391 Hitachi 1801 iLive 3175 Inkel 4090 Insignia 3951, 1030, 1077, 1751, 1893, 2169, 2175, 2472, 2929, Integra 1805, 0135 iSymphony 2442 JBL 3535, 3756, 2241, 0110, 3391 Jensen 1389 JVC 3049, 1374, 1871 Kenwood 1570 KLH 1390 Klipsch 3915, 4198, 4200 LG 3217, 2197, 2676, 2284 Linn 189 Magnavox 0189, 1831 Marantz 2138, 0189, 1289 Martin Logan 3526 McIntosh 1289 NAD 0320 NexxTech 1751 Norcent 1389, 1751 Nova 1389 Onkyo 3984, 3992, 1805, 0135, 4041 Optimus 0823 Outlaw Audio 3973 Panasonic 3323, 3409, 3767, 2967, 3055 Philips 2675, 3282, 3962, 2311, 0189, 1266, 1831, 2289, 3227, 3379 Pinnacle Speakers 3728, 3774 Pioneer 0823, 3956, 1935, 1384 Polk Audio 3429, 0189, 1289, 2270 Proficient 3661 Proscan 1254 RCA 0823 ,3969, 2611, 2655, 1609, 1254, 1390, 2041, 2426 Rio 1869 Samsung 2660, 1868, 2137 Sansui 0189 Sanyo 1801 Sharp 3097, 3736, 3929 Sherbourn 3763 Sherwood 4090, 1077, 1517, 2169, 3120 Sherwood Newcstle 2169 Sonic Blue 1869 Sonos 3919 Sony 3903, 3700, 1622, 1759, 0158

SpeakerCraft 3661 Teac 1390 Toshiba 3627, 1788 Venturer 1390 VIZIO 2454 Wards 0158, 0189 Yamaha 2021, 2116, 2061, 2467, 0176, 1331, 2471 Zenith 2197, 1869 ZVOX 2332, 2334, 3913

TV Brands Code(s)

Accurian 1803 Acer 1339, 4143 Advent 0761, 1570 Affinity 3577, 3716, 3717 Akai 1675, 0765, 1385, 1688, 2232 America Action 0180 Anam 0180 AOC 1589, 2087, 1089, 1365, 2014, 2402, 2621, 3707 Aomni 1623 Apex Digital 2397, 0748, 0765, 0890, 1217, 4350 Ario 2397 Astar 1738 Asus 3340 Audiovox 1564, 0451, 0180, 0875, 1276, 1766, 1769, 1803 Auria 2087, 2014 Avol 3118 Bang & Olufsen 1620 BenQ 1032, 1315 Bradford 0180 Broksonic 1892, 1911 Celera 0765 Changhong 0765 Citizen 0060, 1671, 1672 Clarion 0180 Claris 3807 Coby 3478, 1538, 1634, 2306, 2314, 2315, 2326, 2338 Commercial Sol 1447 Contec 0180 Contex 4053 Craig 0180, 3423 Crown 0180 Curtis 3382, 2397, 1314, 1326, 2352, 2559, 2855, 2859 Curtis Mathes 0060, 0451, 1661, 1959 CXC 0180 Cytron 1326 Daewoo 0451, 1661, 0661 Dell 1863 Digital Lifestyles 1765 Digitrex 4207 Disney 1892 Dukane 1398 Dumont 0017 Durabrand 0178, 0180, 1034, 1570 Dynex 2049 Electric Mirror 3166 Electrograph 1755, 1623 Electrohome 1570, 1670, 1672 Electron 2855 Element 3559, 2964, 2183 Emerson 1864, 1394, 3559, 2183, 0178, 0451, 0180, 1661 Emprex 1422, 1765 Envision 1589, 2087, 1365, 2014, 2621 Epson 1122 EQD 2087, 2014 ESA 1944 Favi 3382 Fluid 2964 Fujitsu 0809, 0683, 0853 Funai 1864, 1394, 0180 Futuretech 0180

Gateway 1755, 1756 GE 1447, 0178, 0051, 0451, 0765 GFM 1864 Gibralter 0017 GoldStar 0178 GPX 2693, 3977, 3980 Grundig 0683 Grunpy 0180 Haier 3382, 1749, 1034, 1570, 3204, 4112, 4398 Hallmark 0178 Hannspree 1348 Harvard 0180 Helios 0865 Hello Kitty 0451 Hewlett Packard 1642, 1089 Hidear 3817 Hisense 2183, 3382, 0748, 1314, 1660, 2098, 4398 Hitachi 1643, 3382 Hiteker 3118 Hyundai 3418 iLo 1394, 1286, 1603, 1684, 1990 Initial 1603, 1990 Insignia 2049, 1641, 1564, 1204, 1326, 1385, 1517, 1660, Inteq 0017 iRIS 2189 iSymphony 3118, 3382, 3094 JCM 2189 Jensen 0761, 1326, 2541, 3204 JVC 1774, 2321, 1570, 1670, 1892 KC 4182 KEC 0180 KLH 0765 Kolin 1240 Konka 1385 KTV 0180 Legend 2397 LG 2731, 0178, 0017, 2867 LodgingStar 3147 LXI 0156, 0178 Magnavox 1867, 1454, 2597, 1755, 0051, 1365, 1944, 1990 Marantz 1454, 1398, 1714 Maxent 1755, 1714, 1757 MB Quart 1868 Megatron 0178 Memorex 1927, 1924, 0178, 0150, 1570, 1670, 1671, 1892, MGA 0178, 0150 Midland 0017, 0051 Mintek 1603, 1990 Mitsubishi 1250, 0178, 0150, 1797 MTC 0060 Multitech 0180 NAD 0156, 0178 Naxa 3382, 2104, 2735, 3423, 4093 NEC 1398, 1797 NetTV 1755 Nexus 2183 Nikko 0178 Norcent 1589, 0748, 1089, 1365, 1591 Norwood Micro 1286 NuVision 1657, 2158 oCOSMO 3899 Olevia 1610, 1144, 1240 Ölevia 1610, 1144, 1240 Onwa 0180 Optimus 1927, 1924 Optique 2189 Optoma 0887 Orion 1892, 1911, 3540 Panasonic 1480, 1927, 1947, 1924, 0051, 2240 PARK 2104 Penney 0156, 0178, 0060, 0051 Philco 1394 Philips 1867, 1454, 2597, 1394, 1365, 1944, 1990, 2622 Pioneer 1457, 1398, 2240

Planar 1589 Polaroid 1524, 1523, 0765, 1276, 1286, 1314, 1326, 1385 Portland 0451, 1661 Prima 1749, 0761 Prism 0051 Proscan 2746, 1447, 2183, 3382, 4500, 4499, 4494, 4493 Proton 0178 Pulsar 0017 Pyle 2196, 2641 Pyle Home 2196 QuantumFX 2337, 3593 Quasar 1927, 1924, 0051, 3899, 4207 RadioShack 0178, 0180 RCA 2434, 2746, 1447, 2932, 2183, 3382, 0051, 1661 Realistic 0178, 0180 RevolutionHD 1623 Runco 0017, 1398 Sampo 1755 Samsung 2051, 0178, 0060, 0766, 0814, 1959, 3993 Sansui 3559, 1670, 1892, 1911, 3540, 3564, 4053, 4442 Sanyo 1480, 1142, 0088 Sceptre 2337, 1217, 1360, 1599, 2506, 3899 Scotch 0178 Scott 0178, 0180, 1711 Sears 0156, 0178 Seiki 3559, 2964, 3382, 0178, 3560, 3953 Sens 1749 Seura 4303 Sharp 2360, 2402, 4398 Sherwood 3061 Sigmac 3423, 3477 Silo Digital 3477, 3794, 3899, 4182 Solé 1623 Sony 0810, 1685 Soundesign 0178, 0180 Speler 4105 SSS 0180 Starlite 0180 SunBriteTV 1610, 2337 Superscan 0864, 1944 Supersonic 2104, 3204, 3593, 3595 SVA 0748, 0865 Sylvania 1864, 1394, 1314, 1944 Symphonic 1394, 0180, 1944 Syntax 1610, 1144, 1240 Tatung 1756, 1286 TCL 2434, 4398 Technics 0051 Techwood 0051 Teknika 0060, 0180, 0150 TMK 0178 TNCi 017 Toshiba 1524, 0156, 0060, 1369, 1959 TruTech 1723 Upstar 4182, 4405 US Logic 1286 Venturer 1868 Vidikron 1398 Vidtech 0178 Viewsonic 2049, 1755, 1564, 2087, 0864, 0885, 1365, 1627 Viore 3118, 3382, 1684, 1811, 2104, 2352, 3094 VisionQuest 1738, 3380 Vivitek 1369 VIZIO 1758, 2707, 0864, 1756, 0885 Vuon 3418 Wards 0156, 0178, 0060, 0017, 0051, 0180 Waycon 156 Westinghouse 1712, 3579, 3382, 2397, 0451, 0885, 0890, 1217 White Wstnghse 1661 Wyse 1365 Zenith 2731, 0178, 0017, 1661, 1365, 1911
