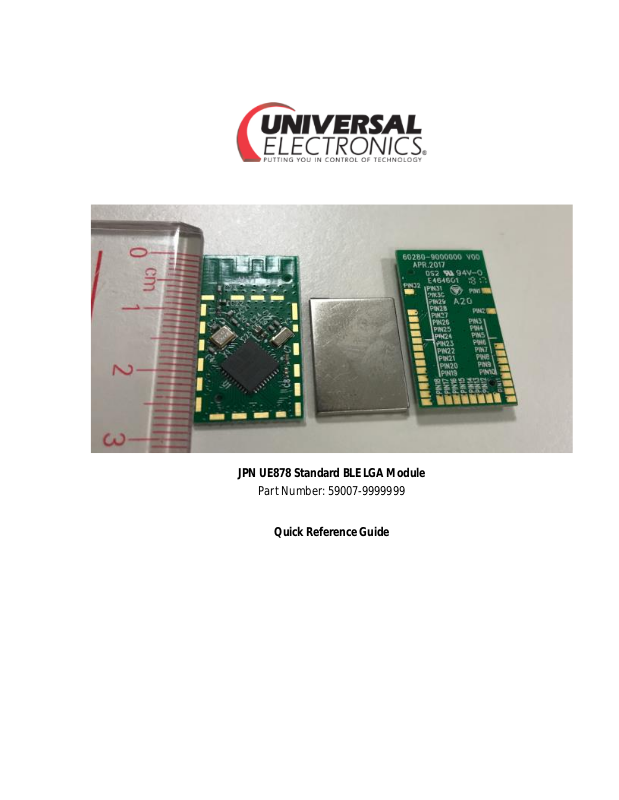

JPN UE878 Standard BLE LGA Module
Part Number: 59007-9999999
Quick Reference Guide
Page 2
PAIRING BLE MODULE (English)
1. Apply Power 3.3V to module
2. Send serial command via UART
3. Module will be in advisement mode
Caution
Please read these safety instructions to ensure our personal safety and prevent property damage
Warning
- Do not put remote in a fire
- Do not disassemble the remote control
- Disposal of the remote control
A warning that batteries shall not be exposed to excessive heat such as sunshine, fire or the
like.
Important Safety Instruction
1. Read these instruction
2. Keep these instruction
3. Head all warning
4. Follow all instructions
5. Do not use this apparatus near water
6. Clean only with dry cloth
7. Do not install near any heat source such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
8. Only use attachment/accessories specified by manufacture
9. Refer all servicing to qualified service personnel. Service is required when apparatus has
been damaged in any way, such as liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, dose not operate
normally, or has been dropped.
Specification
Operating Temperature: -10 degree - 40 degree
Operating Voltage: 3.3V
Page 3
COMPLIANCE WITH FCC RULES AND REGULATIONS
• Reorient or relocate the receiving antenna.
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible
for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Increase or decrease the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced remote control/ TV technician for help.
This equipment has been verified to comply with the limits for a
Class B computing device, pursuant to FCC Rules. The user is
cautioned that changes and modifications made to the equipment
without the approval of manufacturer could void the user's
authority to operate this equipment.
FCC RF Radiation Exposure Statement:
To comply with the FCC RF exposure compliance requirements, this device and its antenna must
not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
FCC Authorization Label
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2 This device must accept any interference received, including
interference that may cause undesired operation.
Page 4
End Product Labeling:
The final end product must be labeled in a visible area with the following: “Contains FCC ID:
xxxxxx”
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and 2) The transmitter module may not be co-located with any other transmitter or antenna. As
long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module. The end user manual shall include all required regulatory information/warning as show
in this manual.
Warning Statement:
Europe-EU Declaration of Conformity and Restrictions
Hereby, SONY declares that this Voice Remote Control is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
This equipment is marked with the symbol and can be used throughout the European community.
This indicates compliance with the RE Directive 2014/53/EU and meets the relevant parts of
following technical specifications:
EN300328 v2.1.1: 2016
EN301489-1 v2.1.1: 2016 (draft) / -17 v3.1.1: 2016 (draft)
EN60065: 2014
EN62479: 2010
EN55032: 2012+AC: 2013; EN55024: 2010+A1: 2015
Page 5
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communication satisfaisante.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de classe B est conforme à la norme NMB-003.
RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
Page 6
20 cm de distance entre la source de rayonnement et votre corps.
End Product Labeling:
The final end product must be labeled in a visible area with the following: “Contains IC: xxxxxxxxxx”
This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed below with the maximum permissible gain indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device.
Antenna Type: PCB Antenna
Peak Gain: 2.5dBi
Page 7
安全注意事項
根據 NCC 低功率電波輻射性電機管理辦法 規定:
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或
變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善
至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
‘La operación de este equipo está sujeta a las siguientes dos condiciones”
1. Es posible que este equipo o dispositivo no cause interferencia perjudicial
2. Este equipo o dispositivo debe aceptar cualquier interferencia. Incluyendo la que pueda
causar su operación no deseada.’
‘Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra
interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência
a sistemas operando em caráter primário.’
