Model 2-1176

Dual 1176LN Limiting Amplifier

Manual Number 65-0801

Revision 1.00

Universal Audio, Inc.

www.uaudio.com

330 Encinal St.

Santa Cruz, CA 95060

(831) 466-3737 voice

(831) 466-3775 fax

www.uaudio.com

Page 2

The 2-1176 Dual Channel 1176LN Compressor

Thank you for purchasing this version of the classic 1176LN compressor. When my father designed this product, he was very proud of his accomplishment. Being a recording engineer himself, this was a piece of gear he used extensively. He was also very proud of its reception by his peers in both the recording and broadcast industries.

In making our version of this classic piece of equipment, we have taken great care to make a product that my father would have been proud of. Throughout the development of this product our philosophy has remained clear: Stay true to the original. There are good reasons why certain pieces of gear have become classics, and we wanted to make sure that we captured this accurately.

You may be familiar with the fact that there were many versions of the 1176 produced throughout the years. We patterned our reproduction on the D/E versions. These versions were characterized by the transformer input stage, LN circuitry, and the class A (1108 style) output stage. Later versions replaced the class-A output stage with a push-pull class-AB output stage, and eventually replaced the transformer input with a differential op-amp circuit. That highly recognizable blackface 1176 sound was best captured by the version that we are reproducing.

In addition to the 1176LN and 2-610, Universal Audio has released reproductions of the classic Teletronix LA-2A Leveling Amplifier and the 2108 microphone preamplifier which is based on the 1108 line amps that were used in my father’s studios. Universal Audio also creates software emulation’s of our vintage hardware that run on our UAD-1 DSP card as well as Digidesign’s Pro Tools platform. All of these products are designed to meet the demands of the modern recording studio, yet retain the character of vintage equipment.

These products have been quite an enjoyable adventure to develop and we’re sure the next phase will be even more fun! We thank you for your support and we thank my father, Bill Putnam Sr.

Thank you,

Bill Putnam

Page 3

IMPORTANT SAFETY INSTRUCTIONS

Before using this unit, be sure to carefully read the applicable items of these operating instructions and the safety suggestions. Afterwards keep them handy for future reference. Take special care to follow the warnings indicated on the unit itself, as well as in the operating instructions.

Water and Moisture – Do not use the unit near

any source of water or in excessively moist environments.

2. Object and Liquid Entry – Care should be

taken so that objects do not fall, and liquids are not spilled, into the enclosure through openings.

3. Ventilation – When installing the unit in a rack

or any other location, be sure there is adequate ventilation. Improper ventilation will cause overheating, and can damage the unit.

4. Heat – The unit should be situated away from

heat sources, or other equipment that produce heat.

5. Power Sources – The unit should be connected

to a power supply only of the type described in the operating instructions, or as marked on the unit.

6. Power Cord Protection – AC power supply

cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit. Never take hold of the plug or cord if your hand is wet. Always grasp the plug body when connecting or disconnecting it.

7. Grounding of the Plug – This unit is equipped

with a 3-wire grounding type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.

8. Carts and Stands – The unit should be used only

with a cart or stand that is recommended by the manufacturer. The unit and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the unit and cart combination to overturn.

9. Wall Or Ceiling Mount – The unit should be

mounted to a wall or ceiling only as recommended by the manufacturer.

10. Cleaning – The unit should be cleaned only as

recommended by the manufacturer.

11. Nonuse Periods – The AC power supply cord of

the unit should be unplugged from the AC outlet when left unused for a long period of time.

12. Damage Requiring Service – The unit should be

serviced by a qualified service personnel when: a) The AC power supply cord or the plug has

been damaged: or

b) Objects have fallen or liquid has been

spilled into the unit; or

c) The unit has been exposed to rain; or d) The unit does not operate normally or

exhibits a marked change in performance; or

e) The unit has been dropped, or the enclosure

damaged.

13. Servicing – The user should not attempt to

service the unit beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

iii

Page 4

following measures:

* Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help.

Caution: Changes or modifications not expressly approved by Universal Audio could void the user's authority to operate the equipment.

Notice

This manual provides general information, preparation for use, installation and operating instructions for the Universal Audio 2-1176 Limiting Amplifier.

The information contained in this manual is subject to change without notice. Universal Audio, Inc. makes no warranties of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Universal Audio, Inc. shall not be liable for errors contained herein or direct, indirect, special, incidental, or consequential damages in connection with the furnishing, performance, or use of this material.

This manual and any associated software, artwork, product designs, and design concepts are subject to copyright protection. No part of this document may be reproduced, in any form, without prior written permission from Universal Audio, Inc.

Trademarks

LA-2A, 1176LN, 2-610, 2108, 6176, 2-1176 and the Universal Audio, Inc. logo are trademarks of Universal Audio, Inc. Other company and product names mentioned herein are trademarks of their respective companies.

Page 5

Table of Contents

2-1176 Specifications .................................................................................... 1

Operating Instructions ................................................................................... 2

Front Panel....................................................................................... 2

Input Level......................................................................................... 2

Output Level ...................................................................................... 3

Attack Control ................................................................................... 3

Release Control.................................................................................. 3

Compression Ratio............................................................................. 3

Meter Function................................................................................... 4

Meter Calibration............................................................................... 4

Bypass / Comp................................................................................... 5

Link / Dual......................................................................................... 5

Stereo Operation ................................................................................ 5

2-1176 Rear Panel .........................................................................................6

Connectors.......................................................................................... 6

Input Loading .................................................................................... 6

AC Power ........................................................................................... 6

Fuse .................................................................................................... 6

Voltage Select..................................................................................... 6

History .......................................................................................................... 7

Page 6

2-1176 Specifications

Input Impedance: Selectable, 15k Ω or 600 Ω

Output Load Impedance: 600 Ω (floating)

External Connections: XLR Connectors

Frequency Response: +/- 1 dB. 20Hz to 20 kHz

Gain: 40 dB, +/- 1dB

Distortion: Less than 0.5% T.H.D. from 50 Hz to 15

kHz with limiting, at 1.1 seconds release

setting. Output of +20 dBm with no greater than 0.5% T.H.D.

Signal-Noise Ratio: Greater than 85 dB

Attack Time: Adjustable from 20 to 800 microseconds

Release Time: Adjustable from 50 milliseconds to 1.1

seconds

Stereo Operation: Chan. A Attack and Release links to

Chan. B via LINK mode

General:

Power Requirements: 100V - 240V operation. Auto sensing

power supply

Dimensions: 3.5” vertical, for mounting in standard 19”

rack (2RU)

Weight: 9.6 lbs. (Shipping weight 14.8 lbs.)

1176LN Operating Instructions

This section of the manual describes the controls and function of a single channel.

Page 7

Both channel A and B controls are identical and behave as described below (except in Stereo Link mode). See page 8 for using the 2-1176 in Stereo Link mode.

1176LN Front Panel

ATTACK RELEASE METER

Slow Fast

0 10

ATTACK

INPUT

Slow Fast

RELEASE

OUTPUT

METER

ADJUST

INPUT OUTPUT RATIO

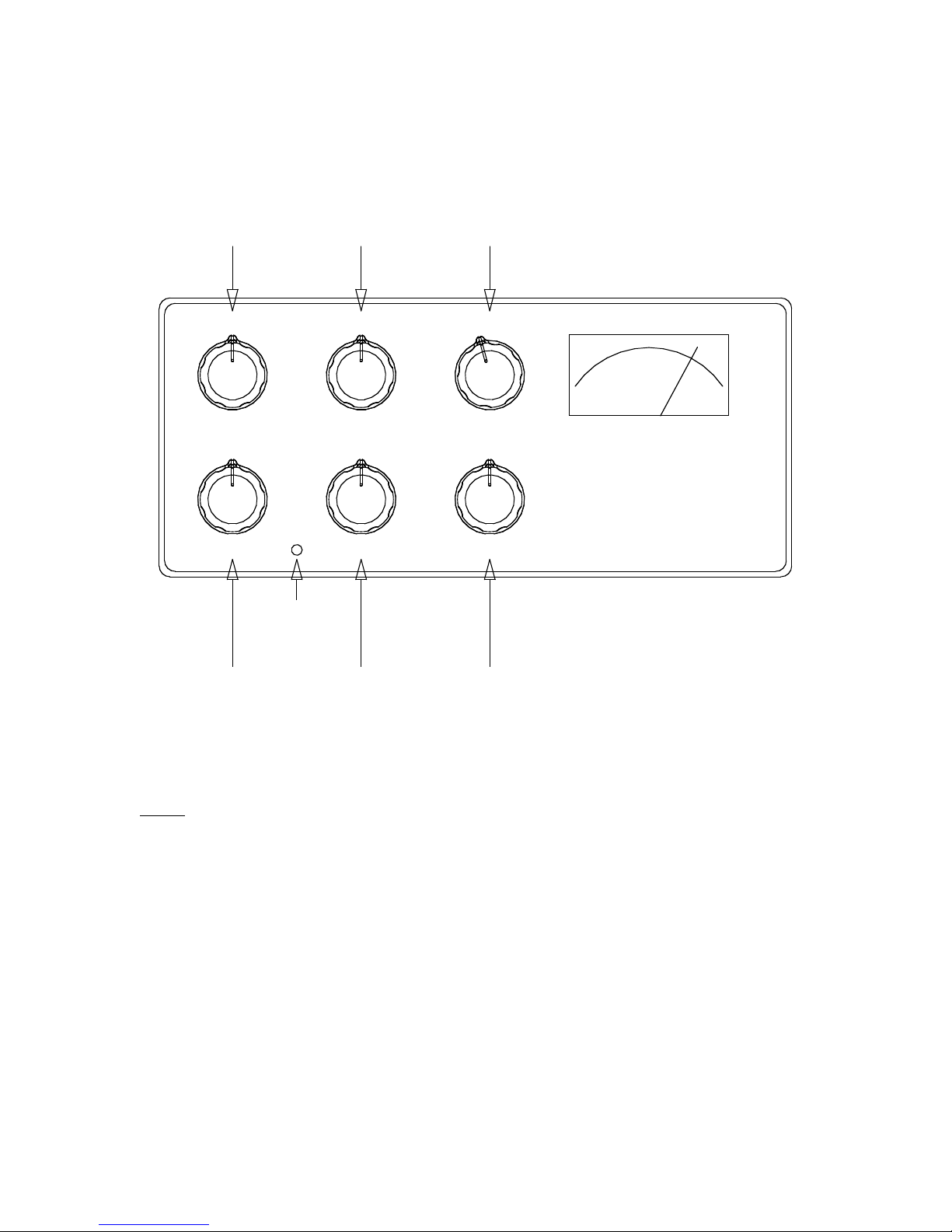

Figure 1: 1176LN Front Panel

GR +4

METER

RATIO

UNIVERSAL AUDIO

ALL

1176LN Limiting Amplifier

Input

The 1176LN Input control determines when the compressor receives a signal “loud” enough to trigger gain reduction as well as total output level. Higher settings will increase the relative amount of compression.

Page 8

In order to set the limiter to provide a specific amount of compression, first adjust the Input and Output controls to their full counterclockwise (CCW) position. Set the Attack and Release controls to “5”. Set the Meter switch to GR (Gain Reduction). Rotate the Input Level control CW until the meter bounces down to –3 to –5 dB. Now set the Meter Switch to +4 (output level), turn the Output control CW until the desired output level is achieved. Switch back to GR and fine tune Input and Output controls to achieve optimum compression and output level.

Output

The Output control determines the final output level from the 1176LN. Once the desired amount of limiting is adjusted by setting the Input Control, the Output Control can be used to set the required output level. Setting the meter switch to +4 will allow monitoring of the output level.

Attack

The Attack control adjusts the time it takes the limiter to respond to an input signal and initiate gain reduction. The Attack control allows for an adjustable response time of 20800 microseconds. The fastest attack time is achieved when the Attack Control is in its full CW position.

Release

The Release control allows for an adjustable release time of 50 to 1100 milliseconds. The fastest release time is achieved when the control is in it’s full CW position.

Compression Ratio

The Ratio control allows 6 different modes of operation.

1: This position passes signal through the 1176LN with NO GAIN REDUCTION. (This is the same as turning the Attack knob on vintage units full CCW until it clicks OFF). A common use of the 1176 for adding “color” without compression.

4: This position selects a 4:1 compression ratio. 8: This position selects an 8:1 compression ratio. 12: This position selects a 12:1 ratio (mild limiting). 20: This position selects a 20:1 ratio (hard limiting).

All: This position implements the “4 button trick”. This mode increases distortion and the Meter goes wild, often maxing out. This is what happens when all 4 ratio push buttons on a vintage 1176 are pushed in. Also know as “British Mode”.

Page 9

Meter Function

The VU meter can be used to indicate Gain Reduction (GR) or Output Level (+4). The Meter function is determined by rotating the two position knob to the left of the meter. When GR is selected, the meter reads Gain Reduction level in dB. When +4 is selected, a meter reading of 0 corresponds to an output level of +4 dBm at the associated channel output connector.

Meter Calibration

The 0dB gain reduction reading may need to be calibrated.

1) Turn the 2-1176 on and warm up for 5 minutes.

2) Set the meter knob to the GR position.

3) With the Input control full off (CCW) adjust the GR Zero Set trim pot so the meter reads 0 dB. Turn pot slowly and watch how meter settles.

4) Each channels GR Zero Set pot is located through a small hole on the front panel

between the Input and Output knobs, near the bottom of the black face plate (see drawing on page 5).

2-1176 Center Section

LINK

DUAL

UP FOR "STEREO"

OPERATION

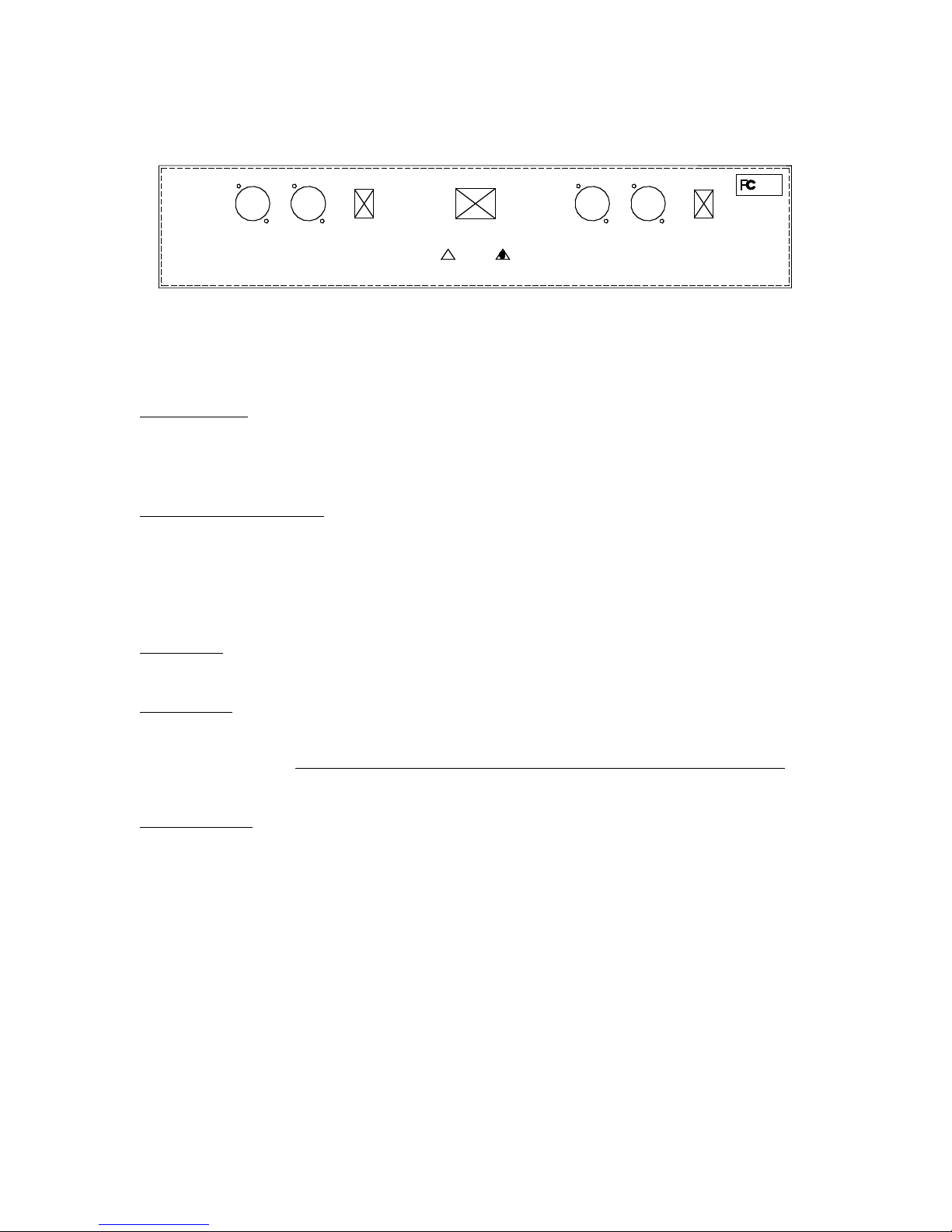

Figure 2: Front Panel center section

2-1176

ON (I)

BYPASS

COMP

OFF (0)

UP TO BYPAS

COMPRESSION

BOTH CHANNE

Page 10

Bypass / Comp

The center section toggle switch labeled BYPASS / COMP is a global bypass switch. This switch is just to the right of the center power switch and will put both channel A and channel B in the 1:1 Compression Ratio mode, which disables compression. This switch will always turn compression off on both channels, regardless of the stereo LINK switch setting. Compression is turned off when the switch is up (BYPASS).

Link / Dual

The center section toggle switch labeled LINK / DUAL enables Stereo Link operation. This switch is just to the left of the center power switch. The Link (up) position will cause channel A attack and release knobs to control both channel A and B. When the switch is down (Dual) each channel of the 2-1176 performs as an independent compressor. See Stereo Operation below for more details.

Stereo Operation

When using the 2-1176 for limiting or compressing stereo signals, select LINK on the front panel as described in the paragraph above. The 2-1176 is primarily a dual mono unit but will work for processing stereo. With the Link/Dual switch in the LINK position, channel A Attack and Release controls become master controls and the channel B Attack and Release controls have no effect. Important Note! Both channels will be “sensed” by the compressors and the gain reduction circuits will act in tandem (stereo action). The channel A “master” Attack and Release controls are simply providing a single set of knobs to adjust the time constants for both channels. This means that both compressors will be effected by peaks, regardless of which channel the peaks occur on. In other words, either channel will “slave” to the other in terms of controlling when compression happens.

Page 11

2-1176 Rear Panel

15K

600

Universal Audio 2-1176

Ω

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

CAUTION: TO REDUCE THE RISK OF FIRE OR

ELECTRICAL SHOCK DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE

ATTENTION: POUR REDUIRE LE RISQUE DU FEU

OU DE CHOC ELECTRIQUE N'EXPOSEZ PAS CE

PRODUIT A LA PLUIE OU A L'CHUMIDITE'

INPUT

LINE

OUTPUT

UNIVERSAL AUDIO, INC • SANTA CRUZ, CALIF. USA

15K

Ω

600

Ω

INPUT-Z

100-240VAC

50-60 Hz

CAUTION / AVIS

RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

LINE

INPUT

(MASTER ATTACK / RELEASE WHEN LINK SELECTED)

LINE

OUTPUT

INPUT-ZLINE

CHANNEL ACHANNEL B

Figure 4: 2-1176 Rear Panel

Input/Output

Standard XLR input and output connectors are provided on the rear panel. Pin 2 is wired positive (hot) on the LINE INPUTS and OUTPUTS.

1176LN Input Loading

The 1176LN Input Loading switch is located to the right of the LINE OUTPUT XLR. This switch will select an input impedance of 600 ohms, typical of older vintage gear, or 15K ohms. Depending on what is feeding the 1176 input XLR, you may perceive a “brighter” tone by using the 15K ohm position.

AC Power

The 2-1176 uses a standard, detachable IEC power cable.

Fuse/Mains

The AC power fuse is on the power supply circuit board inside the 2-1176. The fuse is located directly behind the AC power connector and can be accessed by removing the top panel of the 2-1176. Remove the power cord before checking or changing the fuse. Be sure to always use the proper fuse type and value! T2A 250V, 5mm x 20mm

Voltage Select

The 2-1176 can operate from 100 V to 240 VAC / 50-60 Hz. The internal power supply is self sensing and will automatically work throughout this voltage range.

Page 12

History

1176LN

It was Bill Putnam himself who, in 1966, was responsible for the initial design of the

1176. Its circuit was rooted in the 1108 preamplifier which was also designed by Putnam. As is evident from entries and schematics in his design notebook, he experimented with the recently developed Field Effect Transistor (F.E.T.) in various configurations to control the gain reduction in the circuit. He began using F.E.T.s as voltage variable resistors, in which the resistance between the drain and the source terminals is controlled by a voltage applied to the gate. His greatest challenge was to ensure that distortion was minimized by operating the F.E.T.s within a linear region of operation.

After several unsuccessful attempts at using F.E.T.s in gain reduction circuits, Putnam settled upon the straightforward approach of using the F.E.T. as the bottom leg in a voltage divider circuit, which is placed ahead of a preamp stage.

The output stage of the 1176 is a carefully crafted class A line level amplifier, designed to work with the (then) standard load of 600 ohms. The heart of this stage is the output transformer, whose design and performance is critical. Its primary function is to convert the unbalanced nature of the 1176 circuit to a balanced line output, and to provide the proper impedance matching to drive the line impedance of 600 ohms. These two jobs are accomplished by the primary and secondary windings whose turns' ratio defines the impedance ratio.

This transformer is critical due to the fact that it uses several additional sets of windings to provide feedback, which makes it an integral component in the operation of the output amplifier. Putnam spent a great deal of time perfecting the design of this tricky transformer and carefully qualified the few vendors capable of producing it.

The first major modification to the 1176 circuit was designed by Brad Plunkett in an effort to reduce noise--hence the birth of the 1176LN, whose LN stands for low noise. Numerous design improvements followed, resulting in at least 13 revisions of the 1176.

Opinion has it that the D and E blackface revisions sound the most “authentic”.

Both the 1176 and the LA-2A remain in daily use. Busy engineers and producers’ comments about both the 1176 and the LA-2A demonstrate their impact on the industry:
