Universal Air Tools UT8771A User Manual
Operator Instructions Important
t
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Manufacturer/Supplier Product Type
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Read these instructions carefully before insta lling, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Pistol Grip Sander
Model No/Nos Serial No
UT8771A
RPM
15,000
Cycles Per Min
Tel No Fax No
(01494) 883300 (01494) 883237
Product Nett Weight
2.35
1.07 3/8 10 30 10
Recommended Working
Recommended Minimum
Maximum
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
lbs
Kg
Air Pressure
Perso n a l Sa fe t y E q ui pm en t
Foreseen Use of Tool
The spindle thread on this tool is 7/16 dia x 20 TPI and is
designed to be used as a sander using 3”, 41/2” and 51/2” dia
backing pads with abrasive discs. Do not use the tool for any
other purpose than a sander. Do not fit any other type of pad or
abrasive or cutting device.
Work Stations
The tool should only be used as a handheld, hand operated tool.
It is always recommended that the tool is used when standing
on a solid floor. It can be used in other positions but before any
such use, the operator must be in a secure position having a
firm grip and footing and be aware of a reaction force on the
hand as result of the tool doing work.
Recommended Use Of
Balancer Or Support
No
6.3
bar
90
PSI
n/a
7.0
bar
bar
Yes
Yes
Yes
Yes
n/a
100
PSI
PSI
Recommended Hose Bore
Size - Minimum
Ins M/M Ft M
Noise Level
Test Method
Sound Pressure Level 84.0 dB(A)
Tested in accordance with Pneurop
est code PN8NTC1 and ISO Standard 3744
Vibration Level
Test Method
Less than 2.5
Tested in accordance with ISO
standards 8662 Parts 1 & 8
an easy to reach and operate air shut off valve. The air supply
should be lubricated. It is strongly recommended that an air
filter, regulator, lubricator (FRL) is used as shown in Figure 1 as
this will supply clean, lubricated air at the correct pressure to the
tool. Details of such equ ipment can be obtaine d from your
supplier. If such equipment is not used then the tool should be
lubricated by shutting off the air supply to the tool,
depressu rising the line by pressing th e trigger on the tool.
Disconne c t th e a ir line an d pour into the in ta ke bu sh ing a
teaspoonful (5ml) of a suitable pneumatic motor lubricating oil
preferably incorporating a rust inhibitor. Reconnect tool to air
supply an d run tool slowly for a fe w seconds to allow a ir to
circulate the oil. If tool is used frequently lubricate on daily basis
and if tool starts to slow or lose power.
It is recommended that the air pressure at the tool whilst the
tool is running is 90 p.s.i./6.3 bar. The tool can run at lower and
higher pressures with the maximum permitted working air
pressure of 100 p.s.i./7.0 bar.
Putting Into Service
Air Supply
Use a clean lubricated air supply
that will give a measured air
pressure at the tool of 90 p.s.i./
6.3 bar when the tool is running
with the trigger fully depressed.
Use reco mmended hose size
and length . It is recommended
that the tool is connected to the
air supply as shown in figure 1.
Do not connect the tool to the air
line system without incorporating
Recommended Max.
Hose Length
Metres / Sec²
Page No 1
Operating
Select a suitable abrasive disc (see Section "Foreseen use of the
tool") and make sure that it is fixed securely to the tool. If using
the 5½ dia disc pad fit the 4½ dia disc pad behind it and the 3”
dia pad behind that. If fitting the 4½ dia disc pad use 3” dia disc
pad behind it. Connect to suitable air supply as recommen ded.
Apply the sander lightly to the work and allow the abrasive disc
to cut. Take great care when sanding around sharp edges and
surfaces to avoid the disc snagging i.e. the disc may be brought
to an abrupt stop or considerably slowed that will cause the tool
to kick in the hands.
It is always recommended to use safety glasses and a breathing
mask. The sanding of certain materials may create a hazardous
dust wh ich may require s pecial brea thing equipmen t. Check
before using the tool. Even if the machine has a low noise level
the actual sanding process may cause a noise level such that
ear protectors will be required. If there are sharp areas on the
material being sanded safety gloves are recommended.
Do not continue to use abrasive discs that are worn or clogged.
This will make the sanding process inefficient and the need to
apply unnecessarily high forces to the tool.
Do not use undersized or overs ized sanding discs. T he disc
should be no more than 1/4" larger in diameter that the pad,
and not smaller than the pad.

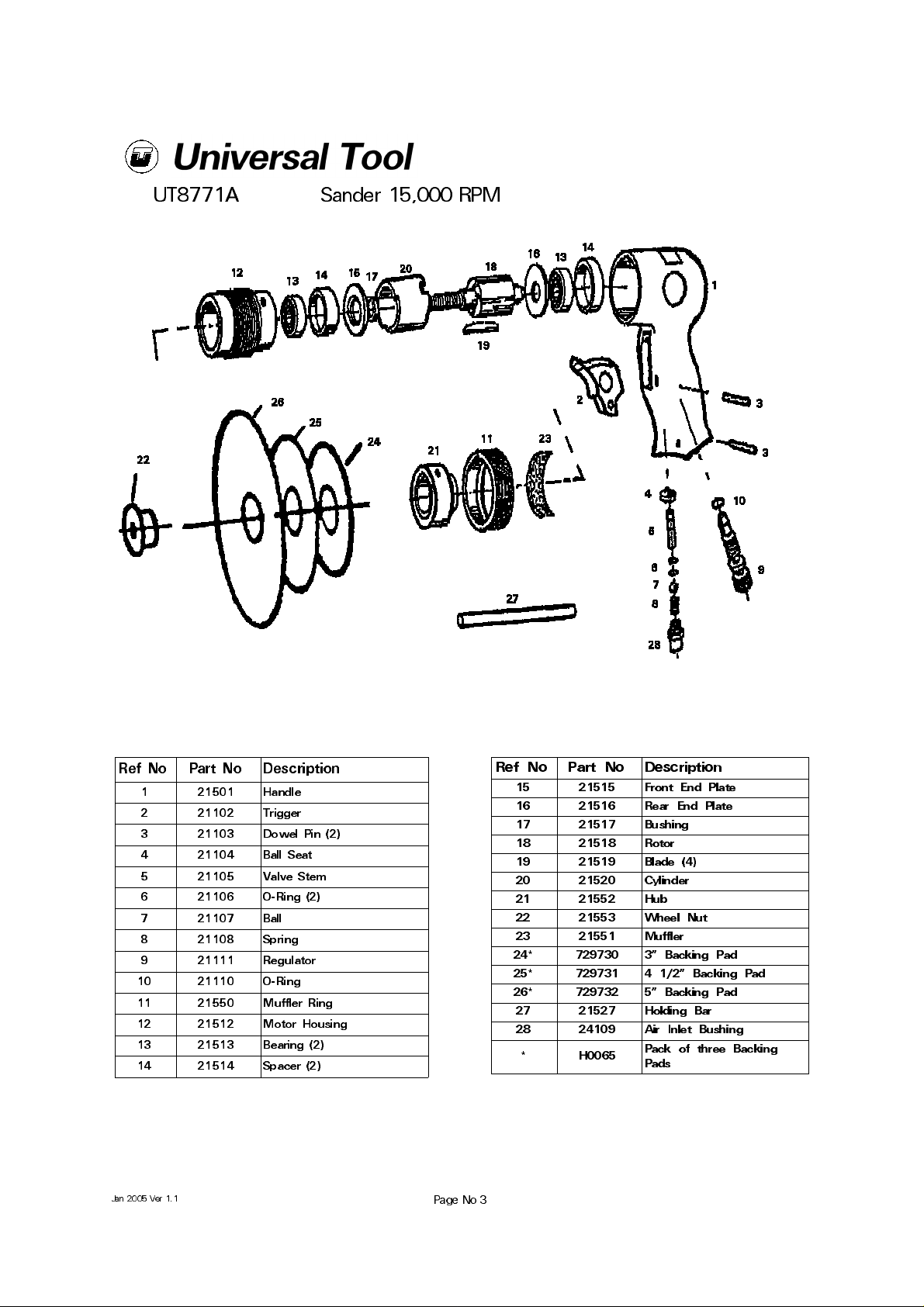

Dismantling & Assembly Instructions
Disconnect tool from air supply.
Insert holding bar (27) in hole in the side of hub (21) and by use
of the slot across the face of wheel nut (22) unscrew the wheel
nut and remove the pads (24), (25) and (26). Grip handle (1) in
a vice fitted with soft jaws and drive out 2 off dowel pins (3).
Take out trigger (2) and carefully pull out regulator (9) with O-ring
(10). Remove O-ring (10) from air regulator (9). Unscrew air inlet
bushing (28) and take out spring (8), ball (7), O-rings (6) with
valve stem (5) and ball seat (4) if a replacement is required.
Unscrew muffler ring (11) with muffler (23) and remove muffler
(23) from muffler ring (11) to clean it. Grip hub (21) and pull out
the motor assembly. Grip the non threaded end of rotor (18) and
by use of the holding bar unscrew hub (21) from rotor (18). Pull
off spacers (14). Hold cylinder (20) and tap the end of rotor (18)
to drive it through bearing (13), front end plate (15) and bush ing
(17). Take off cylinder (20) and remove 4 off rotor blades (19)
from rotor (18). Support the cylinder side of rear end plate (16)
and tap the non threaded end to drive the rotor (18) through rear
end plate (16) and bearing (13).
Reassembly
Clean all parts and replace any worn or damaged parts. Use
only spare parts supplied by the manufacturer or the
manu factu rer’s a uthorise d agent. Reass emble in the re verse
order. On completing assembly, depress trigger (2) and pour
into the a ir inle t bus h ing 5ml of a su itable pneu ma tic tool
lubricating oil. Connect the tool to a suitable air line and set the
air pressure to be 100 PSIG (7bar) measured at the tool inlet
with the tool runnin g with trigger (2) fully depressed and air
regulator (9) set in the max. flow position. The speed of the tool,
measured at the end of rotor (18) with an accurate calibrated
tachometer, must not exceed 17,000 rpm.
ensure that it is fixed securely.
7) Always keep hands away from the working attachment fitted
to the tool.
8) The tool is not electrically insulated. Never use the tool if there
is any chance of it coming into contact with live electricity.
9) Always when u sing the tool a dopt a firm footing and/or
position and grip the tool firmly to be able to counteract any
forces or reaction forces that may be generated whilst using the
tool.
10) Use only correct spare parts . Do not improvise or make
temporary repairs.
11) Do not lock, tape, w ire, etc. the on/off va lve in the run
position. The trigger/lever etc. must always be free to return to
the 'off' position when it is released.
12) Always shut off the air supply to the tool, and depress the
trigger/lever etc. to exhaust air from the feed hose before fitting,
adjusting or removing the working attachment.
13) Check hose and fittings regularly for wear. Replace if
necessary. Do not carry the tool by its hose and ensure the hand
is remote from the on/off control when carrying the tool with
the air supply connected.
14) Take care against entanglement of moving parts of the tool
with clothing, ties, hair, cleaning rags, etc. This will cause the
body to be drawn towards the tool and can be very dangerous.
15) It is expected that users will adopt safe working practices
and observ e all r ele va nt lega l requ irem ents wh e n in st alling,
using or maintaining the tool.
16) Do not install the tool unless an easily accessible a nd easily
operable on/off valve is incorporated in the air supply.
17) Take care that the tool exhaust air does not cause a problem
or blows on another person.
18) Never lay a tool down unless the working attachment has
stopped moving.
19) Always check the speed of the attachment is higher than the
speed of the tool.
20) Check speed of tool at regular intervals.
21) Check always that the material to be sanded may not cause
a risk by being sanded, i.e. fire or explosion.
22) If self fixing discs are used always ensure the disc is fixed
centrally to the pad.
23) Use only a ccessorie s (i.e. pads an d discs) rated to run
above 20,000 RPM.
Safety Rules for Sander
1) Read all the instructions before using this tool. All operators
must be fully trained in its use and aware of these safety rules.
2) Do not exceed the maximu m working air pressure.
3) Use personal safety equipment.
4) Use only compressed air at the recommended conditions.
5) I f the too l appea rs to mal functio n remove f rom use
immediately and arrange for service and repair.
6) If the tool is used with a balancer or other support device
Page No 2
