Operator Instructions Important
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier Product Type
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No Fax No(01494) 883300 (01494) 883237
Product Nett Weight
5.0
2.3 3/8 10 30 10
lbs
Kg
Recommended Use Of
Balancer Or Support
No
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
RPM
7" Dia Pad Right Angle
(See Below)
Cycles Per Min
Sander/Polisher
Model No/Nos Serial No
UT8751 - 4500 RPM
Angle Sander
UT8752 - 2400 RPM
Angle Polisher
Recommended Hose Bore
Size - Minimum
Ins M/M Ft M
Recommended Max.
Hose Length
Air Pressure
Recommended Working 6.3 bar 90 PSI
Recommended Minimum n/a bar n/a PSI
Maximum 7 bar 100 PSI
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Yes
Yes
Use - Safety Boots
Use - Breathing Masks
Yes
Use - Ear Protectors
Foreseen Use of the Tool
This angle tool is designed for use with 7" diameter coated abrasive
discs of various grades of grit which are designed to be used at the
same or higher speed of this tool. The spindle thread is 5/8 - 11
UNC-2A and the tool can be used with other abrasive devices that
have the same female thread size and are designed to run without a
guard and have a rated speed equal to or higher than the speed of the
tool. Do not attempt to use any bonded abrasive devices, i.e. grinding
wheels, as those which could be fitted because of their size, cannot
be used without a suitable guard. A guard is not available for this tool.
Do not fit any form of saw blade.
Do not fit any other abrasive or cutting device before checking the
suitability for use with this tool with the manufacturer or the
manufacturer's authorised distributor.
Do not modify this tool for other use, or for its use as a
sander/polisher before checking the intended alternative use with the
manufacturer or his authorised distributor.
Noise Level Sound Pressure Level 97.0 dB(A)
Sound Power Level 107.40 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level
Less than 2.5
Metres / Sec²
Test Method Tested in accordance with ISO
standards 8662/1 & 8662/4
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the
trigger/lever fully depressed. Use recommended hose size and
length. It is recommended that the tool is connected to the air supply
as shown in figure 1. Do not connect the tool to the air line system
without incorporating an easy to reach and operate air shut off valve.
The air supply should be lubricated. It is strongly recommended that
an air filter, regulator, lubricator (FRL) is used as shown in Figure 1 as
this will supply clean, lubricated air at the correct pressure to the tool.
Details of such equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by shutting
off the air supply to the tool, depressurising the line by pressing the
trigger on the tool. Disconnect the air line and pour into the intake
bushing a teaspoonful (5ml) of a suitable pneumatic motor lubricating
oil preferably incorporating a rust inhibitor. Reconnect tool to air
supply and run tool slowly for a few seconds to allow air to circulate
Work Stations
The tool should only be used as a
hand held hand operated tool. It is
always recommended that the
tool is used when standing on a
solid floor. It can be used in other
positions but before any such use
the operator must be in a secure
position having a firm grip and
footing and be aware of the safety
rules to be obeyed when using
the sander/polisher.
Page No 1
the oil. If tool is used frequently lubricate on daily basis and if tool starts
to slow or lose power.
It is recommended that the air pressure at the tool whilst the tool is
running is 90 p.s.i./6.3 bar. The tool can run at lower and higher
pressures with the maximum permitted working air pressure of 100
p.s.i./7 bar. The tool incorporates an air regulator to reduce the speed
of the tool if required.
Operating
Select a suitable abrasive disc (see Section "Foreseen use of the tool")
and make sure that it is fixed securely to the tool. Connect to suitable
air supply as recommended. Make sure that the side handle is
tightened securely.
Apply the sander lightly to the work and allow the abrasive disc to cut.
Take great care when sanding around sharp edges and surfaces to
avoid the disc snagging i.e. the disc may be brought to an abrupt stop
or considerably slowed that will cause the tool to kick in the hands.
It is always recommended to use safety glasses and a breathing
mask. The sanding of certain materials may create a hazardous dust
which may require special breathing equipment. Check before using
the tool. Even if the machine has a low noise level the actual sanding
process may cause a noise level such that ear protectors will be
required. If there are sharp areas on the material being sanded safety
gloves are recommended.
Do not continue to use abrasive discs that are worn or clogged. This
will make the sanding process inefficient and the need to apply
unnecessarily high forces to the tool.
Do not use undersized or oversized sanding discs. The disc should be
no more than 1/4" larger in diameter than the pad, and not smaller
than the pad.

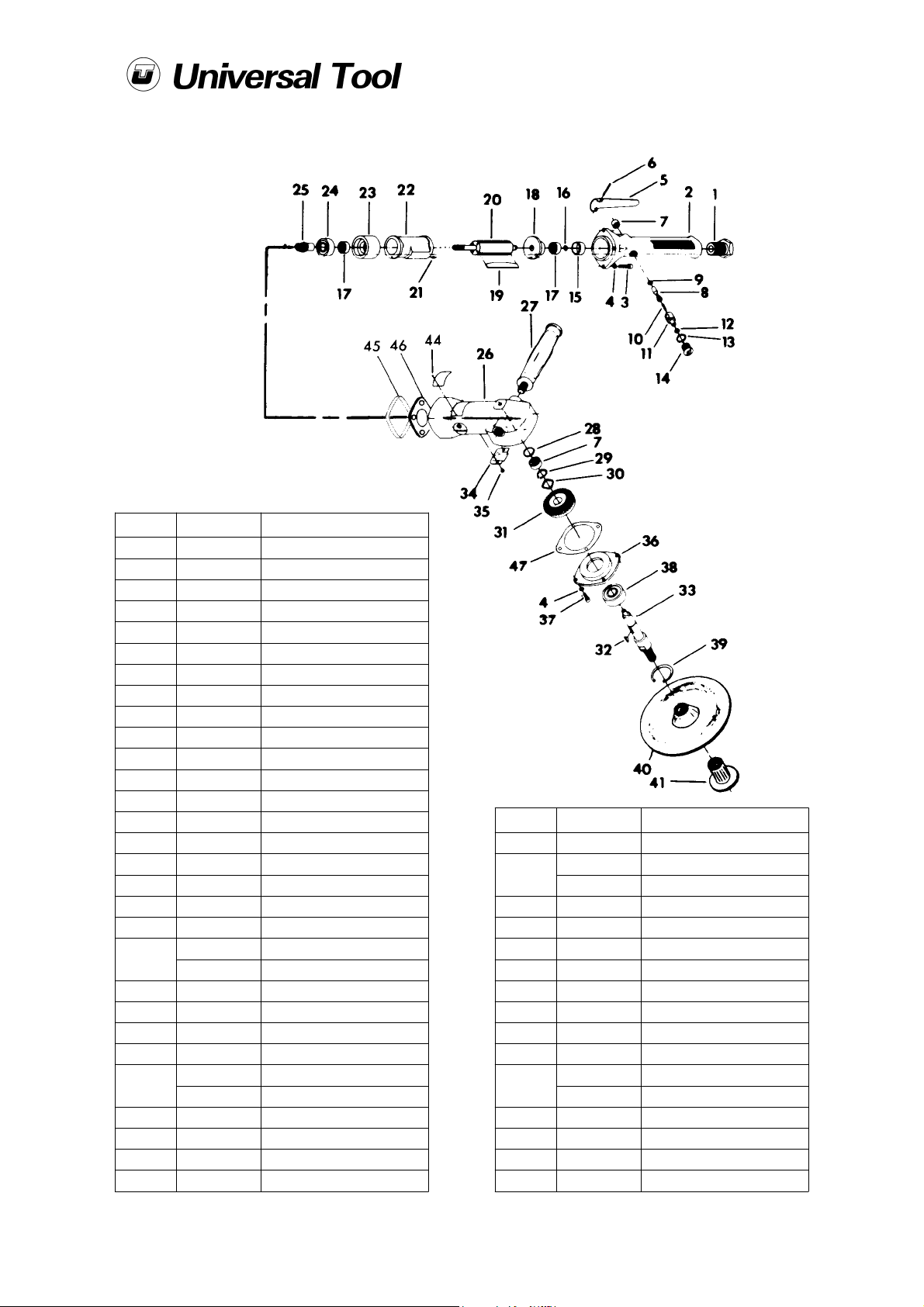

Dismantling & Assembly Instructions
Disconnect tool from air supply.
The two tools are identical except for the speed. The variation is in the
pinion(25) and bevel gear (31) and the rotor (20) - see parts list.
Grip the tool in a vice fitted with soft jaws and unscrew side handle (27).
Remove polishing mop if fitted and with the spanner and peg spanner
provided by use of the holes in nut (41) and the flats on work spindle
(33), remove the nut (41) and pad (40). Remove 4 off capscrews (37)
and 4 off lockwashers (4) to remove the housing cap (36) with gasket
(47) and the work spindle assembly. Remove retaining rings (39) and
(29). Remove wave washer (30), bevel gear (31) and key (32). Press
out bearing (38) with work spindle (33) from housing cap(36) and
bearing (38) off of the work spindle (33). The bearing plate (28) and
bearing (7) may be removed from the motor housing (26) by use of
a small rod through the hole in the top of the head of the motor housing.
Remove 2 off screws (35) and exhaust deflector (34). Remove hose
adaptor (1), drive out lever pin (6) and remove lever (5).
With a wide bladed screwdriver unscrew valve screw (14) and take
out O-ring(13), O-ring (12), air regulator (11), spring (10), valve stem
(8) and O-ring (9). Do not remove throttle bushing (7) from handle (2).
Remove 4 off capscrews (3) and 4 off lockwashers (4) to remove
handle (2) and housing band (45) and gasket (46). Pull out the motor
and pinion gear drive assembly.
Grip the motor assembly by hand and tap the splined end of the rotor
(20) with a non-metallic or soft metal (lead or aluminium) hammer to
drive the motor assembly through the pinion (25) and bearing (24)
assembly. The pinion may be pressed out of the bearing. Grip the front
end plate and again tap the rotor (20) with a hammer as above to
remove the rotor from the front end plate and bearing assembly.
Remove cylinder (22) complete with pin (21) and take out 4 off rotor
blades (19) from rotor (20). Remove bearing cover (15) and retaining
ring(16). With a piece of tube with a bore diameter as close as
possible to the maximum diameter of the rotor, tap the non splined
end of the rotor to drive the rotor through the rear end plate and
bearing assembly. With a suitable punch remove bearing (17) from
rear end plate (18) and bearing (17) from front end plate (23).
Reassembly
Clean all parts and examine for wear. Look in particular for wear and
cuts on O-rings. Coat all parts in a pneumatic tool lubricating oil,
preferably one including a rust inhibitor, grease all bearings and bevel
gears and reassemble in the reverse order. See note on motor
assembly build.
Motor Assembly
If fitting a new rotor very lightly deburr the edges of the rotor slots.
Make sure rotor blade slots are clean. Make sure that the faces of the
front and rear end plates (23) and (18) that abut cylinder (22) are free
from burrs and surface marking. If necessary lap faces on a flat, very
fine grade of abrasive paper.
Press bearing (17) into end plates (23) and 18). Support bearing (17)
in rear end plate on the inner race and tap rotor on the gear end with
a soft metal or non metallic hammer until the rotor locates against the
face of the rear end plate. Support the inner face of the rear end plate
in a piece of tube with a bore diameter as close as possible to the
largest diameter of the rotor and tap the non splined end until a
clearance of .040mm (0.0015”) to .065mm (0.0025”) is obtained
between the inner face of the rear end plate and the rotor. This
clearance to be checked when pulling the rotor by hand away from
the rear end plate and bearing assembly.
Spin rotor to ensure that it will spin freely in the rear end plate and
bearing assembly. Fit rotor blades and cylinder ensuring that the pin in
one end of the rotor cylinder locates in the round hole in the rear end
plate. Push on front end plate and check that rotor still rotates freely.
Safety Rules For A Sander/Polisher
1) Read all the instructions before using this tool. All operators must be
fully trained in its use and aware of these safety rules.
2) Do not exceed the maximum working air pressure.
3) Use personal safety equipment.
4) Use only compressed air at the recommended conditions.
5) If the tool appears to malfunction remove from use immediately
and arrange for service and repair.
6) If the tool is used with a balancer or other support device ensure
that it is fixed securely.
7) Always keep hands away from the working attachment fitted to the
tool.
8) The tool is not electrically insulated. Never use the tool if there is any
chance of it coming into contact with live electricity.
9) Always when using the tool adopt a firm footing and/or position
and grip the tool firmly to be able to counteract any forces or reaction
forces that may be generated whilst using the tool.
10) Use only correct spare parts. Do not improvise or make
temporary repairs.
11) Do not lock, tape, wire, etc. the on/off valve in the run position.
The trigger/lever etc. must always be free to return to the 'off' position
when it is released.
12) Always shut off the air supply to the tool, and depress the
trigger/lever etc. to exhaust air from the feed hose before fitting,
adjusting or removing the working attachment.
13) Check hose and fittings regularly for wear. Replace if necessary.
Do not carry the tool by its hose and ensure the hand is remote from
the on/off control when carrying the tool with the air supply connected.
14) Take care against entanglement of moving parts of the tool with
clothing, ties, hair, cleaning rags, etc. This will cause the body to be
drawn towards the tool and can be very dangerous.
15) It is expected that users will adopt safe working practices and
observe all relevant legal requirements when installing, using or
maintaining the tool.
16) Do not install the tool unless an easily accessible and easily
operable on/off valve is incorporated in the air supply.
17) Take care that the tool exhaust air does not cause a problem or
blows on another person.
18) Never lay a tool down unless the working attachment has
stopped moving.
19) Always check the speed of the attachment is higher than the
Page No 2
UT8751
UT8752
Ref No Part No Description
1 729084 Hose Adapter
2 730086 Handle
3 1012474 Capscrew (4)
4 729035 Lockwasher (8)
5 729264 Lever
6 729167 Lever Pin
7 729261 Throttle Bushing
8 729259 Valve Stem
9 1012370 O-Ring
10 729258 Valve Spring
11 729282 Air Regulator
12 729088 O-Ring
13 729073 O-Ring
14 729262 Valve Screw
15 729250 Bearing Cover
16 729225 Retaining Ring
17 729188 Bearing (2)
18 729231 Rear End Plate
19 729230 Rotor Blade (4)
20
21 729252 Pin
22 729229 Cylinder
23 730087 Front End Plate
24 1005478 Bearing
25
26 730090 Motor Housing
27 729284 Dead Handle
28 730091 Bearing Plate
29 730092 Retaining Ring
Jun 98 Ver 1.3
729268 Rotor (Sander)
732460 Rotor (Polisher)
730089 Pinion (Sander)
731059 Pinion (Polisher)
7" Right Angle Sander
7" Right Angle Polisher
Page No 3
Ref No Part No Description
30 730093 Wave Washer
31
32 729272 Key
33 730095 Work Spindle
34 730096 Exhaust Deflector
35 730097 Screw
36 730098 Housing Cap
37 729989 Capscrew (4)
38 1005471 Bearing
39 730100 Retaining Ring
40
41 731075 Nut
45 900003 Housing Band
46 732450 Gasket
47 900004 Gasket
730094 Bevel Gear (Sander)
731060 Bevel Gear (Polisher)
H0057 7" Dia Pad (Sander)
H0067 7" Dia Mop (Polisher)
Declaration of Conformity
Universal Air Tool Company Limited
Unit 8, Lane End Industrial Park, High Wycombe, Bucks, HP14 3BY, England
declare under our sole responsibility that the product
Model UT8751/2 7” Dia R/A Sander/Polisher, Serial Number
to which this declaration relates is in conformity with the following standard(s) or other normative document(s)
EN792 (Draft), EN292 Parts 1 & 2, ISO 8662 Parts 1 & 4, Pneurop PN8NTC1
following the provisions of
89/392/EEC as amended by 91/368/EEC & 93/44/EEC Directives
Lane End D.H.Moppett (Man Director)
Place and date of issue Name and signature or equivalent marking of authorised person
speed of the tool.
20) Check speed of tool at regular intervals.
21) Check always that the material to be sanded may not cause a risk
by being sanded, i.e. fire or explosion.
22) If self fixing discs are used, i.e. self adhesive or Velcro, always
ensure the disc is fixed centrally to the pad.
Notes
Accessories
Distributor
This document may not be copied wholly or in part by anyone without the consent of the Directors of Universal Air Tool Company Limited
Designed & Written in the U.K.
© Copyright of Universal Air Tool Company Limited, established in the United Kingdom, 1994
Page No 4
Loading...
