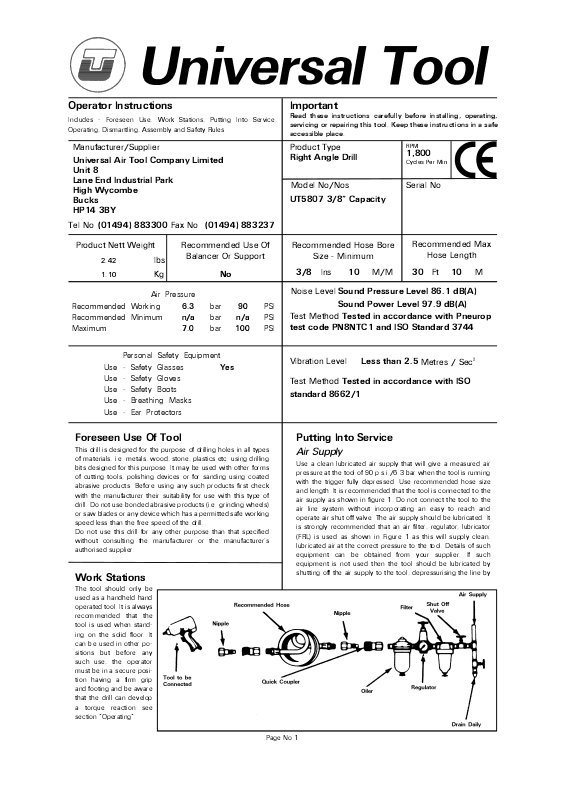

Page 1
Operator Instructions Important
T
t
Includes - Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules
Manufacturer/Supplier Product Type
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No Fax No
(01494) 883300 (01494) 883237
Read these instructions carefully before insta lling, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Right Angle Drill
Model No/Nos Serial No
UT5807 3/8" Capacity
RPM
1,800
Cycles Per Min
Product Nett Weight Recommended Use Of
2.42
1.10
lbs
Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Perso n a l Sa fe t y E q ui pm en t
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Balancer Or Support
No
6.3
bar
90
n/a
bar
n/a
7.0
bar
100
Yes
Foreseen Use Of Tool
This drill is designed for the purpose of drilling holes in all types
of materials, i.e. metals, wood, stone, plastics etc. using drilling
bits designed for this purpose. It may be used with other forms
of cutting tools, polishing devices or for sanding using coated
abrasive products. Before using any such products first check
with the manufacturer their suitability for use with this type of
drill. Do not use bonded abrasive products (i.e. grinding wheels)
or saw blades or any device which has a permitted safe working
speed less than the free speed of the drill.
Do not use this drill for any other purpose than that specified
with out co nsul ti ng th e ma nufa ctur er or th e man uf act urer 's
authorised supplier.
Work Stations
The tool should on ly be
used as a handheld hand
operated tool. It is always
recommended that the
tool is used when stand-
ing on the solid floor. It
can be used in other po-
sitions but before any
such use, the operator
must be in a secure posi-
tion having a firm grip
and footing and be aware
that the drill can develop
a torque reaction see
section "Operating".
Recommended Hose Bore
Size - Minimum
3/8 10 30 10
Ins M/M Ft M
Noise Level
PSI
Test Method
PSI
est code PN8NTC1 and ISO Standard 3744
PSI
Vibration Level
Test Method
Sound Pressure Level 86.1 dB(A)
Sound Power Level 97.9 dB(A)
Tested in accordance with Pneurop
Less than 2.5
ested in accordance with ISO
standard 8662/1
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air
pressure at the tool of 90 p.s.i./6.3 bar when the tool is running
with the trigger fully depressed. Use recommended hose size
and length. It is recommended that the tool is connected to the
air supply as shown in figure 1. Do not connect the tool to the
air line sys tem withou t incorporating an easy to reach a nd
operate air shut off valve. The air supply should be lubricated. It
is strongly recommended that an air filter, regulator, lubricator
(FRL) is used as shown in Figure 1 as this will supply clean ,
lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such
equipment is not used then the tool should be lubricated by
shutting off the air supply to the tool, depressurising the line by
Recommended Max
Hose Length
Metres / Sec²
Page No 1
Page 2
pressing the trigger on the tool. Disconnect the air line and pour
into the intake bushing a teaspoonful (5ml) of a suitable
pneumatic motor lubricating oil preferably incorporating a rust
inhibitor. Reconnect tool to air supply and run tool slowly for a
few sec onds to allow air to circulate the oil. If tool is used
frequently lubricate on daily basis and if tool starts to slow or
lose power.
It is recommended that the air pressure at the tool whilst the
tool is running is 90 p.s.i./6.3 bar. The tool can run at lower and
higher pressures with the maximum permitted working air
pressure of 100 p.s.i./7.0 bar.
Operating
Select suitable drill bit, insert the shank into the drill chuck as far
as possible and tighten chuck with key supplied making sure
that the shank of the device is securely clamped centrally
between the three chuck jaws. Remove chuck key.
When drilling holes of all sizes it is advised to use a pointed
punch to mark the centre at which the hole is to be drilled as
this will provide a starting point for the drill tip. This procedure
will prevent the drill bit from skidding, ensure that the hole is
drilled where intended and help to prevent drill breakage when
using small drills. When drilling, particularly with small diameter
drills, always try to ensure that load applied to the drill is such
that the drill bit is always at right angles to the hole being drilled.
Do not force the drill but allow it to cut.
When drilling always adopt a firm posture to be able to
counte ract an y sudden moveme nt of the drill due to torque
reaction. Such torque reaction can occur when the drill stalls
due to a too heavy load being applied or the material being too
hard or tou gh. The torque reaction c an occur w hen the drill
breaks through the material being drilled, particularly on sheet
metal . A lw ays us e eye p r ot ecti o n and hand p ro tec ti o n is
advised, particularly w hen drilling h oles in me tals whe re the
materia l being remove d from the hole is in the form of long
sharp strips. Do not tie the drill chuck key to the drill as the
attach ing device i.e. string or chain could become entangled
with the rotating chuck and bit etc.
If using a n abrasive device, drilling stone or performing a ny
operation where dust is created, it is recommended to use a
breathing mask.
Always ensure that the material to be drilled is firmly fixed to
prevent its movement.
It is also recommended that when drilling holes of large
diameter to first pre drill a hole of smaller diameter as this will
reduce effort required to drill the hole and minimise torque
reaction.
Dismantling & Assembly Instructions
Disconnect from air supply
To remove the chuck (59) first open the chuck jaws with the key
provided and remove chuck screw (55) left hand thread. Place
chuck key securely into chuck and give the key a sharp tap so
as to unscrew a right hand thread. Grip motor housing (1) in a
vice with soft jaws on the flats at the rear end. Drive out pin (10)
and take off the throttle lever (9) Unscrew inlet bushing (3) With
a needle pointed tool, prise out deflector retainer (6) pull out
deflector (4) Unscrew 2 off screws (8) and take off body cap (7)
and gasket (11) Unscrew valve together with o-ring (13) and
reverse retainer (20) and take out spring (14) and pull out valve
pin (15) and o-ring (16)
Pull out reverse valve (23) Do not remove either of the brass
bushes in the motor housing (1) unless replacements are
required. If necessary reverse bush (18) can be taken out of the
motor housing (1) by first removing pin (22) With circlip pliers
remove retainer ring (52) and pull out spindle assembly. Remove
bevel gear (44) and key (49) Drive spindle (48) through bearing
(50) but do not remove grease plug (54) unless a replacement
is required.
Slacken lock ring (35) and then unscrew angle head (45) [left
hand thread] from main assembly. Take out gear drive assembly
and dismantle by pressing pinion gear (43) off bearing (42). Take
out planet gear with pins assembly (39) 3 off idler ge ars (37) and
internal gear (36) Pull out the motor assembly complete with
cylinder pin (32) from motor housing.
Grip the front end plate (33) by head and with a non metallic or
soft metal [lead or aluminium] hammer tap the splined end of
the rotor (30) to drive it through the front end plate (33) and
bearing (34) assembly. Tap out bearing (34) front end plate (33).
Remove cylinder (29) and take out five rotor blades (31) from
rotor (30) support rear end plate (28) in a piece of tube with a
diameter as close as possible to the maximum diameter of the
rotor and tap the non splined end of the rotor to drive it through
the rear end plate (28) and bearing (25)
Take out motor gasket (27) from motor housing (1)
Reassembly
Clean all co mp onent part s and e xamin e for wear b efo re
reass em bling. Use on ly m an u fac tu rer or distributor su pplied
parts.
Check in particular for wear on bevel gears, o-rings and rotor
blades.
Lightly coat all parts with a suitable pneumatic tool lubricating
oil, preferably one incorporating a rust inhibitor. Pack bearings
and grease gears and bevel gears with a lithium or molybdenum
based general purpose grease. Reassemble in the reverse order
taking note of the following:
1) When fitting gasket (27) make sure that it does not cover
the ports and is positioned correctly.
2) Make sure that the motor locating pin locates correctly in
the holes in the motor end plates and in the small hole
between the two ports at the bottom of the bore of the
motor housing
3) For the motor assembly, ensure that the motor end plates
that abut the cylinder are flat and are free from burrs and
sharp edges. If necessary lap the faces on a fine grade of
abrasive paper laid on a flat surface.
Safety Rules When Using A Drill
1) Read all the instructions before using this tool. All operators
must be fully trained in its use and aware of these safety rules.
All service and repair must be carried out by trained personnel.
2) Always select a suitable cutting, abrasive device suitable for
use with this drill.
3) Always shut off the air supply to the drill and depress the
trigger to exhaust air from the feed hose before fitting, adjusting
or removing the device. Remove drill chuck.
4) Always adopt a firm footing and/or position and be aware of
torque reaction developed by the drill.
5) Use only correct spare parts.
6) Check hose and fittings regularly for wear. Do not carry the
tool by its hose and ensure that the hand is remote from the
on/off valve (trigger) when ca rrying the tool with air s upply
connected.
7) Do not exceed maximum recommended air pressure. Avoid
low air pressures as this will allow the drill to stall more easily
and develop torque reaction.
8) Use safety equipment as recommended.
9) The tool is not electrically insulated. Do not use where there
is a possibility of coming into contact with live electricity, gas
pipes, water pipes, etc. Check the area of operation before
performing the operation.
10) Take care against entanglement of moving parts of the tool
with clothing, ties, hair, cleaning rags, etc. This will cause the
body to be moved towards the work process and can be very
dangerous.
11) Do not attempt to hold or guide the drill chuck when the tool
is running. Keep hands clear of the drilling process.
Page No 2
Page 3

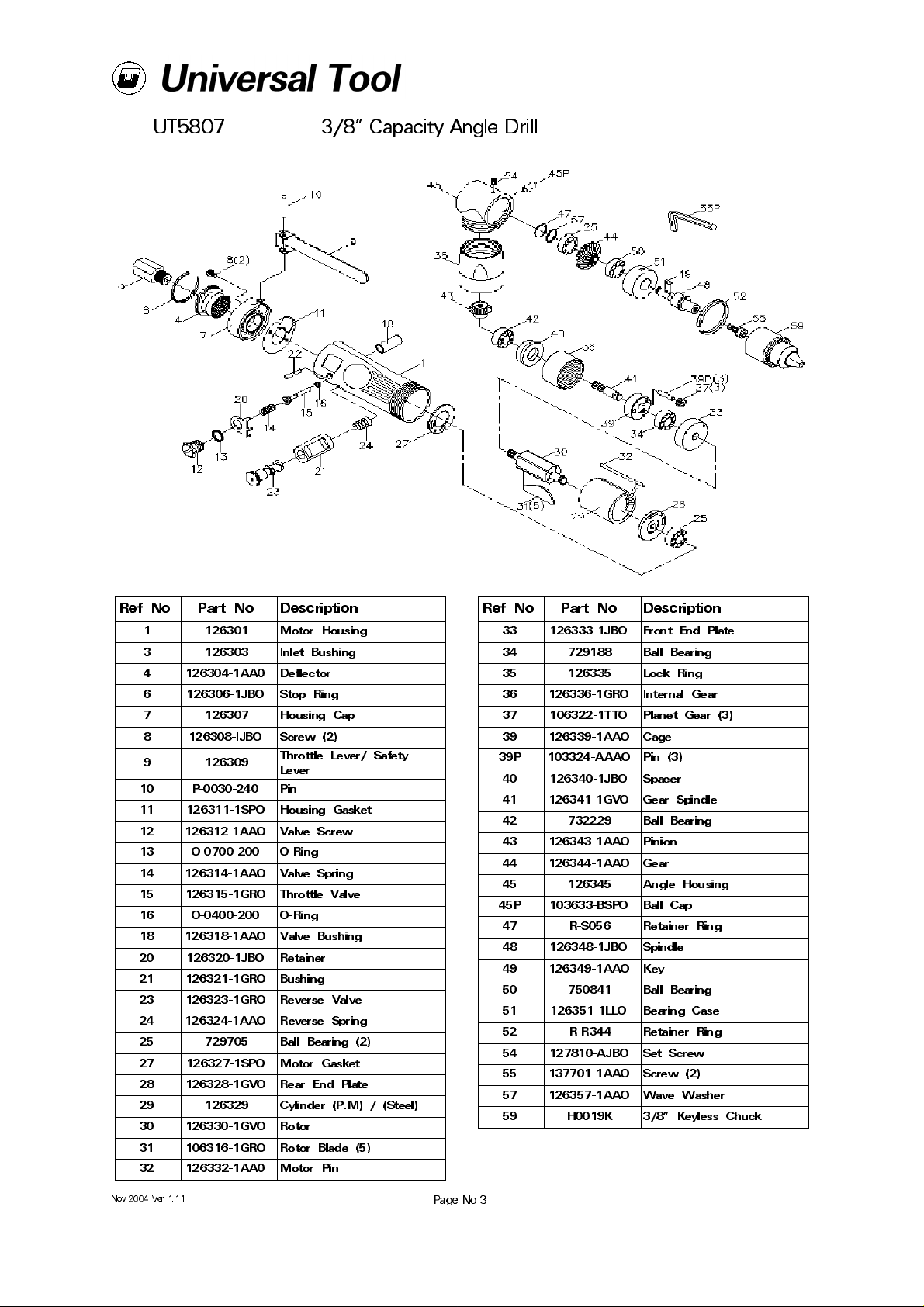

UT5807 3/8" Capacity Angle Drill
Ref No Part No Description
1 12630 1 Motor Housi ng
3 12630 3 Inlet Bus hin g
4 126304-1AA0 Deflector
6 12630 6-1J BO Stop Ring
7 126307 Housing Cap
8 12630 8-IJ BO Screw (2)
9 126309
10 P-0030-240 Pin
11 126311-1SPO Housing Gasket
12 126312-1AAO Valve Screw
13 O-0700-200 O-Ring
14 126314-1AAO Valve Spring
15 126315-1GRO Throttle Valve
16 O-0400-200 O-Ring
18 126318-1AAO Valve Bushing
20 126320-1JBO Retainer
21 126321-1GRO Bushing
23 126323-1GRO Reverse Valve
24 126324-1AAO Reverse Spring
25 729705 Ball Bearing (2)
27 126327-1SPO Motor Gasket
28 126328-1GVO Rear End Plate
29 1 26 32 9 Cyli nder (P.M) / (Steel)
30 126330-1GVO Rotor
31 106316-1GRO Rotor Blade (5)
32 126332-1AA0 Motor Pin
Throttle Lever/ Safety
Lever
Ref No Part No Description
33 126333-1JBO Front End Plate
34 729188 Ball Bearing
35 126335 Lock Ring
36 126336-1GRO Internal Gear
37 106322-1TTO Planet Gear (3)
39 126339-1AAO Cage
39P 103324-AAAO Pin (3)
40 126340-1JBO Spacer
41 126341-1GVO Gear Spindle
42 732229 Ball Bearing
43 126343-1AAO Pinion
44 126344-1AAO Gear
45 126345 Angle Housing
45P 1 03 63 3-BS PO Ball Cap
47 R-S056 Retainer Ri ng
48 126348-1JBO Spindle
49 126349-1AAO Key
50 750841 Ball Bearing
51 126351-1LLO Bearing Case
52 R-R344 Retainer Ring
54 127810-AJBO Set Screw
55 137701-1AAO Screw (2)
57 126357-1AAO Wave Washer
59 H0019K 3/8" Keyless Chuck
Nov 2004 Ver 1.11
Page No 3

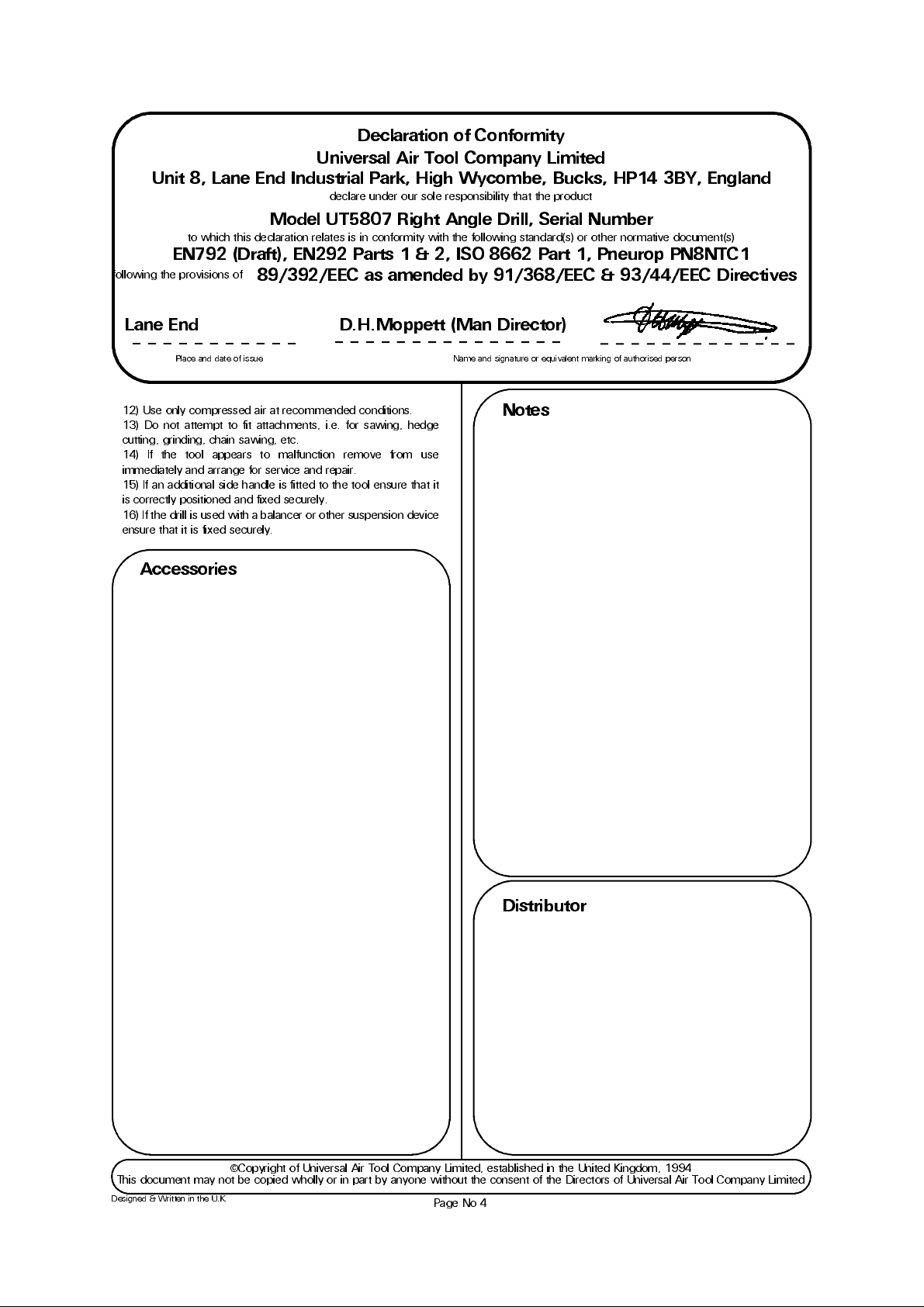

Page 4
Declaration of Conformity
Universal Air Tool Company Limited
Unit 8, Lane End Industrial Park, High Wycombe, Bucks, HP14 3BY, England
declare under our sole responsibility that the product
Model UT5807 Right Angle Drill, Serial Number
to which this declaration relates is in conformity with the following standard(s) or other normative document(s)
EN792 (Draft), EN292 Parts 1 & 2, ISO 8662 Part 1, Pneurop PN8NTC1
following the provisions of
89/392/EEC as amended by 91/368/EEC & 93/44/EEC Directives
Lane End D.H.Moppett (Man Director)
Place and date of issue Name and signature or equivalent marking of authorised person
12) Use only compressed air at recommended conditions.
13) Do not attempt to fit attachments, i.e. for sawing, hedge
cutting, grinding, chain sawing, etc.
14) If the tool appears to malfunction remove from use
immediately and arrange for service and repair.
15) If an additional side handle is fitted to the tool ensure that it
is correctly positioned and fixed securely.
16) If the drill is used with a balancer or other s uspension device
ensure that it is fixed securely.
Accessories
Notes
Distributor
This document may not be copied wholly or in part by anyone without the consent of the Directors of Universal Air Tool Company Limited
Designed & Written in the U.K.
©Copyright of Universal Air Tool Company Limited, established in the United Kingdom, 1994
Page No 4
Loading...
