Be sure to read through this Owner’s Manual Carefully.
It is the authoritative source of information about your Universal Eight Station PLUS Corner Gym.
Universal Fitness™ assumes no responsibility for personal injury or property damage sustained by or through the use of this
product.
Retain the manual for future reference.
Table of Contents:
Important Safety Instructions and General Maintenance………………… 3
Comments or Questions and Before Y ou Begin …………………………. 4
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
2
Page 3
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this machine.
CAUTION:
1.
Know your heart rate and / or pulse, and your physician recommended target heart rate training
zone.
2.
Proper medical clearance is recommended for anyone beginning and exercise program especially
if you are over 35 years of age or suffer from heart respiratory problems.
3.
Warm up before any exercise programs with 8 minutes of aerobic activity .
4.
Wear comfortable clothes that allow freedom of movement and that are not tight or restricting.
5.
Wear comfortable shoes made of good support with nonslip soles.
6.
Breathe naturally, never holding your breath during an exercise.
7.
Perform exercises consistently with proper technique and pass through a full range of motion.
8.
Avoid over training. Y ou should be able to carry on a conversation while exercising.
9.
After an exercise session, cool down with slow stretching, cycling or walking.
10.
This machine should not be used by or near children.
11.
Handicapped or disabled people must have medical approval before using this machine and should
be under close supervision when using any exercise equipment.
12.
Use this machine only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
13.
Only one person at a time should use this machine.
14.
Do not put hands, feet, or any foreign objects on or near this machine when in use by others.
15.
Always use this machine on a level surface.
16.
Never operate the machine if the machine is not functioning properly.
17.
Start exercise slowly and gradually increase the amount of resistance.
18.
If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, stop exercise at once and consult a physician immediately .
19.
Use caution no to pinch fingers or hands in moving parts when using the unit.
Exercise of a strenuous nature, as is customarily done on this equipment,
should not be undertaken without first consulting a physician. No specific health
claims are made or implied as they relate to the equipment.
General Maintenance
1.
Keep cables, pulleys and guide rods free of dirt, dust or any build-up to prevent drag or binding.
2.
Wipe cushions clean after each workout.
3.
Tighten hardware once every six months.
KEEP THESE INSTRUCTIONS
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
3
Page 4
Comments or Questions?
Dear customer,
Congratulations on your purchase of the
We’re sure that you will be completely satisfied with the product and we invite your comments so that we can hear
about your success.
Please write or call at the address or phone numbers listed below, with any comments or questions you may have.
Service and Parts - Toll free number: 1-800-521-6233 Monday through Friday-8:00 am to 4:30 PM Central T ime
Fax: 1-662-495-5038
E-mail: customerservice@universal-fitness.com
Website: www.universal-fitness.com
Universal Fitness™
A Division of FFA Corp.
Customer Service Department
100 Tubb Ave.
West Point, MS 39773
Ordering Missing or Defective Parts
When ordering parts, always provide the following information:
Universal Eight Station PLUS Corner Gym.
1.NAME, MAILING ADDRESS AND TELEPHONE NUMBER
2.DATE OF PURCHASE
3.WHERE PRODUCT IS PURCHSED (NAME OF RETAIL STORE,CITY)
4.MODEL NUMBER (75015)
5.PART ORDER NUMBER AND DESCRIPTION
All details depicted in this Owner’s Manual, and of the product itself, are subject to change without notice.
Before you begin
1.FIND YOUR TOOLS: You need two adjustable crescent wrenchs and one rubber mallet. These tools are
NOT included in the carton.
2.LOCATE YOUR WORK OUT AREA: For your safety and convenience, you must assemble the
unit exactly where it is to be used, so that you will not have to move it once the assembly is complete.
Allow ample space for the unit and space for the spotter to stand. The area must have adequate
lighting and ventilation. If the area is within living quarters, protect the carpet or floor with a large mat
prior to assembly.
3.GET A HELPER: It is recommended that two adults assemble the product. All persons involved in the
assembly should be in good health, and exercise great caution while manipulatingheavy metal objects.
Keep children away during assembly.
4.IDENIFY YOUR HARDWARE: To identify a piece of hardware by physical size, use the scales
provided on page 5, on back of hardware or metric ruler. To remove hardware from hardware card cut
boxes out of the back.
5.TIGHTEN ALL BOLTS BY HAND FIRST: Do not tighten any bolts until the entire unit is assembled.
Initially , all bolts should only be hand-tightened. Once all parts are in place, begin tightening the bolts at the
top of the unit first, and work your way down to the floor.
6.INSTALLING FOAM ROLLS and GRIPS: Liquid soap applied to inside of FOAM ROLLS and GRIPS
then outside of TUBES will help FOAM ROLLS and GRIPS slide on easier. When soap dries, the FOAM
ROLLS and GRIPS will stay in place.
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
4904525SQUARE SPACER (50x50)
50045262” ROUND BUSHING
5104527HAND GRIP
5204528ROUND BUMPER
5304529SQUARE BUMPER
5404530FOAM ROLL
5504531FOAM GRIP (LONG)
5604532FOAM GRIP
5704533ANKLE STRAP
5804534DOUBLE STRAP
5904535PT-1 POP PIN
6004536HOOK
6104537CHAIN
6204538WEIGHT SELECTION PIN
6304539LOWER CABLE (SHORT)
6404540BUTTERFL Y CABLE
6504541UPPER CABLE (LONG)
6604542WEIGHT CABLE
6704543f19x215 PRESS BAR SHAFT
6804544f19x150 PRESS BAR SHAFT
69045453/8” X 7” HEX BOL T
70NONE
71045463/8” X 4-3/8” HEX BOL T
72045473/8” X 4-1/8” HEX BOL T
73045483/8” X 4” HEX BOL T
74045493/8” X 3-1/2” HEX BOL T
75045503/8” X 3-5/8” HEX BOL T
76045513/8” X 3-1/4” HEX BOL T
77045523/8” X 3” HEX BOL T
78045533/8” X 2-3/4” HEX BOL T
79045543/8” X 2-1/2” HEX BOL T
80045553/8” X 2” HEX BOL T
81045565/16” X 1” HEX BOL T
82045573/8” X 3/4” HEX BOL T
8304558M10 X 25mm SCREW
84045595/16” X 2-1/2” HEX BOL T
85045605/16” LOCKNUT
86045613/8” LOCKNUT
87045625/8” LOCKNUT
88045635/8” WASHER
89045645/16” WASHER
90045653/8” WASHER
91045663/4” OIL BUSHING
920456712mm BUSHING
930456824mm BUSHING
94045697/16” X 1-1/2” ALLEN SCREW
9504570STOP PL ATE
9604571WEIGHT PLA TE
Qty .
1
2
4
4
3
4
2
2
1
1
1
7
3
1
1
1
1
1
1
1
1
1
4
4
2
1
5
17
7
2
22
2
30
3
2
4
65
6
6
8
161
10
2
2
1
1
1
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
5
Page 6
HARDWARE - 1
(68) 19 x 215 PRESS BAR SHAFT
(67) 19 x150 PRESS BAR SHAFT
(69) 3/8" X 7" HEX BOLT
(71) 3/8" X 4-3/8" HEX BOLT
(72) 3/8" X 4-1/8" HEX BOLT
(73) 3/8" X 4" HEX BOLT
(75) 3/8" X 3-5/8" HEX BOLT
(74) 3/8" X 3-1/2" HEX BOLT
mm
(70) NONE
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
6
Page 7
HARDWARE - 2
(76) 3/8" X 3-1/4" HEX BOLT
(77) 3/8" X 3" HEX BOLT
(84) 5/16" X 2-1/2" HEX BOLT
(78) 3/8" X 2-3/4" HEX BOLT
(79) 3/8" X 2-1/2" HEX BOLT
(80) 3/8" X 2" HEX BOLT
(81) 5/16" X 1" HEX BOLT
(82) 3/8" X 3/4" HEX BOLT
(85) 5/16 "
LOCKNUT
(87) 5/8" LOCKNUT
(89) 5/16"
WASHER
(91) 3/4" OIL BUSHING
(86) 3/8"
LOCKNUT
(88) 5/8" WASHER
(90) 3/8"
WASHER
(83) M10 X 25mm SCREW
(94) 7/16" X 1-1/2" ALLEN SCREW
mm
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
(92) 12mm
BUSHING
7
(93) 24mm
BUSHING
Page 8
PARTS ILLUSTRATIONS - 1
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
8
Page 9
PARTS ILLUSTRATIONS - 2
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
9
Page 10
PARTS ILLUSTRATIONS - 3
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
10
Page 11
Step 1.
IMPORTANT
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING
FIGURE 1
Push three 50mm SQUARE END PLUGS (45) onto LEFT BASE BEAM (2).
Step 2.
Step 3.
Step 4.
Step 5.
Place CENTER VERTICAL FRAME (6) over last set of holes in LEFT BASE BEAM (2) and attach RIGHT BASE
BEAM (1) and CENTER VERTICAL FRAME to LEFT BASE BEAM with 3/8” x 3-5/8” HEX BOL TS (76), 3/8” W ASHERS (90) and 3/8” LOCKNUTS (86).
Attach CENTER FRAME (28) to RIGHT BASE BEAM (1) with 3/8” x 2-3/4” HEX BOL TS (78), 3/8” WASHERS (90) and
3/8” LOCKNUTS (86).
Attach CENTER FRAME (28), at the inside holes, to the LEFT BASE BEAM (2) with 3/8” x 2-3/4” HEX BOL TS (78), 3/
8” WASHERS (90) and 3/8” LOCKNUTS (86).
Attach CENTER FRAME (28) and PULLEY BRACKET PLA TES (3), at outside holes, to the LEFT BASE BEAM (2)
with 3/8” x 3-5/8” HEX BOL TS (76), 3/8” WASHERS (90) and 3/8” LOCKNUTS (86).
NOTE: The short end of the PULLEY BRACKET
PLATES must be facing up as shown.
FIGURE 1
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
11
Page 12
Step 6.
FIGURE 2
Attach RIGHT VERTICAL FRAME (5) to RIGHT BASE BEAM (1) with 3/8” x 3” HEX BOL TS (77), 3/8” WASHERS (90)
and 3/8” LOCKNUTS (86).
Step 7.
Attach LEFT VERTICAL FRAME (7) to LEFT BASE BEAM (2) with 3/8” x 3” HEX BOL TS (77), 3/8” WASHERS (90) and
3/8” LOCKNUTS (86).
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
FIGURE 2
12
Page 13
Step 8.
FIGURE 3

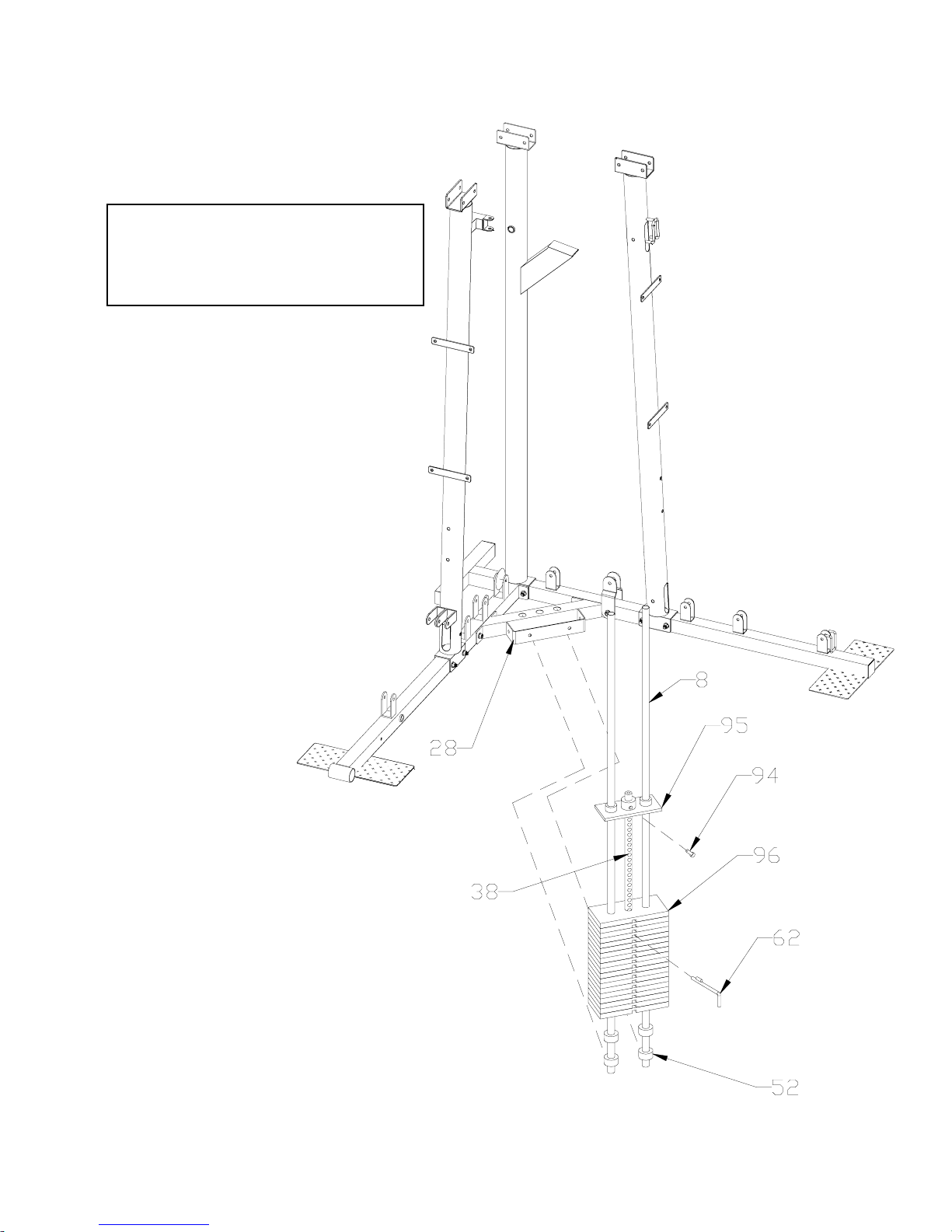

Slide two ROUND BUMPERS (52) onto one end of each GUIDE ROD (8).
Step 9.
Step 10.
Step 1 1.
Step 12.
Insert the GUIDE RODS (8) into the large
outside holes in the CENTER FRAME (28)
with ROUND BUMBERS (52) resting on
CENTER FRAME.
IMPORT ANT: Loading the WEIGHT PLATES
(96) will require two people. One to hold the
GUIDE RODS (8) steady while the other person slides the WEIGHT PLATES down the
GUIDE RODS.
With the SLOTS facing out and on the bottom as shown, slide the WEIGHT PLA TES
(96), one at a time, down the GUIDE RODS
(8).
Insert the SELECTION ROD (38) into the
center hole of the TOP PLA TE (95) and fasten at the end hole with 7/16” x 1-1/2” ALLEN
SCREW (94).
Slide TOP PLA TE (95) down GUIDE RODS
(8) so that SELECTION ROD (38) slides into
the center hole of the WEIGHT PLA TES (96).
Step 13.
Insert WEIGHT SELECTION PIN (62) through
SLOT in WEIGHT PLA TE (96) and through
SELECTION ROD (38).
FIGURE 3
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
13
Page 14
Step 14.
FIGURE 4
Push 50mm SQUARE END PLUGS (45) into ends of LEFT TOP CROSS FRAME (10) and RIGHT TOP CROSS
FRAME (11).
Step 15.
Step 16.
Step 17.
Step 18.
Step 19.
Attach LEFT TOP CROSS FRAME (10) to LEFT VERTICAL FRAME (7) with 3/8” x 3” HEX BOL TS (77), 3/8” W ASHERS (90) and 3/8” LOCKNUTS (86).
Attach RIGHT TOP CROSS FRAME (11) to RIGHT VERTICAL FRAME (5) with 3/8” x 3” HEX BOLTS (77), 3/8”
WASHERS (90) and 3/8” LOCKNUTS (86).
Attach TOP CROSS FRAMES (10 LEFT & 11 RIGHT) to CENTER VERTICAL FRAME (6) with 3/8” x 3-1/4” HEX
BOL TS (76), 3/8” WASHERS (90) and 3/8” LOCKNUTS (86).
Slide the TOP CENTER FRAME (29) down over the GUIDE RODS (8) and fasten with 3/8” x 3/4” HEX BOL TS (82) and
3/8” WASHERS (90).
Attach TOP CENTER FRAME (29) to the LEFT TOP CROSS FRAME (10) and the RIGHT TOP CROSS FRAME (1 1)
with 3/8” x 2-3/4” HEX BOL TS (78), 3/8” WASHERS (90) and 3/8” LOCKNUTS (86).
FIGURE 4
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
14
Page 15
Step 20.
FIGURE 5
Push 50mm SQUARE END PLUGS (45) into each side of BUTTERFL Y EXTENSION (25) and 50mm SQUARE SPACER
(49) over short end.
Step 21.
Step 22.
Step 23.
Step 24.
Step 25.
Attach BUTTERFLY EXTENSION (25) to RIGHT TOP CROSS FRAME (11) with 3/8” x 3” HEX BOLTS (77), 3/8”
WASHERS (90) and 3/8” LOCKNUTS (86).
Thread a 3/8” x 2-1/2” HEX BOL T (79) and 3/8” WASHER down through RIGHT TOP CROSS FRAME (1 1) into BUTTERFL Y EXTENSION (25) and tighten.
Push 2” ROUND END PLUGS (44) into each end of RIGHT BUTTERFL Y (26) and LEFT BUTTERFL Y (27).
Using liquid soap, push a BIG FOAM ROLL (4) over end of BUTTERFL YS (26 RIGHT & 27 LEFT) until flush with end.
Attach BUTTERFL YS (26 RIGHT & 27 LEFT) to BUTTERFL Y EXTENSION (25) with 3/4” OIL BUSHINGS (91), 5/8”
WASHERS (88) and 5/8” LOCKNUTS (87).
NOTE: DO NOT overtighten. BUTTERFL YS must pivot freely .
FIGURE 5
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
15
Page 16
Step 26.
FIGURE 6
Thread a 5/8” LOCKNUT (87) onto one end only of 19 x 215 PRESS BAR SHAFT (67) until flush with end.
Step 27.
Step 28.
Step 29.
Step 30.
Step 31.
Push four 3/4” OIL BUSHINGS (91) into PRESS COLUMN (21).
Place a 5/8” WASHER (88) onto 19 x 215 PRESS BAR SHAFT (67) and slide up against 5/8” LOCKNUT (87).
Insert 19 x 215 PRESS BAR SHAFT (67) through PRESS COLUMN (21) and RIGHT BASE BEAM (1) and fasten with
5/8” WASHER (88) and 5/8” LOCKNUT (87).
Attach PRESS ARM (22), with brackets facing inward as shown, to PRESS COLUMN (21) using 3/8” x 3” HEX BOLT S
(77), 3/8” WASHERS (90) and 3/8” LOCKNUTS (86).
Push three 50mm SQUARE END PLUGS (45)
into PRESS HANDLES (23 RIGHT & 24 LEFT).
Step 32.
Step 33.
Step 34.
Push 1” ROUND END PLUGS (43) into
PRESS HANDLES (23 RIGHT & 24 LEFT).
Attach PRESS HANDLES (23 RIGHT & 24
LEFT) to PRESS ARM (22) with 3/8” x 3”
HEX BOL TS (77), 3/8” WASHERS (90) and
3/8” LOCKNUTS (86).
Using liquid soap, slide LONG FOAM
GRIPS (55) onto PRESS HANDLES (23
RIGHT & 24 LEFT) until flush with end.
FIGURE 6
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
16
Page 17
BLANK P AGE
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
17
Page 18
Step 35.
FIGURE 7
Attach SQUARE BUMPER (53) to the end of SEA T SUPPORT FRAME (15) with M10 x 25mm SCREW (83).
Step 36.
Step 37.
Step 38.
Step 39.
Step 40.
Step 41.
Step 42.
Step 43.
Attach SEAT SUPPOR T FRAME (15) to RIGHT VERTICAL FRAME (5) with 3/8” x 4” HEX BOL TS (73), 3/8” W ASHERS (90), CONNECT PLA TE (36) and 3/8” LOCKNUTS (86).
Push 20mm x 40 RECT ANGLE PLUGS (47) into ends of SUPPORT BEAMS (16) and attach SUPPORT BEAMS to
SEA T SUPPORT FRAME (15) and RIGHT BASE BEAM (1) with 3/8” x 4-1/8” HEX BOL TS (72), 3/8” WASHERS (90)
and 3/8” LOCKNUTS (86).
Push 2” ROUND BUSHINGS (50) into each side of RIGHT BASE BEAM (1).
Push two 50mm SQUARE END PLUGS (45) and four 20mm x 40 RECT ANGLE PLUGS (47) into CONNECT FRAME
(18).
Attach CONNECT FRAME (18) to RIGHT BASE BEAM (1) with 3/8” x 4-3/8” HEX BOL T (71), 3/8” WASHERS (90) and
3/8” LOCKNUT (86).
Slide 50mm x 45mm BUSHINGS (48) over each end of guide tube at top of CONNECT FRAME (18).
Push 45mm SQUARE END PLUGS (46) into ends of FOOT PLA TE EXTENSION (19) and insert FOOT PLATE EXTEN-
SION through 50mm x 45mm BUSHINGS (48) and lock at desired position with “U” LOCK (37).
Slide FOOT PLA TES (20) onto FOOT PLATE EXTENSION (19) and fasten with 3/8” x 3/4” HEX BOLTS (82) and 3/8”
WASHERS (90).
NOTE: DO NOT overtighten. FOOT PLA TES must pivot freely .
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
18
Page 19
FIGURE 7
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
19
Page 20
Step 44.
FIGURE 8
Attach SQUARE BUMPER (53) to the end of LEFT SEA T CUSHION FRAME (17) with M10 x 25mm SCREW (83).
Step 45.
Step 46.
Attach LEFT SEAT CUSHION FRAME (17) to LEFT VERTICAL FRAME (7) with 3/8” x 4” HEX BOLTS (73), 3/8”
WASHERS (90), CONNECT PLA TE (36) and 3/8” LOCKNUTS (86).
Push two 50mm SQUARE END PLUGS (45) into ends of LEG EXTENSION (12) and attach LEG EXTENSION to LEFT
SEA T CUSHION FRAME (17) with 3/8” x 3” HEX BOL T (77), 3/8” WASHERS (90) and 3/8” LOCKNUT (86).
Step 47.
Step 48.
Step 49.
Push 1” ROUND END PLUGS (43) into ends of both FOAM
RODS (32).
Using liquid soap, slide one FOAM ROLL (54) onto end of
both FOAM RODS (32) until flush with end.
Slide FOAM RODS (32) into LEFT SEA T CUSHION FRAME
(17) and LEG EXTENSION (12) then, using liquid soap, slide
other FOAM ROLLS onto FOAM RODS until flush with end.
FIGURE 8
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
20
Page 21
Step 47.
FIGURE 9
Push 2” ROUND END PLUGS (44) and 1” ROUND END PLUGS (43) into PRESS BAR (14).
Step 48.
Step 49.
Step 50.
Step 51.
Using liquid soap, slide FOAM GRIPS (56) onto PRESS BAR (14) until flush with end.
Push 3/4” OIL BUSHINGS (91) into each side of CENTER VERTICAL FRAME (6).
Thread one 5/8” LOCKNUT (87) onto one side of 19 x 150 PRESS BAR SHAFT (68) and slide a 5/8” WASHER (88)
onto 19 x 150 PRESS BAR SHAFT until against 5/8” LOCKNUT .
Place PRESS BAR (14) behind LEFT VERTICAL FRAME (7), not shown in this figure, and attach to CENTER VERTI-
CAL FRAME (6) with 19 x 150 PRESS BAR SHAFT (68), 5/8” WASHER (88) and 5/8” LOCKNUT (87).
FIGURE 9
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
21
Page 22
Step 52.
FIGURE 10
Attach BACK CUSHION (39) to RIGHT VERTICAL FRAME (5) with 3/8” x 3/4” HEX BOL TS (82) and 3/8” WASHERS
(90).
Step 53.
Attach SEA T CUSHION (40) to SEA T SUPPORT FRAME (15) with 3/8” x 3/4” HEX BOL TS (82) and 3/8” W ASHERS
(90).
FIGURE 10
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
22
Page 23
Step 54.
FIGURE 11
Attach BACK CUSHION (39) to LEFT VERTICAL FRAME (7) with 3/8” x 3/4” HEX BOL TS (82) and 3/8” W ASHERS
(90).
Step 55.
Step 56.
Step 57.
Step 58.
Attach SEAT CUSHION (40) to LEFT SEA T CUSHION FRAME (17) with 3/8” x 3/4” HEX BOL TS (82) and 3/8” W ASHERS (90).
Push 45mm SQUARE END PLUG (46) into end of CURL FRAME (13) and attach CURL CUSHION (41) to CURL
FRAME with 3/8” x 3/4” HEX BOL TS (82) and 3/8” WASHERS (90).
Thread PT-1 POP PIN (59) into LEG EXTENSION (12) until tight.
Pull out on PT-1 POP PIN (59), insert CURL FRAME (13) into LEG EXTENSION (12) and release PT-1 POP PIN to
lock in desired position.
FIGURE 1 1
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
23
Page 24
Step 59.
FIGURE 12
Attach SINGLE PULLEY BRACKETS (35) to RIGHT VERTICAL FRAME (5) with 5/16” x 2-1/2” HEX BOL TS (84), 5/16”
WASHERS (89) and 5/6” LOCKNUTS (85).
Step 60.
Step 61.
Step 62.
Step 63.
Step 64.
Attach PULLEYS (42) to SINGLE PULLEY BRACKETS (35) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS (90) and
3/8” LOCKNUTS (86).
Attach a PULLEY (42) to one side of DOUBLE PULLEY BRACKET (34) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS
(90) and 3/8” LOCKNUTS (86).
Attach one end of BUTTERFL Y CABLE (64) to RIGHT BUTTERFL Y (26) with 5/16” x 1” HEX BOL T (81) 5/16” WASH-
ERS (89) and 5/16” LOCKNUT (85).
See DET AIL, and thread BUTTERFL Y CABLE (64) over top of PULLEY (42) in SINGLE PULLEY BRACKET (35), then
under PULLEY in DOUBLE PULLEY BRACKET (34) and up through other SINGLE PULLEY BRACKET over top of
PULLEY.
Attach BUTTERFL Y CABLE (64) to LEFT BUTTERFL Y (27) with 5/16” x 1” HEX BOLT (81) 5/16” W ASHERS (89) and
5/16” LOCKNUT (85).
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
24
Page 25
27
26
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
FIGURE 12
25
Page 26
Step 65.
FIGURE 13
Attach a PULLEY (42) at upper hole of CONNECT FRAME (18) with 3/8” x 4-1/8” HEX BOL T (72), 3/8” WASHERS (90)
and 3/8” LOCKNUT (86).
Step 66.
Step 67.
Step 68.
Step 69.
Step 70.
Step 71.
Step 72.
Step 73.
Step 74.
Attach one PULLEY (42) to the PRESS COLUMN (21) with 3/8” x 7” HEX BOL T (69), 3/8” WASHERS (90) and 3/8”
LOCKNUT (86).
Attach two PULLEYS (42) to the double bracket of the PRESS COLUMN (21) and double bracket at bottom of RIGHT
VERTICAL FRAME (5) with 3/8” x 3-1/2” HEX BOL TS (74), 3/8” W ASHERS (90) and 3/8” LOCKNUT (86).
Attach PULLEYS (42) to the three single brackets on the RIGHT BASE BEAM (1) with 3/8” x 2” HEX BOLTS (80), 3/
8” WASHERS (90) and 3/8” LOCKNUT (86).
Attach PULLEY (42) to other end of DOUBLE PULLEY BRACKET (34) with 3/8” x 2” HEX BOL TS (80), 3/8” WASH-
ERS (90) and 3/8” LOCKNUT (86).
Attach PULLEYS (42) to the two single brackets on the RIGHT TOP CROSS FRAME (1 1) with 3/8” x 2” HEX BOL TS
(80), 3/8” WASHERS (90) and 3/8” LOCKNUT (86).
Attach PULLEU (42) in slot of RIGHT TOP CROSS FRAME (1 1) with 3/8” x 2-1/2” HEX BOLT (79), 3/8” WASHERS
(90), 12mm BUSHINGS (92) and 3/8” LOCKNUT (86).
Attach one PULLEY (42) to DOUBLE PULLEY BRACKET (33) with 3/8” x 2” HEX BOL TS (80), 3/8” WASHERS (90)
and 3/8” LOCKNUT (86).
Insert eye end of the UPPER CABLE (65) up through slot in RIGHT TOP CROSS FRAME (1 1) and over PULLEY (42).
See DETAIL, and continue to route the cable as shown.
Step 75.
Step 76.
Step 77.
Attach the eye end of the UPPER CABLE (65) at the lower hole in the CONNECT FRAME (18) with 3/8” x 4-1/8” HEX
BOL T (72), 3/8” WASHERS (90) and 3/8” LOCKNUT (86).
Using liquid soap, slide HAND GRIPS (51) onto each end of LA T BAR (30).
Attach LA T BAR (30) to UPPER CABLE (65) with HOOK (60) or with two HOOKS and CHAIN (61).
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
26
Page 27
1
18
21
FIGURE 13
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
27
Page 28
Step 78.
FIGURE 14
Insert cable adjuster end of WEIGHT CABLE (66) through slot in LEFT VERTICAL FRAME (7) down in front of PRESS
BAR (14).
Step 79.
Step 80.
Step 81.
Step 82.
Step 83.
Step 84.
Step 85.
Thread cable adjuster of WEIGHT CABLE (66) into SELECTION ROD (38) about 3 or 4 turns and tighten locking nut
against SELETCTION ROD.
NOTE: Over time the cables will need to be adjusted to remove excess slack. This can be done by threading the cable
adjuster into the SELECTION ROD until the slack has been removed and then tighten locking nut against SELECTION
ROD.
Push 23mm BUSHINGS (93) into each side of LEFT VERTICAL FRAME (7) on each side of slot.
NOTE: Attachment of the five PULLEYS (42) used with the WEIGHT CABLE (66) will require the WEIGHT CABLE be
placed in groove of PULLEY as it is attached.
Attach PULLEY in slot of LEFT VERTICAL FRAME (7) with 3/8” x 3-5/8” HEX BOL T (75), 3/8” WASHER (90) and 3/8”
LOCKNUT (86).
Attach PULLEY (42) between PULLEY BRACKET PLA TES (3) with 3/8” x 2” HEX BOL T (80), 3/8” WASHER (90) and
3/8” LOCKNUT (86).
Attach PULLEY (42) to bracket on bottom of PRESS BAR (14) with 3/8” x 2” HEX BOL T (80), 3/8” WASHER (90) and
3/8” LOCKNUT (86).
Attach PULLEY (42) to bracket on bottom of TOP CENTER FRAME (29) with 3/8” x 2” HEX BOL T (80), 3/8” WASHER
(90) and 3/8” LOCKNUT (86).
Attach a PULLEY (42) to one end of second DOUBLE PULLEY BRACKET (33) with 3/8” x 2” HEX BOL T (80), 3/8”
WASHER (90) and 3/8” LOCKNUT (86).
Step 86.
Attach DOUBLE STRAP (58) to end of WEIGHT CABLE (66) with HOOK (60).
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
28
Page 29
7
29
3
FIGURE 14
CABLE
ADJUSTER
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
29
Page 30
Step 87.
FIGURE 15
Insert the eye end of the LOWER CABLE (63) through slot at bottom of LEFT VERTICAL FRAME (7) and under
PULLEY (42) attached between the PULLEY BRACKET PLA TES (3).
Step 88.
Step 89.
Step 90.
Step 91.
Step 92.
Step 93.
Step 94.
Step 95.
Attach eye end of LOWER CABLE (63) to T AB on RIGHT BASE BEAM (1) with HOOKS (60) and CHAIN (61).
NOTE: When removing slack from cables, first adjust CHAIN to remove most of the slack. Then adjust the cable
adjuster for small amounts.
NOTE: Attachment of the eight PULLEYS (42) used with the LOWER CABLE (63) will require the LOWER CABLE be
placed in groove of PULLEY as it is attached.
Attach PULLEY to upper DOUBLE PULLEY BRACLET (33) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS (90) and
3/8” LOCKNUT (86).
Attach PULLEY (42) to end bracket of RIGHT BASE BEAM (1) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS (90) and
3/8” LOCKNUT (86).
Attach PULLEY (42) to other DOUBLE PULLEY BRACKET (33) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS (90)
and 3/8” LOCKNUT (86).
Attach PULLEY (42) to end bracket of LEFT BASE BEAM (2) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS (90) and
3/8” LOCKNUT (86).
Attach PULLEY (42) to bracket next to LEFT VERTICAL FRAME (7) with 3/8” x 2” HEX BOL T (80), 3/8” W ASHERS
(90) and 3/8” LOCKNUT (86).
Attach PULLEY (42) to bracket on LEG EXTENSION (12) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS (90) and
3/8” LOCKNUT (86).
Attach PULLEYS (42) to last two brackets on LEFT BASE BEAM (2) with 3/8” x 2” HEX BOL T (80), 3/8” WASHERS
(90) and 3/8” LOCKNUT (86).
Step 96.
Attach CURL BAR (31) or ANKLE STRAP (57) to end of LOWER CABLE (63) with HOOK (60) or HOOKS and CHAIN
(61).
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
30
Page 31
12
1
7
FIGURE 15
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
3
2
31
Page 32
Step 97.
FIGURE 16
Attach SHROUD (9) to CENTER FRAME (28) and TOP CENTER FRAME (29) with 3/8” x 3/4” HEX BOL TS (82) and
3/8” WASHERS (90).
FIGURE 16
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
32
Page 33
BLANK P AGE
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
33
Page 34
BLANK P AGE
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
34
Page 35
Universal Fitness™ Limited Warranty
Universal Fitness™ (a division of FF Acquisition Corp.) warrants to the original owner of this Universal Fitness™ 70000 Series
Weight Bench, the following components to be free from defects in material and workmanship for the period specified. To
establish warranty rights, the purchaser must retain the bill of sale. This warranty is only valid if the equipment is purchased
from an authorized Universal Fitness™ dealer for home use.
Any Commercial, Light Commercial or Institutional use voids this warranty . Defective parts will be repaired or replaced
at the option of Universal Fitness™. All labor is the responsibility of the owner.
Warranty Period (begins at date of purchase)
COMPONENTPERIODCOMPONENTPERIOD
FrameLifetimeBushing/Bearings1 Y ear
Weight Plates1 Y earCable/Pulleys1 Y ear
Foam Rolls1 YearSeats and Back Cushions3 Years
All other90 Days
EXCEPTIONS AND CONDITIONS
Failures due to improper assembly, neglect, alteration or modification, damage, misuse, repairs other than by an Universal
Authorized Service Center or lack of maintenance (see Owners Manual) are not covered by this warranty . This warranty does
not cover damages sustained during shipment or transportation of equipment. Any damage in transit should be filed with the
carrier.
Please note that it is our policy to replace components and not entire machines or assemblies. We may also first attempt to
repair structural components to make them functional as designed, the result of which may be visible. Repair of the products as
provided under this warranty is the exclusive remedy of the customer.
The coated steel frame is rust-resistant in most settings. However, rusting/corrosion is outside the scope of the warranty . W e
recommend that if this machine is to be installed in high humidity areas (like outdoors, near a pool or by a hot tub, etc.), the
owner apply an automotive wax to delay the onset of corrosion. Sweat, cleaner, body lotions and sunlight can be corrosive and
are the responsibility of the owner.
Universal Fitness™ shall not be responsible for injury , loss of use of the Universal Fitness™ product, inconvenience. Loss of
damage to personal property, weather direct or indirect, and incidental or consequential damages. This warranty and all
warranties that may be implied under state law, including but not limited to warranties of merchantability and warranties of
fitness for any purpose, expire with transfer of ownership from the original owner. Any implied warranty of merchantability or
fitness for any particular purpose shall be limited for one year.
Replacement and repair Expenses
Universal Fitness™ will prepay for shipment of replacement /repair parts to owner by standard ground transportation as long as
it falls under the “warranty of the product”. All other cost are the responsibility of the owner of the machine (for example: labor
charges for service, removal, reinstallation or shipping/handling/delivery charges for returning component to Universal Fitness™).
How To Make A Warranty-Covered Claim
Should your machine require warranty service, please first contact the Universal Fitness™ Authorized Dealer from which you
purchased this machine. Y our dealer may offer you assistance in making the warranty claim or may be a Universal Fitness™
Authorized Service Center. Before contacting either your dealer or Universal Fitness™, please do the following:
1.Refer to the parts list in your Owners Manual to help identify the part numbers of the part/component on question.
2.Write down the serial number (located on the frame).
3.Have available a copy of your dealer’s bill of sale (with date of purchase indicated).
If your dealer is unable to help you, please use the following number to contact Universal Fitness™ about your warranty claim:
[1-800-521-6233 (US), 1-800-707-1880 (Canada)] between the hours of 8:00 am and 5:00 pm (CST). Or write to Universal
Fitness™ (a Division of FF Acquisition Corp.), Attn.: Customer Service-Parts P O Box 1296 West Point, MS 39773
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
Point MS 39773. Web sight www .universal-fitness.com
35
Page 36
Owner’s Purchase Record
Universal Eight Station PLUS Corner Gym (Model # 75015)
Date Purchased
Purchased From
Serial Number
IMPORT ANT
Save your sales receipt.
You may wish to tape or staple it into the manual.
Revised 1 1.04.02
No part of this booklet may be reproduced or utilized in any form by any means, electronic, mechanical or
otherwise, without the expressed written consent of the copyright holder.
DO NOT T AKE or SEND PRODUCT BACK to where this product was purchased. Please contact Universal Fitness/FFA Corp.
for missing or defective parts at one of the following: Phone 1-800-521-6233 or Fax 1-662-495-5038 or E-mail at
