Unitek ALPHA 750 PS, ALPHA 1200 PS, ALPHA 1000 PS User Manual

Manual del usario

User’s manual

Manual do utilizador

ALPHA

750/1000/1200 PS

SAI in-line 750/1000/1200 VA

750/1000/1200 VA in-line UPS

UPS IN-LINE 750/1000/1200 VA

www.unitekpoweronline.com

TABLE OF CONTENT

1. Overview – System Description

1-1. Introduction
1-2. System Description

2. Installation and Operation

2-1. Installation
2-2. Operation

3. Led and Alarm Indication

3-1. Alarm Indication
3-2. Led Indication

4. Caution

5. Trouble shooting

1. Overview
1-1 Introduction

The PS family of UPS (Uninterruptible Power Supply), is a line interactive device with
features conceived to provide an excellent protection to computers (PC), networks,
workstations and small capacity internet devices.

The PS family has an Automatic Voltage Regulator (AVR) that allows to operate in stable
conditions under varations of the main power, without the need to get into battery or
backed up mode. This features results in in extended battery life.

The family uses a RISC (Reduced Instruction Set Computer), that provides greater
operational flexibility: 1) “Delayed turn on”. During the turn on process the microprocessor
analizes the main power in order to ensure that it is in adequate conditions for the unit to
operate. 2) Green Power function. 3) “Overload Detection” and desactivation of the load if
the overload persists during a predetermined time. Additionally, the PS family has surge
protection, nosie filtering and fax/modem protection.

SPECIFICATIONS:

UPS UNITEK

MODEL

ALPHA 750Ps, 1000Ps & 1200Ps

CAPACITY

VA/W

750VA/360W, 1000VA/480W & 1200VA/600W

INPUT

Voltage

220, 230, 240VAC

Voltage Range

+/- 25%

Frequency

50Hz / 60Hz Auto sensing

OUTPUT

Voltage

220, 230, 240VAC

Voltage Regulation

+/- 10% with Automatic Voltage Regulation

Frequency

50Hz or 60Hz
Frequency Regulation
(Battery Mode)

+/- 0.5%

Output Waveform

Modified Sinewave

Topology

Line Interactive

Transfer Time

4ms Typical

Number of sockets

4 IEC with Back-up

BATTERY

Battery Type

Sealed, Lead Acid, Maintenance Free,

Rechargeable
Battery Quantity and
Capacity

1 x 12V/7.2AH, 1 x 12V/7.2AH & 1 x 12V/9AH

Recharge Time

4 Hours to 90% after complete discharge

Protection

Self-Diagnostics Upon Power On

INDICATOR

AC Mode

Green LED lighting

Battery Mode

Yellow LED lighting

Fault

Red LED lighting

AUDIBLE
ALARM

Battery Mode

Sounding every 4 seconds / Alarm Reset

Function

Low Battery

Sounding every second

Overload

Continuously sounding

PROTECTION

Switch Function

UPS Automatic Switch for City Power &

Battery

Unit Input

Fuse for Overload & Short Circuit Protection

Overload Protection

UPS Automatic Shutdown if Overload:

Over 110% of Nominal at 60 Seconds and

130% at 5 Seconds

Short Circuit

UPS Output Cut Off Immediately and Input

Fuse Protection

Spike Protection

80 Joules, Over 2ms

Green Mode

Inverter will Automatically Shutdown without

Load

Modem / Network

RJ-11

APPROVALS

Noise Suppression

MEETS CE (EN 50091) and FCC Class B

Surge Suppression

MEET IEEE 587

PHYSICAL

Dimension, DxWxH

275 x 110 x 202 (mm)

Weight: Net / Gross

5.3 / 5.8 (kgs), 5.9 / 6.4 (kgs) & 6.5 / 7 (kgs)

ENVIRONMENT

Altitude

Less than 5000 meters

Temperature

0 °C ~ 50 °C

Relative Humidity

0 ~ 90 % (non-condensing)

Audible Noise Level

Less than 40dB (1 meter from surface)

INTERFACE

Smart RS-232 or USB,
cable included

Support Windows: 95, NT4.0, 98SE, ME, 2K,

XP, Server2003

Linux: Redhat7.0~7.3 & Mandrake8.2, Novell:

4.X & 5.1

www.unitekamerica.com

1-2 System Description

1. Full digital microprocessor controlled

2. Power saving and sleeping mode

3. Boost and buck AVR (Auto Voltage Regulation)

4. Smart communication port (USB)

5. Fax/Modem/Network surge suppression

6. 50/60Hz auto detecting

7. Cold start function (DC power on)

8. Short Circuit and overload protection

9. Automatic diagnostics & battery check while power on

10. Attractive smart color combination

11. Elegant outlook for both vertical and horizontal positioning

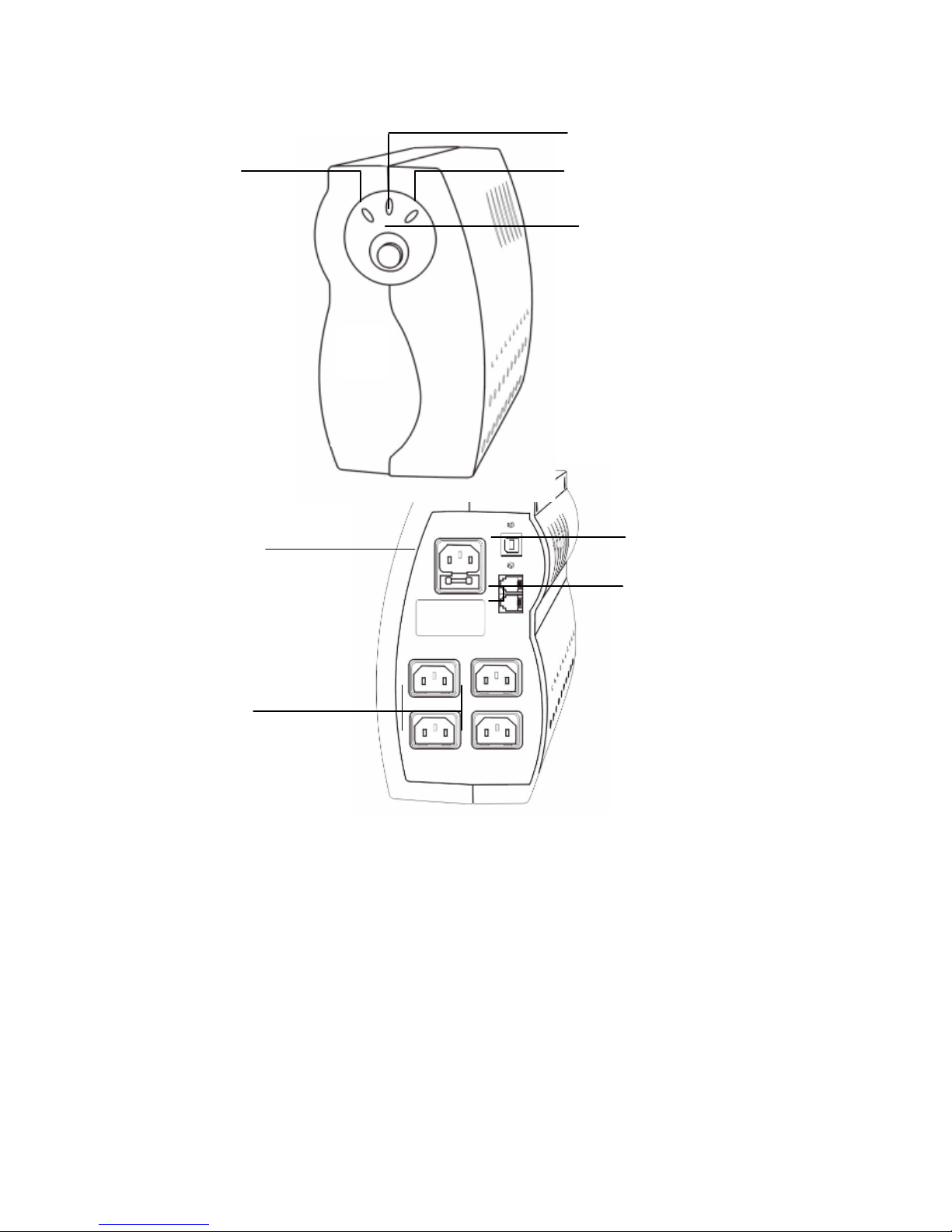

Orange LED
Indicator:­Battery Mode

Front Panel

Red Led Indicator: ­Battery Low/
Overload

Green Led indicator:­AC Mode

Modem / Phone Line
Surge Protection

AC Input
with Fuse

IEC
Output
Receptacles

Rear Panel

2. INSTALLATION AND OPERATION
2-1. Installation

The following steps explain how to install the UPS to your PC.
Step 1. Assure AC power source output voltage is in the UPS
Requires voltage range specified on the rear panel.
Step 2. Plug the UPS power cord into a wall outlet or other
Power source.
Step 3. Plug the personal computer (PC) into the UPS output.
Step 4. Start the UPS by pressing the ON/OFF button for 4 seconds.
After the UPS turns on, it conducts a self-test and enters
Normal AC power mode. The AC power green LED indicator
illuminates indicating that power is available from the rear

receptacles.
Step 5. Shutdown the UPS by pressing ON/OFF button for 6 seconds
untill Red LED indicator illuminate.

2-2. OPERATION

2-2-1. Turning the UPS ON
Press the power ON/OFF on the front panel. After the UPS green
LED is turned on. It conducts a self-test and enters normal mode.
2-2-2. Starting the UPS on battery
To turn on the UPS without using AC power, press ON/OFF button

and Hold for 6 seconds to conserve battery power

(The UPS does not conduct Self-test when UPS start on battery).
2-2-3. Turning The UPS OFF
Press the power ON/OFF on the front panel when UPS power off.

It would not in standby mode Indicator

3. LED and Alarm Indication:
3-1. LED indication

GREEN

ORANGE

RED
AC power mode
(UPS ON)

AC power failure and
Switch to battery mode

UPS fault overload

3-2. Alarm indication

Beep Every 4
seconds

Beep Every 1
Second

Beep
Continuously

Beep Every 0.5
second
UPS runs on battery
Mode. Press ON/OFF
button for 6 seconds
to stop Beep

Low battery
Warning

Battery overload
warning

Battery Low
