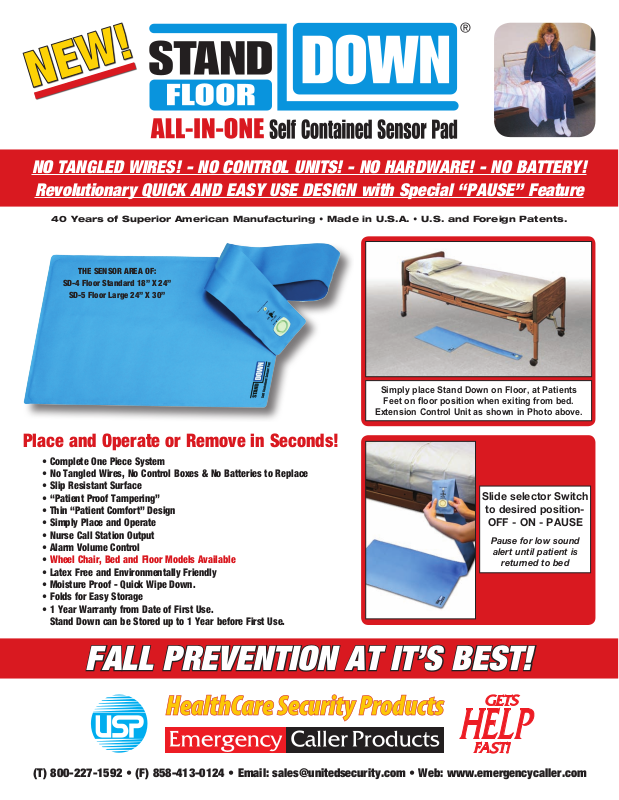

Page 1
NO TANGLED WIRES! - NO CONTROL UNITS! - NO HARDWARE! - NO BATTERY!
Revolutionary QUICK AND EASY USE DESIGN with Special “PAUSE” Feature
40 Years of Superior American Manufacturing • Made in U.S.A. • U.S. and Foreign Patents.
THE SENSOR AREA OF:
SD-4 Floor Standard 18” X 24”
SD-5 Floor Large 24” X 30”
Simply place Stand Down on Floor, at Patients
Feet on floor position when exiting from bed.
Extension Control Unit as shown in Photo above.
Place and Operate or Remove in Seconds!
• Complete One Piece System
• No Tangled Wires, No Control Boxes & No Batteries to Replace
• Slip Resistant Surface
• “Patient Proof Tampering”
• Thin “Patient Comfort” Design
• Simply Place and Operate
• Nurse Call Station Output
• Alarm Volume Control
• Wheel Chair, Bed and Floor Models Available
• Latex Free and Environmentally Friendly
• Moisture Proof - Quick Wipe Down.
• Folds for Easy Storage
• 1 Year Warranty from Date of First Use.
Stand Down can be Stored up to 1 Year before First Use.
Slide selector Switch
to desired position-
OFF - ON - PAUSE
Pause for low sound
alert until patient is
returned to bed
FALL PREVENTION AT IT’S BEST!
(T) 800-227-1592 • (F) 858-413-0124 • Email: [email protected] • Web: www.emergencycaller.com
Page 2
Floor Monitoring System
INSTRUCTIONS – QUICK START GUIDE
STAND DOWN is a completely self-contained floor monitoring
system. There are no plugs to connect, wires to route, or alert
units to locate. Simply position the sensing pad, place patient,
and move the tamper resistant slide selector switch to the ON
position.
Stand down Floor Sensor Pad may also monitor patient
visits to Toilet, in Room areas, Door Areas when leaving
room or areas such as Dementia, Medicated or Alzheimer’s
patients and many other applications.
1. SYSTEM PLACEMENT
Locate Stand Down Sensor Pad Along side and Exit area
of Bed. Place Extension Control Unit toward lower area or
foot end of Bed, slightly Under edge of bed. Stand Down
Detects Patient Weight on Sensor Pad and Sounds Alarm.
2. MONITORING
With patient positioned and laying in bed, hold the Exten-
sion Control Unit with one hand and move the slide selector from the OFF, or down position, to the ON, or center
position. See Photo for slide selector location.
The system will not alarm as long as the patient remains in
bed. If the patient attempts to exit from bed, alarm will sound.
When patient returns to Bed position, or removes weight
from Sensor Pad the system will automatically reset with no
alarm sound and monitoring will resume. Alarm Volume may
be adjusted with Alarm Volume Control.
If a patient is being escorted from the bed to a Temporary
non-bed activity, the slide selector switch may be moved
to the PAUSE, position. To remind caretaker to return selector switch to ON position when patient returns to Bed
position.
In Pause position, the alert unit emits low-volume beeps
indicating that the system is “standing by” and neither
monitoring (ON) or completely out-of-service (OFF).
If Nurse Call Station monitoring is desired, connect ac-
cessory cable to Nurse Call Output jack on Stand Down
sensor pad, other end to Nurse Call Station using “Y” plug
adapter accessory.
3. END MONITORING SESSION
Locate slide selector and move it to OFF, or down
position.
4. STORAGE AFTER USE
The STANDDOWN monitoring system may be loosely
rolled, or loosely folded through its length for storage.
Please follow the instructions on the bottom of the Pad to
avoid damage and voiding warranty.
5. CLEANING
STANDDOWN is moisture proof and may be cleaned with
standard healthcare disinfectants. Do not immerse in water.
6. TESTING AND E.O.L.
Caregivers should test the disposable STANDDOWN sys-
tem before each use by applying pressure to the Pad with
their hand, moving the slide switch to ON, and removing
hand pressure. If STANDDOWN fails to alarm, immediate
replacement is required.
Thank you for choosing…
United Security Products
(T) 800-227-1592
(F) 858-413-0124
Email: [email protected]
Web: www.emergencycaller.com
U.S. and Foreign Patents
MADE IN U.S.A.
